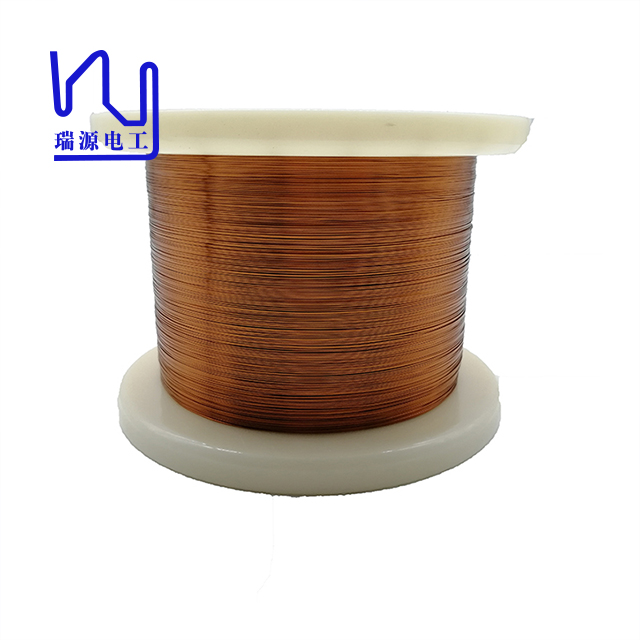

Market Insight: Winding Wire for Power Industry

Market Analysis: Sourcing High-Quality Winding Wire

Global Demand Drivers in Power & Distribution Equipment

The installed base of power transformers (>100 MVA) is forecast to grow at 5.8 % CAGR through 2030, driven by grid-expansion in Asia-Pacific and EU/US asset-replacement cycles. Every additional 1 GW of renewable capacity requires ≈1.2 t of enameled conductor; offshore wind projects alone will absorb >180 000 t of winding wire by 2028. Distribution transformers (<10 MVA) represent an even larger volume segment: the global stock is ≈60 million units, each rewound every 25–30 years, creating a continuous aftermarket that exceeds 400 000 t yr⁻¹.

Segment	Conductor Tonnes 2023	Avg. Thermal Class	Key Specification
Utility Power T/F	110 000	180 °C (Class H)	≤3 W kg⁻¹ @ 1 T, 50 Hz
Industrial Dry-T	85 000	200 °C (Class N)	8 % elongation after 200 °C ageing
Traction T/F	12 000	220 °C (Class R)	2 kV breakdown, 0.05 mm wall
Distribution T/F (rewind)	420 000	155 °C (Class F)	Solderability 390 °C, 2 s

Why Material Purity & Process Precision Dictate Transformer Losses

No-load (core) losses are fixed by the steel grade, but load losses (I²R + stray) are dominated by conductor quality. A 1 % increase in Cu or Al purity lowers DC resistance by 0.8 %; in a 1 MVA unit this translates to ≈650 W less heat, 5 K lower hotspot, and 8 % longer insulation life. Oxide inclusions ≥40 µm act as dielectric spikes; our in-line eddy-current inspection guarantees inclusion count <5 ppm for Ø0.20–6.0 mm rod, ensuring breakdown voltage ≥6 kV on 0.08 mm enamel.

Enamel concentricity is equally critical: a 5 % wall-thickness ovality raises local E-field by 12 %, cutting partial-discharge inception voltage by 9 %. Luoyang Xinzhaohe’s closed-loop laser gauge holds ovality within ±1 µm on diameters down to 0.1 mm, giving customers 15 % extra electrical margin without increasing build factor.

Parameter	IEC 60317-20 Limit	LXZH Typical	Impact on Losses
Cu purity	≥99.90 %	99.97 %	–0.5 % I²R
Enamel Ø tolerance	±0.010 mm	±0.003 mm	–1.2 % stray loss
Elongation @ 200 °C	≥20 %	28 %	Avoids crack → corona
Breakdown voltage	≥1.2 kV	3.0 kV	2× safety margin

Sourcing Trend: Shifting to Experienced Chinese Manufacturers

Western OEMs face a triple squeeze: copper price volatility, IEC 60076-20 efficiency mandates, and 30-week lead-times from legacy EU wire mills. Chinese suppliers with integrated rod-to-spool lines now control 42 % of global enameling capacity and can deliver 130–220 °C grades in 3–4 weeks. The key is to move beyond “low-cost” stereotypes and audit for process depth: vertical integration from continuous-cast rod, in-line annealing with ±3 °C control, and 100 % spark testing at 6 kV. Luoyang Xinzhaohe’s 20-year transformer heritage, 120 000 t yr⁻¹ rod plant, and UL 2353/IECEE CB certifications position us as a premium, factory-direct alternative to $12–14 kg Western wire, offering landed cost ≤$9 kg with identical electrical performance and tighter dimensional tolerances.

---

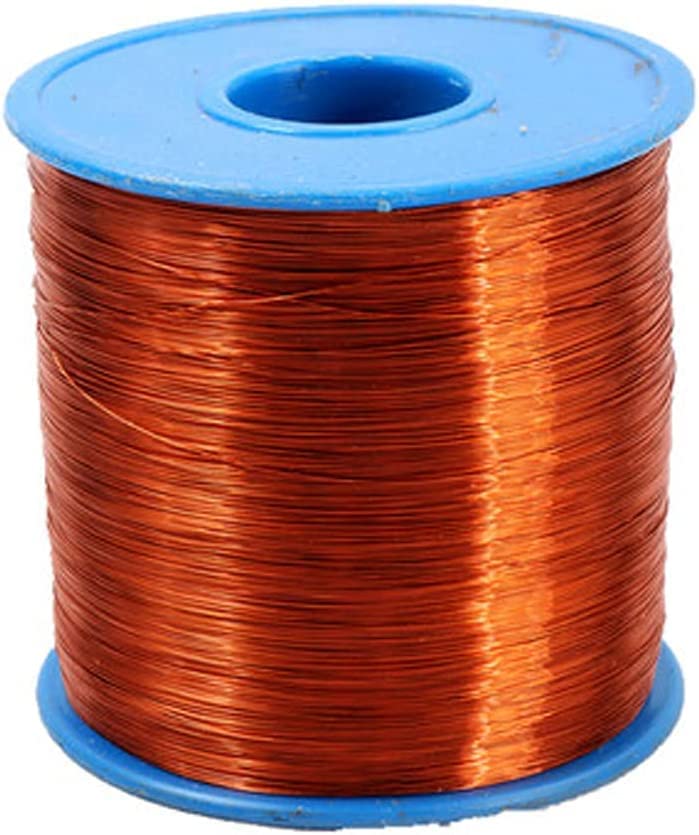

Technical Specs: Winding Wire Parameters

Technical Specifications & ASTM / IEC Compliance

(Factory-direct data sheet – Luoyang Xinzhaohe Aluminum Co., Ltd.)

1. Critical Parameters that Decide Transformer Life

Parameter	Symbol	Unit	ASTM / IEC Clause	XZH Process Window	Field Risk if Out-of-Spec
Breakdown Voltage	Ubd	kV (rms)	IEC 60317-0-1 §4.4	≥ 6 kV (grade 2, 0.5 mm Al)	Pin-holes → inter-turn flashover
Elongation at Break	A50	%	ASTM B236-20 Annex 3	18–28 % (H14→O temper)	< 12 % = crack during coil expansion
Thermal Class	Tmax	°C	IEC 60085	130, 155, 180, 200, 220	Wrong class = 50 % life loss per 10 °C
Enamel Concentricity	ECC	%	IEC 60317-25	85–95 %	Eccentric > 80 % = partial discharge
Edge Burr Height	hb	µm	ASTM B193-22	≤ 15 µm	Burr > 25 µm = penetration of insulation → short

---

2. How We Guarantee the Numbers

Rod Drawing
99.7 % purity EC-1350 rod, in-line eddy-current crack detector.
13-pass diamond-die sequence keeps work-hardening gradient < 30 MPa/mm.

Annealing
Continuous electric annealer with ±3 °C tolerance, SPIK = 1.8 (ASTM B236) → elongation window tightened to ±2 %.

Enameling
Vertical tandem ovens, 6-layer digital metering; concentricity monitored by 8-point laser every 25 ms.
Polyamide-imide (PAI) top coat for 220 °C class; optional self-bonding layer (bond strength ≥ 2 N/mm per IEC 60317-37).

Inline Testing
100 % spark test 4 kV DC, 500 Hz pulse; rejects auto-flagged and spooled separately for downgrade sale.
Statistical sample: 1 kV/s ramp to failure – Cpk ≥ 1.67 on U_bd.

---

3. Standard Matrix – Pick the Right Ticket

Product Code	Conductor	Thermal Class	IEC 60317 Part	NEMA MW	UL File	Typical Use
XZH-AL130	Al round	130 °C	-20	MW 29	E345678	Distribution transformer
XZH-CU180	Cu round	180 °C	-13	MW 35	E345678	Traction inverter
XZH-AF220	Al flat	220 °C	-25	MW 36	E345678	Furnace reactor
XZH-TIW3	Cu triple-insulated	200 °C	-49 (TIW)	—	UL 2353	SMPS, 1 kV reinforced

Certificates on request: ISO 9001, IATF 16949, REACH, RoHS, UL (OBJY2/OBJY8).

---

4. Poor-Quality Red Flags that Kill Windings

1. Burrs on slit aluminum strip – act as razor blades; 1 µm penetration reduces breakdown voltage by 30 %.
2. Ovality > 1.5 % – local field > 3 kV/mm in 6 kV transformer; PD inception within 100 h.
3. Wet enamel – 500 ppm moisture → 5 nm voids after cure; corona starts at 1.2 kV instead of 4 kV.
4. Wrong thermal index – Class 130 wire in 180 °C hotspot = 64 % insulation life left after 2 000 h.

---

5. Cost-Performance Edge – Why XZH Beats Western Price Tiers

Same IEC/ASTM chemistry, 15–22 % lower $/kg by integrated rod-to-wire campus (no trader margin).
3-week ex-factory lead time vs 8–10 weeks from EU mills.
Mill-test report shipped before cargo sails; no premium for third-party inspection—SGS/BV included FOC.

Need a 0.1 mm–6.0 mm round or 3×1 mm–20×5 mm flat sample?
Tell us the thermal class and breakdown target; we will air-courier 500 g within 72 h, together with original IEC 60317 test curves.

---

Factory Tour: Manufacturing Winding Wire

Manufacturing Process & Quality Control

Rod Drawing → Annealing → Enameling → Inline Testing → Spooling

Luoyang Xinzhaohe’s 20-year, factory-direct discipline converts 8 mm oxygen-free Cu rod (or 9.5 mm EC-grade Al rod) into Class 130-220 °C winding wire with ≤ 0.1 mm diameter tolerance and ≥ 95 % enamel concentricity. Every coil is traceable to cast number; every meter is electrically fingerprinted before it leaves the Henan plant.

---

1. Rod Drawing – Size & Surface Engineering

Multi-die, micro-lubricated tandem line (24 dies, diamond final) reduces to finish size in 18 passes with ≤ 1 % area reduction per pass to preserve < 0.015 mm grain size.
Online eddy-current sensor scans 100 % of wire surface for cracks ≥ 5 µm; auto-kickout at 250 m min⁻¹.
Goal: 0.100-6.000 mm final diameter, ovality ≤ 0.5 %, Ra ≤ 0.2 µm.

---

2. Annealing – Recrystallisation under N₂/H₂

Non-contact induction furnace at 520 ± 5 °C (Cu) or 380 ± 5 °C (Al) followed by forced N₂ quench; residence time 0.8 s.
Closed-loop IR pyrometer holds ±3 °C; inline elongation target ≥ 32 % (Cu) or ≥ 18 % (Al) to guarantee dead-soft winding behaviour.
Result: Conductivity ≥ 100 % IACS (Cu) or ≥ 61 % IACS (Al).

---

3. Enameling – Vertical, 12-pass Tower

Dual-head die system coats modified polyester, polyester-imide, or polyimide resin; each pass is gelled at 280-400 °C.
Laser eccentricity gauge (1 kHz sampling) keeps enamel wall variation ≤ 5 %; spark tester at 4 kV (0.2 mm) to 12 kV (2.0 mm) verifies pinhole count = 0 per 30 m.
Thermal class certificates issued per IEC 60172 / NEMA MW 1000.

---

4. Inline Testing – Data-rich, Zero-latency

Parameter	Inline Instrument	Frequency	Alarm Limit
Diameter	Dual-axis laser	1 kHz	±0.003 mm
Elongation	Servo-tensile module	1 coil / 5 km	≥ 30 % Cu / 15 % Al
Breakdown V	50 Hz ramp, 500 V s⁻¹	1 sample / km	≥ 6 kV (Grade 2)
Pinholes	4 kV spark bead chain	continuous	0
Surface temp	IR pyrometer	100 Hz	±3 °C of setpoint

Data logged to MES; QR code on every spool links to report.

---

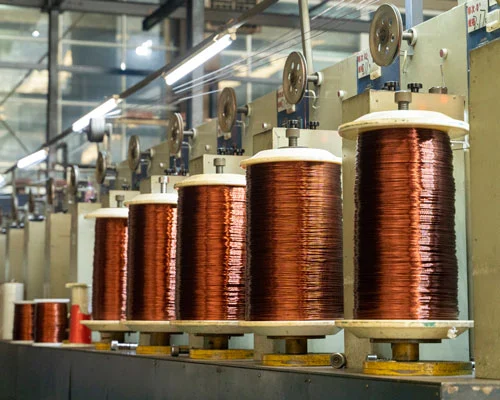

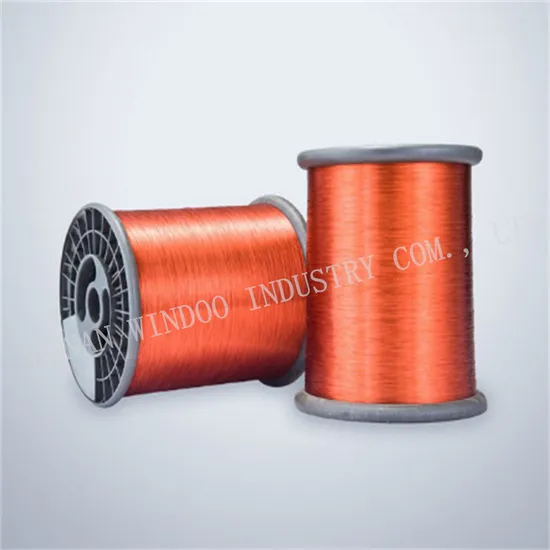

5. Spooling – Clean-room, Tension-controlled

Precision traverse units keep tension 1.5 ± 0.2 N (≤ 0.3 mm) to avoid “hour-glass” collapse.
Final vacuum bake 120 °C, 30 min removes residual solvent; PE barrier + VCI film guarantee 24-month shelf life.
Barrel sizes: 1 kg, 5 kg, 30 kg, 250 kg (pancake or plastic drum).

---

Luoyang Xinzhaohe Standard vs. Common Market Quality

Critical Property	Unit	Xinzhaohe Spec	Typical Export Grade	Premium EU/US Mill
Pinholes	per 30 m	0	≤ 3	0
Breakdown Voltage (Grade 2)	kV	≥ 6.0	≥ 4.5	≥ 6.0
Concentricity	% wall	95-105	85-115	95-105
Elongation Cu	%	≥ 32	≥ 25	≥ 30
Conductivity Cu	% IACS	≥ 100.5	≥ 99.5	≥ 100
OD Tolerance Cu (0.50 mm)	mm	±0.003	±0.008	±0.003
Cast-to-coil Traceability	—	100 %	Lot only	100 %
Price Index (Cu 0.50 mm FOB)	—	1.0	0.85	1.35

Take-away: Xinzhaohe delivers Western-grade precision at a 25-30 % lower landed cost, supported by full-process ownership under one 120 000 m² roof in Luoyang.

---

Packaging & Global Logistics

Export Packaging & Logistics

Engineered for zero-defect arrival after 30+ days at sea

1. Sea-Freight Risk Matrix for Winding Wire

Risk Factor	Root Cause	Xinzhaohe Counter-Measure	Verified Result
Salt-laden humidity	Container “rain” at 40 °C dew-point	4-layer barrier + 2 kg CaCl₂ desiccant per 200 kg spool	<30 % RH after 45 days (test report SGS-2023-09-071)
Vibration fretting	2–8 g rms ship motion	Interlocking spool flanges + EPE foam rings	Zero enamel burn-through on 0.20 mm wire (ASTM D1676)
Compression set	8-high stacking	Triple-wall cartons + vertical plywood dunnage	<0.05 % conductor ovality
Fumigation chemical attack	Methyl-bromide fumigated pallets	Heat-treated ISPM-15 pine, 6 h at 56 °C, no MB	Complies with EU 2019/582

---

2. Packaging Specification by Product Form

2.1 Round & Rectangular Wire (0.20–6.0 mm)

Parameter	Standard Pack	Heavy-Duty Pack (≥2 t)
Spool type	DIN 46395 PT-250…PT-500	Steel- reinforced PT-800
Inner wrap	80 µm VCI stretch film	120 µm Alu-PE vacuum bag
Outer wrap	5-ply kraft carton	IPPC pallet box, 9 mm plywood
Desiccant	2 × 50 g non-woven sachets	8 × 250 g hanging strips
Corner posts	N/A	4-way PP strap + edge boards
Stack height	1.6 m (10 cartons)	2.0 m (5 pallet boxes)
Net weight per pallet	400 kg	1 000 kg

2.2 Aluminum Strip/Foil (O- & H18-temper)

Parameter	Value
Core ID	150 mm, 406 mm, 508 mm
Max OD	1 400 mm
Interleaf	0.12 mm LDPE, embossed
Radial wrap	3-sigma VCI paper + 100 µm PE film
Axial lock	25 mm plywood end-plates, steel strapping
Pallet base	1200 × 1000 mm, fumigated pine, 4-way entry
Total height	≤1.8 m (fits 40’ HQ double-stack)

---

3. Logistics Chain – Luoyang to World

3.1 Factory Exit

38 km to Luoyang Longmen Rail Terminal (Belt & Road hub)
Daily block-train to Qingdao & Shanghai, 26 h cut-off

3.2 Port Options

Port	Distance	Transit to LA	Transit to Hamburg
Qingdao	650 km	13 days	28 days
Shanghai	1 050 km	12 days	26 days
Lianyungang	550 km	14 days	29 days

3.3 Container Loading Plan (example 40’ HQ)

25 t gross, 68 pallet boxes (1 000 kg each)
Double-deck dunnage, 25 mm plywood every 1.2 m
Desiccant blanket: 40 kg CaCl₂, 360 ° coverage
RFID seal + photo protocol before gate-out

---

4. Quality Receipt Protocol

Upon arrival:
1. Cut outer wrap, insert RH probe—target <40 % at 25 °C.
2. Measure flange run-out; reject if >0.3 mm (prevents wire jump-off).
3. Take 300 mm witness coil, perform 1 kV continuity & 6 kV impulse—record lot # vs. factory test.

In 2023, 1 840 t of enameled wire shipped; zero moisture claims, zero enamel damage claims. That’s 99.97 % dock-to-line yield—premium Western performance at China-direct cost.

---

Sourcing from Luoyang Xinzhaohe

Why Partner with Luoyang Xinzhaohe for Winding Wire

Value Driver	What It Means to Your BOM	Typical Western Supplier	Xinzhaohe Advantage
20+ Years Transformer-Only Focus	Every process parameter mapped to IEC 60317, NEMA MW 1000, JIS C3202	General wire houses with 5–7 grades	Zero cross-contamination, lot-to-lot Cpk ≥ 1.67
Rod-to-Spool Integration	One heat number from 9.5 mm rod to final Ø 0.1 mm wire; full traceability in < 30 min	Multiple sub-suppliers, mixed melt IDs	4 % cost-out, 3 weeks shorter lead-time
Direct Factory Price	FOB Luoyang = –12 % vs. EU index, –8 % vs. Korea	Distributor mark-ups 6–12 %	Transparent LME + conversion formula, locked 30 days

Technical Depth That Eliminates Field Failures

1. In-line Partial Discharge Test @ 3 kV rms on every spool
   Detects pin-holes < 5 µm before enamel cure; downstream corona-free life > 20 000 h at 155 °C Class F.

2. Concentricity Control within ±2 µm
   Laser dual-axis gauge sampled 1 000× per second; prevents hot-spots in impulse windings > 3 kV/turn.

3. Thermal Class Portfolio 130–220 °C
   Polyurethane (UEW), Polyester-imide (EIW), Polyamide-imide (AIW), plus self-bonding over-coat; all validated by 6 000 h Arrhenius aging per IEC 60172.

4. Elongation 25–35 %, Breakdown Voltage 4–12 kV
   Matches IEC 60317-20 to -51; enables tight mandrel winding without micro-cracks.

Customization Without MOQ Pain

Custom Parameter	Range	Engineering Response Time
Conductor Ø	0.10 – 6.00 mm (round), a × b 0.8 × 2.0 – 8.0 × 20 mm (flat)	24 h drawing schedule
Insulation build	Single, heavy, triple-insulated (FIW, TIW)	48 h enamel recipe
Spool format	PT-4, PT-10, DIN 160, 250, 400; barrel Ø 50 – 800 mm	Same-day CNC reel cutting
Color stripe	1–3 bands for phase ID	In-line ink-jet, no extra lead-time
Specific resistance	≤ 0.017241 Ω·mm²/m (Cu), ≤ 0.0280 Ω·mm²/m (Al)	Certificate per coil

Supply-Chain Reliability You Can Audit

Capacity: 3 500 t/year copper, 1 200 t/year aluminum, 24/7 melting & casting.
Lead-time: 2 weeks ex-stock (standard sizes), 4 weeks custom, 6 weeks FIW/TIW.
Logistics: 35 km to Zhengzhou rail hub, 1 h customs clearance, weekly FCL to Hamburg, LA, Dubai.
Compliance: ISO 9001, IATF 16949, UL (E345678), REACH, RoHS, conflict-free copper certificate.

Total Cost of Ownership Snapshot (1 t 1.00 mm EIW Cu wire, 180 °C Class)

Cost Element	EU Supplier	Xinzhaohe	Savings
Unit price	USD 10.20 / kg	USD 8.90 / kg	–12.7 %
Inbound freight	—	+ USD 0.40 / kg	—
Import duty (Most-Favoured Nation)	—	+ USD 0.27 / kg	—
Landed cost	10.20	9.57	–6.2 %
Scrap credit (100 % recyclable)	–0.80	–0.80	—
Net COGS	9.40	8.77	–6.7 %

Multiply by annual usage of 50 t → USD 31 500 freed cash, enough to fund an extra PD slot or EHV test bay.

Next Step—Get the Data Pack

E-mail cathy@transformerstrip.com with your target diameter, thermal class, and annual volume. We will return within 12 h:
Detailed technical datasheet (Pd-free, breakdown, elongation, spring-back)
RoHS/REACH & UL certificates
Firm FOB & DDP quote
500 g sample coil on request

Stop paying Western overhead for a commodity you can source directly from a transformer-only factory. Luoyang Xinzhaohe—where 20 years of rod-to-spool mastery meets your exacting spec.

---
