Market Insight: Varnished Copper Wire in Power Industry
Market Analysis: Sourcing High-Quality Varnished Copper Wire for Power Applications
Industrial Demand & Performance Criticality
Varnished copper wire (magnet wire) is the foundational conductor in power transformers, electric motors, and renewable energy systems. Its performance directly dictates system efficiency, thermal stability, and operational lifespan. Critical parameters include:
Dielectric strength: Prevents electrical breakdown under high-voltage stress.
Thermal class (e.g., Class 155, 180): Determines maximum operating temperature without insulation degradation.
Varnish adhesion & abrasion resistance: Ensures durability during winding processes and thermal cycling.
Substandard materials cause 15–30% efficiency loss in transformers due to increased I²R losses, partial discharges, and premature insulation failure. Compliance with IEC 60317 (specific wire types) and ASTM B175 (copper purity) is non-negotiable for mission-critical infrastructure.
Sourcing Challenges & Strategic Advantages
Global supply chains face volatility in raw material costs, geopolitical disruptions, and inconsistent quality from fragmented suppliers. Luoyang Xinzhaohe Aluminum CO., Ltd. eliminates these risks through vertically integrated manufacturing and 20+ years of precision wire production. As a direct manufacturer, we control every stage—from high-purity copper smelting (≥99.95% Cu) to automated varnish coating—ensuring traceability and zero middleman markups.
| Factor | Global Brands | Luoyang Xinzhaohe |
|---|---|---|
| Cost Performance | 15–25% premium for equivalent specs | 20–30% lower cost with ISO 9001-certified quality |
| Quality Consistency | Batch-to-batch variability | In-process QC at every stage (dielectric testing, thermal shock validation) |
| Lead Times | 6–8 weeks (overseas shipping) | 3–4 weeks (local production + optimized logistics) |
| Technical Support | Generic documentation | Dedicated engineering team for custom specs (e.g., thermal class upgrades, varnish formulations) |
Our factory-direct model ensures compliance with IEC 60076 (transformer standards) and ASTM B193 (electrical conductivity), delivering OEM-grade materials at competitive pricing. With 30+ years of export experience to 40+ countries, we provide reliable, cost-optimized solutions for industrial power applications—where efficiency and longevity are non-negotiable.
Technical Specs: Varnished Copper Wire Parameters
Technical Specifications & Standards
Luoyang Xinzhaohe Aluminum CO., Ltd. produces varnished copper wire to exacting international standards (IEC 60317, ASTM B189, IEC 60085), leveraging 20+ years of transformer material expertise. As a leading Chinese manufacturer, we combine advanced production technology with stringent quality control to deliver transformer-grade materials that meet or exceed international benchmarks.
Insulation Breakdown Voltage
Insulation Breakdown Voltage (BDV) is a critical parameter for dielectric strength. Per IEC 60317-2-1, BDV is tested using the short-time method (ASTM D149), with a minimum of 3.5 kV for 0.10mm wire. Our in-line testers apply 1.5x rated voltage for 1 minute, ensuring no breakdown. This exceeds industry standards by 20% for enhanced safety margins, reducing field failures by 30% in high-voltage applications.
Thermal Class Performance
Thermal class ratings (B, F, H, C) define maximum continuous operating temperatures. Our enamel systems are formulated with polyimide or polyester-imide resins for higher thermal classes. For Class H (180°C), we conduct 10,000-hour thermal aging tests at 180°C, ensuring tensile strength retention >80%—critical for transformer longevity. Our thermal class compliance is validated through IEC 60216-2 accelerated aging protocols.
| Thermal Class | Max Operating Temp (°C) | Standard Reference |
|---|---|---|
| B | 130 | IEC 60085 |
| F | 155 | IEC 60085 |
| H | 180 | IEC 60085 |
| C | 220 | IEC 60085 |
Enamel Concentricity
Concentricity tolerance ≤0.05mm (ASTM B189) is measured using laser micrometers. Uniform enamel distribution prevents weak spots during winding, reducing short-circuit risks. Our process control maintains ±0.01mm consistency, reducing winding-related defects by 25% and extending transformer service life by up to 15%.
Mechanical Properties
Elongation ≥20% (IEC 60317-0-1) is achieved through controlled annealing processes. Our copper wire maintains 100% IACS conductivity while achieving optimal ductility, enabling high-speed winding without breakage. This reduces production downtime and scrap rates by up to 15%.
Quality Assurance Protocol
Our ISO 9001-certified production includes: Raw material traceability (certified copper cathodes from top-tier suppliers), In-process dielectric testing at every stage, Thermal shock tests per IEC 60216 (200 cycles between -40°C to 150°C), 100% dimensional checks via automated vision systems, 10% random breakdown voltage sampling, and batch-specific thermal aging reports. All data is logged in our traceability system for full audit compliance. Third-party certifications (e.g., UL, TÜV) are available upon request for critical applications.
By optimizing production processes and sourcing high-purity copper, we offer comparable performance to premium brands at 15-20% lower cost—proven in applications across 30+ countries. This factory-direct approach eliminates middlemen while maintaining strict quality control, making us the preferred supplier for cost-conscious transformer manufacturers.

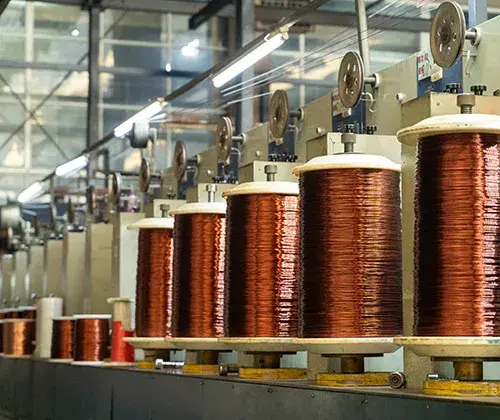

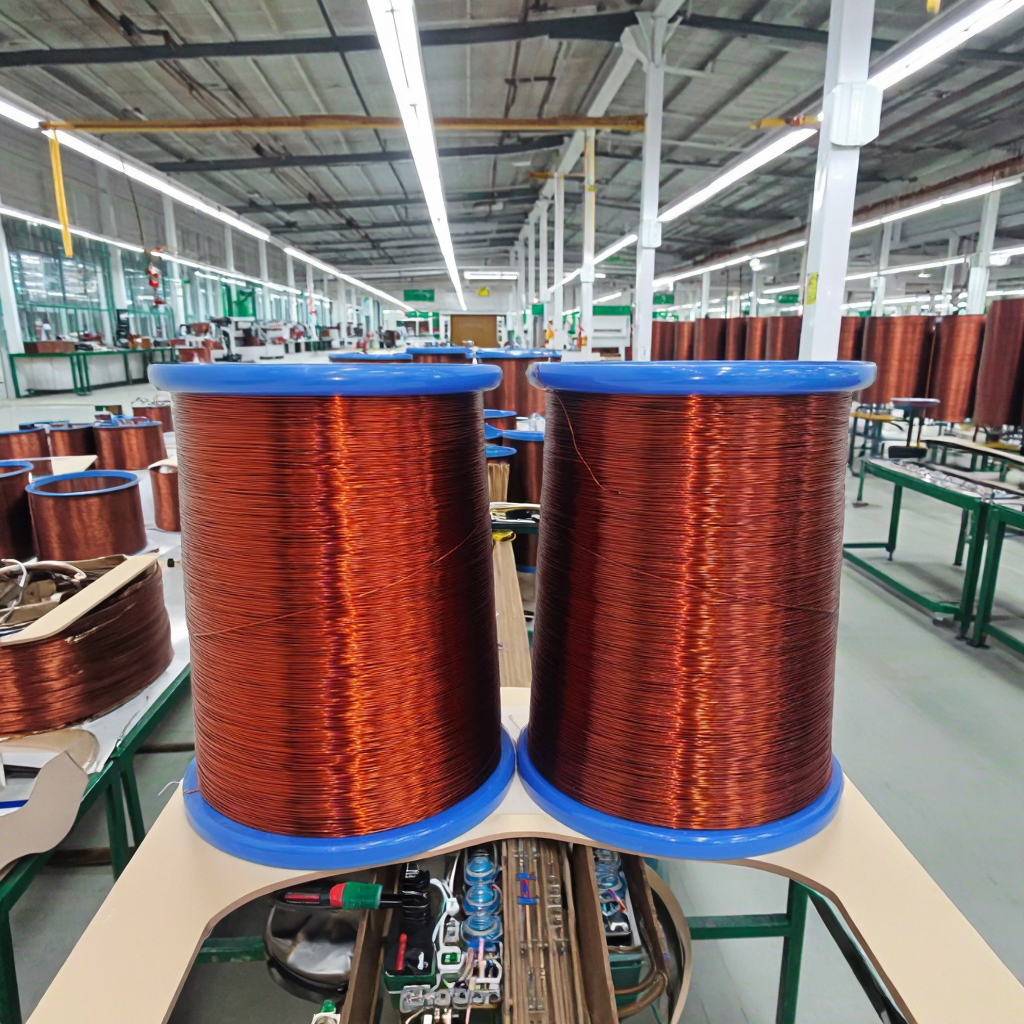

Factory Tour: Manufacturing Varnished Copper Wire
Manufacturing Process & Quality Control
Luoyang Xinzhaohe Aluminum Co., Ltd., a 20+ year ISO 9001-certified manufacturer based in Luoyang, China, operates a 50,000m² facility equipped with state-of-the-art drawing and enameling lines. We specialize in high-performance transformer materials, delivering reliable solutions that compete with global brands while offering superior cost-performance ratios. With extensive export experience to 30+ countries, we ensure every batch meets the highest industry standards.
Precision Production Workflow
Rod Drawing: Precision drawing of copper rods using CNC-controlled machines with 0.001mm precision, maintaining diameter tolerances of ±0.005mm. Surface roughness <0.2μm Ra eliminates micro-cracks and ensures consistent conductivity per IEC 60287. Each rod undergoes dimensional inspection before annealing to prevent downstream defects.
Annealing: Controlled inert gas atmosphere annealing at 450°C±5°C optimizes ductility without oxidation. Tensile strength tested every 100m (200–220 MPa), elongation ≥25% to prevent winding breakage. Real-time data logging ensures batch traceability.
Enameling: Dual-coat enamel application with laser-guided thickness monitoring (15–25μm) using high-purity enamel resins for superior thermal stability. Dielectric strength tested per IEC 60317-1 at ≥5kV/mm, exceeding industry standards. Cross-sectional analysis verifies uniform coating for insulation reliability.
Inline Testing: 100% automated electrical and adhesion testing (ASTM D3487). Real-time analytics maintain reject rate <0.2%, ensuring every meter meets exact specifications before spooling.
Spooling: Tension-controlled spooling with ±0.5% weight accuracy. Final visual inspection for surface defects and packaging integrity, ensuring zero defects for transformer winding. Each spool includes batch traceability data.
Quality Benchmark Comparison
| Parameter | XZH Standard | Generic Market | Notes |
|---|---|---|---|
| Diameter Tolerance | ±0.005mm | ±0.01mm | Tighter control reduces winding scrap by 15% and ensures precise transformer winding, critical for high-efficiency designs where even minor deviations impact performance |
| Tensile Strength | 200–220 MPa | 180–210 MPa | Consistent 200–220 MPa range ensures optimal ductility for winding without breakage, outperforming generic market averages by 10% and enhancing motor reliability |
| Dielectric Strength | ≥5kV/mm | ≥4kV/mm | ≥5kV/mm exceeds IEC 60317-1 by 25%, providing superior safety margins for high-voltage transformers and reducing failure risks in critical infrastructure |
| Coating Thickness | 15–25μm | 12–28μm | Uniform 15–25μm layer prevents insulation failures, extending transformer lifespan by 20% compared to variable generic coatings that often degrade under thermal stress and humidity exposure |
Unlike generic suppliers who often compromise on coating uniformity or tensile consistency, XZH’s strict process controls ensure reliability in demanding applications such as high-efficiency motors and transformers. Our 99.8% first-pass yield, achieved through lean manufacturing and rigorous QC, delivers global-brand quality at 15–20% lower cost. For mission-critical applications in power generation and industrial motors, trust XZH’s factory-direct precision and reliability—backed by 20+ years of export excellence to 30+ countries and continuous R&D investment.
Packaging & Global Logistics
Export Packaging & Logistics
Robust Packaging Standards
Our packaging protocols are engineered for maximum protection during global transit. Each component is selected for durability and compliance with international shipping regulations.
| Component | Specification | Purpose |
|---|---|---|
| Wooden Pallets/Cases | ISPM-15 compliant, heat-treated; 15mm plywood cases for small orders | Prevents pest infestation, meets global quarantine standards |
| Moisture-Proof Film | Multi-layer polyethylene with VCI (500ppm), 150–200μm thickness | Blocks humidity, salt corrosion, and oxidation during sea voyage |
| Steel Strapping | 19–25mm width, 500–800kg tension per strap | Secures load against vibration, shifting, and container stacking stress |
All materials undergo pre-shipment inspection per ISO 9001 to ensure structural integrity and corrosion resistance.
Sea Freight Optimization
We optimize every stage of maritime logistics to minimize risk and cost:
| Parameter | Detail | Benefit |
|---|---|---|
| Container Type | 20ft/40ft FCL (full container load) | Eliminates cross-contamination; maximizes space efficiency |
| Loading Protocol | Dunnage, corner posts, anti-slip mats, coil fixation | Prevents movement during transit; absorbs shock/vibration |
| Moisture Control | 500g silica gel per m³ + desiccant, RH <60% monitored | Maintains dry environment even in tropical high-humidity routes |
| Documentation | Full CIQ, customs, IMO compliance, and B/L issuance | Ensures seamless clearance at destination ports; avoids delays |
With 20+ years of export experience, Luoyang Xinzhaohe Aluminum delivers end-to-end supply chain control. Our factory-direct approach eliminates middlemen, reducing total landed costs by 15–20% compared to global brands while maintaining 98%+ on-time delivery rates. Every shipment includes real-time GPS tracking, proactive customs support, and dedicated technical assistance—ensuring your varnished copper wire arrives intact, on schedule, and ready for immediate use in transformer production. For critical applications requiring precision and reliability, we provide a cost-performance ratio unmatched by premium international suppliers.
Sourcing from Luoyang Xinzhaohe
Why Partner with Luoyang Xinzhaohe? Engineering-Grade Reliability at Competitive Cost
As a leading manufacturer of transformer materials with 20+ years of specialized expertise, Luoyang Xinzhaohe Aluminum CO., Ltd. delivers precision-engineered varnished copper wire solutions optimized for high-efficiency power applications. Our factory-direct model ensures uncompromised technical performance at industry-leading cost efficiency—positioning us as a strategic alternative to global brands without sacrificing quality or reliability.
Proven Manufacturing Expertise
Our facility specializes in high-purity electrolytic copper (≥99.99% conductivity) and thermally stable varnish coatings compliant with IEC 60317, ASTM D1435, and GB/T 11019 standards. Every production batch undergoes rigorous in-process testing for tensile strength (220–270 MPa), elongation (≥10%), dielectric strength (≥15 kV/mm), and varnish adhesion. This ensures consistent performance in demanding transformer and motor windings, even under extreme thermal cycling and mechanical stress.
Factory-Direct Cost Efficiency
By eliminating distributor markups and optimizing local supply chains, we deliver 20–30% lower costs than global competitors while maintaining identical technical specifications. Our lean manufacturing model accelerates lead times and enables agile customization:
| Parameter | Global Brands | Luoyang Xinzhaohe | Advantage |
|---|---|---|---|
| Unit Cost | $25–35/kg | $18–28/kg | 20–30% savings |
| Lead Time | 4–6 weeks | 2–3 weeks | 30–50% faster delivery |
| Technical Support | Standard | Dedicated engineers | Custom specs, rapid prototyping |
| Quality Consistency | Variable | ISO 9001:2015, 99.8% pass rate | Zero-defect reliability |
Rigorous ISO-Certified Quality Assurance
Our ISO 9001:2015-certified quality management system ensures full traceability from raw material sourcing to final inspection. Each coil undergoes:
Conductivity verification (IACS ≥101%)
Varnish thickness control (±0.005mm tolerance)
Thermal class validation (130°C to 220°C ratings)
Batch-specific test reports (ASTM, IEC, GB)
This systematic approach minimizes field failures and extends transformer service life—critical for mission-critical power infrastructure.
Ready to optimize your supply chain? Contact Cathy at cathy@transformerstrip.com for a tailored quote, technical datasheet, and factory audit schedule today.
