Market Insight: Turboline Enamelled Aluminium Wire

Market Analysis: Turboline Enamelled Aluminium Wire Demand in Transformer Applications

Industrial demand for turboline enamelled aluminium wire in power and distribution transformers is experiencing sustained growth, driven by global energy transition initiatives and stringent efficiency regulations. The shift towards renewable energy integration necessitates expanded and upgraded grid infrastructure, directly increasing transformer manufacturing volumes. Concurrently, regulatory frameworks like IE3 and IE4 efficiency standards compel designers to optimize core materials and winding configurations. Aluminium wire offers a critical advantage here: its superior conductivity-to-weight ratio compared to copper enables significant mass reduction in transformer windings—typically 40-50% lighter for equivalent electrical performance. This weight savings translates directly to reduced structural support requirements, lower transportation costs, and simplified installation, particularly advantageous for large power transformers deployed in remote renewable energy sites. The inherent cost stability of aluminium versus copper further enhances its economic appeal for high-volume transformer production, making turboline enamelled aluminium wire a strategic material choice for cost-sensitive yet performance-driven projects.

Quality parameters for turboline enamelled aluminium wire are non-negotiable in transformer applications due to the extreme operational stresses involved. The enamel insulation system must consistently achieve thermal classes of 155°C (F) or 180°C (H) per IEC 60317 standards, maintaining dielectric integrity under continuous thermal cycling and transient overloads. Critical quality factors include precise enamel thickness control to maximize slot fill factor without compromising breakdown voltage, exceptional adhesion to prevent delamination during winding tension and thermal expansion cycles, and superior flexibility to withstand the bending stresses inherent in coil winding processes. Crucially, the aluminium conductor itself requires stringent metallurgical control. Impurity levels must be minimized to ensure optimal electrical conductivity (typically targeting 61.0% IACS minimum), while precise temper control guarantees the necessary elongation properties for reliable winding without breakage. Any deviation in conductor purity or enamel formulation directly impacts the wire’s thermal index and long-term resistance to partial discharge, a primary failure mechanism in transformers.

Substandard enamelled aluminium wire introduces severe operational risks that far outweigh initial procurement cost savings. Inadequate enamel dielectric strength or micro-porosity leads to premature insulation breakdown under electrical stress, causing inter-turn faults and catastrophic transformer failure. Poor adhesion results in enamel flaking during winding or operation, creating conductive debris and localized hot spots. Insufficient conductor conductivity increases I²R losses, directly reducing transformer efficiency and violating regulatory compliance. Most critically, inconsistent thermal performance accelerates insulation aging, drastically shortening transformer service life and increasing unplanned downtime costs. For transformer manufacturers, sourcing from suppliers with proven metallurgical expertise and rigorous quality control processes—such as Luoyang Xinzhaohe Aluminum CO., Ltd with over 20 years of specialized winding wire production—is essential. Our integrated supply chain, featuring in-house conductor drawing, precision enamelling lines with real-time thickness monitoring, and comprehensive testing per ASTM D4683 and IEC 60851 standards, ensures the dimensional stability, electrical reliability, and thermal resilience demanded by modern transformer designs. The total cost of ownership is decisively governed by wire quality; premium-grade turboline enamelled aluminium wire is not an expense but a fundamental investment in transformer longevity, grid reliability, and operational safety.

Technical Specs: Turboline Enamelled Aluminium Wire

Technical Specifications for Turboline Enamelled Aluminium Winding Wire

Luoyang Xinzhaohe Aluminum Co., Ltd. manufactures high-performance turboline enamelled aluminium winding wire engineered for demanding electrical applications requiring optimal conductivity, mechanical flexibility, and thermal endurance. With over two decades of metallurgical and coating process expertise, our wire meets and exceeds international standards for insulation integrity, elongation, and thermal class performance. The following technical parameters define the core characteristics of our turboline enamelled aluminium wire, designed for use in motors, transformers, solenoids, and other electromagnetic devices where reliability under thermal cycling and electrical stress is critical.

The insulation breakdown voltage is a primary performance indicator for any enamelled wire, directly affecting dielectric safety and operational reliability. Our turboline enamelled aluminium wire delivers consistent high breakdown strength due to a precisely controlled multi-layer polymer coating system. The insulation is applied using advanced continuous extrusion and curing technology, ensuring uniform thickness and defect-free coverage. At standard film build, the minimum breakdown voltage exceeds 3,000 Vrms for 0.5 mm diameter wire under room temperature conditions. This value is maintained across a wide range of diameters, with adjustments scaled per IEC 60317 and GB/T 23678 standards. The insulation system is resistant to pinholes and micro-cracks, ensuring long-term dielectric stability even under vibration and thermal cycling.

Elongation is a key mechanical property that reflects the wire’s ductility and ability to withstand drawing, coiling, and winding operations without fracture. Our aluminium alloy core, based on high-purity 1350 or 1370 aluminium, undergoes controlled annealing to achieve a tensile-elongation balance ideal for industrial winding. The typical elongation at break ranges from 25% to 35%, depending on wire diameter and temper. This ensures excellent formability and resistance to cracking during tight-radius winding, particularly in automated coil winding systems. All elongation values are verified through ASTM B557M tensile testing protocols.

Thermal class performance defines the maximum continuous operating temperature the insulation system can endure without significant degradation. Our turboline enamelled wires are available in thermal classes ranging from 130°C to 220°C. The insulation system combines polyamide-imide (PAI), polyesterimide (PEI), and other high-temperature polymers in multi-layer configurations to achieve this broad thermal range. Class 130 (B) and Class 155 (F) wires are suitable for general industrial motors, while Class 180 (H) and Class 220 offer enhanced thermal life for high-efficiency and high-temperature applications such as traction motors and aerospace components. Thermal endurance is validated via thermal aging tests per IEC 60172, with temperature index (TI) ratings certified by third-party laboratories.

These specifications reflect Luoyang Xinzhaohe’s commitment to precision engineering and consistent quality in the production of turboline enamelled aluminium winding wire. Each batch undergoes rigorous in-process and final quality control, including 100% spark testing and periodic thermal overload validation.

Factory Tour: Manufacturing

Manufacturing Process: Turboline Enamelled Aluminium Winding Wire

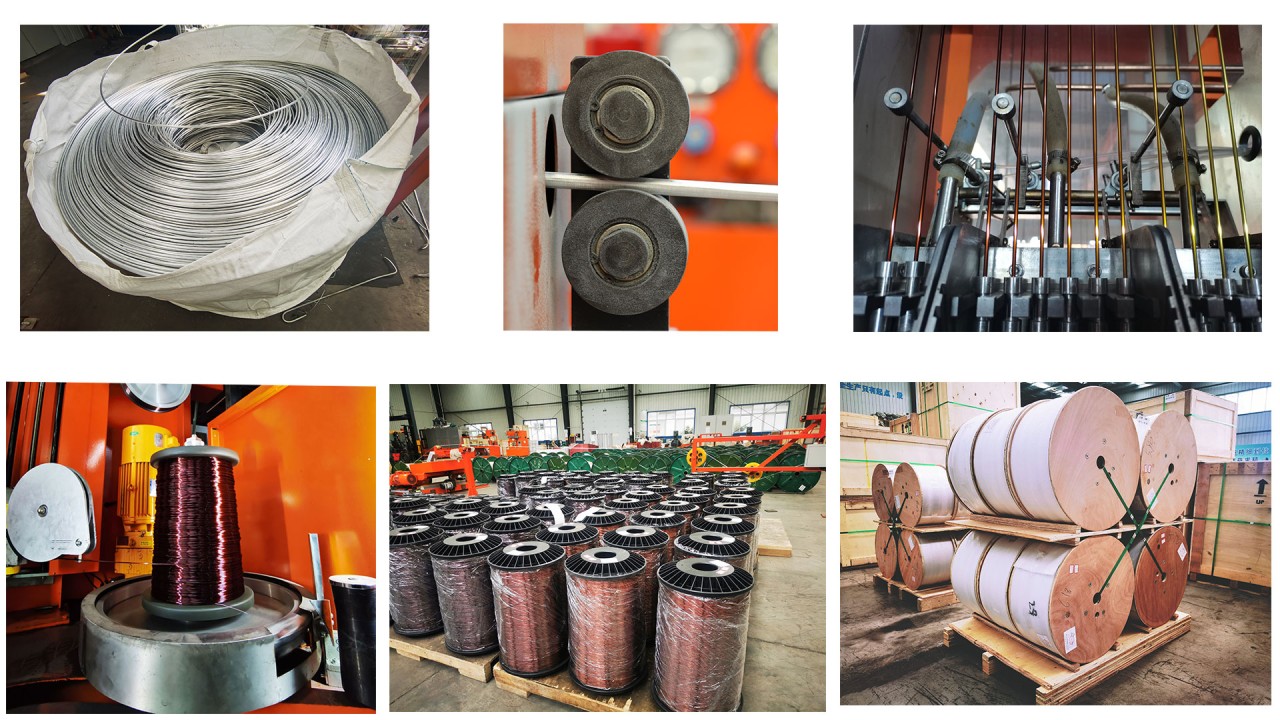

Luoyang Xinzhaohe Aluminum CO., Ltd leverages over two decades of specialized metallurgical and process engineering expertise to produce high-reliability turboline enamelled aluminium winding wire. Our vertically integrated manufacturing sequence ensures stringent control over critical material properties and dimensional consistency, essential for demanding electromagnetic applications. The core production flow initiates with high-purity aluminium rod drawing. Starting from 99.7% minimum purity AL1070 or AL1350 alloy rods, we employ precision multi-die drawing benches operating under controlled temperature and lubrication regimes. This stage reduces the rod diameter to the precise final conductor size, typically ranging from 0.08mm to 3.00mm, while meticulously maintaining surface integrity and achieving tight dimensional tolerances of ±0.002mm. Continuous在线 monitoring of diameter via laser micrometers ensures immediate feedback for process adjustment, preventing deviations that could compromise subsequent coating adhesion or electrical performance.

Following drawing, the aluminium wire undergoes a critical continuous annealing process. This step is paramount for restoring optimal ductility and electrical conductivity after the cold working of drawing. Our state-of-the-art resistance annealing furnaces operate under precisely controlled inert nitrogen atmospheres to prevent surface oxidation, a particular vulnerability of aluminium compared to copper. Temperature profiles are rigorously managed within narrow bands specific to the alloy and final diameter, typically between 300°C and 450°C, ensuring uniform recrystallization and achieving conductivity levels exceeding 61% IACS (International Annealed Copper Standard) per IEC 60228 Class 2 requirements. Each annealing batch undergoes mandatory conductivity verification via eddy current testing before progression.

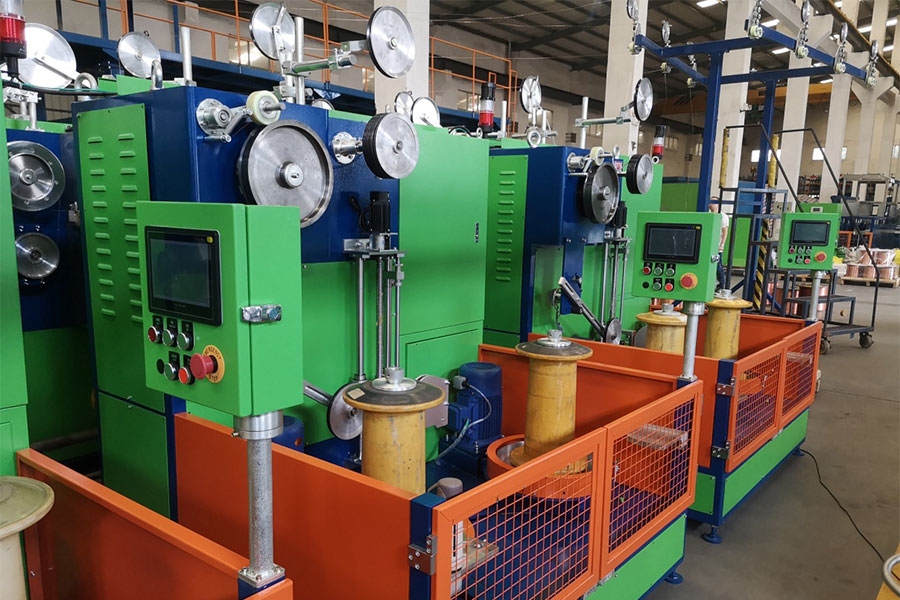

The annealed conductor then enters the turboline enameling line, the defining stage for insulation performance. Multiple layers of specialized polymer resins—commonly polyester-imide (PEI), polyamide-imide (PAI), or hybrid formulations—are sequentially applied using precision die coating systems. Our proprietary turboline process ensures exceptional concentricity and uniformity of the enamel film, critical for high-voltage endurance and thermal stability. Each applied layer passes through precisely zoned infrared and convection curing ovens where temperature, dwell time, and atmosphere are optimized for complete polymer cross-linking without thermal degradation. Film build is controlled to exact customer specifications, typically with total thickness tolerances of ±0.005mm.

Comprehensive inline quality control is embedded throughout the entire production chain. Immediately post-enameling, every meter of wire undergoes rigorous electrical testing. This includes high-voltage spark testing at 3kV to 15kV (depending on film build) to detect pinholes, and megohmmeter testing to verify insulation resistance exceeding 100 MΩ·km. Simultaneously, non-contact laser diameter gauges continuously monitor both conductor and overall wire dimensions, feeding real-time data to our statistical process control (SPC) system. Final quality assurance mandates 100% visual inspection for surface defects, coupled with periodic destructive testing of samples for adhesion (scratch test), thermal shock resistance per IEC 60851, thermal class validation, and precise film thickness measurement via calibrated microtomes. This integrated approach guarantees the consistent delivery of turboline enamelled aluminium wire meeting the most stringent global motor and transformer manufacturing standards.

Packaging & Logistics

Export Packaging for Turboline Enamelled Aluminium Winding Wire

At Luoyang Xinzhaohe Aluminum Co., Ltd., with over two decades of specialized manufacturing experience in high-performance winding wires, we recognize that export packaging is not merely a logistical necessity but a critical component in preserving the integrity of turboline enamelled aluminium wire during international transit. Our packaging methodology is engineered to meet the rigorous demands of global supply chains, particularly for sea freight, which remains the primary mode of transport for bulk industrial shipments.

All turboline enamelled aluminium winding wire is wound onto precision-engineered spools constructed from high-strength composite materials, designed to maintain dimensional stability under load and resist deformation during handling. These spools are then securely mounted onto robust wooden pallets that conform to ISPM 15 (International Standards for Phytosanitary Measures No. 15) regulations. The use of heat-treated, kiln-dried hardwood ensures compliance with global biosecurity requirements, minimizing the risk of pest infestation and facilitating customs clearance across jurisdictions.

Each loaded pallet undergoes a multi-layer moisture protection protocol. The entire assembly is first wrapped in industrial-grade moisture-proof film, specifically formulated to act as a vapor barrier against humidity and salt-laden air—common challenges in maritime environments. This film provides a hermetic seal that significantly reduces the potential for condensation within the coil assembly during temperature fluctuations typical in containerized shipping. Additional layers of polyethylene sheeting are applied where ambient conditions in destination regions are known for high relative humidity or prolonged monsoon seasons.

The palletized units are further secured using steel strapping or reinforced PET bands, ensuring load stability and preventing axial or radial displacement of spools during vessel loading, unloading, and overland transport. Edge protectors are applied to vulnerable corners of the pallet to mitigate impact damage, while all external surfaces are clearly marked with handling indicators, orientation labels, and batch-specific traceability data.

Our packaging design has been validated through accelerated climate testing and real-world sea trials across major trade lanes, including trans-Pacific and trans-Indian Ocean routes. These trials confirm that the combination of ISPM 15-compliant wooden pallets and advanced moisture barrier films maintains the dielectric strength and surface integrity of the enamel insulation throughout journeys exceeding 45 days.

For customers sourcing turboline enamelled aluminium wire for motor windings, transformers, and other precision electrical applications, this packaging system ensures that material arrives in the same condition as when it left our facility in Luoyang. We maintain full documentation for each shipment, including packaging specifications, material certifications, and humidity exposure logs upon request. This technical rigor in packaging reflects our commitment to delivering not only superior wire products but also a fully controlled and traceable supply chain.

Sourcing from Luoyang Xinzhaohe

Partner with Luoyang Xinzhaohe: Your Certified Source for Turboline Enamelled Aluminium Winding Wire

Luoyang Xinzhaohe Aluminum Co., Ltd leverages over two decades of specialized metallurgical and wire manufacturing expertise to deliver industry-leading turboline enamelled aluminium winding wire. Our vertically integrated facility, purpose-built for high-purity aluminium conductor production, ensures stringent control from raw material sourcing through final enameling, directly addressing the critical performance demands of modern electromagnetic components in transformers, motors, and reactors. We operate as a strategic partner, not merely a supplier, committed to the technical success of your winding operations.

Metallurgical Process Control and Material Integrity
Our core strength resides in advanced aluminium metallurgy. We utilize 99.99%+ purity primary aluminium ingot, processed through proprietary degassing and filtration systems within our dedicated melting and casting lines. This eliminates hydrogen porosity and non-metallic inclusions, achieving consistent electrical resistivity of 0.028264 Ω·mm²/m at 20°C, meeting or exceeding IEC 60228 Class 2 requirements. Precise thermal mechanical processing guarantees uniform grain structure and optimal tensile strength (120-140 MPa) with elongation (4-6%), essential for high-speed turboline drawing and subsequent winding without breakage or deformation. Rigorous in-line monitoring of oxide layer formation ensures optimal surface quality for flawless enamel adhesion.

Precision Enameling and Performance Validation
The facility houses state-of-the-art continuous enameling lines specifically calibrated for aluminium substrates. We apply multiple layers of high-temperature thermosetting polymer resins (including Polyesterimide, Polyamide-imide) with micron-level precision, maintaining tight tolerances on diameter (±0.005mm) and enamel thickness (±0.003mm). All enamelled wire undergoes 100% spark testing at 3kV DC and batch validation against critical parameters. Performance data consistently demonstrates reliability under demanding conditions.

Integrated Supply Chain and Technical Partnership
Beyond manufacturing, our value lies in supply chain resilience and engineering collaboration. We maintain strategic raw material buffers and operate three dedicated turboline drawing and enameling lines, ensuring on-time delivery for volumes from pilot batches to 500+ metric tons monthly. Our technical team, comprising metallurgists and winding process engineers, actively supports customers through material selection, process optimization, and failure analysis. Certifications including ISO 9001:2015 and IATF 16949 underpin our commitment to documented quality management systems, while full material traceability from ingot to spool provides audit readiness.

Choosing Luoyang Xinzhaohe means partnering with an aluminium wire specialist whose technical depth minimizes your production risk and enhances end-product reliability. We invite you to validate our capabilities through material samples and joint technical review. Initiate a precise sourcing solution for your turboline enamelled aluminium wire requirements by contacting our Chief Technical Officer directly at cathy@transformerstrip.com to schedule a consultation.
