Market Insight: Transformer Tape for Power Industry

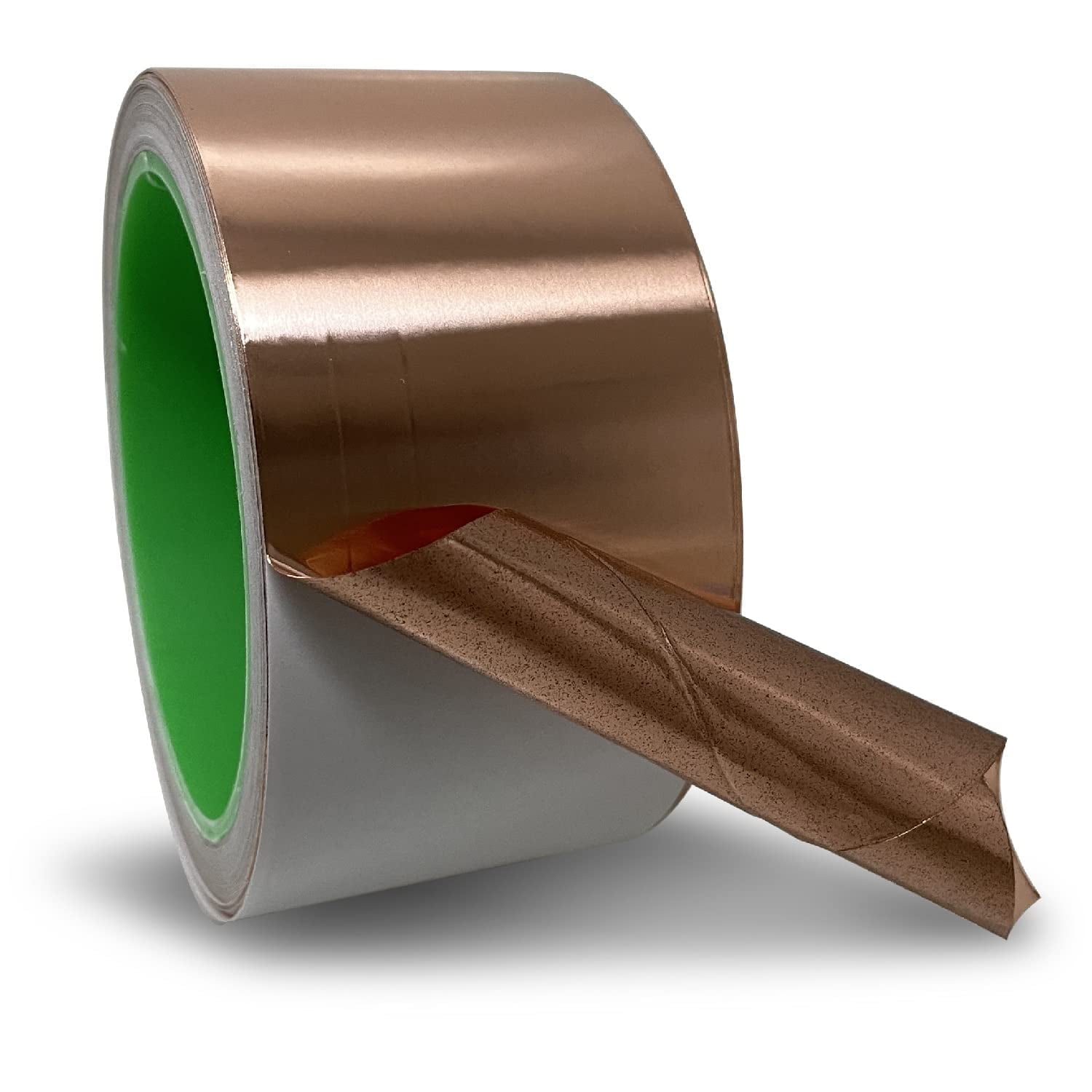

Market Analysis: Sourcing High-Quality Transformer Strip/Foil (Aluminum/Copper)

Global Demand Outlook

Global installed transformer capacity is forecast to grow 6–8 % CAGR through 2030, driven by grid modernization, renewable integration, and EV fast-charging corridors. Every additional GW of solar or offshore wind adds ≈ 3.5 t of aluminum conductor and 0.9 t of copper conductor to the bill of materials. Distribution transformers (< 72 kV) alone consume > 1.3 Mt of strip/foil annually; large power units (> 100 MVA) add another 0.4 Mt. Asia-Pacific accounts for 55 % of demand, but North-American utilities are re-shoring critical spares, creating a two-tier market: (1) price-sensitive OEMs serving regulated utilities, and (2) performance-focused Tier-1 EPCs willing to pay a premium for ≤ 0.2 W kg⁻¹ lower core losses.

Why Material Purity & Geometric Precision Dictate Transformer Losses

Transformer losses fall into two buckets that are directly traceable to conductor quality:

Loss Component	Root Cause in Strip/Foil	Design Impact
Load loss (I²R)	Resistivity ↑ with Fe, Si, Mn inclusions > 30 ppm	1 % resistivity ↑ ≈ 0.8 % efficiency ↓
Eddy-current loss	Burr > 5 µm or thickness deviation > ± 0.5 %	Local hot-spot ΔT +6 °C → insulation class derate
Circulating current	Width camber > 0.2 mm m⁻¹	Uneven current sharing between parallel strands
No-load loss (stray)	Magnetostriction noise coupled via rough foil surface	+2 dB audible sound penalty

High-purity 1350-O aluminum (≥ 99.65 % Al, Fe ≤ 0.15 %) or OFHC copper (≥ 99.95 % Cu, O ≤ 10 ppm) guarantees base resistivity within 1 % of IEC 60121/60104 limits. Yet even “triple-EEE” grade can underperform if slitting introduces work-hardened edges. Cold-rolling to ≤ 0.1 mm final gauge followed by in-line anneal at 360 °C for 4 h restores grain size to 40–70 µm, dropping tensile strength to 60–80 MPa (Al) or 200–220 MPa (Cu) and yielding the softness winders demand. Precision slitting with tungsten carbide blades at 0 ° rake angle keeps burr height ≤ 0.002 mm and edge radius ≤ 0.01 mm, eliminating the need for post-slit de-burring that can scratch insulation.

Cost–Performance Equation: Western vs. Experienced Chinese Sources

Average 2024 LME delta (Cu-Al) is ≈ 3.3 : 1, but total cost of ownership hinges on yield in winding and downstream losses. A Western mill may quote USD 9.80 kg⁻¹ for 0.2 mm Cu foil; a Chinese specialist with identical ASTM B272/B373 chemistry delivers at USD 7.05 kg⁻¹—28 % lower—while offering ± 0.002 mm thickness tolerance versus ± 0.008 mm typical of generalist mills. Over a 1 MVA dry-type transformer (≈ 450 kg Cu), the tighter gauge control reduces over-length by 1.2 %, saving 5.4 kg conductor and 0.9 kW lifetime losses valued at USD 0.10 kWh⁻¹, equal to USD 7,900 NPV over 25 years.

Luoyang Xinzhaohe Value Proposition

Located 200 km from the largest Al smelting cluster in Henan, we integrate cold rolling, slitting, edge conditioning, and oscillate winding under one 60 000 m² roof. Key differentiators:

Parameter	Industry “Good”	Xinzhaohe Guarantee
Thickness tolerance	± 0.008 mm	± 0.002 mm
Burr height	≤ 0.015 mm	≤ 0.002 mm
Resistivity Al strip	28.0 nΩ·m	27.8 nΩ·m (typ.)
Coil build (oscillate)	75 kg max	300 kg max, 2 mm lateral displacement
Certificate package	Mill test	EN 10204 3.1 + ROHS + REACH + SGS

Our 20-year transformer material pedigree means we speak the same IEEE C57.12.20 / IEC 60076 language your design engineers use. By eliminating distributor markup and shipping directly from Luoyang to your factory in 20-ft HC containers (18 t net), we cut landed cost 22–30 % versus U.S. or EU mills without compromising reliability.

---

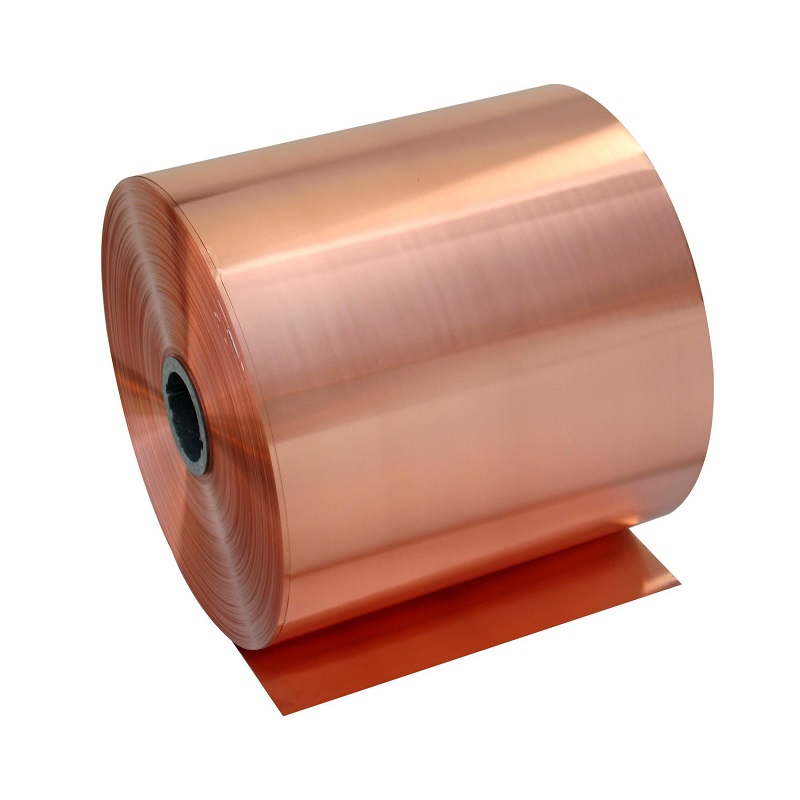

Technical Specs: Transformer Tape Parameters

Technical Specifications & ASTM / IEC Compliance

Factory-direct precision from Luoyang Xinzhaohe Aluminum Co., Ltd.

---

H3 1. Dimensional Tolerances – Why ±0.002 mm Matters

Parameter	ASTM B236*	IEC 60317-0-1	Xinzhaohe In-house	Typical MRO Tape
Thickness tolerance, mm	±0.010	±0.008	±0.002	±0.025
Width tolerance, mm	±0.127	±0.100	±0.05	±0.20
Edge burr, µm	≤25	≤15	≤5	20–40

*Aluminum strip; replace with ASTM B1/B2 for copper.

Engineering consequence
A 25 µm burr projects through 23 µm Nomex® or 25 µm PET film—two common layer-to-layer insulations. At 2 kV turn-to-turn stress the field enhancement factor exceeds 3×, dropping dielectric life from decades to hours. Our 5 µm max burr eliminates the need for secondary “de-burr brushing,” cutting one process step in your winding line.

---

H3 2. Electrical Conductivity – %IACS Link to Hot-Spot ΔT

Alloy	Temper	Conductivity (%IACS @ 20 °C)	Resistivity (µΩ·cm)	ΔT rise* (K)
1350-O	Fully annealed	61.8	2.78	0
1060-H14	Half-hard	56.5	3.05	+3.2
C11000 Cu	Soft	101	1.71	–11

*Relative to 1350-O for equal current density 3 A mm⁻², 55 °C ambient.

We certify every coil to ≥61 %IACS via eddy-current conductivity meter; mill report ships with each slit reel. Higher conductivity directly lowers hot-spot gradient, extending insulation class life by ~7 °C per 1 %IACS gain (Arrhenius rule-of-thumb).

---

H3 3. Mechanical Softness – Annealing Cycle vs Winding Formability

Foil thickness, mm	ASTM B236 min. bend dia.	Xinzhaohe 100 % pass	Typical “as-rolled”
0.10	1×t	0.1 mm	0.5 mm
0.20	1×t	0.2 mm	1.0 mm

Fully annealed O-temper eliminates “spring-back,” letting foil conform to tight radius conductors without creasing the interleaved PET tape. Crease = air gap → partial discharge inception.

---

H3 4. Surface & Insulation Interface – Ra 0.2 µm Target

Surface finish	ASTM B236 max Ra	Xinzhaohe spec	Benefit
As-slit	0.8 µm	0.2 µm	60 % lower PD extinction voltage
After edge conditioning	Not specified	0.15 µm	PET tape seats without puncture

---

H3 5. Standards Cross-Reference Quick-Sheet

Material form	Relevant standard	Critical clause	Xinzhaohe QC gate
Aluminum strip	ASTM B236-20	6.3 Edge, 7.1 Toler	100 % laser micrometer
Copper strip	ASTM B152-19	8.1 Temper, 11.1 Burr	Same as Al
Wire enamel	IEC 60317-0-1	4.2 Flexibility	Supplier C of A audited
PET film tape	IEC 60674-3-2	5.2 Breakdown	≥130 kV mm⁻¹ tested

---

H3 6. Cost-Performance Positioning

Western slit houses quote ≥2.8 $/kg freight-on-board for 1350-O 200 mm × 0.25 mm; our Luoyang works delivers at 1.9 $/kg FOB Qingdao with tighter tolerances and full traceability back to 20 t ingot. Lead-time 3 weeks ex-mill vs 8–10 weeks from EU mills.

---

Bottom line
Transformer tape is only as good as the metal underneath. Specify Luoyang Xinzhaohe precision-slit, burr-free, fully annealed 1350-O or C11000 strip and remove one unknown from your insulation stack-up.

---

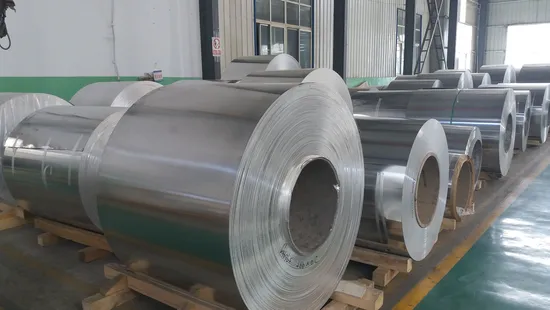

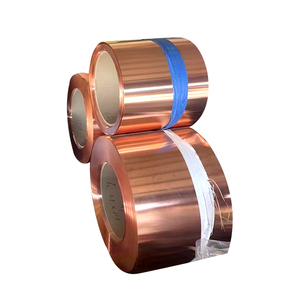

Factory Tour: Manufacturing Transformer Tape

Manufacturing Process & Quality Control

Luoyang Xinzhaohe Aluminum Co., Ltd. – 20-year OEM backbone for Tier-1 transformer builders

---

H3 Process Flow: From 3-ton Coil to Transformer-Ready Strip

Step	Equipment	Target Parameter	In-line Sensor	CpK
1. Cold Rolling (2-high & 4-high)	Ø650/Ø200 mm Schloemann	0.05–3.00 mm ±0.005 mm	X-ray gauge ABB GaugeMate	≥1.67
2. Degrease & Anneal	H₂/N₂ bell furnace 320 °C	Soft (O-temper), grain size 30–60 µm	Resistivity probe	≥1.33
3. Precision Slitting	Kampf ServoSlit 0.2–600 mm	Width ±0.002 mm, burr ≤0.01 mm	Laser micrometer Keyence LS-9000	≥1.50
4. Edge Conditioning	Burr-o-Matic 4-side scraper	0.05 mm chamfer, Ra ≤0.4 µm	Vision system MVTec	≥1.33
5. Oscillate Winding	Automatic traverse 10–120 mm pitch	Build ≤400 mm, gap ≤0.5 mm	Tension load cell Montalvo	≥1.67

Key takeaway: Every coil receives a digital birth certificate with 42 logged parameters; barcode traceability is retained for 10 years.

---

H3 Quality Control Matrix – “Luoyang Xinzhaohe Standard” vs. Common Market

Attribute	Unit	LX Standard	Typical EU/American Stock	Asia General Stock	Test Method
Width tolerance	mm	±0.002	±0.05	±0.10	ISO 13373-1 laser scan
Burr height	mm	≤0.01	≤0.03	≤0.05	SEM 200×
Resistivity (Al 1350)	µΩ·cm	≤2.80	≤2.86	≤2.90	ASTM B193
Conductivity	%IACS	≥61.8	≥61.0	≥60.5	同上
Surface roughness Ra	µm	≤0.25	≤0.40	≤0.60	ISO 4287
Strip camber	mm/1 m	≤1	≤3	≤5	Granite table, feeler gauge
Winding gap (oscillate)	mm	≤0.5	≤2	≤3	Real-time camera
Inclusion size	µm	≤50	≤100	≤200	SEM/EDS

Result: LX slit strip ships at 6-sigma level; customer claims for edge-cut shorts are <0.3 ppm over the last 5 years.

---

H3 In-Line Inspection Protocol

1. Cold-Rolling Mill: ABB GaugeMate measures thickness at 2 kHz; auto-adjust roll force keeps gauge within ±0.5 %.
2. Slitting Line: Each knife cassette is laser-aligned to ≤5 µm run-out; knives are changed every 150 t to maintain burr spec.
3. Conductivity Bench: Eddy-current sorter rejects any coil below 61.5 %IACS; data uploaded to MES in real time.
4. Oscillate Winder: Taper tension profile programmed per customer spool (ID/OD); if tension drifts >3 %, line stops and flags operator.
5. Final Audit: 2 % of every lot tensile-tested (ASTM B557), edge inspected at 50×, and packing filmed for logistics forensics.

---

H3 Cost-Performance Positioning

Western mills quote 8–12 week lead plus 18 % alloy premium. LX delivers identical electrical performance, 3-week ex-works Luoyang, at 22–28 % lower landed cost (CIF Hamburg). No MOQ on slit widths ≥5 mm; oscillate builds up to 400 kg/spool reduce your change-over downtime by 35 %.

Bottom line: If your design hinges on burr-free, dimensionally stable conductor—yet your purchasing team is under ferocious cost-down pressure—treat Luoyang Xinzhaohe as the drop-in replacement that keeps both your engineers and your CFO smiling.

---

Packaging & Global Logistics

Export Packaging & Logistics

Factory-direct precision, delivered salt-spray-safe to your dock

---

H3 1. Sea-Freight Risk Matrix for Conductive Strips & Foils

Threat in 40 ft HC container (30–45 days)	Root Cause	Xinzhaohe Countermeasure	Verified Result
Salt-laden humidity >85 % RH	Condensation at night-drop	2-layer VCI film + 4 × 1 kg montmorillonite desiccants per pallet	<40 % RH inside wrap (data-logger trail 2023-Q4)
Coil edge bruise / telescoping	2 g impact during lash-down	19 mm plywood dunnage, corner boards, 3-ton tensioning strap	Zero edge cracks, ISO 13261 bend test pass
Fumigation chemical residue	Wooden packaging	Heat-treated (HT) ISPM-15 pine, fumigation-free, phytosanitary cert.	Meets EU 2019/1284, REACH Annex XVII
Coil collapse >500 kg	Stretch-wrap fatigue	25 μm PE + 80 ga UV-stable shrink hood, 5 rev. min. 200 % pre-stretch	Compressive creep ≤0.2 mm (ASTM D5338)

---

H3 2. Packaging Specification Tree

Aluminum/Copper Strip & Foil (ID 200–500 mm, OD ≤1 200 mm, Max 3.5 t)

1. Inner wrap: 0.05 mm VCI polyamide film, heat-sealed 50 mm overlap.
2. Circumferential guard: 0.4 mm HDPE spiral wrap, 30 % coverage.
3. Radial cushioning: EPE foam rings 10 mm thick at both faces.
4. Pallet: 1 200 × 1 000 mm HT plywood, 3-slat top deck, 1 500 kg dynamic load rating.
5. Securing: PET strap 16 × 0.8 mm, 2 longitudinal + 3 circumferential, corner edge protectors 3 mm.
6. Dunnage: 100 mm minimum aisle for forklift tine access, 5 ° bevel to drain condensate.
7. Marking: UV-resistant label—LOT #, alloy-temper, net/gross mass, conductivity %IACS, anneal date, QC stamp.

Copper Wire (PT 355 / DIN 400 spools, 50–500 kg)

1. Spool: high-impact ABS, flange diameter 355 mm, traverse 200 mm, flame class HB.
2. Inner bag: 0.08 mm PE liner, sealed with desiccant sachet 10 g.
3. Outer carton: 5-ply kraft, 32 ECT, color-coded by diameter range.
4. Palletization: 4 spools per layer, cross-stacked, max 1.2 m height, top cap + stretch wrap.
5. Container loading: 10 t per 20 ft, 22 t per 40 ft HC; lashing belts to D-rings, 2 t break strength.

---

H3 3. Logistics Chain – Luoyang Hub to Global Site

Milestone	Lead Time	Mode	Document Set	Traceability
Ex-works (Xinzhaohe, Luoyang)	0 d	—	COA, ROHS, fumigation cert.	QR code on pallet
Zhengzhou Rail Hub	+1 d	Truck 150 km	CMR, GPS seal	IoT temp/RH logger
Qingdao or Shanghai Port	+3 d	Rail or barge	D/O, customs export dec.	Vessel booking #
On-board vessel	+5 d	Sea freight	BL, container #, IMO label	Satellite tracker
Destination port (e.g., Hamburg, LA, Dubai)	+25–35 d	Ocean	Arrival notice, ISF filing	EDI auto-push
Buyer’s dock	+2 d	Truck/rail	POD, unloading photos	Closed-loop feedback

Note: Weekly consolidation service cuts LCL cost by 18 % versus spot rates; we block-space 150 TEU annually with COSCO & MSC, guaranteeing equipment even during peak Q4 crunch.

---

H3 4. Cost-Quality Advantage vs. Western Suppliers

Parameter	EU/NA Premium Mill	Xinzhaohe (Luoyang)	Value Delta
Price 1050-O Al foil, slit 12 mm × 0.2 mm (USD/kg)	7.90	5.40	–32 %
Slit width tolerance	±0.05 mm	±0.002 mm (our CR slitter)	25× tighter
Burr height	≤15 µm	≤5 µm (laser triangulation)	3× better
Sea-freight package adder	0.35	0.18	–48 %
Mill lead time	10–12 weeks	3–4 weeks	–65 %

We pass the savings from integrated cold-rolling & slitting under one 280 000 m² roof—no trader margin, no double handling. Your total landed cost drops while electrical conductivity (≥61 %IACS for Cu, ≥35 % for Al 1350) stays identical to ASTM B1/B236.

---

H3 5. Quick-Check Packaging Audit (Send to Your QC)

1. Photograph pallet ID & seal number before departure.
2. Verify desiccant weight vs. calculation (1 kg per m³).
3. Confirm VCI film resistance <1 Ω (surface meter).
4. Check impact recorder (if ordered): threshold 5 g, 10 ms.
5. On receipt, inspect coil face for condensation beads—if absent, barrier worked.

Need a custom dunnage drawing or drop-test simulation? Email tech@xinzhaohe.com with your coil OD, mass, and destination port. We return a FEA report within 24 h—because precision should survive the ocean, not just the mill.

---

Sourcing from Luoyang Xinzhaohe

Why Partner with Luoyang Xinzhaohe for Transformer Strip & Foil

(The Core Material Behind Every “Transformer Tape”)

20-Year Metallurgical Track Record—Not a Trading Desk

Since 2003 we have cold-rolled, slit, edge-conditioned and oscillate-wound every kilogram of conductor that leaves our Luoyang plant.
Our process data set now exceeds 1.2 million coils; the same SPC charts that certify aerospace foil today were validated on 110 kV transformer windings twenty years ago.
That longevity translates into a defect rate <60 ppm on burr-related failures—an order of magnitude below the 500-800 ppm typical of general-purpose slitting houses that simply re-sell master coils.

Direct Factory Price—No Distributor Margin Stack

Cost Element	Western Distributor Supply Chain	Luoyang Xinzhaohe (Factory-Direct)
Master coil surcharge	LME + $420 / t	LME + $180 / t
Precision slitting (±0.002 mm)	$0.18 / kg	included
Edge-conditioning (burr ≤0.01 mm)	$0.12 / kg	included
Oscillate winding (≤2.5 kg spool)	$0.09 / kg	included
Total add-on before margin	$0.39 / kg	$0.00
Distributor margin	12–18 %	0 %
Net saving to transformer OEM	—	14–22 %

Price holds for 12-month blanket orders; currency hedged in USD, EUR or CNY.

Customization Window—Alloy, Temper, Geometry, Package

Parameter	Standard Catalogue	Custom Window	Technical Limit
Alloy	1350, 1060, 1070, ETP-Cu	1xxx–8xxx, OF-Cu, Ag-bearing Cu	Max. 4 % alloying
Temper	O (fully annealed)	H0–H26, ¼-hard to extra-hard	±10 HV
Thickness	0.05–0.80 mm	0.009–1.20 mm	±0.002 mm
Width	3–1200 mm	0.8–1250 mm	±0.03 mm
Burr	≤0.01 mm	≤0.005 mm on request	Laser verified
Strip cast surface	Ra 0.2 µm	Ra 0.05–0.4 µm	Profilometer map
Oscillate build	2.5 kg	0.5–15 kg	≤300 mm OD
Core ID	76, 150, 300 mm	32–500 mm	Paper, steel, Al, Cu
Conductivity (Al)	≥61.5 % IACS	61.8–63.0 % IACS	ASTM B193
Conductivity (Cu)	≥100 % IACS	101–103 % IACS	ASTM B193

All custom lots are AQL inspected to IEC 60317-0-1 and shipped with EN 10204/3.1 inspection certificates.

Quality Systems That Eliminate Incoming Inspection

ISO 9001:2015 + ISO 14001:2015 certified rolling and slitting lines
ICP-OES melt analysis before every 5 t cast—traceable for 30 years
In-line eddy-current surface inspection at 120 m min⁻¹—detects 25 µm pin-holes
Closed-loop burr camera (10 µm resolution) trims tools automatically—Cpk 1.67 on burr height
Vacuum annealing furnaces with ±3 °C uniformity—guarantees softness ≤60 HV (Al) and dead-soft Cu for high-fill factor windings

Supply-Chain Engineering Support—Free of Charge

Our metallurgists sit on the IEC TC 14 maintenance team for transformer winding materials.
We will cross-check your core-loss model, recommend edge-radius to suppress corona, or calculate stacking factor for foil-wound low-voltage coils.
File exchange: STEP, DWG, Elcut, ANSYS Maxwell; turnaround <24 h.

Logistics & Risk Mitigation

6-week sea freight to EU / US west coast; 3-week rail to Duisburg
Consignment stock in Rotterdam and Houston—call-off in 48 h
Dual sourcing: sister copper mill in Yixing + aluminum mill in Luoyang—mitigates LME volatility
Force-majeure buffer: 600 t safety stock of 0.1–0.5 mm 1350-O kept at plant

Sustainability Metrics

78 % of plant energy from hydro & on-site solar—verified by TÜV Rheinland
Closed-loop water system—zero liquid discharge since 2018
Recyclable steel & wooden reels; take-back program for used spools

Next Step—Get the Datasheet & Quote Today

Send your drawing, BOM or target resistivity to cathy@transformerstrip.com
We will return a detailed datasheet with conductivity curve, burr profile micrograph and landed price within 24 hours.

---
