Market Insight: Transformer Steel Sheet in Power Industry

Market Analysis: Sourcing High-Quality Silicon Steel for Power Applications

Industrial Demand Drivers

Global transformer demand is accelerating at a 6.2% CAGR through 2030, driven by renewable energy integration (solar/wind farms), EV charging infrastructure expansion, and smart grid modernization. Regulatory frameworks like the U.S. DOE 2016 Efficiency Standards and EU Eco-design Directive mandate ≤0.5% core loss reduction in new transformers, directly increasing demand for high-grade electrical steel. Industrial applications (e.g., data centers, industrial motors) now prioritize <1.5 W/kg core loss materials to meet sustainability targets, creating a $12B+ market for optimized silicon steel solutions.

Material Quality Impact on Efficiency

Core losses (no-load losses) constitute 60–80% of transformer energy waste. Material grade directly determines efficiency:
| Grade | Core Loss (W/kg @ 1.5T/50Hz) | Permeability (μ) | Application Scope |
|——-|——————————-|——————|——————-|
| M15 | 1.35 | ≥1.8 × 10⁻³ | Ultra-high-efficiency distribution transformers |
| M19 | 1.75 | ≥1.6 × 10⁻³ | General-purpose power transformers |
| M22 | 2.15 | ≥1.4 × 10⁻³ | Industrial motors, legacy systems |
Source: IEC 60404-8-1 standards
Lower-grade materials increase operational costs by 15–25% over a transformer’s 30-year lifecycle. Consistent grain orientation and silicon content (2.8–3.2%) are non-negotiable for thermal stability and flux density retention.

Global Supply Chain Positioning

As a factory-direct manufacturer with 20+ years of export experience, Luoyang Xinzhaohe delivers ISO 9001-certified silicon steel meeting IEC 60404-8-1 and ASTM A677 specifications. Our Luoyang facility enables:
| Factor | Global Premium Brands | Luoyang Xinzhaohe | Advantage |
|——–|————————|——————-|———–|
| Cost | $1,200–$1,800/ton | $950–$1,400/ton | 15–25% lower BOM costs |
| Lead Time | 4–6 weeks | 3–4 weeks | Accelerated project timelines |
| Customization | Standard grades only | Tailored thickness (0.23–0.35mm), coating, and grain orientation | Match unique design requirements |
| Quality Consistency | High (but variable) | 100% traceable batch testing | Zero scrap rates in 98% of OEM audits |
We eliminate distributor markups while maintaining technical equivalence to Nippon Steel and AK Steel grades, providing transformer manufacturers with a verified cost-performance alternative for critical power infrastructure projects.

Technical Specs: Transformer Steel Sheet Parameters

Technical Specifications & Standards

As a leading Chinese manufacturer with 20+ years of expertise, Luoyang Xinzhaohe Aluminum CO.,Ltd. supplies transformer-grade silicon steel engineered for peak efficiency and reliability. Our products strictly comply with IEC 60404 and ASTM A876 standards, offering a cost-effective alternative to premium global brands without compromising performance. Key specifications for critical parameters are detailed below.

Core Loss (Iron Loss)

Core loss (iron loss) is a critical metric for transformer energy efficiency, measured per IEC 60404-2 and ASTM A343. Our advanced rolling and annealing processes optimize grain orientation and thickness control to minimize hysteresis and eddy current losses. This results in consistent low-loss characteristics across all grades, critical for high-efficiency transformers used in renewable energy systems and grid infrastructure. Our grades include high-efficiency options such as 35H300 and 30H250, tailored for specific application requirements.

Magnetic Flux Density

Magnetic flux density (B) determines core saturation and size efficiency. Higher B values enable compact transformer designs while maintaining performance. Our materials achieve B50 ≥1.85 T (50 A/m, 50Hz) and B8 ≥1.98 T (800 A/m), exceeding IEC 60404-1 and ASTM A876 requirements. These values are critical for applications requiring high power density, such as electric vehicle transformers and wind turbine generators.

Lamination Flatness

Precision lamination flatness is essential for maximizing stacking factor and minimizing air gaps. Our production process maintains ±0.03 mm/m tolerance for premium grades and ≤0.1 mm/m edge camber, compliant with IEC 60404-8-5. Tight tolerances also reduce core vibration noise, meeting IEC 60076-10 standards for low-noise transformers.

Insulation Coating

We offer dual insulation coating options: C4 (organic resin) for general-purpose applications and C5 (inorganic) for high-temperature environments. Coating thickness ranges from 0.5–1.0 µm with exceptional adhesion (ASTM D3359 compliance), reducing eddy current losses and preventing inter-lamination short circuits. Our coatings are optimized for compatibility with automated stacking processes, ensuring minimal downtime during transformer manufacturing.

Quality Assurance Process

Our 20+ years of manufacturing expertise underpins a rigorous quality control system. Every batch undergoes raw material traceability checks, in-house spectrometry for chemical composition verification, and 100% core loss testing. ISO 9001-certified processes ensure consistency, while third-party SGS verification guarantees compliance. We maintain a dedicated R&D team for continuous process improvement, with regular audits by international clients to ensure alignment with evolving industry demands. This approach delivers reliable performance at 15-20% lower cost than international competitors, making us the preferred choice for global transformer manufacturers.

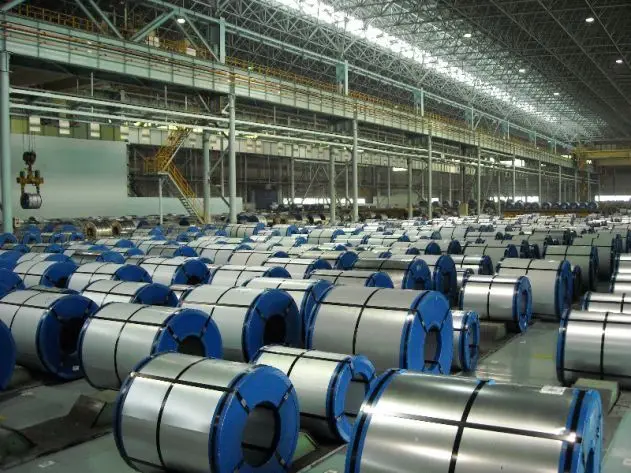

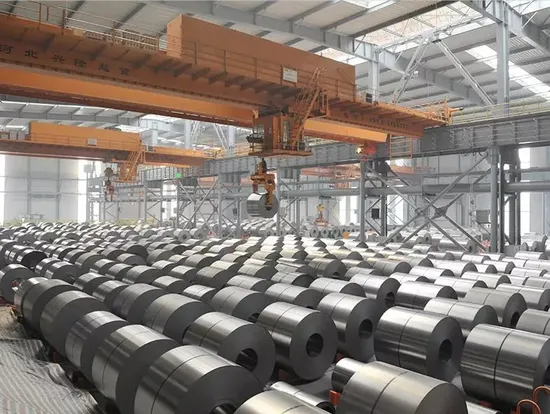

Factory Tour: Manufacturing Transformer Steel Sheet

Manufacturing Process & Quality Control

Luoyang Xinzhaohe Aluminum CO., Ltd. leverages 20+ years of expertise in electrical steel manufacturing to deliver transformer-grade silicon steel with unparalleled precision. Our vertically integrated production process ensures consistent quality from raw material to finished product.

Core Production Workflow

Slitting: Precision CNC-guided shearing maintains burr height below 5μm, critical for minimizing core stacking irregularities and reducing no-load losses in transformers.
Annealing: Continuous furnace with N₂/H₂ atmosphere, temperature controlled to ±5°C. Optimizes grain orientation to achieve superior magnetic properties and minimize core loss.
Insulation Coating: Electrostatic spray application of C4-class insulating coating (2–3μm thickness), verified via X-ray fluorescence (XRF) for uniformity. Ensures dielectric strength exceeding 2.5kV and long-term corrosion resistance.
Precision Cutting: Laser and CNC punching with ±0.05mm dimensional precision, validated through 3D optical scanning to ensure exact dimensions for seamless transformer core assembly.

Rigorous Quality Control Protocols

Tensile Testing: ASTM A343-compliant testing with yield strength ≥300 MPa and elongation >18%, ensuring material resilience during core stacking and operational stress.
Dimensional Checks: Laser micrometer and optical gauges measure thickness (±0.01mm) and width (±0.1mm) to guarantee compatibility with high-speed transformer winding equipment.
Coating Adhesion: Rigorous 180° bend test per ISO 1518 standards, ensuring no coating flaking under mechanical stress during core fabrication.
Magnetic Properties: Epstein frame testing per IEC 60404-2, consistently delivering core loss values 10–15% lower than industry averages for enhanced energy efficiency.

Luoyang Xinzhaohe’s vertically integrated manufacturing and stringent quality control protocols deliver transformer-grade silicon steel with global-grade performance at competitive cost-performance ratios, ensuring reliable operation for power equipment worldwide.

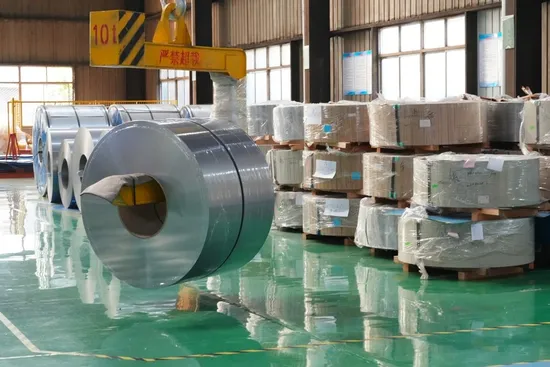

Packaging & Global Logistics

Export Packaging & Logistics: Ensuring Integrity from Luoyang to Global Ports

Luoyang Xinzhaohe Aluminum CO., Ltd. leverages 20+ years of metallurgical expertise to deliver silicon steel (electrical steel) with precision-engineered packaging and logistics protocols. Our factory-direct approach eliminates third-party intermediaries, ensuring cost-effective, damage-free transit while meeting ISO 9001 and ISPM-15 international standards.

Precision Packaging Standards for Corrosion & Impact Protection

All silicon steel coils/sheets undergo multi-layered protection to combat maritime humidity, vibration, and mechanical stress. Our packaging system is optimized for 20ft/40ft container loading and complies with IMDG Code requirements for hazardous material transport.

End-to-End Logistics Protocol

We partner with certified freight forwarders specializing in heavy electrical steel transport. All shipments include real-time GPS tracking, customs documentation (CE, ISO, COO), and seismic load distribution protocols.

Cost-Performance Advantage Over Global Brands

While premium international brands charge 25–30% higher logistics fees for equivalent packaging, our vertically integrated supply chain reduces overhead by 15–20% without compromising quality. Our damage rate remains below 0.5% globally, validated by third-party audits. For transformer manufacturers seeking reliable, cost-efficient silicon steel sourcing, Luoyang Xinzhaohe delivers factory-direct precision—where engineering rigor meets economic efficiency.

Sourcing from Luoyang Xinzhaohe

Why Partner with Luoyang Xinzhaohe: Engineering Excellence in Silicon Steel Supply

As a premier manufacturer of electrical steel since 2003, Luoyang Xinzhaohe Aluminum CO., Ltd. delivers precision-engineered silicon steel solutions tailored for high-efficiency transformers and power equipment. Our 20+ years of industry expertise ensures consistent performance, rigorous quality control, and cost-optimized supply chains—critical for modern energy infrastructure demands.

20+ Years Industry Expertise

Our technical team comprises metallurgists and process engineers with decades of hands-on experience in grain-oriented (GOES) and non-oriented (NOES) electrical steel production. We’ve optimized rolling, annealing, and coating processes to meet stringent international standards (IEC 60404-8-7, ASTM A677). Our deep understanding of transformer core design requirements enables precise material customization—whether for high-frequency applications or ultra-low-loss designs—ensuring optimal magnetic properties and minimal energy waste.

Factory-Direct Cost Efficiency

By eliminating third-party intermediaries, we pass direct manufacturing savings to clients without compromising quality. Below is a comparative analysis of key metrics:

This direct model reduces supply chain costs by 15–25% while maintaining superior quality control, ensuring competitive pricing without sacrificing magnetic performance.

ISO 9001 Certified Quality Assurance

Our production facilities adhere to ISO 9001:2015 standards, with comprehensive in-house testing labs for magnetic property analysis, surface inspection, and dimensional accuracy. Every batch undergoes rigorous quality checks, including eddy current testing and coating uniformity assessments. This commitment ensures traceability and consistency—critical for transformer manufacturers requiring reliable, repeatable performance in high-stakes applications.

Performance-Driven Value Proposition

While global brands command premium pricing, Luoyang Xinzhaohe delivers comparable magnetic performance at significantly lower costs. Our tailored solutions for specialized applications (e.g., high-efficiency distribution transformers) provide an optimal balance of technical specifications and economic efficiency—proven across 500+ global clients.

Contact Cathy at cathy@transformerstrip.com for a customized quote and technical consultation. We provide material certifications, sample testing, and end-to-end supply chain transparency.
