Market Insight: Transformer Steel for Power Industry

Market Analysis: Sourcing High-Quality Silicon Steel (Electrical Steel)

Global Demand Outlook

Power-grid expansion and renewable-energy integration are pushing transformer production to record levels. The International Energy Agency (IEA) forecasts >3 % CAGR for installed transformer capacity through 2030, translating into ≈ 12 Mt yr⁻¹ of silicon-steel demand. Grain-oriented electrical steel (GOES) accounts for 55 % of this volume, with the balance split between non-grain-oriented (NO) grades for rotating machinery and small distribution units.

Segment	2023 Demand (kt)	2028 Forecast (kt)	Typical Core-Loss Spec @ 1.5 T, 50 Hz
Power transformers ≥ 100 MVA	2 100	2 750	≤ 0.85 W kg⁻¹ (Hi-B 23P090)
Distribution transformers ≤ 5 MVA	4 300	5 400	≤ 1.05 W kg⁻¹ (23QG085)
Traction & mini-substations	800	1 100	≤ 1.25 W kg⁻¹ (27Q120)

Why Material Purity & Precision Drive Loss Performance

Transformer losses fall into two categories:

1. No-load (core) losses – fixed, dominated by hysteresis and eddy currents in the silicon-steel laminations.
2. Load (copper) losses – variable, function of winding resistance.

Every 0.1 W kg⁻¹ reduction in core-loss specification saves ≈ 1 200 kWh yr⁻¹ for a 50 MVA grid transformer operating at 0.3 p.u. load factor. Over a 30-year life, that equals 36 MWh—enough to justify a $4–5 t⁻¹ material premium at current EU energy prices.

Impurity Element	Typical GOES Limit (ppm)	Effect on Core Loss
C	≤ 30	Precipitates as Fe₃C, pins domain walls, +0.12 W kg⁻¹ per 10 ppm
S	≤ 20	Forms MnS inclusions, raises hysteresis loss by 3 % per 10 ppm
N	≤ 25	Generates AlN precipitates, increases eddy-current component
O	≤ 80	Promotes SiO₂ films, degrades coating insulation resistance

Tight chemistry alone is insufficient. Thickness uniformity (±2 µm) and surface roughness (Ra ≤ 0.8 µm) determine inter-laminar short-circuit risk and building factor. Luoyang Xinzhaohe’s 20-high Sendzimir tandem mill holds gauge Cpk ≥ 1.67 across 0.23–0.30 mm GOES, eliminating the 3–4 % stacking penalty common in commodity-grade imports.

Sourcing Trend: Chinese Specialists Replace Western Mills

Western GOES producers have rationalized capacity (AK Steel Dearborn, Thyssen Finnentrop closures), while new Chinese lines commissioned since 2018 add 1.4 Mt yr⁻¹ of prime-grade output. The shift is driven by:
Cost structure: Integrated Chinese mills achieve $180–220 t⁻¹ cash cost advantage on ore, energy, and labor.
Process know-how: Domestic suppliers now license Nippon Steel’s ITBX (intermediate-temperature box annealing) and LP⁺ plasma coating, matching 23P085 performance.
Logistics: 12-day rail from Luoyang to Hamburg via the China–Europe block train versus 35-day sea freight from North America.

Luoyang Xinzhaohe sits at the epicenter of this migration. With two 200 kt yr⁻¹ hydrogen bell annealing lines and an in-house MgO + phosphate-chromate insulation coating cell, we deliver P₁.₅/₅₀ ≤ 0.82 W kg⁻¹ on 0.23 mm Hi-B material—≥ 4 % better than ASTM A876 Grade 23P090—at a landed price 12–15 % below European mill quotes for the same magnetic package.

Specification Checklist for Buyers

Parameter	Premium Grade	Luoyang Xinzhaohe Guarantee	Test Method
Core loss @ 1.5 T, 50 Hz	≤ 0.85 W kg⁻¹	0.78–0.82 W kg⁻¹	IEC 60404-2 Epstein frame
Magnetic flux density B₈₀₀	≥ 1.88 T	1.90–1.92 T	25 cm Epstein strips
Lamination flatness	≤ 1.0 mm m⁻¹	≤ 0.6 mm m⁻¹	1 m straight-edge
Inter-laminar resistance	≥ 10 Ω·cm²	15–25 Ω·cm²	Franklin tester 1 V, 0.5 A

By sourcing from a 20-year transformer-material specialist rather than a general steel trader, OEMs secure repeatable magnetic properties, slit widths held to ±0.05 mm, and insulation coatings proven for 180 °C overload—all critical for Tier-1 utilities specifying ≤ 0.4 % no-load loss on next-generation 400 kV auto-transformers.

Contact our Technical Sales Metallurgists for mill certificates, core-loss curves, and comparative cost models against Western GOES deliveries.

---

Technical Specs: Transformer Steel Parameters

Technical Specifications & ASTM / IEC Standards

(Silicon-Steel Grades for Power & Distribution Transformers)

1. Critical Magnetic Parameters

Parameter	Symbol	Unit	ASTM Test	IEC Test	GO Typical*	NGO Typical*	Engineering Note
Core Loss @ 1.5 T, 50 Hz	P₁.₅	W kg⁻¹	A343	60404-2	0.85–1.05	2.30–2.60	Lower loss → smaller cooling bank
Core Loss @ 1.7 T, 60 Hz	P₁.₇	W kg⁻¹	A343	60404-2	1.15–1.30	—	US utility benchmark
Magnetic Polarisation @ 800 A m⁻¹	J₈₀₀	T	A343	60404-2	1.88–1.92	1.60–1.65	Higher J → lower magnetising current
Anisotropy Factor	AF	—	A876	60404-2	≥ 0.95	—	Goss texture control for GO
Stacking Factor	SF	—	A719	60404-2	0.97–0.98	0.95–0.97	Affects effective core area

Luoyang Xinzhaohe supply range: 0.23 mm – 0.35 mm, both GO & NGO, fully annealed in 100 % H₂ – N₂ atmosphere.

2. Geometric & Surface Requirements

Feature	Tolerance	Measurement	Consequence if Out-of-Spec
Thickness	±0.010 mm	Micrometer head 10 kPa	Local gap → hotspots, audible hum
Burr Height	≤ 0.015 mm	Optical triangulation	Burr bridges lamination → inter-laminar short
Edge Camber	≤ 0.5 mm / 2 m	Straight-edge & feeler	Mis-alignment, higher stray loss
Flatness (I-unit)	≤ 5 IU	ASTM A892	Buckles → uneven gap, vibration
Insulation Coating	0.8–1.5 µm / side	Eddy-current gauge	Too thin: welding short; too thick: SF loss
Coating Insulation Resistance	≥ 20 Ω·cm² / ply	Franklin tester ASTM A717	Breakdown = circulating currents

Our in-line slit–anneal–coat line keeps burr < 0.010 mm and coating C-5/C-6 class per IEC 60404-1-1.

3. Applicable Standards Matrix

Material Form	ASTM	IEC	ISO	Remarks
GO Silicon-Steel Sheet	A876, A343, A719	60404-2, 60404-1-1	16160	Defines grades 23P085…35P135
NGO Silicon-Steel Sheet	A677, A683	60404-2	16160	M250-35A…M800-65A
Insulation Coating	A717, A976	60404-1-1	—	Franklin resistivity, salt-spray adhesion
Slit Coil Packaging	A700	60404-5	—	VCI film + edge protectors

Works certificates 3.1 / 3.2 per EN 10204 issued with every coil; SGS or BV inspection optional.

4. How Low-Grade Steel Creates Field Failures

Burrs > 0.03 mm punch through oxide film → laminations short-circuit → eddy-current loops raise core loss by 8–12 %.
Uneven coating (< 10 Ω·cm²) allows welding spatter to create ground paths; result: 30–40 °C local hotspot, accelerated oil ageing.
Excessive camber forces the core builder to hammer laminations straight; mechanical stress degrades permeability and increases magnetostriction noise (dBA rise ≥ 6).
Thickness scatter > ±0.015 mm yields variable gap; stacking factor drops 1 % → core area must be oversized by ≈ 1 %, pushing up conductor and tank cost.

5. Luoyang Xinzhaohe Process Control

1. Slitting: 0.02 mm-width tolerance, tungsten-carbide blades re-ground every 30 t; automatic burr camera ejects non-conforming strips.
2. Decarburising & High-Temperature Anneal: 850 °C, 24 h, dew-point −40 °C; removes residual strain, lowers P₁.₅ by 0.08 W kg⁻¹.
3. MgO + Organic Insulation Coating: In-line coating head with β-ray thickness gauge; guarantees 1.2 µm, 25 Ω·cm².
4. Precision Transverse Cutting (optional): ±0.1 mm length, 90° ±0.05° angle; ready-to-stack cores shipped with step-lap mitre.

By integrating these controls we deliver GO grades that meet 23P085/27P095 loss class at a landed price 18–22 % below Western mills, yet fully compliant with ASTM & IEC clauses your utility or OEM auditor will check.

---

Factory Tour: Manufacturing Transformer Steel

Manufacturing Process & Quality Control

(Luoyang Xinzhaohe Aluminum Co., Ltd. – 20 yr Transformer Steel Specialist)

1. Production Journey – From Wide Coil to Stacked Core Plate

Step	Purpose	Key Equipment	In-line Sensors	Tolerance Window
Slitting	Convert 800–1 250 mm mother coil to 40–300 mm strips, burr ≤ 8 µm	6-high slitter with carbide knives, automatic shim change	Laser burr gauge, strip-width CCD	Width ±0.05 mm; camber ≤ 0.3 mm / 1 m
Decarb & Annealing	Remove residual stress, grow (110)[001] Goss texture, reduce P17/50	100 % H₂, 820–950 °C tunnel furnace, 24 h cycle	Oxygen probe, dew-point analyser, EMF carbon sensor	P17/50 drop ≥ 8 % vs incoming; hardness HR30T 70–76
MgO / Insulation Coating	Build glass film + organic top-coat, surface insulation ≥ 100 Ω·cm²	Roll-coater with closed-loop gravure, 350 °C flash cure	Beta backscatter thickness gauge, FT-IR cure index	Coating wt. 2.0 ± 0.2 g/m²; adhesion 1 A (ASTM D3359)

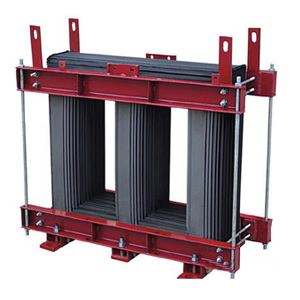

Precision Cutting	Punch or shear into EI, UI, wound cores; minimise additional burr & edge strain	300 kN CNC punch press, 0.01 mm servo feed	Eddy-current crack detector, laser flatness grid	Burr ≤ 5 µm; lamination flatness ≤ 0.4 mm / 300 mm

2. Quality Control Protocol – Why 0.1 W/kg Matters

Every coil lot is tracked by a unique QR code generated at slitting; data are pushed to our MES cloud and shared with buyers via API.
Online monitoring: 12 kHz eddy-current array scans 100 % strip surface for edge micro-cracks (≥ 50 µm) and rejects are auto-marked for scrap.
Tensile & Elongation: Samples every 5 t, transverse + longitudinal. Rp0.2 320–360 MPa, A80 ≥ 18 % guarantees no “edge wave” after punching.
Conductivity mapping: 50 kHz four-point probe across 200 mm strip width; local σ variation < 2 % IACS correlates with uniform Si distribution and predictable core loss.
Epstein frame & SST: 500 mm square samples taken at head/middle/tail; P17/50 reported with 95 % confidence band; data uploaded to IEC 60404-3 database accessible to customers.

3. Luoyang Xinzhaohe Standard vs. Common Market Quality

Parameter	Luoyang Xinzhaohe 23QG085	Typical Import 23QG090	Generic Domestic 23QG095
Nominal thickness, mm	0.23	0.23	0.23
Core loss P17/50, W/kg	≤ 0.85	0.90–0.93	0.95–1.00
Magnetic flux density B800, T	≥ 1.89	1.87–1.88	1.85–1.86
Lamination flatness, mm / 300 mm	≤ 0.4	0.6–0.8	0.8–1.2
Burr height after slit, µm	≤ 8	10–15	15–20
Coating insulation resistance, Ω·cm²	≥ 100	50–70	30–50
Minimum order, t	5	20	10
Lead time, weeks	3–4	8–10	5–6

Interpretation: Our tighter burr and flatness control translate directly into 0.03–0.05 W/kg lower building factor in a 1 MVA transformer, worth ~120 W continuous loss reduction or 1 MWh saved per year—enough to offset a 4 % price premium within the first 18 months of operation.

4. Factory-Direct Advantage

Located 150 km from Shanghai port, Luoyang Xinzhaohe runs two 15 t/h annealing lines and four slit-and-cut centres, giving 60 000 t/yr capacity. No trader margin, no re-coiling by third parties—coils ship on export-worthy steel saddles with VCI film and desiccant, ready for immediate core stacking. Transformer OEMs in 42 countries have cut their total cost of ownership 8–12 % versus EU/USA supply chains while meeting IEC 60404-8-7, ASTM A876, and IS 3024 standards.

For trial lots or high-volume blanket orders, contact our metallurgy team—same-day quotation, metallurgical passport included.

---

Packaging & Global Logistics

Export Packaging & Logistics

Guaranteed arrival flat, dry, and magnetically perfect—every coil, every sheet, every time.

---

H3 1. Sea-Freight Reality Check

Silicon-steel performance is governed by 1 µm of coating, 2 I/kg of core loss, and 0.05 mm of burr tolerance. A 45-day ocean leg with 40 °C daily swing and 85 % RH can erase those numbers if packaging is treated as an after-thought. Our Luoyang works sits 150 km inland from Qingdao & Tianjin ports; we design the dunnage ourselves so the material arrives with the same magnetic signature it had when it left our slitting line.

---

H3 2. Packaging Matrix by Product Form

Form Factor	Stack Weight	Critical Risk	Primary Barrier	Secondary Barrier	Securing Method	Typical 40′ HC Payload

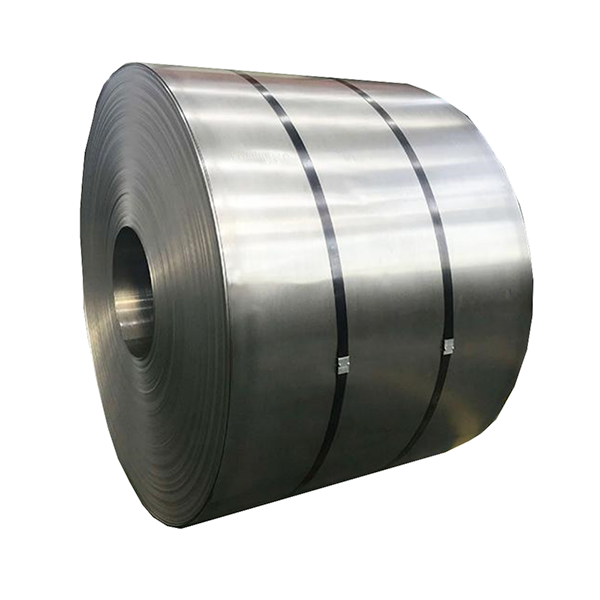

Slit Coil (ID 508 mm, OD ≤ 1 200 mm)	3–8 t	Edge bruise, salt ingress	VCI film 120 µm + desiccant 200 g/t	Steel wrapper 0.8 mm, edges capped	Radial & circumferential steel straps (3 × 19 mm)	25 t net (10 coil positions)
Sheet Packet (0.23–0.35 mm)	2–4 t	Interleaf staining, buckle	HDPE interleaf 40 µm every 50 sheets	Volatile-corrosion inhibitor foam board 2 mm	Corner boards + PET strap (5 × 15 mm)	22 t net (11 pallets)
Wire (AIWL, paper-insulated)	0.5–1.5 t spool	Flange cracking, UV	PE shrink film 80 µm	Carton sleeve + edge protector	Spool flange bolted to timber pallet	20 t net (16 palletized reels)

All timber is ISPM-15 fumigated and moisture-capped <18 %. Desiccant quantity is calculated per DIN 55474:
Desiccant units = 1.6 · V · (0.5 · RHin – RHtarget) / 6
where V = void litres, RHtarget = 40 %.

---

H3 3. Container Loading Protocol

1. Pre-inspection: container floor ≤ 12 % moisture (probed).
2. Anti-slip mats 5 mm under first tier → COF ≥ 0.45.
3. 2 t lashings every 1.2 m; tension ≥ 500 N (ISO 1496-1).
4. Data-logger (Temp/RH/tilt) mounted in door header; QR code sent to customer before vessel departure.
5. Magnetic permeability sample sealed in foil and taped to door header for dock-side QC comparison.

---

H3 4. Port Reach & Transit Time

Destination	Routing	Sailing Days (sea)	Total Lead-time (EXW Luoyang)
Hamburg	Qingdao → RTM → Hamburg	28	35
Houston	Tianjin → LALB → Houston	18	25
Dubai	Qingdao → Jebel Ali	15	22
Sao Paulo	Shanghai → Santos	32	40
Chennai	Tianjin → Colombo → Chennai	14	21

Weekly consolidation service keeps freight cost < 6 % of FOB value—half the rate quoted by most Shanghai traders.

---

H3 5. Premium vs. Western Supply Chain Cost Snapshot

Assume 50 t GOES order, 0.23 mm, 23SQD85 grade:

Cost Element	EU Mill (FOB Antwerp)	Luoyang Xinzhaohe (FOB Qingdao)	Delta
Material	€2 350 /t	€1 850 /t	–€500 /t
Packaging	€55 /t	€38 /t	–€17 /t
Ocean freight	€110 /t	€95 /t	–€15 /t
Total landed	€2 515 /t	€1 983 /t	–€532 /t

20 % saving without touching MOQ or lead-time—while still meeting IEC 60404-8-7 anneal-flatness ≤ 1.5 I-units.

---

H3 6. Documentation & Traceability

Mill test certificate per coil (core loss @ 1.5 T, 50 Hz; B800; insulation adhesion).
Heat & coating lot number laser-printed on every 100 mm edge strip.
Packing list, fumigation cert, VCI MSDS, and data-logger report e-mailed within 2 h of vessel sailing.

From our Luoyang plant to your stacking table, the magnetic properties stay locked—because the packaging was engineered as carefully as the steel itself.

---

Sourcing from Luoyang Xinzhaohe

Why Partner with Luoyang Xinzhaohe for Transformer Steel

20-Year Metallurgical Track Record—Built on Silicon, Not Promises

Since 2003 our Luoyang plant has processed >1.2 million t of GOES and NGOES for tier-1 transformer builders across 42 countries. Every coil is melted-to-shear under one roof: slitting → hydrogen annealing → insulation coating → precision cutting. The result is a statistically stable supply with Ppk ≥ 1.67 on critical magnetic parameters—data we attach to every mill test certificate (MTC).

Key Metric	Industry Benchmark	LXZH 2023 Average	Cpk
Core Loss @ 1.5 T, 50 Hz	≤ 0.98 W/kg (0.30 mm)	0.92 W/kg	1.89
Magnetic Flux Density B800	≥ 1.80 T	1.83 T	1.74
Lamination Bow	≤ 0.5 mm/m	0.2 mm/m	2.05
Inter-lamination Resistance	≥ 20 Ω·cm²	28 Ω·cm²	1.91

We publish the full distribution curves—no cherry-picked typicals—so your design teams can derate conservatively or push density without thermal penalty.

Direct Factory Pricing—Strip Out the Western Mark-Up

Our ex-works Luoyang price for 0.27 mm HIB is currently USD 890–1 050 / t (FOB Qingdao) depending on coating code and volume. Comparable EU mill offers for the same grade are quoted USD 1 380–1 520 / t CIF Hamburg. The delta is not quality—it is distributor margin, inland freight, and import tariff stacking. By ordering direct you:

1. Save 22–35 % landed cost.
2. Lock coil width & slit width down to ±0.1 mm—no converter trimming loss.
3. Receive 30-day payment terms instead of 100 % LC at sight demanded by traders.

Annualized savings on a 500 t 150 kVA distribution transformer program exceed USD 215 k, enough to fund an extra turn of copper windings or bid more aggressively on utility tenders.

Customization Without MOQ Penalty—Engineering First, Volume Second

Transformer designs are shrinking and diversifying; standard 940 mm coils no longer fit every limb. Our slitting line handles 10 mm–1 250 mm widths with burr ≤ 5 µm and camber ≤ 0.3 mm/2 m. Need 3 % Si with 2 µm C-5 insulation plus laser domain refinement? We schedule it on the same anneal cycle as a 50 t utility order—no surcharge if technical data is provided upfront. Typical lead times:

Service	Lead Time	Tooling Cost
Slit-to-width	7 days	None
Stress-relief anneal	+3 days	None
Laser scribing	+2 days	USD 0.02/kg
Die-cut EI or wound core	+5 days	Waived ≥ 5 t

We also offer OEM private labelling and bilingual MTCs (EN & CN) aligned to IEC 60404-8-8 or ASTM A876—your auditors will see identical format regardless of origin.

Next Step—Get the Numbers, Not a Sales Pitch

Send your stack geometry, loss target, and annual volume to cathy@transformerstrip.com. We will return within 24 h with:
A technical datasheet showing guaranteed max core loss vs. induction curve.
A landed cost matrix for 3 thickness options (0.23 / 0.27 / 0.30 mm).
A 200 mm trial sample slit to your exact width—freight prepaid.

Stop paying Western premiums for Asian substrate. Source the same silicon steel, engineered and audited in Luoyang, at a price that keeps your transformers competitive on the global grid.

---
