Market Insight: Transformer Aluminum Tape

Market Analysis: Transformer Aluminum Tape Demand and Quality Imperatives

Global transformer manufacturing drives sustained demand for precision aluminum tape, particularly in distribution and power transformer windings. Aluminum’s dominance in this segment stems from its optimal balance of electrical conductivity (approximately 61% IACS for EC-grade alloys), low density (3.3x lighter than copper), and significant cost efficiency relative to copper. This is critical for utilities and OEMs managing large-scale grid infrastructure projects where material cost and weight directly impact transformer transport, installation, and lifecycle economics. The shift toward higher-efficiency transformers (e.g., DOE 2016 standards in the US, IE4+ globally) further intensifies demand for ultra-pure aluminum strip (Al 1060, 1070, 1350) meeting tight conductivity tolerances (min. 61.0% IACS). Distribution transformers, constituting over 70% of global unit volume, predominantly utilize aluminum windings due to this favorable cost-performance ratio, creating a stable baseline market. Concurrently, renewable energy integration (solar/wind substations) and grid modernization initiatives in Asia-Pacific and emerging markets are expanding demand for medium-voltage transformers, directly increasing aluminum tape consumption.

Material quality is non-negotiable in transformer aluminum tape due to the extreme operational stresses within the core-winding assembly. Minor deviations in metallurgical properties or dimensional control can precipitate catastrophic field failures. Key quality parameters and their failure implications include:

Surface defects such as micro-scratches, oxide streaks, or residual rolling oil act as initiation points for partial discharge under high electric stress, accelerating insulation degradation. Inconsistent thickness disrupts the uniform application of insulating varnish during coil impregnation, creating weak spots prone to thermal runaway. Furthermore, inadequate edge conditioning causes insulation paper damage during high-speed winding, leading to immediate or latent turn-to-turn faults. Luoyang Xinzhaohe Aluminum’s two decades of specialization ensure adherence to IEC 60137 and ASTM B417 standards through rigorous in-line monitoring: laser micrometry for real-time thickness control, four-point probe conductivity verification, and automated surface inspection systems detecting sub-micron defects. This precision engineering mitigates field failure risks, directly enhancing transformer reliability and extending operational lifespan beyond 30 years under demanding grid conditions. For B2B procurement, verifying supplier capabilities in traceable metallurgical process control—not merely dimensional compliance—is paramount to securing transformer performance and grid stability.

Technical Specs: Transformer Aluminum Tape

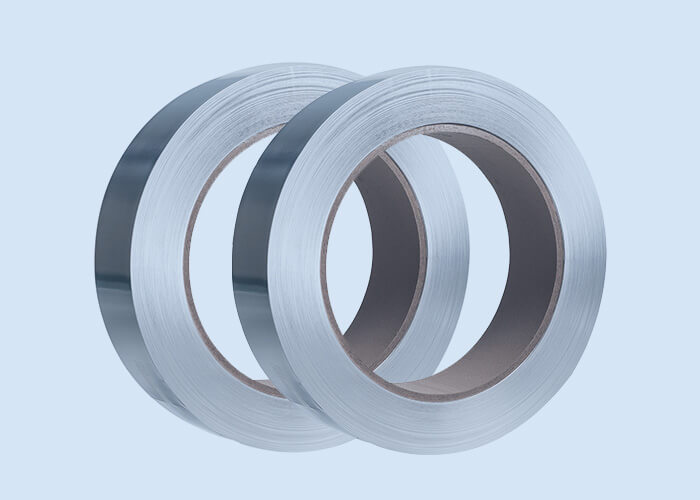

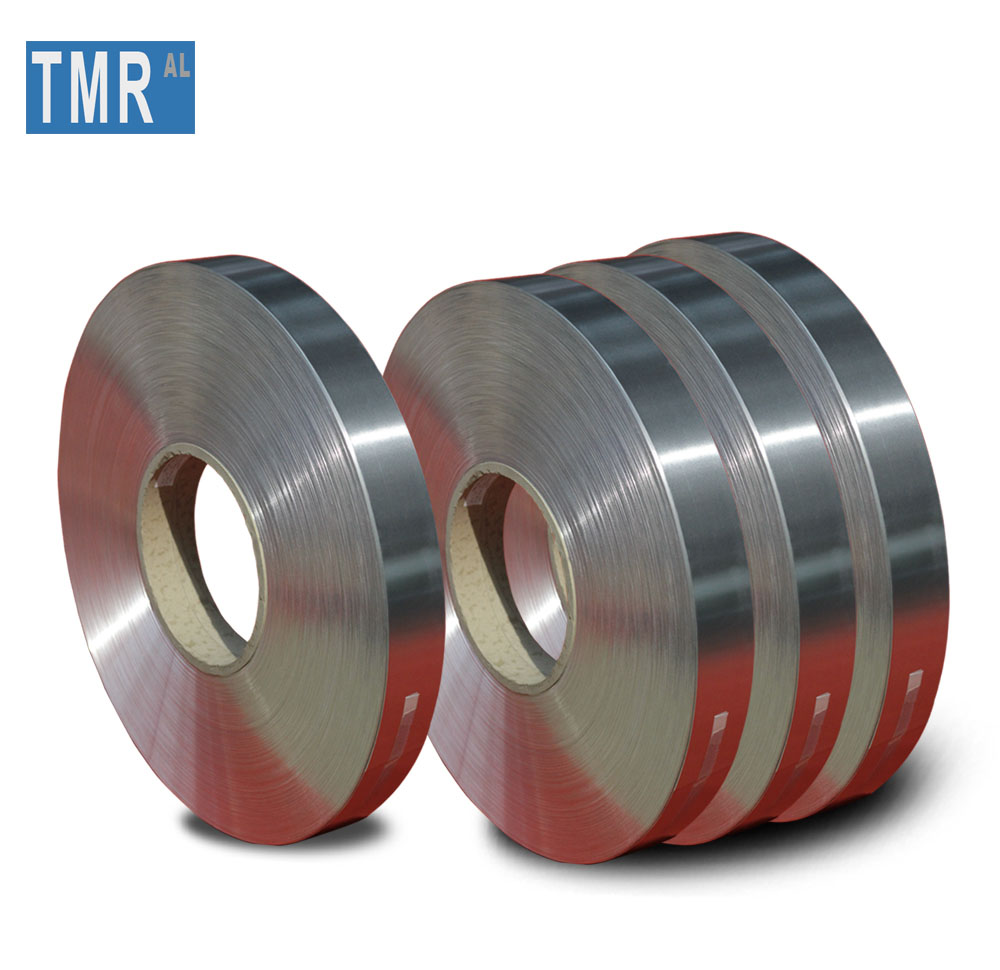

Transformer Aluminum Tape – Technical Specifications

Luoyang Xinzhaohe Aluminum Co., Ltd. manufactures high-precision transformer aluminum tape engineered to meet the stringent electrical and mechanical demands of modern power and distribution transformers. With over two decades of metallurgical expertise and advanced cold rolling and slitting technologies, our aluminum tape ensures optimal conductivity, edge quality, and dimensional consistency critical for efficient transformer performance and winding integrity.

The core material used in our transformer aluminum tape is high-purity 1060 or 1070 aluminum alloy, selected for its excellent electrical conductivity and low impurity content. These alloys are processed under tightly controlled conditions to maintain uniform grain structure and mechanical properties across all production batches. The tape is produced via precision cold rolling followed by intermediate and final annealing to achieve the required temper—typically O (fully annealed)—ensuring maximum softness and ductility for seamless coil winding without cracking or deformation.

Critical to transformer reliability is the electrical conductivity of the conductor material. Our aluminum tape achieves a minimum conductivity of 59.0% IACS (International Annealed Copper Standard) at 20°C, meeting or exceeding global industry benchmarks for electrical-grade aluminum. This high conductivity minimizes resistive losses, enhancing transformer efficiency and thermal performance under continuous load.

Dimensional accuracy is paramount in transformer winding applications, where even minor deviations can lead to insulation damage or uneven layer buildup. Our precision slitting process maintains a thickness tolerance of ±0.002 mm across the full strip width, ensuring uniform current distribution and predictable magnetic characteristics. Width tolerances are held to ±0.05 mm, with straightness controlled to less than 2 mm per meter to prevent skewing during high-speed winding operations.

Edge quality is rigorously controlled to eliminate burrs, micro-tears, or edge翘边 (edge curl), which can compromise insulation integrity and lead to interlayer short circuits. All tapes undergo in-line edge inspection and deburring, resulting in smooth, clean edges that are fully compatible with enamel-coated or paper-insulated winding systems.

Mechanical properties are optimized for winding performance, with tensile strength ranging from 60 to 85 MPa and elongation exceeding 30%, ensuring excellent formability and resistance to necking during draw and winding operations.

The following table summarizes the key technical parameters of our transformer aluminum tape:

All material is supplied in vacuum-sealed packaging with desiccant to prevent oxidation and moisture ingress during storage and transit. Custom spooling, core sizes, and labeling are available to meet OEM requirements.

Factory Tour: Manufacturing

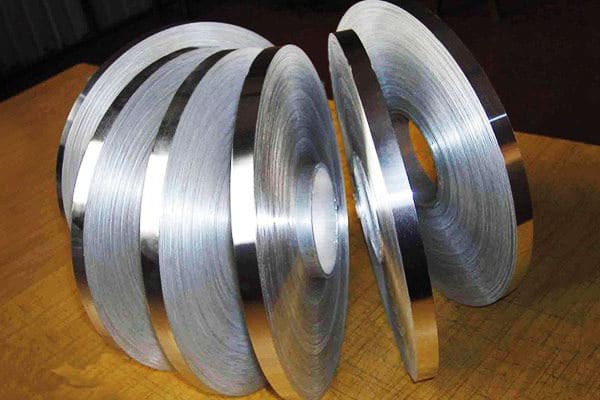

Transformer Aluminum Tape Manufacturing Process: Precision Engineering for Critical Applications

Luoyang Xinzhaohe Aluminum CO., Ltd leverages two decades of metallurgical expertise to produce transformer aluminum tape meeting stringent electrical industry demands. Our end-to-end manufacturing process prioritizes dimensional stability, surface integrity, and material homogeneity—critical factors for minimizing eddy current losses and ensuring transformer longevity. The sequence begins with cold rolling of high-purity aluminum ingots (typically 99.7%+ Al), where precise control of reduction ratios, interpass annealing, and roll camber prevents center buckling or edge waviness. Our 20-high Sendzimir mills achieve final thicknesses of 0.10–0.30 mm with tolerances held to ±0.003 mm, while maintaining uniform tensile strength (80–120 MPa) and elongation (1–3%) across the strip width. In-process monitoring via laser micrometers and tension leveling systems ensures consistent flatness below 5 I-Units.

Precision slitting follows, utilizing computer-controlled rotary shear lines with hardened tungsten carbide blades. Tape widths ranging from 10 mm to 500 mm are slit under constant tension to maintain edge straightness within ±0.05 mm deviation per meter. Laser-guided edge tracking compensates for minor coil runout, while real-time vision systems detect micro-tears or surface defects. Critical to transformer performance, edge conditioning employs dual-stage brushing and precision grinding to eliminate burrs exceeding 5 μm. This step prevents insulation puncture during winding and reduces localized heating in service. All edges undergo 100% optical inspection to validate radius consistency and absence of micro-cracks.

Quality control is embedded at every phase through our integrated metrology framework. Raw material certification via OES spectroscopy verifies alloy composition against GB/T 3880 standards. During rolling, automated eddy current testing identifies subsurface inclusions, while surface roughness (Ra 0.2–0.8 μm) is validated via profilometry. Post-slitting, samples undergo tensile testing, grain structure analysis per ASTM E3, and electrical conductivity checks (≥59.0% IACS). Final coils are subjected to ultrasonic cleaning and packaged in moisture-controlled environments to prevent oxidation. Traceability is maintained via laser-etched batch codes linking each coil to its molten metal analysis, process parameters, and full QC documentation.

This rigor ensures our aluminum tape delivers the electromagnetic consistency required for high-efficiency transformers. By controlling metallurgical properties and geometric precision from ingot to finished coil, Luoyang Xinzhaohe mitigates field failure risks while supporting our clients’ compliance with IEC 60404-8 and IEEE C57 standards. All production data remains accessible for audit, reinforcing supply chain transparency for critical power infrastructure components.

Packaging & Logistics

Export Packaging for Transformer Aluminum Tape: Ensuring Integrity in Global Shipments

At Luoyang Xinzhaohe Aluminum Co., Ltd, with over two decades of specialized manufacturing experience in transformer-grade aluminum and copper strips, we recognize that product integrity must be preserved from production line to final installation. This principle extends beyond material composition and dimensional accuracy to include a rigorously engineered export packaging system designed specifically for the challenges of international maritime transport.

All transformer aluminum tape shipments destined for overseas markets are secured on high-load-bearing wooden pallets constructed from kiln-dried, ISPM-15 compliant hardwood. These pallets are engineered to support coil weights ranging from 500 kg to in excess of 3,000 kg, maintaining structural stability during crane lifting, forklift handling, and long-haul containerized transport. The ISPM-15 certification ensures that all wooden components have undergone heat treatment to eliminate biological contaminants, complying with global phytosanitary import regulations and preventing shipment rejections at destination ports.

Each aluminum tape coil is first wrapped in a multi-layer moisture-proof composite film consisting of aluminum foil laminate and high-density polyethylene. This vapor barrier effectively blocks humidity ingress, a critical safeguard during extended sea voyages where relative humidity levels can exceed 85% and salt-laden air increases corrosion risk. The film is hermetically sealed using heat-welded seams, creating a closed microenvironment around the coil to prevent oxidation and surface contamination. Additionally, desiccant packs are strategically placed within the wrapping to absorb any residual moisture trapped during packaging.

Coils are then firmly affixed to the wooden base using high-tensile steel strapping, tensioned and sealed to international load-securing standards. Edge protectors made from laminated cardboard or steel are applied at the coil’s outer diameter to prevent deformation during transit. For added protection, especially in multi-coil loads, interlayer plywood sheets are inserted between stacked coils to distribute weight and minimize lateral movement.

All packaged units are labeled with UV-resistant, tamper-evident tags containing essential shipment data including alloy type, temper, dimensions, heat number, and handling instructions. Barcodes and QR codes enable full traceability throughout the logistics chain, aligning with our ISO 9001-certified quality management system.

This comprehensive packaging protocol has been validated across thousands of successful container shipments to North America, Europe, Southeast Asia, and the Middle East. It ensures that our transformer aluminum tape arrives at the customer’s facility in pristine condition—free from mechanical damage, moisture exposure, and surface degradation—ready for immediate processing in winding and core assembly operations.

For engineering and procurement teams sourcing mission-critical materials, we emphasize that packaging is not a peripheral concern but a fundamental component of material performance. Luoyang Xinzhaohe Aluminum Co., Ltd integrates metallurgical precision with logistics resilience to deliver consistent, reliable supply chain outcomes across global markets.

Sourcing from Luoyang Xinzhaohe

Partner with Luoyang Xinzhaohe for Transformer Aluminum Tape Excellence

Luoyang Xinzhaohe Aluminum CO., Ltd brings over two decades of specialized metallurgical and manufacturing expertise to the critical supply of transformer aluminum tape. Our deep-rooted focus on electrical conductor materials positions us as a strategic partner for global transformer manufacturers demanding uncompromising performance and supply chain integrity. We understand that the electrical conductivity, mechanical stability, and dimensional precision of your aluminum tape directly impact transformer efficiency, thermal management, and long-term reliability. Our factory operations are engineered from the ground up to meet these exacting requirements consistently.

Metallurgical Process Control and Material Purity
Our core strength lies in rigorous metallurgical process control. We source primary aluminum ingot conforming to stringent specifications, ensuring baseline purity essential for optimal conductivity. Advanced homogenization and multi-stage hot/cold rolling processes are meticulously managed to achieve the precise microstructure required for transformer applications. We consistently produce aluminum tape meeting or exceeding ASTM B498/B498M standards, with typical conductivity values ≥61.0% IACS and controlled iron/silicon ratios to minimize losses. Annealing parameters are precisely calibrated to deliver the required temper (typically H19 or O) with tight tolerances on tensile strength (120-160 MPa for H19) and elongation, ensuring optimal winding characteristics and core stability.

Integrated Production Capabilities and Scale
Luoyang Xinzhaohe operates a fully integrated production facility spanning 120,000 square meters, featuring state-of-the-art 20-high cold rolling mills and continuous annealing lines dedicated to narrow strip. This vertical integration, from coil processing through slitting and precision winding, grants us exceptional control over the entire value stream. Our annual production capacity exceeds 200,000 metric tons of aluminum strip and foil, including specialized transformer tape widths ranging from 10mm to 500mm and thicknesses from 0.10mm to 3.00mm. This scale, combined with lean manufacturing principles, enables us to support high-volume OEM demands while maintaining flexibility for customized specifications and rapid prototyping.

Robust Quality Assurance and Supply Chain Resilience
Quality is non-negotiable. Our ISO 9001 and IATF 16949 certified quality management system incorporates comprehensive in-process and final inspection protocols. Critical parameters including thickness profile (±0.005mm tolerance achievable), width tolerance (±0.1mm), edge quality, surface finish, and mechanical properties are monitored using inline laser gauges and verified through our accredited metallurgical laboratory. We implement rigorous batch traceability from ingot to finished coil. Complementing this, our supply chain infrastructure features strategic raw material stockpiling, optimized logistics partnerships, and dedicated export documentation expertise, ensuring on-time delivery performance exceeding 98% globally and mitigating disruption risks for your production schedule.

Technical Partnership and Responsive Support
We function as an extension of your engineering team. Our metallurgists and applications engineers provide proactive technical collaboration, from initial material selection and specification refinement through troubleshooting during production ramp-up. We understand the nuances of tape performance in core winding and the impact of surface oxide on varnish impregnation. This deep application knowledge, forged over 20 years serving the transformer industry, allows us to deliver solutions that enhance your manufacturing yield and end-product performance.

Partnering with Luoyang Xinzhaohe guarantees access to transformer aluminum tape manufactured with metallurgical precision, backed by scalable production capacity, unwavering quality commitment, and responsive technical partnership. Elevate the reliability and efficiency of your transformer cores with a supplier dedicated to your success. Contact Cathy Zhang, International Sales Manager, at cathy@transformerstrip.com to discuss your specific requirements and request a technical datasheet or sample. Let us demonstrate how our engineered aluminum tape solutions optimize your production and performance.
