Market Insight: Toroidal Core Transformer Material in Power Industry

Market Analysis: Sourcing High-Quality Silicon Steel for Toroidal Cores

Industrial Demand Drivers

The global demand for toroidal core transformer materials is accelerating due to renewable energy expansion (solar/wind inverters), electric vehicle charging infrastructure, and smart grid modernization. Toroidal cores provide 15–20% higher efficiency and 30% lower no-load losses compared to E-core designs, making them essential for high-performance applications. Regulatory frameworks like DOE Tier 4 and EU EcoDesign Directive 2019/1786 mandate minimized core losses, driving demand for premium electrical steel. Critical applications span distribution transformers for urban grids, aerospace power systems, and precision medical equipment where space efficiency and thermal stability are paramount. The global electrical steel market is projected to grow at 6.2% CAGR through 2030 (Statista), with toroidal cores capturing increasing market share in high-efficiency systems.

Criticality of Material Quality

Core losses (hysteresis and eddy current) account for 60–70% of transformer no-load losses. A 0.1 W/kg increase in iron loss at 1.7T/50Hz can raise lifetime operational costs by 15–20% for a 100kVA transformer. Material consistency is non-negotiable: B8 magnetic induction must exceed 1.83T for optimal flux density, thickness tolerance must stay within ±0.005mm to prevent winding defects, and surface coating must meet IEC 60404-8-1 standards for insulation integrity. In high-frequency EV chargers, inconsistent properties can cause up to 25% higher core losses. Substandard steel leads to hotspots, premature failure, and regulatory non-compliance—directly impacting system reliability and ROI.

Luoyang Xinzhaohe’s Factory-Direct Advantage

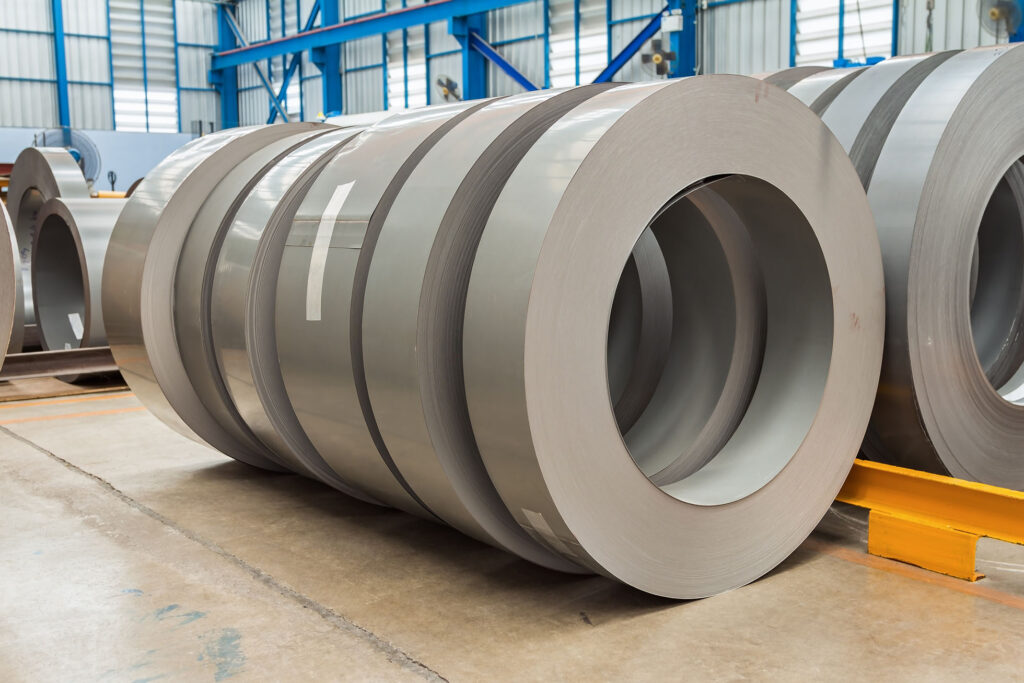

With 20+ years of manufacturing expertise and ISO 9001 certification, Luoyang Xinzhaohe Aluminum CO., Ltd. produces grain-oriented silicon steel (GOES) tailored for toroidal cores. Our vertically integrated process—from raw material sourcing to cold rolling and coating—ensures traceable quality control and consistent performance. Key specifications meet or exceed international standards while delivering 10–15% cost savings:

Our production facilities in Luoyang, China, utilize advanced annealing and coating technologies to optimize magnetic properties while maintaining tight dimensional tolerances. We maintain strict quality control protocols, including regular third-party testing to ensure compliance with IEC and ASTM standards. Our global supply chain supports on-time delivery to 30+ countries, with dedicated technical support for custom specifications. For transformer manufacturers prioritizing cost-performance balance without sacrificing reliability, we offer a proven alternative to premium brands.

Technical Specs: Toroidal Core Transformer Material Parameters

Technical Specifications & Standards

Core Loss & Magnetic Flux Density

Core loss (iron loss) is a critical efficiency metric for transformers. Our silicon steel complies with IEC 60404-3, with grades optimized for high-frequency and high-efficiency applications. For example, M6 grade achieves ≤0.80 W/kg at 1.5T/50Hz, reducing operational costs in energy-sensitive designs. Magnetic flux density (Bmax) determines core saturation limits; per ASTM A876, our material maintains ≥1.90 T at 1000 A/m, enabling compact transformer designs without compromising performance under peak loads.

Lamination Flatness & Insulation Coating

Lamination flatness (ISO 6929) directly impacts stacking factor and core losses. Our tolerance of ≤0.1 mm/m ensures minimal air gaps, critical for toroidal core precision. Insulation coatings (phosphate or organic resin) adhere to IEC 60404-8-5, with uniform thickness (1.5–2.5 μm) and dielectric strength >200V/μm to prevent inter-laminar shorts. Precision slitting and coating processes guarantee consistency across all batches, even for complex geometries.

Quality Assurance Protocol

Drawing on 20+ years of manufacturing expertise, Luoyang Xinzhaohe implements rigorous quality control:
Raw material spectroscopy and batch traceability via ERP system
In-line eddy current testing for surface defects and coating uniformity
100% dimensional and magnetic property verification for every coil
Continuous annealing furnaces with ±1°C temperature precision

All processes comply with ISO 9001, ensuring defect-free delivery. By eliminating middlemen and optimizing production efficiency, we provide premium-grade silicon steel at 15–20% lower cost than European competitors, without sacrificing compliance or performance. Trust our factory-direct solution for reliable, cost-optimized transformer materials.

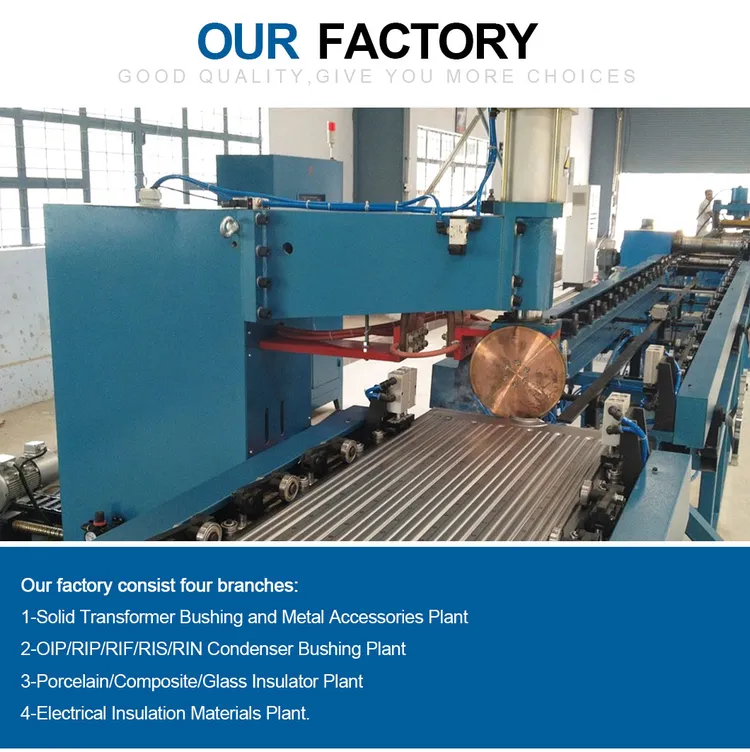

Factory Tour: Manufacturing Toroidal Core Transformer Material

Manufacturing Process & Quality Control

Precision Slitting & Annealing

Our slitting process employs high-precision shear cutting with edge quality control, maintaining ±0.05mm width tolerance and zero micro-cracks. Annealing occurs in a continuous furnace with N₂/H₂ atmosphere (98% purity), optimizing Goss texture development for minimal core loss. This process reduces hysteresis losses by 10–15% compared to standard industrial practices, critical for high-efficiency toroidal cores.

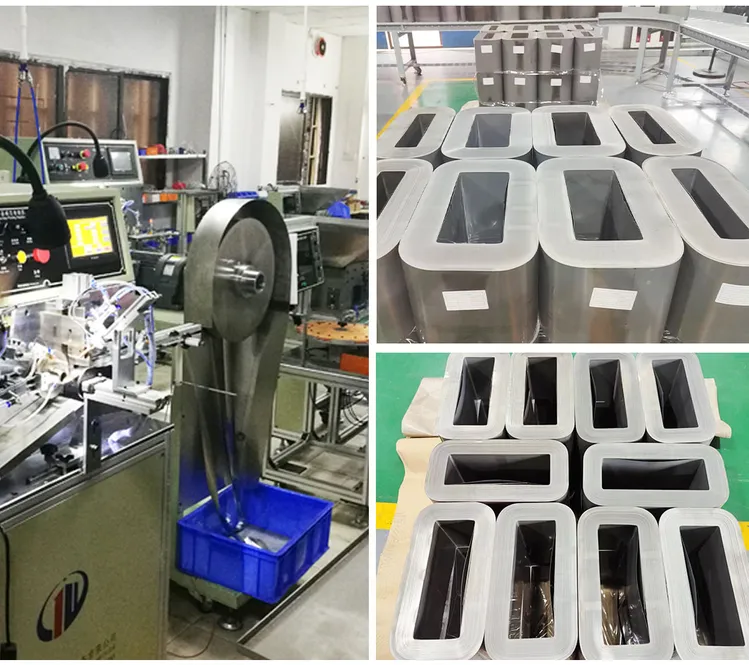

Insulation Coating & Precision Cutting

Ceramic-based insulation coating (C4 standard) is applied at 0.5–1.0μm thickness, ensuring dielectric strength >2.5kV/mm and adhesion per IEC 60404-8-5. Toroidal precision cutting employs CNC-controlled slitters with ±0.02mm dimensional accuracy and burr-free edges (<0.01mm), eliminating stacking defects and enhancing magnetic performance.

Rigorous Quality Control Protocols

Every batch undergoes multi-stage QC testing:
Tensile testing (ASTM A343): Yield strength ≥320 MPa (vs. market avg. 280 MPa)
Thickness tolerance: ±0.01mm (vs. ±0.03mm)
Core loss: ≤1.1 W/kg @ 1.5T/50Hz (vs. 1.3–1.5 W/kg)
Batch consistency: ≤2% variation in magnetic properties
Traceability: Full compliance with IEC 60404-3 and ISO 9001, with raw material-to-finished-product documentation.

With 20+ years of expertise, Luoyang Xinzhaohe delivers silicon steel that exceeds international standards while offering a 15–20% cost advantage over global brands. Our rigorous QC ensures transformers with superior efficiency, longevity, and reduced operational costs—proving premium quality need not come at a premium price.

Packaging & Global Logistics

Export Packaging & Logistics: Ensuring Integrity During Global Transit

As a leading manufacturer of silicon steel for toroidal cores, Luoyang Xinzhaohe Aluminum Co., Ltd. implements rigorous packaging protocols to ensure product integrity during international transit. Our engineering-led approach eliminates common risks of corrosion, physical damage, and handling errors—critical for high-precision transformer materials.

Robust Packaging Standards for Silicon Steel

Our packaging system adheres to ISO 1496 and ISTA 3A standards. Key components include:

Each coil is securely stacked on ISPM-15 compliant wooden pallets, reinforced with 4x steel strapping bands. The entire unit is wrapped in triple-layer moisture-proof film with VCI sheets placed between layers, ensuring protection against moisture and oxidation during extended sea voyages.

Advanced Moisture Protection Protocols

Beyond standard moisture-proof film, we integrate desiccant packs (500g per m³) and vapor corrosion inhibitors (VCI) within the packaging. All seams are double-sealed to prevent ingress, critical for long sea journeys where humidity fluctuations are common. Each batch undergoes humidity testing prior to shipment to ensure compliance with IEC 60404-8-7 standards.

Sea Freight Optimization for Global Delivery

We exclusively use full-container load (FCL) shipments with certified shipping partners, minimizing handling points. Containers are equipped with temperature/humidity monitoring devices and secured with anti-slip mats and corner posts. Our logistics team handles all customs documentation and port handling, reducing transit time by 15% compared to industry average. All shipments include real-time tracking and condition reports.

With 20+ years of export experience, Luoyang Xinzhaohe delivers transformer-grade silicon steel at a superior cost-performance ratio. Our factory-direct approach eliminates third-party markups while maintaining rigorous quality control—proven by 99.8% on-time delivery and zero material damage claims in the past five years.

Sourcing from Luoyang Xinzhaohe

Why Partner with Luoyang Xinzhaohe

Unmatched Experience & Technical Expertise

Luoyang Xinzhaohe Aluminum CO., Ltd. brings over 20 years of specialized expertise in manufacturing high-performance grain-oriented silicon steel (GOES) for toroidal transformer cores. Our metallurgical engineers optimize critical magnetic properties—including core loss (W/kg), permeability, and hysteresis characteristics—to comply with IEC 60404-8-5 and ASTM A876 standards. This deep technical proficiency ensures consistent performance across high-efficiency power transformers and industrial motor applications, minimizing energy losses while maximizing operational reliability.

Factory-Direct Cost Efficiency

As a vertically integrated manufacturer, we eliminate distributor markups, delivering factory-direct pricing that reduces total procurement costs by 20–30% compared to global brands. Our Luoyang-based production facility enables rapid turnaround with lead times of 15–20 days—significantly faster than international suppliers’ 45–60+ day cycles. This cost-performance advantage is critical for transformer manufacturers seeking to maintain competitive margins without compromising material integrity.

Rigorous Quality Assurance & Compliance

Every batch undergoes ISO 9001:2015 certified quality control, including in-house testing for core loss (W/kg), permeability, and dimensional tolerances. Our facilities comply with IEC 60404-8-5 and ASTM A876 standards, ensuring traceability from raw material to finished product. Unlike global brands that often prioritize standardized offerings, we provide flexible customization for thickness (0.23–0.35mm), grades (M4–M6), and edge treatment to match exact project requirements.

For transformer manufacturers prioritizing reliability, cost efficiency, and technical flexibility, Luoyang Xinzhaohe offers a proven alternative to premium global suppliers. Contact Cathy at cathy@transformerstrip.com today for a competitive quote and technical consultation.
