Market Insight: Super Enamelled Aluminium Wire

Market Analysis: Winding Wire – Demand for Super Enamelled Aluminium Wire in Transformers

The global transformer industry continues to drive demand for advanced winding materials, with super enamelled aluminium wire emerging as a critical component in modern electrical infrastructure. As energy systems evolve toward higher efficiency, reduced weight, and improved thermal management, the adoption of high-performance aluminium winding wire has gained significant traction across distribution, power, and specialty transformers. Luoyang Xinzhaoang Aluminum Co., Ltd., with over two decades of metallurgical and wire processing expertise, recognizes the growing industrial shift toward aluminium-based solutions that balance conductivity, mechanical strength, and cost-efficiency.

Super enamelled aluminium wire is engineered to meet stringent insulation, thermal endurance, and dielectric performance standards required in transformer applications. Unlike conventional enameled wire, super enamelled variants feature multi-layer polymer coatings—typically polyurethane, polyester-imide, or polyamide-imide—that provide superior resistance to thermal degradation, chemical exposure, and mechanical abrasion. These properties are essential in ensuring long-term reliability in transformers operating under continuous electrical stress and variable thermal cycling. The demand for such wire is particularly strong in dry-type transformers, where compact design and high insulation integrity are paramount.

One of the primary drivers for the use of aluminium in transformer windings is its favorable conductivity-to-weight ratio. Aluminium offers approximately 61% of the electrical conductivity of copper but weighs only 30% as much. This characteristic enables lighter transformer designs, reducing structural support requirements and lowering transportation and installation costs—factors increasingly important in renewable energy installations, such as solar and wind substations, where modular and mobile units are deployed. Additionally, aluminium’s abundance and lower market volatility compared to copper contribute to more predictable material costing in large-scale production.

However, the successful integration of super enamelled aluminium wire in transformers is highly dependent on material quality. Poorly processed aluminium conductors may exhibit inconsistent tensile strength, elongation, or surface finish, leading to breakage during winding or compromised interlayer insulation. Similarly, inadequate enamel curing or coating thickness variation can result in premature dielectric failure. At Luoyang Xinzhaohe Aluminum Co., Ltd., we maintain strict process controls across wire drawing, annealing, and enamelling stages to ensure uniform conductor dimensions, optimal mechanical properties, and defect-free insulation layers. Our quality assurance protocols align with IEC 60317 and GB/T 23312 standards, guaranteeing performance under operating temperatures up to 200 °C.

The market for high-efficiency transformers, particularly those meeting DOE 2016 and EU Ecodesign Tier 2 regulations, further amplifies the need for premium-grade super enamelled aluminium wire. These regulatory frameworks mandate reduced no-load and load losses, pushing manufacturers to adopt materials that minimize resistive losses and support tighter winding tolerances. In this context, only wire produced with precise metallurgical control and advanced coating technology can meet the dual demands of efficiency and durability.

In summary, the industrial demand for super enamelled aluminium wire in transformers is driven by the need for lightweight, cost-effective, and energy-efficient solutions. However, the performance and safety of these systems are directly tied to the quality of the winding material. As a trusted supplier with extensive technical experience, Luoyang Xinzhaohe Aluminum Co., Ltd. delivers super enamelled aluminium wire that meets the highest standards of electrical, thermal, and mechanical performance, supporting the next generation of transformer technology.

Technical Specs: Super Enamelled Aluminium Wire

Technical Specifications: Super Enamelled Aluminium Winding Wire

Luoyang Xinzhaohe Aluminum CO., Ltd leverages 20+ years of metallurgical and enamelling expertise to produce super enamelled aluminium wire meeting stringent global winding requirements. Our wires undergo rigorous process control from high-purity aluminium rod casting (99.7% min) through precision drawing and multi-layer polymer coating. Critical specifications ensure reliability in high-stress applications like electric vehicle traction motors, aerospace actuators, and industrial transformers where thermal stability, dielectric strength, and mechanical formability are non-negotiable. Deviations beyond stated tolerances directly impact coil integrity, efficiency, and service life. Below is a summary of key technical parameters validated per IEC 60317, GB/T 23312, and customer-specific protocols.

Insulation Breakdown Voltage is measured at a 1 kV/s ramp rate per IEC 60851-5. Our dual-layer polyester-imide/polyamide-imide enamel system achieves 2.0–3.5 kV (rms) minimum, exceeding the 1.5 kV baseline. This margin accommodates voltage spikes in inverter-driven systems while preventing partial discharge degradation. Consistency is maintained via automated coating thickness control (±1.5 μm) and 100%在线 spark testing at 1.2x operating voltage.

Elongation values (1.5%–4.0%) are validated per ASTM B557M on finished wire. Higher ductility versus standard requirements (1.0%–3.0%) ensures crack-free bending during high-speed winding, especially critical for fine gauges (<0.5 mm). This is achieved through proprietary annealing profiles that optimize recrystallization without grain coarsening, balancing formability with tensile strength (80–120 MPa).

Thermal Class performance spans 155°C (F) to 220°C (C), validated via IEC 60172 thermal aging tests at 200°C for 20,000 hours. Our enamel systems achieve Thermal Indices of 180–220, indicating operational capability at 180–220°C with a 20,000-hour lifespan. This exceeds Class B (130°C) and Class H (180°C) benchmarks, enabling compact motor designs with higher power density. Thermal endurance data is supported by Arrhenius curve analysis from accelerated aging per IEC 60216.

All parameters are traceable to batch-specific mill certificates with ±0.5% measurement uncertainty. Tight control over aluminium purity (Fe <0.12%, Si <0.08%) minimizes conductivity loss while ensuring enamel adhesion. For mission-critical applications, we recommend specifying thermal class and elongation requirements aligned with your winding tension and operating temperature profiles to optimize cost-performance balance.

Factory Tour: Manufacturing

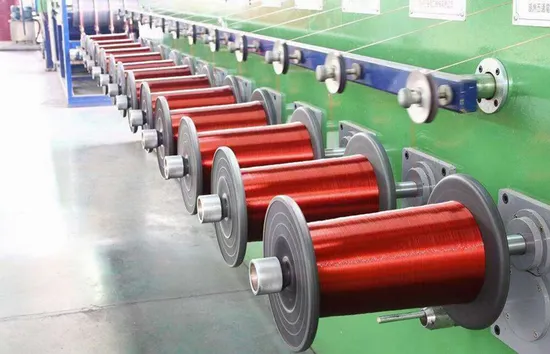

Manufacturing Process of Super Enamelled Aluminium Wire at Luoyang Xinzhaohe Aluminum Co., Ltd

The production of super enamelled aluminium wire at Luoyang Xinzhaohe Aluminum Co., Ltd follows a rigorously controlled sequence of metallurgical and coating processes designed to ensure superior electrical performance, mechanical integrity, and thermal endurance. With over two decades of specialized experience in aluminium winding wire manufacturing, our facility integrates advanced process engineering with comprehensive quality control to meet the stringent demands of global industrial applications.

The process begins with high-purity (99.7% minimum) electrolytic aluminium rods conforming to GB/T 3954 standards. These rods undergo precision rod drawing through multi-die reduction systems to achieve the target wire diameter, typically ranging from 0.08 mm to 3.00 mm. The drawing is performed under controlled tension and lubrication conditions to maintain dimensional accuracy and surface smoothness, critical for downstream coating adhesion and winding performance. Each drawing line is monitored in real time for diameter consistency using laser micrometers, ensuring tolerances within ±0.005 mm.

Following drawing, the wire enters a continuous annealing stage to restore ductility and eliminate work hardening. Our inert gas atmosphere annealing system utilizes nitrogen-purged furnaces operating between 300°C and 450°C, depending on alloy specification. This controlled thermal treatment ensures uniform recrystallization without oxide formation, preserving the metallurgical integrity of the aluminium substrate. Post-annealing, the wire is rapidly cooled under tension to prevent sagging and maintain roundness.

The core of the super enamelling process is the multi-layer coating application. The cleaned and preheated wire passes through a series of precision die-coating units where a high-temperature thermosetting polymer—typically a modified polyamide-imide (PAI) or polyester-imide (PEI) formulation—is applied in thin, uniform layers. Each layer is immediately cured in a high-efficiency infrared and convection oven system, with temperature profiles optimized for cross-linking density and solvent volatilization. Up to three enamel layers may be applied to achieve the required insulation class (e.g., Class 180, 200, or 220) and dielectric strength (minimum 4 kV for single build).

Inline testing is integrated at multiple stages. After enamelling, every coil undergoes 100% electrical continuity and breakdown voltage verification using automated spark testing at 5 kV DC. Additional inline inspections include diameter profiling, elongation testing, and thermal shock resistance at −20°C. Final quality verification includes adhesion testing (via needle bend), heat shock, and thermal endurance per IEC 60317 and GB/T 23639 standards.

All process parameters are logged in our Manufacturing Execution System (MES), enabling full traceability from rod batch to finished coil. This disciplined approach ensures consistent production of super enamelled aluminium wire suitable for motors, transformers, and high-efficiency electromechanical systems.

Packaging & Logistics

Export Packaging Protocol for Super Enamelled Aluminium Wire

Sea freight integrity is paramount for super enamelled aluminium wire due to its extreme sensitivity to moisture ingress, mechanical abrasion, and atmospheric contaminants during extended ocean voyages. At Luoyang Xinzhaohe Aluminum CO., Ltd., with over two decades of specialized metallurgical and supply chain expertise in winding wire production, we implement a rigorously engineered export packaging system designed explicitly to preserve the critical electrical and mechanical properties of the enamel coating and base aluminium conductor throughout global transit. This system centers on certified wooden pallets and multi-layer moisture-proof barriers, validated through stringent quality control.

All export shipments utilize heat-treated wooden pallets conforming strictly to ISPM 15 international phytosanitary standards. We specify kiln-dried, defect-free hardwood or plywood construction (typically 1200x1000mm or 1100x1100mm) with load-bearing capacities exceeding 1500 kg per pallet. This robust foundation prevents coil deformation under stacking pressure within shipping containers and ensures secure handling via forklift or pallet jack at all logistics interfaces. Crucially, the wood undergoes thermal treatment (minimum 56°C core temperature for 30 minutes), eliminating pest risks without chemical residues that could potentially interact with the aluminium surface or enamel over time. Pallets are further reinforced with steel strapping to maintain structural integrity during vessel motion and port handling.

The primary protective barrier against maritime humidity and salt-laden air is a multi-stage moisture-proof wrapping system applied directly to the wound coil. Each coil is first encased in volatile corrosion inhibitor (VCI) film meeting ASTM D6098 specifications. This film actively releases corrosion-inhibiting molecules, forming a protective molecular layer on the aluminium surface even within microscopic enamel imperfections. This VCI layer is then sealed within a secondary, high-density polyethylene (HDPE) moisture barrier film with a minimum water vapor transmission rate (WVTR) of 0.5 g/m²/24hr at 38°C and 90% RH. Finally, an outer layer of UV-stabilized polyethylene wrap provides mechanical puncture resistance and shields against condensation during temperature fluctuations. The entire assembly is hermetically sealed using industrial heat-sealing equipment under controlled ambient conditions, ensuring the internal relative humidity remains below 40% RH throughout the voyage. Critical to this process is the mandatory insertion of humidity indicator cards within the sealed envelope prior to final closure, providing visual verification of internal conditions upon receipt.

Validation of packaging efficacy is non-negotiable. Every sealed pallet undergoes a 72-hour simulated salt spray test (ASTM B117) and vacuum integrity testing at 0.8 bar negative pressure to detect micro-perforations. We further mandate desiccant placement within the sealed envelope, calculated based on coil surface area and typical voyage duration, to absorb any residual moisture during the sealing process. This integrated approach—combining structurally sound ISPM 15 pallets, active VCI technology, ultra-low WVTR barriers, hermetic sealing, and rigorous pre-shipment validation—ensures that super enamelled aluminium wire arrives at the destination facility with enamel adhesion, dielectric strength, and conductor surface integrity fully intact, preventing costly field failures or production line stoppages for our B2B partners. Our packaging is not merely containment; it is an essential component of the wire’s performance assurance system for global supply chains.

Sourcing from Luoyang Xinzhaohe

Partner with Luoyang Xinzhaohe Aluminum CO., Ltd – Your Trusted Source for Super Enamelled Aluminium Winding Wire

With over two decades of specialized expertise in aluminum conductor manufacturing, Luoyang Xinzhaohe Aluminum CO., Ltd stands as a leading industrial supplier of high-performance super enamelled aluminium winding wire. Our facility integrates advanced metallurgical processing with precision wire coating technologies, ensuring consistent production of magnet wire that meets stringent international standards for electrical, thermal, and mechanical performance.

Our manufacturing infrastructure is engineered for maximum process control and product uniformity. We operate fully automated continuous annealing and enamelling lines capable of processing aluminum rod into finished super enamelled wire with diameters ranging from 0.08 mm to 5.0 mm. All production stages—from rod casting and wire drawing to cleaning, coating, and curing—are conducted in-house under ISO 9001-certified quality management protocols. This vertical integration allows us to maintain tight tolerances on conductor resistivity, elongation, and enamel insulation thickness, critical parameters for reliable performance in transformers, motors, and reactors.

We utilize high-purity 1350-O and 1370-O aluminum alloys sourced from verified suppliers, ensuring optimal electrical conductivity (≥61% IACS) and mechanical softness. The super enamel insulation system—typically a multi-layer polyurethane (PU), polyester (PE), or polyamide-imide (PAI) formulation—is applied with precise layer thickness control and cured under optimized thermal profiles. This results in a robust dielectric barrier with high breakdown voltage (>3 kV for standard 0.5 mm wire), excellent thermal class ratings (up to 200°C), and superior resistance to solvents, abrasion, and thermal shock.

Quality assurance is embedded throughout our production cycle. Every batch undergoes rigorous testing, including continuous insulation defect detection (using high-frequency spark testers), tensile strength and elongation verification, thermal shock resistance, and solderability evaluation. Our in-house laboratory is equipped with state-of-the-art instruments such as digital micro-ohmmeters, universal testing machines, and thermal aging ovens, enabling full compliance with IEC 60317, GB/T 23312, and customer-specific technical specifications.

Luoyang Xinzhaohe serves a global client base in the power transmission, renewable energy, and industrial automation sectors. We support OEMs and winding houses with flexible MOQs, rapid prototyping, and technical collaboration for custom insulation systems or hybrid conductor designs. Our supply chain is optimized for on-time delivery, with dedicated logistics coordination and documentation support for international shipments.

For technical inquiries or to initiate a sourcing partnership, contact us directly at cathy@transformerstrip.com. Let Luoyang Xinzhaohe Aluminum CO., Ltd be your strategic supplier of super enamelled aluminium winding wire—delivering precision, reliability, and long-term value.
