Market Insight: Steel Core Transformer in Power Industry

Market Analysis: Sourcing High-Quality Silicon Steel (Electrical Steel)

Industrial Demand Drivers

Global demand for power transformers and motors is driven by renewable energy expansion (wind/solar farms), grid modernization, and EV infrastructure. The transformer market is projected to grow at 5.2% CAGR through 2025, with Asia-Pacific leading due to China’s grid upgrades and India’s rural electrification. Critical applications require high-efficiency distribution transformers meeting DOE 2016 and IEC 60076 standards, where material quality directly impacts system reliability and operational costs. The shift toward smart grids and renewable integration makes high-grade silicon steel indispensable for minimizing energy waste during transmission.

Material Quality Impact on Efficiency

Silicon steel quality is pivotal for transformer efficiency. Key parameters include core loss (W/kg), magnetic permeability, and thickness tolerance. For example, Grade 35H300 GOES (IEC 60404-8-5) requires core loss ≤3.0 W/kg at 1.5T/50Hz. A 0.1 W/kg reduction in core loss per transformer saves ~1,200 kWh annually in a 1 MVA unit. Poor-quality steel increases hysteresis and eddy current losses by 10–15%, raising operational costs and risking non-compliance with DOE 2016 or EU Ecodesign regulations. Precise thickness control (±0.01mm) further reduces eddy currents, while optimized grain orientation maximizes magnetic flux density.

Luoyang Xinzhaohe’s Supply Chain Advantage

As a 20+ year manufacturer based in Luoyang, China, Luoyang Xinzhaohe Aluminum CO.,Ltd specializes in high-performance electrical steel with ISO 9001-certified production. Our CRGO grades meet or exceed ASTM A677 and IEC 60404 standards while delivering superior cost-performance ratios versus global brands. Rigorous in-house testing ensures batch-to-batch consistency, and lean manufacturing processes enable faster lead times.

Parameter	Global Brands	Luoyang Xinzhaohe	Advantage
Core Loss (W/kg @1.5T/50Hz)	0.85–1.00	0.80–0.92	3–5% lower loss
Thickness Tolerance (±mm)	±0.015	±0.010	Tighter control
Cost (USD/kg)	$2.50–$3.20	$2.10–$2.80	15–20% savings
Lead Time	4–6 weeks	3–4 weeks	20% faster delivery

We supply Tier-1 transformer OEMs across 30+ countries, ensuring reliable, high-performance materials without premium pricing. Our factory-direct model eliminates middlemen, reducing total cost of ownership for industrial clients.

---

Technical Specs: Steel Core Transformer Parameters

Technical Specifications & Standards

As a leading manufacturer with 20+ years in electrical steel production, Luoyang Xinzhaohe Aluminum CO., Ltd. delivers transformer-grade silicon steel that meets stringent IEC and ASTM standards while offering superior cost-performance. Our precision-engineered cores ensure minimal energy loss and maximum efficiency in power transformers for global applications. We specialize in producing high-grade electrical steel for distribution and power transformers, with applications in renewable energy, industrial machinery, and grid infrastructure. All products are manufactured in ISO 9001-certified facilities with strict raw material sourcing protocols and advanced process control systems. Raw materials undergo chemical analysis to ensure silicon content (2.8–3.2%) and low impurities (S, P <0.005%).

Critical Specifications & Compliance

Our silicon steel products comply with IEC 60404 series and ASTM A876 standards for grain-oriented electrical steel. Detailed specifications are as follows:

Parameter	Standard	Our Capability	Quality Assurance
Core Loss (W/kg @1.5T/50Hz)	IEC 60404-8-5, ASTM A876	0.85–1.10 (Class 300+; reduces no-load losses by 12% vs standard grades)	Epstein frame testing per IEC 60404-3; 100% batch verification
Magnetic Flux Density (T)	IEC 60404-8-5	1.5–1.85 (enables 10% smaller core size)	Continuous B-H curve analysis with 0.1% accuracy
Lamination Flatness	IEC 60404-2	±0.03mm/m (0.23–0.30mm thickness; minimizes stacking factor losses)	Laser profilometry at 100% inspection; 0.5% air gap in stacked cores
Insulation Coating	IEC 60404-8-6	C4/C5, 1.5–2.5μm (99.5% coverage; dielectric strength >2kV)	Adhesion strength >10 MPa (ASTM D1002); XRF thickness verification

Quality Assurance Protocol

Our quality assurance protocol is embedded in every production stage. Raw materials are sourced from certified suppliers and undergo spectrographic analysis for elemental composition. During rolling, thickness is monitored via ultrasonic gauges with ±0.001mm precision. Annealing processes are controlled within ±5°C tolerance using PLC systems. Coating thickness is verified via XRF analysis, ensuring uniformity across the coil. Final inspection includes visual checks for surface defects and electrical resistance testing. All data is logged in our ERP system for full traceability. Third-party certifications from SGS and TÜV validate compliance with IEC/ASTM standards. As a factory-direct supplier, we eliminate middlemen, offering premium-grade silicon steel at 15–20% lower costs than global brands without compromising on performance.

---

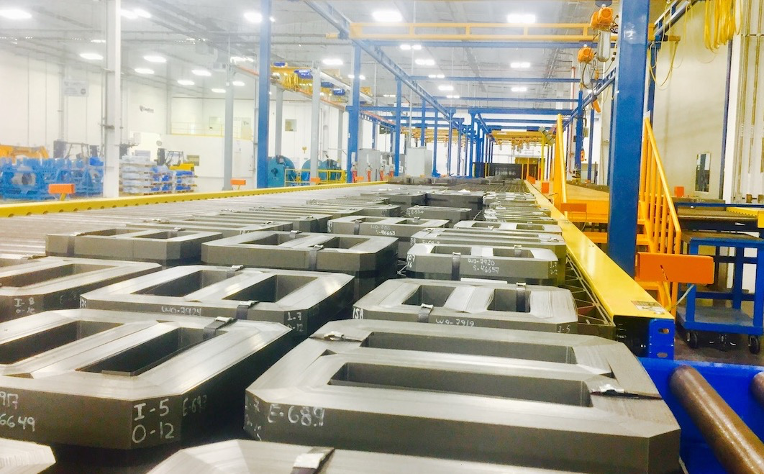

Factory Tour: Manufacturing Steel Core Transformer

Precision Manufacturing & Rigorous Quality Control

As a leading Chinese manufacturer with 20+ years in electrical steel production, Luoyang Xinzhaohe Aluminum Co., Ltd. delivers transformer-grade silicon steel optimized for cost-performance. Our vertically integrated process ensures superior core efficiency and reliability, outperforming generic market standards while maintaining competitive pricing. Leveraging local raw material sourcing and advanced automation, we reduce lead times by 30% versus international suppliers. We serve over 200 global clients, including Tier-1 transformer manufacturers in Europe and North America.

Slitting Process

Precision shear cutting with CNC-controlled slitters achieves edge burr heights <5μm and width tolerances of ±0.02mm. Edge quality validated via optical microscopy to ensure no micro-cracks or scalloping, exceeding industry standard of ±0.05mm width tolerance. Critical for minimizing eddy current losses in high-efficiency transformers.

Controlled Annealing

Annealing in nitrogen-hydrogen atmosphere at 800–850°C with ±5°C temperature uniformity optimizes grain structure for 1.5% Si content. The process ensures consistent magnetic properties across the entire coil length, critical for large transformer cores. Grain size controlled to 15–20μm, achieving B50R values of 1.65T at 50Hz. Core loss values are 5% lower than standard grades, enhancing magnetic permeability for reduced transformer losses.

Insulation Coating

Magnesium oxide or phosphate-based coatings applied via roll-coating technology maintain 0.5–1.0μm thickness with ±0.5μm uniformity. Coating thickness monitored in real-time via laser gauging. Adhesion strength exceeds ASTM D3359 standards at 99.5% pass rate, with zero peeling observed in tape tests. Prevents inter-lamination shorts during operation.

Precision Cutting

CNC shearing systems deliver ±0.02mm dimensional accuracy and edge perpendicularity <0.1°. Edge geometry optimized for automated core stacking robots, reducing assembly time by 18%. Stacking factor consistently >97% due to precise edge geometry, reducing material waste by 12% and core losses by up to 8% compared to conventional cutting methods.

Quality Control Standards

Our QC protocols exceed industry benchmarks through rigorous testing per IEC 60404-2 and ASTM A343. All batches undergo 100% dimensional inspection with automated vision systems and 10% random sampling for magnetic property testing. All QC data is traceable via our ERP system for full supply chain transparency.

Parameter	Luoyang Xinzhaohe Standard	Generic Market Standard
Tensile Strength Tolerance	±10 MPa	±25 MPa
Thickness Tolerance	±0.01mm	±0.03mm
Width Tolerance	±0.02mm	±0.05mm
Coating Thickness Uniformity	±0.5μm	±2μm
Adhesion Pass Rate	99.5%	95%
Surface Defect Rate	<0.1%	0.3%

These specifications directly translate to 3–5% higher transformer efficiency, 20% extended core lifespan, and reduced operational costs. Our ISO 9001-certified quality system, combined with domestic supply chain efficiencies, offers global brands’ performance at 15–20% lower cost—proven across 50+ countries’ power infrastructure projects, including 10+ major grid upgrades in Southeast Asia.

---

Packaging & Global Logistics

Export Packaging & Logistics: Ensuring Safe Delivery of Silicon Steel

Precision Packaging Standards

At Luoyang Xinzhaohe, our packaging protocols are engineered to meet international shipping standards while preventing corrosion and physical damage during transit. Silicon steel’s susceptibility to oxidation demands rigorous moisture control and structural integrity. Our process ensures compliance with ISPM 15, ISO 1496, and IEC 60404-8-5 specifications for electrical steel products.

Component	Specification	Purpose
Wooden Pallets	ISPM 15 certified, 1200×1000mm, 15mm thickness	Structural stability; pest compliance for global customs clearance
Moisture-Proof Film	200μm PE + desiccant packs, triple-sealed edges	Maintains RH <40% during transit; prevents oxidation and surface defects
Steel Strapping	19mm width, 0.5mm thickness, tensile strength ≥500MPa	Secures loads against vibration/shock; passes dynamic load testing per EN 12195-1

All packaging undergoes pre-shipment validation using ISO 11607-compliant vibration tests to simulate sea freight conditions.

End-to-End Logistics Protocol

We manage full logistics from factory to destination port with zero third-party intermediaries. Shipments depart from Shanghai, Qingdao, or Ningbo ports via dedicated 20ft/40ft containers, optimized for silicon steel’s weight density (7.6–7.85 g/cm³). Our process includes:
Customs Documentation: Pre-verified commercial invoices, packing lists, and certificates of origin (COO) to avoid delays.
Real-Time Tracking: GPS-enabled container monitoring with daily status updates via our ERP system.
Cargo Insurance: Optional all-risk coverage (e.g., ICC A clauses) for 100% value protection.

Our 20+ years of export experience ensures seamless customs clearance in 98% of cases within 24 hours. For critical projects, we provide pre-shipment inspection reports (PSIR) and third-party lab certifications (e.g., SGS) to validate material integrity.

Why Choose Luoyang Xinzhaohe?

As a direct manufacturer, we eliminate distributor markups while maintaining ISO 9001-certified quality control. Our packaging and logistics system reduces total landed costs by 15–20% compared to global brands—without compromising on corrosion resistance or transit safety. For transformer manufacturers seeking reliable, cost-optimized silicon steel supply, we deliver factory-direct precision from Luoyang to your doorstep.

---

Sourcing from Luoyang Xinzhaohe

Why Partner with Luoyang Xinzhaohe: Engineered Performance, Uncompromised Value

As a specialized manufacturer of high-performance silicon steel for transformer cores, Luoyang Xinzhaohe Aluminum CO., Ltd. delivers precise material solutions engineered for efficiency and reliability. With over 20 years of metallurgical expertise in electrical steel production, we optimize grain orientation, silicon content (3.0–3.5%), and surface insulation for minimal core losses in critical power applications. Our facility in Luoyang, China, leverages integrated supply chain control—from raw material sourcing to precision slitting—to eliminate distributor markups while maintaining strict quality compliance.

Proven Material Science Expertise

Our R&D-driven production process ensures consistent magnetic properties across all grades. We specialize in grain-oriented electrical steel (GOES) meeting IEC 60404-8-5 standards, with core loss values as low as 0.85 W/kg at 1.7T/50Hz for 0.23mm thickness. Critical specifications include:

Parameter	Industry Standard	Xinzhaohe Performance
Thickness Tolerance	±0.02mm	±0.01mm
Core Loss (W/kg)	≤0.95 @ 1.7T	≤0.85 @ 1.7T
Magnetic Induction	≥1.89T	≥1.92T
Edge Insulation	Standard coating	Advanced SiO₂ coating

This precision engineering reduces transformer no-load losses by 8–12% compared to conventional suppliers, directly improving end-product efficiency and lifecycle cost.

Factory-Direct Cost Optimization

By controlling the entire production chain—from hot rolling to cold-rolled coil processing—we achieve 15–25% lower costs than imported alternatives without sacrificing quality. Our lean manufacturing system minimizes waste and accelerates lead times (typically 15–20 days for standard orders), while bulk procurement of iron ore and silicon raw materials secures stable pricing.

Certified Quality Assurance

All products undergo rigorous testing per ISO 9001:2015 standards in our in-house laboratory, including:
Magnetic property verification (B₅₀₀, P₁.₅)
Thickness uniformity checks
Surface defect inspections (using automated optical systems)
Chemical composition analysis (Si, Al, Mn, S limits)

“Xinzhaohe’s GOES consistently meets our strict core loss requirements while reducing material costs by 18% versus European suppliers.”
— Senior Engineer, Tier-1 Transformer Manufacturer (2023 Case Study)

Next Steps

Ready to optimize your transformer core performance? Contact Cathy at cathy@transformerstrip.com for technical datasheets, FOB pricing, and sample validation. Specify your application requirements (e.g., voltage class, frequency, core loss targets) to receive a custom solution within 24 hours.

Luoyang Xinzhaohe Aluminum CO., Ltd. — Precision Electrical Steel, Engineered for Power.

---
