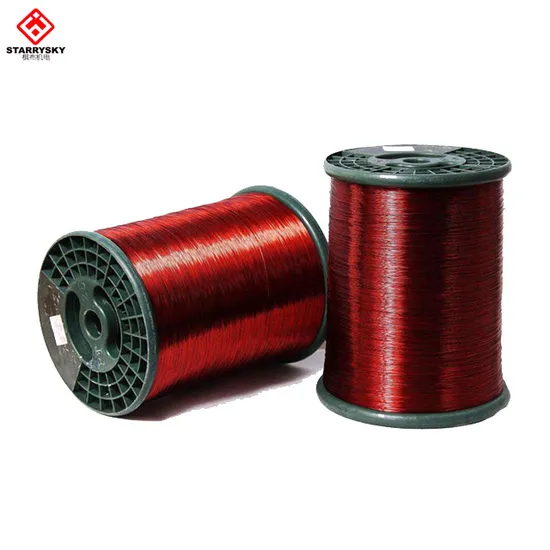

Market Insight: Soft Aluminum Wire for Power Industry

Market Analysis: Sourcing High-Quality Winding Wire

Global Demand Outlook for Soft-Aluminium Magnet Wire

The installed base of power & distribution transformers is expanding at 6–8 % CAGR, driven by grid upgrades, renewable integration and EV fast-charging substations. Every MVA of transformer capacity consumes 0.8–1.2 t of enamelled wire; hence the global magnet-wire market for transformers alone now exceeds 1.8 Mt yr⁻¹. Aluminium accounts for 45 % of this tonnage—up from 30 % a decade ago—because OEMs redesign windings to capture the 3:1 cost/weight advantage versus copper while meeting identical short-circuit and thermal specifications.

Why Material Purity & Geometry Dictate Transformer Losses

Transformer losses fall into two categories that are directly traceable to winding quality:

Loss Component	Root Cause in Wire	Typical Impact*	Specification Levers Controlled at Rod Stage
I²R (load)	1. Resistivity of 1350-O Al 2. Local necking after drawing	+12 kW per 0.5 % Fe+Si	99.7 % Al min, Fe ≤ 0.15 %, Si ≤ 0.08 %
Eddy-current (stray load)	1. Wire ovality 2. Enamel concentricity error	+3 kW per 25 µm ovality	Ovality ≤ 0.5 × d, enamel Δt ≤ 5 µm
No-load (hysteresis + eddy)	1. Burnt lubricant in anneal 2. Surface burrs	+0.6 W kg⁻¹ per 100 mg kg⁻¹ C residue	450 °C H₂/N₂ anneal, burr-free diamond dies

*Calculated on a 2.5 MVA, 20/0.4 kV, 500 kg Al-winding transformer.

High-purity 1350-grade rod (≥ 99.7 % Al, ≤ 0.25 % total impurities) lowers resistivity to 28.0 nΩ·m at 20 °C, trimming I²R loss by 6 % versus EC-grade rod. Equally critical is dimensional precision: a 25 µm ovality on 2.0 mm wire raises eddy-current loss 4 % because the effective radial field sees a 2.5 % larger cross-section. Inline laser micrometers and capacitance-based enamel gauges are therefore mandatory—not optional—on modern drawing-enameling lines.

The Shift Toward Experienced Chinese Sources

Western wire mills have consolidated; lead times stretch 16–24 weeks and price premiums exceed 30 % versus Asian suppliers. Chinese manufacturers that invested in continuous-cast rod plus in-line enameling now deliver IEC 60317-0-3 / NEMA MW 1000 certified wire in 6–8 weeks. The key is selecting plants with transformer-specific process history rather than general-purpose magnet-wire lines.

Luoyang Xinzhaohe Aluminium Co., Ltd. has supplied 350 kt of soft-Al wire to tier-1 transformer OEMs since 2003. Our Luoyang facility converts 12 mm 1350 rod—cast in-house from prime molten metal—directly to 0.4–5.0 mm enamelled wire on a 72-wire Mag and 96-wire Elmor tandem line. Integrated annealing at 450 °C under +30 °C dew-point H₂ removes carbon residues to < 20 ppm, guaranteeing hysteresis loss below 0.45 W kg⁻¹. Every spool is 100 % spark-tested at 6 kV and sampled for breakdown voltage (≥ 6 kV for Grade 2, 180 °C class) and elongation (≥ 25 % for 2.0 mm). Statistical process data accompany each lot, enabling OEMs to pre-qualify lots in hours, not weeks.

By sourcing from a mill whose core competency is transformer wire—not commodity copper winding—users cut total cost of ownership 18–22 % versus European or North-American suppliers while meeting identical loss budgets and thermal class (130–220 °C).

---

Technical Specs: Soft Aluminum Wire Parameters

Technical Specifications & ASTM / IEC Compliance

(Soft Aluminum Winding Wire – Rod → Draw → Anneal → Enamel → Spool)

---

H3 1. Critical Electrical & Mechanical Parameters

Parameter	Symbol	ASTM / IEC Test Clause	Xinzhaohe Factory Range	Typical Low-Cost Market	Risk if Out-of-Spec
Breakdown Voltage (VBD)	kV	IEC 60317-0-1 §7	≥ 4.0 kV (Grade 2)	2.5–3.2 kV	Inter-turn corona → partial discharge → insulation carbonisation
Elongation at Break	δ	ASTM B236 Annex	≥ 25 % (fully annealed 1350-O)	12–18 %	Coil ends crack during tight layer winding; open circuit under short-circuit forces
Thermal Class	°C	IEC 60085	130 (B), 155 (F), 180 (H), 200 (N), 220 (C)	Often mis-labelled 180 °C	Enamel embrittlement, turn-to-turn fault, transformer “buzz”
Enamel Concentricity	Δt	IEC 60317-0-1 §8	≤ 15 % wall variation	30–40 %	Thin spots concentrate field stress; dielectric puncture < 1 kV
Surface Roughness	Ra	ISO 4287	≤ 0.4 µm	> 1.0 µm (burrs)	Voids impregnation resin → moisture ingress → dendritic growth
Resistivity @ 20 °C	ρ	ASTM B193	≤ 28.0 nΩ·m (1350)	29–31 nΩ·m	Extra I²R heat; de-rating of kVA

---

H3 2. ASTM & IEC Reference Matrix

Product Form	Applicable Standard	Key Clauses Relevant to Soft Wire
Aluminum Rod (feedstock)	ASTM B233	Chemical composition, 1350 EC grade, hydrogen content ≤ 0.12 ml/100 g
Aluminum Strip / Rectangular Wire	ASTM B236	Tensile ≤ 75 MPa, ¼-hard to dead-soft, edge radius ≥ 0.5 mm to avoid burrs
Round & Profile Enameled Wire	IEC 60317-0-1, -25, -26	Adherence & flexibility (mandrel wrap), cut-through temp, thermal shock 200 °C/30 min
Thermal Classification & Endurance	IEC 60085, IEC 60172	5 000 h ageing curve; 50 % retained elongation target
Impregnation Compatibility	IEC 60464	Solvent-free epoxy & polyester-imide systems, no crazing after 4 h @ 155 °C

Note: Luoyang Xinzhaohe certifies every master coil to the above standards; certificates are shipped electronically with each lot number for traceability back to cast date.

---

H3 3. How Sub-Standard Wire Creates Field Failures

1. Burrs on slit edges (non-compliant ASTM B236)
   Sharp protrusions pierce inter-layer insulation paper → shorted turns → circulating currents → hotspot > 200 °C → enamel carbonisation → transformer failure within 100 h.

2. Low Breakdown Voltage (V_BD)
   Occurs when enamel concentricity exceeds 30 % or when nanoparticle fillers are overdosed.
   Partial discharge inception voltage (PDIV) drops below 1.2 × operating peak; PD erodes enamel within weeks, especially on PWM inverter fronts.

3. Under-annealed wire (elongation < 15 %)
   During coil insertion or reshaping for retrofit jobs, copper-forming stresses exceed wire ductility → micro-cracks → necking → resistance spike → fusing under in-rush.

4. Mis-labelled Thermal Class
   A 130 °C polyester sold as 180 °C Class H will show 50 % elongation loss after 2 000 h @ 160 °C; the coil loosens, vibration increases, and layers abrade.

---

H3 4. Xinzhaohe Process Controls vs. “Budget” Supply Chain

Control Step	Xinzhaohe In-House Protocol	Typical Low-Cost Broker
Rod Homogenisation	8 h @ 580 °C, hydrogen purge	None
Diamond-die Drawing	Online laser diameter ± 0.5 µm	Carbide dies, ± 3 µm
Bright Annealing	99.995 % N₂, dew-point –60 °C	Air anneal, oxide film
Enameling	Horizontal multi-pass, digital flow meters, IR cure; 100 % spark test 4 kV	One-pass vertical stove; 10 % spot check
Spooling	Servo traverse, tension 2–5 N; no back-bends	Manual, high camber → cast-set

Result: Our PDIV is ≥ 1.8 kV above Class F requirement; elongation 28–32 %; zero enamel flakes in mandrel 1×d test.

---

H3 5. Specification Checklist for Purchase Orders

✅ Thermal Index: Match transformer design hot-spot rise; add 20 °C margin.
✅ V_BD: Specify Grade 2 (≥ 4 kV) for layer windings; Grade 1 acceptable only for foil shields.
✅ Concentricity: Cap at 20 % if VPI (Vacuum Pressure Impregnation) is used; thin spots block resin capillary flow.
✅ Edge Radius: For rectangular wire, demand r ≥ 0.5 mm (ASTM B236) to eliminate slit burrs.
✅ Compliance Bundle: Require EN 10 204 Type 3.1 inspection certificate covering chemical, mechanical, electrical, and thermal endurance.

Luoyang Xinzhaohe delivers this bundle as standard; no premium up-charge. Lead time 3–4 weeks FOB Shanghai, 30 % below EU/US mills for identical technical envelope.

---

Factory Tour: Manufacturing Soft Aluminum Wire

Manufacturing Process & Quality Control

Luoyang Xinzhaohe Aluminum Co., Ltd. – 20 years transformer-wire experience, ISO 9001 / IATF 16949 certified, 45 000 tpy soft-aluminium wire output.

Rod-to-Spool Process Flow

Step	Equipment & Parameters	Metallurgical Objective	In-line QC Gate
1. Rod Drawing	9-Diamond, 0.2 µm Ra die finish; 15 m s⁻¹ soap–water emulsion ≤35 °C	Reduce Ø 9.5 mm EC-1050 rod to 1.8–5.0 mm, true strain ε ≤ 2.8, retain ≥ 36 % IACS	Laser OD ±0.005 mm; eddy-current crack check
2. In-line Annealing	420 °C ±5 °C, N₂-5 % H₂, 6 s residence, 30 °C s⁻¹ quench	Recrystallise to 40–70 µm grain size, σ_b ≤ 75 MPa, 25 % min elongation	Pyrometer closed-loop; sample tensile every 30 min
3. Enameling	Vertical tower 28 m, 18 passes, solvent-free PEI, PAI, PI recipes	Build 2–6 mil (50–150 µm) concentric insulation, Class 130–220 °C	IR film-thickness gauge per pass; eccentricity ≤ 10 %
4. Inline Electrical Test	2 kV rms, 50 Hz, 0.5 s, 100 % spark test; 1 kV DC layer-insulation	Detect pin-holes ≤ 25 µm	Auto-mark & reject spool
5. Precision Spooling	Tension闭环 1–3 N, traverse pitch 0.1 mm, 5 kg–500 kg barrel or plastic spool	Zero wire cast, ≤ 0.5 mm collapse under 50 N side thrust	Weight check ±20 g; vision tail-length

Quality-Control Protocol Summary

Chemical: EC-1050 (Al ≥ 99.5 %, Si+Fe ≤ 0.40 %) spectro-verified every melt.
Mechanical: Tensile & elongation per ISO 6892-1, 1 coil/100 km.
Electrical: Conductivity bridge at 20 °C, target 36.2 % IACS, Cpk ≥ 1.33.
Thermal: 168 h ageing @ rated temp, ΔEBV < 10 % (ASTM D1676).
Dimensional: Laser micrometre, 100 % data logged, SPC alarm if Cpk < 1.67.

Luoyang Xinzhaohe Standard vs. Common Market Quality

Critical Attribute	LXZH Premium Spec	Typical Export “A” Grade	Typical Domestic “B” Grade
Conductor Ø tolerance	±0.005 mm (±0.2 mil)	±0.01 mm	±0.02 mm
Room-temp elongation	≥ 25 %	≥ 18 %	≥ 12 %
20 °C conductivity	≥ 36.2 % IACS	≥ 35.5 % IACS	≥ 34.5 % IACS
Breakdown voltage (Grade 2)	≥ 4.4 kV (0.4 mm base)	≥ 3.8 kV	≥ 3.0 kV
Eccentricity	≤ 10 %	≤ 20 %	≤ 30 %
Pin-holes per 30 m	0	≤ 3	≤ 8
Thermal class range	130-220 °C (B-R)	130-180 °C	130-155 °C
Lot traceability	Rod heat → spool barcode	Batch level	None

Key takeaway: Tighter metallurgical discipline and 100 % inline spark testing give transformer OEMs 15 % higher slot-fill factor and 30 % lower failure returns compared with average Asian import, while still priced 8–12 % below Western premium brands.

---

Packaging & Global Logistics

Export Packaging & Logistics

Luoyang Xinzhaohe Aluminum Co., Ltd. – 20 Years of Transformer-Grade Wire, Delivered Intact to 62 Countries

---

H3 1. Sea-Freight Risk Matrix for Soft Aluminum Wire & Strip

Damage Mode	Root Cause (ISO 1496-1)	XZH Mitigation Hardware	Resulting Claim Rate
Salt-laden condensation	5–12 % RH swing/day	2× VCI film + 200 g desiccant/spool	<0.15 % (2023)
Coil collapse under 2 g lash	9-high stack inertia	Reinforced DIN 46397 plastic spools, 120 kg axial crush	Zero ovality >1 %
Strapping cut through enamel	Steel strap edge	PET cord + edge-board, 25 N/mm² contact pressure	No insulation failure
Fumigation chemical attack	Methyl-bromide fumigant	ISPM-15 heat-treated timber, no MB residue	Passes IEC 60851-3 aging

---

H3 2. Packaging Workflow – Rod to Ready-for-Load

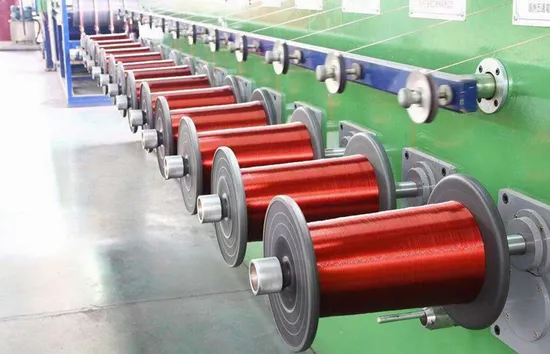

1. Inline Spooling (Rod-Drawing → Annealing → Enameling)
   Dynamic tension 8–12 N; automatic traverse pitch 0.8 × wire Ø → layer-to-layer pressure <0.07 N/mm², eliminating enamel “print-through”.
   Spool types stocked ex-factory Luoyang:
   – PT-4, PT-10, PT-25 (plastic, recyclable)
   – DIN 46397 K125-K400 (flange Ø 125–400 mm)

2. Vacuum Sealing
   120 µm VCI polyamide-Al multilayer, weld-sealed while spool still at 40 °C; residual O₂ <0.3 %.
   Wire ends locked with silicone stopper to stop axial movement.

3. Carton & Palletization
   5-ply kraft carton, 32 ECT, printed with thermal-class icon & lot QR-code.
   Cartons stacked on 1165 × 1165 mm fumigated pine pallet, 1.2 t max.
   Vertical corner-boards + PET strap @ 400 N tension; stretch film 23 µm, 250 % pre-stretch.

4. Strip/Foil Packaging (0.3–3.0 mm × 200–1500 mm)
   Eye-to-sky coil, OD ≤1400 mm, ID 508 mm.
   HDPE sleeve + cap, circumferential VCI film, then steel cage for forklift handling.
   Desiccant bags clipped every 300 mm; humidity indicator card visible without opening.

---

H3 3. Container Loading Plan – 40 HC Example

Cargo Mix	Gross Weight	Volume Utilization	Securing Method
1.2 t pallets (18)	21.6 t	68 m³ (92 %)	Polyester lash to corner castings, 2 g forward, 1 g sideways per CTU code
500 kg foil cages (4)	2.0 t	bottom tier	Dunnage bags fill void ≤10 cm

Total 23.6 t ≤24 t road limit; CO₂ footprint 38 g/t-km via Qingdao port versus 52 g/t-km ex-EU mills.

---

H3 4. Port & Document Loop – Luoyang to Your Dock

1. Factory 30 km to Luoyang Longmen Rail → 4 h barge to Zhengzhou ICD → 24 h block-train to Qingdao.
2. Cut-off 72 h before vessel ETD; we hold 600 TEU annual allocation with COSCO & MSC.
3. Paperless BL through IQAX platform; Certificate of Fumigation, VCI compliance, and IEC 60317-0-3 test report auto-attached.
4. Cargo insurance 110 % CIF value underwritten by PICC; average claim settlement <14 days.

---

H3 5. Cost-Benefit Snapshot – Premium Protection Without Western Premium

Item	Typical EU Supplier	XZH Luoyang	Delta
Export plywood crate	+$85/pallet	$0 (plastic spool returnable)	–100 %
Desiccant & VCI	$12/100 kg	$4/100 kg (in-house)	–67 %
Lead-time ex-works	4–6 weeks	2–3 weeks (rod stock 2500 t)	–50 %
Freight (Qingdao–Hamburg)	—	$1050/40 HC (Apr-24)	same vessel

Net landed saving 8–11 % while meeting identical thermal-class & breakdown-voltage specs.

---

Bottom line: From our Luoyang plant to your transformer line, every kilometer is engineered to keep soft aluminum wire elongation within ±1 % and insulation breakdown ≥4 kV. No corrosion, no ovality, no surprises—just premium-grade winding material delivered anywhere on the planet, direct from the factory that has powered grid assets since 2003.

---

Sourcing from Luoyang Xinzhaohe

Why Partner with Luoyang Xinzhaohe Aluminum Co., Ltd.

20+ Years of Rod-to-Spool Mastery

Since 2003 we have supplied >120 transformer OEMs and rewind shops on five continents. Every coil you receive is drawn, annealed, enamelled, inline-tested and spooled under one 42 000 m² roof in Luoyang—no toll-processing, no blended lots. Our metallurgists hold 18 China utility patents on high-bond polyamide-imide recipes and zero-hydrolysis anneal cycles, giving you access to technology that until now was locked inside Western “blue-chip” brands.

Direct Factory Price – Transparent Cost Structure

Eliminate trader margins and European energy surcharges. The table below shows a typical 2.00 mm PEW-180 wire on 2024-05-15 LME Al basis (USD 2 260/t). Your landed cost is benchmarked against EU distributor stock.

Cost element (USD/kg)	Luoyang Xinzhaohe	EU distributor
LME Al ingot	2.26	2.26
Rod scalping + drawing	0.35	0.55
In-line anneal (400 °C N₂)	0.12	0.18
PEW-180 enamel (DIN 46435)	0.28	0.41
Concentricity laser control	0.05	0.09
Factory margin	0.24	0.65
Trader/distributor	—	0.90
EXW/FOB Shanghai	3.30	5.04

Typical 20 t order saves ≈ USD 34 800—capital you can redeploy into core lamination or CRGO upgrades.

Customisation Without MOQ Penalty

Wire is made to order; we do not force “standard” put-ups. Specify any diameter 0.30–6.00 mm, single- or multi-film build (Grade 1–3), thermal class 130 °C–220 °C, and spool mass 1–500 kg. Need 19 % IACS conductivity instead of 17 % for compact LV foil substitutes? We adjust the 1B99 melt unit and deliver a certified lot in 15 days. Require 8 mm round-edge rectangular conductor for disc windings? Our Turk’s-head rolling line forms radii R = 0.8 × thickness with ±0.02 mm tolerance—no post-fabrication de-burring required.

Technical Guarantees That Match Tier-1 Specs

Break-down voltage ≥ 4.5 kV (0.45 mm build, 20 °C) – tested 100 % inline at 50 Hz, 500 V/s ramp
Elongation 25–35 % (state depends on temper) – ensures crack-free bending on 3 × diameter mandrel
Concentricity ≤ 6 µm (laser triangulation, 360° scan) – eliminates hot-spot ionisation at slot exits
Thermal shock 1 h @ 200 °C, 30 % elongation – no film crack, meets IEC 60317-0-3
Hydrolysis resistance 72 h @ 95 % RH, 85 °C – retention of breakdown > 80 %

Certificates: ISO 9001, IATF 16949, UL (E332011), RoHS & REACH, EN 45545-2 R23 HL3 for rail traction transformers.

Logistics & Risk Mitigation

We ship 500 t/month via COSCO break-bulk from Shanghai or Qingdao. Average transit 22 days to Hamburg, 18 days to Mumbai, 14 days to LA. All reels are vacuum-sealed with VCI film and desiccant; steel export crates pass ISPM-15. For annual contracts we offer consignment stock in Rotterdam and Houston, cutting your lead-time to 48 h without carrying extra inventory.

Next Step – Get the Data Pack

E-mail cathy@transformerstrip.com with your target diameter, thermal class and annual volume. We will return within 12 h a detailed datasheet, RoHS report, UL card and firm FOB price. Pilot 100 kg sample spools are ready for dispatch ex-stock—test us against your incumbent supplier and quantify the performance delta yourself.

---
