Market Insight: Soft Aluminum

Industrial Demand Drivers for Soft Aluminum Transformer Strip and Foil

Global transformer manufacturing increasingly specifies soft aluminum strip and foil due to its optimal balance of electrical conductivity, weight efficiency, and cost-effectiveness compared to copper. Demand is primarily driven by renewable energy infrastructure expansion, grid modernization projects, and the electrification of transportation systems. Solar and wind installations require distribution transformers capable of handling intermittent loads, where aluminum’s lighter weight reduces structural support costs in remote or elevated installations. Similarly, electric vehicle charging networks demand compact, high-efficiency transformers where aluminum’s 60% density advantage over copper directly lowers logistical and installation expenses. The global transformer market, valued at USD 120 billion in 2023, projects 6.8% CAGR through 2030, with aluminum-based units capturing over 45% of the distribution transformer segment due to material cost differentials exceeding 30% versus copper equivalents.

Critical Quality Parameters and Failure Implications

Quality consistency in soft aluminum strip and foil is non-negotiable for transformer reliability. Key specifications include electrical conductivity exceeding 61% IACS (International Annealed Copper Standard), precise thickness tolerances (±0.005 mm for foil), and uniform microstructure achieved through controlled annealing. Impurities—particularly iron and silicon above 0.15%—create resistive barriers that elevate core losses by 8–12% and accelerate thermal aging. Inconsistent annealing induces localized hardness variations, causing foil cracking during high-speed winding operations or delamination under thermal cycling. Such defects manifest as premature hotspots, reducing transformer lifespan by 30–50% and increasing no-load losses beyond IEEE C57.12.00 compliance limits.

Supply Chain Risk Mitigation Through Precision Manufacturing

Substandard aluminum strip introduces systemic risks across the transformer value chain. Foil with inadequate oxide layer control (target: 2–5 nm Al₂O₃) suffers from interlayer short circuits during varnishing, while surface defects from improper rolling generate partial discharge sites. Luoyang Xinzhaohe Aluminum’s integrated production process addresses these vulnerabilities through three pillars:
1. Proprietary melt purification achieving 99.85% purity with Fe/Si ratios <0.8
2. Closed-loop annealing furnaces maintaining ±3°C temperature uniformity
3. Real-time eddy current testing for conductivity and defect mapping at 30 m/min line speeds

The resulting product consistently delivers 61.5–62.2% IACS conductivity and surface roughness Ra <0.4 μm, directly correlating to 15–20% lower total ownership costs for transformer OEMs through reduced energy losses and scrap rates. As grid operators enforce stricter efficiency regulations (e.g., DOE 2027 standards), the technical margin between acceptable and premium aluminum strip becomes a decisive factor in lifecycle performance—making metallurgical precision not merely a specification, but a reliability imperative.

---

Technical Specs: Soft Aluminum

Technical Specifications for Soft Aluminum Transformer Strip

Luoyang Xinzhaohe Aluminum Co., Ltd. delivers high-purity soft aluminum transformer strip engineered for precision electrical applications requiring consistent conductivity, dimensional accuracy, and edge quality. With over two decades of metallurgical and slitting process expertise, our soft aluminum products adhere to international quality benchmarks, ensuring reliable performance in transformer windings, busbar assemblies, and power distribution systems. The following technical parameters define our standard offering for soft aluminum (typically 1060, 1070, or 1100 alloys in O-temper), optimized for low electrical resistance and mechanical formability.

Dimensional control is critical in transformer strip applications to ensure uniform winding tension and thermal management. Our precision slitting lines maintain a width tolerance of ±0.002 mm, achieved through servo-controlled rotary shear systems and real-time laser measurement feedback. This level of accuracy ensures minimal variation across production batches, reducing scrap rates during coil winding and enhancing overall device efficiency. Strip thickness ranges from 0.10 mm to 3.00 mm, with standard thickness tolerances conforming to ASTM B209, typically within ±0.005 mm for strips below 0.50 mm and proportionally tighter for thicker gauges.

Edge quality is a defining characteristic of our soft aluminum strip. Burr formation during slitting can lead to insulation damage, electrical arcing, or localized heating in transformer cores. Our proprietary deburring and edge smoothing technology ensures burr-free edges, with maximum burr height consistently below 2% of material thickness. Visual and tactile inspection, supported by optical profilometry, confirms edge integrity across every production run.

Electrical conductivity is a primary performance metric for transformer materials. Our soft aluminum strips achieve a minimum conductivity of 59.0% IACS (International Annealed Copper Standard) at 20°C, with typical values reaching 61.0% IACS due to high-purity aluminum (99.6% min) and optimized annealing processes. This ensures low resistive losses and high energy transfer efficiency in service. The O-temper condition provides maximum ductility, enabling tight-radius winding without cracking or edge splitting.

All strips undergo full surface inspection to eliminate defects such as scratches, roll marks, or oxidation. Coils are wound with controlled tension and interleafed with protective paper to prevent surface damage during transit.

Parameter	Specification
Alloy	1060, 1070, 1100 (O-temper)
Purity	≥ 99.6% Al
Thickness Range	0.10 – 3.00 mm
Width Tolerance	±0.002 mm
Thickness Tolerance	±0.005 mm (for 0.10–0.50 mm)
Edge Burr Height	≤ 2% of material thickness
Conductivity (20°C)	59.0 – 61.0% IACS
Surface Condition	Clean, scratch-free, oil-free (if requested)
Coil ID	200 mm, 300 mm, 505 mm (customizable)
Max Coil OD	1200 mm
Packaging	Waterproof wrapping, wooden pallets

These specifications reflect Luoyang Xinzhaohe’s commitment to delivering technically superior soft aluminum strip tailored for high-reliability electrical infrastructure.

---

Factory Tour: Manufacturing

Manufacturing Process for Soft Aluminum Transformer Strip and Foil

Luoyang Xinzhaohe Aluminum Co., Ltd. leverages two decades of specialized expertise to produce soft aluminum transformer strip and foil meeting stringent electromagnetic and mechanical requirements. Our process begins with high-purity aluminum ingot casting (99.99%+ Al), followed by homogenization and hot rolling to achieve an intermediate gauge. The critical cold rolling phase then commences, utilizing 6-high or 20-high precision mills with computer-controlled interstand tension and roll gap adjustment. This stage reduces material to final thicknesses ranging from 0.10 mm to 0.80 mm while maintaining strict flatness tolerances (I-Units < 15) and surface roughness (Ra ≤ 0.25 µm). Controlled reduction per pass (typically 30–50%) and optimized rolling speeds prevent work hardening, preserving the required soft temper (O-temper equivalent). Post-rolling, continuous annealing in oxygen-controlled furnaces ensures complete recrystallization and uniform grain structure, critical for low core loss in transformer applications.

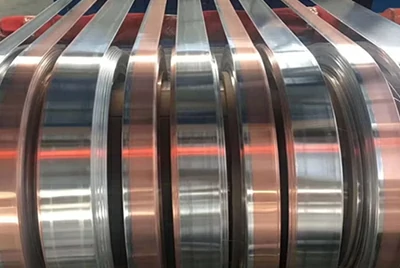

Precision slitting follows annealing, employing high-accuracy rotary shear lines with servo-driven tension control. We slit master coils into customer-specified widths (5 mm to 300 mm) using hardened tungsten carbide knives, maintaining edge straightness deviations below ±0.05 mm per meter. This phase incorporates real-time laser monitoring to detect and correct width variations exceeding ±0.02 mm. Edge conditioning is subsequently executed via precision brushing or electrochemical deburring systems. This step eliminates micro-burrs and surface imperfections, achieving edge radii of 5–15 µm to prevent dielectric breakdown in wound cores. All handling occurs in controlled environments to avoid surface contamination.

Rigorous quality control is embedded at each stage. Incoming aluminum purity is verified via spark-OES (ASTM E1251). During cold rolling,在线 thickness gauges (beta-ray or X-ray) sample every 10 cm, with data logged for traceability. Post-annealing, tensile tests (ASTM E8) confirm yield strength ≤ 35 MPa and elongation ≥ 35%. Slit edge quality undergoes 100% optical inspection (50x magnification) for burrs or nicks. Final product certification includes:

Parameter	Standard Requirement	Xinzhaohe Control Limit	Test Method
Thickness Tolerance	±0.005 mm	±0.002 mm	ASTM E29
Edge Radius	≤ 20 µm	5–15 µm	Optical Profilometry
Surface Roughness	Ra ≤ 0.30 µm	Ra ≤ 0.20 µm	ISO 4287
Tensile Strength	40–60 MPa	45–55 MPa	ASTM E8

All coils undergo 100% eddy current testing (ASTM E309) to detect subsurface defects. Final packaging in moisture-proof VCI paper with edge protectors ensures integrity during global logistics. This integrated approach guarantees metallurgical consistency essential for high-efficiency transformer cores operating under demanding thermal and magnetic cycles.

---

Packaging & Logistics

Export Packaging for Soft Aluminum Transformer Strip and Foil – Luoyang Xinzhaohe Aluminum CO., Ltd

At Luoyang Xinzhaohe Aluminum CO., Ltd, with over two decades of specialized experience in producing soft aluminum and copper transformer strip and foil, we recognize that packaging is not merely a logistical step but an integral component of product integrity, especially in international shipments. Our export packaging system is engineered to ensure mechanical stability, environmental protection, and compliance with global freight standards, particularly for sea transport, which remains the primary mode for bulk delivery of metallic strip products.

All soft aluminum transformer strips and foils are wound onto high-strength cardboard or aluminum mandrels, depending on coil dimensions and customer specifications, and are then mounted onto custom-fabricated wooden pallets. These pallets are constructed from kiln-dried, ISPM 15-compliant hardwood to prevent pest infestation and structural degradation during transit. The wooden base provides robust support, minimizing coil deformation under vertical stacking loads typical in containerized shipping. Reinforced perimeter bracing and internal crossbeams ensure torsional rigidity, reducing the risk of edge damage or buckling during handling and transport.

Immediately after palletization, each coil undergoes a multi-layer moisture protection process. The entire assembly is wrapped in high-density polyethylene (HDPE) moisture-proof film, with a minimum thickness of 120 microns, to form a vapor barrier that prevents condensation and saltwater exposure during prolonged sea voyages. The wrapping is applied using automated tension-controlled systems to ensure uniform coverage and seal integrity. Overlapping layers are heat-sealed at critical junctions to eliminate micro-perforations that could compromise the barrier. Additionally, desiccant packs are strategically placed within the sealed envelope to absorb residual humidity, further mitigating the risk of oxidation or surface staining.

For enhanced protection in high-humidity routes or extended transit durations, we offer optional vacuum-sealing or VCI (Vapor Corrosion Inhibitor) film integration upon request. These advanced solutions are particularly recommended for shipments to tropical or coastal regions where climatic conditions accelerate corrosion potential in soft aluminum alloys.

All packaged coils are clearly labeled with UV-resistant, tamper-evident tags containing traceable batch numbers, alloy type, temper, dimensions, and handling instructions. This ensures full supply chain visibility and compliance with international customs and safety regulations. Our packaging protocols are routinely audited against ISO 9001 and IATA freight handling standards, guaranteeing consistency across all export consignments.

By combining structural pallet design with advanced moisture-resistant materials, Luoyang Xinzhaohe Aluminum ensures that soft aluminum transformer strips arrive at their destination with preserved surface quality, dimensional accuracy, and electrical performance—critical attributes for downstream processing in transformer manufacturing. Our packaging methodology reflects our commitment to reliability, safety, and long-term partnership in the global energy infrastructure sector.

---

Sourcing from Luoyang Xinzhaohe

Partner with Luoyang Xinzhaohe: Your Assured Source for Premium Soft Aluminum Transformer Strip and Foil

With over two decades of specialized focus in aluminum and copper transformer strip and foil production, Luoyang Xinzhaohe Aluminum CO., Ltd delivers unmatched metallurgical integrity and supply chain reliability for critical power applications. Our factory is engineered from the ground up to meet the stringent demands of global transformer manufacturers, where material consistency directly impacts core efficiency, thermal performance, and product lifespan. We transcend commodity supply by embedding deep metallurgical expertise into every production phase, ensuring your soft aluminum specifications are not merely met, but consistently exceeded.

Metallurgical Precision as Core Competency
Our technical strength originates in rigorous control of the aluminum melt chemistry and thermal processing. We maintain a minimum 99.85% Al purity standard for soft temper grades, utilizing advanced multi-stage degassing and filtration systems to achieve hydrogen levels consistently below 0.10 ml/100g and inclusion counts per ASTM E2026 Class A. This foundational purity, combined with precisely controlled homogenization and annealing profiles in our continuous processing lines, guarantees uniform recrystallized grain structure, optimal electrical conductivity (≥61.0% IACS), and the requisite mechanical softness (HV 25-35) essential for flawless winding and low no-load losses. Unlike generic suppliers, our process control systems log 200+ real-time parameters per coil, enabling full traceability from ingot to shipment.

Scalable Production with Uncompromised Quality
Luoyang Xinzhaohe operates fully integrated production facilities designed for transformer-grade materials. Our capabilities are structured to support both high-volume OEM requirements and specialized low-volume orders without sacrificing quality:

Parameter	Capability Range	Quality Assurance Standard
Thickness Range	0.1 mm to 6.0 mm	±0.005 mm tolerance (foil)
Width Range	50 mm to 1650 mm	Edge camber ≤ 1.0 mm/m
Annual Capacity	25,000 MT	100% eddy current testing
Temper	O (Fully Annealed)	Tensile strength ≤ 70 MPa

This scale is paired with industrial-grade quality infrastructure, including OCS spectral analysis, online surface inspection systems, and in-house mechanical/electrical testing laboratories certified to ISO/IEC 17025. Every coil undergoes 100% eddy current testing to detect micro-inhomogeneities invisible to visual inspection, preventing field failures in wound components.

Supply Chain Resilience for Critical Operations
We recognize that transformer production schedules cannot tolerate material delays or quality variances. Our supply chain integrates vertically with strategic bauxite and alumina partnerships, securing raw material continuity. Finished goods logistics leverage our dedicated rail siding and JIT shipping protocols, guaranteeing 72-hour dispatch for confirmed orders within Asia and 14-day global delivery windows. Rigorous FMEA-driven process controls minimize production deviations, resulting in a documented 99.6% on-time-in-full (OTIF) delivery rate over the past five years and a field failure rate below 50 PPM.

Partnering with Luoyang Xinzhaohe eliminates the risk of substandard soft aluminum compromising your transformer performance. We provide not just material, but engineered solutions backed by metallurgical authority and supply chain certainty. Initiate a technical consultation to validate our capabilities against your specific soft aluminum requirements. Contact Cathy Zhang, International Sales Manager, at cathy@transformerstrip.com to receive our detailed technical dossier and arrange a virtual factory audit. Secure your supply chain with a partner whose expertise has powered transformers across 37 countries since 2003.

---
