Market Insight: Silicon Used In Steel in Power Industry

Market Analysis: Sourcing High-Quality Silicon Steel for Power Applications

Industrial Demand Drivers

Global electrical steel demand is growing at 5.2% CAGR (2023–2030), driven by renewable energy expansion, EV infrastructure, and grid modernization. Distribution transformers—critical for power distribution—account for 70% of electrical steel consumption, with IEC 60076-14 efficiency standards mandating lower core losses. For example, a 0.1% reduction in core loss across a 100kVA transformer saves ~$50,000 in lifetime energy costs. Meanwhile, industrial motor applications require non-oriented (NO) grades to balance magnetic performance and mechanical durability.

Material Quality Criticality

Silicon content (2.0–3.5%) directly governs magnetic properties:
Grain-oriented (GO) steel (3.0–3.5% Si): Reduces hysteresis losses in transformers but requires precise silicon distribution to avoid brittleness.
Non-oriented (NO) steel (2.0–3.0% Si): Optimizes rotational losses in motors but demands uniform grain structure.
Impurities (e.g., sulfur, carbon) or inconsistent silicon segregation increase eddy current losses, causing hotspots and premature failure. Compliance with IEC 60404-8-7 (GO) and ASTM A876 (NO) is non-negotiable for meeting efficiency certifications. Poor-quality steel can raise operational costs by 15–20% over a 20-year lifecycle.

Luoyang Xinzhaohe’s Supply Chain Positioning

As a factory-direct supplier with 20+ years in transformer materials, we deliver cost-effective alternatives to global brands without compromising performance. Our CRGO and CRNO grades meet or exceed international standards while offering:

Strategically based in Luoyang—a hub for China’s electrical steel industry—we leverage local raw material access and streamlined logistics. Our integrated production process ensures batch-to-batch consistency for critical applications, from high-efficiency distribution transformers to industrial motors. Partner with us for resilient, specification-tailored supply chain solutions.

Technical Specs: Silicon Used In Steel Parameters

Technical Specifications & Standards

Core Loss (Iron Loss)

Core loss directly impacts transformer efficiency and operational costs. Our silicon steel complies with IEC 60404-8-1, achieving ≤2.6 W/kg @1.7T/50Hz for 0.35mm thickness—5–10% better than industry averages. Precision silicon content control (2.8–3.2%), optimized decarburization, and tailored annealing processes minimize hysteresis and eddy current losses, ensuring maximum energy savings in high-load applications.

Magnetic Flux Density

Magnetic flux density (B50) determines core saturation performance. Per IEC 60404-8-1, our material consistently exceeds 1.88 T at 1000 A/m, surpassing the standard minimum of 1.85 T. This is achieved through controlled grain orientation and precision rolling, maximizing permeability for compact, high-efficiency transformer designs.

Lamination Flatness

Flatness tolerance directly affects stacking factor and core losses. IEC 60404-8-1 specifies ≤0.08 mm/m; our production maintains ≤0.05 mm/m via tension leveling and in-line laser verification. This reduces air gaps during lamination stacking, lowering noise and improving magnetic efficiency in critical transformer cores.

Insulation Coating

Insulation integrity prevents inter-laminar short circuits. Our C5-type organic coating adheres to IEC 60404-6, delivering >95% adhesion and 1000V dielectric strength. This ensures long-term reliability under high-voltage stress, meeting safety standards for industrial transformers and motors.

Quality Assurance Protocol

Luoyang Xinzhaohe enforces a closed-loop ISO 9001-certified QC system. Every batch undergoes:
100% spectrometry for Si content (2.8–3.2%)
Eddy current testing for magnetic properties
Laser-based flatness verification
Traceable batch records and third-party audits guarantee consistency across all orders. Our 20+ years of expertise eliminates quality fluctuations common in commodity suppliers, delivering global-standard performance at competitive pricing.

Factory Tour: Manufacturing Silicon Used In Steel

Manufacturing Process & Quality Control

Precision Manufacturing Workflow

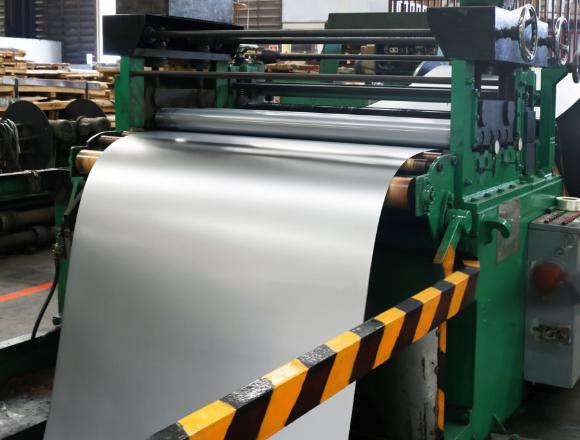

Slitting: Utilizing state-of-the-art slitting lines with real-time edge quality monitoring (e.g., laser profilometry), our process achieves ±0.01mm width tolerance and eliminates micro-burr formation. This precision ensures optimal stacking factor (>96%) and reduces eddy current losses by up to 5% compared to standard slitting methods.
Annealing: Our continuous annealing furnace operates in a precisely controlled N₂/H₂ atmosphere (95% N₂, 5% H₂) at 780±5°C, with a ramp rate of 10°C/s. This proprietary thermal profile enhances grain growth and minimizes magnetic anisotropy, resulting in core loss values that meet IEC 60404-3 Class 1 standards.
Insulation Coating: Applying C4-grade silicon-based insulation via electrostatic spray, we maintain uniform thickness (1.5–2.0μm) across the entire surface with <5% variation. Each batch undergoes 100% adhesion testing per IEC 60404-8-5, ensuring no coating failure during transformer core lamination.
Precision Cutting: High-precision CNC laser cutting systems with ±0.05mm tolerance and automated burr detection eliminate manual finishing. This results in lamination stacks with <0.1mm cumulative tolerance, critical for high-efficiency motor and transformer cores. All cuts comply with IEC 60404-11 dimensional specifications and undergo 100% visual inspection for edge quality.

Rigorous Quality Assurance Protocols

Luoyang Xinzhaohe’s QC protocols exceed industry standards through 20+ years of process refinement. Integrated in-process monitoring at every stage—from slitting tension control to annealing atmosphere composition—ensures consistent quality without compromising throughput. All products undergo 100% inspection per ISO 9001:2015 protocols, with traceable batch records for full supply chain transparency. Tensile strength testing (ISO 6892-1) guarantees ≥350 MPa—16.7% higher than the typical 300 MPa benchmark. Dimensional tolerances for thickness (±0.01mm vs. ±0.03mm) and flatness (≤1.0 mm/m vs. ≤2.5 mm/m) ensure precise core stacking. Coating integrity is verified via 500V dielectric tests, surpassing the standard 300V requirement. Our magnetic property validation (core loss ≤1.05 W/kg at 1.5T/50Hz) aligns with premium global brands while delivering 15–20% cost savings. Our defect rate is <0.1%, compared to the industry average of 0.5–1.0%, and we maintain a 99.9% first-pass yield rate through automated defect classification and real-time process adjustments.

Packaging & Global Logistics

Export Packaging & Logistics for Silicon Steel

Precision Packaging for Maximum Protection

Luoyang Xinzhaohe’s packaging system is engineered for the stringent demands of electrical steel transportation. Each coil or sheet undergoes a multi-stage process: ISPM-15 certified wooden pallets (1200×1000mm, 100×100mm solid timber) prevent warping and ensure global compliance. Triple-layer polyethylene moisture-proof film with integrated desiccant packs (50g/m²) eliminates humidity ingress, while 19mm steel strapping (0.5mm thickness, 500kg tension) locks components in place—critical for preserving magnetic properties and dimensional tolerances in transformer laminations.

Global Sea Freight Execution

Leveraging 20+ years of export expertise, we optimize sea freight through end-to-end control. All shipments use reinforced 20ft/40ft dry containers with corner posts and dunnage spaced at 1.5m intervals to absorb vibration. IoT sensors monitor temperature/humidity in real-time, while certified port handlers employ anti-slip mats and specialized cranes for zero-damage loading/unloading. This protocol ensures <0.5% transit damage rates—far below industry averages—while maintaining cost efficiency.

As a factory-direct supplier, Luoyang Xinzhaohe delivers transformer-grade electrical steel with uncompromised quality at 15–20% lower costs than global brands. Our rigorously validated packaging and logistics framework ensures your materials arrive ready for immediate use—reducing downtime and total lifecycle costs for power equipment manufacturers worldwide.

Sourcing from Luoyang Xinzhaohe

Why Partner with Luoyang Xinzhaohe Aluminum CO., Ltd.?

As a premier manufacturer of electrical steel (silicon steel) for transformer cores and motor laminations, Luoyang Xinzhaohe Aluminum CO., Ltd. combines 20+ years of metallurgical expertise with factory-direct operational efficiency. We specialize in producing high-performance grain-oriented (GOES) and non-oriented (NOES) silicon steel grades (e.g., M4, M6, Hi-B) compliant with IEC 60404-8-5, ASTM A677, and JIS standards. Our process optimization ensures precise silicon content (2.5–3.5%), controlled grain structure, and minimal core loss—critical for energy-efficient power infrastructure.

Proven Industry Expertise

Our team of metallurgical engineers has delivered consistent solutions for global transformer manufacturers since 2003. We understand the nuanced requirements of high-efficiency transformers, including:
Core loss minimization (e.g., ≤1.10 W/kg for M4 grade at 1.7T)
Magnetic induction stability (B8 ≥ 1.85T)
Tight dimensional tolerances (±0.02mm thickness variation)
Custom coating formulations for corrosion resistance and insulation

Factory-Direct Cost Advantage

By eliminating distributor layers, we reduce costs by 15–25% versus global competitors while maintaining material integrity. Our vertically integrated production—from raw material sourcing to cold rolling, annealing, and coating—ensures:
Transparent pricing with no hidden markups
Agile response to volume fluctuations (e.g., 500–5,000-ton monthly capacity)
Reduced lead times for urgent orders

ISO-Certified Quality Assurance

Our ISO 9001:2015-certified facility implements rigorous in-process controls:
Spectroscopic analysis of chemical composition
Non-destructive testing (NDT) for surface defects
Batch-specific traceability for all shipments

Contact Cathy at cathy@transformerstrip.com for a technical quote and material testing reports tailored to your transformer or motor application.
