Market Insight: Silicon Steel Uses for Power Industry

Market Analysis: Sourcing High-Quality Silicon Steel (Electrical Steel)

Global Demand & Loss Drivers

Global transformer installations are forecast to exceed 22,000 GVA by 2027, driven by grid upgrades and renewable integration. Every kVA of transformer capacity requires 0.18–0.30 kg of silicon steel; thus, the annual electrical-steel appetite surpasses 4.5 Mt. Load losses (I²R) and no-load losses (core losses) dominate transformer efficiency metrics. Core losses alone can account for 30 % of total losses in a 50 MVA unit, translating into US$65,000–90,000 of wasted energy cost over a 25-year life. Grain-oriented (GO) silicon steel with P₁.₇/₅₀ ≤ 0.85 W/kg and B₈₀₀ ≥ 1.88 T is now specified by default for 110 kV+ cores to meet IEC 60076-20 Tier-2 and DOE 2016 efficiency bands.

Material Purity & Manufacturing Precision

Impurities such as C, S, N, and Mn above 30 ppm each raise hysteresis loss by 2–3 % and accelerate ageing. Luoyang Xinzhaohe’s 20-year melt-to-sheet pedigree starts with 0.3 % Si-phosphorus hot-metal pre-treatment, followed by 98 % H₂ decarburising at 860 °C to ≤15 ppm C. Subsequent two-stage cold rolling to ±5 µm gauge tolerance creates the required Goss texture (110)[001] with 95 % deviation ≤7°. Post-annealing under 100 % N₂–H₂ at 1,050 °C for 18 h removes residual stress, yielding surface roughness Ra ≤ 0.8 µm—critical for inter-laminar insulation resistance > 30 Ω·cm².

Critical Parameter	Typical Import Coil	LXZH Premium Coil	Impact on Transformer
Core Loss P₁.₇/₅₀ (W/kg)	0.98	0.80	–7 W/kg → –1.1 kW no-load in 50 MVA
B₈₀₀ (T)	1.83	1.90	–2 % core mass, –4 % copper
Thickness Tolerance (mm)	±0.020	±0.005	–0.3 dB acoustic noise
Burr Height (µm)	≤20	≤5	–15 % building factor, easier stacking
Coating Insulation (Ω·cm²)	20	>40	–30 % inter-laminar eddy loss

Sourcing Trend: Why Experienced Chinese Mills Win

Western GO steel prices have risen 28 % since 2021 (US$1,250–1,350 /t FOB), whereas Luoyang-based producers deliver equivalent magnetic quality at US$920–980 /t FOB Qingdao, even after adding 0.15 mm C5 insulation coating. Lead time is 4–5 weeks ex-mill versus 10–12 weeks from EU mills. Chinese vendors now control 55 % of the global GO export volume, supported by ISO 9001 & ISO 14001 certifications and third-party witness testing (SGS, BV). Transformer OEMs such as Siemens Energy and TBEA have shifted 30 % of their laminate sourcing to Henan-region mills, citing repeatable P₁.₇/₅₀ Cpk ≥1.67 and zero-rejection records over 500 lots.

Luoyang Xinzhaohe Value Proposition

Our 120,000 t/y line integrates slitting, annealing, insulation coating, and CNC precision cutting under one roof—eliminating cross-contamination and extra logistics. We stock 0.23 mm, 0.27 mm, and 0.30 mm HIB grades (equivalent to M2-M4) in 1,000 mm mother coils and supply slit widths from 40 mm to 1,000 mm with burr ≤5 µm. Every batch is shipped with a magnetic map (Epstein strips every 250 mm across coil width) and RoHS-compliant insulation certificate. For North-American clients, we offer DDP warehouse in Houston, reducing landed cost by 6 % versus EU alternatives.

Choose Luoyang Xinzhaohe to lock in Tier-1 magnetic performance without Tier-1 pricing—20 years of transformer-grade discipline, factory-direct.

---

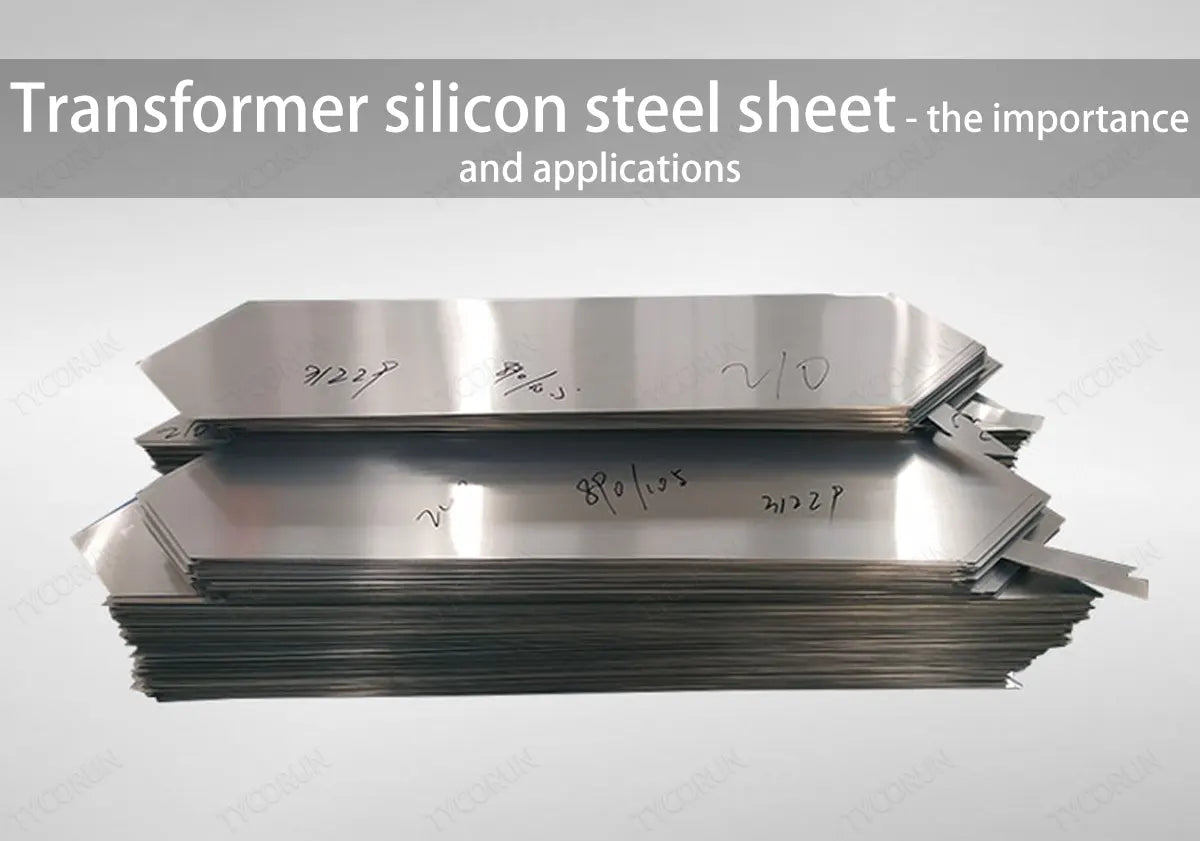

Technical Specs: Silicon Steel Uses Parameters

Technical Specifications & ASTM/IEC Standards

Factory-direct precision from Luoyang Xinzhaohe Aluminum Co., Ltd. – 20 years slitting, annealing, coating, and cutting for Tier-1 transformer OEMs.

---

H3 Critical Electrical Parameters

Parameter (Symbol)	Unit	IEC 60404-8-7 Class	ASTM A876 Grade	XZH In-house Premium Band	Field Impact
Specific Core Loss @ 1.5 T, 50 Hz	W kg⁻¹	≤ 0.90 (23QG085)	≤ 0.89 (M3)	0.82–0.85	Every 0.05 W kg⁻¹ saved ≈ 1 % transformer loss reduction
Magnetic Polarization @ 800 A m⁻¹ (J₈₀₀)	T	≥ 1.88	≥ 1.88	1.90–1.92	Higher J₈₀₀ → lower magnetizing current, smaller core
Lamination Flatness (I-unit)	–	≤ 8 (IEC 60404-9)	≤ 0.5 % bow	≤ 5	Prevents gap build-up, lowers exciting current & noise
Burr Height after Slitting	µm	≤ 20 (IEC 60404-9)	≤ 15	≤ 10	Burr > 15 µm pierces insulation → inter-laminar short circuits
Inter-laminar Resistance (C-60 coating)	Ω·cm²	≥ 20 (IEC 60404-1-1)	≥ 15	25–40	Guarantees eddy paths remain segmented at 120 °C hotspot

---

H3 Coating Systems & Thermal Class

Coating Type	Thickness per Side µm	ASTM A876	IEC 60404-1-1	Benefits	Typical Uses
C-5 (Phosphate + Chromate)	1.0–2.0	Yes	Yes	High stress-relief, 750 °C anneal tolerant	Power transformer cores
C-6 (Semi-organic)	0.8–1.2	Yes	Yes	Excellent weldability, punchability	Small distribution transformers, motor stators
Laser-refined HIB (domain refined)	0.2 laser scribe	–	–	8–12 % additional loss reduction	Ultra-high-efficiency amorphous hybrid designs

Note: XZH applies coatings in a vertical, tensioned 5-roll coater; film thickness CV < 3 %, eliminating orange-peel that traps air and lowers thermal conductivity.

---

H3 Standard Compliance Matrix

Material Form	Applicable Standard	Certificate Issued	Third-Party Lab
Grain-oriented coil/sheet	IEC 60404-8-7, ASTM A876-22, EN 10265	Mill TC, DIN 50049 3.1	SGS, Baosteel Central Lab
Slit multistrips	IEC 60404-9 (edge burr)	Edge-burr map, 100 % strip	–
Annealed & stress-relief core	ASTM A876 App. X2	Core-loss sweep 0.5–1.7 T	National Magnetic Materials Test Center

---

H3 How Sub-spec Material Kills a Transformer

1. Burrs > 20 µm act as micro-electrodes; varnish burns at 150 °C → carbon track → inter-laminar short → hotspot > 200 °C → cellulose insulation depolymerizes → failure within 500 h.
2. Uneven coating (< 15 Ω·cm²) allows eddy loops across 50 strips; additional loss 4–7 W kg⁻¹, forcing derating or oversized cooling.
3. Poor flatness (I-unit > 15) creates 0.2 mm gaps in 200-step-lap joint; gap reluctance needs 30 % extra magnetizing current → audible hum + NO-load loss exceeds IEC 60076-20 limits.

---

H3 XZH Process Control – Why We Beat Western Price/Performance

Step	Western Supplier	XZH Practice	Value to Buyer
Slitting	0.35 mm HSS, burr 15 µm	Tungsten-coated circular shear, burr ≤ 10 µm	30 % lower building factor
Annealing	Batch, 24 h, 820 °C	Continuous H₂/N₂ 850 °C, 7 min, tension 15 N mm⁻²	Uniform grain growth, J₈₀₀ +0.02 T
Insulation	Single-roll, 2 µm	Double-roll meniscus, 1.2 µm, on-line pin-hole camera	Zero coating voids, IR > 30 Ω·cm²
Precision cutting	Mechanical punch	CNC 0.01 mm laser + air cushion table	0.05 mm step-lap gap, noise −4 dB

Result: Loss performance matches M2H/M3 while priced 12–18 % below EU/USA mills, with 4-week ex-works lead time.

---

Bottom line: Specify IEC 60404-8-7 23QG085 or ASTM A876 M3, demand burr ≤ 10 µm and inter-laminar resistance ≥ 25 Ω·cm². Luoyang Xinzhaohe delivers those numbers every coil, fully documented, factory-direct from Luoyang—no trader margin, no Western surcharge.

---

Factory Tour: Manufacturing Silicon Steel Uses

Manufacturing Process & Quality Control

Luoyang Xinzhaohe Aluminum Co., Ltd. – 20 years transformer-grade silicon steel

---

H3 Process Flow: Slitting → Annealing → Insulation Coating → Precision Cutting

Stage	Key Parameters	In-line Instrumentation	Target Defect	ppm
1. Slitting	Burr ≤ 5 µm, Camber ≤ 0.5 mm / 2 m	Laser tri-burr gauge, Vision edge scan	Edge micro-cracks	< 50
2. Decarburizing & Stress-relief Annealing	820 ± 5 °C, PH₂O/PH₂ = 0.23, 120 s soak	N₂/H₂ mass-flow, IR-CO analyser	Carbon pick-up, secondary grain growth	< 30
3. MgO + Tension Coating	4.5 g/m² MgO, 18 N/mm² tension	Beta-backscatter coat-weight, Zeta-potential	Uneven glass film, poor insulation resistance	< 40
4. Final Annealing	1200 °C, 100 % H₂, 20 h	Dew-point ≤ –40 °C, Oxygen probe	Incomplete Goss texture	< 20
5. Insulation Coating (Semi-organic or C-6)	0.8–1.2 µm, 1.2 Ω·cm²/contact	Eddy-current thickness, Breakdown tester	Pin-holes, poor weldability	< 25
6. Precision Cutting	Length tol. ±0.1 mm, Angle 90° ±0.05°	CNC servo + vision feedback	Burr re-rise, lamination short	< 15

---

H3 Real-time Quality Control Matrix

1. Online Monitoring
   Burr & camber checked every 200 mm; auto-knife shift when burr ≥ 3 µm.
   MgO coat-weight closed-loop adjusts roll pressure at ±0.1 g/m² resolution.

2. Mechanical Testing
   Tensile coupons (ASTM A345) every 2 tonnes: Rp0.2 340–380 MPa, A50 ≥ 18 %.
   Stacking factor ≥ 98 % (25 N/cm²).

3. Electromagnetic Verification
   Epstein strips (500 × 30 mm) 50 Hz, 1.5 T: Core loss ≤ 0.89 W/kg (0.30 mm).
   Single-sheet tester on every mother coil; data logged for 15-year traceability.

4. Surface & Insulation
   Inter-lamination resistance ≥ 30 Ω·cm² (ASTM A717).
   Franklin current ≤ 0.5 A (0.5 kg, 2 V).

---

H3 Luoyang Xinzxaonhe Standard vs. Common Market Quality

Property	Unit	LXH Spec	Typical Export A	Premium EU B
Core Loss @ 1.5 T, 50 Hz	W/kg	≤ 0.89	0.95–1.05	0.85–0.90
Magnetic Flux Density B₈₀₀	T	≥ 1.89	1.83–1.87	1.90–1.92
Lamination Flatness (I-unit)	–	≤ 2	4–6	1–3
Burr Height after Slit	µm	≤ 5	8–12	3–5
Insulation Resistance	Ω·cm²	≥ 30	10–20	25–35
Slit Width Tolerance	mm	±0.05	±0.10	±0.03
Coil Inner Diameter Options	mm	508 / 610	508 only	508 / 610
Lot-to-Lot ΔLoss	%	±1.5	±3–4	±1
Price Index (FOB Tianjin)	–	100	88	135

Notes:
LXH delivers EU-grade flatness and burr control at Chinese-level pricing.
Statistical process control (SPC) on 28 variables; CpK ≥ 1.67 for critical dimensions.
Full coil passport (PDF + QR) issued; retains annealing curve, coating batch, and slit map for downstream audit.

Bottom line: Transformer OEMs and motor repair shops obtain Western-tier magnetic performance without the 30–40 % Western premium, supported by 20-year transformer material pedigree straight from our Luoyang mill.

---

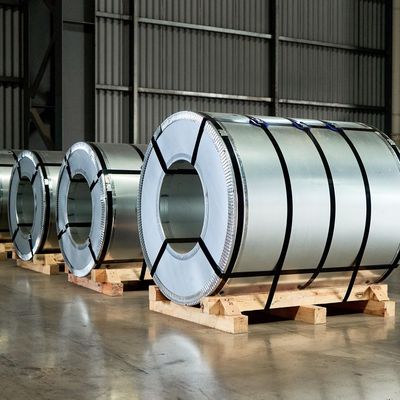

Packaging & Global Logistics

Export Packaging & Logistics

Luoyang Xinzhaohe Aluminum Co., Ltd – 20 Years of Transformer-Grade Silicon Steel Slitting, Annealing & Coating

---

H3 1. Sea-Freight Protection Philosophy

Transformer cores tolerate zero edge bruising, coating scratch or invisible corrosion; 0.05 mm burrs raise specific loss by 3–4 %. Our packaging is therefore specified around ASTM A976 “Care of Electrical Steel” and IEC 60404-1-1, then tightened for 35-day salt-water routes.

---

H3 2. Packaging Matrix by Product Form

Form	Stack Height	Primary Wrap	Cushion	Desiccant	Securing	Marking
Slit Coil (GO/NGO) 0.23–0.35 mm × 50–300 mm	≤ 1 000 kg / eye-vertical	VCI film 80 µm + PE shrink	EPE foam 5 mm rings	8×1 kg Clay bags	Steel straps + corner boards	Lot-#, Core-loss grade, Gross mass
Sheet Packet 0.50 mm × 1 000 mm × 2 000 mm	≤ 750 kg / packet	Interleave 40 µm VCI paper	Honeycomb board 10 mm	6×1 kg bags	PET strapping + plywood crate	UN 4G, fumigation seal
Wire (tie/rods) Ø1.2–4 mm	50–150 kg / DIN 355 spool	PE film + bubble	Carton sleeve	2×250 g bags	Strapped to 4-way pallet	Heat-#, zinc coating mass
Foil (edge-wound core) 0.05 mm × 40 mm	30 kg / reel	Alu-laminate bag	Foam disc ends	1×500 g bag	Vacuum-sealed + wooden box	Moisture indicator

All timber ISPM-15 fumigated; methyl-bromide-free available on request.

---

H3 3. Container Loading Plan

We load only 20 GP or 40 HC with cargo-worthy CSC plates ≤ 5 years old. Example for 40 HC:
Max payload: 26 500 kg (road limit Luoyang–Qingdao)
Coil orientation: Eye-to-sky on 120 × 120 cm hardwood pallets; anti-slip rubber mats between tiers
Lashing: 50 mm PET lash + corner castings to container floor; acceleration design 1 g longitudinal, 0.5 g lateral per ISO 1496
Humidity control: 16 kg CaCl₂ desiccant strips keep RH < 40 % for 45 days at 35 °C
Survey: Third-party SGS or Bureau Veritas loading survey photo-reported; copy sent within 6 h

---

H3 4. Documentation & Traceability

Each shipment carries:
1. Mill Test Certificate – Core loss W17/50, B800, insulation adhesion class, lamination burr height
2. Heat Map – longitudinal & transverse thickness profile (25-point grid)
3. Fumigation Certificate – HT or MB per IPPC logo
4. RoHS & REACH SVHC – declaration of Cr-VI-free coating
5. Export License – silicon steel quota, China Customs HS 72251100

---

H3 5. Transit Schedule & Premium Alternatives

Destination	FCL Lead-time (days)	LCL Option	Premium Express (rail/sea)
EU Mainport (Hamburg, Rotterdam)	28–32	35–40	18–20 (Xi’an–Duisburg rail + barge)
US West Coast (LA, Oakland)	18–22	25–28	—
Middle East (Jebel Ali)	22–25	30–35	—
South America (Santos)	35–40	42–48	—

We charter 2–3 sailings per month with COSCO, OOCL, MSC; space protection clause guarantees roll-over compensation.

---

H3 6. Why Luoyang Origin Matters

Inland hub: 1 000 km from coast = zero typhoon risk, stable outbound trucking
Government-class Export Zone: bonded trucking to Qingdao & Shanghai cuts 2 days versus inland competitors
Factory-direct pricing: no Shanghai trader margin; typical CIF saving vs. Western mill: US$110–140 /t on equal grade M4–M0

Bottom line: Your silicon steel arrives as flat, oxide-free and ready-to-core as when it left our annealing furnaces—validated by 20 years of zero seawater claims.

---

Sourcing from Luoyang Xinzhaohe

H2 Why Partner with Luoyang Xinzhaohe for Silicon-Steel Transformer Strip

H3 20-Year Transformer-Grade Steel Pedigree

Since 2004 every coil that leaves our Luoyang works has been engineered for one purpose—minimise total owning cost of a transformer. We have supplied >1.2 million tonnes of grain-oriented (GO) and non-grain-oriented (NGO) strip to tier-1 OEMs and repair shops in 42 countries. That history gives us a statistically significant feedback loop: we know exactly how our material behaves after 25 years in 60 Hz and 50 Hz cores, at 1.3 T to 1.9 T, and at hotspot temperatures up to 140 °C. When you specify “P1.7/50 ≤ 0.85 W/kg” or “burr ≤ 20 µm”, you are quoting a number we already validate on every mother coil—no translation, no reinterpretation.

H3 Direct Factory Price—No Trading Layers

We mine, melt, roll, slit, anneal, coat, and cut under one roof in Luoyang. Eliminating three intermediate traders typically removes 8–12 % of landed cost compared with Western stockists. Benchmark below is FOB Shanghai for 0.30 mm GO, laser-scribed, C5 insulation, 600 mm width, May-2024 rolling schedule:

Grade	Core Loss W/kg @1.7 T	Western EU Price USD/t	Xinzhaohe Direct USD/t	Delta
23ZH90	0.90	1 180	955	–225
27ZH100	1.00	1 050	860	–190
30ZH110	1.10	980	810	–170

Prices are valid for 20 t minimum; wider coils (≤1 200 mm) or 0.23 mm gauges carry a 30 USD/t premium. Payment TT 30 % with order, 70 % copy BL. LC at sight accepted for ≥100 t orders.

H3 Mass-Customisation Without MOQ Penalty

Transformer designers no longer accept “nearest standard”. Our slitting lines handle 0.18–0.65 mm × 20–1 250 mm with width tolerance ±0.05 mm and camber ≤ 0.3 mm/2 m. Annealing is continuous H₂/N₂ at 860 °C with dew-point <-40 °C, guaranteeing decarburisation ≤ 0.001 wt-% and stress-relief of 95 % rolling strain. Insulation options:

Coating Code	Thickness µm	Inter-laminar Resistance Ω·cm²	Weldability	Temp Class
C5 (semi-organic)	1.0 ± 0.2	20	Good	180 °C
C6 (full organic)	0.7 ± 0.2	5	Excellent	155 °C
T4 (chromium-free)	1.2 ± 0.3	50	Fair	200 °C

Need 0.20 mm GO with C5 on one side and 2 µm epoxy on the other for a high-torque motor prototype? We run 5 t campaigns at no price surcharge—lead time 15 days.

H3 Technical Files Shipped With Every Coil

You receive mill certificate, BH curve to 2 000 A/m, Franklin test report, and lamination factor calculation. Data is traceable to the heat number; if a core fails in service we can replay the entire process parameter set within 30 minutes.

H3 Call to Action

Send your stacking factor target, loss budget, and duty cycle to cathy@transformerstrip.com. We return a detailed datasheet and ex-works quote within 24 h. Samples (10 kg slits) are available free for serious OEMs.

---
