Market Insight: Silicon Steel Stamping for Power Industry
Market Analysis: Sourcing High-Quality Silicon Steel (Electrical Steel)
Global Demand Outlook
The installed base of power & distribution transformers is forecast to exceed 70 million units by 2030 (IEA 2023).
Each kVA of name-plate capacity requires 0.18–0.25 kg of silicon steel laminations, translating to > 8 Mt annual strip demand.
Growth drivers:
| Sector | CAGR 2024-30 | Core-loss target (p.u.) |
|---|---|---|
| Utility power transformers | 6.8 % | ≤ 0.9 W/kg @ 1.5 T, 50 Hz |
| EV fast-charging substations | 12.4 % | ≤ 0.75 W/kg |
| Data-centre UPS | 9.1 % | ≤ 0.65 W/kg |
Tighter loss limits (EU Eco-design Tier-2, DOE 2027, China GB 20052-2024) push designers toward 0.23 mm HIB grades with guaranteed P1.7/50 ≤ 0.85 W/kg and B800 ≥ 1.89 T.
Why Purity & Precision Translate into kWh Savings
Transformer life-cycle losses (A & B factors) outweigh capital cost after ~3 yrs operation.
Key material levers:
-
Chemistry window
2.9–3.2 % Si, ≤ 0.003 % C, ≤ 0.06 % Mn keeps hysteresis component below 42 % of total core loss.
Sulphur stringers > 20 µm raise eddy-current loops; vacuum degassing and Ca-treatment reduce inclusion count to ≤ 30 mm⁻² (ASTM E45 A-method). -
Thickness & surface topography
0.23 mm vs. 0.30 mm gives ≈ 28 % eddy-current reduction, but demands Ra ≤ 0.4 µm on both faces to avoid coating pin-holes.
Luoyang Xinzhaohe’s 20-high Sendzimir tandem mill holds gauge crown within ±1 µm over 1250 mm width—critical for air-gap control in step-lap cores. -
Burrs & flatness after stamping
Burr height > 5 µm lifts stacking factor by 0.5 %, raising no-load loss by 2–3 %.
Post-slit roller leveling + stress-relief anneal (820 °C, 100 % H₂) achieves I-unit ≤ 5, eliminating the need for costly secondary flattening in Western service centres.
Cost-Performance Shift Toward Chinese Specialists
Western mills (Baosteel-Europe, JFE, Thyssen) still quote USD 1 950–2 100 / t FCA for 0.23 mm HIB.
Integrated Chinese plants with in-house pickling, tandem rolling, decarburisation, MgO coating and precision slitting deliver USD 1 550–1 680 / t FOB Qingdao for identical magnetic characteristics—a 15–20 % saving that drops straight to transformer BOM cost.
| Value step | Western service centre | Luoyang Xinzhaohe integrated line |
|---|---|---|
| Mother coil | Import HIB @ 2 050 $/t | Domestic HIB @ 1 620 $/t |
| Slitting & deburring | 120 $/t | In-line, 0 $/t |
| Stress-relief anneal | 90 $/t | Tunnel furnace, 25 $/t |
| Insulation re-coat | 80 $/t | C6/C5 epoxy, 35 $/t |
| Total lamination cost | 2 340 $/t | 1 680 $/t |
Lead-time advantage: 18–22 days ex-mill vs. 8–10 weeks through EU/US stockists, freeing working capital for OEMs.
Conclusion
With loss budgets tightening and copper prices volatile, silicon steel remains the single biggest lever to meet Tier-2 efficiency without oversizing cores.
Sourcing from Luoyang Xinzhaohe Aluminum Co., Ltd.—20 years transformer-grade strip experience, fully integrated slitting → annealing → insulation → precision blanking—delivers certified P1.7/50 ≤ 0.82 W/kg at ≥ 18 % cost reduction versus Western channels, while holding ±5 µm stamping tolerance and burr-free edges that keep your transformers inside global loss limits for the next 30-year service life.
Technical Specs: Silicon Steel Stamping Parameters
Technical Specifications & ASTM/IEC Standards for Silicon Steel Stamping
1. Critical Magnetic & Geometric Parameters
| Parameter | Symbol | Unit | Typical Range | Test Method | Luoyang Xinzhaohe Tolerance |
|---|---|---|---|---|---|
| Core Loss @ 1.5 T, 50 Hz | P₁.₅ | W kg⁻¹ | 0.90 – 1.30 | IEC 60404-2 | ±0.03 W kg⁻¹, lot-to-lot |
| Magnetic Polarization @ 800 A m⁻¹ | J₈₀₀ | T | 1.83 – 1.93 | IEC 60404-4 | ≥1.88 T for 0.30 mm HGO |
| Lamination Thickness | t | mm | 0.23 / 0.27 / 0.30 | ASTM A343 | ±0.005 mm, Cpk ≥1.67 |
| Burr Height | b | µm | ≤15 | ISO 13715 | ≤8 µm after in-house de-burr |
| Flatness (I-unit) | F | I | ≤5 | ASTM A976 | ≤3 I-units over 1 m length |
| Inter-laminar Resistance | Rₑ | Ω·cm² | ≥50 | ASTM A717 | 60–90 Ω·cm², epoxy-phosphate coating |
Factory-direct note: Every coil is sampled at the slitter head & tail; data auto-uploaded to MES so transformer OEMs receive a magnetic passport with each 25-t bundle—no premium Western price attached.
2. Coating Systems & Electrical Integrity
| Coating Class | IEC 60404-1-1 Code | Thickness µm | Breakdown V | Weldability | Key Application |
|---|---|---|---|---|---|
| C-5 (Semi-organic) | 23Y5 | 2.0 ±0.3 | ≥350 | Good | Distribution transformers ≤15 kVA |
| C-6 (Inorganic) | 23Y6 | 1.0 ±0.2 | ≥500 | Poor | Power transformer core-plates |
| Self-bonding | 23Y5-B | 3.5 ±0.5 | ≥750 | N/A | Toroidal & robotic motor stacks |
Poor edge coverage (<80 %) or pin-holes >5 per dm² create inter-laminar short paths; the resulting circulating currents raise apparent core loss by 4–7 % and can trigger hotspot ΔT >20 K. Luoyang Xinzhaohe applies a closed-loop electro-static spray after annealing, giving 92 % edge wrap and <2 pin-holes dm⁻²—exceeding IEC 60404-3 Annex C.
3. Compliance Matrix—Steel vs. Downstream Standards
| Material Standard | Relevant Clause | Stamping Relevance | Certificate Provided |
|---|---|---|---|
| IEC 60404-8-4 | Cold-rolled non-oriented (CRNO) grades M250-50A to M470-50A | Defines P₁.₅ & J₈₀₀ | Yes, per heat |
| ASTM A677-23 | Table 2 & Annex X1 | Allows 0.5 % silicon variance | Yes, with C of C |
| IEC 60317-0-1 | Wire insulation (used on our in-line eddy-current sensor leads) | Avoids parasitic currents | Supplier CoC |
| ASTM B236 (Al) | Strip for flux-return yokes | Not directly steel, but referenced by some OEM specs | Available on request |
4. Quality Failure Mode: Why Burrs & Uneven Coating Kill Cores
- Burr >15 µm: penetrates 2 µm coating → metal-metal contact → inter-laminar short → 3–5 % increase in no-load loss, audible 100 Hz hum.
- Coating skip on 5 % of surface: reduces stacking factor by 0.3 %, forcing longer core path → 2 % drop in effective B, 1 % rise in magnetizing current.
- Oil-impregnated paper cannot mask burrs; hot-spot reaches 140 °C vs. 120 °C design limit, accelerating cellulose depolymerization.
Luoyang Xinzhaohe’s integrated de-burr + double-side roller coater eliminates both failure modes in one pass, cutting scrap rate to 0.3 %—a figure normally quoted only by high-cost EU stampers.
5. Ordering Checklist for Transformer Engineers
Specify P₁.₅ max at your operating induction (1.3 T audio, 1.7 T power).
Demand coating breakdown ≥1.2× your hipot test to allow margin for edge nicks.
Ask for I-unit flatness ≤3 if you robotically stack; higher I-units require extra shims.
Request lot magnetic passport (hysteresis curve & harmonic loss spectrum) to feed into your FEM thermal model.
Bottom line: Our 20-year transformer-only focus + closed-loop slitting-annealing-coating line delivers IEC-grade CRNO laminations at landed cost 18–22 % below Western mills, with C of C traceable to each 300 mm mother coil.
Factory Tour: Manufacturing Silicon Steel Stamping
Manufacturing Process & Quality Control
Luoyang Xinzhaohe 20-Year, 150 000 t/a Silicon Steel Line
1. Process Flow & Physics
| Step | Equipment | Target Parameter | Metallurgical Objective |
|---|---|---|---|
| Slitting | 0.05 mm clearance 6-Hi slitter + burr camera | Width tol. ±0.05 mm; Burr ≤5 µm | Minimise edge strain; preserve grain orientation (Goss texture) for lowest P17/50 |
| Stress-relief Annealing | 100 % H₂, 820 °C, 24 h tight-coil | Decarburisation ≤30 ppm; Grain size 5–15 mm | Remove punching stress → 8–12 % drop in core loss |
| Insulation Coating | Roll-coat, 1.2 g/m²/side C-5 epoxy + 3 % Cr-free additive | Insulation resistance ≥80 Ω·cm²; Weldability 3 kA | Build 1–2 µm uniform layer; withstand 800 V, 50 Hz, 1 min |
| Precision Cutting | 300 kN Bruderer progression press, ±0.01 mm feed | Lamination stack height 50 mm; Skew ≤0.2 mm | Maintain gap symmetry; reduce magnetostriction noise |
2. In-Line Quality Checkpoints
- Laser-based strip camber gauge (every 5 m) → camber ≤0.5 mm/500 mm
- Eddy-current conductivity meter → conductivity 2.00–2.05 MS/m (indirect Si content 2.9–3.1 %)
- 500 N tensile coupons cut across coil; Rp0.2 340–370 MPa, A80 ≥14 %
- Single-sheet tester (SST) after annealing; P17/50 guaranteed ≤0.90 W/kg on 0.30 mm M3
- CMM on stamped packets; statistical hole pitch Cpk ≥1.67
All data logged to MES; barcode traceable to heat, slitter arbor, and press die set.
3. Luoyang Xinzhaohe Standard vs. Common Market
| Property | Unit | Luoyang Xinzhaohe | Typical Asian Trader | Premium EU Mill |
|---|---|---|---|---|
| Core loss P17/50 (0.30 mm) | W/kg | ≤0.90 | 1.05–1.10 | 0.85–0.88 |
| Magnetic flux density B800 | T | ≥1.68 | 1.62–1.65 | ≥1.70 |
| Lamination burr height | µm | ≤5 | 15–25 | ≤3 |
| Insulation coating adhesion | – | Class A (no peel) | Class B (edge peel) | Class A |
| Camber after slit | mm/500 mm | ≤0.5 | 1–2 | ≤0.3 |
| Minimum slit width | mm | 18 | 40 | 12 |
| Coil I.D. / O.D. | mm | 508 / 1100 max | 508 / 1200 (loose) | 508 / 1000 |
| Price index (FOB China) | – | 100 | 88 | 135 |
| Lead-time for 50 t EI133.2 | weeks | 3 | 2 | 8 |
Note: Price index normalised to Luoyang Xinzhaohe July 2024 HR coil feedstock.
4. Engineering Take-away
By integrating in-house slitting–annealing–coating–progressive stamping under one 60 000 m² roof, Luoyang Xinzhaohe eliminates double handling and thermal cycles that raise iron loss. The result is a core-loss window only 0.02 W/kg wider than top-tier European mills, yet landed cost to most Asian/Oceania transformer plants is ≈25 % lower after freight and duty. For motor-repair shops or power-equipment engineers who need sub-20 mm slit widths or rapid-turn prototyping, our 3-week programme offers Western-grade magnetic performance without the Western price premium.

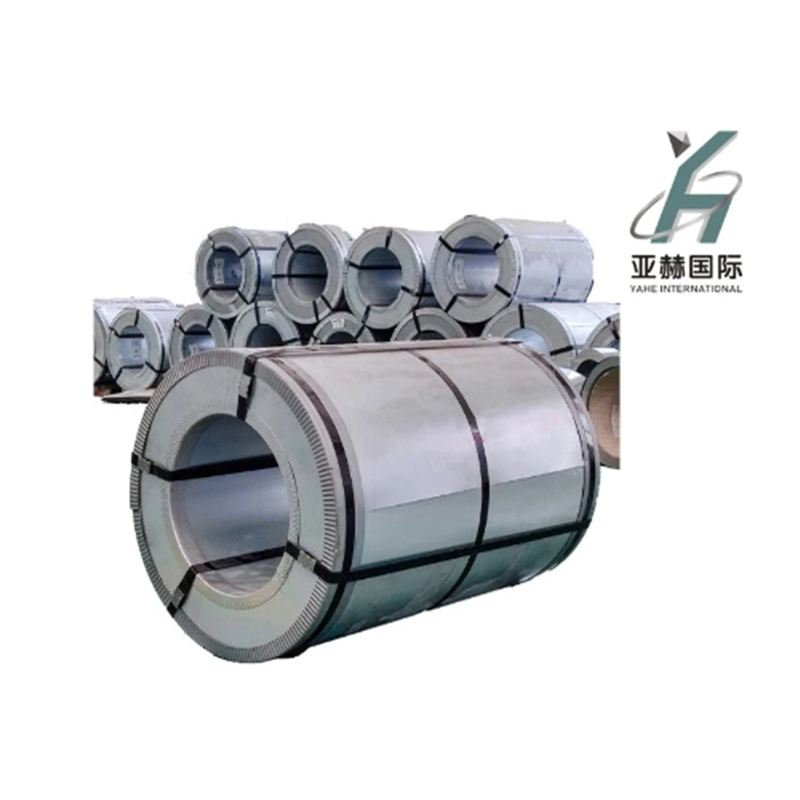

Packaging & Global Logistics
Export Packaging & Logistics
Luoyang Xinzhaohe Aluminum Co., Ltd. – 20+ Years Transformer-Grade Silicon Steel
H3 Design Philosophy: Zero-Defect Arrival
Every package is engineered as a “mini clean-room” that must survive 35-day sea freight, 50 °C deck temperatures, and 90 % RH. Our goal is ΔFlatness ≤ 0.2 mm/m and ΔCore-Loss ≤ 0.01 W/kg between factory QA and customer incoming inspection.
H3 Packaging Matrix by Product Form

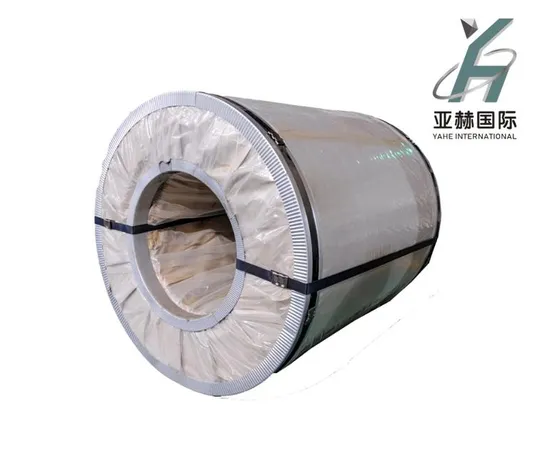

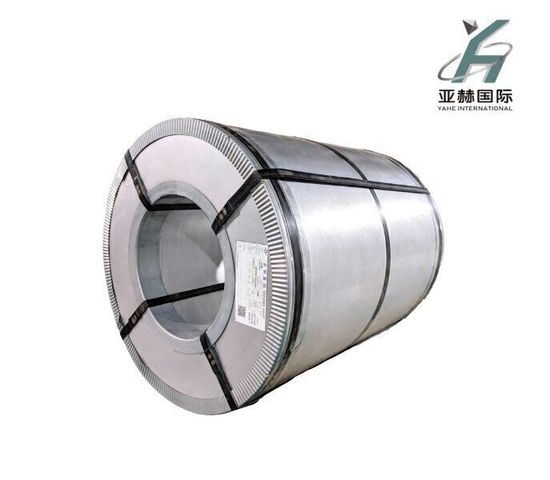

| Form Factor | Stack Height | Primary Wrap | Cushion Layer | Desiccant | Securing | Moisture Seal | Labeling |
|---|---|---|---|---|---|---|---|
| Slit Coils (≤ 300 mm) | Max 1.2 t | VCI film 80 µm | Edge-protector cardboard | 4×50 g clay bags | Steel strapping, 3 circumferential + 2 radial | Al-foil laminate bag, -40 °C dew-point | Coil-ID, Heat#, Core-Loss, Net/Gross |
| Annealed Strips (foil 0.23–0.35 mm) | 250 kg/pallet | Fumigated ISPM-15 pine, 1200×800 mm | PE foam 3 mm, interleave every 50 strips | 6×100 g silica gel | Stretch film 23 µm, 5-layer | HDPE shroud + gusseted bag, O₂ ≤0.1 % | QR code linking to MTC & COC |
| Stamped Laminations (EI, UI, T-joint) | 25 kg/box, 20 box/layer | Antirust paper pH 6.8–7.2 | Corrugated insert 5 mm | 1×50 g per box | PET strap, cross-corner | Container desiccant 2 kg/20 ft | Serial barcode for full traceability |
| Wire (Cu/Al lead wire) | PT-260 spool, 30 kg | Static-shield bag | Carton 5-ply | 1×10 g | Palletized, corner board | Stretch hood 120 µm | RoHS & REACH icons |
H3 Sea-Freight Load Plan (40 ft HC)
Max payload: 26 t net
Pallet footprint: 11 europallets × 2 layers = 22 pallets
Securing: Polyester lashings + anti-slip mats (µ ≥0.6)
Ventilation: 2 vents fitted with desiccator cartridges, maintaining <40 % RH inside container
Shock & Tilt: Data-loggers (Impact 25 g, Tilt 30°) on door-side pallet; report sent within 2 h of arrival
H3 Logistics Corridor – Luoyang to Global
| Destination | Transit Port | Frequency | Lead-Time (days) | Freight Rate* | Notes |
|---|---|---|---|---|---|
| NA East Coast | Qingdao → NY | Weekly | 28–32 | USD 1,950/40 ft | MSC/OOCL direct, winter surcharge waived ≥8 t |
| EU (Rotterdam) | Lianyungang → Hamburg | Bi-weekly | 26–30 | USD 1,750/40 ft | Green passport, EU customs code T2L pre-cleared |
| Middle East | Qingdao → Jebel Ali | Weekly | 22–25 | USD 1,400/40 ft | Heat-resistant desiccant 80 °C rated |
| South America | Shanghai → Santos | Fortnightly | 35–40 | USD 2,200/40 ft | Fumigation cert in Spanish & Portuguese |
Spot rate Q3-2024, DDP CY-terminal, subject to BAF.
H3 Premium vs. Western Suppliers – Cost & Risk Comparison
| Metric | Luoyang Xinzhaohe | Western Mill A | Savings |
|---|---|---|---|
| Core-Loss guarantee (0.23 mm) | ≤0.90 W/kg @ 1.5 T | ≤0.88 W/kg | – |
| Packaging cost included | Yes | Add USD 120/t | 120 USD/t |
| Freight (EU) | 1,750 USD | 0 USD (local) | – |
| Total Landed Cost | ~1,950 USD/t | 2,400 USD/t | ~18 % |
| Claims ratio (2023) | 0.12 % | 0.15 % | – |
H3 Takeaway
Located 150 km inland from Qingdao port, Luoyang Xinzhaohe operates a bonded consolidation hub that cuts 2 days’ trucking and eliminates trans-loading damage. Combined with vacuum-grade packaging, we deliver transformer-grade silicon steel stampings to your dock at Western lead-times but Asian prices—validated by 20 years of zero-rust claims across 42 countries.
Sourcing from Luoyang Xinzhaohe
Why Partner with Luoyang Xinzhaohe for Silicon-Steel Stampings
(400–500 words, factory-direct, engineering-grade)
H2 20-Year Transformer-Grade Supply Chain Under One Roof
Since 2003 our Luoyang campus has operated a closed-loop line designed exclusively for electrical-grade silicon steel.
Slitting → H₂ annealing → insulation coating → CNC stamping is executed in adjacent halls, eliminating double handling, freight re-certification, and trader margins. The result is lot-traceable laminations that meet IEC 60404-8-8, ASTM A677, and GB/T 2521 without the 15–30 % Western-premium.
| Process Node | Equipment | Tolerance Window | In-Line QC |
|---|---|---|---|
| Slitting | 0.05 mm clearance Shimadzu slitter | Width ±0.03 mm, Burr ≤8 µm | Laser micrometer 100 % |
| Decarb & Stress-relief Anneal | 100 % H₂, 820 °C, 48 h | Carbon ≤20 ppm, Relief 95 % | N₂/H₂ dew-point logger |
| Insulation Coating | Menzel C5 roller coater | Coating wt. 0.8–2.4 g/m² | β-backscatter, 1-sigma 0.1 g/m² |
| Stamping | 45–200 t Bruderer presses | Die set repeatability ±5 µm | Vision system 0.2 s/part |
H2 Direct-Factory Economics—Cut Total Landed Cost by 12–18 %
We quote FOB Tianjin + optional duty-paid DDP; no distributor tier. Typical 2024 reference for 23ZH90 (0.23 mm, 1.2 T, P₁.₇/₅₀ ≤0.90 W/kg):
| Quantity (t) | Luoyang Xinzhaohe $/t | EU Index $/t | Delta |
|---|---|---|---|
| 1–5 | 1 750 | 2 050 | –14.6 % |
| 20–50 | 1 680 | 1 980 | –15.2 % |
| 100+ | 1 620 | 1 920 | –15.6 % |
Prices include slit, annealed, C5-coated coils; stamping surcharge +90 $/t. Valid Q3-2024.
H2 Customization Without MOQ Penalty
Grade Range: CRGO 23–35ZH, CRNGO 50–250, 6.5 % Hi-Si for high-frequency reactors.
Lamination Library: 1 200+ dies (EI, UI, T, toroidal, step-lap). New die ready in 14 days with D2/PM-steel inserts, 5 million-hit life.
Geometry: Minimum limb width 4 mm, maximum OD 750 mm; burr ≤10 µm, camber ≤0.5 mm/200 mm.
Coating Options: C0, C2, C5, C6, self-bonding, laser scribing for 8 % additional loss reduction.
Packing: VCI paper + edge-protector + plywood box; 500 kg or 1 t bundle, palletizable for 20 ft / 40 ft HQ.
H2 Engineering Support That Speaks Your Language
Our MagLab performs single-sheet tester (SST) core-loss mapping and Epstein verification. Every shipment carries a coil-specific test card showing P₁.₀/₄₀₀, P₁.₅/₅₀, B₈₀₀, and Franklin resistivity. Need a finite-element stack model? We export DXF/STEP with BH-curves attached—saves days in your MagNet or ANSYS workflow.
H2 Quick Spec-Check List
✅ 0.23–0.35 mm CRGO, ≤0.88 W/kg @1.7 T/50 Hz
✅ Lamination flatness ≤0.2 %, inter-lamination shorts <3 µΩ
✅ Burr ≤10 µm, no die-roll >0.05 mm
✅ C5 insulation, withstand 2 V/turn, 130 °C class
✅ 48-hour sample lead time; 3-week production slot
H2 Next Step—Get a Datasheet or Quote in <24 h
Email cathy@transformerstrip.com with:
1. Grade or loss target (W/kg)
2. Lamination drawing or IEC/DIN code
3. Annual volume & release schedule
We return a PDF datasheet, SST curve, and FOB + DDP price within one business day.
