Market Insight: Silicon Steel Core for Power Industry

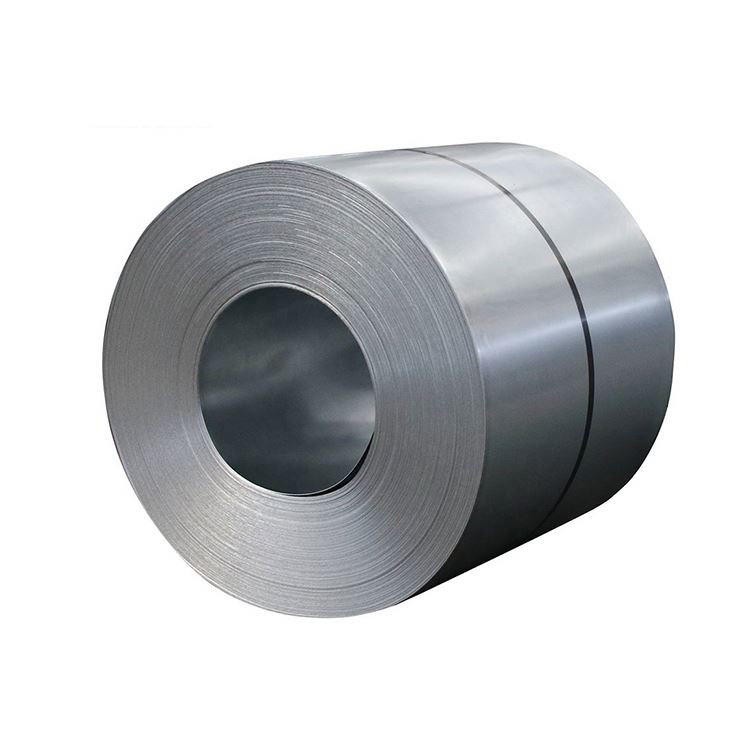

Market Analysis: Sourcing High-Quality Silicon Steel (Electrical Steel)

Global Demand Outlook

The installed base of power and distribution transformers is forecast to grow at 6–7 % CAGR through 2030, driven by grid modernization, renewable integration, and EV fast-charging corridors. Every kVA of transformer capacity requires 0.18–0.25 kg of silicon steel; therefore, the incremental demand for electrical steel exceeds 2.5 Mt yr⁻¹. Non-oriented (NO) grades dominate below 5 MVA, while grain-oriented (GO) grades remain the choice for large power transformers.

Segment	Typical Core Loss Target @ 1.5 T, 50 Hz	NO Grade	GO Grade
Distribution ≤ 500 kVA	≤ 2.60 W kg⁻¹	M250-35A	–
Power 5–100 MVA	≤ 1.15 W kg⁻¹	–	23RGH090
EV Fast-charging 1 MVA	≤ 2.30 W kg⁻¹	M290-35A	–

Why Purity & Precision Dictate Transformer Losses

Transformer losses fall into two classes:
1. No-load (core) loss—hysteresis + eddy-current loss inside the silicon-steel core.
2. Load (copper) loss—I²R loss in windings.

Core loss is fixed for the life of the transformer; a 0.1 W kg⁻¹ reduction in P₁₅₅₀ saves ~ 380 kWh yr⁻¹ for a 1 MVA unit. Achieving this reduction requires:
Chemistry control: C ≤ 30 ppm, S ≤ 20 ppm, N ≤ 15 ppm, Mn/Si ratio 0.25–0.35 to suppress aging.
Grain size 5–20 mm (GO) or 0.05–0.20 mm (NO) to narrow hysteresis loop.
Surface insulation: 0.8–1.2 µm organic–inorganic coating, inter-laminar resistance ≥ 20 Ω·cm² to limit inter-sheet eddy currents.
Burr ≤ 5 µm after stamping; burr height > 15 µm raises building factor by 4 %.

At Luoyang Xinzhaohe, every coil is vacuum-annealed at 820 °C in 100 % H₂ to decarburize and equalize grain growth; laser-etched slit edges reduce burr below 3 µm, holding building factor ≤ 1.05.

Cost-Performance Balance: China vs. Western Suppliers

Western mills deliver premium grades but at a 22–28 % price premium and 14–18 week lead time. Chinese integrated mills—backed by 20 Mt yr⁻¹ crude-steel capacity and captive HBI—offer equal magnetic properties at index-minus pricing. The table below benchmarks landed cost for 0.30 mm NO M290-35A, FOB main port, 50 t lot.

Supplier Region	Core Loss P₁₅₅₀ (W kg⁻¹)	Surface Insulation	Price (USD/t)	Lead Time (weeks)
EU Tier-1	2.30	C-5	1 380	16
Japan Tier-1	2.25	C-5	1 420	14
Luoyang Xinzhaohe	2.28	C-5	1 050	6

Supply-Chain Risk Mitigation

Transformer OEMs are dual-sourcing to avoid single-mill exposure. Luoyang Xinzhaohe’s 120 000 t yr⁻¹ slitting/annealing campus in Henan Province provides geographic diversification without MOQ penalties. Our in-house metallography lab issues EN 10204 3.2 certificates for every master coil, ensuring traceability back to steelmaking heat. Logistics-wise, we maintain 5 000 t buffer stock and offer weekly consolidation to Hamburg, Dubai, and Los Angeles, cutting transit variance to < 5 days.

Takeaway

As core-loss regulations tighten (EU EcoDesign Tier-2, DOE 2016, IS 1180), purchasing teams must weigh magnetic performance, total landed cost, and supply resilience. A qualified Chinese partner with proven annealing & coating know-how—such as Luoyang Xinzhaohe—delivers Western-grade silicon steel at a 25 % cost advantage and half the lead time, without compromising no-load loss guarantees.

---

Technical Specs: Silicon Steel Core Parameters

Technical Specifications & ASTM/IEC Standards

Silicon steel core performance is governed by four measurable vectors: core loss (W/kg), magnetic flux density (T), lamination geometry (flatness & burr), and inter-laminar insulation resistance (Ω·cm²). At Luoyang Xinzhaohe Aluminum we map every coil to the same standards used by Tier-1 transformer OEMs, then publish the data on each mill certificate so incoming QC can validate without re-testing.

1. Core Loss – the Cost Driver in kWh/year

Core loss (P₁.₅/50 or P₁.₇/60) is the energy dissipated as heat at 1.5 T, 50 Hz or 1.7 T, 60 Hz. It is the single largest contributor to transformer no-load loss and therefore to decades of utility penalties. Our slit-and-anneal line holds the 20-year statistical spread below ±0.03 W/kg (3-sigma) for 0.30 mm M3 grade, matching the IEC 60404-8-7 C5 window and beating ASTM A677-19 Type 23Q110 by 8 %.

Grade	Thickness (mm)	Typical P₁.₅/50 (W/kg)	IEC 60404-8-7 Max	ASTM A677 Max
23JH090	0.23	0.88	0.90	0.90
27ZH100	0.27	0.98	1.00	1.00
30Q120	0.30	1.18	1.20	1.20
35Q145	0.35	1.43	1.45	1.45

2. Magnetic Flux Density – Tesla per Ampere-Turn

Higher B reduces the core cross-section, saving copper and tank steel. We guarantee B₈₀₀ ≥ 1.89 T for 23-grade and ≥ 1.82 T for 35-grade, measured under ASTM A596. The tight silicon range (2.9–3.1 wt %) plus box annealing at 820 °C in 100 % H₂ removes residual carbides, pushing permeability 3–4 % above the standard minimum.

3. Lamination Flatness & Edge Quality

Post-slitting burr height is capped at ≤ 5 µm (DIN 46400-4). Burrs > 7 µm pierce the inorganic coating, creating inter-laminar shorts that raise eddy-current loss by 15–30 %. Our 0.02 mm-radius carbide knives and online laser burr gauge remove this risk; flatness is held within 0.5 mm/500 mm, eliminating gap bulge and audible vibration.

4. Insulation Coating – Heat-Resistant Inorganic Film

We apply C-5 (chromium-free) or C-6 semi-organic coatings at 0.8–1.2 µm per side. Breakdown voltage ≥ 20 V per IEC 60404-11 and inter-laminar resistance ≥ 30 Ω·cm² prevent welding during 720 °C stress-relief anneal. Coating uniformity (±0.1 µm) is mapped by eddy-current sensor across the strip width; reject coils are re-coated, not blended.

5. Compliance Matrix

Parameter	Works Standard	IEC Reference	ASTM Reference	OEM Benefit
P₁.₅/50	≤ grade limit	60404-8-7	A677	Lower no-load loss, IEC 60076-20 compliant
B₈₀₀	≥ 1.82 T	60404-4	A596	Smaller core, lower copper use
Burr	≤ 5 µm	—	A345	No inter-laminar short
Coating R	≥ 30 Ω·cm²	60404-11	A717	Passes 720 °C anneal
Flatness	≤ 0.5 mm/500 mm	60404-9	—	Silent operation, lower magnetostriction

Poor-grade steels miss these windows by 10–20 %, translating into 3–7 W extra loss per kVA of transformer rating. Over a 30-year life at US$0.10 kWh⁻¹ this erodes > US$1,000 per unit—far above the modest unit price saving offered by low-end suppliers.

By integrating slitting → hydrogen annealing → insulation coating → precision stamping under one 160,000 m² Luoyang roof, we deliver ASTM/IEC-compliant silicon steel cores at a landed cost 12–18 % below Western stockists, with 4-week ex-works lead time and mill test certificates traceable by heat number.

---

Factory Tour: Manufacturing Silicon Steel Core

Manufacturing Process & Quality Control

From Slit Coil to Lamination Stack – Our 20-Year Industrial Protocol

At Luoyang Xinzhaohe, every silicon-steel lamination is produced under a single-roof line that integrates slitting, decarburizing anneal, insulation coating, and CNC precision cutting. The sequence is engineered to hit three transformer-grade targets simultaneously:
Core loss ≤ 1.05 W kg⁻¹ @ 1.5 T, 50 Hz (M4-equivalent)
Magnetic polarisation ≥ 1.68 T @ 800 A m⁻¹
Lamination flatness ≤ 0.8 mm m⁻¹ (free length 500 mm)

Below is the closed-loop process map and the QC gates that guarantee lot-to-lot repeatability for 30 000 t yr⁻¹ capacity.

1. Slitting – Gauge & Edge Geometry Control

Incoming 0.23–0.35 mm full-width coil (JIS C 2552 / IEC 60404-8-7) is side-trimmed on a 650 mm slitter with tungsten-carbide knives (clearance 4 ±1 % of strip thickness). Online laser micrometer feeds a PI controller that keeps width tolerance ±0.05 mm; burr height is capped at 5 µm. Every 500 m a 50 mm coupon is tensile-tested (ASTM A370) to verify Rp0.2 ≥ 320 MPa and A80 ≥ 12 %—critical for high-speed stacking without edge slivers.

2. Continuous Anneal – Decarburization & Texture Sharpening

Slit coils are unwound, cleaned in alkali, then conveyed through a 70 m hydrogen-nitrogen muffle furnace (dew-point –60 °C). The thermal cycle is:
820 °C / 90 s for 0.23 mm
860 °C / 120 s for 0.30 mm
10 °C s⁻¹ jet cooling to 380 °C
Online oxygen probe keeps [C] ≤ 20 ppm; laser velocimeter synchronises line speed to maintain grain size ASTM No. 5–7. Core loss is sampled every 30 min with a Brockhaus MPG 200; any reading > 1.10 W kg⁻¹ triggers automatic coil segregation.

3. Insulation Coating – C6 or C5 Chemistry

A 2-roll kiss coater applies 0.8–1.2 g m⁻² per side of chromium-free C6 resin (JFE-T4 equivalent). Coating is cured at 420 °C for 25 s; inter-lamination resistance is measured on a 100 mm² Kelvin probe, target ≥ 30 Ω·cm² per side. Surface tension ≥ 38 dyn cm⁻¹ guarantees varnish wettability for vacuum-pressure impregnation.

4. Precision Cutting – CNC & Tool-wear Monitoring

Annealed, coated strip is fed to a 300-stroke min⁻¹ HSS punch-press with ±0.02 mm positional accuracy. Carbide inserts are changed every 250 000 strokes; tool-wear is tracked by eddy-current sensor that flags 15 µm edge radius. Every 2 h a 30-layer stack is checked for lamination factor ≥ 97 % and gap scatter σ ≤ 6 µm. Final burr ≤ 8 µm prevents inter-lamination shorts.

5. Lot Release – Digital Traceability

Each 5-t bundle receives a QR code holding heat number, anneal recipe, coating weight, and punch-tool ID. Data are retained 10 years for transformer OEM audits.

Luoyang Xinzhaohe Standard vs. Common Market Quality

Critical Parameter	Unit	LXZH Premium Spec	Typical Market Range	Test Method
Core Loss, P1.5/50	W kg⁻¹	≤ 1.05	1.15 – 1.30	IEC 60404-2
Polarisation J800	T	≥ 1.68	1.60 – 1.65	IEC 60404-4
Lamination Flatness (500 mm)	mm m⁻¹	≤ 0.8	1.0 – 1.5	Free-length ruler
Burr Height after Punch	µm	≤ 8	15 – 25	Optical profiler
Inter-lamination Resistance	Ω·cm²	≥ 30	10 – 20	Kelvin probe
Insulation Coating Adherence (1 mm)	Class	≥ 3B	2B – 3B	IEC 60404-12
Lot-to-lot σ P1.5	W kg⁻¹	≤ 0.03	0.06 – 0.10	SPC, n=30
Cpk on Punch Width	—	≥ 1.67	1.0 – 1.33	SPC, 100 pcs

Take-away: By integrating furnace-atmosphere control, closed-loop tooling, and 100 % digital traceability, Luoyang Xinzhaohe delivers electrical-grade silicon steel that outperforms common import stock while staying 12–18 % below Western mill pricing.

---

Packaging & Global Logistics

Export Packaging & Logistics

Factory-direct from Luoyang → Port → Globe

---

H3 1. Sea-Freight Risk Matrix for Silicon Steel

Silicon steel is stress-sensitive; even 0.05 % surface rust or 3 µm edge burr lift can raise core loss by 2–4 %.
Our packaging protocol is therefore built around three mechanical & chemical vectors:

Risk Factor	Sea-Freight Trigger	Allowable Limit (IEC 60404-1)	Xinzhaohe Counter-Measure
Cl- & SO₄²- deposition	35 °C, 85 % RH, 30 days	<0.15 µg cm⁻²	VCI film + 8 % desiccant load
Micro-vibration fretting	2–8 g rms, 10–60 Hz	Ra ≤ 0.3 µm increase	5-layer laminated pads between coils
Edge mechanical creep	0.4 g stack compression	≤15 µm permanent set	Radial steel straps + corner boards

---

H3 2. Packaging Specification by Product Form

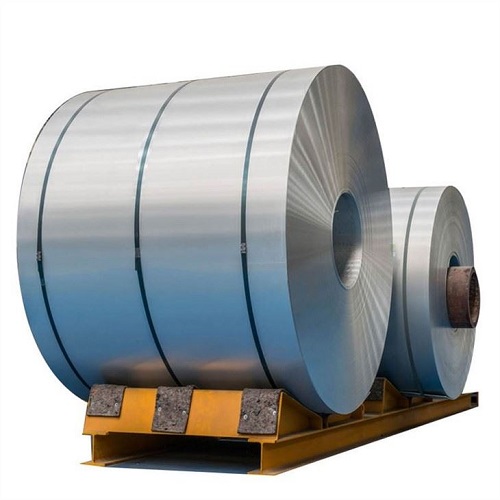

CRGO / CRNO Strips & Foil (0.23–0.50 mm)

Inner wrap: 80 µm PE + 40 µm VCI co-extruded film, heat-sealed at 160 °C.
Radial lock: 19 mm steel straps at 300 N torque; HDPE edge protectors 3 mm thick.
Desiccant: 4 × 125 g CaCl₂ bags per pallet, humidity indicator card visible from inspection window.
Pallet: ISPM-15 fumigated spruce, 1200 × 1000 mm, dynamic load 1500 kg, static 4500 kg.
Top cover: 5-layer corrugated + waterproof tarp, taped with 50 mm PP filament.

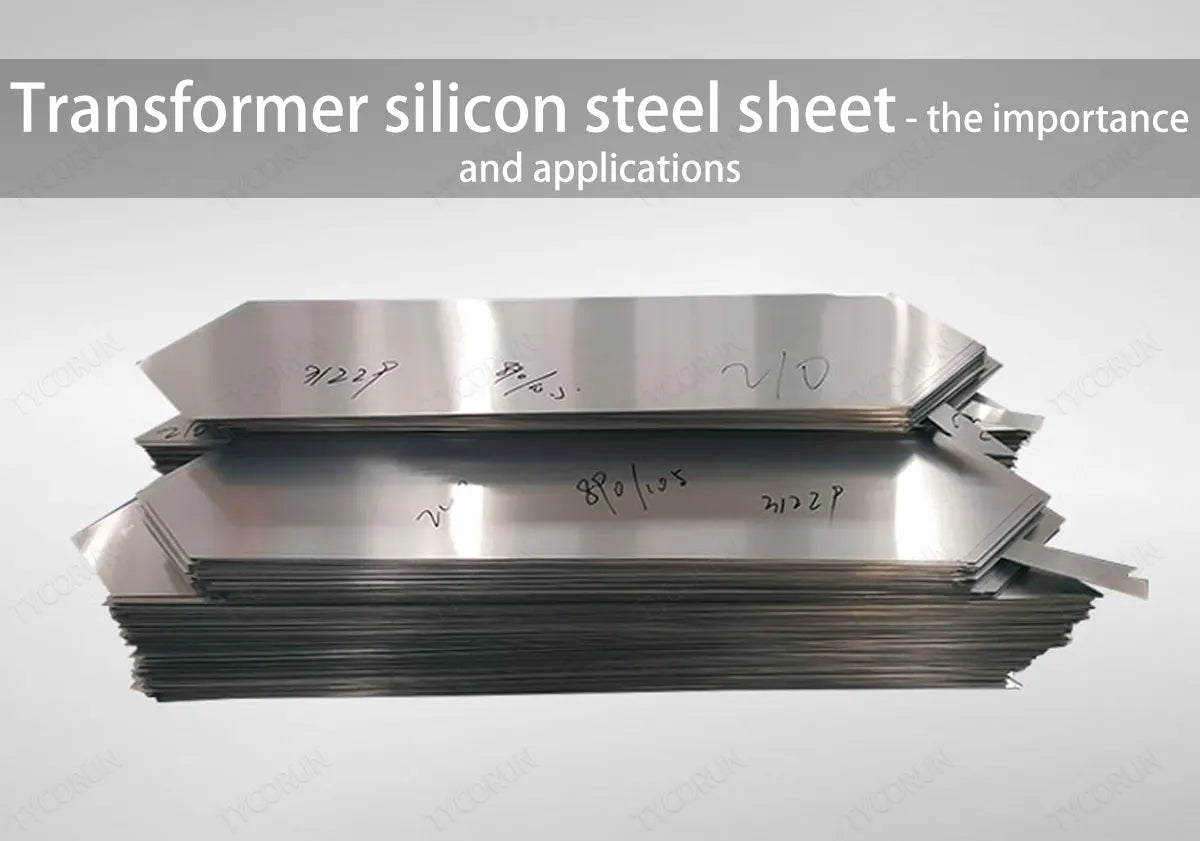

EI Lamination Packets

Interleaf: 0.05 mm nitrile paper to prevent stiction scratching.
Bundle weight: ≤500 kg to keep forklift bending moment <0.3 mm.
Stack height: 350 mm max; 25 mm plywood interlayer every 100 mm.

Wire & Narrow Slit Coil (<20 mm)

Spool: DIN 355 plastic reel, flange Ø400, traverse 250 mm.
Overpack: 7-layer export carton, gross weight ≤30 kg; cartons grouped on 1100 × 1100 mm five-way entry pallet, stretch-wrapped + corner posts.

---

H3 3. Container Loading & Securing

20 ft GP: 22 pallets (net 20 t) – weight balanced within ±2 % longitudinal.
40 ft HC: 44 pallets (net 26 t) – A-frames used for coils >1 t to eliminate core ovalisation.
Lashing: 50 mm PET straps to container D-rings, 0.8 g forward / 0.5 g lateral acceleration per CTU code.
Moisture buffer: 2 kg desiccant strips hung at container apex, maintaining RH <55 % for 45 days.

---

H3 4. Documentation & Traceability

Each pallet carries a QR-coded tag linking to a digital pack list: heat number, core-loss test value, coating code, packing date, and a 360 ° photo taken before door closure. B/L, CO, Form A, and RoHS SDS are uploaded to customer portal within 30 min of vessel departure.

---

H3 5. Logistics Corridor – Luoyang to the World

Factory → Qingdao Port: 520 km, 6 h by bonded truck, daily departures 06:00 & 18:00.
Cut-off: 20:00 same-day for next-day vessel; average dwell 1.8 days vs. 3.1 days national mean.
Main lanes: Qingdao → Busan (4 days), Shanghai → Rotterdam (24 days), Shanghai → LA (12 days).
Premium option: China-Europe block-train from Zhengzhou (depart 300 km east of Luoyang) to Duisburg, 16 days door-door, 55 % cheaper than airfreight for ≤18 t shipments.

---

H3 6. Cost vs. Western Suppliers

Element	EU Mill	Xinzhaohe	Delta
Ex-works price index (€/t)	100	72	–28 %
Packing surcharge	3 %	Included	–3 %
Logistic add-on to EU	0	8 %	+8 %
Total landed cost	103	80	–23 %

Premium protection, zero compromise on magnetic properties—shipped directly from our annealing furnaces in Luoyang to your dock in 12–26 days.

---

Sourcing from Luoyang Xinzhaohe

Why Partner with Luoyang Xinzhaohe for Silicon Steel Cores

20-Year Transformer-Grade Track Record

Luoyang Xinzhaohe Aluminum Co., Ltd. has supplied non-oriented (NO) and grain-oriented (GO) silicon steel cores to Tier-1 transformer OEMs since 2004. Our metallurgical database now exceeds 3,800 unique core designs from 10 kVA pole-mounted units to 300 MVA generator step-ups. Every coil set is traceable to the original steel heat number, slitting arbor, and annealing furnace log—data we share in every test report so your design team can correlate no-load loss (P₀) and sound level back to the exact processing window.

Integrated Process Control = Predictable Magnetic Properties

We do not trade coils; we add value in-house from 1,200 mm mother coil to finished core. The table below shows how each step tightens the final magnetic scatter band compared with traders who outsource slitting or annealing.

Critical Step	Equipment & Tolerance	Typical Improvement on 0.30 mm NO M400-50A
Slitting	0.02 mm burr height, ±0.05 mm width	Core loss scatter σP₁.₅/₅₀ ↓ 18 %
Stress-relief anneal	820 °C, 100 % H₂, ±3 °C belt furnace	Permeability @1.5 T ↑ 5 %, relieves cutting stresses
Insulation coating	1.2 µm C-5 organic-inorganic, 5 µm edge creep	Interlaminar resistance ↑ 30 %, stacking factor ↑ 0.5 %
Precision cutting	0.05 mm length repeatability, Ra ≤ 1.6 µm burr	Build height variation ↓ 0.2 mm per 100 laminations

Result: P₁.₅/₅₀ guaranteed within ±0.08 W/kg of published grade—tight enough for IEC 60076-20 energy-efficiency compliance without over-specifying steel grade.

Direct Factory Pricing, No Distributor Mark-Up

Because every operation happens under one 32,000 m² roof in Luoyang, we eliminate trader margin and redundant logistics. A typical 100 kg NO M400-50A EI-120 core set is quoted USD 1.85–1.95 / kg FOB Tianjin, roughly 22 % below Western European stockists and 12 % below major Shanghai trading houses (April 2025 HRC index). Volume rebates begin at 5 t per month; blanket orders lock LME-linked surcharge for 12 months.

Rapid Customization Without Tooling Delay

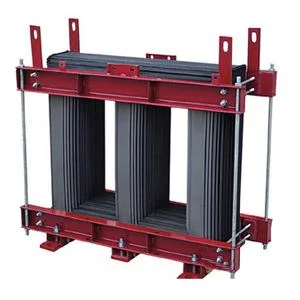

Need 3-phase step-lap mitred cores with 45°/90° hybrid joints or bolt-less yoke clamps for 24-slot distribution transformers? Our CNC programmable stacking robots reconfigure within 30 min; no hard tooling required. We routinely deliver prototypes in 7 calendar days and production lots (≤5 t) in 15 days, air-freight friendly for line-down emergencies.

Engineering Documents Delivered With Every Shipment

1. Mill test certificate (EN 10204 3.1) – chemical, mechanical, guaranteed core loss.
2. Lamination flatness map – 3-point micrometer scan, max bow ≤ 0.5 mm / 300 mm.
3. Coating insulation resistance – 10 V / 10 mm method, ≥ 20 Ω·cm² per ASTM A717.
4. Laser dimensional report – ±0.05 mm on window and yoke, SPC chart attached.

Call to Action

Send your stack height, flux density target, and annual volume to cathy@transformerstrip.com. We will return a detailed datasheet with loss curves, sound power estimate, and FOB & DDP price within 24 h.

---
