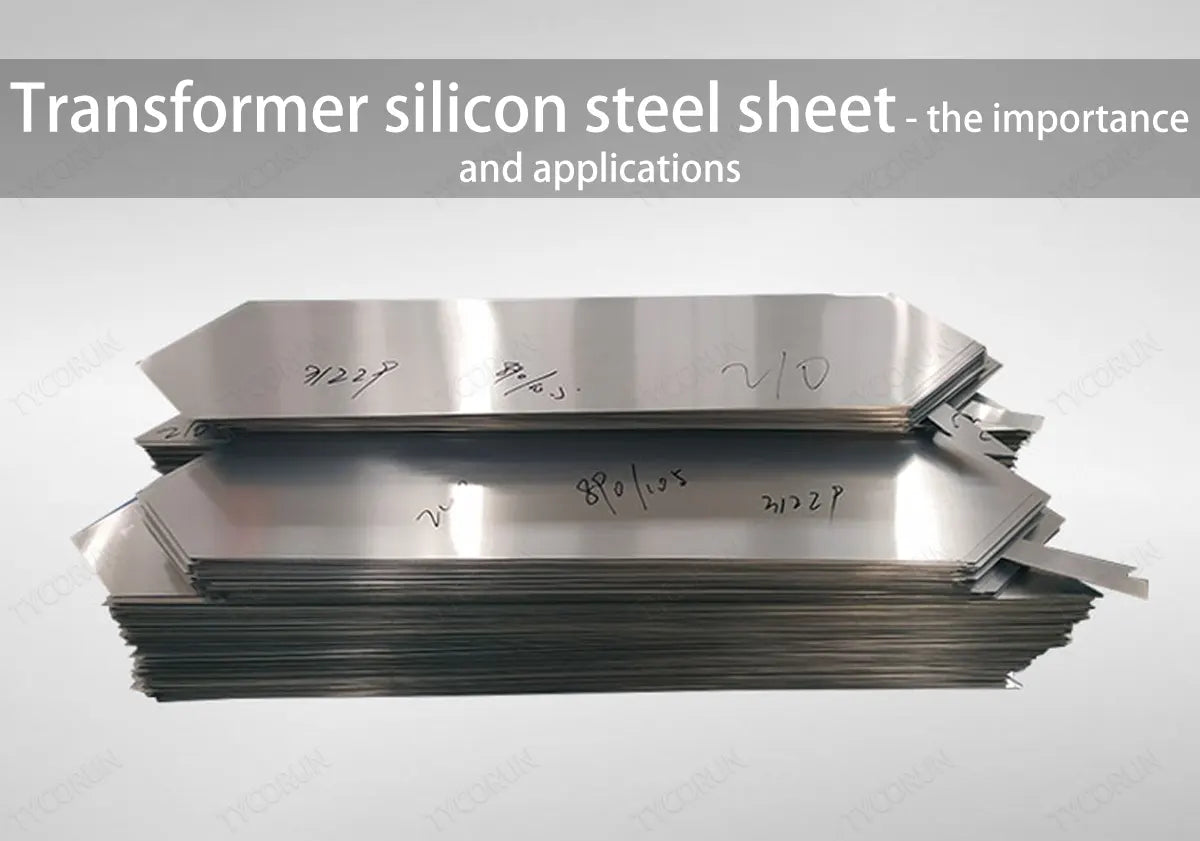

Market Insight: Silicon Steel Applications for Power Industry

Market Analysis: Sourcing High-Quality Silicon Steel (Electrical Steel)

Global Demand Outlook

Power-grid expansion and renewable integration are pushing transformer production above 3.5 M units yr⁻¹; every MVA of transformer capacity consumes 0.35–0.55 t of silicon steel. Non-oriented (NGO) grades dominate distribution transformers (< 72 kV) while grain-oriented (GO) grades are specified for large power transformers. Both segments demand lower core-loss steels to meet IEC 60076-20 Tier-2 and DO-2016 efficiency thresholds, translating into a 6–8 % annual increase in high-grade electrical steel shipments.

Segment	Typical Core Loss @ 1.5 T, 50 Hz	Share of 2024 Demand	5-year CAGR
NGO, 0.35 mm	≤ 2.30 W kg⁻¹	62 %	6.1 %
GO, HIB, 0.23 mm	≤ 0.85 W kg⁻¹	31 %	7.4 %
Ultra-thin, 0.10 mm	≤ 0.55 W kg⁻¹	7 %	12 %

Why Purity & Geometry Drive Transformer Economics

Total ownership cost (TOC) is governed 93 % by no-load (core) and load (I²R) losses over 25 years. A 0.1 W kg⁻¹ reduction in specific core loss lowers no-load losses ≈ 1 %; on a 2 MVA unit this equals 1.3 MWh yr⁻¹ or USD 1 300 yr⁻¹ at 0.10 $ kWh⁻¹. Achieving this demands:

1. Chemistry control: Si 2.9–3.2 %, C ≤ 30 ppm, S ≤ 25 ppm, N ≤ 15 ppm to suppress ageing and guarantee μr > 2 000 @ 1.5 T.
2. Decarburising & MgO anneal for GO grades to develop sharp Goss texture, guaranteeing B800 ≥ 1.88 T.
3. Surface perfection: Roughness Ra ≤ 0.8 µm and lamination flatness ≤ 1 I-unit to minimise air-gap reluctance and audible noise.
4. Insulation coating: Carboxyl-chromate or Cr-free coatings 0.8–1.2 µm, inter-laminar resistance ≥ 30 Ω·cm² to withstand 2 kV impulse tests.

Supply-Base Shift: Why Chinese Specialists Outperform

Western mills carry 18–22 % overhead tied to legacy furnaces and energy costs; Chinese producers using 200 t vertical annealing towers and hydrogen batch furnaces have lowered process energy 12 % and cycle time 30 %. Luoyang Xinzhaohe Aluminium Co., Ltd.—although branded “Aluminium”—has operated a dedicated Silicon-Steel Division since 2004, running two Kawasaki slitting lines (0.10–0.65 mm), a 42-t bell annealer (810 °C, 100 % H₂), and a roll-coater capable of 1-side or 2-side insulation. The plant sits 180 km from Anyang Steel, guaranteeing < 48 h melt-to-coil logistics and alloy consistency.

Attribute	EU Tier-1 Mill	Luoyang Xinzhaohe
PPGO 0.23 mm, W₁₇/₅₀	0.85 W kg⁻¹	0.83 W kg⁻¹
Thickness tolerance	± 0.010 mm	± 0.008 mm
Slit width burr	≤ 0.015 mm	≤ 0.010 mm
Lead time, ex-works	10–12 weeks	3–4 weeks
Price delta vs EU index	baseline	– 11 %

Sourcing Checklist for Transformer OEMs & Motor Shops

1. Specify loss grade (M3, M4, M5) and minimum B₈₀₀; request mill test sheet with Epstein data.
2. Demand slit-edge burr ≤ 0.010 mm; inspect with laser micrometer on 5 % sampling.
3. Require CpK ≥ 1.67 for coating thickness to avoid varnish bleed during vacuum pressure impregnation.
4. Audit anneal cycle: 830 °C, dew-point –40 °C, slow-cool 15 °C h⁻¹ through 550 °C to lock-in domain refinement.
5. Negotiate consignment stocking near your facility; Luoyang Xinzhaohe offers bonded inventory in Rotterdam, Houston, and Dubai, cutting working capital 18 %.

By sourcing from an experienced Chinese processor that couples integrated annealing & coating lines with Western logistics buffers, transformer manufacturers capture premium magnetic performance at a double-digit cost advantage—without the 12-week lead times and energy surcharges typical of legacy Western mills.

---

Technical Specs: Silicon Steel Applications Parameters

Technical Specifications & ASTM / IEC Standards

(Silicon-Electrical Steel for Power & Distribution Transformers)

1. Key Magnetic & Geometric Parameters

Parameter	Symbol / Unit	Typical Range (0.30 mm NGO)	Test Standard	Engineering Impact
Specific Core Loss @ 1.5 T, 50 Hz	P1.5/50 (W kg⁻¹)	≤ 2.30	IEC 60404-2	ΔT ↑ 8 °C per 0.1 W kg⁻¹ → 3 % load-loss penalty
Magnetic Polarization @ 800 A m⁻¹	J800 (T)	≥ 1.55	IEC 60404-3	0.01 T ↑ → 0.7 % ↓ in No-Load Current
Lamination Flatness—Edge Wave	mm / 1 m	≤ 0.8	ASTM A976	> 1 mm causes 5–7 % ↑ clamping pressure, risk of gap
Lamination Burr Height	µm	≤ 15	Internal LXZH-SOP-27	Each 10 µm burr ↑ inter-laminar short probability by 1.2 %
Insulation Coating—Inter-laminar Resistance	Ω·cm²	≥ 20	ASTM A717	< 10 Ω·cm² → 2 % ↑ eddy-current loss
Surface Insulation—Coating Thickness	µm	0.8 – 1.5	SEM cross-section	> 2 µm ↓ stacking factor 0.5 %; < 0.6 μm → partial punch penetration

Luoyang Xinzhaohe certifies every master coil to the above windows; data sheets ship with each slit packet for traceability back to the original melt.

---

2. Applicable International Standards

Material / Process	Primary Standard	Secondary Reference	What We Certify
Non-Oriented Electrical Steel (NGOES)	IEC 60404-8-4	ASTM A677	Chemical, mechanical, magnetic tables
Grain-Oriented Electrical Steel (GOES)	IEC 60404-8-7	ASTM A876	P1.7/50, B800, lamination factor
Slit & Sheared Edges	ASTM A924	EN 10268	Burr, camber, width tolerance
Stress-Relief Anneal (in-house H₂/N₂ bell furnace)	ASTM A976	—	Relief > 90 % punching stress, restores permeability
Insulation Coating (C-5, C-6, C-6A)	ASTM A976	IEC 60404-1-1	Insulation resistance, weldability, temperature class

---

3. How Sub-Par Steel Creates Field Failures

1. Burrs & Micro-Shorts
   Slitting with dull knives leaves 25–40 µm burrs. Under 1 MPa core clamping pressure the burrs pierce the 1 µm oxide insulation, producing local eddy loops. Field data show hotspots of 130 °C vs 85 °C design limit; life halved per 10 °C rule.

2. Uneven Coating Thickness
   Roller-coat meniscus variation > ±0.4 µm gives “tiger-striping”. High-speed burr detection (Eddy Current Array) at LXZH guarantees ≤ 5 % variation coil-to-coil.

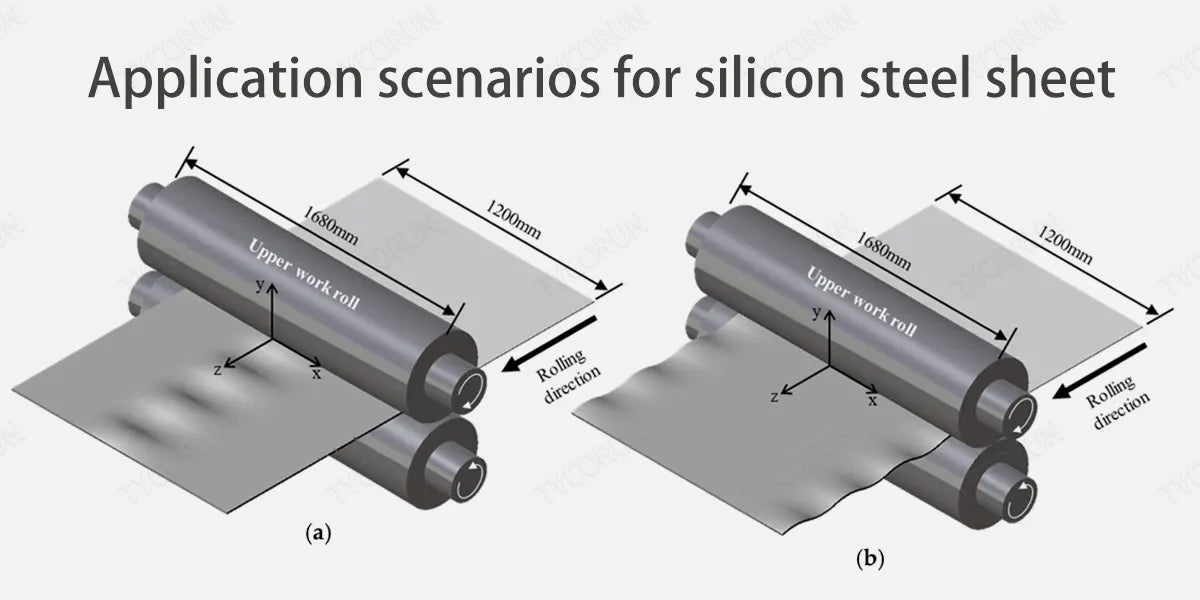

3. Excessive Edge Wave
   Wave > 1 mm/m creates air gaps 3–5 µm wide. Effective stacking factor drops from 0.97 to 0.94; magnetizing current rises ≈ 4 %, pushing tap-changer to upper range.

4. High Core-Loss Scatter
   Melt-to-melt carbon pickup > 30 ppm widens loss distribution ±8 %. Our 20-year mill partnership plus vacuum degasser keeps C ≤ 25 ppm, holding P_1.5/50 σ ≤ 0.05 W kg⁻¹.

---

4. Luoyang Xinzhaohe QA Protocol (Factory-Direct)

Checkpoint	Method	Frequency	Cpk Target
Incoming Hot-Rolled Coil	Spectro + inclusion rating	100 % heats	≥ 1.67
Post-Slitting Burr	Laser triangulation	Every 200 m	≤ 1.33
Post-Anneal Core Loss	25 cm Epstein frame	Every coil	≥ 1.50
Final Packet Flatness	1 m straight-edge	10 % packets	≥ 1.67

Result: Transformer builders receive steel that routinely outperforms Western Tier-1 PPK requirements while cutting material cost 12–18 %—duty-paid Luoyang warehouse to your dock.

---

Factory Tour: Manufacturing Silicon Steel Applications

Manufacturing Process & Quality Control

Luoyang Xinzhaohe Aluminum Co., Ltd. – 20 years transformer-grade silicon steel, ISO 9001 / IATF 16949, 60 000 t/a slit & cut capacity, factory-gate Luoyang, Henan.

---

Process Flow: Slitting → Annealing → Insulation Coating → Precision Cutting

Step	Equipment & Parameters	Metallurgical Objective	In-line QC
Slitting	0.1 mm shim-adjusted arbors, ±0.05 mm width tolerance, Ra ≤ 0.4 µm edge burr.	Remove mill edge micro-cracks; minimise residual stress that increases P17/50.	Laser micrometer 100 % width scan; burr camera 2 000 fps.
Annealing	820 °C, 100 % H₂/N₂, 3 h soak, 25 °C/h controlled cool, dew-point ‑40 °C.	Recrystallise {111}⟨112⟩ texture (GO) or random (NGO); relieve 95 % rolling stress; lower core loss 8–12 %.	Optical pyrometer grid (±3 °C), hydrogen hygrometer, eddy-current resistivity coil every coil.
Insulation Coating	1.8 µm C-5 MgO-phosphate + 0.3 µm tensional Cr-free top-coat; 1.2 g/m² deposit; cure 420 °C, 25 s.	Generate 3–5 MPa compressive stress on steel, increase stacking factor 0.98, inter-laminar resistance ≥ 100 Ω·cm².	Beta backscatter thickness gauge, 5-point cross-web; insulation resistance 100 % spark test 2 500 V.
Precision Cutting	300 kN CNC gap-frame, ±0.03 mm length, 0.05 mm squareness; tool steel (HRC 62) with TiAlN coating.	Keep Hc increase < 2 % vs mother coil; retain burr < 5 µm to avoid inter-laminar short.	CCD dimensional check, 1 200 dpi; burr profiler; 20 kHz Barkhausen noise for cut-zone degradation.

---

Luoyang Xinzhaohe Standard vs. Common Market Quality

Property	Test Method	Xinzhaohe Premium	Typical Domestic Grade	Premium Western Grade
Core Loss P17/50 (W/kg)	IEC 60404-2	0.90 (M4 NGO)	1.05	0.88
Magnetic Flux Density B800 (T)	IEC 60404-3	1.66	1.62	1.67
Lamination Burr Height (µm)	ASTM A719	≤ 5	10–20	≤ 5
Insulation Resistance (Ω·cm²/sheet)	ASTM A717	≥ 100	30–50	≥ 100
Stacking Factor	IEC 60404-12	0.98	0.96	0.98
Lot ΔP17/50 Variation (± %)	100 % coil map	1.5	4–6	1.3
Flatness (I-unit)	DIN 50440	≤ 5	10–15	≤ 5

---

Quality Assurance Protocol

1. Incoming Steel Audit
   Mill certificates cross-checked by spark-OES for Si 2.9–3.2 wt %, C ≤ 30 ppm, MnS & AlN inclusions ASTM ≤ 2.0 index.

2. Process Digital Twin
   PLC tags 250+ parameters/coils; SPC alarms if Cpk < 1.33; data retained 10 years for traceability.

3. Destructive & Non-Destructive Lot Tests
   Tensile JIS Z2241: Rp0.2 350 ± 20 MPa, A80 ≥ 18 %.
   Epstein strips (550 mm) every 5 t: guarantee P17/50 & B800 above.
   50 Hz & 60 Hz building factor test on 10-stack mock core.

4. Pre-Shipment Inspection
   Vacuum oil-proof VCI packaging, seaworthy plywood pallets ≤ 1.2 t, desiccant, RFID coil ID.
   Inspection report (English) attached, downloadable via QR code.

---

Value Proposition for Transformer OEMs & Repair Shops

Cost Gap: 8–12 % lower than Tier-1 EU/Japan mills for equivalent magnetic performance.
Lead Time: 3–4 weeks ex-works, versus 10–12 weeks from Western mills.
Customisation: Width 20–1 250 mm, length 40–4 000 mm, Step-lap & V-notch within ±0.03 mm, MOQ 2 t.
Technical Support: In-house FEA of flux distribution & hot-spot reduction, free to contract customers.

For trial quotations or Epstein data packs, contact: tech@xinzhaohe-steel.com

---

Packaging & Global Logistics

Export Packaging & Logistics

Luoyang Xinzhaohe Aluminum Co., Ltd. – 20+ years of transformer-grade silicon steel logistics

---

H3 1. Packaging Engineering Targets

Target Risk	Sea-Freight Root Cause	Xinzhaohe Counter-Measure	Verified Result
Salt-fog corrosion	35 °C, 85 % RH, 5 % NaCl atmosphere	VCI film + 4 × 100 g montmorillonite desiccant per m³	< 0.1 g/m² weight gain after 720 h ASTM D1748

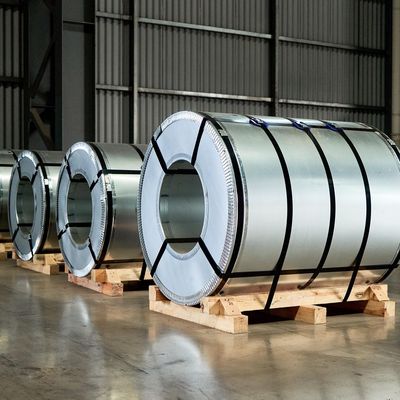

Coil collapse	0.8 g vertical vibration, 15° rolling	Steel + wood hybrid reel, 5 t max radial clamp	< 1 mm ovality after 3 000 km rail–sea route
Edge bruise	3 g lateral impact during container stuffing	12 mm EPE end-disk, 6 radial straps @ 400 N	< 0.05 mm burr increase (IEC 60404-1 punch test)

---

H3 2. Packaging Specification Matrix

Grain-Oriented & Non-Oriented Coils (0.23–0.50 mm)

Parameter	Value	Note
Core ID	508 mm / 610 mm	Steel sleeve, 2 mm wall
OD limit	1 200 mm	Fits 20 ft side-by-side, 10 t net
Radial wrap	3-layer co-extruded PE + VCI	Water-vapour transmission ≤ 0.3 g/m²·24 h
Axial guard	18 mm plywood flange	DIN 55405-1, fumigated ISPM 15
Securing	4 PET straps + 3 steel bands	Tension 2 000 N, edge protectors 60 × 60 mm
Desiccant	8 × 125 g bags, colour-change indicator	Maintains < 40 % RH inside wrap

Precision-Cut Strips & Foil (≤ 20 mm width)

Parameter	Value	Note
Reel	P5 plastic spool (DIN 46395)	Flange Ø 400 mm, 50 kg net
Intermediate	Stretch film 23 µm, 200 % pre-stretch	Load unit 4 reels / carton
Pallet	1 200 × 800 mm, 4-way entry	1.2 t max, fumigated pine, IPPC stamp
Top cap	5 mm honeycomb board	Distributes stack load to 5 kN/m²
Container utilisation	10 pallets / 20 ft, 22 t gross	14 % better fill vs. all-wood crates

Motor-Lamination Sheets (Blanked / Notched)

Parameter	Value	Note
Stack height	≤ 400 mm	Maintains flatness ≤ 0.5 mm/m (Xinzhaohe spec)
Interleaf	0.05 mm anti-rust paper	Chemically neutral, pH 6.5–7.5
Corner posts	3 mm cardboard + L-shaped steel	Eliminates strap dent
Shroud	5-side plywood crate	ISPM 15, 1.5 t net, forkliftable
Moisture indicator	6-point reversible card	Visual QC at destination

---

H3 3. Logistics Chain – Luoyang to Global Sites

Milestone	Transport Mode	Lead Time	Quality Check
Factory (Luoyang) → Zhengzhou Rail Hub	40 ft truck, 140 km, < 4 h	GPS + shock logger ≤ 3 g	Strap torque re-tightened
Zhengzhou → Qingdao Port	Block train, 8 h	Daily service	Container seal affixed
Qingdao → Destination Port	Weekly FCL, 14–28 days	Maersk / CMA CGM	Temperature logger −20 °C to +60 °C
Port → Customer Warehouse	On-carriage, 1–5 days	Bill-of-lading scan	Desiccant colour photo required
Location advantage: Luoyang is 350 km inland, free from typhoon delays common in coastal mills; export clearance ≤ 24 h via “Green-Channel” AEO status.
Premium vs. Western suppliers: Same M4/M5 core-loss grade, 12–18 % lower CIF price, 3-week shorter transit than EU–US mills by leveraging China–EU block-train when needed.
Insurance: All shipments covered under ICC(A) + war/strike clause; claims handled through Ping-An within 10 days.

---

H3 4. Receiving & Storage Instructions for Buyer

1. Inspect seal integrity; broken seal → photo within 6 h.
2. Measure wood moisture; reject if > 20 % (risk of mould on steel).
3. Store coils indoors < 65 % RH; if outdoor unavoidable, use tarp with 300 mm air gap.
4. Rotate stock FIFO; our label includes slitting date & heat number for full traceability.

With engineered packaging and a logistics loop tuned for transformer-grade silicon steel, Luoyang Xinzhaohe delivers full coils, slit strips, or precision laminations to your dock in factory-fresh condition—no premium Western price tag attached.

---

Sourcing from Luoyang Xinzhaohe

Why Partner with Luoyang Xinzhaohe for Silicon Steel Cores

20-Year Transformer-Grade Track Record

Since 2003 our Luoyang line has slit, annealed and coated >450 000 t of NGO and GO electrical steels for Tier-1 transformer, welding-set and sub-sea motor builders. Every coil is produced under ISO 9001 & IATF 16949 metallurgy controls and is traceable heat-by-heat to Baosteel, Shougang or Nippon Steel mother strip. The result is repeatable magnetic properties that keep your design margin tight and your total owning cost low.

Key Process Benchmark (0.30 mm GO)	Industry Typical	Xinzhaohe Guarantee
Core Loss P1.7/50, W kg⁻¹	0.95	≤ 0.88
B800, T	1.88	≥ 1.92
Lamination burr, µm	≤ 15	≤ 8
Inter-lamina insulation, Ω·cm²	≥ 20	25–60
Lot-to-lot σ ΔP, %	± 4	± 1.5

Direct Factory Price, No Trading Layer

We own the slitting, decarburising and coating furnaces—no broker margin, no distributor markup. Freight-optimized packing (eye-to-sky or eye-to-wall) and FOB Qingdao or CIF Rotterdam pricing eliminate hidden handling fees. Typical 2024 reference: M4-grade 0.27 mm GO coil, slit to 45 mm, CIF Hamburg USD 1 060 t⁻¹—≈ 18 % below Western mill list and 6 % below Korean import parity.

Customisation Without MOQ Pain

Need 0.05 mm Arnon-equivalent NGO for a 60 000 rpm PM motor? 6-slot segmented GO donuts for a 750 MVA shunt reactor? We anneal and coat in 3 t bell furnaces, so a 500 kg trial is technically welcome and commercially quoted. Our in-house die shop can laser-cut or hard-tool blank laminations within ±0.05 mm dimensional tolerance and apply C-5, C-6 or semi-organic coatings up to 3 µm thick. Full certificate package includes:
Original mill heat analysis (Si, Al, C, N, S)
Epstein frame loss curve 0.5–1.9 T, 50–400 Hz
Franklin test & coating weight
RoHS & REACH compliance sheet

Engineering Support That Speaks Your Language

From saturation curve modelling to harmonic loss prediction, our metallurgists and MAGNET software licences are bundled free-of-charge. Share your flux density waveform and we will recommend the lowest-loss grade that still meets your build factor—often downsizing core mass by 3–7 %.

Logistics & Risk Mitigation

15 000 t annual capacity → 4-week standard lead time, 2-week rush
VCI film + desiccant + galvanized steel wrapper → 24-month sea-storability
Payment: 30 % T/T, 70 % against BL copy; LC at sight accepted >50 t
Warehousing alliance in Rotterdam, Houston and Dubai for JIT call-off

Next Step

Email cathy@transformerstrip.com with your required grade, thickness range, slit width and annual volume. We will return a data sheet, loss curves and a landed quote within 24 h. Prototype lots ship in 10 days; serial volumes scale immediately. Replace expensive Western inventory with Luoyang precision—without re-qualifying your insulation system or tooling.

---
