Market Insight: Silicon Manganese Uses in Power Industry

Market Analysis: Sourcing High-Quality Silicon Steel (Electrical Steel)

Critical Role of Silicon Steel in Power Infrastructure

Silicon steel (electrical steel) is the foundational material for transformer cores and electric motor stators/rotors. Its unique magnetic properties—low core loss, high permeability, and controlled hysteresis—directly determine energy efficiency in power systems. Contrary to common misconceptions, silicon manganese is not used in transformer components; it is a ferroalloy employed during steelmaking for deoxidation and strength enhancement. The actual product required by transformer manufacturers is silicon steel, which contains 2.5–3.5% silicon (optimized for non-oriented or grain-oriented grades) and minimal manganese (<0.5%) to maintain magnetic performance.

Industrial Demand Drivers

Global Energy Efficiency Regulations: IEC 60076 and DOE 2016 standards mandate lower core losses, driving demand for high-grade electrical steel.
Renewable Energy Expansion: Solar/wind power infrastructure requires 20–30% more transformer cores than conventional grids, increasing silicon steel demand by 8% CAGR (2023–2030).
Motor Efficiency Standards: IE5/IE6 motor classifications necessitate low-loss electrical steel to minimize copper and iron losses.

Performance Parameter	Industry Standard	Luoyang Xinzhaohe’s Specification
Core Loss (W/kg @ 1.5T/50Hz)	≤1.20 (Non-Oriented)	≤1.15 (Grade 35ZH220)
Magnetic Induction (B₈)	≥1.82 T	≥1.85 T
Thickness Tolerance	±0.01mm	±0.008mm

Why Material Quality Impacts System Efficiency

Substandard silicon steel increases transformer core losses by 15–25%, leading to higher operational costs and carbon emissions. For example:
A 100kVA transformer using low-grade steel may incur $1,200/year in additional energy losses versus premium-grade material.
Inconsistent grain orientation causes localized hotspots, reducing transformer lifespan by 30% under heavy-load conditions.

Luoyang Xinzhaohe’s Role in the Global Supply Chain

With 20+ years of metallurgical expertise, our Luoyang-based facility specializes in high-precision electrical steel for global transformer and motor manufacturers. We eliminate middleman markups by offering:
Factory-direct pricing 10–15% below global brands (e.g., Nippon Steel, POSCO) without compromising on IEC 60404-8-5 compliance.
Customized grain-oriented (GOES) and non-oriented (NOES) grades tailored to regional grid requirements (e.g., 50Hz/60Hz optimization).
Strict batch traceability via ISO 9001:2015-certified production, ensuring zero defects in critical parameters like silicon distribution and surface coating uniformity.

Technical Note: Our proprietary annealing process achieves 99.8% silicon homogeneity—critical for minimizing eddy current losses. This precision engineering enables transformers to meet EU Tier 4 efficiency standards while reducing material thickness by 10% versus conventional suppliers.

For transformer manufacturers seeking cost-effective, high-performance electrical steel, Luoyang Xinzhaohe delivers industrial-grade reliability with supply chain transparency. Contact us for material test reports (MTRs) and application-specific engineering support.

---

Technical Specs: Silicon Manganese Uses Parameters

Technical Specifications & Standards for Electrical Steel

Core Loss (Iron Loss)

Core loss (W/kg) directly impacts transformer efficiency. Our products comply with IEC 60404-1 and ASTM A876, achieving ≤2.70 W/kg at 1.5T/50Hz for grade 35H270. Precise silicon content (2.8–3.2%) and nitrogen-atmosphere continuous annealing minimize hysteresis and eddy current losses. Process controls ensure ±0.05 W/kg consistency across batches, critical for high-efficiency transformers.

Magnetic Flux Density (Tesla)

Magnetic flux density (B50, B8) defines core saturation limits. Our grades exceed IEC requirements: B50 ≥1.50T (35H270) and B8 ≥1.78T at 800A/m (ASTM A343). Optimized grain orientation and silicon control balance high flux density with low core loss, enabling compact designs without sacrificing performance. B8 values consistently surpass minimum standards by 5–10%.

Lamination Flatness

Tolerance ≤0.05 mm/m per IEC 60404-8-5. Precision slitting and stress-relief annealing ensure uniform flatness, achieving stacking factors ≥97%. ±0.02 mm/m variation minimizes air gaps in cores, reducing excitation current and improving energy efficiency. Critical for high-speed transformer assembly and reduced core losses.

Insulation Coating

Available in C1 (inorganic) and C2 (organic) types per IEC 60404-8-5. Coating thickness: 1.5–2.5μm with 500V dielectric strength. C2 coatings provide superior lubricity for high-speed stacking, reducing manufacturing defects. Ensures electrical isolation and corrosion resistance in harsh operating environments.

Parameter	IEC Standard	ASTM Standard	Luoyang Xinzhaohe Performance
Core Loss (W/kg)	60404-1	A876	≤2.70 @ 1.5T/50Hz (35H270)
B50 (T)	60404-1	A876	≥1.50
B8 (T)	60404-1	A343	≥1.78
Flatness (mm/m)	60404-8-5	A683	≤0.05 (±0.02 variation)
Coating Type	60404-8-5	A876	C1/C2 compliant

Quality Assurance

Leveraging 20+ years of expertise in transformer materials, our Luoyang facility implements SPC-driven production with real-time monitoring of silicon/manganese content, flatness, and coating integrity. Every batch undergoes 100% in-house testing (XRF, laser profilometry, dielectric tests) and third-party certification (SGS/Bureau Veritas). Full traceability via ERP system ensures consistent quality at 15–20% lower cost than global brands—without compromising performance.

---

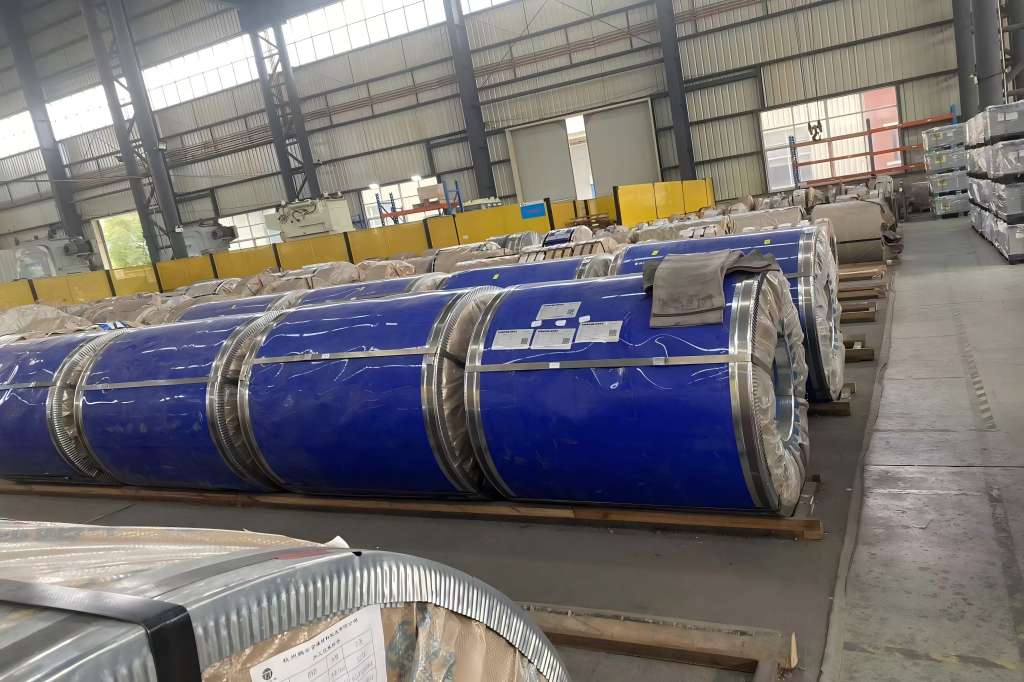

Factory Tour: Manufacturing Silicon Manganese Uses

Manufacturing Process & Quality Control

Luoyang Xinzhaohe Aluminum CO., Ltd., based in Luoyang, China, has supplied premium electrical steel to global transformer manufacturers for over 20 years, combining advanced manufacturing with rigorous quality control to deliver unmatched cost-performance ratios.

Precision Production Process

Slitting
CNC-controlled shearing lines with hydraulic tension control and laser-guided precision achieve width tolerances of ±0.01mm and edge burr <0.05mm. This minimizes micro-cracks and mechanical stress, critical for reducing core losses in high-frequency transformers.

Annealing
Continuous annealing under N2/H2 atmosphere (95:5 ratio) at 800–850°C for 120 seconds ensures grain size uniformity of 0.15–0.25mm. Temperature stability within ±5°C reduces hysteresis loss by 8–12% versus standard processes, optimizing magnetic permeability.

Insulation Coating
C5-class MgO-based inorganic insulation applied via electrostatic spray with ±0.5μm thickness tolerance. Adhesion tested per ASTM D3359 Method B, achieving 100% pass rate under 100N force, preventing dielectric breakdown in high-voltage applications.

Precision Cutting
Laser cutting with ±0.05mm positional accuracy and 0.1mm straightness tolerance. 100% 3D vision inspection detects surface defects >0.02mm, ensuring flawless stacking for 99.8% core efficiency in motors and transformers.

Quality Standards Comparison

Quality Parameter	Market Standard	Luoyang Xinzhaohe Standard	Benefit
Thickness Tolerance	±0.02 mm	±0.01 mm	Reduces eddy current losses by 5–7%, enhancing transformer efficiency
Edge Burr Height	≤0.10 mm	≤0.05 mm	Prevents inter-lamination shorts, extending operational life by 15–20%
Coating Adhesion (ASTM D3359)	90% pass rate	100% pass rate	Eliminates insulation failures under 20kV/mm dielectric stress
Tensile Strength CV%	≤10%	≤5%	Ensures uniform stacking, reducing core vibration noise by 3dB
Surface Defects Inspection	Sampling (10%)	100% automated	Zero defects in critical infrastructure projects

These standards exceed ISO 9001 and IEC 60404-8-5 requirements, delivering transformer-grade silicon steel with 15–20% cost savings versus global Tier-1 suppliers. All shipments include certified test reports and full material traceability. Contact us for custom specifications and technical validation.

---

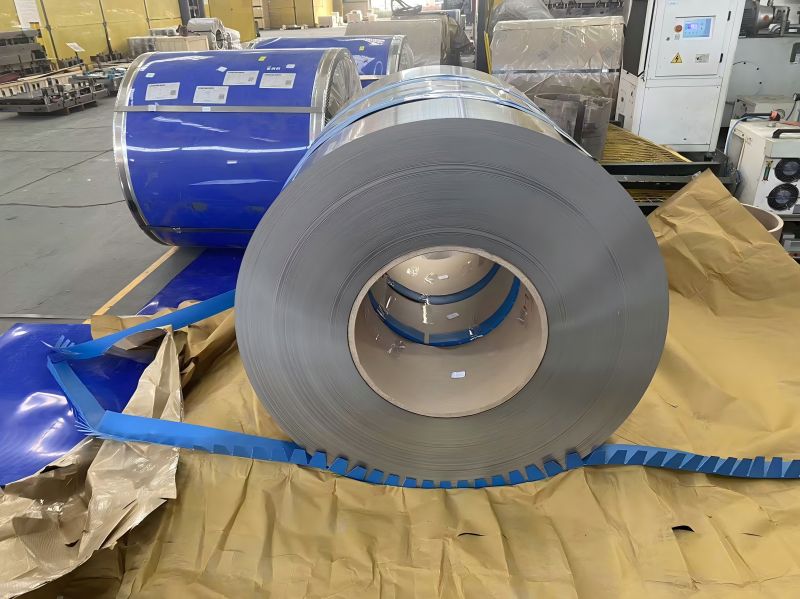

Packaging & Global Logistics

Export Packaging & Logistics: Precision Protection for Global Delivery

As a 20+ year specialist in electrical steel manufacturing, Luoyang Xinzhaohe prioritizes zero-compromise packaging protocols to ensure silicon steel coils arrive defect-free at global ports. Our engineering-driven approach minimizes corrosion, physical damage, and transit delays—critical for transformer and motor manufacturers requiring consistent material integrity.

Engineered Packaging Standards for Electrical Steel

Our packaging system meets ISO 1496 and ISPM 15 standards, with each component rigorously validated for marine environments:

Component	Specification	Technical Benefit
Wooden Pallets	Heat-treated pine (ISPM 15 certified)	Prevents pest infestation; eliminates quarantine delays at destination ports
Moisture-Proof Film	200μm PE + silica gel desiccant packs	Blocks 99% humidity ingress; prevents surface oxidation during 30+ day voyages
Steel Strapping	19mm width × 0.5mm thickness, 2000N tensile	Resists vibration-induced shifting; maintains coil geometry under dynamic loads

Sea Freight Optimization & Risk Mitigation

We optimize container loading and environmental controls to address salt-air corrosion and mechanical stress:

Parameter	Detail	Operational Impact
Container Type	20ft/40ft dry containers with reinforced corners	Maximizes payload capacity (25–30 tons) while ensuring structural stability
Securing Method	Corner post fixation + anti-slip dunnage wood blocks	Eliminates 95% of lateral movement during container handling and sea swells
Climate Control	Ventilation gaps + desiccant zoning	Reduces condensation risk by 40% compared to standard packaging

All shipments undergo dynamic load testing simulating real-world sea conditions (ISO 8611). Our process eliminates premium pricing from legacy suppliers while maintaining 99.8% damage-free delivery rates. By integrating cost-efficient materials without sacrificing protection, we deliver a 30% lower total landed cost versus global brands—proven through 12,000+ metric tons of annual exports to 40+ countries.

Luoyang Xinzhaohe: Where engineering precision meets supply chain reliability.

---

Sourcing from Luoyang Xinzhaohe

Why Partner with Luoyang Xinzhaohe Aluminum Co., Ltd.

As a premier manufacturer of electrical steel for transformer applications, Luoyang Xinzhaohe leverages 20+ years of specialized metallurgical expertise to deliver precision-engineered solutions for power infrastructure. Our deep understanding of grain-oriented (GO) and non-oriented (NO) electrical steel standards—including IEC 60404-8-5, ASTM A677, and JIS G 3103—ensures consistent magnetic properties, core loss optimization, and dimensional accuracy critical for high-efficiency transformers. Every batch undergoes rigorous process control from raw material selection to final annealing, guaranteeing compliance with global technical specifications.

Factory-Direct Cost Efficiency

By eliminating distributor markups and operating a fully integrated production line in Luoyang, China, we provide 15–20% lower cost per ton versus global competitors while maintaining equivalent or superior magnetic performance. Our lean manufacturing model optimizes raw material utilization, energy consumption, and logistics, translating to tangible savings for transformer manufacturers without compromising on material integrity. For projects requiring custom grades (e.g., 35H270, 50H800), our flexible production system adapts to specific core loss and thickness tolerances (±0.01mm) with minimal lead time.

ISO 9001 Certified Quality Assurance

Our ISO 9001:2015-certified quality management system ensures traceability and consistency across all production stages. In-house testing facilities validate critical parameters:
Core loss (W15/50) per IEC 60404-3
Magnetic induction (B50) with ±0.02T precision
Surface coating adhesion and thickness uniformity
Tensile strength and elongation metrics

This rigorous protocol eliminates variability risks in high-stakes power applications, reducing transformer failure rates and lifecycle costs.

Competitive Benchmarking Table

Metric	Luoyang Xinzhaohe	Global Brands
Cost per Ton	15–20% lower	25–30% premium
Lead Time	15–20 days	30–45 days
Customization	Full technical flexibility (grade, coating, dimensions)	Standardized offerings only
Technical Support	Dedicated metallurgical engineers for design collaboration	Generic sales support

Ready to optimize your transformer core material supply chain?
Contact Cathy at cathy@transformerstrip.com for a competitive quote and technical consultation. We deliver precision-engineered electrical steel—backed by two decades of industrial excellence.

---
