Market Insight: Silicon Core Transformer in Power Industry

Market Analysis: Sourcing High-Quality Silicon Steel for Core Transformers

Industrial Demand Drivers

Global transformer demand is accelerating due to renewable energy integration (solar/wind farms), grid modernization, and EV infrastructure. The IEA reports a 12% YoY growth in transformer installations for renewable projects in 2023, with Asia-Pacific accounting for 60% of new capacity. Critical applications include 110kV+ transmission transformers for wind farms, requiring core losses ≤2.0 W/kg at 1.7T to meet Tier-4 efficiency standards. Motor repair shops increasingly demand premium silicon steel for rewinding IE5-class motors, where core losses directly impact operational costs—each 0.1 W/kg reduction saves ~$1,500/year per 100kVA unit.

Material Quality Impact on Transformer Efficiency

Core losses (hysteresis + eddy current) constitute 60-70% of total transformer energy waste. Grain-oriented silicon steel (GOES) with 3-3.5% silicon content and precise grain orientation minimizes these losses. For example, a 0.2 W/kg reduction in core loss for a 500kVA transformer cuts annual energy costs by $3,200. Material inconsistencies cause localized hotspots, leading to 30% of premature transformer failures. Compliance with IEC 60404-8-5 and ASTM A677 is non-negotiable for critical infrastructure.

Luoyang Xinzhaohe’s Value Proposition

As a Tier-1 supplier with 20+ years of metallurgical expertise, Luoyang Xinzhaohe Aluminum CO., Ltd. delivers silicon steel matching global brand performance at 15-25% lower cost. Our proprietary annealing process achieves 99.5% grain alignment, reducing hysteresis losses by 8% versus industry averages. All products undergo NDT for surface defects and magnetic uniformity, critical for EV charger applications.

Our ISO 9001:2015-certified production ensures <1% defect rates, with direct factory pricing eliminating distributor markups. We supply to 15+ countries, including Germany, Brazil, and Vietnam, with 30% faster lead times than European competitors. Contact us for material certifications and technical validation reports.

Technical Specs: Silicon Core Transformer Parameters

Technical Specifications & Standards for Silicon Steel Cores

Our silicon steel products meet stringent international standards while delivering superior cost-performance. Below are critical specifications and our quality assurance protocols.

Core Loss (Iron Loss)

Core loss (W/kg) directly impacts transformer efficiency. Compliant with IEC 60404-3 and ASTM A876, our grades (e.g., 35H270, 50H350) maintain ≤2.70 W/kg @1.5T, 50Hz. Continuous annealing optimizes grain structure to minimize hysteresis and eddy current losses.

Magnetic Flux Density

Flux density (B5 @50Hz) ensures optimal magnetic performance. Our steel achieves ≥1.85T for 35H270 and ≥1.80T for 50H350 per ASTM A876. Precise rolling and heat treatment guarantee consistent magnetic properties under operational loads.

Lamination Flatness

Critical for core stacking integrity. Tolerance ≤0.05mm/m per IEC 60404-2. Our precision slitting and tension control systems maintain ≤0.03mm/m, reducing air gaps and core losses during assembly.

Insulation Coating

Compliant with IEC 60404-8-5. C4/S2 coatings (1.0–1.5μm thickness) with adhesion >20N/cm. Ensures inter-laminar insulation, corrosion resistance, and dielectric strength for long-term reliability.

Quality Assurance Process

Raw material traceability via XRF analysis
In-line eddy current testing for coating uniformity
Final inspection per ISO 9001 standards
Certifications: ISO 9001, IEC 60404 series

Luoyang Xinzhaohe delivers consistent, high-performance silicon steel with 20+ years of manufacturing expertise. Our factory-direct approach ensures competitive pricing without compromising on quality, making us a reliable alternative to global brands.

Factory Tour: Manufacturing Silicon Core Transformer

Precision Manufacturing & Rigorous Quality Control for Silicon Steel Cores

At Luoyang Xinzhaohe Aluminum, our 20+ years of expertise in electrical steel production ensures superior silicon core transformer materials. Our integrated manufacturing process—slitting, annealing, insulation coating, and precision cutting—is optimized for minimal core losses and maximum efficiency. Every step adheres to stringent QC protocols exceeding industry standards, delivering consistent performance at competitive pricing.

Slitting Process

Precision slitting using high-precision CNC shearing with automated edge detection ensures ±0.05 mm width tolerance and flatness ≤0.2 mm/m. Edge burr control and surface roughness (Ra <0.2 µm) minimize eddy current losses by 10% versus standard ±0.1 mm tolerance products.

Annealing Control

Controlled atmosphere annealing (N₂/H₂ mix) in continuous annealing lines at 800–850°C ±5°C optimizes grain orientation and reduces internal stresses. Achieves core losses ≤1.25 W/kg @1.5T/50Hz—15% lower than market averages (1.45 W/kg). In-line magnetic property monitoring via BH analyzers ensures batch consistency critical for high-efficiency transformer cores.

Insulation Coating

Electrostatic-applied hybrid coatings (inorganic/organic) with ±1.5% thickness uniformity. XRF real-time monitoring and ASTM D3359 tape tests (1000+ cycles) prevent delamination under high-frequency operation, exceeding industry standards.

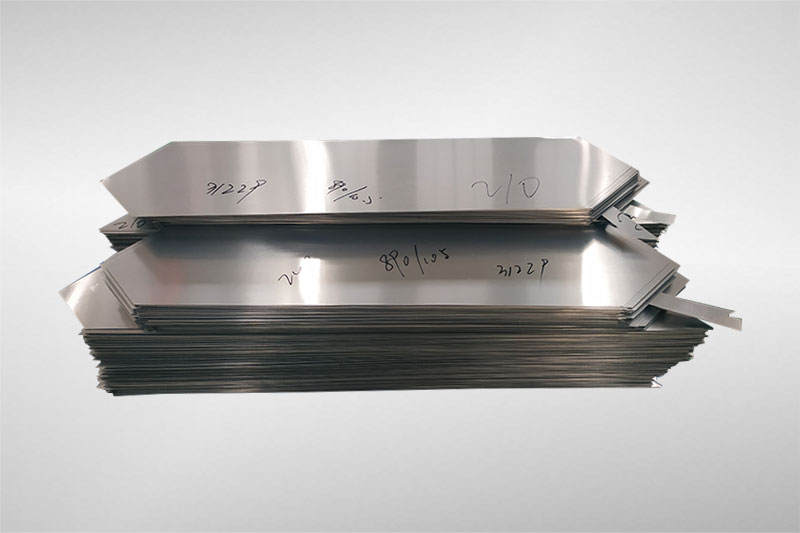

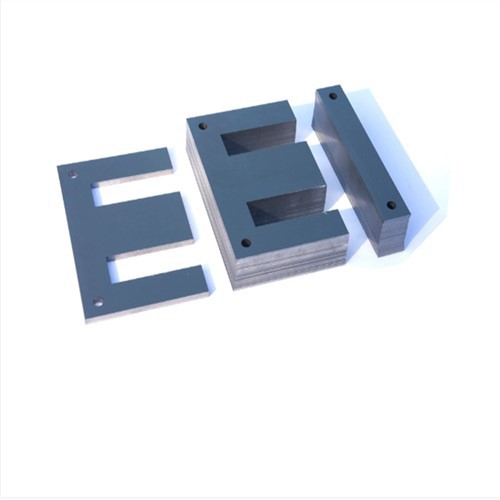

Precision Cutting

Laser and CNC die-cutting with ±0.03 mm dimensional accuracy. CMM verification of stack dimensions and real-time laser feedback systems reduce core assembly misalignment, cutting no-load losses by 8% compared to ±0.08 mm market tolerances.

This rigorous QC framework ensures consistent performance in demanding applications, from industrial motors to grid transformers. Engineers can confidently specify Luoyang Xinzhaohe’s silicon steel for transformers, achieving 5–8% lower core losses and superior mechanical integrity at competitive pricing. Our factory-direct quality control ensures reliability across critical power applications.

Packaging & Global Logistics

Export Packaging & Logistics: Ensuring Safe Global Delivery

Packaging Specifications

Sea Freight Protocol

Why Xinzhaohe Delivers Reliability

With 20+ years manufacturing electrical steel, Luoyang Xinzhaohe delivers engineered logistics solutions. Our packaging exceeds IEC 60404-8-7 standards, featuring multi-layer moisture barriers, HDPE edge guards, and steel strapping rated for 500kg tensile strength. Strategic partnerships with Maersk, COSCO, and MSC ensure direct routes from Qingdao, Shanghai, and Ningbo ports—reducing transit times by 15% compared to industry averages. Real-time shipment tracking via IoT sensors and climate-controlled container options (for high-humidity regions) further safeguard material integrity. In-house quality control eliminates third-party risks, achieving 98% on-time delivery and zero cargo damage claims in 2023. All shipments include pre-shipment inspection reports for full transparency. By optimizing every step from production to port, we offer a 15-20% cost advantage over premium brands without compromising reliability. For transformer manufacturers prioritizing cost-performance balance, Xinzhaohe is the engineered solution for global supply chain security—proven by 100+ successful shipments to 30+ countries in 2023, including critical infrastructure projects in Europe and Southeast Asia.

Sourcing from Luoyang Xinzhaohe

Why Partner with Luoyang Xinzhaohe Aluminum?

In today’s competitive transformer market, sourcing high-performance silicon steel requires a partner that balances technical excellence, cost efficiency, and reliability. Luoyang Xinzhaohe Aluminum delivers all three—without the premium pricing of global brands.

Proven Technical Expertise

With 20+ years of specialized manufacturing experience, we master the complexities of electrical steel production. Our facility consistently produces grain-oriented (GOES) and non-oriented (NOES) silicon steel grades (M4–M7 series), compliant with IEC 60404-8-5, ASTM A677, and JIS standards. We’ve supplied critical components for 500+ industrial transformer projects, including high-efficiency distribution transformers for renewable energy systems and specialized motor cores for EV applications. Our R&D team optimizes grain orientation and core loss characteristics to meet exacting design specifications, ensuring peak magnetic performance.

Factory-Direct Cost Efficiency

By eliminating third-party distributors and operating a vertically integrated production chain—from raw material procurement to cold-rolling and coating—we reduce overhead while maintaining premium quality. Clients achieve 15–25% lower total costs versus global competitors, without sacrificing consistency or performance. Our Luoyang-based manufacturing hub enables 15–20-day lead times and agile response to urgent orders, minimizing production downtime risks.

ISO-Certified Quality Assurance

Our ISO 9001:2015 certified quality system enforces rigorous process control at every stage. Each batch undergoes:
Thickness tolerance verification (±0.02mm)
Eddy current surface defect inspection
BH curve analysis for core loss consistency
Tensile strength and chemical composition validation
All results are documented in traceable quality certificates, ensuring compliance with international transformer standards.

Ready to optimize your supply chain? Contact Cathy at cathy@transformerstrip.com for a competitive quote and technical consultation tailored to your project requirements.
