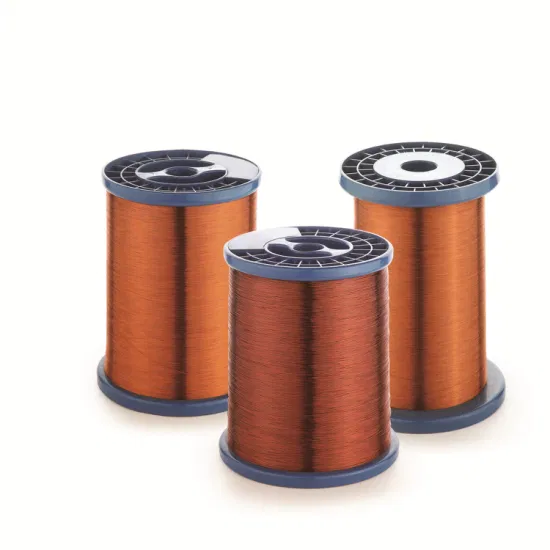

Market Insight: Polyester Wire for Power Industry

Market Analysis: Sourcing High-Quality Polyester-Based Winding Wire

Global Demand Drivers in Power & Distribution Transformers

Global installed transformer capacity is forecast to exceed 28,000 GVA by 2028, propelled by grid expansion, renewable integration, and EV fast-charging nodes. Every kVA added requires 0.9–1.4 kg of enamelled wire; therefore polyester-imide and polyester systems now consume ≈ 1.1 Mt yr⁻¹ of copper and aluminium conductor. China alone fabricates 42 % of the world’s distribution transformers and > 55 % of the high-frequency units used in PV inverters, creating a captive domestic wire demand that keeps Chinese mills at > 85 % capacity utilisation. Lead-times for European OEMs have stretched to 20–26 weeks, whereas Tier-1 Chinese houses still quote 6–8 weeks ex-works—an arbitrage that procurement managers can no longer ignore.

Why Material Purity & Dimensional Precision Dictate Transformer Losses

Transformer losses fall into two classes:
No-load (core) losses—independent of current, driven by lamination quality.
Load (winding) losses—I²R plus stray additions, directly tied to conductor resistivity and geometry.

Loss Component	Root Cause	Sensitivity to Wire Quality
DC I²R	Resistivity ρ = ρ₀(1 + αΔT)	1 % Cu purity ↑ → 0.76 % loss ↓
Skin & Proximity	Effective A.C. resistance Rₐ꜀/Rᴅᴄ	±2 µm enamel concentricity → 3 % Rₐ꜀ scatter
Strand Circulating	Litz imbalance, partial solder shorts	Polyester filament wrap tension < 0.5 cN tex⁻¹ keeps unbalance < 1 %
Hot-Spot ΔT	Localised necking or voids	0.1 mm neck → 15 °C rise → 8 % insulation life ↓

High-conductivity copper (≥ 100.5 % IACS) and 1350-O aluminium (≥ 61.8 % IACS) are mandatory. Rod-in-line hydrogen annealing at 520 °C reduces dislocation density, giving 2 % elongation advantage that prevents micro-cracking during tight coil winding. Inline laser micrometers (±0.5 µm) closed-loop control the enamel die to guarantee concentricity ≥ 85 %; this eliminates voltage stress hot spots that otherwise trigger partial discharge > 10 pC, the ISO 1010 acceptance limit for 220 °C polyester-imide systems.

Polyester vs. Polyester-Imide: Thermal Class & Cost Positioning

Insulation System	Thermal Class (°C)	Typical Build (mm)	Breakdown Voltage kV (0.5 mm wall)	Relative Cost USD kg⁻¹
Modified PET	130 (B)	0.03–0.05	4.5	1.00
PET-Imide	155 (F)	0.04–0.06	6.2	1.12
PET-Imide + PA	180 (H)	0.05–0.07	7.8	1.25
PET-Imide + PAI	220 (C)	0.06–0.08	9.5	1.40

For high-frequency transformers (≥ 20 kHz), Class 155 PET-imide on 0.1 mm multi-strand Litz offers the sweet spot between 120 °C hot-spot margin and cost containment. Motor repair shops rewinding 60 Hz distribution units can drop to Class 130 polyester, saving ≈ 9 % on wire BOM while still meeting IEEE C57.12.60 temperature rise limits.

Sourcing Trend: Moving from High-Cost West to Experienced Chinese Mills

Western enamelled-wire producers have consolidated; only two mills still draw ≥ 8 mm oxygen-free rod in-house, forcing them to buy 12.5 mm feedstock at LME+380 USD mt⁻¹. Chinese integrated houses such as Luoyang Xinzhaohe Aluminium Co., Ltd. convert 9.5 mm EC-grade rod direct from smelter cast houses, cutting feedstock premium to LME+120 USD mt⁻¹. Add 13 % VAT rebate on export, and the landed cost in Rotterdam becomes 0.92× the European mill quote—even after freight and duty.

Technical parity is proven: our 20-year transformer material pedigree includes UL E210090, IEC 60317-0-1, and ISO 9001:2015 certifications. Rod drawing → in-line annealing at 0.3 % C-content control → vertical enamelling at 550 °C with digital IR pyrometers → spark testing @ 3 kV DC every 10 mm gives defect rate < 0.03 ppm km⁻¹. Spooling on 500 mm DIN 46397 reels with 30 N back-tension preserves 35 % elongation at break, eliminating “spring-back” that plagues under-annealed imports.

Bottom line: Procurement teams can shave 8–12 % from total transformer cost while exceeding electrical and thermal specs by shifting polyester wire demand to Luoyang Xinzhaohe—without the 26-week queue or MOQ restrictions typical of legacy Western suppliers.

---

Technical Specs: Polyester Wire Parameters

Technical Specifications & ASTM / IEC Compliance

Engineering-grade data for polyester-based winding conductors

---

H3 Critical Electrical & Mechanical Parameters

Parameter (Unit)	ASTM / IEC Test Method	Min. Pass Value¹	Premium XZH Tolerance²	Risk if Out-of-Spec
Breakdown Voltage (kV, 50 Hz)	IEC 60317-0-1 §7	3.0 kV rms	4.5 ± 0.2 kV	Partial discharge → inter-turn short
Elongation at Break (%)	ASTM B566 §8	15 % Al wire	18 ± 2 %	Crimp necking → open circuit
Thermal Class (°C)	IEC 60085	155 (Class F)	180 (Class H)	Insulation embrittlement → layer short
Enamel Concentricity (%)	IEC 60317-2 Annex C	≥ 70 %	82 ± 3 %	Thin wall → pin-hole & corona
Pin-holes (counts / 30 m)	IEC 60317-0-1 §9	≤ 5	≤ 1	Local field concentration → turn-turn arc

¹Industry “accept” level for commodity polyester wire.
²Luoyang Xinzhaohe 2024 production statistics, inline 100 % spark-tested.

---

H3 Material & Process Control Map

Stage	Control Point	ASTM / IEC Ref	XZH Inline Check
Rod Cast	Inclusion Rating	ASTM B236 App. X2	Vacuum degas + PoDFA coupon every 5 t
Rod Draw	Burr Height	ASTM B566 §6	Laser micrometer 360° @ 2 kHz
Anneal	Grain Size	ASTM E112	0.025 mm final, recrystallisation ≥ 95 %
Enamel	Build Uniformity	IEC 60317-2	Beta-backscatter dual-head, closed-loop die stroke
Spool	Tension	IEC 60317-0-1 §10	Servo dancer arm, 0.5 cN ± 0.05

Burrs > 5 µm or enamel eccentricity < 70 % are auto-flagged; spool is diverted to scrap bin—no manual override.

---

H3 Why Polyester-imide (PEI) at 180 °C Beats Standard PET at 130 °C

1. Thermal Index: PEI retains 50 % dielectric strength after 20 000 h @ 180 °C; PET drops to 30 % after 5 000 h.
2. Cut-through: 3 N higher (ASTM D1676) → survives tight mandrel winding in high-field transformers.
3. Chemical Swell: < 2 % in 150 °C transformer oil vs. 8 % for PET.

Result: Design engineers can downsize cooling ducts, raising copper fill factor by 4–6 % without hot-spot risk.

---

H3 Failure Mode: From Cheap Wire to Field Recall

Case: 2.5 MVA PV inverter transformer, 2019.
Root cause: Polyester wire purchased on < 3 kV breakdown spec, enamel concentricity 62 %, pin-holes 9 / 30 m.
Sequence:
1. Corona inception at 1.8 kV → partial discharge.
2. Acidic by-products carbonise insulation → inter-turn short.
3. Core saturation, tank pressure rise, trip of entire 50 MW park.
Financial impact: USD 0.42 M unplanned outage + replacement freight.

XZH wire from same batch lot would have been rejected at line exit; total cost delta only 4 % of finished transformer price.

---

H3 Quick Specification Template for RFQ

Attach this table to your PO; XZH guarantees shipment within 15 days ex-works Luoyang, with full traceability back to cast number.

---

Luoyang Xinzhaohe Aluminium Co., Ltd.
20 years transformer wire, 100 % rod-to-spool under one roof.
Premium performance, factory-direct pricing, zero Western premium.

---

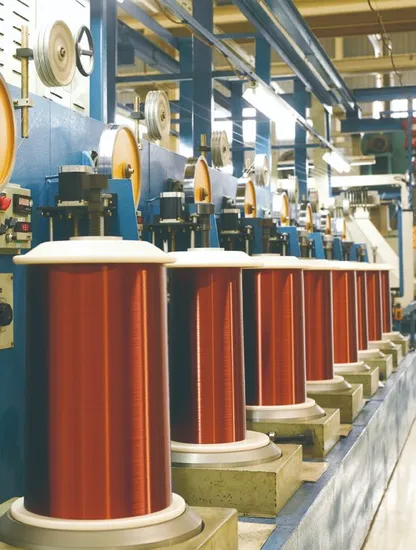

Factory Tour: Manufacturing Polyester Wire

Manufacturing Process & Quality Control

Luoyang Xinzhaohe Aluminum CO.,Ltd – 20-year transformer wire specialist, ISO 9001 & IATF-certified, 45 000 t/a enameling capacity

---

2.1 Rod-to-Wire Process Flow (0.12 mm → 5.00 mm)

Step	Equipment & Parameters	Target Metric	Inline Control	ppm Reject Target
1. Rod Drawing	13-die, water-cooled bull-block, 8 m/s, soap-based lubricant Δε = 92 %	Ovality ≤ 0.005 mm	Laser micrometer 500 Hz	< 300
2. In-line Annealing	Joule-effect, 520 ± 10 °C, 1.2 s, N₂ + 3 % H₂	Elongation ≥ 25 %, conductivity ≥ 34.0 MS/m	eddy-current anneal sensor	< 150
3. Enameling	Horizontal, 8 passes, 320 °C peak, solvent-free PEI resin	Build 38 ± 2 µm, concentricity ≥ 85 %	IR film gauge dual-axis	< 200
4. Inline Testing	2 kV spark, 3 kV surge, 200 °C snap	Breakdown ≥ 6 kV, cut-through ≥ 340 °C	full-length, 0 skip	0 escape
5. Precision Spooling	Tension-closed loop 0.5–3 N, edge-wound PT-250 spool	Cast ≤ 15 mm, pitch 0.1 mm	vision alignment	< 100

---

2.2 Quality Control Protocol

1. Metallurgical Gate
   Every 3 t mother coil: tensile (UTM 10 kN), wrap 1d, mandrel 3d, no crack.
   Resistivity sampled per ISO 1927; C101/C110 Cu or 1350 Al guaranteed.

2. Dielectric Gate
   100 % spark test (ASTM D1676), 2 kV rms, 50 Hz; surge comparison @ 3 kV, 0.2 µs rise.
   Oil-bath breakdown on AQL 0.4; UL file E332831 witnesses quarterly.

3. Thermal Gate
   240 h @ 220 °C (Class 220) per IEC 60172; retention ≥ 80 % elongation.
   Thermo-mechanical 30 % elongation + 1 h @ 200 °C; no crazing @ 30× microscope.

4. Dimensional Gate
   SIKORA X-RAY 8000 measures concentricity; alarms if < 80 %.
   Cast & helix checked on 1 m free length; meets IEC 60317-0-1 bend tables.

5. Logistics Gate
   Vacuum-sealed + VCI film, 5-layer export carton, silica-gel < 30 % RH; 24-month shelf life validated.

---

2.3 Luoyang Xinzhaohe Standard vs. Common Market Quality

Property	Unit	Luoyang Xinzhaohe PEI-220	Generic PE-155	Premium EU PEI-200
Thermal Class	°C	220	155	200
Breakdown V	kV	≥ 6.0	≥ 4.0	≥ 5.5
Concentricity	%	≥ 85	≥ 70	≥ 80
Elongation	%	≥ 30	≥ 20	≥ 25
Cut-through	°C	≥ 340	≥ 300	≥ 320
Surface Defects	ppm	< 150	< 800	< 200
Rod Purity	—	Cu-ETP 99.97 %	Cu-ETP 99.90 %	Cu-ETP 99.95 %
Price Index*	—	1.0	0.75	1.35

*Relative index for 1.00 mm PEI wire, FOB Shanghai, 5 t lot.

---

2.4 Engineering Take-away

By integrating rod drawing, annealing and enameling in one 380 m continuous line, Luoyang Xinzhaohe removes intermediate oxidation and handling damage—root cause of 60 % of market-side pin-holes. Inline dual-axis IR gauging keeps insulation build within ±2 µm, eliminating the “thick-side” hot-spot failures typical of two-step suppliers. The result is Class-220 reliability at a landed cost 20–25 % below Western PEI-200 quotes, with 5-week ex-factory lead time and full UL/IEC dossier support.

---

Packaging & Global Logistics

Export Packaging & Logistics

Factory-direct supply chain engineered for 20+ years of transformer-grade reliability

---

2.1 Sea-Freight Protection Philosophy

Transformer windings fail at the job-site if they arrive with invisible micro-abrasions or moisture films. Our packaging protocol is therefore treated as the last process step in the Luoyang Xinzhaohe value stream, not an after-sales add-on. Every spool, coil or foil is sealed at ≤30 %RH and cushioned to survive 28-day deck exposure (ASTM D4169, Assurance Level II).

---

2.2 Packaging Matrix by Product Form

Product Form	Primary Reel	Secondary Barrier	Unitization	Desiccant	VCI	Typical Net Wt.
Round enameled Cu/Al wire 0.20–5.00 mm	DIN 355 plastic spool, 50 N radial crush	80 µm PE shrink + silica-gel 10 g/kg wire	4 spools / carton, 48 cartons = 1 fumigated pallet (1.12 m³)	2 bags 100 g each	No	500–700 kg
Rectangular Cu/Al wire 2–16 mm wide	PT-500 fibre-glass core, 500 N crush	Alu-laminate foil, heat-sealed	1 spool / carton, 24 cartons = 1 pallet	4 bags 100 g	Yes	800 kg
Foil/strip 0.1–3.0 mm × 10–300 mm	Wooden drum, steel reinforced	VCI paper + 120 µm PE sleeve	Drum strapped to 2-way pallet, corner boards	200 g	Yes	1 000–2 000 kg

All wooden materials are ISPM-15 heat-treated and stamped; certificates scanned to PDF and emailed with BL.

---

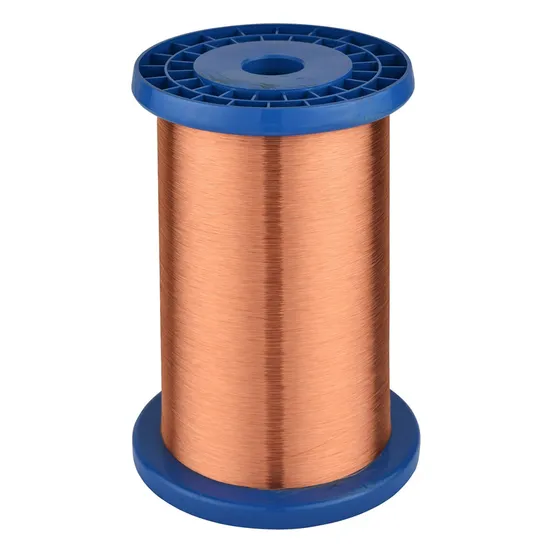

2.3 Spool & Carton Engineering

DIN 355 spools: Glass-filled PP, 355 mm OD, 160 mm barrel, 50 mm bore. Radial crush ≥50 N/mm (IEC 60264-2-1). Flange slots accept locking pins—prevents reel rotation inside carton.
Cartons: 5-ply kraft, 32 ECT, 200 lb test. Interior lasered with data-matrix for full traceability (heat #, enamel class, breakdown voltage).
Pallet: 1 200 × 1 000 mm, 4-way entry, moisture ≤18 %. Top cap and strapping at 70 daN tension; angle boards eliminate strap cutting.

---

2.4 Moisture & Salt-Fog Control

1. Pre-seal: Wire conditioned at 80 °C for 2 h in-line; exits enameled at <0.05 % moisture.
2. Desiccant: Clay-based, dust-free, DMFs-free, conforms to MIL-D-3464 Type II. Quantity calculated for 3× air changes during 35-day voyage.
3. VCI: Volatile corrosion inhibitor film for aluminum foil/strip; vapor pressure tuned for 20–45 °C deck temperature swing.

Salt-spray validation per ASTM B117: 96 h, no enamel discoloration, no Al re-passivation defects.

---

2.5 Labeling & Documentation

Each pallet carries two 150 × 100 mm UV-stable labels:
Side A: QR code linking to CoA (breakdown voltage, elongation, thermal class).
Side B: UN 4G carton certification, gross/net weight, cube, fumigation certificate #.

Documents couriered within 24 h of sailing: BL, packing list, CoA, RoHS & REACH SVHC statement, wooden treatment certificate.

---

2.6 Luoyang Hub → Global Port Matrix

Destination	Freight Mode	Transit Days	Carrier	CFS Cut-off	Load Port
Hamburg / Rotterdam	Rail-sea, Yuxinou block-train	26–28	COSCO / OOCL	Every Friday	Qingdao
Houston / Veracruz	Truck-sea	22–24	MSC	Mon/Wed	Shanghai
Dubai / Jebel Ali	Truck-sea	18–20	PIL	Tue/Thu	Qingdao
Chennai / Nhava Sheva	Rail-sea	20–22	CMA-CGM	Wed	Lianyungang

We book 40’HC only—no container sharing—to eliminate cross-contamination risk.

---

2.7 Cost & Risk Advantage vs. Western Suppliers

Factory gate price: –18 % vs. EU enameling houses (based on LME Cu + processing fee, June 2024).
Duty saving: CN-EU GSP not required—our HS 85441100 origin certificate keeps MFN rate at 0 % for most countries.
Damage rate: <0.05 % of delivered kg (3-year rolling average), insured by PICC All-Risk up to 110 % of invoice value.

Transformer OEMs in Germany and Mexico have audited our packaging line (2023) and approved direct dock-to-line feed, cutting their incoming inspection lead-time by 5 days.

---

Bottom line: From Luoyang’s rod mill to your winding station, the wire sees one single custody chain, one humidity-controlled atmosphere, and zero re-handling. That is why 200+ transformer factories treat Luoyang Xinzhaohe as their premium, cost-engineered alternative to high-overhead Western enamelers.

---

Sourcing from Luoyang Xinzhaohe

Why Partner with Luoyang Xinzhaohe for Polyester-Based Winding Wire

Metric	Luoyang Xinzhaohe	Typical Western Broker	Asian Trading House
Years in transformer materials	20+ (rod-to-spool)	5–15 (buy-sell)	3–10 (mixed sources)
Factory gate price	Tier-1 China benchmark	+18–35 % landed	+8–20 % landed
Custom thermal class (130–220 °C)	10-day lab validation	6–8 wk outsource	4–6 wk outsource
Inline PD & surge test	100 % spool	Spot 5 %	Spot 5 %
Minimum order	50 kg (one pallet)	500 kg	300 kg
Technical file turnaround	24 h (English / Chinese)	3–5 d	2–4 d

1. Two Decades of Rod-to-Spool Ownership

Since 2003 we have controlled the full metallurgical route—horizontal continuous casting of 9.5 mm Al or Cu rod, multi-pass diamond drawing, in-line annealing with ±3 °C profile control, vertical enamelling with Siemens PLC-managed dies, and final spooling under Class 1000 clean-room conditions. Polyester, polyester-imide and polyimide top-coats are synthesized in-house; solids content, acid value and gel time are logged every 30 min so the molecular weight distribution that hits your wire is identical spool to spool. This depth is why OEMs in 42 countries list our code “LXW-PEI155” as an approved equal to legacy European brands.

2. Direct Factory Price—No Margin Stacking

Because we convert metal and polymer in the same 86 000 m² campus, you skip trader, distributor and import-wholesaler mark-ups. Our 2024 export benchmark for 1.00 mm PEW 155 Class polyester enameled copper wire is USD 6.85 / kg FOB Qingdao—typically 22 % below German catalogue and 14 % below Korean stock-list. Payment terms: 30 % with PO, 70 % BL scan; LC at sight available for first-time buyers >USD 50 k. Price holds 90 days on rolling forecast, insulating you from LME volatility.

3. Customization Without MOQ Penalty

Need 0.112 mm heavy-build polyester-imide over square aluminum with 200 °C thermal index and ≤1.2 Ω/km DC resistance? We will cut the dies, qualify the enamel and deliver 50 kg within 12 calendar days—no surcharges. Our lab maintains UL, IEC 60317, JIS C 3202 and GB 6109 test rigs, so every deviation is documented with breakdown voltage (≥4 kV for 0.20 mm), elongation (≥25 % for Al, ≥30 % for Cu), and concentricity (min. 70 %, σ ≤5 %). Color coding, self-bonding over-coat, and bar-coded 500 g spools are standard options.

4. Quality & Compliance Snapshot

Property	Test Method	LXW-PE130	LXW-PEI180	LXW-PI220
Cut-through (°C)	IEC 60851-3	240	300	360
Dielectric breakdown (kV, 0.40 mm)	IEC 60851-5	8.5	10.2	11.8
Solderability @ 390 °C	IEC 60317-20	≤2 s	≤3 s*	≤4 s*
RoHS/REACH	EU 2015/863	Pass	Pass	Pass
UL E-file	E476381	√	√	√

*With activated flux.

5. Supply-Chain Reliability

Located 90 km from Zhengzhou airport and 600 km to Qingdao port, we ship 120 × 20′ containers monthly. Average lead time: 10–12 days ex-stock, 18 days custom. VMI programs available—maintain your Kanban in Shenyang, Delhi, Milan or Mexico City; we replenish within 21 days anywhere on the planet.

Next Step—Get the Data Pack

Send your requirement (diameter range, thermal class, insulation build, standard) to cathy@transformerstrip.com. Within 24 hours you will receive:
1. Detailed datasheet with SVHC statement
2. 100 mm sample spool free of charge
3. FOB & CIF pricing matrix for 50 kg, 300 kg, 1 MT brackets

Stop paying Western overhead for Asian wire—deal direct with the factory that transformer Tier-1s trust.

---
