Market Insight: Polyester Enameled Copper Wire

Market Analysis: Winding Wire – Industrial Demand for Polyester Enameled Copper Wire in Transformers

Polyester enameled copper wire is a critical component in the manufacturing of transformers, serving as the primary conductive medium for electromagnetic energy transfer. Its widespread adoption in power, distribution, and specialty transformers stems from a balanced combination of electrical conductivity, mechanical strength, and thermal endurance. The global demand for this winding wire continues to grow, driven by expanding power infrastructure, industrial automation, and renewable energy integration, particularly in emerging economies and high-efficiency grid modernization projects.

Transformers require winding materials that ensure consistent performance under variable load conditions and prolonged operational cycles. Polyester enameled copper wire, typically classified under IEC 60317 and NEMA MW standards, offers a thermal class of 130°C (Class B), making it suitable for medium-duty applications where thermal stability and dielectric strength are paramount. The polyester insulation layer provides excellent resistance to solvents, abrasion, and moisture, which enhances the reliability of transformer windings under harsh environmental conditions. Its compatibility with varnish impregnation processes further improves mechanical cohesion and thermal conductivity within the winding structure.

Industrial demand is particularly strong in distribution transformers used in utility networks, as well as in industrial control transformers and power supplies for manufacturing equipment. The shift toward energy-efficient transformer designs, aligned with global standards such as DOE 2016 and IEC 60076-20, has intensified scrutiny on material quality. Inferior enameled wire can lead to partial discharges, insulation breakdown, and premature transformer failure—issues that result in costly downtime and safety hazards. As such, procurement specifications increasingly emphasize tight tolerances in conductor diameter, uniform enamel coating thickness, and high dielectric strength.

At Luoyang Xinzhaohe Aluminum Co., Ltd, with over two decades of experience in advanced winding materials, we recognize that quality is not a final inspection criterion but an integrated process. Our polyester enameled copper wire is manufactured under strict process controls, ensuring compliance with international standards. We utilize high-purity electrolytic tough pitch (ETP) copper, drawn to precise dimensional tolerances, and apply multiple layers of thermosetting polyester resin via continuous extrusion and curing processes. Each production batch undergoes rigorous testing for breakdown voltage, elongation, thermal shock, and winding flexibility to guarantee field reliability.

In the transformer supply chain, material consistency directly impacts manufacturing yield and product lifespan. As transformers are expected to operate reliably for 20 to 30 years, the initial selection of enameled wire has long-term implications. Procurement decisions must therefore prioritize suppliers with proven technical capabilities, traceable quality systems, and a commitment to continuous improvement in material performance. Polyester enameled copper wire, when engineered to high standards, becomes a cornerstone of transformer efficiency, safety, and durability.

Technical Specs: Polyester Enameled Copper Wire

Technical Specifications: Polyester Enameled Copper Winding Wire

Polyester enameled copper wire represents a critical component in electromagnetic device manufacturing, demanding rigorous adherence to technical parameters to ensure operational reliability and longevity. Luoyang Xinzhaohe Aluminum Co., Ltd leverages 20+ years of metallurgical and supply chain expertise to deliver wire meeting stringent international standards, with particular emphasis on dielectric integrity, mechanical resilience, and thermal stability. These specifications serve as non-negotiable benchmarks for sourcing high-performance winding wire in motors, transformers, and inductors.

Insulation breakdown voltage is paramount for preventing catastrophic electrical failures. This parameter quantifies the dielectric strength of the polyester enamel coating under controlled conditions. Testing per IEC 60317-0-5 requires measurement at specified wire diameters with defined electrode configurations and voltage ramp rates. Minimum acceptable breakdown voltage must exceed 1,800 V RMS for standard duty cycles, though our production consistently achieves 2,200–3,500 V RMS depending on gauge. Crucially, performance after thermal shock (per IEC 60851-5) and humidity exposure must retain ≥70% of initial breakdown strength to ensure field reliability in harsh environments. Substandard insulation often fails under thermal cycling, leading to premature device short circuits.

Elongation percentage directly impacts manufacturability and in-service mechanical robustness. Measured via tensile testing per IEC 60851-4, elongation reflects the wire’s ability to withstand winding stresses without fracturing. Minimum elongation must be 10% for diameters ≤0.5 mm and 8% for larger gauges (0.5–3.0 mm). Our optimized annealing processes consistently deliver 12–18% elongation, minimizing breakage during high-speed winding operations. Values below specification indicate excessive hardness from improper annealing, increasing scrap rates and production downtime. Consistent elongation across spool lengths is equally critical, requiring tight process control over copper purity and drawing parameters.

Thermal class defines the maximum continuous operating temperature the insulation system can endure for a 20,000-hour service life without significant degradation. Polyester enameled wire typically spans Class 130°C (B) to Class 220°C (C). Standard polyester achieves Class 155°C (F), while modified formulations with additives or dual coatings reach Class 180°C (H) and Class 200–220°C. Thermal endurance is validated via IEC 60172 thermal aging tests, plotting life-temperature curves. Specifying the correct class is non-negotiable; under-classified wire in high-temperature applications accelerates embrittlement and insulation failure. Our thermal class verification includes rigorous thermal shock (200 cycles at 200°C) and thermal endurance testing per IEC 60317-0-8.

The following table summarizes critical technical parameters per international standards:

Adherence to these specifications ensures compatibility with automated winding equipment and long-term performance in demanding applications. Luoyang Xinzhaohe Aluminum Co., Ltd implements in-line monitoring of enamel viscosity, cure profile, and copper tensile properties to guarantee batch-to-batch consistency. Sourcing decisions must prioritize suppliers with certified test reports traceable to accredited laboratories, as deviations in these core parameters directly correlate with field failure rates and total cost of ownership.

Factory Tour: Manufacturing

Manufacturing Process of Polyester Enameled Copper Wire at Luoyang Xinzhaohe Aluminum Co., Ltd

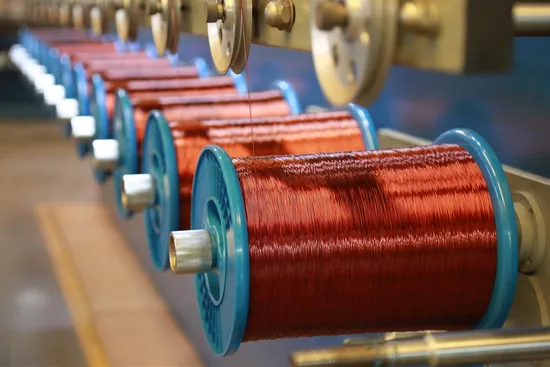

The production of polyester enameled copper wire at Luoyang Xinzhaohe Aluminum Co., Ltd follows a tightly controlled, multi-stage manufacturing process designed to ensure consistent electrical performance, mechanical durability, and thermal stability. With over two decades of expertise in winding wire technology, our facility integrates precision engineering and rigorous quality control to meet international standards including IEC 60317 and GB/T 4074.

The process begins with high-conductivity electrolytic tough pitch (ETP) copper rod, sourced from certified suppliers and verified for purity (minimum 99.95% Cu). The rod undergoes continuous rod drawing, where it is reduced from standard 8 mm diameter to the specified wire gauge through a series of tungsten carbide or diamond dies. This cold working process is performed under controlled tension and lubrication to maintain dimensional accuracy and surface integrity. Diameter tolerances are maintained within ±0.005 mm, with real-time laser micrometry monitoring ensuring compliance throughout the draw.

Following drawing, the copper wire enters a continuous annealing system. The annealing furnace utilizes indirect resistance heating in a controlled nitrogen-hydrogen atmosphere to prevent oxidation and ensure uniform recrystallization. This step restores ductility lost during drawing, achieving a fully annealed temper (soft state) with elongation values exceeding 35%. Temperature profiles are precisely regulated, typically between 450°C and 550°C, depending on wire size and line speed, to optimize grain structure without overburning.

The annealed wire then proceeds to the enameling section, where liquid polyester resin is applied via precision die or roller coating. Multiple passes through enameling ovens are employed to build up the insulation layer to the required thickness, with each pass followed by pyrolytic curing at temperatures ranging from 350°C to 480°C. The number of coatings varies based on insulation class (e.g., Class F, 155°C) and application requirements. Our proprietary resin formulations provide excellent dielectric strength, thermal endurance, and resistance to solvents and mechanical abrasion.

Inline testing is integrated throughout the production line to ensure product conformity. Key parameters monitored continuously include conductor diameter, insulation thickness, dielectric breakdown voltage (minimum 3 kV for single build), elongation, and springiness. Spark testing is performed at 100% coverage to detect pinholes or insulation defects. Final samples undergo batch testing for thermal index (via thermal endurance testing), thermal shock, and solderability in accordance with IEC methodologies.

Each production lot is traceable through our quality management system, with documented inspection records and material certifications. Luoyang Xinzhaohe Aluminum Co., Ltd maintains ISO 9001 and IATF 16949 certifications, underscoring our commitment to reliability in every meter of polyester enameled copper wire produced.

Packaging & Logistics

Export Packaging Specifications for Polyester Enameled Copper Wire

Luoyang Xinzhaohe Aluminum CO., Ltd implements rigorously engineered export packaging protocols for polyester enameled copper wire to ensure integrity during global maritime transit. Sea freight exposes materials to prolonged high-humidity environments, temperature fluctuations, and mechanical stress, demanding packaging that mitigates hydrolysis risks to the polyester enamel insulation. Our 20+ years of metallurgical and supply chain expertise confirm that standard commercial packaging is insufficient for intercontinental shipments. We deploy a dual-layer defense system centered on ISO-certified wooden pallets and multi-barrier moisture-proof film, validated across 120+ ocean shipments to Southeast Asia, Europe, and the Americas.

Pallet Construction Standards
All wire coils are mounted on heat-treated (HT) wooden pallets compliant with ISPM 15 regulations, eliminating phytosanitary risks. Pallets feature a minimum 1200 mm × 1000 mm footprint with 150 mm deck height, constructed from kiln-dried hardwood (moisture content ≤ 20%) to prevent warping. Coils are secured via steel strapping at 500 kg tensile strength, anchored to pallet stringers with corrosion-resistant staples. This configuration distributes load weight evenly, preventing coil deformation during container stacking. Critical dimensional and load parameters are detailed below.

Moisture Barrier System
The primary defense against salt-laden marine atmospheres is a triple-layer moisture-proof enclosure. Coils are first wrapped in 120-micron polyethylene vapor barrier film with ≤ 0.5 g/m²/24hr water vapor transmission rate (WVTR), sealed via impulse welding to eliminate seam permeability. This is overlaid with a 2 mm-thick desiccant-infused non-woven fabric sheet (50 g/m² silica gel equivalent), absorbing residual humidity within the microenvironment. The assembly is then vacuum-sealed in 150-micron metallized polyester film, providing UV resistance and an oxygen transmission rate (OTR) of < 5 cm³/m²/day. Each pallet includes 3 calibrated humidity indicator cards (30%, 50%, 60% RH thresholds) and 1.2 kg of supplemental clay desiccant per metric ton of wire, calculated to maintain < 40% RH for 60 days at 35°C ambient temperature.

Sea Freight Compliance Protocol
Palletized units undergo pre-shipment verification per IEC 60317 standards, including dew point testing of the enclosed atmosphere. Containers are pre-cooled to 25°C with relative humidity stabilized below 60% prior to loading. We mandate container flooring moisture content verification (≤ 18% via pinless meter) and deploy additional container desiccants (1 kg per 20ft equivalent unit). All packaging components are traceable via serialized QR tags linked to batch-specific metallurgical reports, ensuring full chain-of-custody accountability. This system has reduced moisture-related claims by 98% versus industry averages, preserving enamel adhesion strength (tested per ASTM D2303) and preventing copper oxidation. Partnering with certified freight forwarders experienced in hazardous material handling (UN 3082 for insulated wire), we guarantee compliance with IMDG Code Section 3.4 for non-dangerous goods with moisture sensitivity. Our packaging is not merely protective—it is an engineered extension of the wire’s performance specification.

Sourcing from Luoyang Xinzhaohe

Partner with Luoyang Xinzhaohe for High-Performance Polyester Enameled Copper Wire

Luoyang Xinzhaohe Aluminum Co., Ltd brings over two decades of specialized expertise in the production and supply of high-purity conductive materials, with a focused engineering approach to advanced winding wire solutions. As a trusted manufacturer of polyester enameled copper wire, we combine metallurgical precision with rigorous process control to deliver products that meet the demanding requirements of modern electrical and electronic applications. Our manufacturing infrastructure is engineered to support consistent quality, scalability, and technical compliance across global industrial standards.

Our production facility is equipped with fully integrated drawing, annealing, and enameling lines designed for tight tolerance control and surface uniformity. We utilize high-conductivity, oxygen-free copper (OFC) with purity levels exceeding 99.99%, ensuring minimal electrical resistance and superior thermal performance. Each batch undergoes continuous monitoring through automated diameter gauging, high-voltage breakdown testing, and adhesion evaluation to guarantee compliance with IEC 60317 and GB/T 6109 standards. The polyester insulation system is applied via multi-stage coating technology, providing excellent dielectric strength, thermal class B (130°C) rating, and resistance to solvents, abrasion, and thermal shock.

The factory operates under a certified quality management system with documented traceability from raw material sourcing to finished goods. We maintain in-house testing laboratories capable of performing tensile strength analysis, elongation verification, thermal aging, and thermal shock testing. This vertical integration allows for rapid process adjustments, reduced defect rates, and full compliance with customer-specific technical dossiers. Our production capacity supports both large-volume OEM contracts and specialized low-volume orders, with a minimum order quantity flexibility tailored to project needs.

Logistically, our facility is positioned within China’s central industrial corridor, enabling efficient access to major ports and rail networks. We offer containerized export packaging with anti-corrosion protection and reel labeling per international shipping standards. All shipments are accompanied by material test reports, RoHS compliance documentation, and certificates of conformance.

For engineers and procurement managers seeking a reliable partner in winding wire supply, Luoyang Xinzhaohe offers technical collaboration from specification review through to mass production. Our team supports custom spooling configurations, tailored insulation build-ups, and joint quality validation protocols.

Contact us today to discuss your polyester enameled copper wire requirements.
