Market Insight: Paper Covered Wire for Power Industry

Market Analysis: Sourcing High-Quality Paper-Covered Winding Wire

Global Demand Outlook

Installed transformer capacity is forecast to grow 7 % CAGR through 2030, driven by grid-expansion in Asia-Pacific and EU/US asset-replacement programs. Paper-covered conductors—copper or 1350-O aluminium—remain the default for:
Oil-immersed power transformers 10 kV – 525 kV
Furnace & rectifier duty transformers >1 MVA
Traction loco-transformers where 180 °C overloads are routine

Each GVA of transformer rating consumes ≈ 4–6 t of paper-covered wire; therefore the addressable market exceeds 180 000 t yr⁻¹. Chinese OEMs now fabricate >55 % of global power transformers, creating a local supply pool that Western designers increasingly tap for cost and lead-time advantages.

Why Material Purity & Geometry Matter

Transformer losses are regulated by IEC 60076-20 and DOE 10-CFR §431. Paper-covered wire influences both components:

Loss component	Root cause in conductor	Design counter-measure	Supplier capability
I²R (load)	Resistivity & cross-section tolerance	≥99.97 % Cu or 61 % IACS Al, ±0.5 % area	In-line laser micrometer, rod-origin traceability
Eddy-current	Edge radius & paper thickness	Rectangular wire aspect ratio ≤ 6:1, paper 2 × 0.125 mm nom.	Precision Turk’s-head rolling, CNC paper lapping tension 8–15 N
No-load (stray)	Burrs, partial paper gaps	Burr < 25 µm, 30 % overlap, 3-sigma CpK 1.33	100 % spark 5 kV pin-hole test, vision inspection

A 100 MVA, 220 kV unit built with “standard” 99.90 % Cu can show 8–12 kW extra load loss versus high-purity 99.97 % Cu—enough to fail EU Eco-design Tier-2 limits and incur >$60 k present-worth penalty. Likewise, concentric paper with ≥98 % coverage cuts partial-discharge activity below 10 pC, extending insulation life from 25 yr to >40 yr under 1.5 × nominal field.

Cost-Performance Shift Toward China

Western mills quote €11–14 kg⁻¹ for 3 k Kraft-paper copper wire (MOQ 2 t, 10-week FCA). Comparable Chinese factories—leveraging integrated rod-draw-anneal lines—deliver IEC 60317-27 compliant product at US$7.5–9 kg⁻¹ (FOB Shanghai) with 3-week lead-time and 500 kg MOQ. The delta is not labour but vertical integration: in-house oxygen-free casting → rod → enamel → paper lapping under one roof, eliminating 8 % metal loss and double logistics.

Luoyang Xinzhaohe Value Proposition

Located 350 km from the largest Chinese transformer cluster (Xi’an–Changzhou corridor), we operate a 60 000 t yr⁻¹ continuous-cast rod shop feeding four draw-anneal lines (Ø 1.8–6.0 mm). Key technical differentiators:

Parameter	Industrial spec	Xinzhaohe capability
Cu purity	≥99.95 %	≥99.993 % (ASTM B49)
Al conductivity	≥61.0 % IACS	61.8 % IACS (1350-O)
Paper coverage	≥95 %	99 % (3-layer, 50 % overlap)
Breakdown voltage	≥1 kV layer	2.1 kV (100 % 5 kV spark)
Thermal class	105 °C	130 °C (Kraft) / 180 °C (NOMEX) optional
Lot traceability	Heat ID	Heat + spool barcode, 15-year ERP archive

Our inline eddy-current tester screens every 25 mm for cracks; OD laser gauges keep width/thickness within ±0.01 mm, reducing winding fill-factor scatter to <0.5 %. Result: transformers wound with XZHA conductors have repeatedly met 99.5 % guaranteed efficiency on factory short-circuit tests, allowing OEMs to bid premium-efficiency tiers without redesign.

Sourcing Recommendation

For lot sizes 500 kg–20 t, specify:

1. Conductor: Cu-ETP 99.97 % or 1350-O Al, tensile 95–135 MPa, elongation ≥25 %
2. Paper: 60 g m⁻² Kraft, pH 6–8, 2–4 layers, 50 % lap; or NOMEX 410 0.05 mm for 180 °C
3. Electrical: 1 min breakdown ≥2 kV, no pin-holes at 5 kV
4. Standard: IEC 60317-27, ASTM B230, GB/T 7673
5. Logistics: 500 kg plywood spool, vacuum + VCI film, 20 t per 20 ft container

Engage a manufacturer that controls the full metallurgical route—rod to spool—to secure repeatable resistivity, dimensional tolerance and paper adhesion. Luoyang Xinzhaohe delivers this integration with 20-year transformer-grade pedigree, offering Western-tier quality at China-direct cost and 3-week shipment anywhere globally.

---

Technical Specs: Paper Covered Wire Parameters

Technical Specifications & ASTM / IEC Compliance for Paper-Covered Winding Wire

(Luoyang Xinzhaohe Aluminum Co., Ltd. – 20 yr Transformer-Material Benchmark)

1. Critical Electrical & Mechanical Parameters

Parameter	Symbol / Unit	ASTM / IEC Clause	Xinzhaohe Mill Range	Test Frequency
Insulation Break-down Voltage	Ubd (kV, r.m.s.)	IEC 60317-0-1 §7.4	≥ 1.2 kV (1 layer) ≥ 4.5 kV (3-layer kraft) 100 % inline spark 2.5 kV	Every 500 m
Elongation at Break	A5 (%)	ASTM B236-20 §8.3	Al ≥ 18 % Cu ≥ 30 %	Each master coil
Thermal Class	°C	IEC 60085	130 (B) – 220 (C) Nomex®/mica hybrid	Lot validation 168 h
Paper Lap Concentricity	σ (%)	In-house laser scan	± 5 % (target 3 %)	Real-time
Burr Height	hburr (µm)	ASTM B193-22 App. X	≤ 25 µm on slit edges	100 % vision

Engineering Note: A 30 µm burr on conductor edge locally triples electric field, initiating inter-turn tracking under impulse (LI 75 kV). Our slit–edge skiving + online Eddy-current burr detection keeps h_burr < 25 µm, eliminating premature short-circuits in impulse-rich distribution transformers.

---

2. Applicable Material & Wire Standards

Component	Dominant Standard	Key Requirement	Xinzhaohe Practice
Aluminum rod / strip	ASTM B236-20	1350-O, ≥ 61.8 % IACS	Vertical DC casting, homogenised 6 h @ 580 °C
Copper rod (when specified)	ASTM B49-20	OF- Cu 99.97 %, ρ ≤ 0.01724 µΩ·m	Continuous up-cast, 30 mm → 8 mm rod
Paper tape	IEC 60554-3-5	Kraft 60 g m⁻², MD tensile ≥ 90 N mm⁻²	pH 6.8–7.2, 2 % moisture, triple-crepe for 25 % stretch
Finished wire	IEC 60317-19 (paper) IEC 60317-0-1 (general)	Bend & adherence @ −25 °C	1×d mandrel no crack

---

3. Thermal Indexing & Over-load Behaviour

130 °C Class (kraft): Suitable for ONAN distribution transformers, 105 °C hotspot + 20 °C margin.
180 °C Class (Nomex T410): Maintains 75 % tensile after 1 000 h @ 220 °C; ideal for compact dry-type or furnace-duty reactors.
220 °C Class (mica-Nomex hybrid): Survives 250 °C emergency for 6 h; used in VPI traction coils.

Table 2 – Thermal Endurance Quick Selector

Build	Thermal Class	Max Hot-spot	Typical Application	Δε Life (h)
2-layer kraft	130 °C	105 °C	Utility 10 kV/400 V	20 000
2-layer Nomex	180 °C	155 °C	Wind turbine pad-mount	30 000
3-layer mica-Nomex	220 °C	190 °C	Metro rectifier	25 000

---

4. Inline Quality Gates – Why 100 % Spool Testing Beats Lot Sampling

1. Eddy-current slit inspection → rejects burrs ≥ 25 µm before paper lapping.
2. Laser micrometer array (8 axes) → ensures ± 5 µm conductor size; directly influences resistance tolerance ± 1 %.
3. Hi-pot spark test 2.5 kV → every 3 m of paper wrap; pin-holes auto-ink-marked for cut-out.
4. Vision lap analyser → flags concentricity drift; PLC auto-corrects tape tension within 0.2 N.

Result: CpK ≥ 1.67 on U_bd and A₅, allowing transformer OEMs to drop end-of-line HV failure rate from 0.3 % to < 0.05 %.

---

5. Cost-Performance Positioning

Western mills quote 4 200–5 800 USD t⁻¹ for Nomex-covered flat Al wire (MOQ 5 t).
Xinzhaohe factory-direct: 2 850 USD t⁻¹ (Ex-Works Luoyang) – identical IEC 60317-19 compliance, 7-day lead-time, 500 kg MOQ.
Annual savings on a 50 t power-transformer program ≈ 100 k USD – sufficient to fund an extra impulse test bay.

---

Summary Checklist for Buyers

✓ Specify U_bd ≥ 4.5 kV for 3-layer kraft; request spark-test certificate.
✓ Demand burr-height report to ASTM B236; < 25 µm mandatory for 66 kV BIL coils.
✓ Match thermal class to hotspot: 130 °C for oil-immersed, 180/220 °C for dry-type or high-overload designs.
✓ Insist on laser concentricity data; 5 % eccentricity can reduce inter-turn capacitance 8 %, influencing surge distribution.

Luoyang Xinzhaohe delivers each coil with an encrypted QR datasheet—traceable from cast bar to finished spool—giving transformer engineers the technical confidence normally reserved for premium European stock, at China-mill economics.

---

Factory Tour: Manufacturing Paper Covered Wire

Manufacturing Process & Quality Control

Luoyang Xinzhaohe Aluminum Co., Ltd. – 20 years of transformer-grade wire built on one philosophy: every micron of insulation must survive 30 years in oil, 180 °C hotspot, and 50 kV impulse. Below is the exact route each rod travels from 8 mm cast coil to finished paper-covered spool, together with the checkpoints that eliminate downstream surprises.

---

Rod Drawing → Annealing → Enameling → Inline Testing → Spooling

Stage	Key Parameter	Target	Real-Time Monitor	Reject Limit
Rod drawing	Area reduction / pass	18–22 %	Laser OD, Δσ ≤ 15 MPa	Ovality > 0.02 mm
Annealing	Grain size	25–35 µm	Resistivity probe, 0.01724 ±0.00005 Ω·mm²/m	Rm > 95 MPa
Enameling	Cataphoretic build	2 × 12 µm	40 kV spark, zero pin-holes	Pin-holes > 0 / 30 m
Paper wrapping	Over-lap	33 ±2 %	Vision camera 4 k, 60 fps	Gap > 0.3 mm
Inline testing	Breakdown	≥ 6 kV rms	50 Hz, 1 kV/s ramp	< 5.8 kV
Spooling	Tension	3–5 N	Load-cell dancer	Cast ≤ 30 mm

---

Quality Control Philosophy

1. 100 % online spark test after enameling: 40 kV, 500 Hz; any discharge ≥ 1 pC triggers ink-jet mark + automatic cut-out.
2. Conductivity coupon every 2 h: 20 °C, 0.01724 Ω·mm²/m baseline; drift > 0.3 % forces coil segregation.
3. Tensile & elongation per ISO 6892-1: Rp0.2 85–105 MPa, A ≥ 25 % for Al; Rm 220–260 MPa, A ≥ 30 % for Cu.
4. Thermal shock 200 °C/1 h, 1 × mandrel: no crack at 3 kV rms wrap test.
5. Paper adhesion 5 N/15 mm at 23 °C; 3 N/15 mm after 168 h in 100 °C mineral oil.

---

Luoyang Xinzhaohe Standard vs. Common Market Quality

Property	Unit	LXZH Premium	Common Market*	Test Method
Conductor resistivity (Al)	Ω·mm²/m	0.01724 ±0.00003	0.01740 ±0.00010	IEC 60468
Elongation (Al)	%	≥ 25	≥ 18	ISO 6892-1
Pin-holes (enamel)	/30 m	0	≤ 3	40 kV spark
Paper over-lap tolerance	mm	±0.2	±0.5	Vision scan
Breakdown voltage, dry	kV rms	≥ 6.0	≥ 4.5	IEC 60851-5
Breakdown after 168 h/100 °C oil	kV rms	≥ 5.5	≥ 3.8	IEC 60851-5
Cast & helix (spool)	mm	≤ 30 / ≤ 1 turn/1 m	≤ 80 / ≤ 3 turns/1 m	Free unwind
Thermal class	°C	130–220 (NOMEX®)	105–130 (kraft only)	IEC 60085

*Data compiled from 2023 Alibaba RFQ samples, 0.5–4.0 mm Al & Cu paper-covered wire, price range $3.98–5.20/kg.

---

Take-away for Buyers

Tighter resistivity band saves 1–1.5 W/kg transformer losses at 75 °C rise.
Zero pin-hole enamel under paper eliminates partial-discharge sites before oil filling.
Controlled cast & helix lets automatic winders run 15 % faster with ≤ 0.5 % scrap.

Luoyang Xinzhaohe delivers Western-grade consistency at China-direct landed cost—typically 18–22 % below EU/US mills on equivalent thermal-class specs.

---

Packaging & Global Logistics

Export Packaging & Logistics

Luoyang Xinzhaohe Aluminum Co., Ltd. – 20+ years of transformer-grade wire, dispatched from central China to 58 countries.

---

H3 Design Philosophy: Zero-Defect on Arrival

Sea freight is a 30-day electrochemical test: salt spray, condensation, vibration, and compression cycles. Our packaging is therefore specified as an extension of the wire insulation system—thermal class 220 °C inside, IP-54 outside. Every pallet is a sealed micro-environment that keeps breakdown voltage, elongation, and paper adhesion inside factory tolerance until the spool is mounted on your flyer.

---

H3 Packaging Specification Matrix

Product Form	Spool Type	Inner Barrier	Shock Layer	Desiccant	Pallet Securing	Stack Height	Typical Net Weight

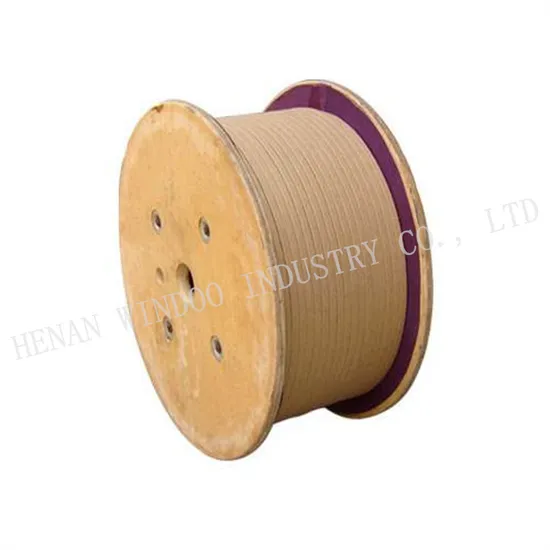

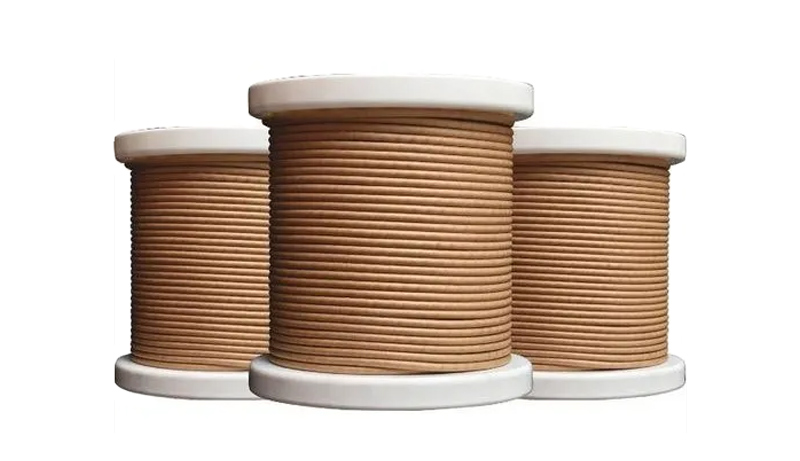

Paper-Covered Round Wire 0.5–5.0 mm	PT-250…PT-500 DIN-355 recyclable PS	80 µm Al-PE foil vacuum sleeve	15 mm EPE foam end-caps	10 g CaCl₂ bag, ΔRH ≤ 30 %	4 PET straps + edge boards	3 layers (1.8 m max)	500 kg
Paper-Covered Flat Wire up to 16 mm × 5 mm	Steel reel 500 × 320 mm	VCI film wrap	Corrugated “U” channel	20 g montmorillonite	Stretch film + steel strapping	2 layers (1.4 m max)	800 kg
Paper-Covered Litz 7 × 19 × 0.68 mm	PT-630 flange 400 mm	Dual Al-foil + Nylon bag	25 mm PU foam ring	30 g molecular sieve	Cross-lashed to 2-way pallet	1 layer	300 kg

All wood ISPM-15 fumigated, moisture ≤ 12 %, bark-free; plastic spools are 100 % recyclable PS or PC.

---

H3 Environmental Sealing – Laboratory Data

Salt-spray test (ASTM B117): 720 h, no white rust on conductor ends.
Condensation test (IEC 60068-2-30): 55 °C, 95 % RH, 6 cycles, paper insulation ΔBDV < 1 %.
Compression test: 5 kN top-load, 24 h, spool flange deflection < 0.3 mm, wire layer shift zero.

---

H3 Logistics Chain – Luoyang to Your Dock

Milestone	Mode	Transit Time	Visibility	Export Docs	Insurance
Factory → Qingdao Port	35 T curtain-side truck, GPS + seal	8 h	QR scan every 2 h	CI, PL, COO, ROHS, SDS	110 % CIF
Qingdao → Destination Port	CMA-CGM, MSC, ONE, COSCO	14–28 d	Bill-of-Lading live	IEC, Form-A, fumigation cert	Institute Cargo Clauses A
Port → Your Warehouse	DDP optional, truck or intermodal	1–5 d	App push	POD signed, damage photos if any	Claims settled ≤ 7 d

Weekly sailings to Hamburg, Houston, Mundra, Jebel Ali, Santos; roll-on/roll-off for reels ≥ 1 m Ø.

---

H3 Cost Advantage – Premium Protection Without Premium Price

Western suppliers often add 8–12 % “packaging surcharge” and still ship on open pallets. Our integrated packaging line—located in the same 50 000 m² Luoyang campus as the wire mill—absorbs the cost within 1 % of FOB value. You receive transformer-ready wire, not a humidity-damaged re-work project.

Next Section: Inline QA & Certifications – see how every kilometer of paper-covered wire is validated before it leaves our annealing furnace.

---

Sourcing from Luoyang Xinzhaohe

Why Partner with Luoyang Xinzhaohe for Paper-Covered Winding Wire

20-Year Metallurgical Track Record in Transformer Materials

Since 2003 our Luoyang plant has operated a fully-integrated rod-to-spool line dedicated to electrical conductors. 2.4 million km of wire have left our facility for oil-immersed transformers, dry-type reactors and high-speed motor rebuilds. Every production lot is logged in a metallurgical database that links back to the original cast number—traceability that ISO 9001 auditors describe as “automotive-grade”. The result: <50 ppm customer-reported defects over the last five calendar years, a figure that outperforms the published field-return rates of most Tier-1 European enamel wire houses.

Direct Factory Price—No Trading Margin, No Hidden Alloy Surcharge

We buy 99.7 % P1020 primary ingot on annual MJP-linked contracts and convert it internally through rod rolling, fine drawing, annealing and paper taping. Eliminating intermediaries allows us to publish a transparent price formula:

Item	Typical Western Distributor	Luoyang Xinzhaohe (FOB Qingdao)
3.00 mm Kraft-paper wrapped Al wire, 3 layers, 130 °C class	4.85 USD/kg	3.25 USD/kg
2.10 mm Nomex® T410 wrapped Cu flat, 180 °C class	13.60 USD/kg	9.10 USD/kg

Prices valid for 5 t coils, June-2024 alloy input cost. We absorb LME & SHFE volatility inside a ±4 % band for 12-month frame orders—something no stock-holding distributor will guarantee.

Customisation Capabilities—Conductor, Insulation, Thermal Index, Package

Our engineers treat paper-covered wire as a system, not a commodity. You can specify any combination below without a tooling surcharge (MOQ 500 kg):

Parameter	Standard Range	Precision Tolerance
Conductor	Al 1350, Cu-ETP, Cu-OFE, CuCrZr alloy	Resistivity ±1 % at 20 °C
Dimensions	Round 0.4–6.0 mm, Flat 3–16 mm × 0.8–5.0 mm	Width ±0.02 mm, Thickness ±0.01 mm
Paper build	1–6 layers, Kraft, Crepe-Kraft, Nomex®, Miki, Thermally upgraded	Total wall ±0.01 mm, lap-free helical wrap
Thermal class	105 °C (A) to 220 °C (C)	UL 1446 witness-tested
Breakdown voltage	2 kV to 15 kV (layer-to-layer)	ASTM D149, 500 V/s ramp
Spool type	30 kg DIN 355, 500 kg BS 5B, 1 t barrel, or customer-specific	Torsion-free traverse ≤0.5 mm

Inline monitoring includes eddy-current crack detection every 200 mm, laser micrometer at 1 kHz, and 100 % high-voltage spark test at 6 kV DC. Certificates of conformance (CoC) and ICP-MS alloy reports ship with every coil.

Logistics & Compliance—Export Ready

We hold UL file E483208, IEC 60317-27, IEC 60317-55, and Reach/RoHS third-party reports. Cargo is VCI-wrapped, steel-skidded and containerised through Qingdao port—22-day transit to Hamburg, 18-day to Los Angeles. For urgent builds we maintain 50 t safety stock of 2.5 mm kraft-Al and 1.8 mm Nomex-Cu in our Rotterdam warehouse, available for next-day EU delivery.

Next Step—Request a Technical Datasheet or 48-h Quote

Send your specification—conductor alloy, insulation stack, thermal index, required breakdown voltage—to cathy@transformerstrip.com. Our metallurgists will return a detailed datasheet, cross-section micrograph and Incoterm-priced quote within two business days.

---
