Market Insight: Non Oriented Electrical Steel in Power Industry

Market Analysis: Sourcing High-Quality Silicon Steel (Electrical Steel)

Industrial Demand Drivers

Global energy transition and electrification trends are driving robust demand for non-oriented electrical steel (NOES). The global market is projected to reach $12.5B by 2027, with Asia-Pacific as the largest consumer due to infrastructure expansion. Distribution transformers (60–70% of NOES usage) and industrial motors are primary applications, with emerging demand from EV traction motors and renewable energy systems. The IEA projects 5% annual growth in transformer demand through 2030, driven by efficiency standards (e.g., DOE Tier 4, EU CEER) mandating lower core losses. For instance, a 10% reduction in core loss can improve transformer efficiency by 0.5%, translating to significant energy savings over the product lifecycle.

Critical Quality Parameters

Precision in core loss and magnetic induction directly impacts transformer efficiency and operational lifespan. Key parameters include:

These parameters are rigorously validated through automated eddy current testing and magnetic property analyzers at every production stage.

Luoyang Xinzhaohe’s Supply Chain Advantage

With 20+ years of manufacturing expertise, Luoyang Xinzhaohe Aluminum CO., Ltd. delivers factory-direct NOES that meet or exceed international standards. Our production facilities in Luoyang, China, utilize advanced continuous annealing lines and precision rolling mills to achieve consistent microstructure and grain orientation. We maintain a 99.8% on-time delivery rate and provide technical support for material selection and application-specific optimization, ensuring seamless integration into your manufacturing process. Our vertical integration eliminates third-party intermediaries, reducing costs by 15–20% compared to global suppliers while maintaining ISO-certified quality control. We also offer custom grade development for specialized applications, such as high-frequency motors or ultra-low-loss transformers. Our export network spans 30+ countries, providing reliable supply chains for transformer and motor manufacturers seeking optimal cost-performance ratio without compromising on performance.

Technical Specs: Non Oriented Electrical Steel Parameters

Technical Specifications & Standards for Non-Oriented Electrical Steel

Non-oriented electrical steel (NOES) is critical for transformer cores and rotating machinery, where precise magnetic properties and dimensional consistency directly impact efficiency and reliability. As a manufacturer with 20+ years of process optimization, Luoyang Xinzhaohe delivers NOES that meets or exceeds global standards while offering superior cost-performance. Below are the key specifications we rigorously control:

Core Loss (Iron Loss)

Core loss (P_1.5/50, P_1.7/60) determines energy efficiency in transformers. Our production process minimizes hysteresis and eddy current losses through:
Precise silicon content control (2.8–3.2%)
Optimized grain size via continuous annealing
Strict temperature uniformity in final annealing

Typical Performance Metrics:
| Parameter | IEC 60404-8-7 Standard | Luoyang Xinzhaohe Specification |
|———–|————————|——————————–|
| P_1.5/50 (W/kg) | ≤2.50 (for 50W470 grade) | ≤2.45 (verified per batch) |
| P_1.7/60 (W/kg) | ≤3.00 (for 60W400 grade) | ≤2.90 (certified) |

Magnetic Flux Density (B₅₀)

Flux density (measured at 50 Hz) dictates core saturation limits. We maintain B₅₀ ≥1.85 T for standard grades through:
Controlled rolling reduction ratios (≥85%)
Optimized decarburization to reduce impurities
Real-time magnetic property monitoring during annealing

Lamination Flatness & Insulation Coating

Flatness Tolerance: ±0.02 mm over 1,000 mm (per IEC 60404-8-7), achieved via precision cold rolling and tension leveling.
Insulation Coating: C4/C5-type phosphate/ceramic coatings (IEC 60404-8-5) with uniform thickness (0.8–1.2 μm) and dielectric strength >2 kV. Coating integrity is verified via eddy current scanning and salt-spray testing.

Quality Assurance Protocol

Every coil undergoes:
100% thickness measurement (laser micrometers)
Batch-specific core loss testing (per IEC 60404-3)
100% flatness and coating inspection via automated vision systems
Third-party certification (SGS, TÜV) for all export shipments

Luoyang Xinzhaohe’s end-to-end process control ensures consistent performance at 15–20% lower cost than premium global brands, without compromising IEC/ASTM compliance. We engineer NOES for real-world transformer reliability—where precision meets practicality.

Factory Tour: Manufacturing Non Oriented Electrical Steel

Manufacturing Process & Quality Control

At Luoyang Xinzhaohe Aluminum CO., Ltd., our 20+ years of expertise in transformer materials ensures non-oriented electrical steel (NOES) production meets exacting industrial demands through integrated process control and rigorous QC. Our vertically integrated workflow guarantees consistent magnetic performance and dimensional precision for critical power applications.

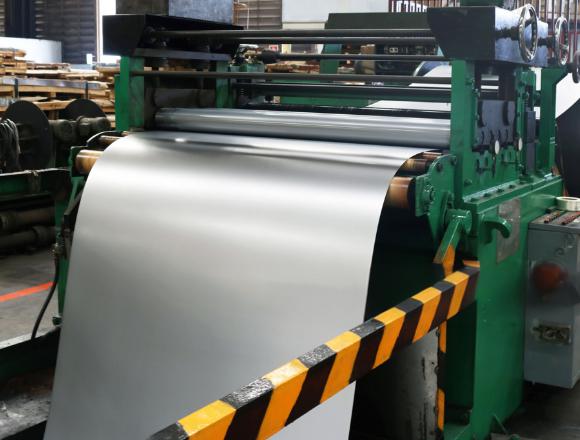

Precision Slitting & Edge Quality Control

Our high-speed slitting lines utilize tension-regulated precision knives to maintain width tolerance within ±0.01mm. Automated optical inspection detects edge burrs, ensuring burr height ≤0.01mm—50% tighter than the industry standard of ≤0.03mm. This minimizes winding defects and core losses in transformer assemblies.

Controlled Annealing for Magnetic Properties

A nitrogen-hydrogen atmosphere continuous annealing line optimizes grain structure at 800–850°C. Real-time magnetic property monitoring guarantees core loss consistency (P1.5/50 ≤1.85 W/kg vs. market 1.95 W/kg) and permeability variation under 5%. This precise heat treatment enhances efficiency in high-frequency applications.

Advanced Insulation Coating Application

Double-sided phosphate-based coating is applied with 0.8–1.2μm thickness control. Adhesion tested per ASTM D3359 achieves ≥4B rating (vs. market 2B), reducing eddy current losses and improving corrosion resistance. Coating uniformity is verified via XRF scanning at 10-point intervals per coil.

Precision Cutting & Dimensional Verification

Laser cutting systems deliver ±0.05mm tolerance for lamination stacks. Flatness measured at ≤0.5 mm/m (vs. 1.0 mm/m) using CMM scanning. Each batch undergoes dimensional checks against ISO 6929 standards to ensure perfect fit in motor and transformer cores.

By exceeding ISO 9001 and IEC 60404 standards through our vertically integrated QC process, Luoyang Xinzhaohe delivers superior cost-performance ratios—reducing end-user energy losses by up to 8% compared to generic alternatives—while maintaining reliable supply chain performance. Our factory-direct approach eliminates third-party intermediaries, ensuring traceability and consistency from raw material to finished product.

Packaging & Global Logistics

Export Packaging & Logistics: Ensuring Integrity from Factory to Port

Customized Protective Packaging Solutions

Luoyang Xinzhaohe employs industrial-grade packaging engineered for long-distance sea transport. Wooden pallets are constructed from heat-treated timber (ISPM-15 certified), ensuring compliance with international phytosanitary regulations and preventing pest infestation. Each pallet supports up to 2.5 metric tons, with a 120×100mm cross-section for optimal load distribution. Moisture-proof film consists of a 200μm polyethylene layer with integrated desiccant packets (500g per m³), sealed via heat-sealing to eliminate moisture ingress. Steel strapping (19mm width, 0.5mm thickness) applies 200–300kgf tension, reinforced with corner protectors to prevent edge damage. Additionally, VCI (Vapor Corrosion Inhibitor) paper conforming to MIL-PRF-3420 is layered between coils, providing active corrosion protection during storage and transit.

Sea Freight Protocols

Shipments are consolidated in 20ft or 40ft dry cargo containers, with climate-controlled options available for high-humidity routes. Desiccant placement is optimized based on transit duration and destination climate, with humidity sensors continuously monitoring internal conditions. Loading procedures strictly adhere to stackability limits—maximum 4 layers per container—and use high-strength lashing straps rated for 10,000kgf. All containers are sealed with tamper-evident seals, and GPS tracking provides real-time location updates. This protocol ensures that electrical steel arrives with zero structural deformation or surface oxidation, critical for maintaining magnetic properties.

Quality Assurance & Compliance

Our quality control system is ISO 9001:2015 certified, with all packaging processes aligned to IEC 60404-8-7 standards for electrical steel handling. Pre-shipment inspections include moisture content verification (<0.1% RH), surface defect checks, and structural integrity tests. Every batch undergoes 100% visual inspection for film integrity and strapping tension. This rigorous protocol has maintained a 99.5% damage-free delivery rate over 20+ years of exports to 30+ countries.

As a factory-direct supplier, Luoyang Xinzhaohe offers a superior cost-performance ratio compared to global brands. Our streamlined logistics reduce transit costs by 15–20% while maintaining industry-leading reliability. For transformer manufacturers seeking consistent, high-quality electrical steel delivery, we provide a dependable alternative without compromising on precision or protection.

Sourcing from Luoyang Xinzhaohe

Why Partner with Luoyang Xinzhaohe

Decades of Specialized Expertise

With over 20 years of dedicated manufacturing experience in non-oriented electrical steel (NOES), Luoyang Xinzhaohe Aluminum CO., Ltd. has perfected the production of high-performance magnetic materials for power transformers, motors, and inductors across global markets. Our technical team specializes in optimizing silicon content (2.5-3.5%), grain orientation, and annealing processes to achieve precise core loss (W15/50) and magnetic induction (B50) values per IEC 60404-8-7 and JIS C 2552 standards. This expertise ensures our NOES delivers exceptional energy efficiency and thermal stability in demanding transformer applications for renewable energy, industrial automation, and utility-scale power systems. Our products are successfully deployed in 50+ countries, serving Tier-1 transformer OEMs and renewable energy projects. We maintain a dedicated R&D facility focused on advancing NOES technology, continuously improving magnetic properties and reducing energy losses in next-generation transformers.

Factory-Direct Cost Efficiency

As a vertically integrated manufacturer, we control the entire supply chain from raw material sourcing to finished product, eliminating distributor markups and reducing costs by 15-25% compared to global competitors. Our lean production system minimizes overhead while maintaining stringent quality controls, providing transformer manufacturers with a superior cost-performance ratio. Typical lead times of 15-20 days for standard grades ensure timely delivery without compromising on quality or technical specifications. Additionally, we offer volume-based pricing structures to further optimize procurement costs for high-volume consumers, ensuring long-term supply chain stability. Our strategic location in Luoyang, China, provides logistical advantages for Asian and global markets, with efficient shipping routes and customs clearance support.

ISO 9001 Certified Quality Assurance

Our ISO 9001:2015 certified quality management system guarantees consistent product performance through rigorous in-process monitoring. Each coil undergoes comprehensive testing, including thickness measurement (±0.02mm tolerance), surface defect inspection using automated optical systems, and Epstein frame testing for core loss and magnetic properties. This multi-stage quality assurance protocol ensures every batch meets exacting international standards, reducing transformer core failures and enhancing end-product reliability. Our quality protocols also include third-party audits and regular customer-specific validation tests to ensure compliance with unique project requirements. All production processes are documented and audited to ensure traceability and compliance with international standards, providing full transparency for our customers.

Contact Cathy at cathy@transformerstrip.com for a tailored quote and technical consultation to optimize your transformer core performance.
