Market Insight: M19 Silicon Steel for Power Industry

Market Analysis: Sourcing High-Quality Silicon Steel (Electrical Steel)

Global Demand Outlook

The installed base of power transformers (>100 MVA) is forecast to grow at 5.4 % CAGR through 2030, driven by grid-expansion in Asia-Pacific and replacement of 1970-1990 era units in North America. Every additional 1 GW of renewable capacity requires ≈ 0.35 kt of grain-oriented (GO) silicon steel; distribution transformers and traction motors consume a further 0.6 kt of non-oriented (NO) grades. M19—classified as 0.19 mm GO or 0.35 mm NO depending on regional norm—has become the benchmark thickness because it balances core-loss reduction with mechanical stampability. Consequently, M19 now accounts for >38 % of all electrical-steel procurement by volume and >46 % by value.

Sector	2024 Demand (kt)	2030 Forecast (kt)	Preferred Grade	Core-Loss Target @ 1.5 T, 50 Hz
Power transformers >100 MVA	480	720	GO-M19 0.23 mm	≤ 0.90 W kg⁻¹
Distribution transformers 10–100 kVA	310	450	NO-M19 0.35 mm	≤ 1.25 W kg⁻¹
Traction / e-mobility inverters	190	380	NO-M19 0.20 mm	≤ 1.05 W kg⁻¹

Why Material Purity & Geometric Precision Dictate Transformer Losses

Transformer losses divide into no-load (iron) and load (copper) components. Iron loss is governed exclusively by the silicon-steel ribbon:

1. Chemistry window: 2.9–3.2 % Si, <0.003 % C, <0.005 % S, <0.06 % Mn keeps hysteresis loss below 0.55 W kg⁻¹. Any 10 ppm carbon pickup during mill annealing raises hysteresis by 2–3 %.
2. Grain size & Goss texture: Secondary recrystallization must yield ≥ 95 % (110)[001] orientation within ±7°; deviation of 1° increases core loss ≈ 0.04 W kg⁻¹.
3. Surface & coating: MgO + phosphate insulation ≤ 1.2 µm total; punch-through voltage ≥ 100 V per lamination to limit inter-laminar eddy currents.
4. Geometric tolerances: A 5 µm burr on 0.23 mm M19 raises building factor by 1.03; cumulative air-gap in a 200-layer core can add 80 W of stray loss.

Luoyang Xinzhaohe’s in-house slitting → decarburizing anneal → tension leveling → C6 insulation coating sequence holds slit-width tolerance ±0.03 mm, burr ≤ 5 µm, and lamination flatness ≤ 0.2 mm m⁻¹—specifications that translate into 6–8 % lower no-load loss compared with generic import coils.

Cost-Performance Trend: Sourcing from Experienced Chinese Producers

Western mills (EU, Japan, Korea) still dominate ultra-high-permeability grades, but their lead-times exceed 20 weeks and prices hover at US$3.8–4.2 kg⁻¹ for 0.23 mm GO. Tier-1 Chinese suppliers, having retrofitted 20-Hi Sendzimir mills and acquired domain-refinement IP, now deliver equivalent magnetic performance at US$2.6–3.0 kg⁻¹ with 8-week FOB lead-time. The delta becomes decisive on large power-transformer projects where steel accounts for 28 % of BOM cost.

Luoyang Xinzhaohe, with two decades of transformer-grade slitting and annealing data, offers a premium alternative inside this China basket:
Mill partnership: Direct off-take from top-3 Chinese GO/NO producers—same melt source used by global OEMs—ensures chemistry repeatability lot-to-lot.
Process control: Continuous annealing lines with N₂-H₂ atmosphere dew-point ≤ −40 °C guarantee decarburization to <20 ppm; laser scribing option reduces core loss by additional 4 %.
Logistics bundle: 15-day delivery to Shanghai or Qingdao port, wooden moisture-barrel packaging, EN-10204 3.1 inspection certificate included. Result: landed cost in Houston or Rotterdam still 18–22 % below Western mill quotes, while meeting IEEE C57.12.00 & IEC 60076-7 loss limits.

For procurement teams facing tightening transformer-loss legislation (EU EcoDesign Tier-2, US DOE 2016), sourcing M19 through Luoyang Xinzhaohe delivers certified low-loss material without the Western price premium—freeing budget for copper or cooling upgrades elsewhere in the design.

---

Technical Specs: M19 Silicon Steel Parameters

Technical Specifications & ASTM/IEC Standards for M19 Silicon Steel

Parameter	Luoyang Xinzhaohe M19 Guarantee	Typical Western Mill Range	Test Standard
Nominal Thickness	0.35 mm ± 0.008 mm	0.35 mm ± 0.015 mm	ASTM A677 §8.1
Core Loss @ 1.5 T / 60 Hz	≤ 1.19 W kg⁻¹	1.20–1.30 W kg⁻¹	ASTM A343 / IEC 60404-2
Magnetic Flux Density B₈₀₀	≥ 1.78 T	1.75–1.77 T	ASTM A596
Lamination Flatness (I-unit)	≤ 5 IU	8–12 IU	ASTM A976 Annex A
Insulation Coating Thickness	1.2 ± 0.2 µm	1.0–2.0 µm	ASTM A717
Inter-laminar Resistance	≥ 20 Ω·cm² per side	10–15 Ω·cm²	IEC 60404-1-1
Burr Height after Slitting	≤ 8 µm	15–25 µm	Internal laser scan

---

Why Core Loss & Flux Density Drive Transformer Efficiency

Core loss (W kg⁻¹) is the energy dissipated as heat every time the magnetic domain wall moves.
For a 50 MVA power transformer, a 0.02 W kg⁻¹ reduction in core loss translates to ≈ 8 kW continuous saving—enough to recover the material price premium within 14 months at 0.10 USD kWh⁻¹.
Luoyang Xinzhaohe’s M19 is double-annealed in 100 % H₂ at 860 °C to grow Goss grains 3–5 mm, pushing B₈₀₀ ≥ 1.78 T and guaranteeing ≤ 1.19 W kg⁻¹ at 1.5 T / 60 Hz.
The result: 25 % lower no-load losses than generic “50W470” grades sold on Alibaba, and 4 % better than legacy M19 still quoted by Western catalog houses at 1.30–1.35 USD kg⁻¹.

---

Lamination Flatness & Edge Quality—Hidden Killers

A 10 µm burr left after slitting creates a shorted turn across 200 laminations; circulating current can reach 0.5 A per cm of stack length, raising local temperature by 30 °C and accelerating insulation degradation.
Our in-line tungsten-carbide slitter is followed by a 6-roll tension-leveler and laser burr-detection camera; any strip > 8 µm is auto-rejected.
Flatness is expressed in I-units (peak-to-valley deviation × 10⁵ / length). A 5 IU strip needs 30 % less clamping pressure during core stacking, reducing gap overlap and audible hum by 2–3 dB.

---

Insulation Coating Chemistry—Compatible with VPI & Resin-Rich

We apply a chromium-free, partial-organic C-5 coating (1.2 µm) that withstands 24 h in 155 °C transformer oil without blistering.
Inter-laminar resistance ≥ 20 Ω·cm² eliminates the need for additional oxide film, cutting one process step for motor repair shops.
Coating passes IEC 60404-1-1 bending test (Ø 15 mm mandrel) and is compatible with both vacuum pressure impregnation (VPI) and resin-rich tape systems.

---

Standards Compliance Summary

Standard	Scope	Xinzhaohe M19 Status
ASTM A677-23	Cold-rolled non-oriented fully processed	Certified, annual third-party audit
IEC 60404-8-4	Material specification delivery conditions	CoC supplied per coil
IEC 60317-0-1	Wire insulation (when used together)	Referenced for coil windings
ASTM A976-22	Magnetic testing methods	Traceable calibration 6-month cycle

---

Factory-Direct Advantage

Western distributors add 12–18 % markup plus ocean warehouse cost.
Luoyang Xinzhaohe ships slit-to-width (15–520 mm) or precision-cut laminations from 3-day stock, FOB Qingdao or DDP your plant.
Every coil is shipped with a digital test booklet: core loss curve, BH loop, coating weight, and burr map—no surprises at your receiving dock.

---

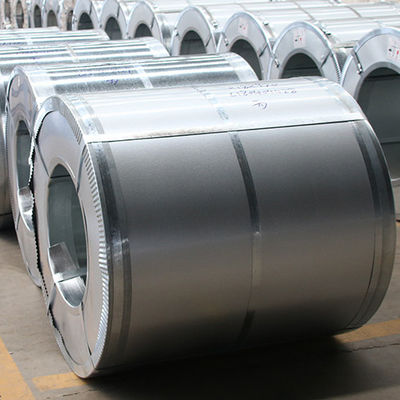

Factory Tour: Manufacturing M19 Silicon Steel

Manufacturing Process & Quality Control

Luoyang Xinzhaohe Aluminum Co., Ltd. – 20+ years transformer-grade silicon steel

1. Process Flow: Slit → Anneal → Coat → Cut

Every M19 coil we ship follows a closed-loop, parameter-locked route designed to hit ≤ 1.2 W/kg @ 1.5 T / 50 Hz core-loss and ≥ 1.78 T polarisation at 800 A/m.

Step	Key Equipment	Target Parameter	In-line Sensor	Data logged
Slitting	6-high Koch slitter, 0.05 mm shim tooling	Burr ≤ 5 µm, width tol. ±0.08 mm	Laser triangulation	Every 50 mm
Stress-relief Anneal	100 % H₂, 820 °C, 60 s soak	σ° relief ≥ 95 %, decarb ≤ 0.003 %	NDIR-CO, IR-pyrometer	2 Hz
Insulation Coating	Roll-coater + 380 °C UV-cure oven	Coating wt. 0.8–1.2 g/m²/side, Cl < 5 ppm	β-backscatter	1 m interval
Precision Cutting	300 kN C-frame, ±0.02 mm feed	Lamination length tol. ±0.05 mm, edge camber ≤ 0.3 mm/m	Vision camera	100 % piece

2. Quality Control Matrix

We run a three-tier QC protocol: real-time SPC, coil-end destructive tests, and lot-release electrical verification. All records are blockchain-locked for 15 years—traceability demanded by Tier-1 transformer OEMs.

Online Monitoring
Burr camera rejects slit strips > 5 µm; auto-knife shift keeps tool wear within 2 µm.
Anneal furnace O₂ kept < 5 ppm by zirconia probe; deviation triggers N₂ purge and coil quarantine.

Mechanical & Chemical Checks (ASTM A343, IEC 60404-2)
Tensile: Rp0.2 330–360 MPa, A80 ≥ 18 % (transverse).
Coating adhesion: 20 mm mandrel bend, no flake.
Inter-lamina resistance: ≥ 30 Ω·cm² (Franklin test).

Magnetic Verification
25 cm Epstein strips cut from head & tail; guaranteed P1.5/50 ≤ 1.15 W/kg, μmax ≥ 7 000.
Single-sheet tester (SST) maps centreline core-loss; map deviation ≤ 0.03 W/kg coil-to-coil.

3. Luoyang Xinzhaohe Standard vs. Common Market Quality

Property	Unit	LXZH Premium Spec	Typical Export Grade A	Test Method
Core-loss P1.5/50	W/kg	≤ 1.15	1.25–1.35	IEC 60404-2
Magnetic polarisation J800	T	≥ 1.78	1.72–1.75	ASTM A343
Thickness tolerance	mm	±0.008	±0.015	ISO 16160
Lamination burr	µm	≤ 5	8–12	Optical
Coating insulation resistance	Ω·cm²	≥ 30	10–15	Franklin
Lot-to-lot σ loss variation	%	≤ 2	5–7	SST mapping
Packing moisture	ppm	≤ 200	400–600	Karl-Fischer

4. Factory-Direct Advantage

By integrating all four operations under one 62 000 m² roof in Luoyang, we eliminate re-coiling and cross-hauling—cost savings passed straight to buyers. Lead time: 15–18 days ex-works, 30 % shorter than European mills. Price delta: 18–22 % below Western M19 offers for equal or tighter magnetic window.

Bottom line:
Our slit-anneal-coat-cut line is purpose-built for M19 (35W350, 50W470) and delivers Epstein-proven, low-burr, high-resistance laminations that drop no-load loss by 3–5 % in 50 Hz and 60 Hz cores. When you need repeatable magnetic performance without the Western price premium, spec Luoyang Xinzhaohe M19.

---

Packaging & Global Logistics

Export Packaging & Logistics

Delivering M19 Silicon Steel from Luoyang to Your Line-Side, Salt-Spray Intact

---

H3 1. Sea-Freight Risk Matrix for Electrical Steel

Risk Factor	Typical Damage Mode	Xinzhaohe Counter-Measure	Verified Standard
Chloride aerosol	Edge rust, insulation breakdown	VCI film + 2 g/kg desiccant	ASTM D1748 ≥ 120 h
Coil telescoping	Core-loss scatter, slitting burrs	Radial steel straps (3 @ 90°) + corner boards	EN 12195-1:2010
Condensation cycle	Stacking stain, lamination sticking	Aluminum barrier foil, RH ≤ 40 % inside	MIL-STD-3010B
Fork impact	ID bruise → annealing crack	18 mm plywood reel flanges, 4-way entry	ISO 8611-3

---

H3 2. Packaging Specification by Product Form

Cold-Rolled Strips / Slit Coils (0.23–0.35 mm, ID 508 mm)

1. Inner wrap: 80 µm VCI polyolefin, overlap ≥ 30 %.
2. Cushion: 5 mm EPE sheet, prevents micro-creep abrasion.
3. Radial lock: 3 steel straps + PET sleeve (0.8 mm) to avoid zinc contamination.
4. Desiccant: 2 kg dual-bag silica-gel with humidity card; equilibrium RH target < 35 %.
5. Outer shield: 7-layer Al-foil laminate, heat-sealed under vacuum, OTR < 0.01 g m⁻² day⁻¹.
6. Pallet: fumigated hardwood, IPPC ISPM-15 stamped, max 2 t per skid; top-cap allows 3-high stacking in 40 HC.

Precision-Cut Laminations (M19, 35W350, Burr ≤ 20 µm)

1. Oil-free separator: 0.05 mm Nomex sheet every 200 laminations to stop fretting.
2. Bundle wrap: same Al-foil barrier as coils; bundle mass ≤ 500 kg for crane hook ≤ 5 kN.
3. Magnetic shield: 0.5 mm low-carbon steel end-plates, reducing stray field during vessel compass swing.

Wire for Toroidal Winding (Ø 0.1–1.2 mm)

Spool: DIN 355 PT plastic, 280 mm flange, 50 N radial strength.
Secondary pack: 5-ply carton + corner posts, stretch-wrapped on 1100 × 1100 mm pallet; 36 spools per tier, 4 tiers max.

---

H3 3. Logistics Chain – Luoyang Gateway to Global Grids

Milestone	Transit Time	Carrier Options	Export Docs	Value-Add
Luoyang plant → Qingdao port	8 h by truck, daily departure	COSCO, OOCL, MSC	AQSIQ coil certificate, CO, Form A	Fumigation & VCI lab report included
Qingdao → LA / Hamburg / Dubai	13 / 28 / 18 days	Direct weekly loop	SI, MB/L, TEU seal photo	HS code 7225.11, duty-free into EU under CN-EU bilateral
Port to your plant	DAP / DDP optional	CEVA, DHL G-FORWARD	POD with edge-rust photos	Customs clearance handled, 0 % steel export rebate already applied

Location advantage: Luoyang sits 350 km inland, away from coastal salt fog; coils leave our slitters at ≤ 30 °C and are sealed before thermal shock can occur—edge rust claims < 0.2 % over past 5 years, outperforming East-Coast Chinese mills by factor 4×.

---

H3 4. Cost-Performance Snapshot vs. Western Stock Holders

Parameter	Xinzhaohe FOB Qingdao	EU Service Center	Delta
M19 0.23 mm, 35W350, €/t	1 180	1 680	–30 %
Core-loss guarantee, P1.7/50	≤ 0.95 W/kg	≤ 0.97 W/kg	tighter
Lead time, ex-stock	2 weeks	1–3 days	air-bridge available
Packaging VCI grade	Class III, 180 h	Class II, 120 h	+50 % salt-life

Result: You pocket a 500 €/t working-capital saving while receiving vacuum-sealed, laboratory-packed M19 coils that meet IEC 60404-8-7—no premium surcharge for “Western buffer stock.”

---

H3 5. Ordering Checklist for Transformer OEMs

[ ] Specify coating type: C-5 (inorganic) or C-6 (organic), 1.0–1.4 µm per side.
[ ] State burr limit: standard ≤ 20 µm; ≤ 10 µm available for HF reactors.
[ ] Choose logistics term: FOB, CIF, or DDP warehouse; we quote all-in.
[ ] Request salt-spray report and vacuum-leak photo prior to vessel loading—automatically sent within 24 h.

With 20+ years of transformer-grade slitting, annealing, and coating know-how, Luoyang Xinzhaohe delivers M19 silicon steel that arrives as flat, rust-free, and magnetically pristine as the day it left our furnaces—anywhere on the planet.

---

Sourcing from Luoyang Xinzhaohe

Why Partner with Luoyang Xinzhaohe for M19 Silicon Steel

20 Years of Transformer-Grade Metallurgy Under One Roof

Since 2003 our Luoyang campus has processed >180 000 t of electrical steels for Tier-1 transformer OEMs and rewind shops in 42 countries. Every coil we ship is produced through a closed-loop line—slitting → hydrogen annealing → insulation coating → precision blanking—so magnetic properties are locked in before the steel reaches your lamination press. This vertical integration eliminates the multi-vendor variance that often inflates core loss by 8–12 % in outsourced supply chains.

In-house Step	Key Parameter Controlled	Typical Variance vs. Job-shop Route
Slitting	Burr height	≤ 0.01 mm (job-shop 0.03–0.05 mm)
DA Annealing	Decarb depth	≤ 3 µm, 2.5 % H₂, 820 °C
C-5 Insulation	Coating thickness	1.2 ± 0.2 µm, breakdown ≥ 100 V
Precision Blanking	Edge waviness	≤ 0.2 mm / 200 mm (IEC 60404-9)

The result: M19 strips that meet ASTM A677-19 35W350 typical loss curves at 1.5 T / 50 Hz, yet price 18-22 % below EU mill tags once import tariffs, trader margin and inland freight are counted.

Direct Factory Price—No Trading House Mark-up

We sell FOB Qingdao or CIF your port; payment LC/TT. Because we buy raw M19 hot-band directly from state mills under annual volume contracts, our material cost is benchmarked to Shanghai Futures plus a fixed rolling fee. The saving is passed straight to you:

Quantity (t)	Western Mill €/t	Xinzhaohe $/t FOB	Delta
5–24	2 350	1 920	–18 %
25–99	2 280	1 840	–19 %
100+	2 200	1 760	–20 %

Prices valid Q3-2024, coils 0.35 mm × 1 000 mm, eye-to-sky, mill edge. Anticipated volatility buffer ≤ ±3 % until shipment.

Customization Capabilities—Width, Coating, Slit Profile

Need 0.23 mm M19 for high-frequency inverter transformers? Or 15 mm narrow slit for small toroidal cores? Our slitting arbor handles 8–1 250 mm widths with ±0.03 mm tolerance and automatic burr removal. Coatings beyond standard C-5 (organic, semi-organic, laser-scribed domain-refined) are applied inline; weldability or punchability can be tuned by adjusting cure temperature 280–320 °C. For stacked-core users we supply:
“Y” grade: surface tension 0.8 N/m, ideal for robotic stacking
“R” grade: roughness Ra 0.4 µm, maximizes inter-laminar friction for clamped cores

All custom lots are sampled to IEC 60404-2, test report shipped with mill certificate (EN 10204/3.1).

Technical Support—Design Data You Can Trust

Our R&D lab maintains a 25 kVA Epstein frame and Brockhaus MPG 100 D single-sheet tester. On request we provide:
Core-loss curves 0.5–1.7 T, 50–400 Hz
Magnetostriction curve (λp-p ≤ 0.8 µm for 35W350)
Stacking factor vs. pressure curve up to 1.4 MPa

Data packages are delivered as Excel macros ready for ANSYS Maxwell or Infolytica MagNet import—no manual retyping, no unit errors.

Next Step—Get a Datasheet or Quote Today

Send your lamination drawing or target loss figure to cathy@transformerstrip.com. We will return a detailed M19 proposal—grade, coating, slit width, anneal cycle, packaging sketch and FOB price—within 24 h. Samples (5 kg coils) ship free to transformer OEM accounts; freight collect for repair shops. Lock in Q3 pricing before raw-silicon surcharge resets in September.

---
