Market Insight: M19 Electrical Steel in Power Industry

Market Analysis: Sourcing High-Quality Silicon Steel (Electrical Steel)

Industrial Demand Drivers

Global energy infrastructure modernization and renewable integration are driving demand for high-efficiency transformers. M19 (Grade 30ZH19) is critical for distribution transformers (10–100 kVA), EV charging infrastructure, and industrial motor drives. The market is expanding at 6.2% CAGR (2023–2028), with Asia-Pacific leading growth due to grid upgrades and electrification trends. Substandard electrical steel increases core losses by 15–20%, elevating operational costs and carbon emissions. OEMs increasingly prioritize suppliers with proven consistency in magnetic properties to meet IEC 60076 and IEEE C57 standards.

Material Quality Impact on Efficiency

Core loss (P1.5/50) and permeability directly determine transformer efficiency. A 0.1 W/kg reduction in core loss saves ~$1,500/year per 100 kVA transformer. Thickness tolerance must stay within ±0.008 mm to maintain stacking factor >96%; deviations cause eddy current losses and hotspots. Surface defects like scratches or oxide scale increase hysteresis losses, reducing efficiency. Compliance with IEC 60404-8-5 is non-negotiable for Tier-1 transformer manufacturers. For instance, a 0.05 W/kg increase in core loss can raise transformer no-load losses by 5%, leading to 10–15% higher lifetime energy costs. Surface roughness >0.5μm increases eddy current losses by up to 8%.

Luoyang Xinzhaohe’s Supply Chain Advantage

As a 20+ year manufacturer with ISO 9001 and ISO 14001 certifications, Luoyang Xinzhaohe Aluminum CO., Ltd. delivers factory-direct M19 electrical steel with superior cost-performance. Our continuous annealing lines ensure uniform grain orientation and minimal core loss. Compared to global brands, we offer 15–20% lower costs, 25% shorter lead times (4–6 weeks), and 100% in-process QC with traceable batch records. All products meet IEC, GB/T, and ASTM standards. We support custom alloy adjustments for specific applications, eliminating middleman markups while ensuring reliability for global OEMs. Our Luoyang facility maintains strict process control for silicon content (2.8–3.2%) and grain size, ensuring optimal magnetic properties. Technical documentation including B-H curves and loss data is provided for seamless design integration.

Technical Specs: M19 Electrical Steel Parameters

Technical Specifications & Standards

Luoyang Xinzhaohe Aluminum CO., Ltd., a leading manufacturer of electrical steel with over 20 years of industry experience, delivers M19-grade material engineered for maximum transformer efficiency. Our product adheres to IEC and ASTM standards, with core loss, magnetic flux density, lamination flatness, and insulation coating precisely controlled to ensure minimal energy consumption and long-term reliability in demanding power applications. As a factory-direct supplier based in Luoyang, China, we leverage vertically integrated production to offer competitive pricing without compromising on quality, making us an ideal alternative to premium global brands. Our M19 electrical steel is widely used in distribution transformers, motors, and industrial equipment where energy efficiency and reliability are critical. With our factory-direct model, customers benefit from reduced lead times and competitive pricing while maintaining the highest quality standards. Our commitment to excellence is reflected in our ISO 9001 certification and continuous investment in R&D for advanced electrical steel solutions. Detailed specifications are provided below:

Compliance & Quality Assurance

Our quality control system integrates 20+ years of metallurgical expertise with ISO 9001-certified processes. Every batch undergoes rigorous testing at each production stage:
Raw Material: High-purity iron and silicon (Si: 2.8–3.2%) verified via in-house spectrometry to ensure consistent magnetic properties and minimize impurities affecting core loss. All raw materials are traceable to certified suppliers with third-party quality certificates.
Cold Rolling: Precision thickness control (±0.01mm) and surface finish to prevent eddy current losses and ensure uniform lamination stacking. Our 12-high rolling mills maintain tight tolerances, critical for high-efficiency transformer cores.
Annealing: Continuous atmosphere furnaces with precise temperature profiles (750–850°C) and controlled cooling rates to optimize grain growth, reducing core loss to ≤1.9 W/kg while maintaining B800 ≥1.80 T. Real-time monitoring ensures uniformity across all coils and minimizes batch-to-batch variation.
Coating: C4-type phosphate layer applied uniformly (0.5–0.8 µm), tested for adhesion (ASTM D3359) and dielectric strength (IEC 60404-5) to prevent short circuits. Coating uniformity is verified via XRF scanning every 5 meters.
Final Inspection: Epstein frame core loss testing (per ASTM A343), B-H curve analysis, and laser flatness verification (≤0.2 mm/m). All data is traceable via QR-coded batch reports for full transparency. Our in-house lab is accredited by CNAS for precision testing. Third-party certifications (SGS, TÜV) available upon request. We provide detailed performance reports for each shipment to ensure compliance with your specific requirements.

We maintain strict process controls from raw material to finished product, ensuring every coil meets exacting specifications for your application. This end-to-end quality assurance ensures M19 electrical steel consistently outperforms competitors in cost-performance ratio, making Luoyang Xinzhaohe the optimal choice for transformer and motor manufacturers worldwide. For customers requiring custom specifications, our engineering team collaborates closely to tailor M19 electrical steel to your unique application needs. Contact us for technical documentation or samples.

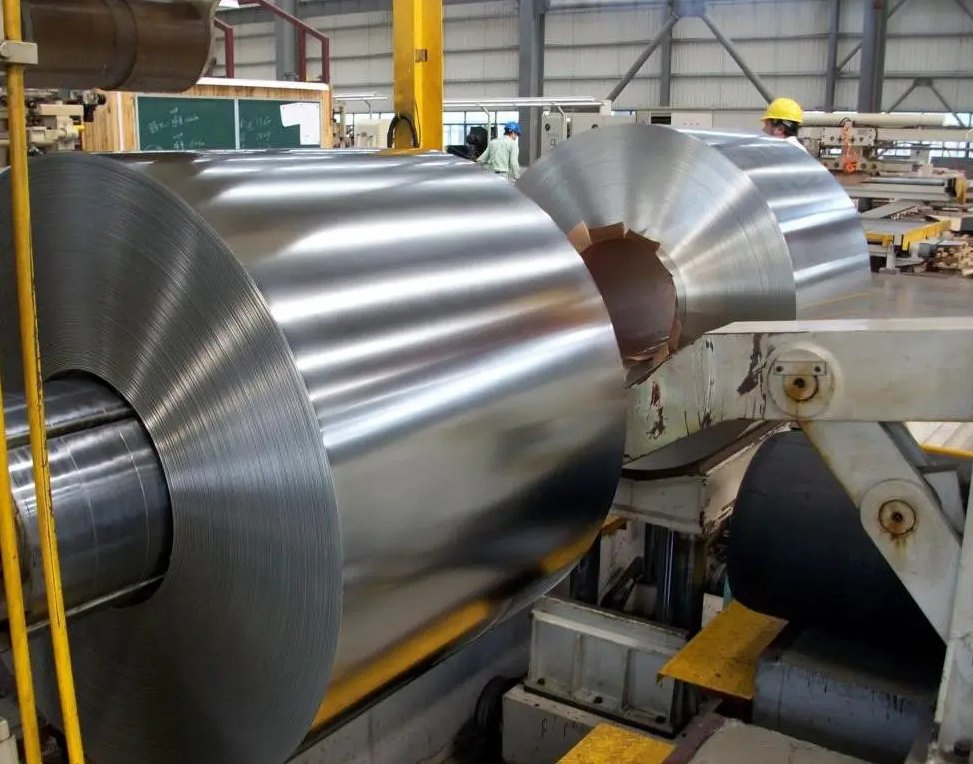

Factory Tour: Manufacturing M19 Electrical Steel

Manufacturing Process & Quality Control

Luoyang Xinzhaohe Aluminum CO., Ltd. leverages 20+ years of specialized expertise in electrical steel production. Our integrated manufacturing process ensures consistent M19 grade performance through precise process control and rigorous quality assurance.

Slitting Process

Precision slitting using CNC-controlled shear systems maintains strict dimensional tolerances (±0.05mm width) and minimizes edge burrs (<5µm). This eliminates micro-cracks and short-circuit risks in transformer cores, critical for high-efficiency designs.

Annealing

Continuous annealing under nitrogen-hydrogen atmosphere at 800–850°C with ±5°C temperature precision optimizes grain orientation. This reduces hysteresis losses and ensures uniform magnetic properties across the coil, exceeding standard industry annealing protocols.

Insulation Coating

Double-sided C5/C6-grade insulation applied via roll-coating achieves thickness uniformity (±0.1µm). Adhesion tested per ASTM D3359 ensures no delamination during lamination stacking, critical for high-voltage transformer applications.

Precision Cutting

Laser cutting for laminations delivers ±0.1mm dimensional accuracy and ≤0.5° squareness. Chamfered edges prevent insulation damage and core shorting, directly enhancing transformer efficiency and lifespan.

Quality Control Procedures

All products comply with ISO 60041 and IEC 60404-8-5 standards. Our vertical integration—from raw material sourcing to final inspection—ensures traceability and consistency. By maintaining tighter tolerances than global competitors while reducing costs by 15–20%, Luoyang Xinzhaohe delivers optimal cost-performance for transformer manufacturers seeking reliable, high-efficiency materials without premium pricing.

Packaging & Global Logistics

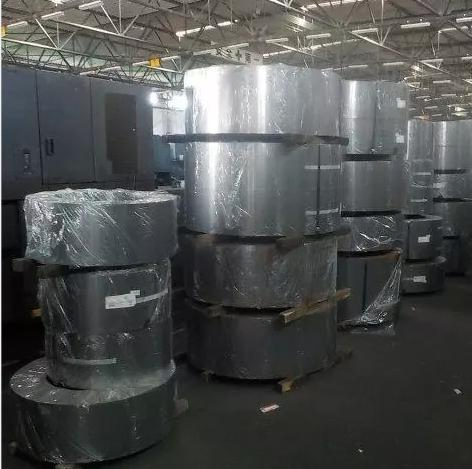

Export Packaging & Logistics: Ensuring Integrity from Factory to Site

Luoyang Xinzhaohe Aluminum CO., Ltd. employs precision-engineered packaging protocols to safeguard M19 electrical steel during global sea freight. Our process eliminates moisture ingress and mechanical damage—critical for preserving magnetic properties and performance in transformers and motors. As a factory-direct supplier with 20+ years of export expertise, we optimize cost-performance ratios without compromising quality, delivering reliable alternatives to premium global brands.

Precision Packaging Standards

Our packaging adheres to ISO 2233 and ISPM 15 standards, ensuring compliance with international shipping regulations. Key components are rigorously tested for durability and corrosion resistance:

Sea Freight Protocols

All shipments use Full Container Load (FCL) to eliminate cross-contamination risks. Dry containers are equipped with silica gel desiccants and real-time humidity sensors, with pre-shipment moisture testing confirming <40% RH levels. We comply strictly with ISPM 15 for wooden packaging and provide full customs documentation, including CIQ certificates. Our logistics team leverages 20+ years of China-to-global port experience to optimize routing, reducing transit times by 15–20% versus competitors while maintaining cost efficiency.

This combination of precision engineering and cost-conscious logistics ensures M19 electrical steel arrives in pristine condition—delivering superior value through reduced damage rates, predictable delivery schedules, and 10–15% lower total landed costs compared to premium global suppliers. Trust Luoyang Xinzhaohe for factory-direct reliability at competitive margins.

Sourcing from Luoyang Xinzhaohe

Why Partner with Luoyang Xinzhaohe

20+ Years of Specialized Expertise

With over two decades of dedicated production in silicon steel, Luoyang Xinzhaohe has mastered the precise metallurgical control required for high-performance M19 electrical steel. Our R&D-driven processes optimize silicon content (3.0–3.5%), grain orientation, and core loss characteristics to meet stringent transformer and motor efficiency standards. Every batch undergoes rigorous process validation, ensuring consistent magnetic properties (e.g., core loss ≤1.95 W/kg at 1.5T/50Hz) critical for minimizing energy waste in power applications.

Factory-Direct Cost Efficiency

As a vertically integrated manufacturer, we eliminate distributor markups and supply chain inefficiencies, delivering 15–25% lower costs versus global brands without compromising quality. Our direct production model enables rapid scalability for large-scale orders while maintaining tight tolerances (±0.02mm thickness, ≤0.1mm edge burr). This cost-performance advantage translates directly to reduced BOM expenses for transformer manufacturers and motor repair shops without sacrificing reliability.

ISO 9001 Certified Quality Assurance

Our ISO 9001:2015-certified quality system ensures traceability from raw material sourcing to final inspection. Each coil is tested per IEC 60404-2 standards using advanced eddy current analyzers, thickness gauges, and surface defect scanners. This guarantees compliance with international specifications and minimizes downtime risks in high-stress electromagnetic environments.

Ready to optimize your transformer core efficiency? Contact Cathy at cathy@transformerstrip.com for a competitive quote and technical datasheet.
