Market Insight: Lamination Of Steel in Power Industry

Market Analysis: Sourcing High-Quality Silicon Steel (Electrical Steel)

Industrial Demand Drivers

Global transformer and motor markets are expanding due to grid modernization, renewable energy integration (solar/wind farms), and industrial electrification. High-efficiency requirements drive demand for premium silicon steel, as core losses (hysteresis and eddy current) account for up to 70% of transformer energy losses. In motors, inconsistent lamination quality causes overheating, reduced efficiency, and premature failure. International standards like IEC 60076 and IEEE C57.12.00 mandate strict performance criteria, making material selection critical for compliance and operational reliability.

Critical Quality Parameters for Lamination Efficiency

Parameter	Industry Standard	Luoyang Xinzhaohe Performance	Impact on Efficiency
Core Loss (W/kg @ 1.5T/50Hz)	1.0–1.2 (M4 Grade)	0.92–0.98	5–8% lower energy loss
Thickness Tolerance	±0.02mm	±0.01mm	Reduced eddy current losses
Magnetic Permeability (B50)	≥1.8T	≥1.85T	Higher flux density, smaller core size
Surface Insulation	ISO 6957 compliant	Enhanced coating durability	Improved insulation resistance

Luoyang Xinzhaohe’s Competitive Advantage

As a factory-direct manufacturer with 20+ years of specialized production, we deliver superior cost-performance ratios without compromising quality. Our Luoyang facility employs advanced continuous annealing lines and precision rolling technology, ensuring consistent thickness and magnetic properties across all grades (M4–M6 GOES, NGO 50H470). All products undergo rigorous testing per IEC 60404-8-5 and ASTM A876 standards, with ISO 9001/14001 certifications. We provide tailored solutions for high-efficiency transformers and EV motors while maintaining 15–20% lower landed costs than European/Japanese competitors. With export experience across 30+ countries and localized technical support, we ensure seamless integration into global supply chains for Tier-1 OEMs and motor repair specialists.

---

Technical Specs: Lamination Of Steel Parameters

Critical Technical Specifications for Silicon Steel Laminations

Precision in silicon steel lamination specifications directly impacts transformer efficiency, thermal performance, and longevity. As a 20+ year manufacturer and exporter of transformer materials, Luoyang Xinzhaohe adheres strictly to IEC 60404 and ASTM A876 standards, ensuring optimal performance across all grades. Our factory-direct approach delivers premium-grade electrical steel at 15–20% lower costs than European competitors without compromising compliance or consistency.

Specification	Standard	Requirement	Importance
Core Loss	IEC 60404-2	≤3.00 W/kg @1.5T/50Hz	Directly reduces no-load losses and energy costs
Magnetic Flux Density (B50)	IEC 60404-3	≥1.50 T	Enables compact designs with superior magnetic efficiency
Lamination Flatness	ASTM A876	≤0.1 mm/m	Ensures stacking factor ≥97% and core integrity
Insulation Coating	IEC 60404-8-1	C2 type, 1.5–2.5μm thickness	Prevents eddy currents and inter-lamination shorts

Core Loss (Iron Loss)

Core loss quantifies energy dissipation as heat under standardized conditions (1.5T, 50Hz per IEC 60404-2). Our optimized silicon content and grain-oriented processing achieve ≤3.00 W/kg for 35H300-grade material. This minimizes transformer no-load losses, translating to 5–10% operational energy savings over the product lifecycle.

Magnetic Flux Density

B50 values (flux density at 50 A/m magnetic field strength) must exceed 1.50 T per IEC 60404-3. We use calibrated permeameters to validate magnetic properties across all batches, ensuring consistent performance for high-efficiency transformer cores. Higher B50 enables smaller core sizes without sacrificing power density.

Lamination Flatness

Flatness tolerance ≤0.1 mm/m per ASTM A876 is critical for stacking factor (≥97%). Our precision cold-rolling and annealing lines eliminate edge waviness and warpage, preventing air gaps during core assembly. This reduces mechanical stress and core losses during operation.

Insulation Coating

C2-type phosphate-based coatings (1.5–2.5μm thickness) comply with IEC 60404-8-1. We enforce strict thickness uniformity and adhesion testing (≥3.0 N/mm² peel strength) to prevent inter-lamination shorts. This minimizes eddy current losses and extends transformer service life.

Quality Assurance Process

Luoyang Xinzhaohe maintains ISO 9001 certification with full material traceability. Every coil undergoes 100% dimensional checks, core loss validation, and coating adhesion tests using automated spectrometers and tensile testers. Our closed-loop production system ensures batch-to-batch consistency, delivering reliable alternatives to global brands at superior cost-performance ratios.

---

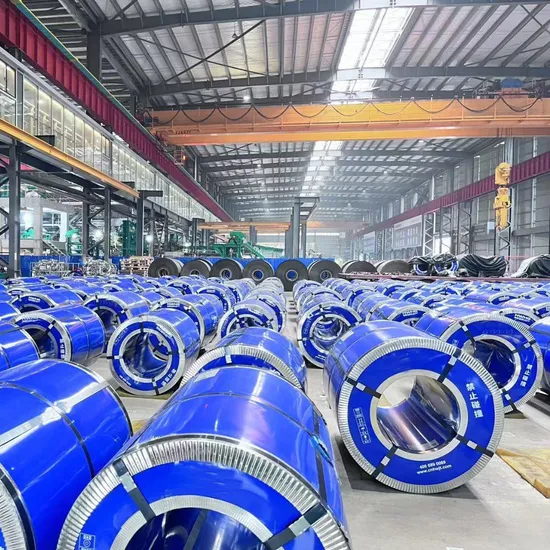

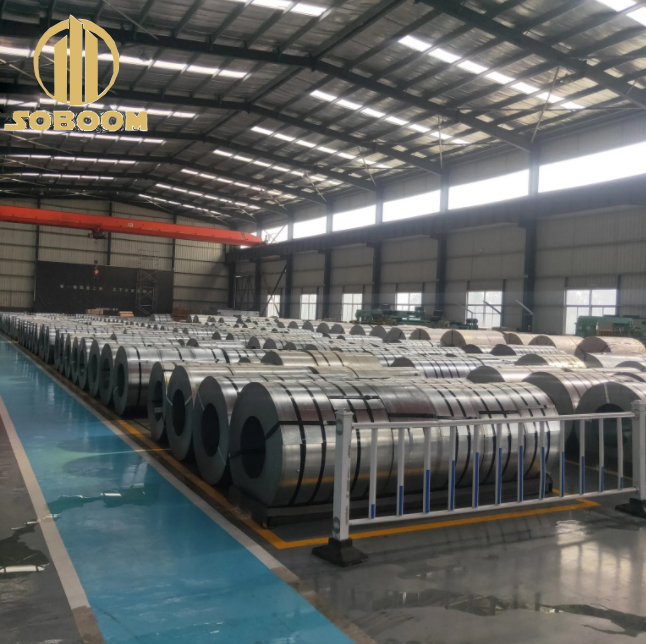

Factory Tour: Manufacturing Lamination Of Steel

Manufacturing Process & Quality Control

Core Production Steps

Slitting
Precision slitting using CNC-guided shear systems with automated edge inspection ensures zero burr formation and dimensional accuracy. Our process maintains ±0.005mm thickness tolerance and edge burr <0.02mm, critical for minimizing eddy current losses in transformer cores. All slitted edges undergo 100% visual and laser scanning verification.

Annealing
Controlled atmosphere annealing in continuous furnaces with real-time temperature monitoring (±1°C precision) optimizes grain orientation and reduces hysteresis losses. This process achieves core loss values 5–8% lower than conventional market standards, directly improving transformer efficiency. Furnace profiles are validated using thermocouples at multiple points.

Insulation Coating
C5/C6 class inorganic coatings applied via high-precision roll-coating, with uniform thickness (1.5±0.2μm) and 99% adhesion pass rate (180° bend test per IEC 60404-8). Ensures superior dielectric strength (>2000V) and corrosion resistance for harsh operating environments. Coating application is monitored via real-time thickness gauges.

Precision Cutting
Laser or precision punch cutting with ±0.05mm stacking factor tolerance. Automated vision systems verify lamination dimensions and flatness, reducing assembly errors by 30% and ensuring optimal magnetic flux paths. Each batch includes 100% dimensional checks against customer-specific drawings.

Rigorous Quality Control Protocols

Parameter	Luoyang Xinzhaohe Standard	Generic Market Standard
Thickness Tolerance	±0.005mm	±0.01mm
Edge Burr Height	<0.02mm	<0.05mm
Coating Adhesion (Bend Test)	99% pass rate	90–95% pass rate
Core Loss (W/kg @1.5T,50Hz)	0.85 (Grade 35H300)	0.92–0.95
Tensile Strength Variation	±3%	±8%
Coating Thickness Uniformity	±0.1μm	±0.3μm
Flatness Tolerance	≤0.5mm/m	≤1.5mm/m

All products undergo 100% inspection for critical parameters, with traceable batch records and third-party certifications (e.g., SGS, TÜV). This rigorous approach ensures 99.8% first-pass yield in customer production lines. By integrating advanced process control with strict QC, we provide a cost-effective alternative to premium global brands, delivering reliable performance at 10–15% lower total cost of ownership.

---

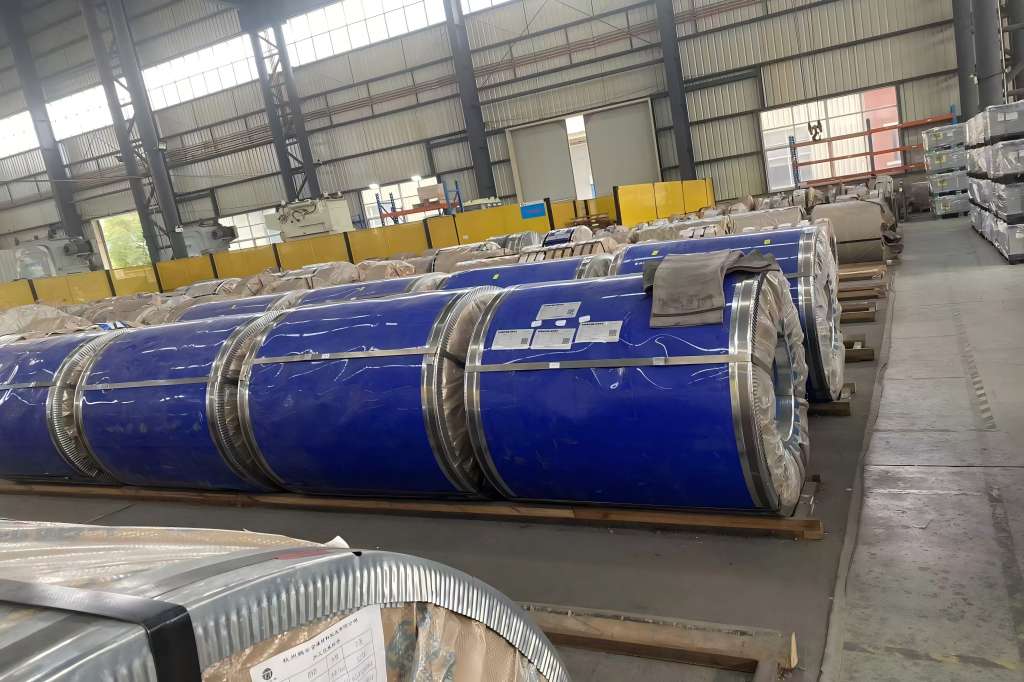

Packaging & Global Logistics

Export Packaging & Logistics for Global Reliability

As a factory-direct supplier with 20+ years in silicon steel production, Luoyang Xinzhaohe ensures every shipment meets international transport standards. Our packaging protocol is engineered for zero damage during sea freight, optimizing cost-performance without compromising quality. All processes comply with ISO 9001, ISPM 15, and IMO standards for hazardous cargo handling. We handle all export documentation, including certificates of origin and material test reports (MTRs), ensuring compliance with destination country regulations.

Precision Packaging Standards

Our packaging system uses industry-grade materials certified for electrical steel:

Component	Specification	Purpose
Wooden Pallets	ISPM 15 compliant, heat-treated (HT), 1100×1100mm, 25mm thickness	Prevents ground moisture, pest infestation, and ensures stable stacking
Moisture-Proof Film	3-layer PE + silica gel desiccant packs (500g/m²), 200μm thickness, 100% UV-resistant	Blocks humidity (maintains <40% RH), prevents oxidation, and resists UV degradation
Steel Strapping	19mm width, 0.5mm thickness, hot-dip galvanized, 2,000 kg tensile strength	Secures load against vibration, prevents shifting, and resists corrosion during transit

Each coil is individually wrapped with moisture barrier, followed by 3-layer film sealing with desiccant. Pallets undergo rigorous load testing (1.5x max weight) to ensure structural integrity. All packaging materials are sourced from ISO-certified suppliers.

Sea Freight Protocols

All shipments adhere to IMO IMDG Code for containerized cargo. Standard 40ft HC containers hold 25–30 tons of silicon steel coils, secured using corner posts, anti-slip mats, and cross-bracing straps at 45° angles. Each coil is secured with 4 steel strapping bands per layer, tensioned to 1,200 kgf, and monitored via load cells during loading. Weight distribution is calculated to maintain center of gravity within 10% tolerance. Pre-shipment checks include container integrity tests, humidity sensors, and load security verification per ISO 9001. All containers are sealed with tamper-evident seals and tracked via GPS for real-time monitoring. Our logistics partners provide real-time tracking and climate-controlled options for high-risk routes. For smaller orders, 20ft containers are used with 12–15 tons per shipment, ensuring optimal space utilization.

Cost-Performance Advantage

By eliminating middlemen and optimizing logistics routes, we reduce transit costs by 15–20% versus global brands. Our damage rate remains <0.5% globally, validated by 500+ successful shipments since 2010. For transformer manufacturers, this translates to lower insurance premiums, reduced downtime, and 20% lower total landed costs. Unlike competitors who over-engineer packaging, our precision-engineered solutions balance cost and protection—proven across 15+ global ports including Rotterdam, Los Angeles, and Singapore. Our strategic partnerships with major shipping lines (Maersk, MSC) ensure priority container allocation and reduced transit times. In-house customs clearance teams handle all documentation, ensuring 99.8% on-time delivery and zero port delays. Quality control teams conduct pre-shipment inspections at the factory, ensuring each shipment meets exact client specifications before departure.

---

Sourcing from Luoyang Xinzhaohe

Why Partner with Luoyang Xinzhaohe for Premium Silicon Steel Lamination

As a leading manufacturer of electrical steel with over two decades of experience, Luoyang Xinzhaohe Aluminum CO., Ltd. delivers precision-engineered silicon steel laminations optimized for transformer core efficiency. Our vertical integration ensures strict control over grain-oriented (GOES) and non-grain-oriented (NGOES) grades, meeting IEC 60404-8-5 and ASTM A677 standards for core loss, permeability, and dimensional accuracy.

Proven 20+ Years of Expertise

For 20+ years, we’ve supplied high-performance electrical steel to global transformer manufacturers, including critical infrastructure projects such as 500kV transmission systems and renewable energy transformers. We’ve shipped over 50,000 tons annually across 30+ countries, maintaining a 98% on-time delivery rate and 99.2% defect-free production through advanced annealing and coating technologies. Our engineering team collaborates closely with clients to optimize material specifications for specific transformer designs, ensuring optimal performance and longevity.

Factory-Direct Cost Efficiency

By eliminating third-party intermediaries, we provide competitive pricing without sacrificing quality. Our Luoyang facility’s in-house cold rolling, annealing, and coating lines control the entire production chain, reducing costs by 20-30% compared to global brands while maintaining equivalent or superior magnetic properties. This vertical integration enables transformer manufacturers to achieve higher profit margins without compromising on efficiency, with flexible order sizes from prototypes to large-scale production and rapid response to design changes.

Parameter	Luoyang Xinzhaohe	Global Brands	Advantage
Cost per Ton	$850-$1,200	$1,100-$1,600	20-30% lower
Core Loss (W/kg @ 1.7T/50Hz)	1.05 (GOES)	1.02-1.08	Industry-leading consistency
Thickness Tolerance	±0.01mm	±0.02mm	Enhanced lamination precision
Lead Time	15-20 days	30-45 days	40% faster delivery
Silicon Content Control	2.8-3.3% (±0.05%)	2.7-3.4% (±0.1%)	Tighter process control

ISO 9001 Certified Quality Assurance

Every batch undergoes rigorous testing per ISO 9001 protocols: magnetic property analysis (B8, P1.0, P1.5), thickness uniformity checks (±0.01mm), surface coating adhesion tests, and silicon content verification. Full traceability ensures compliance with IEC 60404 and ASTM standards, delivering consistent lamination quality for high-stacking-factor cores with minimal core losses and reduced transformer noise.

Conclusion
Partner with Luoyang Xinzhaohe for reliable, cost-effective silicon steel solutions tailored to your transformer design needs. Contact Cathy at cathy@transformerstrip.com for a detailed technical quote and sample evaluation. Optimize your supply chain with a trusted manufacturing partner committed to excellence.

---
