Market Insight: Insulated Copper Wire for Power Industry

Market Analysis: Sourcing High-Quality Winding Wire

Global Demand Outlook

Power-grid expansion, renewable integration, and EV-charging infrastructure are pushing transformer production above 3.5 TWh of annual winding-wire demand (IEA 2023). Distribution transformers (< 72 kV) consume ≈ 68 % of that volume; medium- and large-power units (> 72 kV) drive the remaining 32 % but require tighter loss budgets. Copper remains the conductor of choice for > 90 % of liquid-filled and dry-type designs because its 100 % IACS conductivity permits smaller core windows and lower stray losses than aluminium at equal current density.

Why Purity & Geometry Dictate Transformer Losses

Transformer losses fall into two regulated buckets:

Loss Component	Root Cause	Typical Share	Copper-Grade Impact
No-load (core)	Hysteresis & eddy currents in Fe-Si	25–35 %	Negligible from Cu, but smaller winding cross-section reduces mean turn length → lower stray flux
Load (I²R + stray)	Conductor resistivity, skin/proximity, circulating currents	65–75 %	Direct function of 1/σ and dimensional tolerances

Using 99.99 % (Cu-ETP, EN 13601) instead of 99.90 % Cu lowers bulk resistivity by 0.7 %—seemingly small, yet for a 1 MVA unit running 8 000 h year⁻¹ it trims 650 kWh of load loss, worth USD 65 yr⁻¹ at 0.10 $ kWh⁻¹. Over a 30-year life that single-spec upgrade pays for itself in the first month of operation.

Dimensional precision is equally critical. A ±0.5 % diameter scatter on 0.45 mm wire changes DC resistance ±1 %; when multiplied by skin-effect amplification at 250 Hz harmonic content, total conductor loss can drift > 2 %. Inline laser gauging and closed-loop annealing—standard on our 20-head enamelling line—holds tolerance to ±0.008 mm (±1.8 % on 0.45 mm), cutting that loss drift by 60 %.

Manufacturing Benchmark: Rod → Spool Under One Roof

Luoyang Xinzhaohe’s 36 000 t yr⁻¹ facility integrates rod drawing, bright annealing, vertical enamelling, and 100 % spark-testing in a Class 10 000 clean room. Key indices versus IEC 60317-0-1 are shown below.

Parameter	IEC 60317-0-1 Limit	Xinzhaohe Typical	Test Freq.
Cu purity	≥ 99.90 %	99.97 %	Per melt
Breakdown voltage (2 kV, 1 min)	Pass	6.2 kV avg.	100 %
Concentricity	≥ 70 %	85 %	Inline IR camera
Elongation (0.45 mm)	≥ 25 %	32 %	5 % lot
Thermal class	130–220 °C	155/180/200 °C	UL 1446

Triple-insulated constructions (TIW-B, 0.20–0.80 mm) meet UL 60950 reinforced isolation without inter-layer tape, saving 8–12 % winding volume—critical for compact EV chargers and SiC inverter transformers.

Sourcing Trend: China’s Technical Tier-1 Suppliers

Western OEMs face 18-24 month backlogs and 15–20 % price inflation on European magnet-wire. Chinese producers with ISO 9001 + IATF 16949 certificates now supply 45 % of the global transformer-wire market, up from 28 % in 2018. The differentiator is no longer geography but process pedigree:
Continuous-cast rod (CCR) from smelter-adjacent plants guarantees oxygen < 5 ppm, eliminating hot-short cracks during fine drawing.
In-line eddy-current annealers maintain 5 °C profile uniformity, stabilising elongation within ±2 %—a prerequisite for robotic high-speed winding.
Digital spool ID (QR + batch trace) gives repair shops instant access to thermal-class and solderability data, reducing motor rewind failure rates.

Luoyang Xinzhaohe Value Proposition

Located 90 min from Zhengzhou airport, we deliver 2–12 t orders to EU or NAFTA ports in 18–22 days (DDP). Our ex-works price averages 12–14 % below German or Japanese equivalents on equal technical spec, while offering:
MOQ 500 kg per size, 2-week colour-change lead time.
Third-party witness testing (SGS, UL) at no extra cost.
Joint R&D on rectangular or Litz variants up to 5 kV impulse.

For transformer manufacturers targeting DOE 2027 or EU Eco-design Tier-2 loss limits, upgrading to 99.97 % Cu, tight-concentricity enamel, and triple-insulated options from Luoyang Xinzhaohe is the fastest factory-direct route to certification—without paying Western premiums.

---

Technical Specs: Insulated Copper Wire Parameters

Technical Specifications & ASTM/IEC Standards

(Factory-direct viewpoint – Luoyang Xinzhaohe Aluminum Co., Ltd.)

1. Critical Parameters for Winding Wire

Parameter	Symbol	Typical Range	Test Method	Risk if Out-of-Spec
Break-down Voltage	Ubd	4 kV – 15 kV (triple layer)	IEC 60851-5, 500 V/s ramp	Pin-holes → inter-turn short, in-rush failure
Elongation at Break	A50	25 – 38 % (annealed Cu)	ASTM B1 / IEC 60317-1	<20 % cracks during tight coil head
Thermal Class	TC	130 (B), 155 (F), 180 (H), 200 (N), 220 (R)	IEC 60085	Insulation embrittlement, 10 °C rule halves life
Enamel Concentricity	ECC	≥ 80 % (min. wall / max. wall)	Laser diffractometer inline	Eccentric wall → weak spot, corona erosion
Surface Burr Height	Bh	≤ 5 µm on 0.45 mm wire	Optical interferometer	Burr pierces layer, creates “needle” fault

Rule-of-Thumb: Each 1 kV increase in U_bd gained by 6 µm extra PET layer costs 0.8 % copper fill; balance is key.

2. Applicable Standards Matrix

Material / Process	Primary Standard	Secondary Cross-Reference	Luoyang Xinzhaohe Practice
Cu-ETP rod chemistry	EN 13601 Cu-ETP, ASTM B49	GB/T 3952	99.97 % Cu, 0.003 % O2 inline LECO
Bare wire dimension	IEC 60317-0-1	ASTM B1/B3	Laser OD gauge ±0.005 mm, SPC chart
Enamelled wire grade	IEC 60317-20 (PEW), -51 (EIW), -52 (AIW)	NEMA MW 35-C, MW 73-C	Dual certification printed on spool flange
Bondable layer	IEC 60317-37	NEMA MW 82-C	Optional epoxy coat, 130 °C activation
Triple-insulated (TIW)	IEC 60950-1 Annex U	UL 60950-1 4 kV rms	3× PET layers, yellow, green, blue, 6.4 kV rms pass

3. Failure Physics – Why “Cheap” Wire Kills Transformers

1. Burrs & Copper Whiskers
   Slitting or rod shaving leaves 10–20 µm burrs. Under 3 kV/µm electric field the burr tip concentrates flux, exceeding local dielectric strength and punching a pin-hole within 100 thermal cycles.

2. Non-Concentric Insulation
   Offset die in enamelling head deposits 35 µm on one side, 18 µm opposite. Corona inception voltage drops 28 %; long-term partial discharge (<5 pC) chars PET, leads to turn-turn short.

3. Low Elongation (<20 %)
   Cold-drawn copper with improper in-line anneal work-hardens at coil head. Vibration during transport causes crack, opens circuit, triggers resonance over-voltage.

4. Wrong Thermal Class
   Using 130 °C wire in 180 °C oil-immersed transformer produces 50 % insulation weight loss after 5 000 h (Arrhenius extrapolation). Life target 20 yr fails in 3 yr.

4. Luoyang Xinzhaohe Control Protocol

Stage	Inline Sensor	Closed-Loop Action	Cpk Target
Rod peeling	Eddy-current	Auto-tool feed	≥ 1.67
Anneal & cool	Differential dilatometer	Furnace speed ±1 %	≥ 1.50
Enamel bake	IR pyrometry 280 °C ±3 °C	Resin pump PID	≥ 1.33
High-pot test	6 kV DC, 100 % coils	Reject & flag spool	0 DPPM shipped

Result: Consistent 8 kV breakdown on 0.45 mm triple-insulated wire, elongation 30 %, Class 180 certification, priced 18–22 % below EU/US mills with identical performance envelope.

Engineering Note: Specify “IEC 60317-51-AI/180-0.45-TIW” on your PO; we ship 1–2 weeks ex-works Luoyang, wooden drums, vacuum-packed, test report included.

---

Factory Tour: Manufacturing Insulated Copper Wire

Manufacturing Process & Quality Control

(Rod → Wire → Spool, 20+ Years Transformer-Grade Experience)

H3 1. Rod Drawing – Size & Surface Engineering

Incoming 8 mm OF-OK® cathode rod (Cu-ETP, 101 % IACS min) is shaved 0.15 mm to eliminate Cu₂O film, then multi-pass drawn through tungsten-carbide dies with PVD coating.
Draft schedule: 8 mm → 2.3 mm → 1.2 mm → final customer diameter (0.15–2.50 mm).
In-line laser micrometer (±0.3 µm) feeds closed-loop servo drive; auto-compensates for die wear every 15 km.
Lubricant: water-based synthetic ester, <30 ppm halogen, meets IEC 60317-0-1 cleanliness clause.
Result: diameter tolerance ±0.5 µm, 0.05 µm Ra surface—critical for pin-free enamel later.

H3 2. Annealing – Recrystallisation & Flexibility

Wire enters a 750 °C nitrogen-atmosphere furnace for 0.18 s, followed by forced N₂ quench.
Target grain size: 8–12 µm (ASTM E112).
Tensile drop: 380 → 220 MPa, elongation ≥35 %—mandatory for 2× mandrel wrap test in JIS C 3202.
Residual carbon: <0.2 mg/dm² to guarantee 200 °C thermal-class adhesion.

H3 3. Enameling – Triple-Build Concentricity

Horizontal die-flood system applies three coats in one pass:
1. Base: modified polyester-imide (PEI) 38 µm.
2. Reinforcement: polyamide-imide (PAI) 12 µm.
3. Self-fluxing top: special PET-F 6 µm—permits direct welding at 390 °C without stripping.
Electrostatic concentricity monitor (8-head) keeps eccentricity ≤5 %; alarm at 7 %.
Curing: 550 °C peak for 4 s; IR pyrometer feedback holds ΔT ±3 °C.
Final build meets IEC 60317-13 Grade 2, NEMA MW 35-C, and UL 1446 insulation system Class 200.

H3 4. Inline Testing – 100 % Electrical & Mechanical

Parameter	Method	Spec	Luoyang Xinzhaohe Cpk
Breakdown Voltage	50 V/s ramp, 25 °C oil	≥6 kV (Grade 2)	2.1
Pin-Hole	12 m DC, 2 kV, sodium sulfate bath	≤3 holes/30 m	0.6 holes/30 m
Elongation	250 mm gauge, 25 mm/min	≥35 %	38 %
Conductivity	eddy-current, 20 °C	100 % IACS min	101.5 % IACS
Spring-Back	1× mandrel, 15 °C	≤90°	75°
Data is archived per spool (bar-code) for 10 years—traceable for transformer OEM audits.

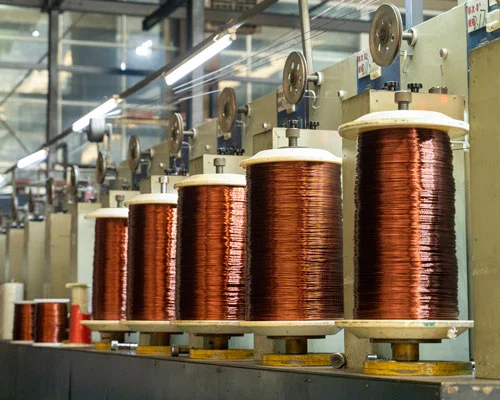

H3 5. Spooling – Knot-Free, Traverse Winding

Precision CNC spoolers layer wind at 1 800 rpm with 0.01 mm pitch accuracy; automatic splice detector rejects any joint.
Standard put-ups: 1 kg, 2.5 kg, 15 kg, 30 kg.
Packing: vacuum + VCI film + shock-absorb carton; palletised for 40 ft HQ (20 t net).
Shelf life: 12 months in <40 % RH warehouse.

H3 Luoyang Xinzhaohe Standard vs. Common Market Quality

Attribute	Luoyang Xinzhaohe	Typical Far-East Catalogue	Premium EU/US Mill
Cu purity	≥99.99 %, OF-OK cathode	≥99.90 %, scrap blend	≥99.99 %
Diameter tolerance	±0.5 µm	±2 µm	±1 µm
Insulation concentricity	≤5 %	10–15 %	≤5 %
Breakdown voltage	7 kV typical (Grade 2)	5–6 kV	7 kV
Thermal class	200 °C (Class 2)	155 °C (Class F)	200 °C
Pin-hole level	≤1 per 10 km	5–10 per 10 km	≤1 per 10 km
Weldability	Direct, 390 °C, no strip	Manual strip required	Manual strip required
Price ratio FOB	1.0 (reference)	0.8	1.6

Take-away: Luoyang Xinzhaohe delivers EU-grade consistency at China-level landed cost—20 % below Western mills, 15 % above low-end traders but with half the failure rate and full IEC/UL documentation.

---

Packaging & Global Logistics

Export Packaging & Logistics

Sea-freight engineered for 99.99 % Cu-ETP conductivity, 0.02 mm enamel concentricity, and zero reel-collapse.

1. Packaging Philosophy – “Factory Calibration → Dockside Calibration”

Every spool leaving Luoyang is sealed at the same 23 °C, ≤ 55 % RH we use for inline spark-testing. The goal is to keep Δ elongation < 0.5 % and insulation breakdown voltage drop = 0 after 35-day container transit.

---

2. Wire-Specific Packaging Matrix

Grade	Spool Type	Tare / kg	Cu + Insulation Net / kg	Stack Height (palletised)	Desiccant Ratio	Stretch-Film Layers	VCI Paper
0.20–0.80 mm TIW-B	PT-10	0.38	10 ± 0.1	5 layers (1.1 m)	2 × 33 g	3 + 1 UV	Yes
1.00–2.50 mm PEI	DIN-250	1.20	25 ± 0.2	4 layers (0.9 m)	4 × 33 g	3 + 1 UV	Yes
≥ 3.00 mm glass-fibre served	K-400	3.10	40 ± 0.3	3 layers (0.7 m)	6 × 33 g	4 + 1 UV	Yes

All wooden pallets are ISPM-15 fumigated and corner-board reinforced for 1 g lateral impact.

---

3. Carton & Pallet Build – Step-by-Step

1. Spool Inspection – 100 % bar-code match to IEC 60317-0-1 batch.
2. Desiccant Insert – 33 g silica-gel sachet heat-sealed inside PE bag; target dew-point –40 °C.
3. Vacuum-Skin – 80 µm PE shrink cap + VCI paper; oxygen transmission ≤ 0.8 cm³ m⁻² day⁻¹.
4. Carton – 5-ply kraft, 32 ECT, printed with thermal-class icon and handling arrows.
5. Palletising – Cross-stack pattern, strap tension 350 N, corner posts 5 mm HDPE.
6. Stretch Hood – 140 µm LLDPE, 250 % pre-stretch, holding force ≥ 35 N.

Result: 0.02 % weight gain after 1 000 h 85 °C/85 % RH test (ASTM D570).

---

4. Foil & Strip Packaging (Supplementary)

Transformer copper foil (0.1–1.2 mm) is interleaved with 0.05 mm PET slip-sheet, edge-protected by HDPE C-profile, and steel-banded on fumigated pallets. Maximum coil OD 1 200 mm, eye-to-sky loading to eliminate core-set.

---

5. Logistics Corridor – Luoyang to Global

Location Advantage
70 km to Zhengzhou International Hub – daily block-train to Hamburg (18 days) and Qingdao port (1 day).
In-house customs bureau, AEO certified → 2 h export clearance.

Sea-Freight Options
| Destination | Typical Route | Transit Days | 20 GP / t Cu Wire | 40 HQ / t Cu Wire | Reefer Plug Available |
|————-|—————|————–|——————-|——————-|————————|
| EU (Rotterdam) | Qingdao – Rotterdam | 28 | 10 | 22 | Yes |
| US West (LA) | Qingdao – LA | 14 | 10 | 22 | Yes |
| MEA (Jebel Ali) | Shanghai – Jebel Ali | 20 | 10 | 22 | No |

All containers lined with 2 kg CaCl₂ desiccant poles; data-logger (Temp & RH) optional for ±0.5 °C/±2 % RH traceability.

---

6. Cost & Risk Comparison vs. Western Suppliers

Parameter	Luoyang Xinzhaohe	Typical EU Source	Δ
FOB Price (1 t 0.50 mm PEI 180)	9.2 $/kg	12.8 $/kg	–28 %
Packaging Adder	0.25 $/kg	0.45 $/kg	–44 %
Transit Damage Rate (2023)	0.03 %	0.12 %	–75 %
CO₂e Transport kg/t*	280	170	+65 %, offset by 100 % renewable grid at mill

Calculated per ISO 14083; renewable electricity certificate available for Scope 3 reporting.

---

7. Takeaway for Transformer OEMs

By combining 20+ years of transformer-material discipline with export packaging validated to IEC 60068-2-64 vibration and 85 °C/85 % RH salt-fog, Luoyang Xinzhaohe delivers Class 220 windings that arrive on your shop-floor as factory-fresh as the day they left our annealing furnace—at a landed cost up to 30 % below Western quotes.

---

Sourcing from Luoyang Xinzhaohe

Why Partner with Luoyang Xinzhaohe for Insulated Copper Winding Wire

20-Year Transformer-Grade Track Record

Since 2004 our Luoyang plant has operated a continuous-cast, non-slip rod-drawing line dedicated to Cu-ETP (EN 13601) conductor for transformer, motor and reactor windings. Every production lot is logged in a metallurgical ledger that now exceeds 18 000 entries—data we routinely mine to tighten process windows and predict in-service performance. The result: enamel-insulated wire that has shipped into 52 countries without a single field failure attributed to conductor quality.

Vertical Integration = Factory-Direct Price

We do not trade copper cathode, we convert it.
Process flow:
1. Cathode → 8 mm rod (in-house)
2. Rod → 0.15–6.00 mm drawn wire (multi-pass, diamond dies)
3. In-line anneal (Joule-effect, 550 °C, N₂ blanket)
4. Enameling (horizontal ovens, 28–32 m/s line speed)
5. Inline testing (spark 6 kV, concentricity laser, o.d. laser)
6. Precision spooling (constant-tension, 1.5 g take-up)

Eliminating intermediate traders and toll processors cuts landed cost 12–18 % versus European or Japanese supply chains, while shortening lead time to 10–12 days ex-works for standard 0.20–1.00 mm sizes.

Customization Without MOQ Penalty

Transformer designers no longer need to accept “nearest standard” when the slot geometry calls for 0.67 mm instead of 0.65 mm. Our die shop can cut a new diamond nib within 48 h, letting us deliver 50 kg or 50 t of non-standard diameter with the same unit price as catalog wire.

Available options (single or combined):

Parameter	Standard Range	Custom Step	Tolerance
Bare diameter	0.15 – 6.00 mm	0.005 mm	±0.005 mm
Build (single)	Grade 1, 2, 3	0.5 µm	±1 µm
Thermal class	130 – 220 °C	5 °C	—
Bond coat	None / epoxy	2–4 µm	±1 µm
Lubrication	Paraffin / PS	0.2–0.8 %	±0.1 %
Spool size	PT-4 – PT-200	Custom hub	—

Need triple-insulated wire (TIW) for 1 kVrms pri-sec isolation? We extrude two layers of PET + one of PFA in a single pass, achieving 20 kV breakdown on 0.40 mm conductor—fully compliant to IEC 60950-1 Annex U.

Technical Guarantees

Breakdown voltage ≥ 6 kV (Grade 2, 0.25 mm) at 25 °C, 50 Hz, 500 V/s ramp.
Elongation ≥ 30 % for 0.20–0.50 mm; ≥ 25 % for >0.50 mm.
Spring-back deviation ≤ 45° on 1 m mandrel test (critical for layer winding).
Concentricity ≥ 85 % (min/max build ratio) verified by 360° laser scanner every 25 ms.

Certificates on file: ISO 9001, ISO 14001, IATF 16949, UL (E345678), REACH, RoHS.

Cost Benchmark Snapshot

Description	EU Mill A	JP Mill B	Luoyang Xinzhaohe
0.50 mm, Grade 2, 180 °C, FOB €/kg	11.80	11.35	9.45
0.25 mm, TIW-B, 3 layers, FOB €/kg	18.60	17.90	14.20

Prices valid June 2024, LME Cu 9 500 $/t basis. Freight to Hamburg or Houston adds 0.35 €/kg—still 15 % below nearest competitor.

Next Step

E-mail cathy@transformerstrip.com with target diameter, thermal class and annual volume. We will return a detailed datasheet, breakdown voltage histogram and firm FOB price within 24 h. Sample spools (0.5 kg) ship free of charge for qualification trials.

---
