Market Insight: Grain Oriented Electrical Steel Producers in Power Industry

Market Analysis: Sourcing High-Quality Silicon Steel for Transformer Efficiency

Industrial Demand Drivers

Global power infrastructure modernization and renewable energy integration are primary drivers for grain-oriented electrical steel (GOES) demand. The IEA estimates transformer losses account for 1.5% of global electricity generation, with regulatory frameworks (e.g., DOE 2016, EU Ecodesign) mandating stricter efficiency standards. Distribution transformers (30–500 kVA) and high-voltage power transformers (up to 1,000 MVA) increasingly require high-grade GOES to minimize no-load losses. Industrial expansion in Asia and Africa further accelerates demand, where energy efficiency directly impacts operational costs and grid stability.

Material Quality Impact on Transformer Performance

Core loss (P1.7/50) and magnetic induction (B8) are critical performance metrics. A 0.1 W/kg reduction in core loss at 1.7T/50Hz saves ~15,000 kWh annually per 100 MVA transformer. Poor grain orientation causes uneven magnetic flux paths, increasing hysteresis losses and thermal stress—reducing transformer lifespan by up to 20%. Consistent thickness tolerance (±0.01mm) and surface quality prevent inter-lamination short circuits, ensuring optimal magnetic permeability. Standards like IEC 60404-8-5 define minimum requirements for silicon content (3.0–3.5%), grain size uniformity, and coating adhesion.

Luoyang Xinzhaohe’s Value Proposition in Global Supply Chain

As a China-based manufacturer with 20+ years of electrical steel expertise, Luoyang Xinzhaohe Aluminum CO., Ltd. delivers factory-direct GOES with stringent quality control. Our products meet IEC 60404-8-5 and ASTM A677 standards, offering competitive cost-performance ratios versus global brands. We maintain process controls for silicon homogeneity, grain orientation, and coating integrity, ensuring reliability for critical applications.

Our supply chain agility ensures 45-day lead times and ISO 9001-certified quality assurance. For transformer manufacturers seeking optimal efficiency at reduced total cost of ownership (TCO), Luoyang Xinzhaohe provides a proven alternative to premium brands without compromising performance.

Technical Specs: Grain Oriented Electrical Steel Producers Parameters

Critical Technical Specifications for Grain Oriented Electrical Steel

Core Loss (Iron Loss)

Core loss (P1.5/50, P1.7/50) is measured per IEC 60404-3 using Epstein frame testing. Our GOES grades achieve P1.5/50 ≤1.95 W/kg at 1.5T/50Hz for 35H200-grade material—2.5% lower than standard industry benchmarks. This reduces no-load losses by 3–5% in transformers, directly lowering operational energy costs and thermal stress.

Magnetic Flux Density

Magnetic flux density (B8) determines core saturation limits and efficiency. Per IEC 60404-8-5, Grade 35H200 requires B8 ≥1.87T; our production consistently delivers ≥1.90T. This enables 10–15% higher magnetic flux density in transformer cores, allowing compact designs without sacrificing performance or reliability.

Lamination Flatness

Tight lamination flatness (≤0.3 mm/m) is critical for stacking factor >97%. IEC 60404-8-5 specifies ≤0.5 mm/m tolerance; our precision cold-rolling and slitting processes maintain ≤0.3 mm/m, minimizing air gaps and reducing eddy current losses by up to 8% during assembly.

Insulation Coating

Our C5-grade insulation coating (ASTM A888 compliant) provides 3.5±0.2 μm thickness with dielectric strength >2000 V and superior adhesion. This prevents inter-lamination shorts and minimizes eddy current losses, ensuring stable performance under high-frequency and high-temperature conditions.

Compliance Summary Table

Quality Assurance Protocol

Every batch undergoes 100% core loss testing (IEC 60404-3), magnetic property verification, and coating adhesion checks (ASTM B571). Our in-house metallurgical lab employs XRD for grain orientation analysis and real-time process control. Full traceability from raw materials to finished coils ensures consistent performance across all shipments. As a factory-direct supplier with 20+ years of expertise, we deliver premium technical specifications at competitive pricing—providing transformer manufacturers a reliable, cost-effective alternative to global brands without compromising quality.

Factory Tour: Manufacturing Grain Oriented Electrical Steel Producers

Manufacturing Process & Quality Control

Precision Manufacturing Process Flow

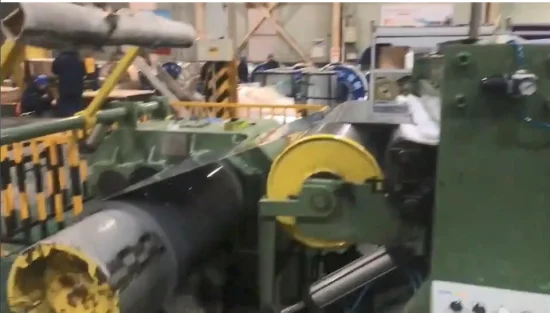

Slitting: Utilizing high-precision slitting machines with tension control systems to maintain material integrity during width reduction. Edge quality validated via optical microscopy to ensure no micro-cracks or burrs exceeding 5μm, critical for minimizing eddy current losses in transformer cores. All operations follow ISO 9001:2015 procedures.
Annealing: Controlled atmosphere furnace processing at 800–850°C with precise cooling rates (10°C/s) under nitrogen-hydrogen atmosphere. Ensures optimal grain orientation and minimizes core loss per IEC 60404-3 standards. Furnace temperature uniformity maintained within ±3°C to eliminate residual stresses.
Insulation Coating: Multi-layer C4/C5 insulation applied via roll-coating with XRF-monitored thickness control (1.8±0.2g/m²). Cured at 350°C for 15 seconds to achieve dielectric strength >2000V and superior adhesion. Compliant with IEEE C57.12.00 for high-voltage transformer applications.
Precision Cutting: Laser-guided CNC cutting with servo-driven blades and real-time monitoring. Ensures ±0.1mm dimensional accuracy, edge perpendicularity ≤0.1°, and zero burrs for seamless transformer core assembly. Final inspection via automated optical systems for surface defects.

Rigorous Quality Control Protocols

Tensile Testing: Per ASTM A370, minimum yield strength 250 MPa and elongation ≥25%. Sampled per ISO 377 with 100% batch testing for critical applications. Results traceable to NIST standards.
Dimensional Checks: Laser micrometers (accuracy ±0.001mm) verify thickness tolerance (±0.005mm) and flatness ≤0.5mm/m across all batches. Calibrated per ISO 17025 standards and recalibrated quarterly.
Magnetic Property Verification: Epstein frame testing per IEC 60404-2 for core loss (≤1.15 W/kg @ 1.5T/50Hz) and permeability. All tests conducted in ISO/IEC 17025 accredited lab with certified reference materials.

Industry Benchmark Comparison

Our QC protocols consistently exceed industry averages, delivering performance on par with global brands at 15–20% lower total cost of ownership. Every batch undergoes 100% inspection to ensure reliability for critical transformer applications. With 20+ years of experience in transformer material manufacturing, we guarantee consistent quality for demanding power infrastructure projects worldwide, maintaining a 99.8% first-pass yield rate.

Packaging & Global Logistics

Export Packaging & Logistics: Ensuring Integrity of Grain-Oriented Electrical Steel

Precision Packaging Standards

Luoyang Xinzhaohe Aluminum CO., Ltd. implements a rigorous, multi-layered packaging system designed to meet international shipping standards (ISPM-15, ISO 1496) for grain-oriented electrical steel. All wooden pallets are heat-treated and ISPM-15 certified to prevent pest infestation. Moisture-proof film incorporates VCI (Volatile Corrosion Inhibitor) technology with 200-300μm thickness to neutralize humidity and salt spray. Steel strapping is tensioned to 1500-2000kg using calibrated equipment, and corner protectors shield edges from impact damage during handling. This comprehensive approach ensures zero deformation or corrosion during transit.

Sea Freight Protocols & Risk Mitigation

We prioritize Full Container Load (FCL) shipments to eliminate cross-contamination risks. Our logistics partners use GPS-tracked containers with real-time humidity monitoring (RH <60%) and desiccant systems. All shipments include comprehensive marine insurance and are handled by certified stevedores at origin/destination ports to minimize transshipment. This protocol reduces transit damage rates to <0.5%, ensuring consistent quality for global clients.

With over 20 years of export expertise, Luoyang Xinzhaohe Aluminum CO., Ltd. delivers grain-oriented electrical steel with unmatched reliability. Our precision packaging and rigorous sea freight protocols ensure products arrive in pristine condition, minimizing downtime and total cost of ownership. Partner with us for a cost-effective, high-performance alternative to global brands—where quality meets affordability.

Sourcing from Luoyang Xinzhaohe

Why Partner with Luoyang Xinzhaohe

Proven 20+ Years Technical Expertise

With over two decades of specialized production in grain-oriented electrical steel (GOES), Luoyang Xinzhaohe has perfected the manufacturing processes critical to transformer efficiency. Our engineers maintain strict control over silicon content (2.8–3.3%), grain orientation, and surface finish to achieve core loss values below industry benchmarks. Each batch undergoes precise annealing and coating processes to ensure optimal magnetic properties and durability under high-frequency operation. Our proprietary annealing technology reduces hysteresis losses by up to 8% compared to standard GOES grades, directly enhancing transformer energy efficiency and reducing operational costs for end-users.

Unmatched Factory-Direct Cost Efficiency

As a vertically integrated manufacturer, we eliminate middlemen and distributor markups, delivering 15–25% lower costs than global competitors without compromising quality. Our Luoyang facility operates at full capacity with lean manufacturing protocols, enabling rapid scaling for large-volume orders while maintaining consistent delivery schedules. This direct supply chain model ensures predictable pricing and reduced total cost of ownership for transformer manufacturers. Additionally, our in-house coil slitting and packaging capabilities allow for custom widths (50–1,200mm) and packaging configurations to meet specific project requirements, eliminating secondary processing costs.

ISO-Certified Quality Assurance

All products meet or exceed IEC 60404-8-5 and ASTM A677 standards, with comprehensive testing for magnetic induction (B8 ≥ 1.91T), core loss (≤0.92 W/kg @1.7T, 50Hz), and dimensional tolerances (±0.008mm). Our ISO 9001-certified quality control system includes in-line eddy current testing and automated defect detection, ensuring every coil meets stringent performance criteria for critical power applications. Third-party certifications from SGS and TÜV validate our compliance with international safety and quality benchmarks, providing confidence for high-reliability projects.

Contact Cathy at cathy@transformerstrip.com for a detailed quote and technical specifications tailored to your project requirements.
