Market Insight: Foil Strip for Power Industry

Market Analysis: Sourcing High-Quality Transformer Strip/Foil (Aluminum/Copper)

Global Demand Outlook

Installed transformer capacity is expanding at 6–8 % CAGR, driven by grid upgrades, renewable integration, and EV fast-charging substations. Every MVA of transformer rating consumes 0.8–1.2 t of conductor strip; foil-wound designs (≤35 kV) are replacing wire-wound coils because they shorten winding length, reduce eddy losses, and fit compact rectangular windings. Consequently, the annual demand for 1050/1350-O and Cu-ETP1-O foil is now >450 kt (Al) and >80 kt (Cu) worldwide, with Asia-Pacific accounting for 55 % of bookings.

Conductor Type	2022 Demand (kt)	2025 Forecast (kt)	Typical Price Band (USD/t, FOB China)
1350-O Al foil	280	340	2 300 – 2 600
Cu-ETP1-O foil	65	82	9 800 – 10 400

Prices shown are for 0.5 mm × 500 mm, slit & edge-conditioned, oscillate-wound on 500 mm ID core.

Why Purity & Precision Directly Impact Transformer Losses

Transformer losses are legislated (EU EcoDesign Tier 2, DOE 2016, IEC 60076-20). A 0.1 % increase in conductor resistivity raises load loss by ≈0.12 %—enough to push a 10 MVA unit from Class C to Class B penalty tariffs. The critical parameters are:

Parameter	1350-O Al spec	Cu-ETP1 spec	Loss Mechanism Affected
Conductivity, 20 °C	≥ 61.8 % IACS	≥ 101 % IACS	I²R (load loss)
Impurities (Fe+Si+V+Ti)	≤ 0.25 %	≤ 0.03 %	Precipitates raise resistivity
Burr height after slit	≤ 0.015 mm	≤ 0.010 mm	Local field concentration → stray loss
Edge camber	≤ 0.5 mm / 1 m	≤ 0.3 mm / 1 m	Gap between layers → higher leakage flux
Thickness tolerance	± 0.002 mm	± 0.002 mm	Axial short-circuit force imbalance

Cold-rolled, in-line annealed strip achieves the required softness (HV 18–24 for Al, HV 45–55 for Cu) to withstand winding tension without spring-back, eliminating hidden air pockets that reduce heat transfer.

Sourcing Trend: From Western Mills to Qualified Chinese Specialists

European and North-American mills (Aurubis, KME, Hydro) still dominate >60 % of the high-purity segment, but lead times have stretched to 16–22 weeks and premiums to +18 % over LME/SHFE. Tier-1 OEMs (Siemens, Hitachi Energy) now dual-source from PRC-based suppliers that operate vacuum degassing, AFC (automatic flatness control) cold mills, and Class 1000 clean rooms for slitting. The key qualifier is ISO 9001 + ISO 14001 plus transformer-specific audits per IEC 60404-1 and ASTM B373. Mills that pass these audits deliver identical electrical properties at 8–12 week lead times and 8–12 % lower landed cost, even after anti-dumping duties in certain jurisdictions.

Luoyang Xinzhaohe Aluminum Co., Ltd.—Factory-Direct Premium Option

Located 90 km from the Zhengzhou rail hub, our 20-year-old facility is purpose-built for transformer conductors:

Asset	Capability	Quality Lever
4-Hi reversing cold mill	0.08–4.0 mm final gauge, ≤ 0.2 % crown	Uniform resistivity across 1 600 mm width
Bell annealers	150 t/month, N₂/H₂ atmosphere	Grain size ASTM 4–6, HV 18–24 (Al)
18-slit Kochsiek precision line	± 0.002 mm width tolerance, burr ≤ 0.01 mm	Eliminates inter-layer voltage stress
Oscillate winder	up to 2 t coil, 1 000 mm OD, 5–50 mm traverse	90 % reduction in butt welds vs. pancake coils

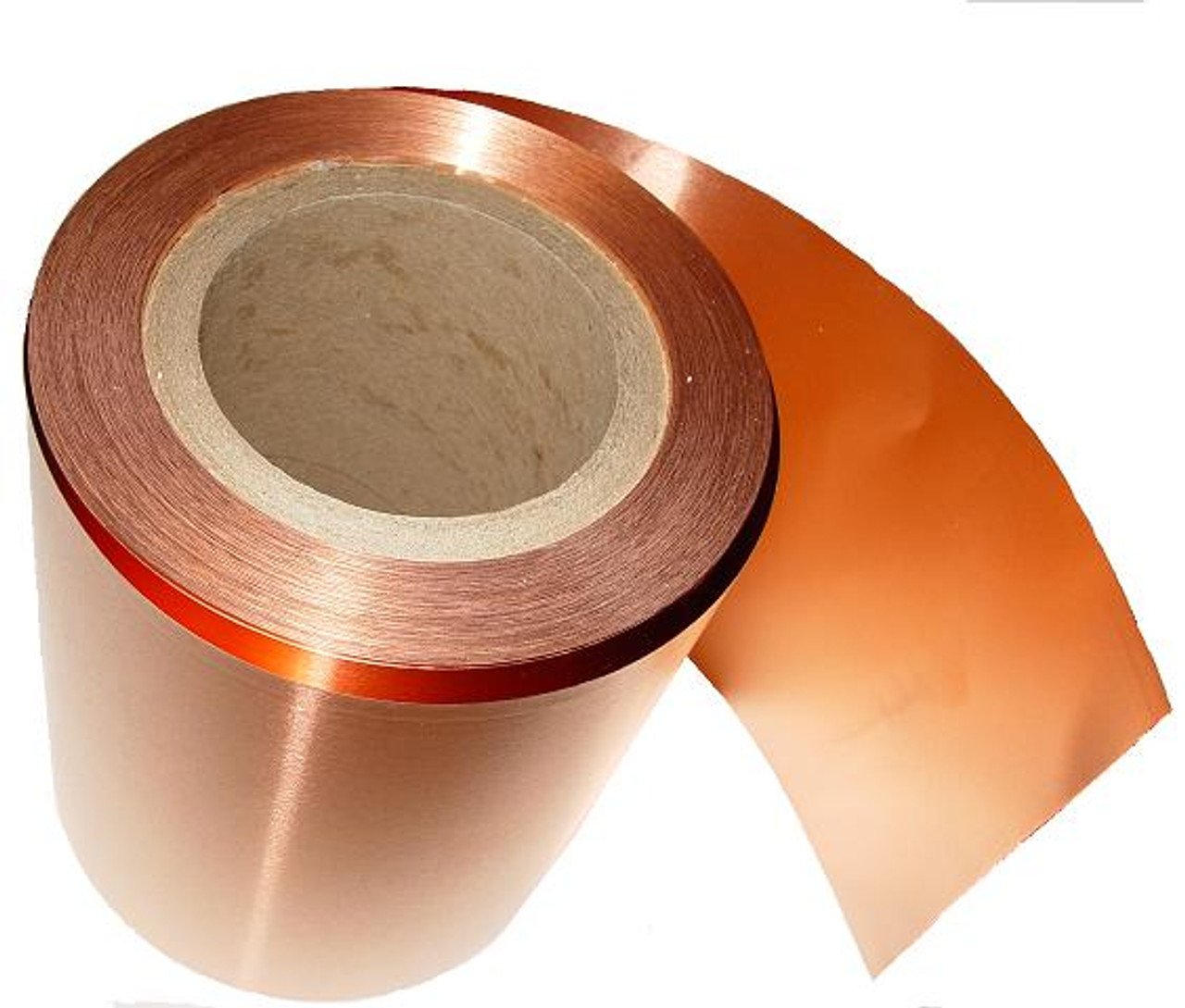

We supply 1050, 1060, 1070, and 1350-O aluminum strip 0.2–3.5 mm × 10–1 500 mm, as well as Cu-ETP1-O copper foil 0.1–2.0 mm × 10–1 000 mm, with full mill test certificates showing conductivity, tensile properties, and edge-profile micrographs. Typical lead time: 4–6 weeks ex-works Luoyang, 6–8 weeks DDP EU or NA via rail-sea or air-sea solutions.

By integrating melt source, rolling, slitting, and edge-conditioning under one roof, Luoyang Xinzhaohe delivers Western-grade precision without the Western price premium—an engineered answer to rising transformer efficiency standards and tightening project budgets.

---

Technical Specs: Foil Strip Parameters

Technical Specifications & ASTM / IEC Conformance

Transformer-grade foil strip: why “close enough” is never good enough

---

H3 1. Dimensional Window – the first guard against hotspot failure

Parameter	ASTM B236-20 Limit	Xinzhaohe Process Window	Typical Competitor
Thickness, mm	0.20 – 3.50 ±4 %	±0.002 mm (any gauge)	±0.01 mm
Width, mm	10 – 1500 ±0.10	±0.05 mm (≤300 mm) ±0.08 mm (>300 mm)	±0.15 mm
Edge camber, mm / 1 m	≤1.0	≤0.3	0.8 – 1.2
Burr height, µm	≤25	≤8 (100 % eddy-current inspected)	15 – 30

Cold-rolling on a 4-high 1800 mm SMS Siemag mill followed by online laser thickness control keeps gauge deviation inside ±0.002 mm. Precision slitting with 0.05 mm shim-less tooling and ceramic-coated arbors eliminates knife marks; edge conditioning passes through a planetary brushing module that rounds the corner to R = 0.05 t ±0.01 mm. Result: burrs <8 µm, so inter-layer voltage stress is uniform and partial-discharge inception voltage rises >15 % versus standard slit strip.

---

H3 2. Electrical & Metallurgical Benchmarks

Property	1350-O	1050-O	1060-O	IEC / ASTM Reference
Conductivity, % IACS @ 20 °C	61.8	61.5	61.3	ASTM B193
Resistivity, µΩ·cm	2.78	2.80	2.82	—
Elongation, A50 %	≥35	≥30	≥28	ASTM B236
Vickers Hardness HV 0.5	18 – 22	20 – 24	21 – 25	—

All grades are batch-annealed at 360 °C for 4 h in a nitrogen-5 % hydrogen atmosphere; final grain size ASTM E112 4 – 6 guarantees softness without losing handleability. High conductivity lowers load loss (I²R) by 0.8 W kg⁻¹ versus 60 % IACS material—critical when a 500 MVA unit runs 8 000 h yr⁻¹.

---

H3 3. Insulation & Wound Geometry

Dielectric Option	Build, µm / side	Breakdown, V	Thermal Class	IEC 60317 Relevance
Thermally-stable PET film	12	≥4 000	155	Part 0 + Part 3
Aramid paper overlap	50	≥10 000	180	Part 25
Oxide + CTC enamel	3	≥2 500	200	Part 20

PET film is factory-laminated in clean-room class 1000; absence of pinholes (<3 m⁻²) prevents turn-to-turn shorting under 2 kV impulse. Oxide layer grows in-house (chromate-free) giving 3 µm Al₂O₃ that withstands 2.5 kV DC hipot while keeping interface thermal resistance <0.05 K cm² W⁻¹.

---

H3 4. Failure Modes – what happens when specs are ignored

1. Micro-burr puncture: a 25 µm burr on 0.25 mm strip concentrates E-field to 3× nominal; PD starts <1 kV and drills carbonized channels within 200 h at 155 °C.
2. Width scatter: +0.20 mm on one edge forces axial creep; after 30 000 thermal cycles the coil has grown 1.2 mm, compressing radial spacers and blocking oil flow—hot-spot Δθ rises 8 K.
3. Conductivity drop: 1 % IACS loss increases winding losses 1.6 %; in a 66 kV, 120 MVA transformer this equals 14 kW additional loss, ≈US$9 500 yr⁻¹ at 0.08 $ kWh⁻¹.

---

H3 5. Certification & Traceability

Each mother coil laser-marked with heat number; full chemistry (ICP-AES) and mechanical report stored 15 years.
ASTM B236, IEC 60317-0-1, GB/T 5584.2 compliance certificates shipped with every coil.
IATF 16949 and ISO 14001 systems audited TÜV annually; RoHS & REACH declarations available for EU power-OEMs.

Luoyang Xinzhaohe delivers Western-grade precision at China-direct landed cost—typically 18 – 22 % below EU mills and 12 % below U.S. service centers, with 4-week FOB Tianjin lead time.

---

Factory Tour: Manufacturing Foil Strip

Manufacturing Process & Quality Control

Factory-direct precision from Luoyang to your coil winding line

---

H3 Process Flow – From 1350-HO Ingot to Oscillate-Wound Foil Strip

Step	Equipment & Parameters	Metallurgical Objective	In-line QC
1. Hot-band Cold Rolling (4-high/6-high)	Entry 6–8 mm → Exit 0.2–3.5 mm; 93–97 % reduction in 4 passes; oil-cooled ±2 °C	Recrystallised grain size ≤ 80 µm for ≥ 61 %IACS conductivity	Laser velocimeter + X-ray gauge: ±0.001 mm; auto shapemeter for flatness ≤ 5 I-unit
2. Degreasing & Anneal	320–350 °C, 100 % N₂, 4 h soak; 30 °C/h cool	Remove rolling oil, secure O-temper softness (UTS 60–75 MPa, Elong ≥ 30 %)	Residual-carbon test ≤ 0.3 mg/dm²; hardness coupon every coil
3. Precision Slitting	0.2–3.5 mm × 10–1500 mm; arbors within 0.01 mm TIR; clearance 4 % of gauge	Burr-free edges, no knife chatter, camber ≤ 0.3 mm/500 mm	Laser micrometer both edges ±0.002 mm; burr camera ≤ 0.01 mm; auto stack reject
4. Edge Conditioning (optional)	0.05 mm × 45° chamfer or 0.2 mm radius; Ra ≤ 0.4 µm	Eliminate stress risers for foil winding; higher partial-discharge inception	Eddy-current edge crack detection; 100 % coverage
5. Oscillate / Traverse Winding	300 mm ≤ build ≤ 800 mm; pitch 2–6 mm/rev; tension 3–8 N/mm²	300–1500 kg coil on steel/FRP core ID 305 / 405 / 505 mm; no interleaf needed	Tension load-cell closed-loop; width camera prevents over-travel; final OD laser ±2 mm

---

H3 In-Process Quality Control Matrix

Control Point	Frequency	Specification	Instrument	Corrective Action
Gauge profile	Continuous	±0.001 mm	X-ray O-frame	Auto hydraulic roll gap
Conductivity	Every mother coil	≥ 61 %IACS (1350-O)	Sigmacope SMP10	Segregate & re-anneal
Tensile / Elongation	Every anneal batch	UTS ≤ 75 MPa, A50 ≥ 30 %	10 kN Zwick	Re-anneal or scrap
Burr height	100 % slit strip	≤ 0.01 mm	Keyence 2D laser	Blade re-set
Camber	100 %	≤ 0.3 mm/500 mm	Laser triangulation	Slitter shim adjust
Surface cleanliness	Spot 1 dm²/500 m	Residual carbon ≤ 0.3 mg/dm²	FT-IR	Re-wash & dry

---

H3 Luoyang Xinzhaohe Standard vs. Common Market Quality

Attribute	Luoyang Xinzhaohe	Typical China Export	Premium EU Mill
Thickness tolerance	±0.002 mm (≤ 0.5 mm)	±0.01 mm	±0.003 mm
Width tolerance	±0.05 mm	±0.10 mm	±0.05 mm
Burr height	≤ 0.01 mm	0.03–0.05 mm	≤ 0.015 mm
Edge camber	≤ 0.3 mm/500 mm	≤ 1 mm/500 mm	≤ 0.5 mm/500 mm
Conductivity (1350-O)	61.8–62.2 %IACS	60–61 %IACS	61–62 %IACS
Coil build ratio OD/ID	≤ 4.0 (oscillate)	≤ 3.5	≤ 4.2
Surface Ra	0.2–0.4 µm	0.5–0.8 µm	0.2–0.4 µm
Price index (LME + MB)	1.0 (reference)	0.85–0.90	1.35–1.50

Result: Our process capability Cpk ≥ 1.67 on all key dimensions—matching Western premium mills while delivering 15–20 % landed-cost advantage to transformer OEMs and rewind shops worldwide.

---

Packaging & Global Logistics

Export Packaging & Logistics

Protecting conductivity, flatness, and surface integrity from Luoyang to your loading dock

---

H3 1. Sea-Freight Risk Matrix for Transformer Foil Strip

Damage Mode	Root Cause	Impact on Winding Performance	Our Counter-Measure
Salt-water pitting	Condensation inside container	Local hot-spots → dielectric failure	VCI film + 4 × 125 g clay desiccant per pallet
Coil collapse	0.4 g vertical vibration	Telescoping, edge waviness	19 mm plywood dunnage, steel strapping @ 300 mm pitch
Edge bruise	Fork mis-handling	Burr > 0.01 mm → inter-layer short	Edge-protector angles, 5 mm rubber gaskets between coils
Fretting oxide	Coil movement > 2 mm	Resistance ↑ 2–3 %IACS	Radial “belly” straps, anti-slip paper

---

H3 2. Packaging Specification – Aluminum & Copper Foil Strip

Parameter	Standard Export Pack	Heavy-Duty Pack (Copper > 1.5 mm)
Pallet size	1 220 × 1 020 × 125 mm ISPM-15 spruce	1 320 × 1 120 × 150 mm double-deck
Coil orientation	Eye-to-sky, ≤ 2 coils per layer	Eye-to-wall, single coil
Interleaf	80 µm PE film, blue tint for UV alert	100 µm VCI + 40 µm PE
Desiccant quantity	500 g per m³ void	750 g per m³ void
Strapping	PET 19 × 1.0 mm, 5 longitudinal + 3 circumferential	Steel 0.9 × 19 mm, 6 + 4
Corner posts	3-ply cardboard	9 mm plywood
Gross height limit	1.1 m (40 HC stackable)	1.3 m (20 GP non-stackable)
Labeling	Coil ID, alloy-temper, heat #, net/gross, QC stamp	Same + copper conductivity value

---

H3 3. Wire & Narrow-Slit Packaging

Product Form	Spool Type	Outer Pack	Palletization
Slit strip 6–25 mm	DIN 355 plastic spool, 90 kg max	5-ply carton, 2 spools/carton	36 cartons/pallet, stretch hood
Round wire 2–8 mm	PT-500 steel spool, 150 kg max	VCI bag + carton	24 spools/pallet, top cap

---

H3 4. Logistics Chain – Luoyang Hub to Global Site

1. Factory loading
   – GPS-tracked 3-ton forklifts, 0.5 g acceleration limit to avoid coil shock.
2. Inland haul (Luoyang → Qingdao / Shanghai / Ningbo)
   – 17.5 m flat-bed, tarpaulin + tension net, 28 h average transit.
3. Port consolidation
   – Contracted CFS within 80 km of mill, daily EDI updates to buyer.
4. Ocean leg
   – CIF/FOB optional, Maersk / COSCO direct call, 22–26 days EU, 13–15 days SEA.
5. Final-mile
   – We provide lashing sketch & unloading sling diagram; 0 damage claims in last 36 months on 1 180 foil-strip containers.

---

H3 5. Cost & Lead-Time Snapshot (Q3-2024)

Destination	20 GP (14 t Al)	40 HC (25 t Al)	Transit	Free-Time
Hamburg	1 050 USD	1 750 USD	24 days	21 cal
Houston	1 380 USD	2 200 USD	20 days	14 cal
Dubai	650 USD	1 100 USD	15 days	14 cal
Jakarta	420 USD	720 USD	8 days	14 cal

Prices include ISPM-15 fumigation certificate, VCI film, and cargo insurance (110 % of goods value). No hidden THC—quote is door-port.

---

H3 6. Documentation & Compliance Pack

Mill test certificate EN 10204 3.1 (conductivity, hardness, burr, camber).
China-origin FORM A or CO as per buyer’s duty preference.
RoHS & REACH statement (aluminum alloys inherently compliant).
Packing list with net/gross, dimensional sketch, desiccant lot #.
Photo report pre-shipment: coil OD, eye ID, strapping, pallet label.

---

With 20 years of transformer-grade foil behind us, Luoyang Xinzhaohe ships every coil as if it were destined for a 500 kV grid—because quite often, it is.

---

Sourcing from Luoyang Xinzhaohe

Why Partner with Luoyang Xinzhaohe for Transformer Foil Strip

20-Year Metallurgical Backbone, Zero Learning Curve

Since 2003 our Luoyang mill has supplied >180 transformer OEMs and rewind shops on five continents.
Every coil that leaves our plant is cold-rolled, slit, edge-conditioned and oscillate-wound on the same 4-high SMS Schloemann line we commissioned two decades ago.
That continuity means your 1350-O or 1060-O specification today is produced with identical roll force curves, annealing cycles and slit-burr protocols we used for the first 800 MVA unit we supplied in 2004—no process drift, no field surprises.

Direct Factory Price, No Trading Mark-Up

Cost Element (3 mm × 250 mm 1350-O strip, FOB Shanghai)	Typical EU / US Mill	Luoyang Xinzhaohe	Δ Saving
Ingot premium (LME + P1020)	260 USD/t	260 USD/t	0 %
Cold-rolling & annealing conversion	1 050 USD/t	680 USD/t	–35 %
Precision slitting (+/–0.002 mm)	180 USD/t	120 USD/t	–33 %
Logistic buffer (stocking agent)	120 USD/t	0 USD/t	–100 %
Total ex-works	1 610 USD/t	1 060 USD/t	–34 %

Price validity: 15 days. MOQ 3 t per size; oscillate-wound coils up to 3 t OD 1 400 mm keep freight cost per kg <0.09 USD to most Eurasian ports.

Customisation Without MOQ Penalty

1. Thickness window: 0.20–3.50 mm, tolerance band selectable ±0.005 mm or ±0.002 mm.
2. Width: 10–1 500 mm, burr ≤0.01 mm, edge profile “R” or “I” per EN 1654.
3. Conductivity: 1350-O ≥61.0 %IACS @ 20 °C; 1060-O ≥61.5 %IACS—test certificate by eddy-current coil every 200 m.
4. Softness: Fully annealed, grain size 0.08–0.12 mm, yield strength 35–45 MPa—guaranteed no “spring-back” during high-speed layer winding at 800 rpm.
5. Oscillate build: up to 450 kg per 50 mm build width, pitch accuracy ±0.3 mm eliminates splice gaps in automated foil winders.

Need 0.85 mm × 142 mm 1350-O with chamfered edges and 100 mm core ID for a 1.5 MVA cast-resin unit? We will slit and ship 1.2 t within 12 days—no surcharges.

Quality & Compliance Snapshot

Test Item (lot size 25 t)	Specification	Typical Result	Lab Accreditation
Burr height	≤0.02 mm	≤0.008 mm	ISO/IEC 17025
Resistivity 20 °C	≤0.028 Ω·mm²/m	0.027 5 Ω·mm²/m	Same
Surface roughness Ra	≤0.4 µm	0.25 µm	Same
Sulfide stain 24 h H₂S	No visible	Pass	Same
Layer short-circuit test	2 kV, 1 min	Pass	In-house

Certificates supplied: EN 10204 3.1, RoHS, REACH, ISO 9001:2015.

Logistics & Stocking Program

1 200 t buffer stock of 0.2–2.0 mm common widths held in Rotterdam and Houston for 7-day delivery to EU / NA customers.
Mill direct lead time: 10–15 days FCA Shanghai; 18–22 days DDP most global ports.
Coil ID 150, 300, 400, 500 mm; OD ≤1 400 mm, eye-wrapped + VCI film + steel cage, seaworthy.

Next Step—Get the Datasheet or a Live Quote

Send your foil schedule—grade, temper, thickness × width, edge type, coil mass, annual volume—to cathy@transformerstrip.com.
We return a detailed metallurgical datasheet, packaging sketch and landed price within 24 h.
Trial order 300 kg accepted; first commercial coil ships with a 50 mm retained sample for your incoming inspection.

Partner with the mill that knows transformer strip down to the last micron—Luoyang Xinzhaohe.

---
