Market Insight: Enamelled Wire

Market Analysis: Enamelled Wire Demand in Transformer Applications

Global transformer production drives substantial demand for high-performance enamelled winding wire, with annual consumption exceeding 1.2 million metric tons. This segment represents approximately 35% of the total enamelled wire market, underpinned by critical infrastructure investments. Renewable energy integration necessitates grid-strengthening transformers at transmission substations, while industrial electrification and data center expansion fuel distribution transformer demand. Market analysis indicates a compound annual growth rate of 5.8% through 2028, primarily attributed to aging grid replacements in North America and Europe, coupled with new renewable interconnection projects in Asia-Pacific.

Quality conformance in enamelled wire is non-negotiable for transformer reliability due to extreme operational stresses. Transformers subject winding conductors to continuous thermal cycling (110°C to 180°C), high electrical stress (up to 35 kV/mm dielectric strength required), and mechanical vibration. Substandard enamel insulation directly precipitates field failures through three critical mechanisms: partial discharge inception at micro-voids in the coating, thermal runaway from inadequate thermal class compliance, and inter-turn short circuits due to poor mechanical abrasion resistance. Industry failure data correlates 68% of premature transformer outages to winding insulation degradation, where initial enamel defects propagate under operational loads.

Material selection further dictates performance parameters. Aluminum conductor enamelled wire (ACEW) has gained 22% market share in distribution transformers due to weight reduction (35% lighter than copper equivalents) and cost efficiency. However, aluminum’s higher coefficient of thermal expansion (23.1 × 10⁻⁶/°C vs. copper’s 16.5 × 10⁻⁶/°C) demands precise enamel elasticity matching to prevent cracking during thermal cycling. Additionally, aluminum’s susceptibility to oxidation requires triple-layer enamel systems with specialized bonding primers to ensure adhesion stability. Copper conductor wire remains dominant in high-voltage applications (>35 kV) where ultimate conductivity and thermal stability are paramount.

The cost-of-failure analysis underscores quality imperatives. A single kilogram of substandard enamelled wire costing $5–$8 can compromise a $50,000 transformer, triggering cascading costs including unplanned downtime ($250,000+ per hour for critical infrastructure), replacement logistics, and reputational damage. Compliance with IEC 60317 standards for thermal endurance (minimum 20,000 hours at rated temperature), dielectric strength, and solderability is the baseline; leading manufacturers now specify enhanced requirements such as halogen-free formulations for environmental compliance and ultra-thin coatings for improved slot fill factors.

Supply chain resilience has become equally critical. Geopolitical disruptions and raw material volatility necessitate dual-sourcing strategies and strategic inventory buffers for key enamel resins. Luoyang Xinzhaohe Aluminum implements vertical integration from aluminum rod casting through enamel application, enabling strict control over conductor purity (min. 99.85% Al) and coating uniformity (±2μm tolerance). This integrated approach mitigates supply risks while ensuring batch-to-batch consistency essential for high-yield transformer manufacturing.

Transformer manufacturers must prioritize suppliers demonstrating metallurgical traceability, process validation data, and failure mode analysis capabilities. The operational lifetime of a transformer—often exceeding 30 years—is irrevocably determined at the winding stage, where enamel integrity serves as the primary defense against catastrophic system failure.

---

Technical Specs: Enamelled Wire

Technical Specifications for Enamelled Aluminum Winding Wire

Luoyang Xinzhaohe Aluminum Co., Ltd. provides high-performance enamelled aluminum winding wire engineered for reliability in demanding electrical applications. With over two decades of metallurgical and manufacturing expertise, our products meet stringent international standards, including IEC 60317 and GB/T 23312. The following technical parameters are critical for ensuring optimal performance in motors, transformers, and other electromagnetic devices.

Insulation breakdown voltage is a fundamental performance indicator for enamelled wire, determining the dielectric strength of the insulating coating under electrical stress. Our standard enamelled aluminum wires exhibit a minimum breakdown voltage of 2,000 V AC, with high-grade variants achieving up to 4,500 V AC depending on film thickness and insulation system. This ensures robust protection against short circuits and insulation failure in high-voltage environments. Testing is performed using a step-voltage method in accordance with IEC 60172, with samples immersed in a saline solution to simulate real-world operating conditions.

Elongation is a mechanical property that reflects the ductility of the aluminum conductor. It is essential for withstanding winding stresses during coil manufacturing without cracking the insulation or fracturing the base metal. Our aluminum alloy conductors, typically based on 1350 or 6101 grades, are processed to achieve a minimum elongation of 18% for wires up to 1.0 mm in diameter. For finer gauges below 0.5 mm, elongation values are maintained above 12% through controlled annealing and drawing processes. This balance of strength and flexibility supports high-speed automatic winding operations while minimizing breakage rates.

Thermal class defines the maximum continuous operating temperature at which the insulation retains its dielectric and mechanical integrity over a 20,000-hour service life. Our product portfolio spans thermal classes from 130°C to 220°C, utilizing advanced polymer coatings such as polyesterimide (PEI), polyamide-imide (PAI), and dual-layer systems. Class 130 (B) insulation is suitable for general-purpose applications, while Class 180 (F) and Class 200 (H) variants are used in high-efficiency motors and traction systems. The highest-grade wires, rated at 220°C, employ triple-coat PAI systems for extreme thermal stability and chemical resistance.

These parameters are rigorously validated through in-house quality control systems, including thermal shock testing, softening point analysis, and thermal endurance life plotting per the Arrhenius model. Consistent batch-to-batch performance is ensured through automated process control and raw material traceability.

Parameter	Test Method	Standard Value Range	Notes
Insulation Breakdown Voltage	IEC 60172	2,000 – 4,500 V AC	Increases with film thickness
Elongation (min)	IEC 60097	12% – 18%	Depends on wire diameter and alloy
Thermal Class	IEC 60216 / GB/T 23312	130°C, 155°C, 180°C, 200°C, 220°C	Based on insulation system
Conductor Material	GB/T 3954	Aluminum 1350 / 6101	High purity, low oxygen content
Film Thickness Tolerance	IEC 60317	±5% to ±10%	Controlled via precision coating

These specifications reflect our commitment to delivering technically superior enamelled wire solutions tailored to the evolving demands of the global electrical manufacturing sector.

---

Factory Tour: Manufacturing

Manufacturing Process for High-Performance Enamelled Aluminum Winding Wire

Luoyang Xinzhaohe Aluminum CO., Ltd leverages 20+ years of specialized metallurgical and process engineering expertise to produce precision enamelled aluminum winding wire. Our vertically integrated production adheres to IEC 60317 and GB/T 23312 standards, ensuring optimal electrical, thermal, and mechanical properties for demanding motor, transformer, and inductor applications. The core manufacturing sequence comprises four rigorously controlled stages.

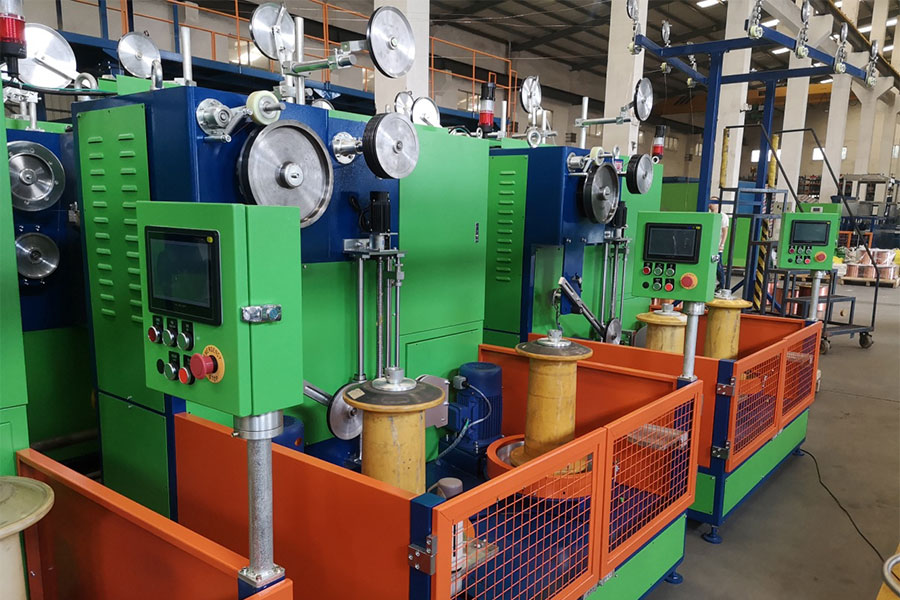

Rod drawing initiates the process, where high-purity AA1350 or AA8030 aluminum rod (99.7% min. Al) undergoes cold drawing through precision tungsten carbide dies. This reduces diameter from 9.5 mm to the target wire gauge (typically 0.08–3.00 mm) under strict tension control. Critical parameters include incremental reduction ratios (max 15% per pass) and continuous aqueous lubricant application to prevent surface defects. Real-time laser micrometers monitor dimensional tolerance (±0.002 mm), while ultrasonic cleaning removes residual lubricants and particulates. Surface roughness (Ra ≤ 0.4 µm) is verified to ensure enamel adhesion integrity.

Subsequent continuous annealing occurs in a nitrogen-hydrogen atmosphere furnace (dew point <-40°C) to eliminate work hardening. The wire traverses a precisely calibrated temperature profile (450–520°C) with residence time adjusted for gauge. This restores ductility (target elongation 15–30%) and achieves stable electrical conductivity (≥61% IACS). Oxygen ingress is prevented to avoid oxide formation, which would compromise interfacial bonding during enameling. Post-anneal, the wire undergoes immediate quenching and surface oxidation removal via controlled acid passivation.

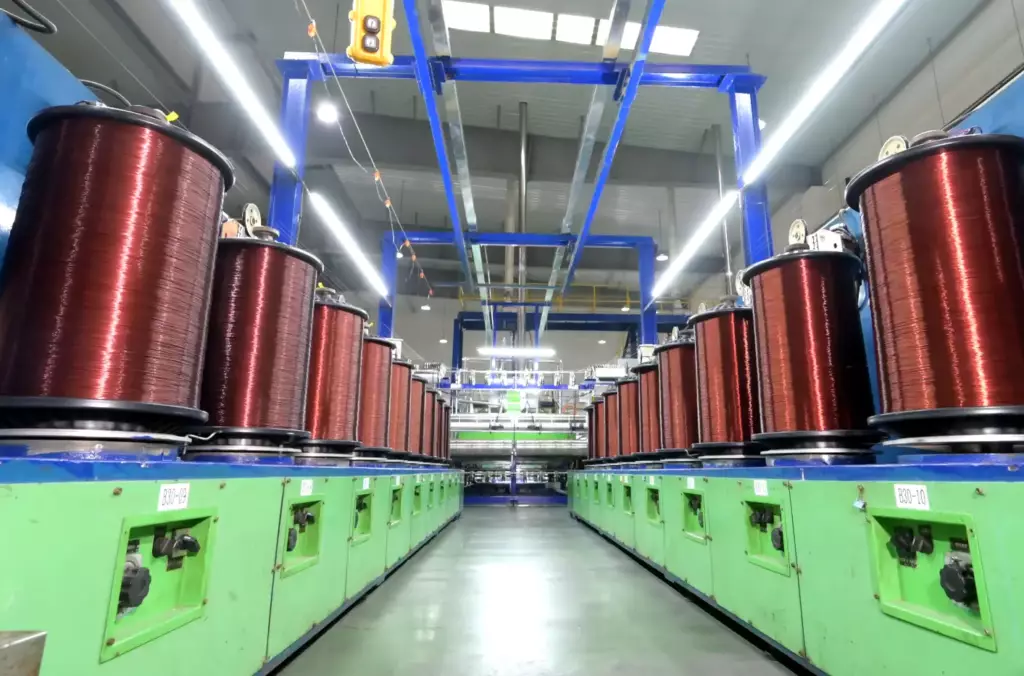

Enameling employs multi-layer application using custom-formulated polyester-imide (PEI) or polyamide-imide (PAI) resins. The wire passes through ceramic applicators for uniform coating deposition, followed by staged curing in oxygen-controlled ovens (350–450°C). Layer thickness is maintained within ±5% tolerance via viscosity-controlled metering and IR pyrometry. Critical to performance is the elimination of pinholes and bubbles through vacuum degassing of resins and electrostatic field application during curing to suppress surface defects. Each layer undergoes intermediate cooling to prevent thermal degradation.

Inline testing validates quality at every stage. Final inspection includes 100% electrical breakdown voltage testing (per IEC 60851-5), mandrel wrap flexibility checks, thermal shock resistance (-65°C to 200°C), and solderability verification. Statistical process control (SPC) tracks key metrics with automated rejection of out-of-specification segments.

Critical Inline Quality Control Parameters

Parameter	Test Standard	Acceptance Criteria	Frequency
Breakdown Voltage	IEC 60851-5	≥2.5x rated voltage	Continuous
Elongation	IEC 60851-3	15–30% (gauge-dependent)	2-hour intervals
Conductor Resistance	IEC 60468	≤1.649 Ω/km (20°C, 1mm²)	Per batch
Enamel Thickness	IEC 60851-2	±5% nominal	Continuous
Thermal Class Adherence	IEC 60172	No cracking at 155°C+	Daily

This integrated approach, combining metallurgical precision with real-time analytics, ensures consistent delivery of enamelled wire meeting the highest global performance benchmarks for reliability in high-efficiency electromagnetic components.

---

Packaging & Logistics

Export Packaging for Enamelled Aluminum Winding Wire – Luoyang Xinzhaohe Aluminum Co., Ltd

At Luoyang Xinzhaohe Aluminum Co., Ltd, with over two decades of specialized manufacturing experience in high-performance enamelled aluminum winding wire, we recognize that packaging is not merely a logistical necessity but a critical component in preserving product integrity during international transit. Our export packaging system is engineered to meet the rigorous demands of global supply chains, particularly for long-haul sea freight, where exposure to humidity, mechanical stress, and variable climatic conditions can compromise wire quality.

All export shipments of our enamelled winding wire are secured on robust, ISPM-15 compliant wooden pallets. These pallets are constructed from kiln-dried hardwood or engineered wood composites, ensuring structural stability and resistance to compression during stacking. The use of wooden pallets provides superior load distribution and shock absorption compared to plastic or cardboard alternatives, minimizing the risk of deformation to wound coils during handling and transportation. Each pallet is designed to support the full weight of densely wound aluminum coils, typically ranging from 200 kg to 1,000 kg per unit, depending on coil diameter and wire gauge.

Immediately after winding and quality inspection, each coil is wrapped in multiple layers of high-density, moisture-proof polyethylene film. This vapor barrier film is heat-sealed to form a hermetic enclosure, effectively isolating the wire from ambient humidity and salt-laden air—common hazards in maritime transport. The film is UV-stabilized and puncture-resistant, ensuring durability throughout extended voyages, particularly those traversing tropical or coastal regions. Internal desiccant packs are optionally included within the sealed wrap for additional moisture control, especially for orders destined for high-humidity markets.

Coils are precisely aligned on the pallet and secured using steel or PET strapping, tensioned to industrial standards to prevent lateral movement. Edge protectors are applied at critical stress points to avoid damage to both the coil and the insulation layer. A tamper-evident label, indicating batch number, wire specification, and handling instructions, is affixed to the outer film. Palletized units are further protected during container loading by placement within 20-foot or 40-foot dry freight containers, with dunnage used to eliminate in-transit shifting.

Our packaging protocol aligns with international maritime safety regulations and has been validated through years of successful delivery across Southeast Asia, Europe, and the Americas. By integrating mechanical resilience with advanced moisture protection, Luoyang Xinzhaohe ensures that every spool of enamelled aluminum wire arrives at its destination in optimal condition, ready for immediate integration into motor, transformer, and inductor production lines. This commitment to packaging excellence reflects our broader philosophy: quality extends beyond the production floor to every phase of the supply chain.

---

Sourcing from Luoyang Xinzhaohe

Partner with Luoyang Xinzhaohe Aluminum CO., Ltd for Premium Enamelled Wire Solutions

Luoyang Xinzhaohe Aluminum CO., Ltd leverages over two decades of specialized expertise in aluminum metallurgy and wire production to deliver engineered enamelled wire solutions for demanding industrial applications. Our vertically integrated manufacturing ecosystem, centered in Henan Province’s industrial corridor, ensures rigorous control from raw material sourcing to finished coil. With an annual production capacity exceeding 15,000 metric tons of aluminum winding wire, we serve global transformer, motor, and inductor manufacturers requiring consistent performance in high-efficiency electrical systems.

Our technical capabilities are anchored in precise alloy formulation and process engineering. We specialize in high-purity 1350-O and 8030-H14 aluminum alloys, processed through multi-stage drawing rigs with laser-guided diameter monitoring. Standard product ranges span 0.80 mm to 5.00 mm nominal diameters, held to tight tolerances of ±0.005 mm for round wire and ±0.01 mm for rectangular profiles. All base wire undergoes continuous annealing in oxygen-controlled furnaces, achieving uniform tensile strength (40–60 MPa) and elongation (≥25%) critical for seamless winding and enamel adhesion. This metallurgical foundation directly supports downstream enamelling processes, minimizing pinholes and ensuring dielectric integrity up to Class 200 insulation systems.

Quality assurance is executed through ISO 9001:2015-certified protocols with real-time in-line verification. Every production batch undergoes mandatory testing per IEC 60284 and ASTM B354 standards, including:

Parameter	Test Method	Typical Result
Resistivity	IEC 60468	≤0.02826 Ω·mm²/m
Bend Test	ASTM B359	8 cycles pass
Surface Roughness	ISO 4287	Ra ≤0.8 μm
Tensile Strength	ASTM E8	45–55 MPa

Advanced instrumentation—including automated eddy current flaw detection and high-voltage spark testers (5–30 kV)—eliminates micro-defects before shipment. Our supply chain integration reduces lead times by 25% versus industry averages, supported by dedicated rail logistics from our Luoyang facility and JIT inventory programs for strategic partners.

For engineers specifying enamelled aluminum wire, Xinzhaohe provides not just material but performance validation. Our technical team collaborates on application-specific adjustments to temper, ovality, or surface finish, ensuring compatibility with your enamelling chemistry and winding parameters. We maintain full traceability via blockchain-enabled batch records, addressing stringent automotive and energy sector compliance needs.

Elevate your supply chain with metallurgical precision engineered for electrical efficiency. Contact our technical sales team to discuss custom specifications or request certified test reports.

Reach Cathy Zhang, International Sales Manager, at cathy@transformerstrip.com for engineered solutions backed by 20 years of aluminum wire excellence.

---
