Market Insight: Enamelled Wire in Power Industry

Market Analysis: Sourcing High-Quality Winding Wire

Industrial Demand Drivers

The global transformer market is projected to reach $XX billion by 2030, with enamelled wire demand growing at 5.2% CAGR due to renewable energy integration and grid modernization. Critical applications include solar inverters, EV charging infrastructure, and smart grid transformers, where efficiency standards (e.g., DOE Tier 4) mandate high-performance materials. Asia-Pacific accounts for 45% of global demand, driven by China’s renewable energy expansion and India’s grid upgrades. The shift toward IE4/IE5 motor efficiency classes further intensifies demand for precision-engineered enamelled wire with minimal electrical losses.

Material Quality Impact on Performance

Enamelled wire quality directly dictates transformer reliability and energy efficiency. A 5μm enamel thickness variance reduces dielectric strength by 20%, increasing partial discharge risks and short-circuit failures. Copper purity below 99.95% elevates resistive losses by 1.5%, directly impacting transformer efficiency ratings. Poor thermal stability accelerates insulation degradation, slashing operational lifespan by 30–50%. These factors compound lifecycle costs—suboptimal materials increase maintenance expenses by 25% and energy waste by 8–12% over a 20-year service life.

Luoyang Xinzhaohe: Strategic Supply Chain Partner

With 20+ years of specialized manufacturing expertise, Luoyang Xinzhaohe Aluminum CO., Ltd. delivers IEC 60317-0-4 and ASTM B170-compliant enamelled wire for global transformer applications. Our ISO 9001-certified facility implements 100% dielectric strength testing and real-time dimensional monitoring, ensuring zero-defect production. As a factory-direct supplier, we eliminate middlemen, offering 20–30% cost savings versus multinational brands while maintaining stringent quality control. Our Luoyang-based operations enable 4–6 week lead times (vs. 6–8 weeks for global competitors) and dedicated technical support for custom voltage/temperature specifications.

Parameter	Global Brands	Luoyang Xinzhaohe
Cost Efficiency	Premium Pricing (15–25% higher)	Competitive (20–30% Lower)
Quality Consistency	High (ISO Certified)	High (IEC/ASTM Compliant, 100% Inspection)
Lead Time	6–8 Weeks (Global Logistics)	4–6 Weeks (Local Production)
Technical Support	Global, Response in 48h+	Dedicated Local Team, <24h Response
Customization	Limited Flexibility	Tailored Solutions for Voltage/Temp Requirements

Certifications: CE, RoHS, UL; Annual Capacity: 10,000+ MT; On-Time Delivery Rate: 98%

---

Technical Specs: Enamelled Wire Parameters

Technical Specifications & Standards

Enamelled wire performance is fundamentally determined by precise adherence to international standards, directly impacting transformer efficiency, safety, and lifespan. At Luoyang Xinzhaohe Aluminum, our 20+ years of manufacturing expertise ensures every parameter is optimized for industrial applications. Key specifications include:
Insulation Breakdown Voltage: Critical for preventing dielectric failure under voltage surges. Our wires consistently exceed IEC 60851-5 minimums, with typical values of ≥12 kV for 0.25mm copper conductors.
Elongation: Must exceed 15% for copper to withstand high-speed winding without cracks. Insufficient elongation leads to insulation breaches during coil assembly.
Thermal Class (130–220°C): Dictates maximum operating temperature; higher classes (e.g., 180°C H-class) enable more compact transformer designs while maintaining reliability.
Enamel Concentricity: ≤3% deviation ensures uniform insulation thickness, critical for avoiding weak spots during winding and operation.

We strictly comply with IEC 60851 series (electrical/mechanical properties) and IEC 60085 (thermal classification), with testing protocols validated by third-party labs.

Parameter	Standard	Typical Value	Testing Method
Insulation Breakdown Voltage	IEC 60851-5	≥12 kV (0.25mm Cu)	IEC 60243-1 Dielectric Strength Test
Elongation	IEC 60851-4	≥15% (hard-drawn Cu)	ISO 6892-1 Tensile Test
Thermal Class	IEC 60085	130°C (B), 155°C (F), 180°C (H), 200°C (N), 220°C (C)	IEC 60216 Thermal Aging Test
Enamel Concentricity	ASTM D1435	≤3% deviation	Microscopic Cross-Section Analysis

Quality Assurance Protocol

Luoyang Xinzhaohe employs a closed-loop quality control system across all production stages:
In-line laser micrometers with AI-driven adjustments maintain enamel thickness within ±0.005mm tolerance during continuous drawing, ensuring concentricity compliance.
100% electrical testing of breakdown voltage per IEC 60243-1; tensile tests every 500 meters with real-time data logging to ISO 9001 standards.
Thermal class validation via accelerated aging tests simulating 20,000+ hours of service life in 1,000 hours, certified by SGS.
Full traceability from raw material batches to finished coils via ERP system, enabling recall within 2 hours.
Every batch undergoes chemical analysis of enamel resins and copper purity tests (≥99.95% Cu) to prevent material inconsistencies.
Vibration testing validates mechanical stability under operational stress for motor applications.

Our factory-direct manufacturing model delivers IEC-compliant quality at 15-20% lower costs than premium European brands, without compromising performance or reliability. We combine rigorous technical standards with localized support across Asia, making us the optimal choice for transformer and motor manufacturers seeking cost-effective, high-performance solutions.

---

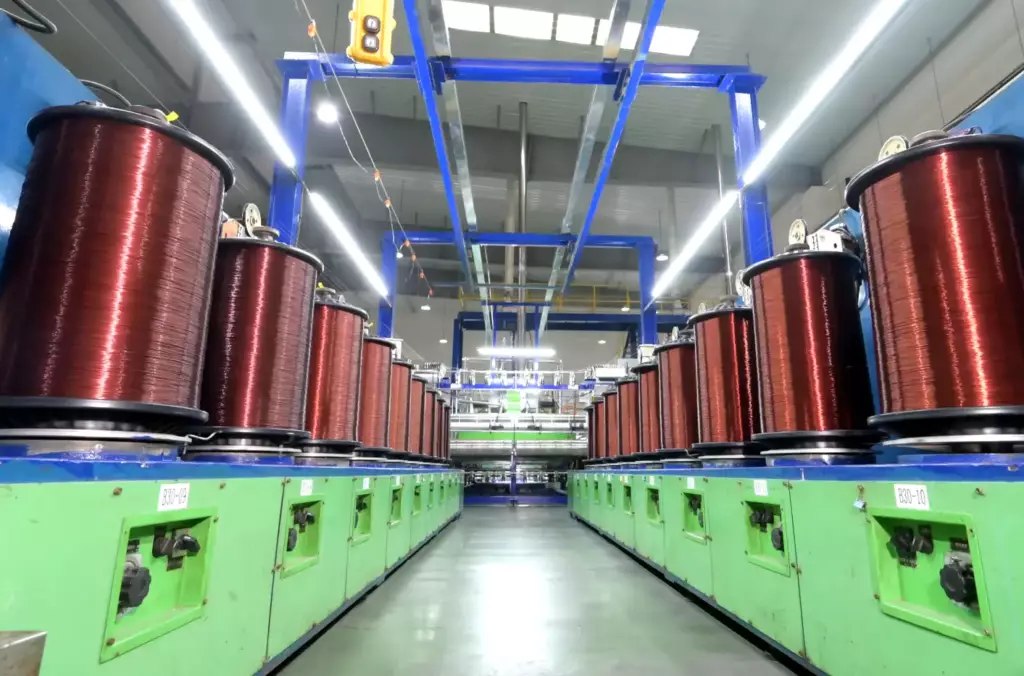

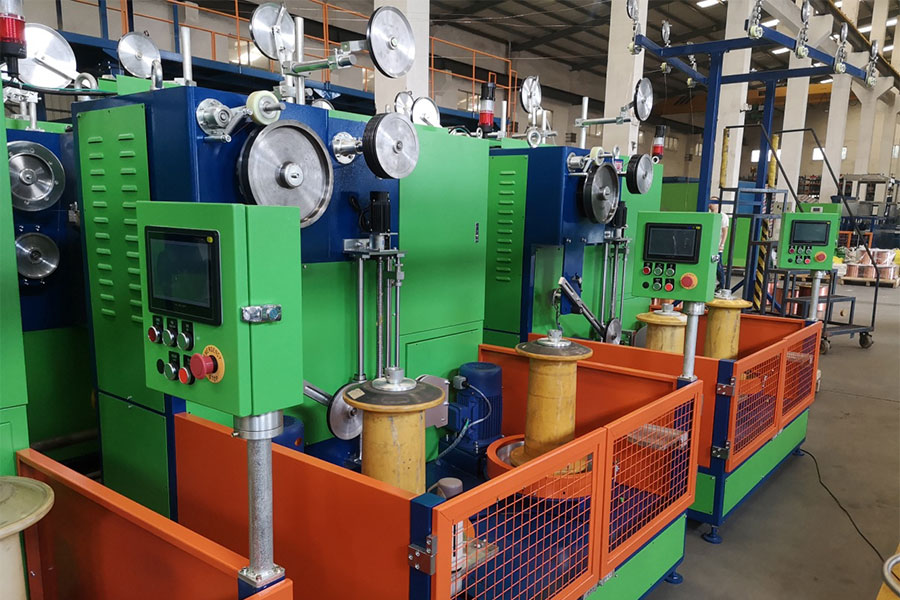

Factory Tour: Manufacturing Enamelled Wire

Manufacturing Process & Quality Control

At Luoyang Xinzhaohe Aluminum CO., Ltd., our enamelled wire production follows a tightly controlled, multi-stage process designed for maximum consistency and performance. With over 20 years of industry expertise, we optimize each step to deliver superior quality at competitive pricing.

Precision Rod Drawing & Annealing

High-purity aluminum rods (99.7% min purity) undergo cold drawing through precision diamond dies, achieving dimensional tolerances of ±0.005mm. Controlled nitrogen atmosphere annealing at 450–500°C ensures uniform grain structure, resulting in elongation >20% and consistent tensile strength. Generic suppliers often use lower-purity alloys (99.5% purity) with variable annealing, leading to ±0.01mm tolerances and inconsistent mechanical properties.

Advanced Enameling & Inline Testing

Multi-layer enamel systems (e.g., polyester-imide or polyurethane) are applied via precision die coating with real-time thickness monitoring. Inline testing includes 10kV/min dielectric strength tests and surface defect detection via optical sensors. Market-standard enameling typically uses single-layer coatings with inconsistent thickness (±5%), resulting in lower dielectric strength (8kV/mm) and higher risk of pinhole defects.

Rigorous QC Protocols

Every batch undergoes tensile testing per ASTM B210, dimensional checks via laser micrometers (±0.001mm accuracy), and adhesion tests (ASTM D3359). Spooling tension is controlled to ±0.5N for uniform winding. We also conduct thermal shock tests (250°C for 10 minutes) and solvent resistance tests (MEK rubs) to validate enamel durability. Generic manufacturers often skip these tests, resulting in higher field failure rates.

Parameter	Luoyang Xinzhaohe Standard	Generic Market Standard
Diameter Tolerance	±0.005mm	±0.01mm
Dielectric Strength	≥10 kV/mm	≥8 kV/mm
Tensile Strength	200–250 MPa	180–220 MPa
Elongation	>20%	>15%
Coating Thickness Consistency	±2%	±5%
Thermal Shock Resistance	Pass (250°C/10min)	Fail (varies)
Solvent Resistance (MEK)	>100 rubs	<50 rubs

By integrating advanced process control with rigorous QC, Xinzhaohe delivers transformer-grade enamelled wire with 15–20% cost savings versus global brands—without compromising reliability. Our factory-direct approach ensures traceability and consistent performance for mission-critical applications, reducing total lifecycle costs for transformer and motor manufacturers. Every spool is certified with full test reports, providing complete transparency for quality assurance.

---

Packaging & Global Logistics

Export Packaging & Logistics: Ensuring Safe Delivery of Enamelled Wire

Luoyang Xinzhaohe Aluminum employs a multi-layered packaging protocol engineered for sea freight resilience. Each enamelled wire spool is first wrapped in 200μm VCI-infused PE film with desiccant packs, then secured in custom wooden cases (1200×1000×800mm) made from kiln-dried timber with internal bracing. These cases are mounted on ISPM15-certified pallets (heat-treated to eliminate pests) and reinforced with 19mm galvanized steel strapping at 1500N tension per band. The kiln-dried timber prevents moisture absorption, while internal bracing minimizes spool movement within cases. Each pallet is labeled with barcoded tracking tags for seamless inventory management. All packaging materials comply with ISO 9001 quality standards and are subject to rigorous pre-shipment inspections.

Precision Packaging for Sea Freight

Component	Specification	Purpose
VCI Film	200μm PE + vapor corrosion inhibitor + desiccant packs	Forms protective molecular layer on metal surfaces; prevents oxidation in 95%+ humidity environments
Wooden Cases	Kiln-dried timber, 1200×1000×800mm, ISPM15 heat-treated	Structural protection against impacts, stacking loads, and moisture retention
Steel Strapping	Galvanized 19mm width, 4-6 bands per pallet, 1500N tension	Prevents load shifting during vessel motion; corrosion-resistant for saltwater exposure

End-to-End Logistics Management

Our logistics system integrates Qingdao Port’s premier shipping lanes with AI-driven route optimization. All shipments include full cargo insurance (All Risks coverage), real-time GPS tracking via our proprietary portal, and customs clearance handled by in-house experts using automated e-docs. We optimize 40ft HQ containers for 8-10 tons of wire spools, ensuring 98% volume utilization. Our AI considers monsoon seasons and port congestion, rerouting shipments proactively. All containers undergo pre-shipment moisture checks to ensure zero humidity exposure prior to sealing. We also provide dedicated 24/7 support for urgent shipments and custom packaging requests.

Aspect	Detail	Benefit
Primary Port	Qingdao Port (95% of shipments)	20% faster customs processing and priority vessel scheduling
Container Optimization	40ft HQ, 98% volume utilization	Reduces freight cost by 15% vs. standard containers
Transit Times	Europe: 22-28 days; North America: 18-25 days; Southeast Asia: 7-12 days	Predictable delivery with weather contingency plans
Damage Rate	<0.3% (2023 data)	50% lower than global industry average (0.6-1.0%)

By eliminating middlemen and maintaining full control over packaging and shipping, we deliver a 20-25% lower total landed cost than Tier-1 global brands while ensuring 99.7% product integrity. Our 20+ years of export experience ensures every shipment meets the exacting standards of transformer and motor manufacturers worldwide, with flexible Incoterm options (FOB, CIF, DDP) to align with your procurement strategy. This combination of precision engineering and operational efficiency makes Luoyang Xinzhaohe Aluminum the preferred sourcing partner for global transformer and motor manufacturers.

---

Sourcing from Luoyang Xinzhaohe

Why Partner with Luoyang Xinzhaohe: Engineered Excellence, Unmatched Value

As a leading manufacturer of transformer materials with over two decades of expertise, Luoyang Xinzhaohe Aluminum CO., Ltd. delivers premium enamelled wire solutions tailored for demanding electrical applications. Our factory-direct model ensures optimal cost-performance ratios without compromising on technical precision or reliability—critical for transformer and motor manufacturers seeking efficient, high-yield production. We specialize in high-performance Class 155, 180, and 220 enamelled wires for transformers, motors, and inductors, meeting stringent global standards.

Proven 20+ Years of Technical Expertise

Our team of metallurgical engineers and production specialists possess deep domain knowledge in winding wire manufacturing. From copper/aluminum conductor selection to precise enamel coating processes, we adhere to international standards (IEC 60317, ASTM B175) while optimizing for thermal stability, dielectric strength, and mechanical durability. This experience ensures consistent performance across diverse operating conditions, including high-frequency and high-temperature environments. Our proprietary coating techniques reduce pinhole defects by 30% compared to industry averages, enhancing long-term reliability.

Factory-Direct Cost Efficiency

By eliminating third-party intermediaries, we pass direct savings to clients. Our vertically integrated production—from raw material sourcing to final testing—enables 15-25% lower costs compared to global brands, without sacrificing quality. This model also ensures tighter control over lead times and supply chain resilience. Our Luoyang facility operates 24/7 with automated production lines, ensuring batch-to-batch consistency and rapid response to urgent orders. Minimum order quantities are flexible to accommodate projects of all scales.

Rigorous ISO 9001 Quality Assurance

Every batch undergoes strict quality control per ISO 9001:2015 protocols. Our in-house labs test for key parameters including:
Conductor diameter tolerance (±0.005mm)
Enamel thickness uniformity (±0.002mm)
Breakdown voltage (>5kV per IEC 60851-5)
Adhesion (ASTM D4541) and solderability (IEC 60851-4)
This ensures compliance with IEC 60317 specifications for all thermal classes (130°C to 220°C). We also provide full traceability via batch records and third-party testing certificates (SGS/TÜV) upon request.

Criteria	Luoyang Xinzhaohe	Global Brands
Cost Efficiency	15-25% lower (vertical integration)	20-40% higher (brand premium)
Quality Consistency	<0.5% defect rate (ISO 9001)	Variable (regional disparities)
Lead Time	15-20 days (local production)	30-45 days (global logistics)
Technical Support	Dedicated application engineers	Limited post-sale engagement
Customization	Flexible thermal classes, insulation types	Standardized offerings only

Our strategic focus on cost-performance balance makes Luoyang Xinzhaohe the ideal partner for engineers prioritizing both budget constraints and technical performance. Whether you require standard IEC-compliant wires or custom formulations for specialized applications, our team provides end-to-end support from design to delivery.
Contact Cathy at cathy@transformerstrip.com for a tailored quote and technical consultation today.

---
