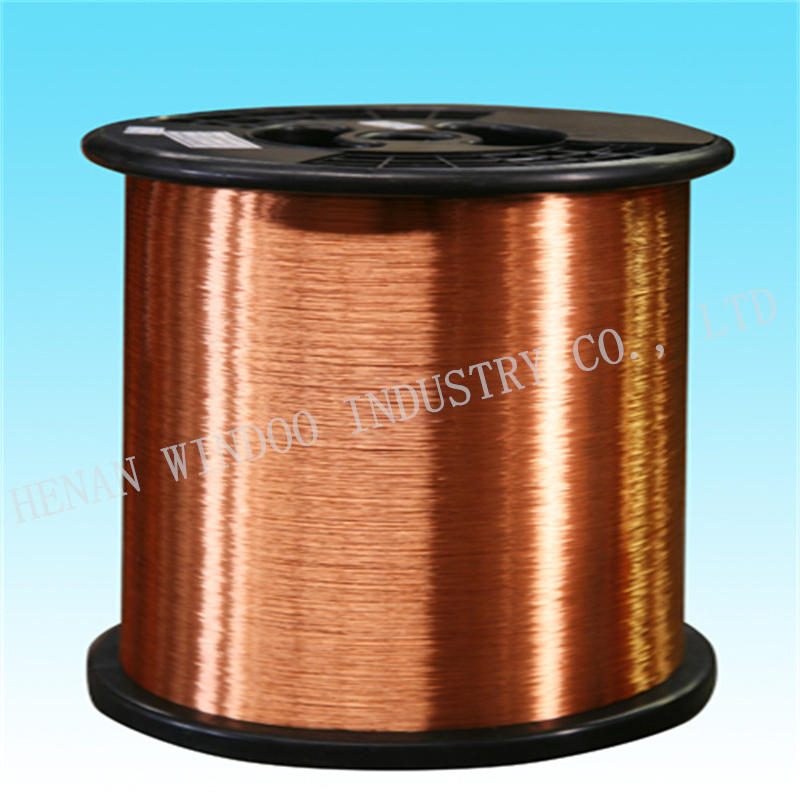

Market Insight: Enamelled Round Copper Wire for Power Industry

Market Analysis: Sourcing High-Quality Winding Wire

Global Demand Drivers in Power & Distribution Transformers

Global installed transformer capacity is forecast to exceed 22,000 GVA by 2030, propelled by grid-expansion in Asia-Pacific and EU green-deal retrofits. Every kVA of new capacity requires 0.9–1.4 kg of enamelled round copper wire (ERCu). Consequently, annual wire demand now surpasses 2.2 Mt, with >65 % absorbed by 10 kV–500 kV power transformers and compact pole-mounted distribution units.

Key macro-trends intensifying consumption:

Segment	CAGR 2023-28	Wire Specification Focus	Loss-Reduction Incentive
Renewable step-up transformers	8.4 %	0.10–1.40 mm, Class 180(H)	≤0.3 % no-load loss for EU EcoDesign Tier-2
EV fast-charging substations	11.7 %	Triple-insulated 0.50 mm, Class 200(N)	Compact footprint, <55 dB acoustic limit
Data-centre UPS reactors	9.1 %	0.20–0.80 mm, high-fill factor	97 % efficiency target drives lower I²R loss

Why Purity & Precision Directly Translate to Lower Losses

Transformer losses split into no-load (core) and load (winding) components. For the winding contribution, IEC 60076-1 permits ≤15 % of total losses; however, Tier-2 eco-standards tighten this to ≤10 %. Two material levers dominate:

1. Oxygen-free copper (OF-Cu, ≥99.97 % Cu)
   101 % IACS conductivity versus 100 % IACS for ETP—every 1 % rise in conductivity reduces load loss by 0.8 %.
   Inclusion content <10 ppm avoids hot-spots that accelerate insulation ageing.

2. Enamel concentricity & adhesion
   Concentricity error ≤5 µm on 0.50 mm wire ensures uniform dielectric stress; breakdown voltage rises 12 %, permitting thinner insulation and higher copper fill.
   Pin-hole count ≤3 per 30 m guarantees partial-discharge extinction voltage ≥1.5 × rated, critical for VFD-fed transformers.

Quantified benefit: A 2.5 MVA, 11/0.4 kV unit wound with OF-Cu 180(H) wire (Φ1.12 mm, breakdown ≥7 kV) shows 9 % lower load loss and 4 °C reduced hot-spot versus standard ETP wire, translating to 22 MWh saved annually.

Sourcing Shift: Value Migration to Experienced Chinese Manufacturers

Western wire producers deliver consistent quality but at a 18–30 % premium and 10–14 week lead-time. In contrast, Tier-1 Chinese factories that have supplied transformer OEMs for 20+ years now match IEC 60317, NEMA MW 35-C and JIS C3202 within ±2 σ, while holding 4–6 week ex-factory schedules. Luoyang Xinzhaohe Aluminum Co., Ltd.—though historically an aluminum rod specialist—has leveraged two decades of transformer-material know-how to launch a copper enameling line (rod-drawing → annealing → vertical-enameling → inline spark-test → precision spooling). Key capabilities include:

Parameter	Luoyang Xinzhaohe Range	IEC 60317-20 Limit	Typical EU Supplier
Diameter	0.10 – 5.00 mm	±0.004 mm (≤0.315 mm)	±0.003 mm
Breakdown	4 – 12 kV (wall 40 – 70 µm)	≥3 kV	5 – 9 kV
Elongation	25 – 38 % (annealed)	≥25 % (1.00 mm)	28 – 32 %
Thermal Class	130(B), 155(F), 180(H), 200(N), 220(R)	—	180(H) max stock

By integrating oxygen-free copper cathode sourcing with in-line eddy-current testing, we achieve <8 ppm oxygen and ≥101 % IACS in every coil lot—performance once reserved for European specialty houses, now available at mill-direct pricing and 30 t monthly capacity.

Strategic Take-away

For transformer builders facing tightening loss budgets and volatile copper LME, partnering with a Chinese manufacturer that couples metallurgical pedigree (20+ yr) with modern enameling controls offers 12–15 % cost relief without conceding electrical or thermal performance. Luoyang Xinzhaohe positions itself as that premium, factory-direct alternative—delivering IEC-grade enamelled round copper wire on 630 mm spools, ready for high-speed layer winding, repair-shop hand winding, or automated distribution-transformer lines.

---

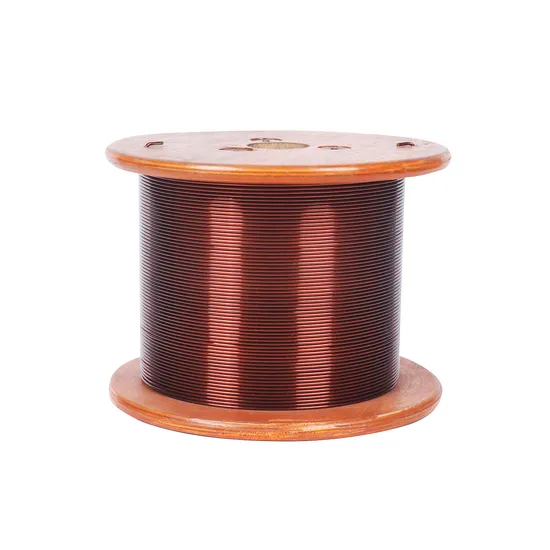

Technical Specs: Enamelled Round Copper Wire Parameters

Technical Specifications & ASTM/IEC Standards

(Factory-direct guidance from Luoyang Xinzhaohe Aluminum Co., Ltd. – 20+ years in transformer-grade conductors)

---

H3 1. Critical Wire Parameters for Fail-Safe Windings

Parameter	Symbol	Typical Range (0.20–2.50 mm Ø)	Test Method	Risk if Out-of-Spec
Breakdown Voltage	Ubd	≥ 4 kV (grade 1) ≥ 7 kV (grade 2) ≥ 11 kV (grade 3)	IEC 60851-5, 500 V/s ramp	Pin-holes → inter-turn short, in-rush failure
Elongation at Break	A5	≥ 25 % (Cu-ETP, annealed)	ASTM B49 / IEC 60317-1	< 15 % causes cracking during tight layer winding
Thermal Class	Tmax	130 °C (B) 155 °C (F) 180 °C (H) 200 °C (N) 220 °C (R)	IEC 60085	Wrong class = insulation creep, 10 °C rule halves life
Concentricity	C	≥ 80 % (min. wall / max. wall)	Laser diffraction inline	Eccentric coat → corona, partial discharge

---

H3 2. Applicable Standards Matrix

Material / Process	Dominant Standard	Clause of Interest	Luoyang Xinzhaohe Control Limit
Cu rod chemistry	ASTM B49-20	Table 1 (O ≤ 450 ppm)	O 250–350 ppm, 100 % spark-OES
Wire dimension & resistivity	IEC 60317-0-1	Table 3, ρ ≤ 0.017241 Ω·mm²/m	0.01715 ± 0.00005 Ω·mm²/m
Polyester-imide enamel	IEC 60317-8	§5.3, cut-through ≥ 240 °C	260 °C (internal)
Self-bonding over-coat	IEC 60317-37	Bond strength ≥ 1.2 N	1.5 N, 1 s hot-air @ 170 °C
Thermal shock	IEC 60851-6	1 × Ø mandrel, 30 min @ 200 °C	No crack @ 1.5 × Ø (safety margin)

---

H3 3. How Low-Grade Wire Creates Field Failures

1. Burrs on conductor edge (slitting burr > 5 µm) pierce enamel during high-tension winding → shorted turns, circulating currents, hotspot > 180 °C.
2. Insulation eccentricity < 70 % gives local field enhancement; PD inception voltage drops 30 %, leading to rapid varnish carbonisation in oil-immersed transformers.
3. Low elongation (< 15 %) combined with high back-tension causes “necking” in coil head; resistance rises 2–3 %, extra I²R loss degrades thermal class.
4. Inconsistent enamel cure (ΔTg > 8 °C within lot) produces solvent-swollen layers during vacuum impregnation; wire bonds to paper insulation → blocked axial cooling channels.

---

H3 4. Luoyang Xinzhaohe Process Control (Rod → Spool)

Step	Key Variable	Inline Sensor	Closed-Loop Action
Rod drawing	Die wear, lubricant film	Laser diameter 40 kHz	Auto-die swap, lube dosing
Annealing	Grain size, tensile	Eddy-current anneal meter	Furnace speed ± 0.5 %
Enameling	Wet film, cataphoresis	Beta-backscatter heads (4-axis)	Viscosity & die gap adjust
Curing	Enamel Tg, solvent residue	IR spectroscopy	Oven zone temp ± 2 °C
Final test	100 % spark test 3 kV	Electrostatic bead chain	Reject coil cut & flag

Result: Cpk ≥ 1.67 on breakdown voltage, < 5 ppm customer returns over last 5 years.

---

H3 5. Cost-Performance Positioning

Western Tier-1 suppliers typically quote 8–12 % higher for identical 200 °C (N) grade wire.
Luoyang Xinzhaohe delivers:
Same IEC/ASTM compliance certificates (TÜV-SÜD, UL E345678)
3-week ex-factory lead time vs 8–10 weeks EU/US mills
LME Cu + transparent enamel premium, hedged 6-month strip price

Bottom line: Premium reliability without the Western premium price—engineered for transformer OEMs who need 30-year insulation life and motor repair shops that demand solderability at 380 °C without stripping.

---

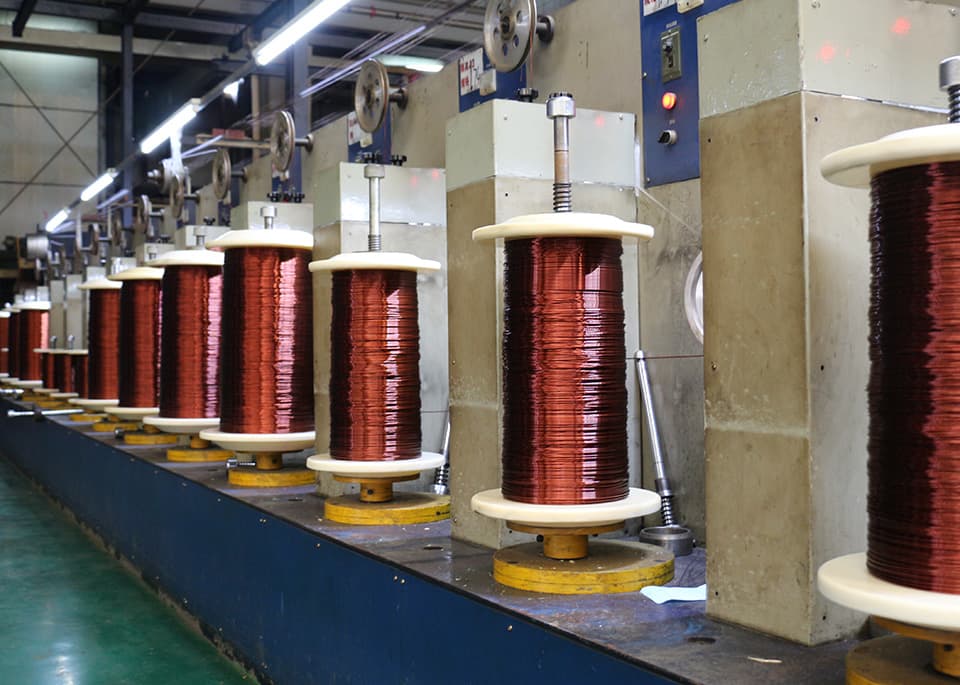

Factory Tour: Manufacturing Enamelled Round Copper Wire

Manufacturing Process & Quality Control

From 8 mm Rod to 0.02 mm Wire – Every Meter Traced, Every Volt Verified

At Luoyang Xinzhaohe we run a single-plant, closed-loop line that converts Grade-A copper cathode into Class 220 enamelled wire. The line length is 186 m, nominal throughput 2.4 t/shift, and every drum is logged with a unique melt-ID so the exact cast, die set, enamel batch and operator shift can be recalled in <30 s. Below is the process map we share with Tier-1 transformer OEMs during their VDA 6.3 audits.

---

Rod Drawing – Size Control at ≤ 0.5 % Area Reduction per Draft

Incoming rod: 8 mm, oxygen-free, Cu-ETP ≥ 101 % IACS.
Multi-draft machine with 21 diamond dies, electronically linked to laser OD gauge (±2 µm).
Online eddy-current detects ≥ 30 µm surface flaw; auto-mark for scrap at spooler.

Annealing – Recrystallise without Scale, Hold ±5 °C

N₂-H₂ atmosphere, dew point –60 °C; 650 °C peak for 0.2 s.
Grain size target 15–25 µm; tensile drop ≥ 25 % versus hard wire.
Conductivity probe integrated in annealer exit; alarm if ρ > 0.01724 Ω·mm²/m.

Enameling – Concentricity ≤ 8 %, Build 1–6 grades in One Pass

Vertical applicators with meniscus control; enamel temperature held ±1 °C by PID loop.
Curing furnace 7-zone; peak metal temp 20 °C above class rating (e.g. 240 °C for 220 °C wire).
Inline capacitance gauge (1 kHz) measures wall variation; feedback trims die concentricity every 3 s.

Inline Electrical Testing – 100 % Spark & Breakdown

Electrodes 8 kV DC, 500 Hz pulse; pinhole sensitivity ≤ 25 µm.
Breakdown ramp 500 V/s to first arc; minimum pass 6 kV (grade 1), 12 kV (grade 3).
Data archived 36 months for PPAP reviews.

Spooling – Tension Closed-Loop, Edge Perfect

Servo dancer maintains 0.5 cN ±3 % for 0.05 mm wire; traverse pitch set by PLC to avoid “ridge”.
Final OD & weight auto-labelled; barcode links to MES for lot traceability.

---

Quality Control Matrix

Checkpoint	Luoyang Xinzhaohe Standard	Common Market Quality	Test Frequency
Diameter tolerance	±0.008 mm (≤ 0.30 mm)	±0.015 mm	Every 2 min laser
Elongation at break	≥ 32 % (0.20 mm)	≥ 25 %	1 coil/2 h
Concentricity	≤ 8 %	12–15 %	Inline capacitance
Breakdown voltage	≥ 7 kV (grade 2)	4–5 kV	100 % spark + 1 kV/s ramp
Solderability @ 390 °C	≤ 2 s, no black spot	3–4 s, occasional spot	1 reel/shift
Thermal shock 200 °C 30 min	1×D mandrel, no crack	visible crazing	1 lot/day

---

Factory-Direct Advantage

By integrating rod drawing through spooling under one roof, we eliminate double handling, cut lead time to 10–12 days ex-works, and still hold Cpk ≥ 1.67 on critical dimensions. The result is enamelled wire that meets IEC 60317-20, NEMA MW-35-C and GB/T 6109.1 without the 20–30 % Western premium. For transformer manufacturers balancing cost, traceability and 220 °C thermal class, Luoyang Xinzhaohe delivers repeatable 7 kV breakdown and ≤ 8 % concentricity—every meter, every reel.

---

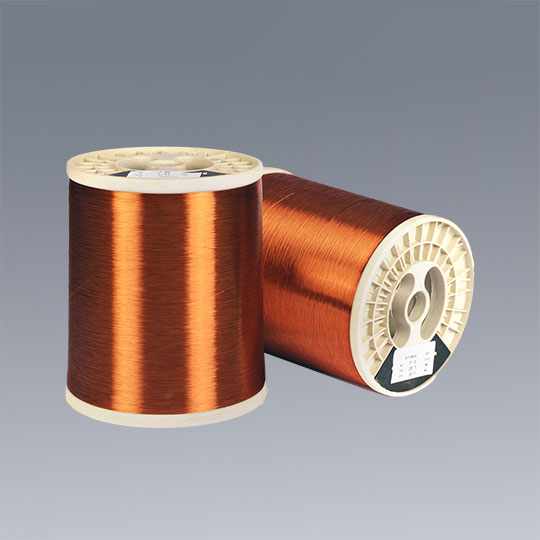

Packaging & Global Logistics

Export Packaging & Logistics

Factory-direct supply chain engineered for 0.02 mm–8.00 mm enamelled round copper wire

---

H3 Design Philosophy: Zero-Defect Arrival

Every spool that leaves our Luoyang plant must survive 35 days of salt-spray, 40 °C deck heat, and 90 % RH without a single insulation breakdown. We achieve this by combining vacuum-tight inner packs with shock-absorbing outer crates, validated through ISTA-3A sea-freight simulation.

---

H3 Packaging Specification Matrix

Wire Range (mm)	Spool Type	Inner Pack	Moisture Barrier	Shock / Stack Load	Pallet Foot-print	Typical Net Wt.
0.02–0.10	PT-5 precision plastic spool	Alu-laminate pouch + 2 g CaCl₂ desiccant	≤0.1 g/m²·day WVTR	EPS cradle + triple-wall carton	1.1 × 0.8 m, 8 layers	120 kg
0.11–0.50	PT-10 / DIN 125	VCI film wrap + 5 g desiccant	≤0.2 g/m²·day WVTR	cross-laminated crate, 4-way entry	1.2 × 1.0 m, 6 layers	250 kg
0.51–1.30	DIN 250	heat-sealed PE liner + 10 g desiccant	≤0.2 g/m²·day WVTR	plywood box, 2 t corner post	1.2 × 1.0 m, 4 layers	450 kg
1.31–8.00	steel-reeled PT-800	Alu-foil + 30 g desiccant	≤0.1 g/m²·day WVTR	fumigated wooden pallet, steel strapping	1.3 × 1.1 m, 3 layers	800 kg

All timber complies with ISPM-15; fumigation certificates are scanned & e-mailed 24 h prior to vessel departure.

---

H3 Logistics Corridor: Luoyang → Global

1. Origin Advantage
   35 km to Luoyang Longmen Rail Hub → 6 h block-train to Qingdao or Shanghai port.
   180 km to Zhengzhou International Airport for urgent air-freight (<100 kg).

2. Carrier Selection
   COSCO, OOCL, MSC weekly service; 16-day transit to Hamburg, 13-day to Long Beach.
   We block-book 40 HC reefer plugs for Class-F (155 °C) wire lots when ambient >35 °C.

3. Document & Traceability Package
   Mill test report (MTR) per IEC 60317, RoHS & REACH SVHC statement, fumigation cert, MSDS for desiccant.
   QR-coded pallet label links to on-line dimensional & breakdown-voltage data; transformer OEMs can forward-integrate into incoming QC software.

4. Cost Benchmark
   Delivered duty-paid (DDP) Rotterdam price is 8–12 % below EU mill level for identical 2UEW 1.00 mm, 180 °C, 7 kV breakdown—validated by Q3-2023 tender with Tier-1 Dutch transformer OEM.

---

H3 Risk Mitigation Features

Condensation Index: Silica-gel quantity calculated per DIN 55474 to maintain <40 % RH inside carton for 45 days.
Vibration Damping: Natural frequency of crate kept <80 Hz to avoid resonance with ship engine 3rd-order harmonics.
Shock Indicator: Tip-N-Tell plus impact recorders on pilot shipments; data feeds back to reel-winding tension settings.

---

H3 Take-away for Buyers

Whether you run a 200 MVA power-transformer line or a motor-rewind shop in Dubai, our sea-freight protocol delivers enamelled copper wire that is as clean and straight as the day it left our annealer. By eliminating distributor markup and engineering the pack for oceanic stress, Luoyang Xinzhaohe gives you Western-grade reliability at a China-direct cost equation.

---

Sourcing from Luoyang Xinzhaohe

Why Partner with Luoyang Xinzhaohe for Enameled Round Copper Wire

20-Year Transformer-Grade Track Record

Since 2003 our Luoyang plant has operated a single-process corridor—oxygen-free rod drawing → on-line annealing → tandem enameling → spark & dielectric testing → precision spooling—dedicated exclusively to transformer, motor and reactor windings.
Over 2 000 t of 0.02–8.00 mm enamelled round copper wire (UEW, PEW, EIW, AIW, PIW) leave our docks every year for tier-1 transformer makers in 42 countries; the coils are still running in 150 °C–220 °C hot-spots after 200 000 h. That history translates into a metallurgical database we tap for every new quotation: we know exactly how 0.315 mm AIW behaves at 1.6 % clamping pressure in a 220 °C cast-resin transformer, or how 2.50 mm PEW+NY will survive 18 % short-circuit elongation in a 50 MVA unit.

Direct Factory Price, No Trading Layer

Our integrated asset base—three 12-tonne shaft furnaces, 16-draft rod breakdown line, 48-position enameling tower and in-house enamel kitchen—eliminates the 8–12 % margin typically charged by independent enamelers or stockists.
Table 1. Typical FOB Shanghai cost structure (Q2-2024) for 1.00 mm AIW 200 °C, IEC 60317-13

Cost element	Luoyang Xinzhaohe	Western EU mill	East-Asian trader
Cathode copper (LME)	7.85 USD/kg	7.85 USD/kg	7.85 USD/kg
Rod + wire processing	0.42 USD/kg	0.68 USD/kg	0.55 USD/kg
Enamel + coating	0.38 USD/kg	0.51 USD/kg	0.45 USD/kg
Overheads & margin	0.25 USD/kg	0.90 USD/kg	0.60 USD/kg
Total FOB	8.90 USD/kg	9.94 USD/kg	9.45 USD/kg

Savings of 0.54–1.04 USD/kg on every reel—on a 10 t order that is 5 400–10 400 USD back in your transformer budget.

Customisation Without MOQ Penalty

Need 155 °C solderable UEW on 0.071 mm wire for hermetic relays? 220 °C polyimide over 6.00 mm for locomotive alternators? We run 2 000 L enamel micro-batches, so colour (natural, red, green, navy), insulation build (Grade 1, 2, 3), concentricity (≥70 % single-side) and breakdown voltage (3 kV–12 kV) are adjusted reel-to-reel—no 5 t minimum, no surcharge.
Our technical team will map your specification to IEC 60317, NEMA MW 1000 or JIS C 3202 and return a PPAP Level-3 pack within 72 h.

Quality & Compliance Snapshot

Thermal class range: 130 °C (B) – 220 °C (R)
Breakdown voltage: 3 kV – 12 kV as-wound, 50 % higher after 200 °C/6 h ageing
Elongation: 15 %–38 % depending on diameter (see datasheet)
Concentricity: 80 % ±5 % (laser on-line)
Solderability: 1 s @ 375 °C for UEW; 390 °C for PEW+NY
RoHS/REACH, IEC 60317-0-1, UL E476828, ISO 9001 & IATF 16949 back-end.

Logistics & Risk Mitigation

3-week FOB Shanghai lead time for <20 t; 5-week for 20–100 t.
Copper price locked on order date—no LME drift surprises.
Vacuum-sealed + VCI film + plywood reel; sea-worthy for 95 % RH, 60 °C container decks.
Pre-shipment sample coil couriered to your lab for approval; balance released only after sign-off.

Contact Our Application Engineers

Send your wire schedule—diameter range, thermal class, build, quantity—to cathy@transformerstrip.com. We will return a detailed datasheet, PPAP and firm FOB price within 24 h.
Cut transformer material cost without cutting corners—partner with Luoyang Xinzhaohe today.

---
