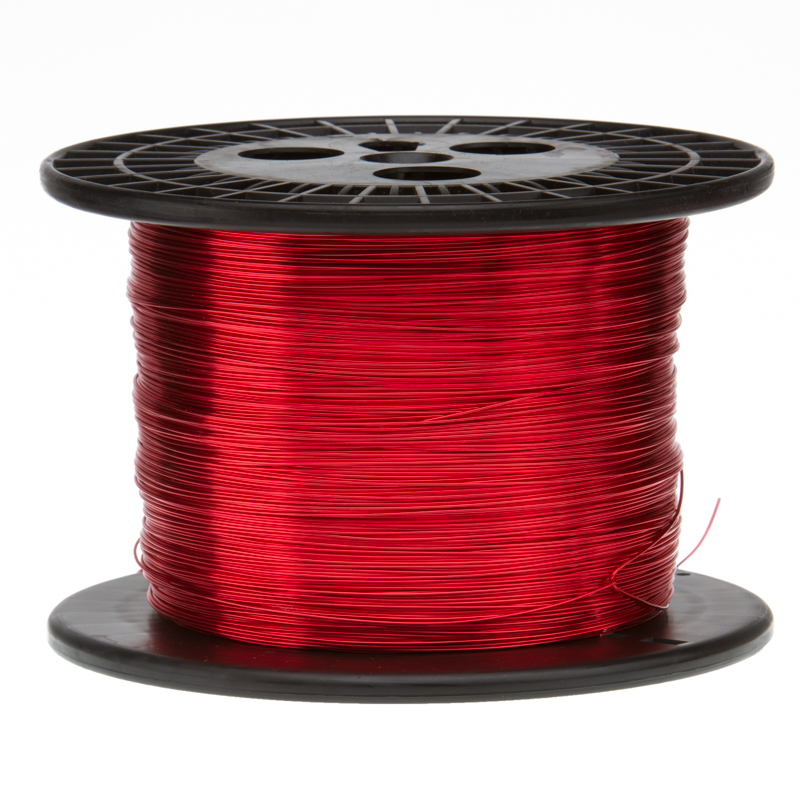

Market Insight: Enamelled Magnet Wire

Market Analysis: Winding Wire Demand in Transformer Applications

Global demand for high-performance enamelled magnet wire remains robust, driven primarily by the critical role of power and distribution transformers within evolving electrical infrastructure. Transformer manufacturing constitutes a dominant end-use segment for magnet wire, particularly aluminum and copper variants meeting stringent thermal and electrical specifications. Key growth catalysts include the worldwide expansion of renewable energy integration, necessitating step-up transformers for solar and wind farms, coupled with extensive grid modernization programs in both developed and emerging economies. These initiatives demand transformers with enhanced efficiency ratings (e.g., DOE 2016, IE4+), directly increasing the requirement for magnet wire possessing superior thermal endurance and lower dielectric losses. Furthermore, the proliferation of compact distribution transformers for urban substations and industrial facilities intensifies the need for magnet wire capable of withstanding high thermal stresses during operation and the mechanical rigors of tight winding processes. Supply chain resilience for this specialized wire is paramount, as transformer production delays cascade significantly through power project timelines.

The non-negotiable nature of magnet wire quality in transformer applications cannot be overstated. Transformers operate continuously under high electrical stress and thermal cycling; the magnet wire’s enamel insulation system is the primary barrier preventing catastrophic inter-turn or ground faults. Substandard wire, often exhibiting inconsistencies in enamel thickness, adhesion, or thermal class compliance, accelerates insulation degradation through thermal aging and partial discharge. This directly compromises transformer lifespan and reliability, leading to unplanned outages with severe financial and operational consequences. Critical quality parameters include precise adherence to IEC 60317 thermal class standards (e.g., 180°C, 200°C, 220°C), verified dielectric strength exceeding 3 kV for typical gauges, and exceptional thermal shock resistance to withstand winding and varnishing processes. Conductivity uniformity is equally vital; for aluminum magnet wire, which offers significant weight and cost advantages in distribution transformers, maintaining tight resistivity tolerances per ASTM B230/B609 is essential to meet efficiency targets without compromising current-carrying capacity. Mechanical properties, particularly elongation and bendability per IEC 60851 tests, ensure the wire survives the high-tension winding process without nicks or cracks that become failure initiation points.

Failure modes directly linked to magnet wire deficiencies underscore the quality imperative:

Procurement decisions must prioritize total cost of ownership over initial wire cost. Inferior magnet wire represents a critical vulnerability in transformer design, where failure rates escalate exponentially under operational stress. Rigorous supplier qualification, including batch traceability, independent third-party certification to IEC standards, and demonstrable process control in enamel application, is fundamental for mitigating risk in transformer manufacturing. Luoyang Xinzhaohe Aluminum leverages two decades of metallurgical and supply chain expertise to deliver aluminum magnet wire meeting the most demanding transformer specifications, ensuring reliability within this mission-critical component.

Technical Specs: Enamelled Magnet Wire

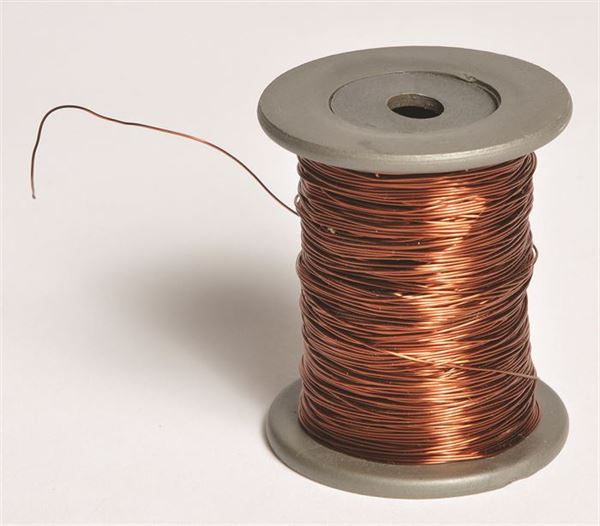

Technical Specifications for Enamelled Aluminum Magnet Wire

Enamelled aluminum magnet wire is a critical component in the construction of electromagnetic coils for motors, transformers, and inductors. At Luoyang Xinzhaohe Aluminum Co., Ltd., with over two decades of specialized production experience, our magnet wire is engineered to meet stringent international performance benchmarks. Key technical parameters governing performance include insulation breakdown voltage, elongation, and thermal class—each directly influencing reliability, efficiency, and operational lifespan in end-use applications.

Insulation breakdown voltage is a primary indicator of dielectric strength and determines the wire’s ability to withstand electrical stress without failure. Our standard enamelled aluminum magnet wires are tested to ensure minimum breakdown voltages ranging from 2,000 V to over 6,000 V, depending on wire diameter and insulation thickness. This high dielectric integrity is achieved through precision application of polymer coatings such as polyurethane (PU), polyester (PE), or polyamide-imide (PAI), applied via multi-layer processes to ensure uniformity and defect-free coverage. The breakdown voltage is measured under controlled conditions per IEC 60317 and GB/T 23642 standards, with results validated through batch sampling and third-party certification.

Elongation, measured as a percentage of original length at the point of fracture, reflects the mechanical ductility of the aluminum conductor. High elongation values are essential for coil winding processes, especially in tight-radius applications where mechanical stress is elevated. Our aluminum magnet wires, produced from high-purity 1350-O or equivalent soft-annealed aluminum, exhibit elongation values of 25% to 35%, ensuring excellent formability and resistance to cracking during winding. This ductility is maintained through controlled annealing and drawing processes that optimize grain structure and minimize internal stresses in the conductor.

Thermal class defines the maximum continuous operating temperature the insulation system can endure without significant degradation. Our product portfolio spans thermal classes from 130°C to 220°C, accommodating diverse application requirements. For example, 130°C (Class B) wires are suitable for general-purpose motors, while 180°C (Class H) and 200–220°C (Class C) wires are used in high-efficiency motors, electric vehicles, and industrial inverters where thermal loads are severe. Each thermal class is verified through thermal endurance testing, including thermal aging and resistance-to-heat shock evaluations, ensuring long-term stability under cyclic thermal conditions.

The following table summarizes the core technical parameters of our standard enamelled aluminum magnet wire offerings:

These specifications are maintained through rigorous in-process quality control and final product testing. All materials are traceable, and production adheres to ISO 9001 and IATF 16949 quality management systems. Custom configurations are available to meet specific OEM requirements.

Factory Tour: Manufacturing

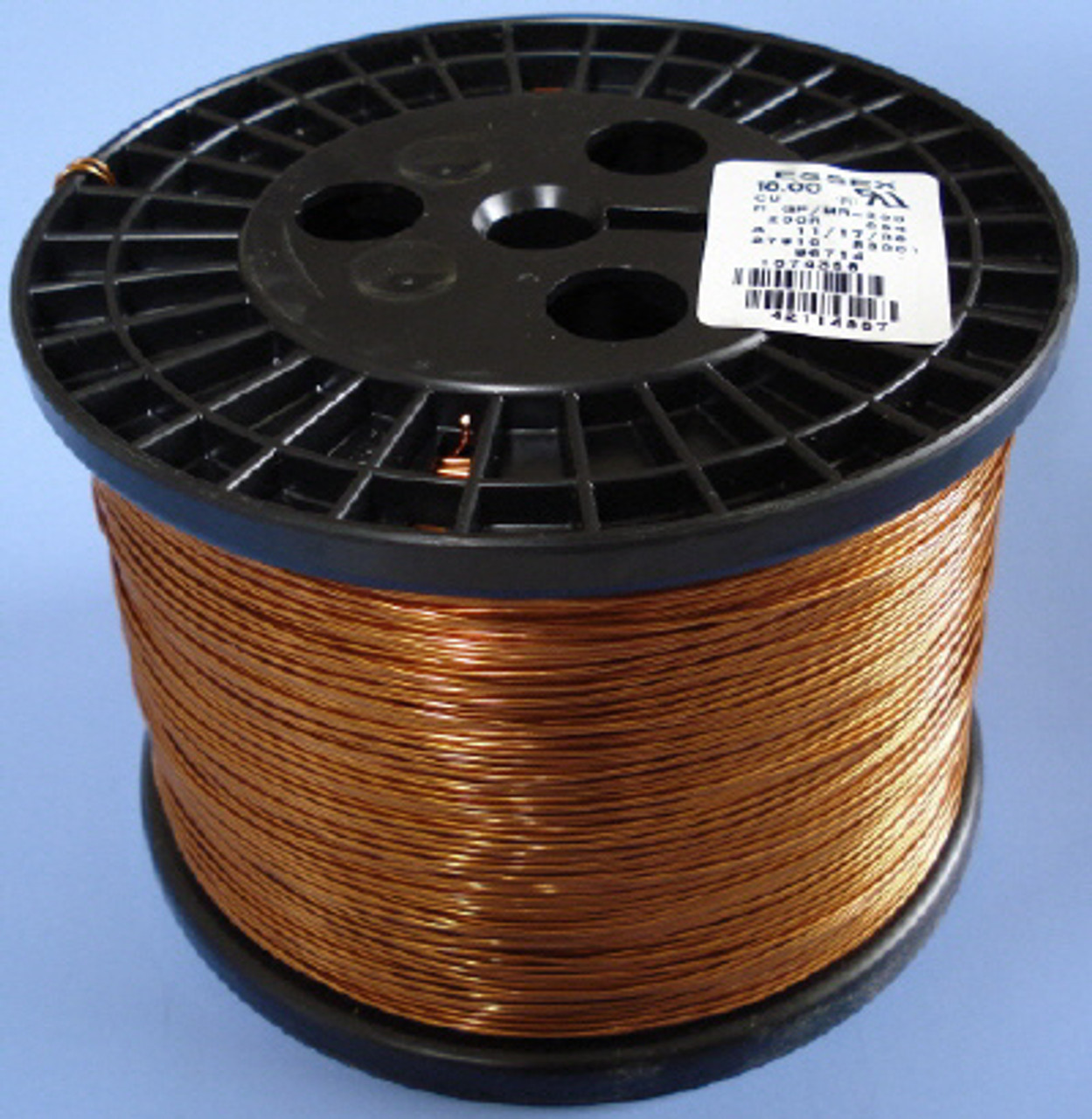

Manufacturing Process for Enamelled Aluminum Magnet Wire

The production of high-performance enamelled aluminum magnet wire at Luoyang Xinzhaohe Aluminum Co., Ltd. follows a rigorously controlled sequence, integrating decades of metallurgical expertise with advanced process engineering to ensure consistent product integrity for demanding electromagnetic applications. This sequence begins with precision rod drawing, where high-purity aluminum rod (minimum 99.7% Al) undergoes cold drawing through a series of tungsten carbide or diamond dies. This critical stage reduces the rod diameter to the precise wire gauge required, typically ranging from 0.02 mm to 5.0 mm. Strict control of reduction ratios, drawing speed, and lubrication is paramount to achieve the necessary dimensional stability, surface finish, and mechanical properties while minimizing work hardening. Tension management throughout the drawing line is continuously monitored to prevent defects such as scratches or diameter variations exceeding ±0.002 mm.

Following drawing, the wire enters the annealing stage, essential for restoring ductility and electrical conductivity compromised during cold working. Xinzhaohe employs continuous in-line annealing systems utilizing precise temperature profiles within a controlled inert or reducing atmosphere, typically nitrogen with trace hydrogen. Temperatures are meticulously maintained between 300°C and 500°C, depending on the specific alloy and final temper requirements. This process recrystallizes the aluminum microstructure, eliminating residual stresses and ensuring optimal elongation for subsequent winding operations. Critical quality control at this stage includes real-time monitoring of annealing temperature uniformity, atmosphere composition verification to prevent oxidation or hydrogen embrittlement, and periodic testing of electrical conductivity (minimum 61% IACS) and mechanical properties like tensile strength and elongation per ASTM B355/B356 standards.

The annealed wire then proceeds to the enameling application. Multiple ultra-thin layers of specialized polymer insulation—commonly polyurethane, polyesterimide, or polyamide-imide—are sequentially applied via precision die or dip-coating systems. Each layer undergoes immediate curing within temperature-controlled ovens, with precise control over viscosity, application thickness, and curing kinetics being vital for achieving the required dielectric strength, thermal class (e.g., 180°C, 200°C), flexibility, and chemical resistance. The total build typically consists of 3 to 5 layers, with intermediate curing ensuring adhesion and eliminating solvent entrapment. Inline monitoring includes continuous measurement of wet film thickness and oven temperature profiling.

Final quality assurance occurs during comprehensive inline testing immediately post-enameling. Every meter of wire undergoes non-destructive evaluation:
| Test Parameter | Method/Standard | Critical Tolerance/Requirement |
|————————-|———————–|——————————–|
| Dielectric Strength | Spark Test (IEC 60851-5) | Minimum 3 kV (for 0.1mm build) |
| Conductor Diameter | Laser Micrometer | ±0.002 mm |
| Enamel Build Uniformity | Optical Sensor | ±5% of nominal build |
| Tension Consistency | Load Cell Monitoring | Within 5% of setpoint |

Data from these tests is logged for full traceability. Only wire meeting all dimensional, electrical, and mechanical specifications proceeds to precision winding onto spools under controlled tension, completing the production cycle. This integrated approach, honed over 20+ years, ensures the magnet wire delivered by Xinzhaohe provides the reliability and performance demanded in motors, transformers, and inductors, directly reducing field failure risks for our customers. Statistical process control data is available for all production batches upon request.

Packaging & Logistics

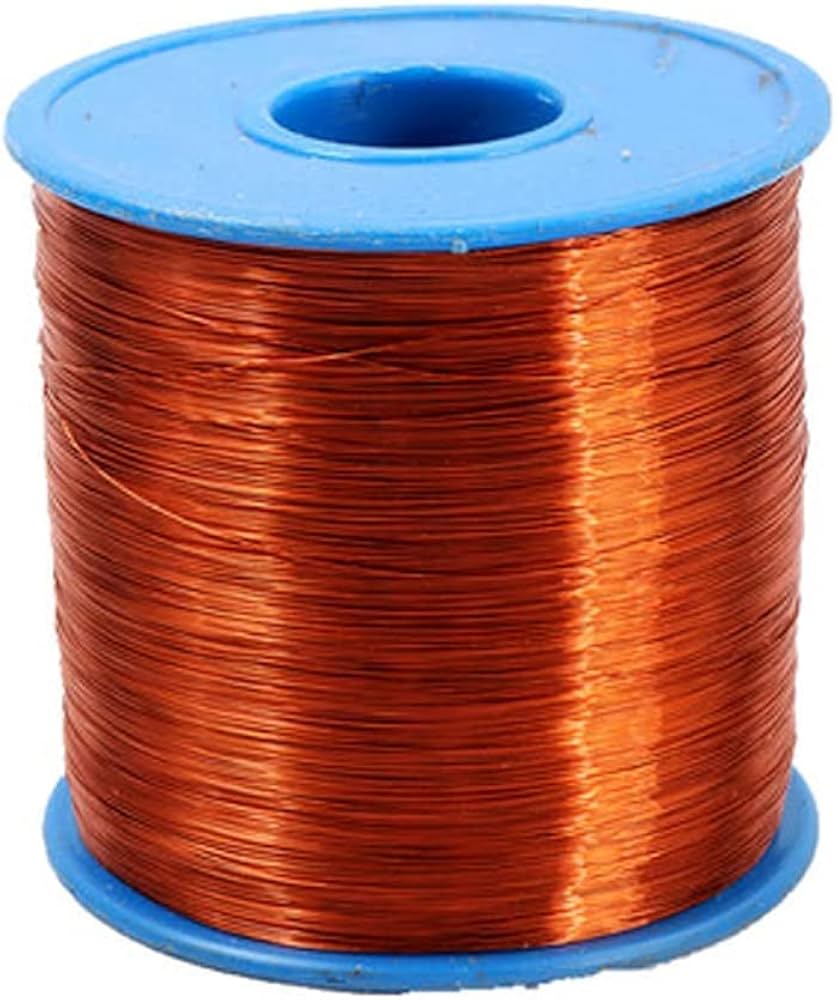

Export Packaging for Enamelled Magnet Wire: Ensuring Integrity in International Shipments

At Luoyang Xinzhaohe Aluminum Co., Ltd., with over two decades of specialized manufacturing experience in winding wire products, we recognize that reliable export packaging is a critical component in delivering high-performance enamelled magnet wire to global markets. Our packaging methodology is engineered to preserve the integrity of the wire throughout extended sea freight logistics, where environmental exposure and mechanical stress are significant risks.

All export shipments of enamelled magnet wire are secured on robust wooden pallets constructed from kiln-dried, ISPM-15 compliant timber. These pallets are designed to meet international phytosanitary standards, ensuring unrestricted customs clearance across major trade corridors. The structural strength of the pallets supports heavy coil loads, maintains dimensional stability during stacking, and resists deformation under prolonged container storage. Each coil is axially aligned and firmly affixed to prevent lateral movement during transit, minimizing the risk of mechanical damage such as edge burrs, deformation, or insulation abrasion.

A key element in our packaging protocol is the application of multi-layer moisture-proof film. The wire coils are first wrapped in anti-corrosion paper or vapor-phase inhibitor (VCI) film, which provides an initial barrier against moisture and atmospheric contaminants. This is followed by hermetic sealing in high-density polyethylene (HDPE) film, specifically formulated for maritime environments. The film exhibits high resistance to salt spray, humidity, and temperature fluctuations commonly encountered in containerized ocean transport. Seams are heat-sealed to eliminate permeability, ensuring a fully enclosed microclimate that protects the enamel insulation from hydrolysis and surface degradation.

For additional protection, desiccant packs are strategically placed within the sealed film enclosure to absorb residual moisture and buffer against internal condensation caused by thermal cycling. This is particularly critical when shipments traverse tropical or high-humidity zones, where the risk of interstitial dampness is elevated.

Our packaging system has been validated through accelerated aging tests and real-world shipment monitoring across routes including Asia to Europe, North America, and Southeast Asia. The result is a packaging solution that not only complies with international freight regulations but also aligns with the stringent quality expectations of industries such as electric motor manufacturing, transformers, and industrial automation, where wire performance is non-negotiable.

By integrating structural stability, moisture resistance, and compliance assurance, Luoyang Xinzhaohe ensures that every coil of enamelled magnet wire arrives at its destination in optimal condition, ready for immediate integration into precision winding operations.

Sourcing from Luoyang Xinzhaohe

Partner with Luoyang Xinzhaohe: Your Strategic Source for High-Performance Enamelled Aluminum Magnet Wire

Luoyang Xinzhaohe Aluminum Co., Ltd leverages over two decades of specialized metallurgical and manufacturing expertise to deliver exceptional enamelled aluminum magnet wire, meeting the stringent demands of global transformer, motor, and inductor manufacturers. Our vertically integrated facility in Luoyang, China, is engineered for precision, consistency, and supply chain resilience, providing a critical advantage in your component sourcing strategy. We understand that wire performance directly impacts your end-product efficiency, thermal management, and longevity; our processes are meticulously designed to exceed industry benchmarks.

Metallurgical Precision from Core to Coating
Our foundation lies in rigorous aluminum rod production and purification, ensuring a minimum 99.99% purity feedstock essential for optimal electrical conductivity and mechanical drawability. Advanced continuous casting and rolling lines produce defect-free aluminum rod with tightly controlled grain structure. The wire drawing process utilizes diamond and tungsten carbide dies under precise tension and lubrication control, achieving dimensional tolerances within ±0.002mm for diameters ranging from 0.08mm to 5.0mm. Critical to magnet wire integrity, our enamel application employs multi-layer solvent-based and UV-curable systems applied via precision capillary or dip-coating methods. Each layer undergoes controlled curing in nitrogen-purged ovens, guaranteeing uniform thickness, superior dielectric strength exceeding 3000V, exceptional thermal class performance (up to 220°C), and robust adhesion meeting IEC 60317 standards. Our metallurgical team continuously optimizes annealing profiles to balance tensile strength and elongation, preventing breakage during high-speed winding.

Integrated Supply Chain for Uninterrupted Delivery
Vertical integration is central to our reliability. Controlling the entire process from aluminum ingot to finished spooled wire eliminates third-party dependencies and quality variables. Our 50,000-ton annual production capacity is supported by dedicated rod casting, multi-die drawing blocks, and automated enamel lines operating under strict environmental controls. Robust inventory management of key raw materials, including high-purity aluminum and specialty enamels, mitigates market volatility risks. Strategically located near major rail and port infrastructure in Henan Province, we execute efficient global logistics with established partnerships for FCL/LCL shipments, ensuring on-time delivery performance exceeding 98%. We maintain rigorous traceability from melt batch to customer shipment via our integrated MES system.

Quality Assurance Embedded in Every Process Step
Compliance is non-negotiable. Our ISO 9001 and IATF 16949 certified quality management system implements 100% inline monitoring of diameter, ovality, and surface defects during drawing. Final wire undergoes comprehensive testing per ASTM B354 and IEC standards, including elongation, springback, thermal shock, scrape abrasion, and solderability. Dedicated metallurgical labs perform microstructural analysis and chemical composition verification. Batch-specific Certificates of Conformance detail all critical parameters, providing full transparency for your quality documentation.

Partnering with Luoyang Xinzhaohe means securing a supplier whose metallurgical mastery and supply chain discipline directly enhance your manufacturing yield and product performance. We mitigate your risk through consistent quality, technical collaboration, and responsive logistics. Contact Senior Sourcing Manager Cathy Zhang at cathy@transformerstrip.com to discuss your specific enamelled aluminum magnet wire requirements and request a technical datasheet or sample for qualification. Let us demonstrate how our engineered solutions support your competitive advantage.
