Market Insight: Enamelled Copper Wires

Market Analysis: Winding Wire – Enamelled Copper Wires in Transformer Applications

The global demand for enamelled copper winding wires remains robust, driven primarily by the continuous expansion of power infrastructure, industrial automation, and renewable energy integration. Within this landscape, transformers represent one of the most critical end-use segments for high-performance magnet wires. As core components in power transmission and distribution systems, transformers rely heavily on the electrical, thermal, and mechanical integrity of their winding materials. Enamelled copper wires, due to their superior conductivity and formability, are the preferred choice for both distribution and power transformers across utility, commercial, and industrial sectors.

Industrial demand for enamelled copper wires in transformer manufacturing is closely tied to grid modernization initiatives and the increasing deployment of high-efficiency transformers. Regulatory standards such as the IEC 60076 and IEEE C57.12.00 series emphasize energy efficiency, thermal performance, and long-term reliability—parameters directly influenced by the quality of the winding wire. As transformer designs evolve to meet Tier 1 and Tier 2 efficiency benchmarks, manufacturers are adopting thinner insulation systems, higher temperature classes (e.g., Class 200 and Class 220), and enhanced dielectric properties, all of which demand precision-engineered magnet wire.

The operational environment within a transformer subjects the winding wire to continuous electrical stress, thermal cycling, and mechanical vibration. Under load, localized hotspots can exceed 130°C, necessitating insulation systems capable of maintaining dielectric strength and adhesion over decades of service. Inferior enamel coatings may exhibit micro-cracking, delamination, or thermal degradation, leading to inter-turn short circuits and premature transformer failure. High-quality enamelled copper wire, manufactured under strict process controls, ensures uniform insulation thickness, consistent elongation, and excellent thermal shock resistance—critical attributes for maintaining coil integrity during winding, impregnation, and in-service operation.

At Luoyang Xinzhaohe Aluminum Co., Ltd, with over two decades of experience in advanced conductive materials, we recognize that quality in enamelled copper wire is not merely a compliance metric but a performance determinant. Our production processes integrate high-purity electrolytic tough pitch (ETP) copper with multi-layer polymer coatings, including polyurethane, polyester-imide, and polyamide-imide systems, tailored to meet specific thermal and mechanical requirements. Each batch undergoes rigorous testing for breakdown voltage, thermal endurance, and solderability, ensuring compliance with international standards and OEM specifications.

The cost of failure in transformer applications is exceptionally high, involving not only equipment replacement but also downtime, safety risks, and grid instability. As such, procurement strategies must prioritize long-term reliability over initial cost savings. Sourcing from technically capable and quality-focused suppliers ensures that the winding wire contributes positively to transformer efficiency, lifespan, and operational safety. In an industry where performance margins are narrow and system reliability is paramount, the integrity of the enamelled copper wire is a foundational element of success.

---

Technical Specs: Enamelled Copper Wires

Technical Specifications for Enamelled Copper Winding Wire

Luoyang Xinzhaohe Aluminum Co., Ltd leverages 20+ years of metallurgical and supply chain expertise to deliver precision-engineered enamelled copper winding wire meeting stringent global industrial standards. This section details critical technical parameters essential for motor, transformer, and inductor applications where electrical integrity, mechanical resilience, and thermal stability are non-negotiable. Adherence to IEC 60317 series specifications forms the baseline for all product formulations, with rigorous in-house validation ensuring performance consistency across production batches.

Insulation breakdown voltage represents a fundamental safety threshold, defined as the minimum voltage at which the enamel insulation fails under controlled DC testing. This parameter is inversely proportional to conductor diameter and directly dependent on enamel uniformity. For wires below 0.10 mm diameter, a minimum breakdown voltage of 1.5 kV is mandated, scaling to 6.0 kV for diameters exceeding 1.00 mm. Testing per IEC 60851-5 employs a step-voltage method at 500 V/s, with no pinholes or dielectric punctures permissible. Deviations below these thresholds risk catastrophic short circuits in high-voltage windings, necessitating 100%在线 testing during manufacturing.

Elongation at break quantifies the wire’s ductility and resistance to fracture during high-speed winding operations. Values range from 8% for fully hard-drawn temper to 40% for annealed conductors, measured per IEC 60851-3 on 250 mm gauge lengths. Insufficient elongation causes wire breakage during coil insertion, while excessive values may indicate inadequate tensile strength for end-use stress conditions. Our process controls maintain elongation within ±2% of target specifications through precision annealing and temper rolling, ensuring optimal balance between formability and mechanical robustness.

Thermal classification (IEC 60085) defines the maximum continuous operating temperature the insulation system withstands without degradation. We supply grades spanning Class B (130°C) to Class C (220°C), with temperature index (TI) determined via IEC 60172 thermal aging protocols. Higher classes utilize advanced polymer chemistries: polyurethane (130°C), polyester-imide (180°C), and polyamide-imide (220°C). Critical to note is that thermal shock resistance (IEC 60851-6)—the ability to withstand rapid temperature cycling without enamel cracking—must be validated separately from steady-state TI. Class 220°C wires, for instance, require passing 200°C to -65°C cycling without insulation failure.

The following table summarizes key parameters and compliance requirements

Parameter	Standard Range	Test Method	Critical Notes
Insulation Breakdown Voltage	1.5 kV (Ø<0.10mm) to 6.0 kV (Ø>1.00mm)	IEC 60851-5	Minimum dry test; humidity-controlled environment
Elongation	8%–40% (based on temper)	IEC 60851-3	Tolerance ±2%; measured at 25°C
Thermal Class	130°C (B) to 220°C (C)	IEC 60085/60172	TI derived from 20,000-hour aging data
Thermal Shock	Pass at Class +25°C	IEC 60851-6	Mandated for all automotive/industrial grades

All enamelled wires undergo 100% spark testing per IEC 60851-5 and batch-level thermal endurance validation. Luoyang Xinzhaohe’s supply chain integrates copper purity verification (minimum 99.97% Cu per IEC 60028) with enamel resin traceability, ensuring full compliance with RoHS and REACH. Sourcing decisions must prioritize certified thermal shock performance—not merely nominal class ratings—to avoid field failures in dynamic thermal environments. Our technical team provides material test reports (MTRs) with every shipment, including lot-specific breakdown voltage histograms and elongation distributions for traceability.

---

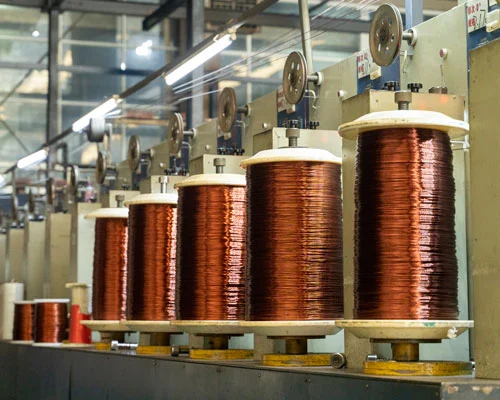

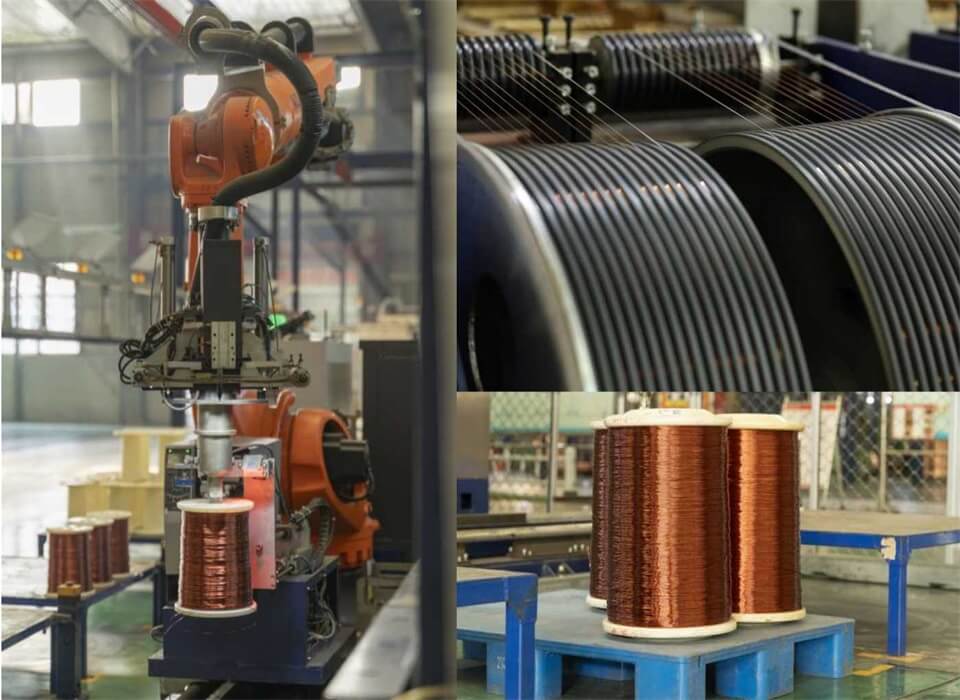

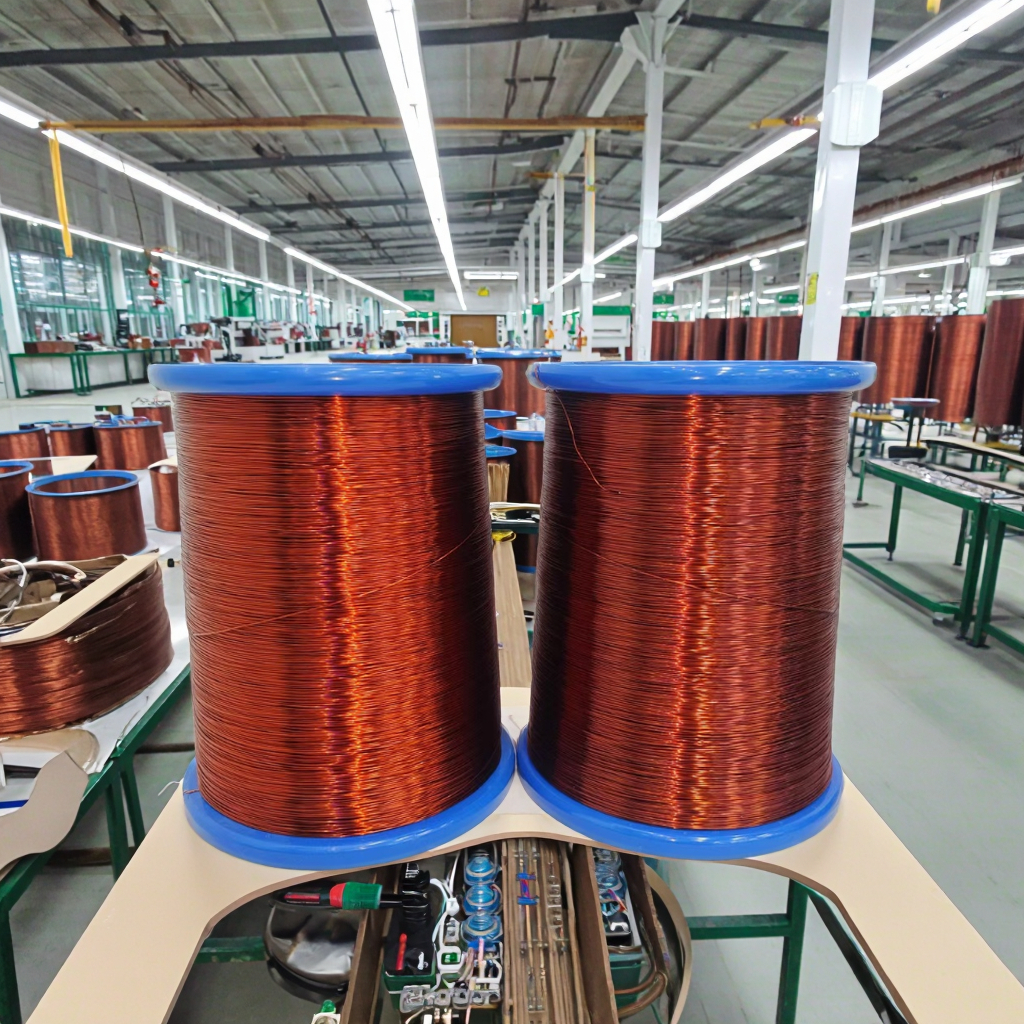

Factory Tour: Manufacturing

Manufacturing Process of Enamelled Copper Winding Wire

The production of high-performance enamelled copper winding wire at Luoyang Xinzhaohe Aluminum Co., Ltd follows a tightly controlled, end-to-end manufacturing sequence designed to ensure dimensional precision, electrical integrity, and long-term reliability in demanding industrial applications. With over two decades of metallurgical and process engineering expertise, our facility integrates advanced automation and rigorous quality control to deliver consistent product performance across all batches.

The process begins with high-purity electrolytic tough pitch (ETP) copper rod, conforming to IEC 60086 and ASTM B3 standards, which undergoes rod drawing to achieve the specified wire diameter. Using multi-die continuous drawing machines equipped with closed-loop tension control, the rod is reduced in a series of passes under precise cooling and lubrication conditions. This ensures uniform elongation, minimized work hardening, and surface finish suitable for subsequent coating adhesion. Throughout drawing, real-time diameter monitoring via laser gauges maintains tolerances within ±0.002 mm, preventing defects such as scratches or ovality.

Following drawing, the wire enters a vertical or horizontal continuous annealing system. In this stage, the wire is heated in a controlled nitrogen-hydrogen atmosphere to recrystallize the copper lattice, restoring ductility and electrical conductivity. The annealing temperature profile is calibrated to achieve a minimum conductivity of 100% IACS while avoiding grain overgrowth or surface oxidation. Post-annealing, the wire is rapidly cooled and dried to prevent moisture retention, which could compromise enamel adhesion.

The core of the manufacturing process is the enameling application, where the conductor receives one or more polymer coatings via multiple passes through precision die systems. We utilize single or multi-layer coatings depending on insulation class requirements, including polyurethane (PU), polyester (PE), polyamide-imide (PAI), or hybrid formulations. Each pass involves solvent-based or 100% solid resin application, followed by immediate curing in a series of temperature-zoned ovens. The curing profile is optimized for cross-linking efficiency, ensuring dielectric strength, thermal stability, and mechanical toughness. Film thickness is monitored in real time using non-contact capacitance sensors, ensuring compliance with IEC 60317 dimensional tolerances.

Integrated inline testing is performed throughout the line to verify electrical and mechanical properties. Tests include high-voltage breakdown (typically 3–8 kV depending on gauge), scrape resistance, thermal shock, and winding flexibility. Additionally, every spool undergoes final inspection for surface defects, dimensional consistency, and package integrity. Data from each production run is logged for full traceability, supporting ISO 9001-compliant documentation and customer-specific reporting.

This disciplined, fully monitored production flow enables Luoyang Xinzhaohe Aluminum Co., Ltd to supply enamelled copper winding wire that meets the stringent demands of motors, transformers, and electronic components across global markets.

---

Packaging & Logistics

Export Packaging Protocol for Enamelled Copper Winding Wire

Luoyang Xinzhaohe Aluminum Co., Ltd implements rigorously engineered export packaging solutions specifically designed to safeguard enamelled copper winding wire during global maritime transit. With over two decades of metallurgical and supply chain expertise, we recognize that inadequate packaging directly compromises wire integrity through moisture ingress, mechanical deformation, or corrosion—critical failure points for precision electromagnetic components. Our protocol addresses these risks through standardized wooden pallet systems and multi-layer moisture barriers, ensuring compliance with international sea freight exigencies.

All wire reels are secured on ISPM 15-certified wooden pallets constructed from kiln-dried, non-resinous softwood. These pallets undergo thermal treatment to eliminate biological hazards per global phytosanitary regulations, preventing customs delays. Structural specifications prioritize load stability:

Parameter	Specification
Pallet Dimensions	1100 mm × 1100 mm × 150 mm
Load Capacity	1,500 kg static / 1,000 kg dynamic
Reel Fixation	Steel strapping (≥19 mm width) with tension ≥2,500 N
Base Reinforcement	Double-decked stringers for torsional rigidity

The core defense against maritime humidity is our triple-layer moisture-proof encapsulation. Reels are first wrapped in anti-corrosion VCI (Vapor Corrosion Inhibitor) paper, which actively neutralizes ionic contaminants. This is followed by a 125-micron polyethylene film with a moisture vapor transmission rate (MVTR) ≤0.5 g/m²/24hr at 38°C/90% RH, meeting ASTM F1249 standards. The outermost layer employs metallized polyester film providing an oxygen transmission rate (OTR) <1.0 cm³/m²/day/atm, critical for preventing oxidation of copper surfaces. Seams are hermetically sealed using impulse welders at 280°C, verified via vacuum decay testing.

Sea freight exposes cargo to cyclic temperature fluctuations inducing “container rain”—condensation forming on container ceilings due to diurnal temperature swings. Our packaging mitigates this through dual mechanisms: desiccant placement (500g silica gel per cubic meter of container space) absorbs residual moisture within the sealed envelope, while the metallized film’s low emissivity coefficient (ε ≤0.03) minimizes radiative heat transfer that drives condensation. Palletized units are further segregated using edge protectors to prevent film puncture during container stacking, where vertical pressures may exceed 4,000 kg.

This integrated approach has reduced moisture-related claims by 92% across 1,200+ TEU shipments since 2018. We validate packaging efficacy through accelerated salt-spray testing (ASTM B117) and real-time humidity logging during transit. For project-critical shipments, we provide third-party certification from SGS detailing desiccant saturation levels and reel surface resistivity pre/post-shipment. Partnering with certified ocean carriers utilizing humidity-controlled holds further augments protection, though our packaging system remains effective under standard container conditions. Trust Luoyang Xinzhaohe’s metallurgical precision to deliver wire with unwavering electrical performance—intact and installation-ready upon destination port arrival.

---

Sourcing from Luoyang Xinzhaohe

Partner with Luoyang Xinzhaoanghe Aluminum CO., Ltd for High-Performance Enamelled Copper Winding Wire

Luoyang Xinzhaohe Aluminum CO., Ltd brings over two decades of specialized expertise in the production of precision winding wires, with a focused engineering approach to enamelled copper wire for high-efficiency electrical applications. As a vertically integrated manufacturer, we maintain full control over the production chain—from high-purity copper rod sourcing to final enamel coating and quality verification—ensuring consistent material integrity and performance across all product batches. Our facility is equipped with advanced drawing lines, multi-stage annealing systems, and computer-controlled enamel application units, allowing us to produce wires with tight dimensional tolerances, superior surface finish, and excellent dielectric strength.

We specialize in a comprehensive range of enamelled copper wires, including polyurethane (PU), polyester (PE), polyamide-imide (PAI), and self-bonding types, with thermal classes up to 220°C (Class C). Our products meet or exceed international standards such as IEC 60317, GB/T 6109, and NEMA MW. Our QA laboratory is accredited to ISO/IEC 17025 and conducts rigorous testing on key parameters including breakdown voltage, thermal shock resistance, flexibility, and solderability. Every coil undergoes 100% continuity and insulation resistance testing prior to shipment, ensuring defect-free performance in critical motor, transformer, and inductor windings.

Our production capacity exceeds 15,000 metric tons annually, supported by automated warehousing and a just-in-time logistics model that enables rapid fulfillment for both spot and long-term supply contracts. We serve OEMs and tier-one suppliers in the automotive, industrial motor, renewable energy, and home appliance sectors, where reliability and repeatability are non-negotiable. Our technical team works closely with clients during the material selection and qualification phases, offering custom formulations, spooling configurations, and packaging solutions tailored to automated winding equipment requirements.

Sustainability and process efficiency are embedded in our operational philosophy. Our plant utilizes energy recovery systems on annealing lines, closed-loop water cooling, and low-VOC enamel chemistries, aligning with global environmental standards. We are ISO 9001, ISO 14001, and IATF 16949 certified, reflecting our commitment to quality management and continuous improvement.

When sourcing high-performance enamelled copper winding wire, partnering with Luoyang Xinzhaohe means securing a supplier with proven technical depth, scalable capacity, and a track record of on-time delivery across global markets. We invite engineering and procurement teams to engage with our technical sales group for material data sheets, sample coils, and collaborative development support.

Contact us at cathy@transformerstrip.com to discuss your winding wire specifications and discover how our manufacturing excellence can support your next-generation electrical designs.

---
