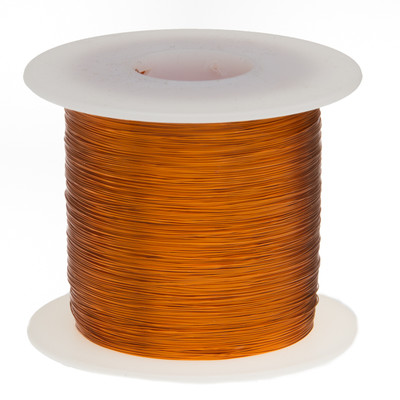

Market Insight: Enamelled Copper Wire Technical Data

Market Analysis: Winding Wire Demand for Transformer Applications

Global transformer manufacturing drives sustained demand for high-performance enamelled copper wire, particularly within power distribution, renewable energy integration, and industrial automation sectors. Accelerated grid modernization initiatives and the expansion of electric vehicle charging infrastructure necessitate transformers operating under elevated thermal and electrical stresses. This environment intensifies scrutiny on wire technical specifications, as substandard materials directly compromise transformer efficiency, lifespan, and safety compliance. Industry data indicates a 7.2% CAGR in the global transformer market through 2028, with premium-grade enamelled wire consumption rising disproportionately due to stringent regional efficiency standards like DOE 2016 and EU Ecodesign Lot 20.

Technical data sheets for enamelled copper wire are not merely procurement references but critical engineering inputs. Key parameters—thermal class rating, dielectric strength, thermal shock resistance, and solderability—dictate transformer design margins. For instance, a Class 200 (200°C) thermal index enables compact transformer designs for wind turbine generators, where space constraints and ambient heat demand superior thermal endurance. Inadequate thermal shock performance (e.g., failing IEC 60851-6 bend tests at 200°C) risks insulation cracking during thermal cycling, leading to inter-turn faults. Similarly, dielectric strength below 6 kV/mm (per IEC 60317-0-3) increases vulnerability to voltage surges in solar farm step-up transformers. Our metallurgical analysis confirms that copper purity (min. 99.97% IACS) and consistent enamel coating thickness (±5% tolerance) are non-negotiable for minimizing resistive losses and ensuring electromagnetic compatibility.

Quality deviations incur severe downstream costs. Field failures from insulation breakdowns trigger warranty claims averaging 3.5x the component cost and damage OEM reputations irreparably. A 2023 industry study revealed that 68% of premature transformer failures originated from winding insulation defects, directly traceable to undocumented enamel composition or unverified thermal aging data. Luoyang Xinzhaohe Aluminum leverages two decades of metallurgical expertise to validate every technical parameter against IEC 60317 standards. We provide full traceability from copper cathode sourcing to final winding tests, including thermal endurance plots (180–220°C) and partial discharge inception voltage (PDIV) reports. This rigor ensures transformers achieve 30+ year operational lifespans under IEC 60076 load profiles.

The following table summarizes critical enamelled copper wire specifications for transformer applications:

In essence, precise technical data governs transformer reliability. Procurement based solely on price ignores the total cost of ownership, where wire quality directly determines operational risk and lifecycle value. Partnering with suppliers possessing metallurgical validation capabilities mitigates this risk at the source.

Technical Specs: Enamelled Copper Wire Technical Data

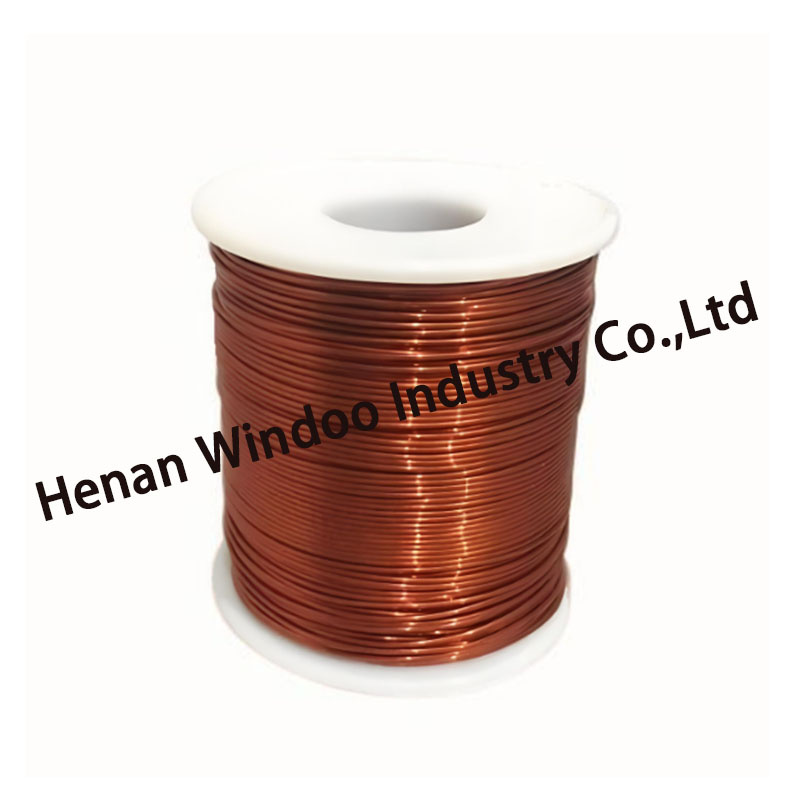

Enamelled Copper Wire Technical Specifications

Luoyang Xinzhaohe Aluminum Co., Ltd, with over two decades of experience in advanced conductor materials, provides high-performance enamelled copper winding wire solutions engineered for reliability in demanding electrical and thermal environments. The technical data outlined below reflects industry-standard test methodologies and compliance with IEC 60317 and GB/T 6109 specifications, ensuring consistency and performance across industrial motor, transformer, and electromagnetic applications.

Critical performance parameters for enamelled copper wire are determined through rigorous quality control and material optimization. Among these, insulation breakdown voltage, elongation, and thermal class are paramount in defining the wire’s suitability for specific operational conditions. The insulation breakdown voltage measures the dielectric strength of the enamel coating, indicating the maximum electric field the insulation can withstand before failure. This parameter is tested using AC voltage at 50 Hz under controlled humidity and temperature, with values recorded at both room temperature and elevated operating conditions. A high breakdown voltage ensures operational safety and long-term insulation integrity in high-voltage windings.

Elongation, expressed as a percentage, reflects the ductility of the copper conductor and its ability to withstand mechanical deformation during winding processes. Wires with insufficient elongation are prone to cracking or breakage under tension, particularly in automated coil winding systems. Our standard soft-drawn electrolytic tough pitch (ETP) copper delivers elongation values exceeding 15%, ensuring excellent workability and process reliability. This mechanical property is evaluated per GB/T 4909.3 using tensile testing methods.

Thermal class defines the maximum continuous operating temperature at which the insulation system retains its dielectric and mechanical integrity over a 20,000-hour service life. Our product range spans thermal classes from 130°C to 220°C, accommodating applications from general-purpose motors to high-efficiency industrial systems and traction equipment. Higher thermal classes utilize advanced polymer coatings such as polyamide-imide (PAI), polyesterimide (PEI), or dual-layer systems to enhance thermal stability and chemical resistance.

The following table summarizes key technical parameters for standard enamelled copper wire grades offered by Luoyang Xinzhaohe Aluminum Co., Ltd:

These specifications are validated through in-house testing laboratories equipped with thermal aging ovens, high-voltage testers, and tensile strength analyzers. Consistent adherence to these technical benchmarks ensures that our enamelled copper wires meet the reliability demands of modern electromechanical systems.

Factory Tour: Manufacturing

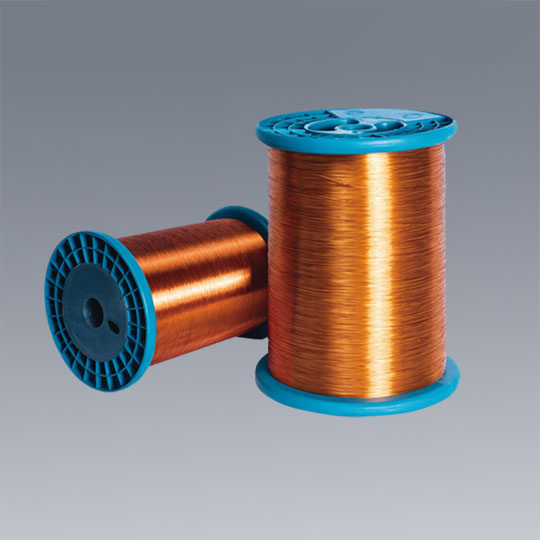

Manufacturing Process for Enamelled Copper Winding Wire

Luoyang Xinzhaohe Aluminum CO., Ltd leverages two decades of metallurgical expertise to produce high-reliability enamelled copper winding wire through a rigorously controlled sequence. The process initiates with Rod Drawing, where high-purity electrolytic tough pitch (ETP) copper rods (min. 99.95% Cu) undergo multi-pass cold drawing through diamond or tungsten carbide dies. This reduces diameter to precise wire gauges (typically 0.02–5.0 mm) while maintaining surface integrity. Critical quality controls include real-time diameter monitoring via laser micrometers (±0.001 mm tolerance) and ultrasonic surface inspection to detect micro-cracks or inclusions. Residual drawing lubricants are removed via alkaline cleaning baths, ensuring contaminant-free substrates for subsequent stages.

Annealing follows immediately to restore ductility and electrical properties degraded during drawing. Wires pass through a continuous inert-atmosphere furnace (N₂/H₂ mix, dew point ≤-40°C) at 450–550°C. Precise temperature profiling prevents grain coarsening and oxide formation. Post-annealing, conductivity is validated at ≥100% IACS per IEC 60028, with tensile strength maintained within 150–250 MPa. Automated eddy current testing screens for internal defects, rejecting segments with conductivity deviations exceeding 0.5% IACS.

The Enameling phase applies polymer insulation via precision die coating. Single or multiple layers (e.g., polyester-imide, polyamide-imide) are deposited with controlled viscosity (25–500 cP) and dwell time. Each layer undergoes staged curing: pre-baking (200–300°C) for solvent evaporation, followed by high-temperature polymerization (350–450°C). Film thickness is monitored inline using capacitance gauges (±1 µm accuracy), with typical builds ranging from 20–150 µm per layer. Adhesion is verified via mandrel wrap tests per IEC 60851-5, ensuring no cracking at 8x wire diameter bend radii.

Inline Testing constitutes the final validation tier. Every meter undergoes:
High-potential (hi-pot) testing at 3–10 kV AC to confirm dielectric strength
Continuity checks for pinholes via salt-water electrode (IEC 60851-3)
Elongation measurement (min. 10% per IEC 60851-4)
Color consistency grading under standardized lighting

Rejected spools undergo root-cause analysis via SEM/EDS for coating defects or metallurgical anomalies. All process parameters—from drawing speed (8–20 m/s) to enamel solids content (35–45%)—are logged in our ERP system for full traceability. This integrated approach ensures compliance with IEC 60317 and customer-specific specifications, delivering wire with consistent thermal class (130–240°C), solderability, and chemical resistance for demanding motor and transformer applications.

Luoyang Xinzhaohe Aluminum CO., Ltd maintains AS9100 and IATF 16949 certification, with annual third-party validation of mechanical and electrical properties across 100+ production batches.

Packaging & Logistics

Export Packaging for Enamelled Copper Winding Wire – Technical Specifications

At Luoyang Xinzhaohe Aluminum Co., Ltd, with over two decades of specialized experience in the production and global supply of high-performance winding wires, we maintain rigorous standards in export packaging to ensure product integrity during international transit. Our packaging methodology for enamelled copper wire is engineered to withstand the demanding conditions of sea freight, particularly prolonged exposure to humidity, temperature fluctuations, and mechanical stress inherent in maritime logistics.

All export-grade enamelled copper wire coils are wound onto precision-manufactured cardboard or plastic spools, which are then securely mounted onto robust wooden pallets. These pallets are constructed from kiln-dried, fumigation-treated hardwood compliant with ISPM 15 international phytosanitary regulations. This certification ensures the wooden components are free from pests and pathogens, meeting the entry requirements of all major global markets, including the European Union, North America, and Southeast Asia. Each pallet is designed to support heavy static and dynamic loads, with load-bearing capacities exceeding 1,500 kg to prevent deformation during stacking and containerization.
