Market Insight: Enamelled Copper Wire Sizes

Market Analysis: Winding Wire – Enamelled Copper Wire Sizes in Transformer Applications

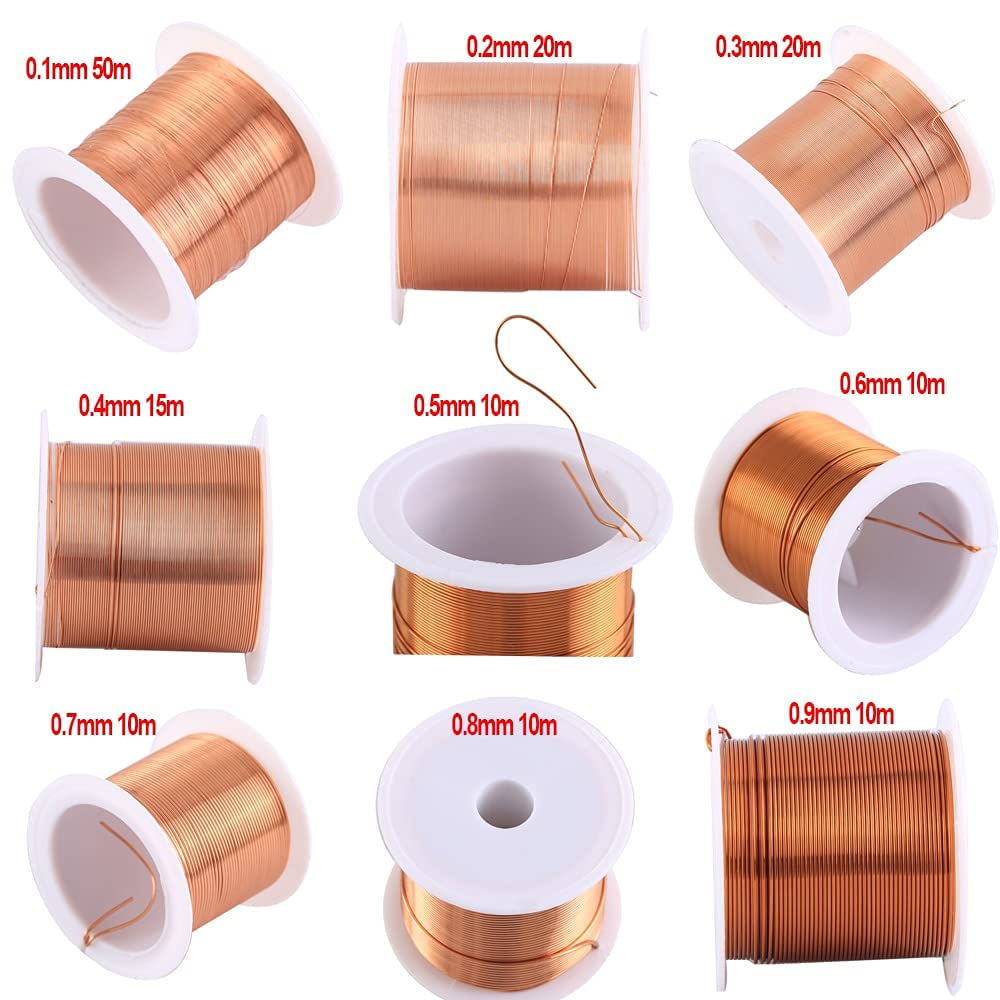

The global demand for enamelled copper winding wire, particularly in power and distribution transformers, continues to grow in alignment with expanding electrical infrastructure, renewable energy integration, and industrial automation. Within this sector, precise selection of wire gauge—measured by American Wire Gauge (AWG) or cross-sectional area in mm²—plays a critical role in determining transformer efficiency, thermal performance, and long-term reliability. Standard sizes range from AWG 10 (approximately 5.26 mm²) to AWG 40 (0.08 mm²), with the most commonly used sizes in medium-power transformers falling between AWG 14 and AWG 24. These gauges offer an optimal balance between current-carrying capacity, winding density, and manufacturability.

Transformer design dictates the required wire size based on parameters such as rated power, voltage level, cooling method, and core geometry. Larger wire diameters are employed in primary windings of high-capacity transformers to minimize resistive losses, while finer gauges are used in control and instrumentation transformers where space constraints and high turn counts are critical. The choice of enamelled copper wire size directly influences the fill factor of the winding window, affecting overall core utilization and thermal management. Improper wire sizing can lead to excessive I²R losses, localized hot spots, and premature insulation failure.

Quality of the enameled coating is as crucial as dimensional accuracy. High-performance transformers require magnet wire with Class 180 (F) or Class 200 (H) thermal index insulation, typically based on polyurethane, polyester-imide, or polyamide-imide resins. These coatings must exhibit excellent dielectric strength, thermal stability, and resistance to solvents and mechanical abrasion during winding operations. Poor-quality insulation can result in inter-turn short circuits, particularly under thermal cycling or overloading conditions. Additionally, consistent diameter tolerance—typically within ±0.005 mm for precision applications—ensures uniform winding tension and prevents layer misalignment.

At Luoyang Xinzhaohe Aluminum Co., Ltd, with over two decades of experience in conductive materials and winding wire solutions, we emphasize material purity, coating integrity, and process control. Our supply chain ensures OFHC (Oxygen-Free High-Conductivity) copper with minimum 101% IACS conductivity, meeting ASTM B3 and IEC 60317 standards. Each batch undergoes rigorous testing for elongation, springiness, and dielectric breakdown to guarantee performance under industrial operating conditions.

The transformer manufacturing sector is increasingly sensitive to total cost of ownership, where initial material cost is outweighed by lifecycle efficiency and failure avoidance. High-quality enamelled copper wire reduces maintenance frequency, improves energy efficiency, and supports compliance with global standards such as IEC 60076 and IEEE C57. As grid modernization and EV charging infrastructure accelerate demand, the precision and reliability of winding wire—particularly in size consistency and insulation quality—will remain a cornerstone of transformer performance.

Technical Specs: Enamelled Copper Wire Sizes

Technical Specifications for Enamelled Copper Winding Wire

As metallurgical engineers with two decades of specialized experience in conductor manufacturing at Luoyang Xinzhaohe Aluminum Co., Ltd, we emphasize that precise adherence to technical parameters is non-negotiable for reliable electromagnetic component performance. Enamelled copper wire must consistently meet stringent international standards, particularly IEC 60317, to ensure operational safety and longevity in demanding applications such as motors, transformers, and inductors. Critical specifications include insulation breakdown voltage, elongation, and thermal class, each directly influencing dielectric integrity, mechanical resilience, and thermal stability under operational stress.

Insulation breakdown voltage defines the minimum voltage at which the enamel coating fails electrically, directly correlating with insulation thickness and polymer formulation. Values must exceed 1.5–3 times the operating voltage to accommodate transient surges. Elongation, measured as a percentage during tensile testing, indicates ductility and resistance to fracture during winding processes; insufficient elongation causes microcracks, compromising insulation. Thermal class, validated via thermal endurance testing per IEC 60172, specifies the maximum continuous operating temperature the insulation system withstands without degrading below 20,000 hours. Classes range from 130°C (B) for general-purpose use to 220°C (C) for extreme environments like aerospace or high-efficiency traction motors. Deviations in any parameter risk catastrophic field failure, underscoring the necessity for certified material traceability and batch-level quality control.

The following table details mandatory specifications per IEC 60317 for standard enamelled copper wire grades. Values apply to single-build insulation unless otherwise noted.

Note that elongation values assume soft-annealed copper (O-temper); hard-drawn variants may exhibit 3–5% lower elongation. Breakdown voltage testing follows IEC 60172 methodology with 1 kV/s ramp rate in ambient air. Thermal classes above 180°C require multi-layer insulation systems with inorganic topcoats to suppress thermal oxidation. At Luoyang Xinzhaohe, our quality assurance protocols include 100% spark testing at 120% of rated breakdown voltage and quarterly thermal index validation via Arrhenius plotting.

Procurement decisions must prioritize certified compliance over nominal pricing. Verify supplier test reports against IEC 60851 for electrical resistance, flexibility, and thermal shock. For mission-critical applications exceeding 180°C, insist on dual-certified thermal class documentation (e.g., UL 1446 + IEC 60317). Our technical team recommends cross-referencing wire diameter tolerances (±0.003 mm for AWG 20–30) with winding mandrel specifications to prevent insulation damage during coil formation. Consistent metallurgical purity (99.99% Cu min.) and enamel adhesion testing per IEC 60851-5 are equally vital for sustained performance.

Factory Tour: Manufacturing

Manufacturing Process of Enamelled Copper Wire at Luoyang Xinzhaohe Aluminum Co., Ltd

The production of high-performance enamelled copper winding wire at Luoyang Xinzhaoanghe Aluminum Co., Ltd follows a tightly controlled, multi-stage manufacturing process designed to ensure dimensional accuracy, electrical integrity, and long-term thermal and mechanical reliability. With over two decades of metallurgical and process engineering expertise, our facility integrates precision equipment with rigorous quality control to meet international standards including IEC 60317, GB/T 23312, and NEMA MW 1000.

The process begins with high-purity electrolytic tough pitch (ETP) copper rod, typically 8 mm in diameter and conforming to ASTM B3 or IEC 60468. The rod is first subjected to a multi-pass drawing operation, where it is reduced incrementally to the target wire diameter. Our drawing lines utilize diamond and tungsten carbide dies under controlled tension and lubrication to maintain roundness, surface smoothness, and consistent mechanical properties. Diameter tolerances are maintained within ±0.002 mm, monitored via laser micrometers integrated into the line.

Following drawing, the wire undergoes a continuous annealing process to restore ductility and ensure optimal elongation. The annealing furnace operates under a precisely regulated nitrogen-hydrogen atmosphere to prevent oxidation and ensure a clean, oxide-free surface. Temperature profiles are customized based on wire gauge and final application requirements, typically ranging from 500°C to 800°C. Post-annealing, the wire is cooled under inert conditions to avoid thermal shock and maintain metallurgical homogeneity.

The annealed wire then enters the enameling section, where one or more layers of polymer insulation are applied via precision die coating. We utilize a range of insulation materials including polyurethane (PU), polyester (PE), polyester-imide (PEI), and polyamide-imide (PAI), depending on the thermal class (ranging from 130°C to 220°C). Each coat is immediately cured in a series of high-efficiency ovens with zoned temperature control, ensuring complete cross-linking and minimal solvent retention. Multiple passes may be required for dual or triple insulation systems, with intermediate diameter verification performed after each layer.

Throughout the process, inline testing systems continuously monitor critical parameters. These include high-voltage breakdown testing (up to 15 kV), diameter measurement via laser gauging, winding tension control, and spark testing for pinhole defects. Final quality control includes off-line verification of elongation, springback, thermal shock resistance, and solderability. Every production batch is traceable through our integrated quality management system, with material test reports (MTRs) available upon request.

This end-to-end process ensures that Luoyang Xinzhaohe’s enamelled copper wires meet the demanding requirements of motors, transformers, relays, and other electromagnetic devices in industrial, automotive, and consumer electronics applications.

Packaging & Logistics

Export Packaging Specifications for Enamelled Copper Wire

Luoyang Xinzhaohe Aluminum CO., Ltd implements rigorously engineered export packaging protocols for enamelled copper winding wire, ensuring product integrity during global maritime transit. With over two decades of specialization in precision wire manufacturing, our packaging system addresses the dual challenges of mechanical stress and environmental exposure inherent in sea freight. This methodology is non-negotiable for safeguarding the dimensional stability, surface finish, and electrical properties of enamelled conductors across all standard sizes (AWG 10–44) and custom gauges.

Wooden Pallet Construction and Compliance
All wire reels are secured to ISPM 15-certified hardwood pallets, treated via thermal processing to eliminate phytosanitary risks. Pallet dimensions adhere to ISO standard 1200 × 1000 mm, supporting static loads up to 500 kg per unit. Reels are affixed using corrosion-resistant steel strapping (minimum 15 mm width, 15 kN tensile strength) tensioned to 25% of breaking load, preventing axial displacement during vessel motion. Edge protectors fabricated from 3 mm galvanized steel shield reel flanges against impact damage during handling. Pallet bases incorporate ventilation gaps (minimum 25 mm clearance) to mitigate condensation accumulation beneath loads.

Multi-Layer Moisture-Proof Barrier System
A triple-layer moisture protection strategy is deployed to counter tropical humidity and salt-laden air. The primary barrier consists of 100 μm co-extruded polyethylene film with a vapor transmission rate (VTR) ≤ 0.5 g/m²/24hr at 38°C/90% RH, fully encapsulating each palletized load. This is overlaid with a secondary layer of metallized polyester film (VTR ≤ 0.1 g/m²/24hr) to reflect radiant heat and block UV degradation. Interior desiccant placement follows ASTM D3464-21 guidelines: 50 g/m³ of silica gel (indicating type) is distributed within breathable sachets at reel core and pallet base zones. Relative humidity within the sealed envelope remains constrained to ≤ 40% throughout voyages exceeding 30 days.

Sea Freight Risk Mitigation
Maritime transport exposes wire to cyclic temperature gradients (−5°C to 60°C), salt aerosol ingress, and harmonic vibrations exceeding 5 Hz. Our packaging counters these via:
Corrosion inhibition: VCI (Vapor Corrosion Inhibitor) additives embedded in the inner film layer suppress copper oxidation at trace salt concentrations.
Dynamic shock absorption: 10 mm cross-linked polyethylene foam corner boards absorb impacts up to 150 g (per ISTA 3A protocols).
Condensation management: The pallet’s elevated design and vapor barrier synergy prevent “cargo sweat” by isolating the load from container wall temperature differentials.

Validation occurs via accelerated aging tests simulating 45-day voyages in 85% RH/40°C environments, with post-transit checks confirming enamel adhesion (per IEC 60851-5) and conductor resistivity remain within ±0.5% of baseline. This integrated approach has maintained a 99.8% damage-free delivery record across 12,000+ TEUs since 2015.

Critical Implementation Note
Pallets must be stored indoors at ≤ 60% RH for 72 hours pre-loading to equilibrate moisture content. Film sealing requires heat-welding at 180°C (±5°C) to achieve hermetic closure; field puncture repairs mandate certified tape meeting MIL-DTL-22993F. Non-compliance voids our transit damage warranty. Partner logistics providers receive certified packaging schematics to enforce handling protocols from factory gate to consignee warehouse.

Sourcing from Luoyang Xinzhaohe

Partner with Luoyang Xinzhaohe for Precision Enamelled Copper Wire Solutions

Luoyang Xinzhaohe Aluminum Co., Ltd brings over two decades of engineering excellence and industrial specialization to the global supply of high-performance enamelled copper winding wire. As a vertically integrated manufacturer with advanced production capabilities, we deliver wire solutions that meet stringent international standards including IEC 60317, GB/T 23312, and NEMA MW 1000. Our facility is equipped with state-of-the-art drawing, annealing, and enamelling lines, enabling tight tolerance control across a full range of wire diameters from 0.05 mm to 5.0 mm. This precision ensures consistent electrical conductivity, dielectric strength, and thermal endurance—critical parameters for motor, transformer, and inductor applications.

Our manufacturing process is built on rigorous quality assurance protocols. Raw copper is sourced from certified suppliers and subjected to oxygen-free high-conductivity (OFHC) refining, achieving a minimum conductivity of 100% IACS. Each batch undergoes spectral analysis and tensile testing prior to wire drawing. The enamel coating—applied via multi-stage solvent-based or UV-curable systems—provides superior thermal class performance up to 220°C (Class C), with options in polyurethane (PU), polyester (PE), polyamide-imide (PAI), and self-bonding formulations. Coating concentricity is maintained within ±5% tolerance, minimizing risk of dielectric breakdown under high-voltage stress.

We operate a 12,000 m² production complex in Luoyang, Henan Province, with an annual capacity exceeding 15,000 metric tons. Our automated winding systems support spool sizes from 5 kg mini-reels to 500 kg jumbo spools, accommodating both small-batch prototyping and high-volume OEM contracts. All production stages are monitored under ISO 9001:2015 and IATF 16949 certified quality management systems. In-house laboratories conduct continuous testing on elongation, thermal shock, scrape resistance, and resistance to refrigerants and solvents—ensuring compliance with diverse end-use environments.

As a strategic partner, Luoyang Xinzhaohe offers technical collaboration from material selection to custom formulation development. Our engineering team supports clients in optimizing wire specifications for efficiency, space constraints, and thermal management in applications such as electric vehicle traction motors, industrial compressors, and high-frequency power transformers. With warehousing and logistics networks in Shanghai and Qingdao, we guarantee on-time delivery to North America, Europe, and Southeast Asia with lead times as short as 15 days for standard grades.

For sourcing managers and design engineers seeking reliable, high-quality enamelled copper wire, Luoyang Xinzhaohe provides a proven combination of technical depth, production scale, and responsive service. Contact us today to discuss your wire specifications and volume requirements.
