Market Insight: Enamelled Copper Strip

Market Analysis: Transformer Conductor Demand and Quality Imperatives

The industrial demand for high-performance conductor materials in power and distribution transformers remains robust, driven by global grid modernization, renewable energy integration, and industrial electrification. However, a critical technical clarification is essential: enamelled copper strip is not the standard material for transformer windings. Enamelled wire (typically round cross-section) dominates motor and small transformer applications, while large power transformers universally utilize bare aluminum or copper strip conductors, often with insulating paper interleaving. Luoyang Xinzhaohe Aluminum specializes in the aluminum strip segment, which constitutes over 85% of the large transformer conductor market due to its superior weight-to-conductivity ratio and cost efficiency versus copper. Demand growth is intrinsically linked to voltage class expansion; ultra-high-voltage (UHV) projects in Asia and Europe require aluminum strip with exceptional purity and mechanical consistency to handle increased electromagnetic stresses.

Quality is non-negotiable in transformer conductor supply chains. Substandard aluminum strip induces catastrophic field failures through multiple mechanisms. Impurities (iron, silicon) exceeding 0.03% reduce electrical conductivity below the IACS 61% minimum, increasing I²R losses and thermal hotspots. Inconsistent thickness tolerance (>±0.02mm) creates uneven current distribution, accelerating insulation degradation via localized overheating. Surface defects—scratches, pits, or residual rolling oil—compromise the integrity of oil-impregnated cellulose insulation, initiating partial discharges that propagate into dielectric breakdown. Dimensional instability during coil winding, caused by inadequate temper control, leads to inter-turn short circuits under electromagnetic forces. These failure modes directly impact transformer lifecycle costs; a single field failure in a 500kV unit incurs costs exceeding $2M in replacement, downtime, and grid instability penalties.

The industry’s shift toward higher-efficiency transformers (IE4/IE5 standards) further elevates material specifications. Modern designs operate at elevated flux densities, demanding aluminum strip with precise grain structure control to minimize hysteresis losses and exceptional flatness (<0.5mm/m) to ensure uniform insulation gaps. Suppliers must demonstrate rigorous process control across melting, casting, hot/cold rolling, and annealing. Traceability to ASTM B492/B970 standards is mandatory, with mill certificates validating conductivity, mechanical properties, and surface quality via eddy current testing. Reactive oxygen content below 100 ppm is critical to prevent in-service oxidation that increases resistance over time.

Luoyang Xinzhaohe Aluminum leverages 20+ years of metallurgical expertise to address these demands. Our vertically integrated production—from high-purity (99.85% min) molten metal to precision-finished strip—ensures batch-to-batch consistency unattainable via fragmented supply chains. In-house spectrometry and surface profilometry validate every coil against transformer OEM technical dossiers, while our proprietary annealing protocols achieve uniform recrystallization for optimal bendability without microcracking. For global transformer manufacturers, partnering with a supplier possessing this depth of process mastery is not merely a procurement decision—it is a strategic risk mitigation imperative for grid reliability.

Technical Specs: Enamelled Copper Strip

Technical Specifications for Enamelled Copper Strip

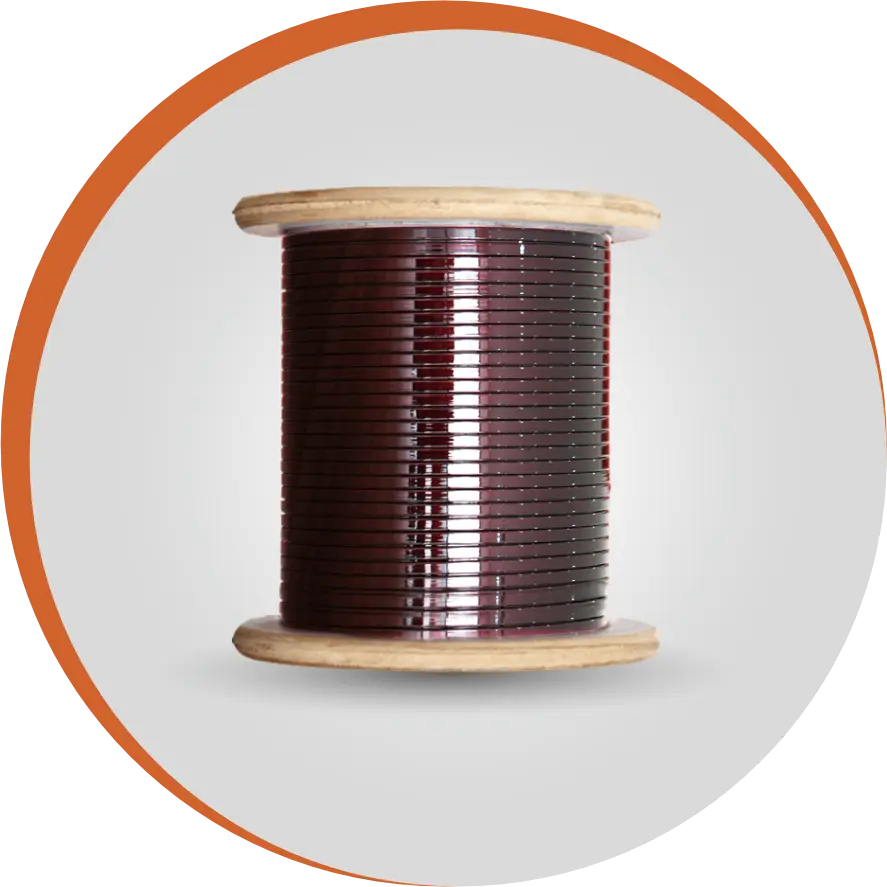

Enamelled copper strip is a critical component in high-efficiency electromagnetic devices, including transformers, reactors, and specialized motors. At Luoyang Xinzhaohe Aluminum Co., Ltd., with over two decades of metallurgical and materials engineering expertise, we produce precision enamelled copper strip designed to meet stringent international standards. The performance of these strips is governed by key technical parameters, including insulation breakdown voltage, elongation, and thermal class. Each parameter is rigorously controlled during manufacturing to ensure reliability, durability, and compliance with industrial applications operating under demanding thermal and mechanical conditions.

Insulation breakdown voltage is a fundamental measure of dielectric strength, indicating the maximum electric field the enamel insulation can withstand before failure. Our enamelled copper strips are engineered to achieve breakdown voltages ranging from 1,200 V to over 4,000 V, depending on insulation thickness and grade. This ensures robust electrical isolation between adjacent windings, minimizing the risk of short circuits and enhancing operational safety. Testing is conducted per IEC 60317 and GB/T 4074 standards using step-voltage methods to validate consistency across production batches.

Elongation, measured as a percentage of original length at the point of fracture, reflects the material’s ductility and formability. Our strips exhibit elongation values between 8% and 15%, depending on temper condition and cross-sectional dimensions. High elongation is essential for applications requiring tight bending or coiling, as it reduces the likelihood of enamel cracking or base metal fracture during winding processes. All elongation tests are performed in accordance with ASTM E8, ensuring traceability and accuracy in mechanical property reporting.

Thermal class defines the maximum continuous operating temperature the insulation system can endure without significant degradation. Our product portfolio spans thermal classes from 130°C to 220°C, corresponding to Class B to Class C ratings under IEC 60085. Higher thermal classes utilize advanced polymer coatings such as polyimide, polyamide-imide, or silicone-modified resins, offering superior thermal stability and oxidation resistance. These materials maintain dielectric integrity and mechanical adhesion even after prolonged exposure to elevated temperatures, making them suitable for use in high-power-density and high-reliability systems.

The following table summarizes the key technical parameters of our standard enamelled copper strip offerings:

All enamelled copper strips are manufactured under ISO 9001-certified quality management systems, with full batch traceability and third-party certification options available upon request.

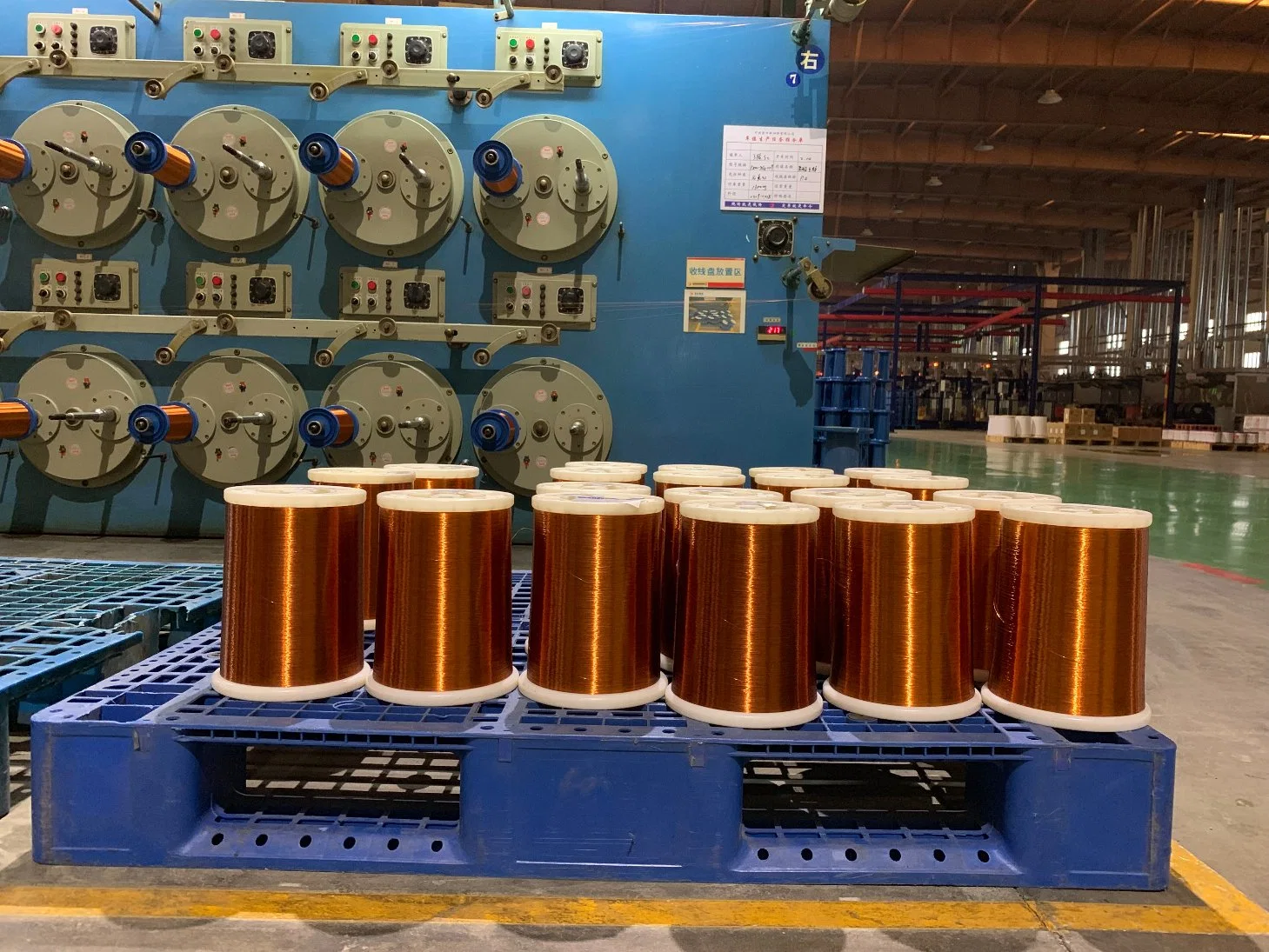

Factory Tour: Manufacturing

Manufacturing Process for Enamelled Copper Strip

The production of high-performance enamelled copper strip begins with precision rod drawing. Starting from oxygen-free electrolytic tough pitch (ETP) copper rod meeting IEC 60068 Grade 1 specifications (minimum 99.99% Cu purity), the rod undergoes multi-pass cold drawing through diamond or tungsten carbide dies. This stage achieves stringent dimensional tolerances: ±0.005 mm for thickness and ±0.05 mm for width, with surface roughness maintained below 0.5 μm Ra. Critical process controls include die geometry calibration, lubricant viscosity monitoring, and real-time diameter measurement via laser micrometers to prevent micro-cracking.

Subsequent annealing occurs in a continuous hydrogen-nitrogen atmosphere furnace (dew point ≤ -40°C) to eliminate work hardening. Temperature profiles are precisely staged between 450°C and 650°C, with residence times calibrated to the strip’s reduction ratio. This recrystallization process restores ductility while preventing grain coarsening or surface oxidation. Oxygen content is maintained below 10 ppm to avoid hydrogen embrittlement, verified through in-line oxygen analyzers and periodic metallographic cross-sections.

The enameling stage applies insulating polymer coatings via precision die or roller applicators. Strips pass through multiple coating baths (typically 2–4 layers) for polyurethane, polyester, or self-bonding formulations, depending on thermal class (130°C to 220°C per IEC 60317). Each layer undergoes immediate curing in nitrogen-purged ovens at 350°C–480°C, with film thickness controlled to 0.03–0.15 mm per layer via viscosity-adjusted polymer solutions. Critical parameters include solvent evaporation rates and cross-linking density, monitored through infrared spectroscopy.

Inline electrical and mechanical testing occurs post-enameling. Key verification steps include:

Quality control is integrated at all stages. Pre-drawing, copper rods undergo spark spectrometer analysis for trace elements (Ag, P, Bi < 5 ppm). During annealing, strip tensile strength (200–240 MPa) and elongation (≥40%) are validated hourly. Enamel viscosity and solids content are tested every 2 hours via gravimetric analysis. Final inspection includes thermal shock testing (200°C to -65°C cycling) and burn-off tests to confirm coating weight (±5% of nominal). Non-conforming batches undergo root cause analysis per ISO 9001 protocols, with data logged in our traceability system for full lot追溯. This end-to-end control ensures compliance with IEC 60317 and customer-specific winding wire performance requirements.

Packaging & Logistics

Export Packaging for Enamelled Copper Strip – Ensuring Integrity in Global Shipments

Luoyang Xinzhaohe Aluminum Co., Ltd. adheres to stringent export packaging protocols for enamelled copper strip to ensure product integrity during international transit, particularly via sea freight. With over two decades of experience in the winding wire industry, we recognize that proper packaging is not merely a logistical requirement but a critical component in preserving the metallurgical and electrical performance of the material. Our export packaging system is engineered to mitigate risks associated with moisture, mechanical stress, and environmental exposure throughout the supply chain.

All enamelled copper strip shipments are mounted on high-grade wooden pallets constructed from kiln-dried, fumigation-treated timber compliant with International Standards for Phytosanitary Measures No. 15 (ISPM 15). These pallets are designed to support the coil weight uniformly, minimizing deformation during handling and stacking. The structural rigidity of the pallets ensures compatibility with automated material handling systems at ports and customer facilities, facilitating efficient loading and unloading operations.

Each coil of enamelled copper strip is first wrapped in multi-layer moisture-proof film, consisting of aluminum foil laminate with low water vapor transmission rate (WVTR). This vapor barrier is essential in preventing condensation and humidity ingress during prolonged maritime transport, where fluctuating temperature and relative humidity conditions can compromise the enamel insulation layer. The film is hermetically sealed using heat-welded seams to form a continuous protective envelope around the coil, effectively isolating it from ambient atmospheric conditions.

In addition to primary moisture protection, edge protectors made of corrugated fiberboard or plastic are affixed to the lateral faces of the coil to prevent mechanical damage during transit. The entire assembly—coil, moisture barrier, and edge protection—is then secured to the wooden pallet using high-tensile steel or PET strapping, tensioned to industry standards to prevent lateral or vertical movement. This immobilization is crucial in reducing the risk of coil deformation or telescoping during vessel motion in rough seas.

All packaged units are labeled with durable, weather-resistant markings indicating product specifications, batch number, net weight, handling instructions, and orientation indicators (e.g., “This Side Up”). These labels comply with international shipping regulations and support full traceability from production to final delivery.

Our packaging methodology has been validated through long-term performance data across major trade routes, including trans-Pacific and trans-Asian maritime corridors. By integrating robust materials, precise engineering, and compliance with global logistics standards, Luoyang Xinzhaohe Aluminum Co., Ltd. ensures that every shipment of enamelled copper strip arrives at its destination in optimal condition, ready for immediate processing in high-performance winding applications.

Sourcing from Luoyang Xinzhaohe

Partner with Luoyang Xinzhaohe: Engineering Precision in Enamelled Copper Strip Supply

Luoyang Xinzhaohe Aluminum Co., Ltd leverages over two decades of specialized metallurgical expertise to deliver mission-critical enamelled copper strip for high-performance electromagnetic windings. Our integrated manufacturing platform, purpose-built for copper conductor production, ensures consistent material integrity from raw material sourcing through final coating application. We operate dedicated melt shops and continuous rod casting lines producing 99.99% pure oxygen-free copper (OFC), forming the foundational element for strips exhibiting optimal electrical conductivity (≥100% IACS) and thermal stability. This metallurgical control extends through precision rolling mills and multi-stage drawing lines, where dimensional tolerances are maintained within ±0.005mm for thickness and ±0.1mm for width across widths ranging from 3mm to 100mm. Our vertical integration eliminates third-party rod dependencies, directly governing the microstructure and mechanical properties essential for demanding winding applications.

Advanced enameling capabilities define our core value proposition. We deploy computer-controlled continuous enameling lines featuring multi-zone infrared and convection curing ovens, enabling precise polymer cross-linking for Class 130 (B) to Class 220 (C) insulation systems. Each production run undergoes rigorous inline monitoring of coating thickness uniformity (±2µm tolerance), dielectric strength (≥8kV), and thermal shock resistance per IEC 60317 standards. Our quality management system, certified to ISO 9001:2015, implements comprehensive traceability from copper ingot melt batch to finished coil, supported by in-house metallurgical laboratories performing chemical analysis, tensile testing, and adhesion validation. This systematic approach guarantees batch-to-batch repeatability critical for transformer and motor manufacturers requiring zero-defect supply chains.

Supply chain resilience is engineered into our operational model. With an annual production capacity exceeding 20,000 metric tons and strategically located facilities in Henan Province, we maintain buffer stocks of critical raw materials and finished goods to mitigate market volatility. Our logistics network integrates with major Chinese ports, enabling FCL/LCL shipments with documented lead times of 15-25 days for containerized orders. We actively manage supplier qualification for enamel resins and additives, conducting dual-sourcing audits to prevent single-point failures. This infrastructure delivers proven on-time delivery performance above 98.5% for global OEMs, even during peak demand cycles, while adhering to REACH and RoHS compliance requirements.

Partnering with Luoyang Xinzhaohe provides direct access to metallurgical engineering support for custom specification development, including tailored temper profiles (½H to EH), specialized insulation formulations, and slit-edge quality optimization. We welcome technical collaboration to resolve winding efficiency challenges or material substitution opportunities within your product roadmap. Initiate a supply chain assessment or request sample validation by contacting our Technical Sales Manager Cathy directly at cathy@transformerstrip.com. Our engineering team stands ready to provide material data sheets, process capability studies, and dedicated production scheduling aligned with your manufacturing rhythm.
