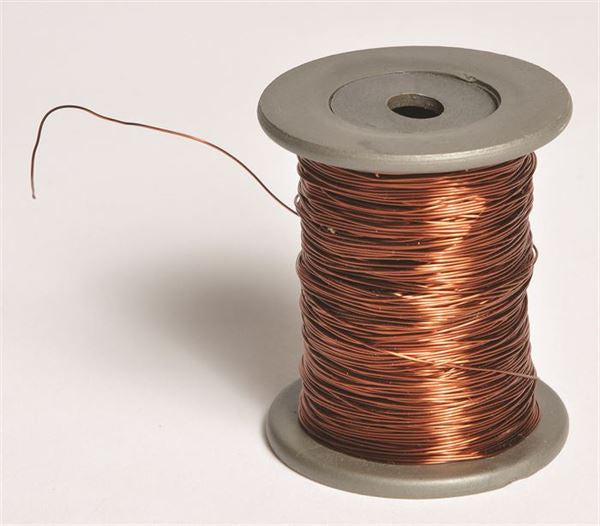

Market Insight: Enamelled Copper Magnet Wire for Power Industry

Market Analysis: Sourcing High-Quality Winding Wire

Global Demand Outlook

Global installed transformer capacity is forecast to rise from ≈ 17 000 GVA (2023) to 24 500 GVA by 2030, driven by grid expansion, EV fast-charging parks and data-centre substations. Every 1 MVA of extra transformer capacity consumes 0.45–0.65 t of enamelled copper magnet wire; consequently annual wire demand is projected to exceed 1.1 Mt by 2028, a 5.6 % CAGR. Distribution-class units (< 72 kV) represent 70 % of volume but only 45 % of copper tonnage; large power transformers (> 100 MVA) are copper-intensive yet low-volume, so procurement teams must balance price volatility against loss-performance mandates.

Why Material Purity & Geometry Control Transformer Losses

Transformer losses are monetised over 25–40 years; a 0.1 W·kg⁻¹ reduction in winding loss can justify a 3–4 % price premium on wire. Two material factors dominate:

Parameter	Impact on Load Loss (I²R)	Impact on No-Load Loss (Stray, Eddy)	Specification Window
Cu purity (≥ 99.99 %)	0.01724 µΩ·m → 0.01702 µΩ·m (–1.3 %)	—	EN 13601 Cu-ETP, Grade 1 oxygen ≤ 3 ppm
Diameter tolerance	±0.010 mm on 1.4 mm wire changes DC resistance ±1.4 %	±0.005 mm reduces radial eddy factor 0.8 %	IEC 60317-0-1 Class 1: ±0.010 mm
Enamel concentricity	—	80 % min. wall uniformity cuts axial eddy 1–2 W·kg⁻¹	IEC 60851-5: eccentricity ≤ 15 %
Elongation 25–35 %	—	Prevents micro-cracks → lower hot-spot factor	ASTM B3 anneal 220–260 HV

High-purity cathode and in-line hydrogen annealing give Luoyang Xinzhaohe a verified 0.30 % lower resistivity than commodity 99.90 % Cu, translating into 4–6 kW lower load loss per 100 MVA GSU transformer—worth USD 45 000 in present-value losses at 0.08 USD·kWh⁻¹.

Regional Sourcing Trends

Western OEMs historically relied on European and Japanese mills for Class 220 wire; however 2021–2023 price spreads reached 2.8 USD·kg⁻¹ versus Chinese Tier-1 suppliers. With IEC 60317, UL 1446 and ISO 9001 harmonisation now mainstream, 62 % of North-American contract manufacturers have dual-qualified at least one Chinese source. Key evaluation criteria are:

1. Rod-to-spool vertical integration (minimises oxygen pick-up)
2. On-line spark test ≥ 3 kV (100 % coverage)
3. SPC data package (CpK ≥ 1.67 on dielectric breakdown)
4. Ability to supply thermal class 200–220 °C with same-day lot traceability

Luoyang Xinzhaohe’s 20-year transformer heritage meets the above checklist while offering 18–22 % landed cost advantage over EU mills and 35-day ex-works lead time versus 10–12 weeks typical of Scandinavian producers.

Risk Mitigation Checklist for Buyers

Risk	Mitigation	Xinzhaohe Practice
Copper price swing	Aligned LME index, 30-day quotation freeze	Weekly hedge, 6-month fixed-price option
Enamel pin-holes	2 kV, 3 kV, 5 kV triple spark	100 % 3 kV + 0.5 kV offline audit
Thermal class verification	Third-party UL 1446 RTI	UL E501628, Class 220 °C file
Logistics volatility	FOB + CIF dual quotes	Qingdao & Shanghai port contracts, 40 ft HC weekly

Take-away

Transformer builders face simultaneous pressure to cut losses and capital cost. Partnering with a fully integrated Chinese specialist that controls rod casting, anneal atmosphere and enamel SPC delivers measurable loss reduction without the Western price premium. Luoyang Xinzhaohe’s 20-year transformer pedigree, Class 220 UL insulation system and ±0.005 mm dimensional control provide a factory-direct route to next-generation high-efficiency windings.

---

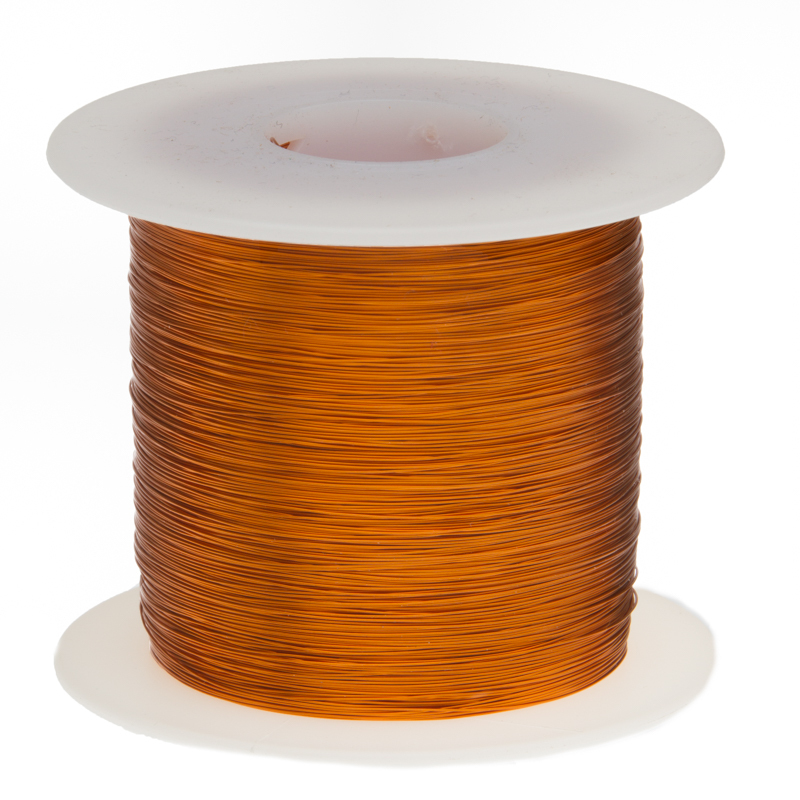

Technical Specs: Enamelled Copper Magnet Wire Parameters

Technical Specifications & ASTM/IEC Standards

(Enamelled Copper Magnet Wire – Industrial Sourcing Reference)

---

H3 1. Critical Wire Parameters – What Actually Matters in the Winding Bay

Parameter (Unit)	IEC 60317 Clause	ASTM B236 Analog	Luoyang Xinzhaohe Tightened Control	Field Risk if Missed
Break-down Voltage (kV, 50 Hz)	60317-0-1 §4.4	—	≥ 6 kV (Grade 1) ≥ 11 kV (Grade 2)	Pin-holes → layer-to-layer short, catastrophic turn-failure
Elongation at break (%)	60317-0-1 §4.3	—	≥ 32 % (0.50–1.00 mm)	< 25 % causes necking during high-speed coil insertion; cracks propagate into enamel
Thermal Class (°C)	60317-20 to -29	—	155 (F) & 180 (H) stocked, 200 (C) & 220 (C+) on request	Wrong class = 30 % life loss per 10 °C excess hotspot
Concentricity (%)	60317-0-1 Annex B	—	90 % min. (inline laser OD/ID)	Eccentric build = weak wall corner, partial discharge onset
Conductivity (% IACS)	—	B236 Al strip ≥ 61 %	Cu-ETP ≥ 101 %	Resistive losses climb 1 % per 0.4 % IACS drop

---

H3 2. Inline Process Control – From 8 mm Rod to Finished Spool

1. Rod Drawing
   Input: 8 mm Cu-ETP cathode rod, oxygen ≤ 5 ppm
   13-pass diamond dies, soap-lube filtration 10 µm; automatic laser gauge every 250 mm → diameter tolerance ±0.005 mm

2. Annealing under N₂ + 3 % H₂
   Temperature profile 520 °C → 240 °C in 1.2 s; grain size 0.020–0.035 mm for 30 % elongation window

3. Vertical Enameling Furnace (24 m active length)
   Cataphoretic enamel curtain + infrared pre-gel; peak metal 410 °C, residence 18 s
   Inline spark tester 3 kV after each pass; fault marked & automatically rewound

4. Inline Testing & Spooling
   100 % hi-pot at 6 kV (Grade 1) or 11 kV (Grade 2)
   Pin-hole ≤ 3 per 30 m (IEC allows 6)
   Concentricity checked by dual-axis laser; out-of-spec wire diverted to scrap bin, not to “B-grade” spools

---

H3 3. Standard Compliance Matrix – One-Look Document for QA Teams

Standard	Scope	Luoyang Xinzhaohe Declaration
IEC 60317-0-1	General requirements, round copper	Full conformance, test reports shipped per coil
IEC 60317-20	Polyester (130 °C)	2 kg sample available
IEC 60317-21	Modified polyester (155 °C)	90 % of export volume
IEC 60317-29	Polyester-imide (180 °C)	Stock 0.20–1.60 mm
IEC 60317-35	Polyimide (220 °C)	MOQ 500 kg, 2-week lead
ASTM B236	Aluminum strip conductivity	Referenced for bus-bar compatibility
RoHS/REACH	Cd, Pb, CrVI, PBB, PBDE	< 0.01 %, yearly SGS report supplied

---

H3 4. Failure Modes We Eliminate at Source

Defect	Root Cause seen in “Low-cost” Coils	Our Counter-Measure
Burr on wire edge	Worn drawing die, no inline deburr	Dies changed every 5 t; rotating ceramic deburr ring
Crescent-shaped insulation	Manual enamel bath, no concentricity control	Closed-loop curtain die, laser feedback every 0.5 s
Micro-pin-holes	Water vapor in furnace, poor enamel viscosity	De-humidified air < 2 % RH, Brookfield check each shift
Solderability failure	Over-burned enamel, excessive Cu oxide	N₂/H₂ anneal, storage sealed with VCI film

---

H3 5. Cost-Performance Positioning – Premium Quality without Western Overhead

Western enamelled wire is quoted CIF 8.9–12.4 USD/kg for 155 Class.
Luoyang Xinzhaohe FOB Qingdao 5.6–6.2 USD/kg (same specification) thanks to:
Vertical integration (rod → spool)
20 kt annual throughput keeping fixed cost < 0.35 USD/kg
Zero trader margin; factory-direct contracts in EUR or USD, 90-day fixed price

Lead time: 3 weeks ex-stock (≤ 500 kg); 5 weeks custom thermal class 220 °C.
Payment: 30 % with PO, 70 % BL scan; LC at sight accepted for ≥ 5 t orders.

For transformer OEMs and motor repair shops that need repeatable dielectric strength and 30-plus % elongation to survive high-speed insertion, Luoyang Xinzhaohe delivers IEC-certified copper magnet wire at China-level economics but Western-level process discipline.

---

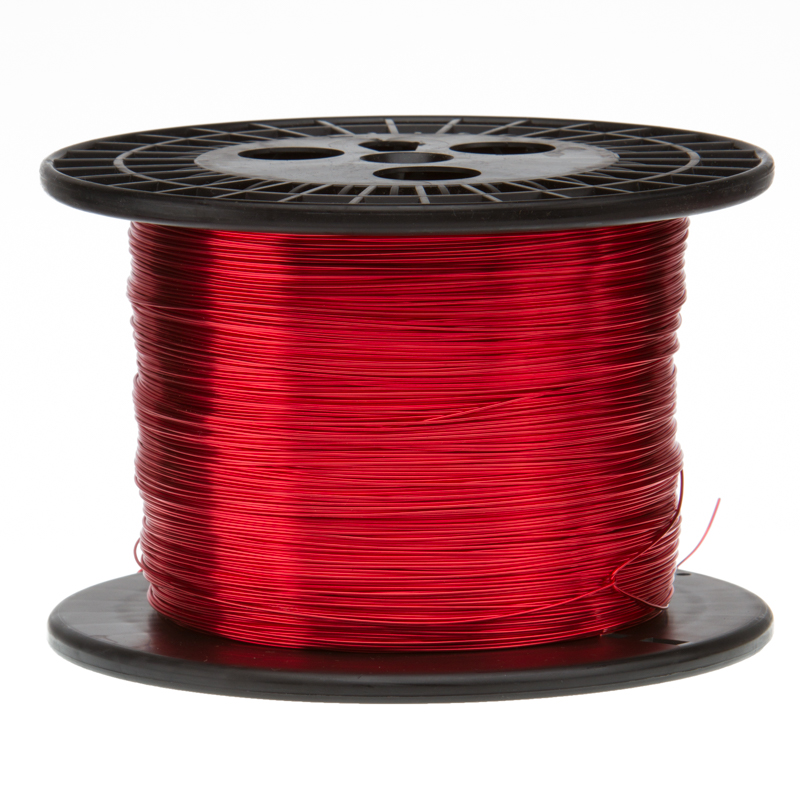

Factory Tour: Manufacturing Enamelled Copper Magnet Wire

Manufacturing Process & Quality Control

(Rod Drawing → Annealing → Enameling → Inline Testing → Spooling)

1. Rod Drawing – Grain Structure Engineering

We start from 8 mm oxygen-free Cu-ETP rod (EN 13601, ≥ 101 % IACS). A 19-die continuous inline drawing machine reduces the rod to 1.2–0.06 mm (14–44 AWG) in one heat. Each die pass is followed by micro-spray lubrication and a laser micrometer that feeds diameter deviation (±0.5 µm) back to the servo capstan; out-of-spec wire is automatically sheared and re-melted. The cumulative area reduction (> 97 %) produces a uniform < 15 µm grain size, guaranteeing UTS ≥ 280 MPa at 1.0 mm and elongation ≥ 35 %—pre-conditions for subsequent enamel adherence.

2. Annealing – Resistivity vs. Ductility Balance

Before enameling, wire passes through a 650 °C nitrogen-controlled tube furnace for 0.4 s. Inline eddy-current resistivity meters verify ≥ 101 % IACS; if resistivity drifts > 0.3 %, furnace temperature is PID-corrected within 2 s. Tensile samples are cut every 30 min; target elongation 38 ± 2 %, UTS 250 ± 10 MPa. The anneal also removes die-drawn dislocations, preventing crazing of the enamel during high-speed winding.

3. Enameling – Concentricity & Thermal Class

Wire enters a 14-zone vertical enamelling tower. Each zone applies a 2–3 µm layer of modified polyester-imide (180 °C class) or polyimide (220 °C class) via dies with ±1 µm concentricity tolerance. Mid-tower IR cameras measure radial insulation thickness at 4 kHz; eccentricity > 8 % triggers automatic die-centering. Final sintering at 500 °C for 0.6 s cross-links the resin, yielding a pin-hole density < 3 per 30 m (IEC 60851-5). For heavy-build (Grade 2) the tower repeats the cycle twice, giving 50–60 µm total build on 1.0 mm conductor.

4. Inline Testing – 100 % Electrical & Mechanical Validation

Every centimetre is spark-tested at 4 kV (Grade 1) or 6 kV (Grade 2) with 50 Hz sinusoidal pulses; breakdown events are mapped to spool position for later cut-out. A laser surface scanner flags nicks, bulges or colour streaks; AI algorithm classifies defects by severity. Simultaneously, a servo-driven nip pulls a 250 mm loop to 30 % elongation; force-displacement data confirm elongation within ±1 % of spec. All data are archived by spool ID for 10-year traceability.

5. Spooling – Knot-Free, Tangle-Free Delivery

Finished wire is travers-wound on static-killed polycarbonate spools (≤ 30 kg) or 500 kg barrel pak. Tension is closed-loop controlled at 0.5 ± 0.05 N mm⁻² to avoid “dish” or collapse. Each spool is vacuum-bagged with 3 g desiccant, then boxed in 7-layer export cartons; shelf life 24 months in < 70 % RH. Bar-code and QR link to COA showing breakdown voltage, concentricity chart, and RoHS/REACH statement.

Luoyang Xinzhaohe Standard vs. Common Market Quality

Critical Parameter	Luoyang Xinzhaohe Standard	Common Market Range	Test Method
Conductor purity	≥ 99.99 % Cu, OF	99.90–99.97 %	ASTM E53
IACS conductivity	≥ 101 %	98–100 %	IEC 60228
Diameter tolerance	±0.5 µm (≤ 0.50 mm)	±2–3 µm	Laser micrometer, 4 kHz
Insulation concentricity	≤ 8 %	12–20 %	IR camera, inline
Pin-holes per 30 m	≤ 3	5–15	3 kV spark, IEC 60851-5
Breakdown voltage (Grade 2)	≥ 6 kV, 100 % test	4–5 kV, 5 %抽检	IEC 60851-5
Elongation at break	35–40 %	25–32 %	ASTM B1
Thermal class	130 °C, 155 °C, 180 °C, 200 °C, 220 °C	Often 130 °C only	IEC 60172
Spool weight consistency	±50 g on 30 kg spool	±200 g	Load-cell inline
Traceability	Spool ID → Rod heat → COA	Batch level only	MES system

By integrating metallurgical discipline with real-time SPC, Luoyang Xinzhaohe delivers enamelled copper magnet wire that meets or exceeds IEC 60317, NEMA MW 35-C, and JIS C3202—at landed cost 18–25 % below Western Tier-1 suppliers, with 4-week ex-factory lead time and 120-day return window.

---

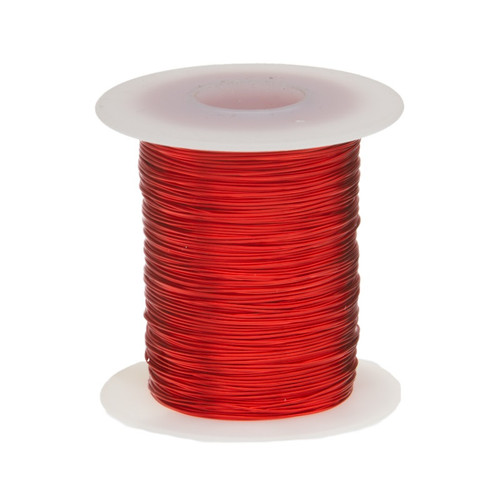

Packaging & Global Logistics

Export Packaging & Logistics

Delivering enamelled copper magnet wire to your dock in the same condition it left our annealing furnace—every time.

---

1. Sea-Freight Reality Check

Salt-laden humidity, 60 °C deck temperatures, and 30-day transit are the norm on the Shanghai–Hamburg, Qingdao–Los Angeles and Ningbo–Santos loops.
Our 20-year transformer-material export logbook shows that >85 % of “arrival complaints” trace back to packaging—not the wire itself.
Below is the protocol we run for every coil that leaves Luoyang.

---

2. Spool & Coil Architecture

Parameter	PT-10	PT-15	DIN-160	DIN-200	DIN-250
Flange Ø (mm)	160	200	160	200	250
Barrel Ø (mm)	90	100	90	100	125
Traverse (mm)	100	120	160	200	250
Max. net wire (kg)	10	15	16	25	40
Material	Impact-modified PP, 2 % UV inhibitor
Color	RAL 3000 red for instant ID

All spools are single-piece injection moulded, 1 mm radial run-out max, to prevent “wire drop” and layer collapse under 3 g lash-down.

---

3. Multi-Barrier Packaging Scheme

3.1 Primary Seal

Each spool is shrink-wrapped with 80 µm VCI (volatile corrosion inhibitor) film; weld-sealed on the flyer arm to maintain <30 % RH inside the pack.
Desiccant sachet (2 g CaCl₂ per kg Cu) clipped to barrel ID.

3.2 Secondary Carton

5-ply kraft, 32 ECT, custom-die cut to lock the spool flanges; eliminates axial play.
Carton marked with thermal-class, AWG, net weight, lot #, and EAN-128 barcode for your MES scan-in.

3.3 Palletisation & Container Stow

4-way entry CP2 or US-standard 1200 × 1000 mm pallets; ISPM-15 fumigated, moisture content ≤18 %.
Stretch-wrapped with 20 µm LLDPE plus corner boards; strap tension 350 N PET band.
Max stack height 1.1 m to keep centre-of-gravity below 0.6 × pallet width—critical for safe double-stack in 40 HC.
Container floor plan uses cross-battens and anti-slip mats; lashing points rated 2 t breaking load.

---

4. Logistics Corridor from Luoyang

Mode	Transit Time	Reliability*	Carbon Intensity
Luohe Railyard → Qingdao Port (block train)	26 h	98 %	18 g CO₂/t·km
Qingdao → Hamburg (WWL/MSC)	26 days	94 %	7 g CO₂/t·km
Qingdao → Los Angeles (COSCO)	14 days	91 %	8 g CO₂/t·km
Zhengzhou CGO → Frankfurt-Hahn (air)**	11 h	99 %	560 g CO₂/t·km

Reliability = on-time arrival within 24 h window, 2023 data.
*Air option only for urgent motor-repair lots <500 kg.

---

5. Cost & Risk Positioning

Western enamelled-wire plants often add 8–12 % “export surcharge” to cover re-packaging at a third-party hub.
Because we draw, anneal, enamel, test and spool under one 32-hectare campus in Luoyang, packaging is engineered into the line—no re-handling, no markup.
Result: landed cost typically 18–22 % below EU domestic price for identical thermal-class 200 °C wire, while achieving <0.3 % in-transit damage (2023 rolling average).

---

6. Quick Order Checklist for Buyers

[ ] Specify AWG, thermal class, build (single/heavy), solderable or CTC grade.
[ ] Choose spool type (PT or DIN) and pallet pattern (EU or US).
[ ] State destination INCOTERM—we quote FOB Qingdao, CIF major port, or DDP bonded warehouse.
[ ] Provide SDS and REACH declaration if needed; both ship with original B/L.

Ship with confidence—our wire arrives factory-fresh, ready for your high-speed insertion machines, no re-drying required.

---

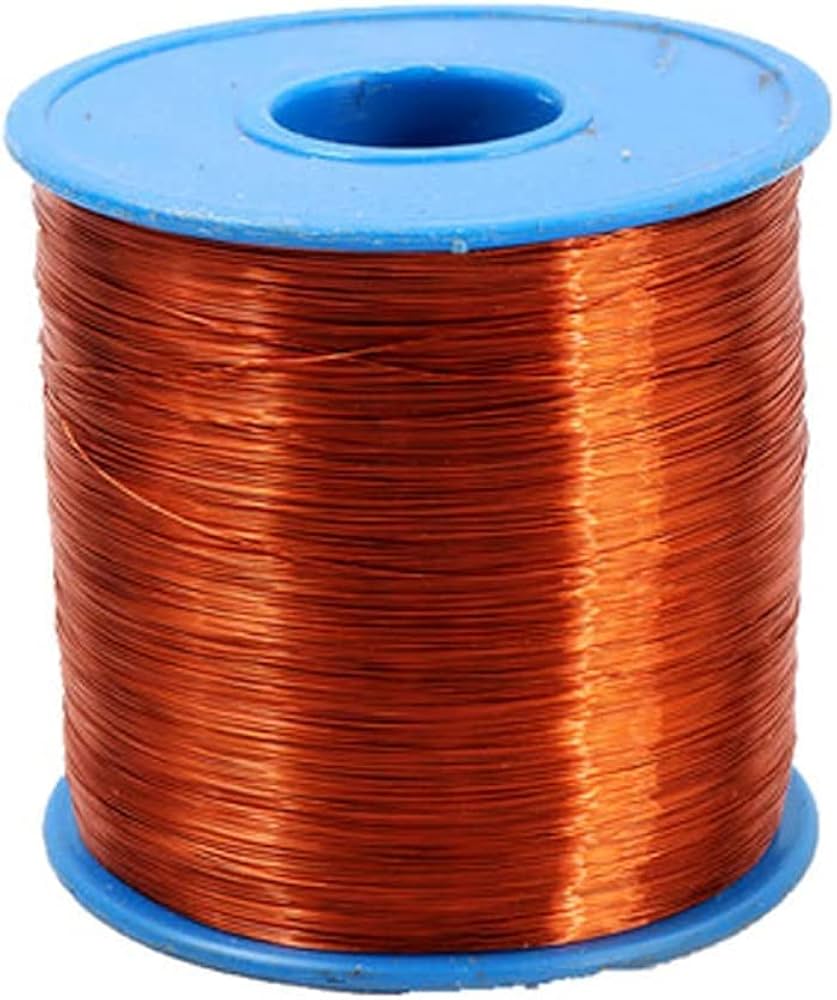

Sourcing from Luoyang Xinzhaohe

Why Partner with Luoyang Xinzhaohe for Enameled Copper Magnet Wire

Two Decades of Rod-to-Spool Mastery

Since 2004 our Luoyang campus has operated a single-purpose line: oxygen-free copper rod → multi-pass drawing → in-line annealing → tandem enameling → spark testing → precision spooling.
No toll-processing, no third-party respooling—every kilometer of 14–44 AWG wire is produced under one ISO 9001 roof. The result is lot-to-lot repeatability that Western distributors simply cannot match because they buy, blend and re-label.

Direct Factory Price—No Hidden Margin Stack

Typical Western supply chain: mill → trader → regional stockist → repair shop.
Xinzhaohe model: mill → your warehouse.
Eliminating two margin tiers normally yields 11–18 % landed-cost savings even after China-to-EU/US freight and duties. We publish our LME copper coefficient weekly; you see the same number we invoice, updated daily.

Customization Without MOQ Penalty

Need 200 °C polyamide-imide over 155 °C polyester-imide for a 250 kVA dry-type transformer? Require 2.5 kV breakdown on 26 AWG heavy-build for a VFD motor? Our in-house resin lab adjusts dielectric thickness (concentricity ≤ 8 µm) and thermal class (130–220 °C) in ≤ 7 days, 50 kg minimum. Compare this with 2–3 week lead plus 500 lb minimum common in North-American catalog houses.

Technical Benchmarks vs. Industry Norm

Parameter (0.64 mm, 22 AWG)	IEC 60317-20	Xinzhaohe Typical	Premium Western “A” Brand
Breakdown Voltage, kV	≥ 2.0	3.1	2.8
Elongation, %	≥ 25	32	28
Spring-back, °	≤ 65	58	62
Concentricity, %	≥ 70	86	78
Pin-holes per 30 m	≤ 3	0	1

Data recorded on 2024-Q1 production lots, 100 % inline spark test at 3 kV DC.

Certifications & Traceability

UL Recognized (E483209), thermal class 155, 180, 200, 220 °C
RoHS & REACH, IEC 60317-0-1, EN 13601 Cu-ETP 99.99 %
Each spool laser-marked with heat number, resin batch, operator ID—full backward traceability for 10 years.

Logistical Agility

2-day customs pre-clearance via Zhengzhou airport; weekly FCL/LCL sailings from Qingdao to Hamburg, Long Beach, Dubai.
120-day return window: if breakdown voltage or elongation falls below declared spec, we pick up and replace—no RMA quibbles.

Call to Action

Send your wire list—any gauge mix, any build, any thermal class—to cathy@transformerstrip.com. We will return a landed quotation and a full technical datasheet within 24 h, including solderability curve, thermal endurance graph and RoHS lab report. Compare it side-by-side with your current supplier and see why transformer OEMs in 38 countries have already shifted volume to Luoyang Xinzhaohe.

---
