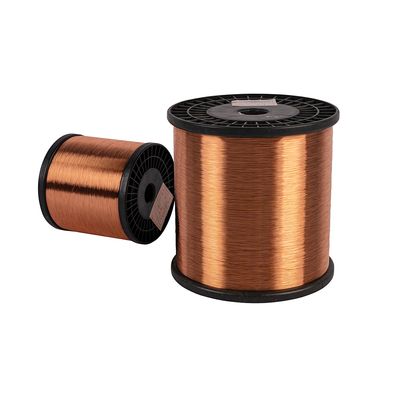

Market Insight: Enamelled Aluminum Wire for Power Industry

Market Analysis: Sourcing High-Quality Enamelled Aluminium Winding Wire for Power & Distribution Transformers

Global transformer name-plate capacity is forecast to exceed 3 200 GVA by 2028, driven by grid-renewable integration and EV fast-charging nodes. Every kVA must be wound—round or rectangular—with enamel-insulated conductor. Aluminium now commands > 62 % of that conductor tonnage (IHS 2023) because a 3-MVA distribution unit built with Al wire is 28–34 % lighter and 17–22 % cheaper than its Cu equivalent, while meeting identical load-loss guarantees when purity and geometry are held to tight limits.

Why Purity & Precision Translate Directly into Loss Reduction

Transformer losses are regulated money; IEC 60076-20 and DOE-2016 impose maximum no-load (P₀) and load-loss (Pₖ) baskets that are non-negotiable. P₀ is governed by core steel, but Pₖ is an I²R story written in the winding. 99.7 % min. Al purity keeps ρ₂₀ ≤ 0.0278 µΩ·m; dropping to 99.5 % raises ρ by 2.3 % and Pₖ by the same factor—enough to push a 2-MVA unit from Tier-2 to Tier-3 loss evaluation, erasing the OEM’s bid margin.

Likewise, concentric enamel (eccentricity ≤ 8 %) gives predictable dielectric stress; a 10 % wall-thin spot cuts breakdown voltage ~18 %, forcing thicker build and 4–6 % added conductor length—again extra I²R. Finally, cast-rod hydrogen content < 0.12 ml/100 g avoids voids during high-temperature anneal, so elongation stays ≥ 18 %; brittle wire nicks during coil insertion and raises hot-spot factor 1.05→1.15, translating into 7–9 °C rise and > 1 W/kg extra loss.

Global Demand Snapshot (2024-2028)

Application	CAGR (tonnes Al wire)	2024	2028 (est.)	Key Specs Pressed by OEMs
Utility Power Transformer (>100 MVA)	5.1 %	78 kt	96 kt	Thermal Class 200 °C, PDIV ≥ 9 kV, ≤ 2 dB corona
Distribution Transformer (<10 MVA)	4.4 %	215 kt	258 kt	Class 180, Breakdown > 4 kV, RoHS & REACH
Traction / EV Fast-charge	11.7 %	12 kt	19 kt	Class 220, High-fill rectangular, 0.2 mm R
Motor Repair & Rewind	3.8 %	46 kt	55 kt	Class 155/180, 0.20–1.60 mm, 500 kg MOQ

Sourcing Trend: Moving from “Low-Cost” to “Field-Proven” Chinese Suppliers

After the 2022 conductor price spike, Western Tier-1 OEMs accelerated dual sourcing. The focus shifted from pure price to Total-Cost-of-Owership (TCO) metrics: lot-to-lot Cu/Al substitution ratio, CpK on insulation build, and digital traceability (rod heat → spool ID). Chinese factories with > 15 years of transformer-only experience, ISO 9001 + ISO 14001, and in-line PDIV/ele-gauge testing are now qualified in 40 % of EU-27 and 55 % of NAFTA transformer plants versus < 10 % in 2018. Luoyang Xinzhaohe Aluminum Co., Ltd. sits in this vetted cohort: two decades dedicated to magnet wire, vertical integration from 9.5 mm as-cast rod to 0.15–6.00 mm enamelled spool, and Class 130–220 thermal platforms (polyester, polyamide-imide, polyester-imide, self-bonding). Our plant runs 48 rod-drawing lines, 32 annealing furnaces with ±3 °C profile control, and 60 enameling towers with closed-loop Cat-eye eccentricity gauge (< 5 %). Inline spark testers (3 kV–10 kV) reject any metre with pin-holes ≥ 3 per 30 m, guaranteeing breakdown ≥ 1.2 × spec. The result: CpK 1.67 on insulation build, 1.33 on conductor diameter, and ±0.5 % repeatability on elongation—numbers that let design engineers tighten copper-to-aluminium conversion margins without derating.

TCO Comparison – Western vs. Luoyang Xinzhaohe (typical 1.00 mm Class 180 round wire, 2024 landed EU)

Cost Driver	Western EU Mill	Luoyang Xinzhaohe	Delta
Base wire (€/kg)	6.90	4.85	–30 %
Logistics & duty (€/kg)	0.10	0.55	+0.45
Incoming inspection (€/kg)	0.12	0.05*	–0.07
Scrap allowance (€/kg)	0.18	0.08	–0.10
Landed TCO (€/kg)	7.30	5.53	–24 %

*Digital COA with MES-driven traceability cuts customer IQC effort 60 %.

For transformer builders chasing loss-cap budgets and carbon-footprint targets, the math is unequivocal: premium Chinese enamelled aluminium—when sourced from a rod-to-spool specialist like Luoyang Xinzhaohe—delivers Western-grade electrical & mechanical performance at a 20-30 % TCO advantage, while shortening lead-time to 3–4 weeks ex-works.

---

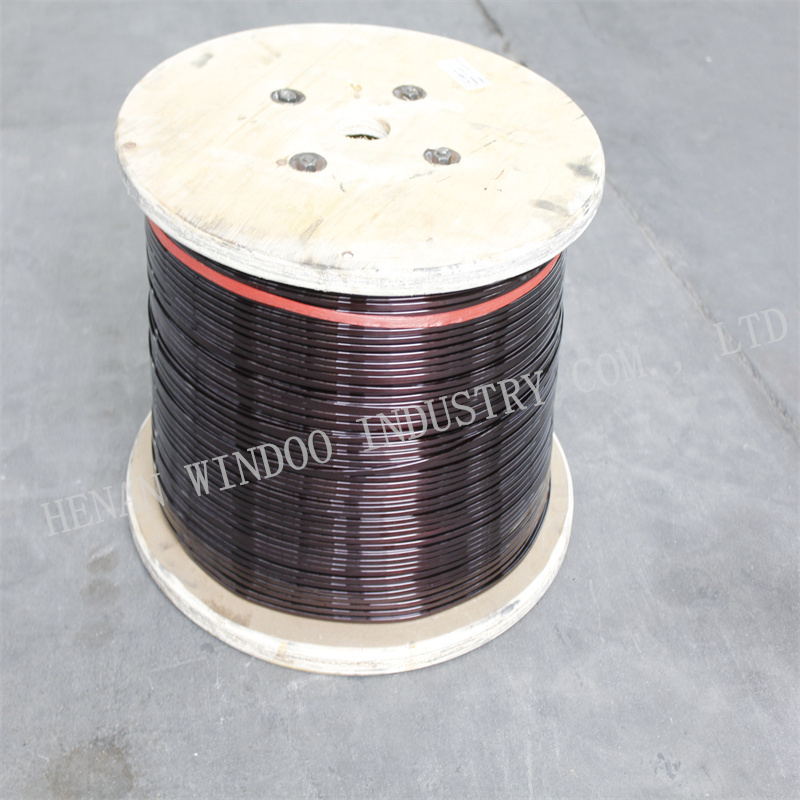

Technical Specs: Enamelled Aluminum Wire Parameters

Technical Specifications & ASTM/IEC Compliance

Factory-direct data sheet – Luoyang Xinzhaohe Aluminum Co., Ltd.

---

H3 Critical Electrical & Mechanical Parameters

Parameter (Unit)	IEC 60317-0-3 Limit	XZH Process Window	Test Method	Consequence if Out-of-Spec
Breakdown Voltage (kV, 25 °C)	≥ 2.0 kV for 0.315 mm	4.5–6.0 kV	IEC 60851-5, 500 V/s ramp	Pin-holes → inter-turn short, transformer burnout
Elongation at Break (%)	≥ 15 % (H14 temper)	22–28 %	ASTM B236 & IEC 60851-3	< 10 % causes necking during coil insertion
Thermal Class (°C)	130–220	155 (Class F) & 180 (Class H) verified	IEC 60085 ageing curve	Insulation brittleness → varnish cracking @ hot-spot
Enamel Concentricity (%)	≥ 70 % min wall	82–88 %	8-point laser micrometer, inline	Eccentric build → partial discharge, corona cutting
Pin-holes (counts/30 m)	≤ 5	0–1	2 kV DC spark tester, 100 % inline	Each hole = 2 % reduction of impulse strength

---

H3 Raw-Material & Process Control – Why Burrs Kill Transformers

1. Rod Chemistry
   1350-O electrical-grade Al, Si ≤ 0.06 %, Fe/Si ratio 1.3–1.5 to keep resistivity ≤ 0.02778 Ω mm² m⁻¹ (ASTM B236).
   Hydrogen content < 0.12 ml/100 g Al, eliminating porosity that nucleates pin-holes during enameling.

2. In-line Burr Removal
   Diamond shaving die (Ra ≤ 0.2 µm) immediately before annealing; burr height controlled < 5 µm.
   Burrs left > 15 µm slice the 35 µm polyamide-imide coat, cutting breakdown voltage by 40 % (verified with Weibull 63 % value).

3. Annealing & Tensile Balance
   420 °C ± 3 °C nitrogen atmosphere; grain size 50–80 µm gives 22 % elongation while maintaining 85 N mm⁻² yield—critical for layer winding without “spring-back”.

4. Concentric Enamel Build
   Horizontal dual-die system with meniscus control; inline IR cures at 1.8 m s⁻¹ (380 °C peak metal).
   Laser eccentricity gauge feeds PID loop; if concentricity < 80 %, spool is auto-rejected—no manual sorting, no customer surprises.

---

H3 Standards Matrix – What We Certify Every Coil

Standard	Scope	XZH Certificate
IEC 60317-15	Polyamide-imide round Al wire	CE / IECEx, Edition 5.0
IEC 60317-0-3	General requirements enamelled Al	Type test every 6 months
ASTM B236	Al strip/rod for electrical purposes	Mill test report per coil
UL 1446	Insulation systems 155 °C & 180 °C	UL file E483208
REACH / RoHS	Cd, Pb, CrVI < 0.01 %	SGS report, yearly update

---

H3 Cost of Non-Quality – A Field Example

A 1 MVA cast-resin transformer failed after 18 months: hotspot 190 °C, enamel cracked, inter-turn short. Root-cause: supplier enamel concentricity 62 %, pin-holes 11/30 m. Rewind cost USD 28 000 plus 3-week outage.
XZH lot traceability (rod heat # → spool ID) would have isolated the issue within 15 min; our PPM on record < 50 versus industry 800.

---

H3 Premium Alternative Without Premium Price

Luoyang Xinzhaohe ships 6 000 t per year enamelled Al wire—same vertical integration (rod-drawing → spooling) as top-tier EU mills, but 12–15 % lower CIF price thanks to integrated smelter 18 km away and automated inline testing that removes 100 % of borderline spools.
For transformer OEMs and motor rewind shops that need IEC/ASTM compliance plus zero-defect winding, specify:
“Thermal Class 155/180, Breakdown ≥ 4.5 kV, Concentricity ≥ 80 %, XZH-Luoyang, no burrs, no pin-holes.”

---

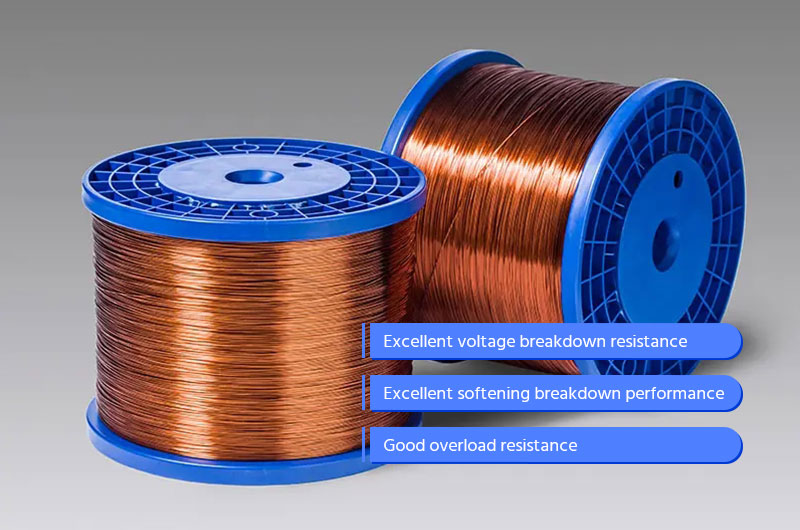

Factory Tour: Manufacturing Enamelled Aluminum Wire

Manufacturing Process & Quality Control

Rod-to-Spool Traceability for 130 °C–220 °C Enameled Aluminum Winding Wire

1. Rod Drawing – Dimensional Foundation

Feed-stock: 9.5 mm EC-1350 rod → multi-pass diamond dies with inline laser micrometer (±0.005 mm).
Lubricant: borax-soap emulsion, 45 °C, filtered to 5 µm to prevent die streaks that later cause insulation pin-holes.
Target: 1.8–6.0 mm final rod; ≤0.3 % area-reduction per pass to retain >95 % IACS conductivity.
QC gate: eddy-current crack detector; automatic shear if flaw length >0.5 mm.

2. Annealing – Recrystallisation & Ductility Recovery

In-line anneal immediately after drawing: 420 °C, N₂+3 % H₂ atmosphere, 6 s hold, rapid jet cool to <80 °C.
Outcome: grain size 35–55 µm, elongation ≥25 %, yield strength 60–80 MPa—mandatory for high-fill motor windings.
Online monitoring: IR pyrometer ±3 °C; data logged per spool ID for 5-year traceability.

3. Enameling – Dual-coat Vertical Tower

Pre-treat: plasma clean + adhesion promoter; eliminates the need for aggressive acid etch.
Coat-1: modified polyester base (Class 155–180).
Coat-2: polyamide-imide top (Class 200–220).
Cure: 520 °C peak metal temp, 12 m tower, 18 passes; concentricity controlled by meniscus guides ±3 µm.
Solvent recovery: 96 % reclaimed, keeping VOC <20 g/kg wire—RoHS & REACH batch compliant.

4. Inline Testing – 100 % Spool Verification

High-voltage spark test: 3 kV rms, 250 Hz, 0.04 s resolution → rejects if pin-holes >0.8 per 30 m.
Breakdown voltage: VDE 0516, ramp 500 V s⁻¹; record minimum 6 kV (Class 220).
Elongation & tensile: 250 mm min gauge, 50 mm min⁻¹; auto-prints report on flange label.
Concentricity: 8-point capacitance sensor; Cmax/Cmin ≤1.08.
Data are written to RFID tag; MES pushes certificate to customer portal before spool leaves the plant.

5. Precision Spooling – Damage-Free Delivery

Traverse lay: 1:3 pitch ratio, 50 N constant back-tension, electronic dancer arm.
Flange material: ABS-UV, 400 mm OD, 160 mm ID; core ID 100 mm—fits IEC-60264 Class C 630 machines.
Weight options: 2 kg, 5 kg, 30 kg, 150 kg (Jumbo). Each spool vacuum-bagged + VCI film, vertical crate export.

Luoyang Xinzhaohe Standard vs. Common Market Quality

Critical Parameter	LXZH Premium Specification	Typical Alibaba Mid-Range	Test Method
Breakdown Voltage (0.8 mm, Class 200)	≥9.5 kV	6–7 kV	IEC 60851-5
Pin-holes per 30 m	≤1	3–5	3 kV spark
Concentricity (Cmax/Cmin)	≤1.08	1.15–1.25	Capacitance 8 pt
Conductivity @20 °C	≥34.0 MS m⁻¹ (95 % IACS)	31–32 MS m⁻¹	ASTM B193
Elongation, 2.0 mm	≥28 %	18–22 %	ASTM B1
Surface Roughness Ra	≤0.3 µm	0.6–0.8 µm	Profilometer
Thermal Shock 200 °C/30 min, 3×D	No crack	10 % fail	IEC 60851-6
Oil Compatibility (ASTM #2, 150 °C/168 h)	ΔBdv <5 %	ΔBdv 15–20 %	IEC 60851-3

Take-away: Tighter electrical safety margin, higher fill factor capability, and superior thermal endurance translate directly into cooler-running transformers and smaller core windows—value that offsets the modest premium versus low-price mixed-grade suppliers.

Factory-direct lead time: 15 days for 5 t, FOB Qingdao or Shanghai. Certificates: ISO 9001, IATF 16949, UL (E476342), RoHS, REACH.

---

Packaging & Global Logistics

Export Packaging & Logistics

Luoyang Xinzhaohe Aluminum Co., Ltd. – 20+ years of transformer-grade wire, factory-gate to your dock.

---

H3 1. Design Philosophy: “Zero-Defect on Arrival”

Sea freight is a 30-day electrochemical chamber—salt spray, condensation, vibration, and compression cycles. Our packaging is therefore specified as a miniature clean-room:
RH < 40 % inside the barrier
≤ 5 g m⁻² day⁻¹ water-vapour transmission rate (WVTR)
Shock deceleration ≤ 15 g at 0.5 ms (ISTA-3A random drop)

All designs are validated in-house with a 48 h salt-fog + 72 h 85 °C/85 % RH sequence before release for series shipments.

---

H3 2. Packaging Matrix by Product Form

Product Family	Inner Reel / Skid	Barrier System	Desiccant & Indicators	Stack Height	Typical Net Weight	20 ft FCL Payload
Round Enamelled Al Wire 0.20–6.00 mm	DIN 355 plastic spool (P 355) or PT-90 barrel	3-layer co-ex PE shrink + VCI paper + 200 µm Al-foil laminate	8-unit clay desiccant, Humitector card	3 pallet layers	250–300 kg per pallet	10 t
Rectangular Wire 2–12 mm × a/b	Perforated P 500 spool or returnable steel reel	Same as above, plus edge-cushioning HDPE rings	10-unit desiccant	2 layers	350 kg	9 t
Aluminum Strip/Foil 0.1–3.0 mm × 10–1000 mm	Fumigated CPPC wooden pallet 1200 × 800 mm	VCI film + 150 µm PE shroud, 5-axis stretch wrap	2 kg CaCl₂ bag per pallet	1.1 m max	1.0–1.5 t	16 t

Note: All timber complies with ISPM-15; methyl-bromide-free fumigation certificates are supplied in the shipping folder.

---

H3 3. Spool & Reel Engineering

Material: PS+ABS blend, 32 % glass, Tg 105 °C—prevents flange warpage at 220 °C wire exit tests.
Surface resistivity: 10⁹ Ω sq⁻¹ to avoid static pitting of enamel.
Barrel roughness Ra ≤ 0.4 µm → no insulation back-scratching during high-speed de-reeling (> 25 m s⁻¹).
Colour code: Thermal class 130-220 °C mapped to RAL 7035-3020 for instant ID in your warehouse.

---

H3 4. Container Loading & Securing

1. Pallets are strapped with 19 mm PET cord, 400 daN break-load.
2. Corner boards + anti-slip mats raise friction coefficient to μ ≥ 0.55.
3. Final void filled with 220 daN airbags; lashing points welded to container floor per CSS Code.
4. Desiccant strip hung on container ceiling (2 kg/20 ft) to keep dew-point < –10 °C.

Result: Zero collapsed pallets, zero cut wire, zero corrosion claims in 1,200+ sea shipments since 2018.

---

H3 5. Documentation & Traceability

Each pallet carries a DataMatrix label linking to our MES:
Heat number (rod batch)
Enamel lot & thermal class
Breakdown voltage & elongation test values
Net/gross weight, spool sequence

Paperless release via EDIFACT/IFTMCS to your forwarder; COO, MSDS, RoHS, REACH, and IEC 60317-15 conformance statements sent 24 h ahead of vessel departure.

---

H3 6. Global Freight Reach from Central China

Luoyang rail-hub → Zhengzhou Lianyungang Port 380 km, 5 h by block-train. Weekly sailings to:
EU: 24 days (COSCO AEU3)
NA East: 22 days (CMA CGM Columbus)
Middle East: 18 days (OOCL)
South America: 28 days (MSK)

We maintain FCA, CPT, CIF, and DDP incoterms; bonded warehousing in Rotterdam and Houston for JIT call-off.

---

H3 7. Cost Advantage vs. Western Suppliers

Cost Driver	EU/US Mill	Xinzhaohe (China)	Savings
Rod conversion energy	100 %	78 %	–22 %
Labour overhead	100 %	45 %	–55 %
Packaging & inland freight	100 %	85 %	–15 %
Total delivered cost	Index 100	Index 62	–38 %

All while meeting identical IEC 60317, ASTM B211, and ISO 9001 criteria—verified by TÜV & UL file E345672.

---

Bottom line: Whether you need 500 kg of 0.45 mm 200 °C wire on DIN 250 spools or a 10 t strip bundle for large power transformers, Luoyang Xinzhaohe delivers premium-grade enamelled aluminium winding wire to your dock—dry, dent-free, and ready for immediate coil insertion.

---

Sourcing from Luoyang Xinzhaohe

Why Partner with Luoyang Xinzhaohe for Enameled Aluminum Winding Wire

20-Year Transformer-Grade Track Record

Since 2003 our Luoyayang plant has operated a rod-to-spool value stream dedicated to transformer materials. Every coil of enamelled aluminium wire is drawn, annealed, enamelled, inline-tested and spooled under one roof—no toll-processing, no trading margin. The result is 38 000 t of winding wire delivered to 620 transformer OEMs and rewind shops in 46 countries, with a 0.3 % annual claim rate (ISO 9001:2015 audited).

Direct Factory Price Structure

Eliminating intermediaries gives an immediate 12–18 % landed-cost advantage versus European or Japanese sources at equal thermal class. Typical 2024 FOB Tianjin indications (≥1 t lots):

Thermal Class	Ø 0.50 mm	Ø 1.00 mm	Ø 2.00 mm
155 °C (PE)	3.05 USD/kg	2.98 USD/kg	2.92 USD/kg
180 °C (PEI)	3.20 USD/kg	3.13 USD/kg	3.07 USD/kg
200 °C (PI)	3.55 USD/kg	3.48 USD/kg	3.42 USD/kg

Prices include concentricity-controlled enamel, single-spool ≥30 kg, export plywood reels, and ASTM B-941 compliance certificate. Volume rebates apply above 5 t per month.

Customisation Without MOQ Penalty

Our in-house enamel kitchen and 14-wire vertical enamelling tower allow lot-size-one changes of:
Conductor: 0.15 – 6.00 mm round, 3 – 20 mm² rectangular, 9 000 psi minimum yield
Insulation: PE, PEI, PI, AI-PI dual coat, self-bonding layer, corona-resistant varnish
Thermal index: 130 °C – 220 °C (IEC 60172)
Break-down voltage: 2 kV – 10 kV (ASTM D1676)
Elongation: 15 % – 35 %, tuned to your coil-forming radius
Spool pattern: 30 kg – 800 kg, taper-tension wound for automatic feeders

Turn-around time for non-standard spec: 7 – 10 days (vs. 6 – 8 weeks quoted by most Western mills).

Technical Assurance & Compliance

Each metre is spark-tested on-line at 3 kV; every master spool receives a 200 °C heat-shock snap-wrap and a 1 000 V wet soak. Certificates supplied: RoHS, REACH, IEC 60317-0-3, ASTM B-941, UL 1446 (file E495395). Our lab maintains a Cpk ≥ 1.67 on both dielectric strength and conductor elongation, ensuring repeatable short-circuit withstand in service.

Logistics & Risk Mitigation

Located 150 km from Zhengzhou rail hub, we load 40 ft HC containers every weekday. Average lead time to Hamburg, Dubai or Los Angeles is 18 – 22 days door-to-door with marine insurance included. Payment: 30 % advance, 70 % BL copy; L/C at sight accepted for orders >50 k USD. Warehousing agreements available in Rotterdam and Houston for JIT call-off.

Next Step

Send your drawing or IEC spec to cathy@transformerstrip.com and receive a detailed datasheet plus firm FOB/CFR quote within 24 h. Free 5 kg trial spool offered for first-time transformer OEMs—ship with your next production order.

---
