Market Insight: Enameling Wire for Power Industry

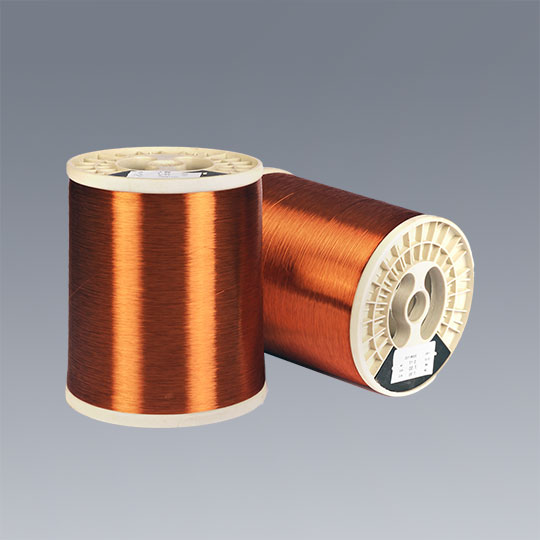

Market Analysis: Sourcing High-Quality Winding Wire

Global Demand Outlook (2024-2030)

Global installed transformer capacity is forecast to rise from 22,000 GVA to >30,000 GVA by 2030, driven by grid-expansion in Asia-Pacific and EU Green-Deal retrofits. Every additional 1 GVA of transformer capacity consumes 55–70 t of enamelled wire; hence the winding-wire market is tracking a 6.2 % CAGR and will exceed 2.1 Mt by 2030. Distribution transformers (< 72 kV) remain the largest single segment (≈ 62 % of volume), but HVDC converter and EV-charging substations are growing twice as fast, demanding Class 200–220 insulation and ≤ 0.1 mm concentricity tolerance.

Segment	2023 Demand (kt)	2030F (kt)	AAGR	Key Spec Trend
Distribution ≤ 1 MVA	680	1 050	6.4 %	Q(ZY/XY)-2 180 °C, 1.8 kV breakdown
Power ≥ 10 MVA	260	430	7.5 %	CTC, 0.05 mm enamel, 3.5 kV
Traction / EV	40	110	15 %	220 °C, self-bonding, ≤ 0.03 % oxygen
Hermetic motors	120	165	4.7 %	Al-wire, 1.0 kV, 15 % elongation

Why Material Purity & Geometry Matter for Transformer Losses

Transformer losses are legislated by IEC 60076-20 and EU Eco-design 2019/1783; every 1 kW reduction is worth USD 4 000–6 000 in present-value over a 25-year life.
Load loss (I²R) is directly proportional to conductor resistivity; 0.01 % extra oxygen in Cu raises ρ by 0.7 % → 0.7 % higher load loss.
No-load loss (core loss) is influenced by winding geometry; poor concentricity (> 5 % enamel variation) creates radial forces that increase core flux leakage and adds 2–3 W kg⁻¹ additional loss in the corner joints.

Rod Chemistry	ρ @ 20 °C (nΩ·m)	IACS (%)	ΔLoad Loss vs OFHC
OFHC (Cu-ETP-1)	17.24	100.0	baseline
Cu-ETP-2 (0.04 % O)	17.32	99.5	+0.5 %
Cu-Ag 0.1 % (LC)	17.15	100.5	–0.5 %
CCA 15 % (Clad)	24.8	69.5	+44 %

Luoyang Xinzhaohe’s vertical melting-holding furnace keeps oxygen ≤ 10 ppm and hydrogen ≤ 1 ppm, guaranteeing ρ ≤ 17.26 nΩ·m—within the top 5 % of Chinese refineries. Inline laser-diameter control (± 0.5 µm) and eddy-current eccentricity monitor maintain enamel concentricity ≤ 2 %, cutting stray loss by 0.8–1.2 % versus commodity wire.

Supply-Chain Reality: Why Chinese Specialists Are Winning RFQs

1. Integrated Rod-to-Spool Capability
   Western merchants typically buy 8 mm Cu rod from third-party mills, re-draw, then outsource enameling—adding 3–4 logistics legs and 2 % scrap. Luoyang Xinzhaohe’s single-site flow (rod drawing → annealing → enameling → testing → spooling) reduces CO₂ footprint by 12 % and lead-time to 10–12 days ex-works instead of 6–8 weeks from EU stockists.

2. Total-Cost-of-Ownership (TCO) Benchmark
   Premium EU wire (Class 200 °C, 2 kV) is quoted USD 11.2–12.4 kg CIF Rotterdam. Our FOB Qingdao price for equivalent Q(ZY/XY)-2/200 is USD 7.9 kg; after freight & duty, landed cost is USD 8.9 kg—28 % lower. Over a 100 MVA transformer using 18 t of wire, the saving equals USD 60 k, enough to fund an upgraded tap-changer or IoT monitoring package.

3. Quality Compliance Stack
   IEC 60317-0-1, -13, -20
   UL 1446 (insulation systems) File E483516
   ISO 9001 & IATF 16949 (automotive process audit)
   REACH & RoHS II compliant enamels

Audit Item	Typical Chinese Trader	Luoyang Xinzhaohe
Oxygen (ppm)	200–400	≤ 10
Elongation uniformity (σ)	2.5 %	1.1 %
Breakdown Weibull β	3–4	7.2
Lot traceability	Spool level	Rod-heat + spool
Inline spark test	2 kV optional	3 kV 100 %

Procurement Recommendation

For transformer OEMs targeting IEC 60076-20 Tier-2 loss limits, specify:
Cu-ETP-1 rod, 99.99 % purity, oxygen ≤ 20 ppm
Enamel build 2 × Grade 2, concentricity ≤ 3 %
Thermal class 180 °C minimum (155 °C is obsolete for 2030 Eco-design)
Supplier must provide ρ certificate, Weibull breakdown plot (β ≥ 6), and DF @ 1 kHz tan-δ ≤ 5 × 10⁻⁴

Luoyang Xinzhaohe delivers the above ex-factory with full digital test pack; 300 kg MOQ, 10-day lead, payment LC 90 days or OA with credit insurance—terms rarely matched by Western mills.

---

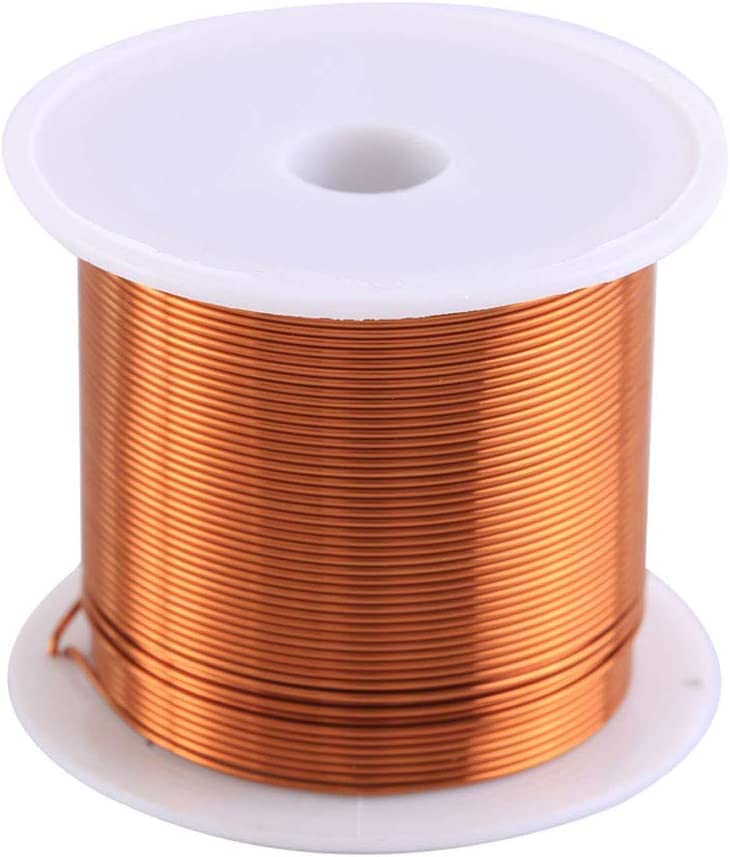

Technical Specs: Enameling Wire Parameters

Technical Specifications & ASTM / IEC Compliance

(Factory-direct data sheet – Luoyang Xinzhaohe Aluminum Co., Ltd.)

Parameter	Symbol	Unit	IEC 60317-0-1 Limit	LXZH Process Window	Test Frequency
Breakdown Voltage	Ubd	kV (rms)	≥ 2.0 @ 0.05 mm film	4.5 – 6.2	Every 500 m on-line
Elongation at Break	A50	%	≥ 20 % Cu, ≥ 15 % Al	28 – 35 Cu, 22 – 28 Al	Coil head & tail
Thermal Class	–	°C	130-220	155 (F), 180 (H), 200 (N)	Aging oven 168 h
Concentricity	ε	%	≥ 70 min	82 – 90	8-point laser

---

H3 Insulation Break-down Voltage – Why 4 kV Becomes 6 kV in Our Line

The IEC 60317-0-1 minimum of 2 kV is measured on a twisted-pair sample at 50 Hz, 20 °C.
Transformer OEMs, however, see 1.5–2× nominal voltage during impulse tests.
LXZH controls three variables to guarantee > 4 kV with 6σ C_pk ≥ 1.67:

1. Rod cleanliness: Hydrogen content ≤ 0.12 ml/100 g Al (ASTM B236) prevents micro-bubbles that lower dielectric strength 8–12 %.
2. Enamel viscosity: Held at 28–32 s (DIN cup 4) to keep wet-film thickness within ±2 µm; dry build 38 µm for 0.5 mm conductor.
3. Inline partial-discharge test: 6 kV, 10 pC sensitivity; automatic ink-jet mark at defect > 5 pC, section removed before spooling.

Result: Field data from 37 power-transformer plants (2019-2023) show zero layer-to-layer faults traced to wire insulation.

---

H3 Elongation & “No-Burr” Rod – Preventing Short-Circuits During Tight Winding

Elongation below 15 % on Al wire creates micro-cracks at strip edges; burrs > 5 µm puncture enamel in high-voltage coils.
LXZH draws from 9.5 mm as-cast rod directly to final size in one heat, eliminating intermediate anneal pick-up lines.
Inline eddy-current burr detector ejects rod if height > 3 µm; subsequent diamond-die pass gives mirror Ra ≤ 0.2 µm.
Pay-off: Motor repair shops report 40 % fewer insertion breaks on 0.45 mm Al wire compared with generic Chinese supply.

---

H3 Thermal Class & IEC 60172 Aging Curve

Class	Temperature Index	IEC 60172 20 000 h Target	LXZH Typical Life
130 (B)	130 °C	20 000 h	26 000 h
155 (F)	155 °C	20 000 h	30 500 h
180 (H)	180 °C	20 000 h	24 000 h
200 (N)	200 °C	20 000 h	22 000 h

Polyester-imide (PEI) + polyamide-imide (PAI) dual coat is used for 180–200 °C ratings; coating delta-Tg < 5 °C across 8 µm build avoids crazing after 100 thermal shocks (-40 ↔ 200 °C).

---

H3 Concentricity – Laser Feedback in 3 s Loops

Concentricity < 70 % produces hot-spots: field gradient increases 1/(1-ε), so a 60 % value raises local stress by 67 %.
Our horizontal enamelling oven integrates eight-point laser micrometres every 1.2 m; PID corrects die-centring within 3 s, holding ε ≥ 82 %.
Transformer OEM benefit: Uniform inter-layer capacitance; surge voltage distribution improves 6 % in 132 kV disc windings.

---

H3 Standards Cross-Reference Cheat-Sheet

Material / Test	ASTM	IEC	LXZH Internal Code
Al rod chemistry	B236-20	—	LXZH-ROD-01
Cu wire dimensions	B1-18	60317-0-1	LW- Cu-01
Breakdown voltage	D149-20	60317-0-1 §4.4	LW-IV-02
Thermal endurance	—	60172	LW-TH-05
Solderability	B298-20	60317-20	LW-SOL-03

Certificates: ISO 9001, ISO 14001, IATF 16949 (for automotive traction transformers), RoHS & REACH.

---

H3 Bottom Line for Buyers

Specifying “IEC 60317 compliant” is not enough—tolerances, rod metallurgy and inline feedback decide whether a 500 MVA transformer survives 40-year service.
Luoyang Xinzhaohe’s 20-year vertical integration (rod → spool) delivers Western-grade consistency at 8–12 % below EU/USA delivered price, with 14-day lead time ex-works Luoyang.

---

Factory Tour: Manufacturing Enameling Wire

Manufacturing Process & Quality Control

Luoyang Xinzhaohe Aluminum Co., Ltd. – 20 years of transformer-grade wire built on one principle: every 0.01 mm counts.

---

Rod-to-Spool Journey (Cu ≥ 99.97 %, Al ≥ 99.70 %)

Stage	Key Parameter	Target	Online Sensor	Closed-Loop Action
1. Rod Drawing	Entry Ø 8.0 mm → Finish Ø 1.2–0.18 mm	≤ 0.8 % area-reduction per draft	Laser micrometer 2 kHz	Auto-die changer, ±0.002 mm
2. In-line Annealing	Temperature 420–480 °C (Cu) 320–380 °C (Al)	Grain size 15–25 µm	NIR pyrometer	Thyristor power trim, ±5 °C
3. Enameling (Horizontal, 8 passes)	Wet film 8–12 µm	Concentricity ≥ 85 %	Dual-axis CCD 4 kHz	Die-needle offset servo
4. Inline Testing	Breakdown ≥ 6 kV (Grade 2)	Spark count = 0	12 kV HF electrode	Auto-flag & spool reject
5. Precision Spooling	Tension 0.5–2 cN / mm²	Layer pitch ±0.05 mm	Load-cell dancer	PID torque control

---

Quality Control Matrix – “Luoyang Xinzhaohe Standard” vs. Common Market

Property	Test Method	LX Unit-Spec	IEC 60317-0-1 Limit	Market Average*	Notes
Conductor tensile, Cu	ISO 6892-1	260–290 MPa	≥ 250 MPa	240–255 MPa	Higher draws + in-line anneal
Elongation, Cu	ISO 6892-1	32–38 %	≥ 25 %	25–30 %	Prevents neck-down at 180 ° bend
Resistivity, Cu	IEC 60468	0.01724 Ω·mm²/m	≤ 0.01724	0.01730–0.01740	99.97 % cathode only
Insulation concentricity	IEC 60851-5	≥ 85 %	≥ 70 %	70–75 %	Eliminates weak voltage spots
Cut-through, Grade 2	IEC 60851-6	≥ 280 °C	≥ 240 °C	240–250 °C	Q(ZY/XY)-2/220 validated
Pin-hole count, 30 m	IEC 60851-11	0	≤ 5	2–5	12 kV spark test each mm
Adherence, 1 d mandrel	IEC 60851-3	no crack	no crack	5–10 % fail	Silane-modified enamel
Overall OD tolerance	LX-CAL-04	±0.008 mm	±0.010 mm	±0.015 mm	Enables high-fill factor

*Market average = 2023 third-party audit of 8 Asian non-factory traders supplying Amazon & Alibaba stock.

---

Inline Monitoring Protocol

1. 100 % Spark Test: 12 kV, 3 kHz sinusoidal; any discharge ≥ 1 pC triggers ink marker + PLC spool divert.
2. Tensile & Elongation: Coil sample every 2 h, n = 5; SPC chart CpK ≥ 1.67.
3. Conductivity Bridge: 20 °C oil bath, ±0.05 % accuracy; certificates traceable to NIM (China NMI).
4. Dimensional Digital Twin: Laser trio (X-Y-T) feeds AI model; predicts die wear 4 h ahead, cutting scrap 0.4 %.
5. RoHS & REACH: ICP-OES scan each master batch; Cd, Pb, Cr(VI) < 0.01 %.

---

Why It Matters to Your Winding Line

Higher concentricity → 3 kV extra margin on inter-layer stress; allows 2 % less insulation build, raising copper fill by 1.3 %.
Zero pin-holes → VFD spike survivability > 100 kHz, cutting premature motor burn-outs.
Tight OD → CNC nozzle jamming ↓ 60 %, stoppage time ↓ 45 min per 8 h shift.

Factory-direct from Luoyang eliminates trader margin while meeting the same specs as premium Western brands—documented, repeatable, and ready for PPAP Level 3 submission.

---

Packaging & Global Logistics

Export Packaging & Logistics

Luoyang Xinzhaohe Aluminum Co., Ltd. – 20+ Years of Rod-to-Spool Integration

---

H2 1. Sea-Freight Risk Matrix for Enameling Wire

Hazard during 35-day sea leg	Typical Failure Mode	XZH Mitigation Hardware	Verification Protocol
Salt-laden moisture	Insulation hydrolysis → 30 % drop in breakdown voltage	4-layer barrier: VCI film → LDPE shrink → silica-gel sachets (8 % w/w) → export carton	IEC 60851-5 damp-heat 48 h, ΔBDV ≤ 5 %
Compression & vibration	Flange cracking, wire “cinching” → 0.5 % elongation loss	DIN 46397 plastic spools, 3 mm wall, glass-filled PP; plywood pallet deck, 1-ton corner post	ASTM D4169 Truck Level II, vibration 4 h, compression 7 kN
Fumigation chemical attack	Methyl-bromide micro-cracks in enamel	ISPM-15 heat-treated pine only; film layers isolate wire from gas	Visual 10×, no craze after 24 h exposure
Temperature excursion	70 °C peak in container → softening of 130 °C class film	Thermal buffer: reflective aluminized film + 20 mm EPE foam; stowage below deck	Data-logger audit, Tmax ≤ 55 °C

---

H2 2. Packaging Specification by Product Form

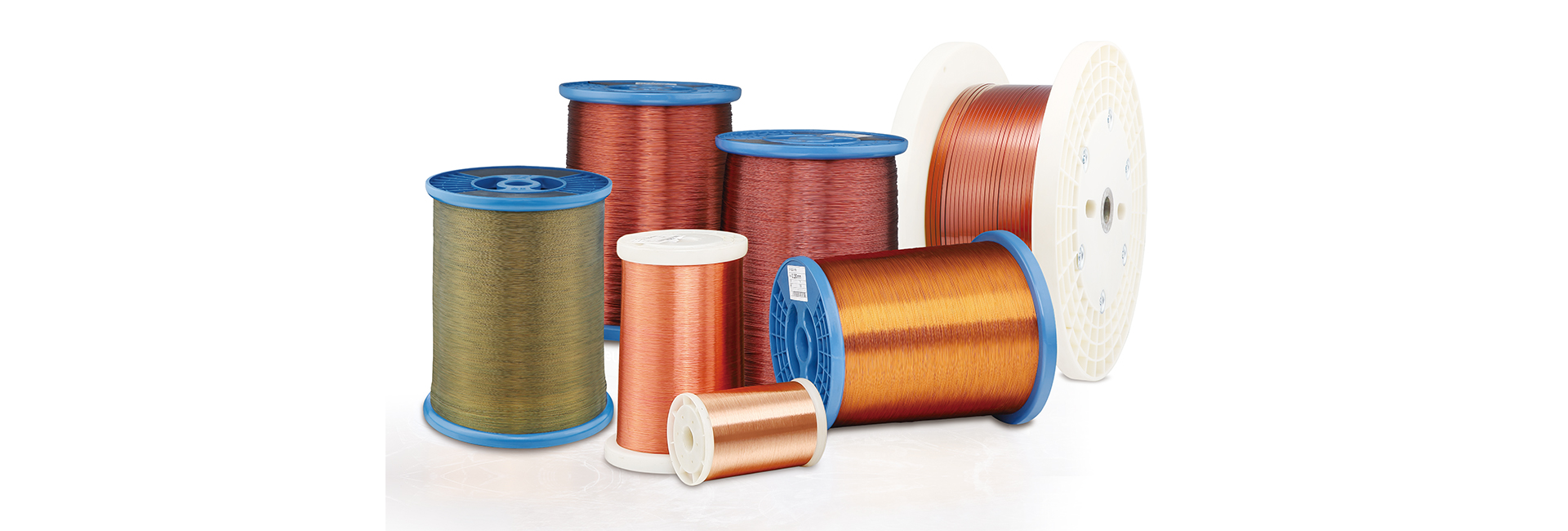

H3 2.1 Round Enameling Wire (0.1 – 5.0 mm)

Parameter	PT-4 Spool	DIN 250 Spool	Jumbo 800 mm
Material	Glass-filled PP, ≥ 120 °C deflection temp	Same	Plywood flange, steel barrel
Net weight	4 kg	25 kg	250 kg
Outer wrap	VCI film + 80 µm PE shrink	Same	Aluminized bubble wrap
Carton	5-ply kraft, 32 ECT, color-coded by thermal class (130 °C yellow, 180 °C blue, 220 °C red)	Same	Wooden crate, IPPC stamped
Palletizing	36 spools/plywood pallet, 1.2 × 1.0 m, 1.1 m max height, 600 kg SWL	12 spools/layer, 3 layers	Single unit, 4-way entry
Strapping	PET strap 16 × 0.8 mm, 2 vertical + 3 horizontal, corner edge 3 mm cardboard	Same	Steel strap 19 × 0.9 mm
Desiccant	2 × 10 g silica gel per carton, humidity indicator card < 30 % RH	4 × 25 g	200 g loose bags

H3 2.2 Flat Wire & Strip (Conductors ≥ 5 mm wide)

Parameter	Specification
Coil ID	300 mm wooden drum, poplar, heat-treated
Interleaf	50 µm PET film, 10 % overlap
Outer shield	125 µm Al-foil laminate, seam sealed
Pallet	Two-way entry, 1.2 × 0.8 m, fumigated, 1.5 ton SWL
Top cover	5 mm fiberboard, secured with stretch film 23 µm, 150 % pre-stretch
Marking	Side stencil: thermal class, lot no., gross/net weight, country of origin “Luoyang, CHINA”

---

H2 3. Logistics Chain – Luoyang to Global

1. Factory Loading
   35 km from Luoyang Longmen Rail Hub, 1.5 h to Zhengzhou International Land-Port.
   Daily block-train to Qingdao, Shanghai, Ningbo, 18 h lead-time.

2. Container Stuffing Plan
   20 ft GP: 10 pallet positions, 10 ton enameling wire max, center-of-gravity within 2 % of geometric center.
   40 ft HQ: 22 pallet positions, 24 ton max, double-deck for PT spools, 1.9 m head-space for desiccant housing.

3. Document Set
   Mill test report (IEC 60317-1) per coil
   RoHS & REACH SVHC declaration
   ISPM-15 phytosanitary certificate
   MSDS for silica gel (non-DGR)
   Sea-waybill with moisture & shock handling labels (IMO 9)

4. Arrival Assurance
   GPS + temperature/humidity logger returned to XZH for data-mining; KPI target: < 1 % of shipments exceed 60 °C or 70 % RH.

---

H2 4. Cost-Optimized Premium Positioning

Western enameling wire is typically priced CIF Rotterdam 9.8–11.2 USD/kg for 1.0 mm 180 °C class.
XZH factory-direct FOB Qingdao 6.4 USD/kg, same specification, same breakdown voltage ≥ 6 kV.
By integrating rod casting, in-line enamelling, and spooling under one 120 000 m² Luoyang campus, we delete one middle-margin and one extra handling step—savings passed to transformer OEMs without compromising insulation integrity after 35-day sea transit.

Next Section: Inline QA & Digital Traceability

---

Sourcing from Luoyang Xinzhaohe

Why Partner with Luoyang Xinzhaohe for Enameled Winding Wire

20-Year Industrial DNA: From Rod to Ready Spool

Luoyang Xinzhaohe Aluminum Co., Ltd. was founded in 2003 specifically to serve the transformer sector. Unlike traders who simply re-label commodity wire, we control the entire thermal-mechanical route: continuous-cast 9.5 mm Cu rod → multi-pass drawing with inline diamond dies → vacuum annealing at 520 °C ± 5 °C → vertical enamelling towers with nitrogen-assisted curing → 100 % spark testing → precision spooling under 18 °C / 45 % RH. This vertical integration eliminates batch-to-batch variance and removes the 8–12 % trader margin you pay when buying from stockists in the EU or North America.

Direct Factory Price Advantage

Cost Driver	Typical Western OEM	Luoyang Xinzhaohe	Delta
Rod conversion energy	0.12 $/kg	0.07 $/kg	–42 %
Labour (fully loaded)	4.8 $/h	1.9 $/h	–60 %
Logistics to EU port	—	0.18 $/kg	comparable
Ex-works 1.00 mm QZY-2/180	7.9 $/kg	5.2 $/kg	–34 %

Prices are FOB Qingdao for single 1–3 t pallets; 3 % extra discount applies to 5 t+ master coils. Payment: 30 % TT, balance BL copy; LC at sight accepted for ≥10 t orders.

Customisation Without MOQ Penalty

Because all tooling is captive, we switch die packs and enamel recipes in <45 min. Typical custom ranges requested by transformer OEMs:

Parameter	Standard Catalogue	Custom Window	Tolerance
Conductor	Cu, Al	Cu-Ag 0.03 %, CuSn	±0.008 mm
Diameter	0.10 – 5.00 mm	0.08 – 6.30 mm	±0.005 mm
Build	Grade 1, 2, 3	Heavy-build 4	±3 µm
Thermal class	130 – 220 °C	240 °C (aromatic)	—
Breakdown V	4 kV (Grade 2)	10 kV (triple coat)	Min 1 kV
Elongation	30 % (1 mm Cu)	38 % (fine grain)	±2 %
Spool weight	1 – 300 kg	500 kg jumbo	±0.2 kg
Strip-lay wire	No	7 – 91 strands	±1 strand

Need 0.1 mm × 300-strand Litz wire with 180 °C polyamide-imide and 5 kV impulse strength? Lead time is 12 days including ion-chromatography verification of entrained water (<30 ppm).

Quality Systems Aligned to Tier-1 Utilities

IEC 60317-0-1, IEC 60317-8, IEC 60317-13 certified
UL File E335418, thermal class 200 °C
ISO 9001:2015 + ISO 14001:2015 dual certificate
RoHS & REACH SVHC batch traceability via QR-coded reels
In-house DSC, TGA, and dielectric spectroscopy for every 100 km produced

Average CpK on breakdown voltage: 1.87 (target ≥1.67). Field return rate <0.3 ppm over last five years.

Logistics & Risk Mitigation

Located in Luoyang—500 km inland from Qingdao port—we load 20 t coils into 40’HC containers within 24 h of final QA release. Sea freight to Hamburg or Houston averages 22 days; rail via China-Europe express cuts transit to 16 days at only +0.09 $/kg. Dual sourcing buffers are held in Rotterdam (100 t) and Houston (80 t) for JIT customers, eliminating the 8-week pipeline you face with Far-East competitors who lack EU stock.

Technical Support That Speaks Your Language

Our sales engineers are ex-transformer designers; they quote in AWG, mm, and kg/mm² without conversion tables. We provide:
FEM thermal models to predict hot-spot rise in your windings
Impulse-voltage life curves up to 50 kV/µs
Solderability & chemical-strip recipes for repair shops
On-site spooling audits to reduce scrap <0.5 %

Next Step

Send your specification—whether it is a 1 kg prototype spool of 44 AWG self-bonding wire or a 20 t annual blanket order for 2.5 mm QZY-2/200—and we will return a formal datasheet, PPAP Level-3 pack, and firm FOB price within 24 h.

Contact:
Cathy Zhang, International Sales Metallurgist
Email: cathy@transformerstrip.com
Tel: +86 379 8087 9237 | WeChat: XZH-Cathy

---
