Market Insight: Enameled Wire Sizes

Market Analysis: Winding Wire – Industrial Demand for Enamel-Coated Aluminum Wire in Transformers

The global transformer manufacturing sector remains a dominant consumer of enameled winding wire, with consistent demand driven by power infrastructure expansion, renewable energy integration, and industrial electrification. Within this segment, enameled aluminum wire—particularly in standardized wire sizes defined by AWG (American Wire Gauge) and metric diameters—plays a critical role in balancing electrical performance, thermal management, and material cost. Luoyang Xinzhaohe Aluminum Co., Ltd, with over two decades of specialization in aluminum-based winding materials, observes that precise wire gauge selection directly influences transformer efficiency, size, and long-term reliability.

Industrial demand for enameled wire sizes in transformers is highly application-dependent. Distribution and power transformers typically utilize larger gauges (e.g., AWG 6 to AWG 14) due to higher current loads, while smaller control and instrument transformers operate with finer wires (AWG 18 to AWG 30). The shift toward compact, high-efficiency transformer designs has increased demand for tightly toleranced enameled wires with consistent diameter control and uniform insulation thickness. For aluminum wire, this precision is paramount to offset its lower conductivity compared to copper—requiring slightly larger cross-sectional areas to achieve equivalent current-carrying capacity.

Quality in enameled wire manifests across multiple technical dimensions. First, dimensional accuracy ensures proper fill factor in winding bobbins, minimizing voids and maximizing space utilization. Second, the integrity of the polymer insulation—typically polyurethane, polyester, or polyamide-imide coatings—determines dielectric strength, thermal class rating (e.g., 130°C to 220°C), and resistance to thermal shock and chemical exposure. In transformers, where windings undergo repeated thermal cycling, inferior insulation can lead to micro-cracking, short circuits, and premature failure.

Furthermore, surface smoothness and elongation properties of the underlying aluminum conductor affect winding yield and mechanical stability. Poor surface finish increases friction during high-speed winding, raising the risk of breakage and downtime. Inadequate ductility can result in cracking during coiling, especially in smaller wire sizes. Luoyang Xinzhaohe Aluminum applies rigorous process controls in drawing, annealing, and coating to ensure batch-to-batch consistency in tensile strength, elongation (typically 15–25%), and ovality (≤8% deviation).

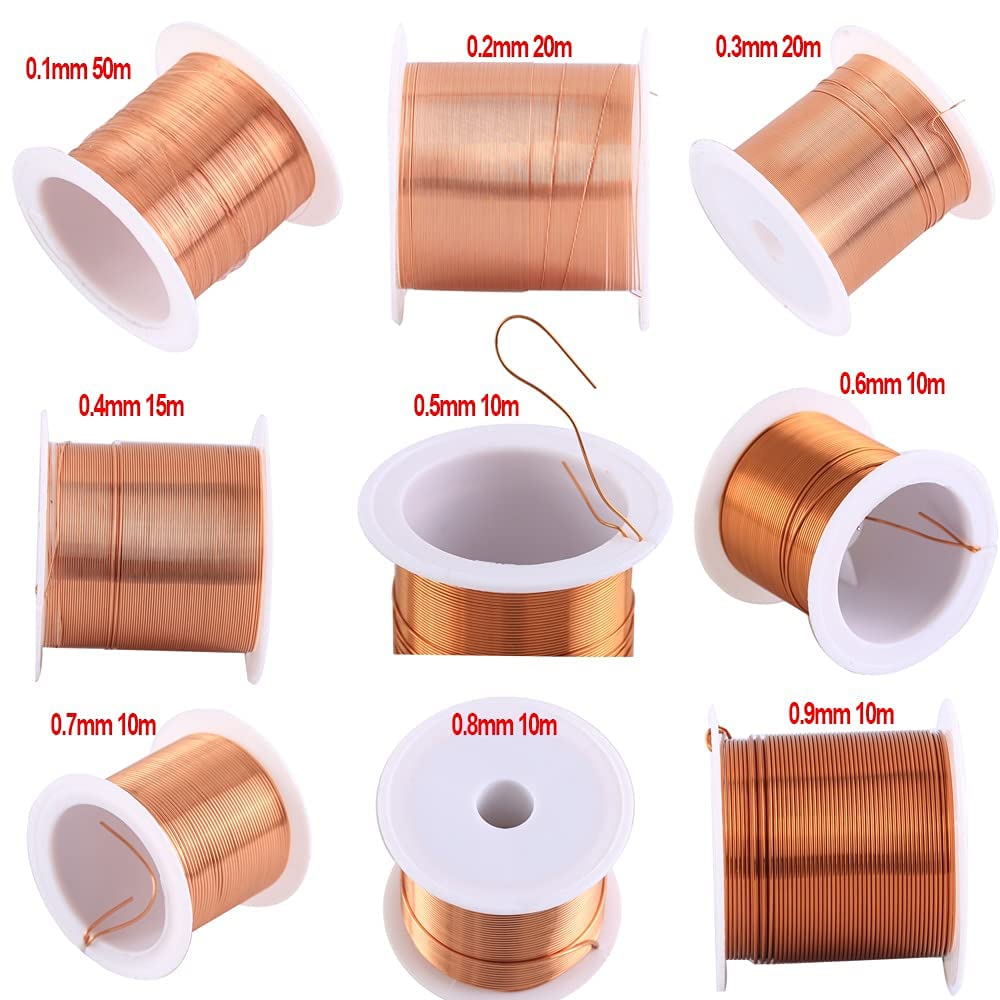

The following table outlines common enameled aluminum wire sizes used in transformer applications:

AWG	Diameter (mm)	Typical Application
10	2.59	Power transformers, high-current windings
14	1.63	Medium-power distribution transformers
18	1.02	Control transformers, chokes
22	0.64	Instrument transformers, small inductors
28	0.32	Signal transformers, precision sensors

In competitive markets, cost efficiency must not compromise material integrity. Substandard enameled wire introduces hidden costs through higher rejection rates, field failures, and warranty claims. As transformer manufacturers pursue higher efficiency classes (e.g., DOE 2016, IEC 60076), the performance of winding materials becomes increasingly decisive. Luoyang Xinzhaohe Aluminum emphasizes that certified quality, traceable raw materials, and adherence to international standards (IEC 60317, GB/T 23312) are non-negotiable for reliable supply in industrial power systems.

---

Technical Specs: Enameled Wire Sizes

Technical Specifications for Aluminum Enameled Winding Wire

Luoyang Xinzhaohe Aluminum CO., Ltd leverages 20+ years of metallurgical and process engineering expertise to deliver aluminum enameled winding wire meeting stringent global standards. Our technical specifications prioritize electrical integrity, mechanical resilience, and thermal stability for demanding motor, transformer, and inductor applications. Key parameters are defined below, reflecting compliance with IEC 60317, GB/T 23312, and customer-specific requirements.

Insulation breakdown voltage is rigorously tested per ASTM D4354, with minimum values scaled to conductor diameter. Thinner gauges require proportionally higher voltage resistance due to reduced insulation thickness. Elongation values, measured per GB/T 4909.3, ensure ductility during high-speed winding without insulation cracking. Thermal class ratings define the maximum continuous operating temperature, directly correlating to insulation polymer chemistry and expected service life. Our production controls maintain batch-to-batch consistency within ±5% of nominal values, critical for automated manufacturing environments.

The following table summarizes core technical parameters across standard thermal classes:

Thermal Class (IEC 60085)	Max Operating Temp (°C)	Min Insulation Breakdown Voltage (V) at 0.1mm Thickness	Min Elongation (%) for 1.0mm Conductor	Typical Insulation Material
130 (B)	130	900	15	Polyester (PE)
155 (F)	155	1,100	13	Polyester-imide (PEI)
180 (H)	180	1,300	12	Polyamide-imide (PAI)
200 (N)	200	1,500	10	Polyetherimide (PEI)
220 (C)	220	1,800	8	Polyimide (PI)

Breakdown voltage testing employs a 1 kV/s ramp rate on wound samples submerged in insulating oil. Values scale inversely with conductor gauge; for example, a 0.25mm diameter wire (AWG 30) requires ≥2,500 V breakdown strength at thermal class 180 (H). Elongation tolerance is validated via tensile testing at 25 mm/min crosshead speed, with results directly impacting winding line tension settings. Lower elongation at higher thermal classes (e.g., 8% for 220°C) necessitates precise process calibration to avoid conductor fracture during coil formation.

Thermal class selection involves trade-offs between thermal endurance and cost. Class 130 (B) offers optimal economics for general-purpose applications, while Class 220 (C) provides extended lifespan in high-temperature environments like traction motors. All insulation systems undergo thermal aging per IEC 60172, with life expectancy doubling for every 10°C reduction below the maximum rated temperature. Our aluminum alloy core (6101-T6 equivalent) maintains conductivity ≥52.5% IACS while enabling 30% weight reduction versus copper alternatives.

Supply chain reliability is ensured through in-house polymer synthesis and continuous annealing lines, eliminating third-party material variability. Each production lot includes certified test reports for breakdown voltage, elongation, and thermal index per ASTM E1473. For critical applications, we recommend validating wire performance under actual winding tension and bake-out profiles to confirm compatibility with your manufacturing process.

---

Factory Tour: Manufacturing

Manufacturing Process of Enamelled Aluminum Winding Wire at Luoyang Xinzhaohe Aluminum Co., Ltd

The production of high-performance enameled aluminum winding wire at Luoyang Xinzhaohe Aluminum Co., Ltd follows a tightly controlled, multi-stage manufacturing sequence designed to ensure dimensional accuracy, electrical integrity, and mechanical reliability. With over two decades of specialization in aluminum-based winding solutions, our process integrates precision engineering with rigorous quality assurance to meet stringent international standards.

The process begins with rod drawing, where high-purity aluminum rods (typically 99.7% Al or higher) are fed into a multi-die drawing machine. The rods undergo progressive reduction in diameter through a series of tungsten carbide or diamond dies, achieving precise wire gauges ranging from 0.08 mm to 4.00 mm (corresponding to AWG 38 to AWG 8). This cold drawing stage is conducted under controlled tension and lubrication conditions to minimize surface defects and ensure uniform elongation. Throughout drawing, diameter consistency is monitored via laser micrometers, with real-time feedback adjusting draw speed and tension.

Following drawing, the wire enters a continuous annealing line. This step is critical for restoring ductility lost during cold working and ensuring the wire can withstand subsequent coiling and winding operations without fracture. The annealing process employs an induction heating system in an oxygen-free nitrogen atmosphere, preventing oxidation and maintaining surface integrity. Temperature profiles are precisely regulated to achieve a fully recrystallized microstructure, typically targeting temper designations such as 1/2H or H14, depending on the final application requirements.

The annealed wire then proceeds to the enameling stage, where one or multiple layers of polymer insulation are applied. Our enameling lines utilize solvent-based or solvent-free coating systems, applying materials such as polyurethane (PU), polyester (PE), polyamide-imide (PAI), or combinations thereof (e.g., PE-Polyamide, PU-PAI). The wire passes through a precision die or nozzle for uniform coating thickness, followed by staged curing in multi-zone ovens. Each curing stage is temperature-optimized to ensure complete cross-linking of the polymer, resulting in a pinhole-free, chemically resistant insulation layer.

Inline testing is integrated throughout the production line to guarantee product consistency. After each enameling pass, the dielectric strength is verified via high-voltage spark testing at 3 kV to 6 kV, depending on wire size and insulation class. Additional inline checks include continuous diameter monitoring using laser gauges, tension control systems, and surface defect detection via optical scanners. Final quality control includes off-line testing for elongation, springability, thermal shock resistance, and thermal class validation per IEC 60317 and GB/T 6109 standards.

All process parameters are logged and traceable, supporting full batch accountability. Luoyang Xinzhaohe’s integrated approach ensures that every meter of enameled aluminum wire meets the performance demands of motors, transformers, and electronic components in industrial and consumer applications.

---

Packaging & Logistics

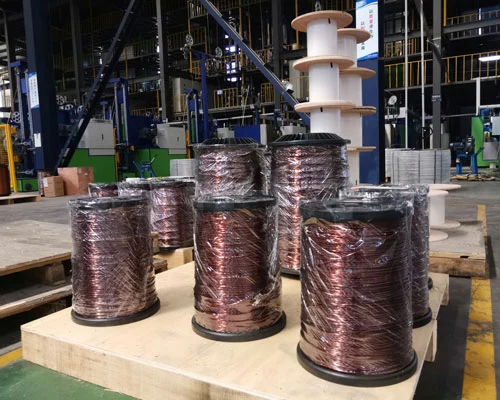

Export Packaging Specifications for Enameled Aluminum Winding Wire

Luoyang Xinzhaohe Aluminum Co., Ltd. implements rigorously validated export packaging protocols for enameled aluminum winding wire to ensure product integrity during global maritime transit. With over 20 years of metallurgical and supply chain expertise, our methodology addresses the hygroscopic nature of enamel insulation and the dynamic stresses inherent in sea freight. All shipments utilize ISPM-15 certified wooden pallets as the foundational structural element. These pallets undergo kiln-drying to ≤22% moisture content and feature heat-treated hardwood components compliant with international phytosanitary standards. Dimensions adhere to ISO container efficiency parameters, with standard configurations supporting wire reels up to 1,500 kg gross weight. Pallet design incorporates reinforced stringers and deck boards to distribute load evenly, preventing reel deformation under stack pressure during multi-tier container stowage.

Moisture protection is executed through a dual-barrier system critical for preserving dielectric properties. Reels are first sealed in 125μm-thick metallized moisture-barrier film with ≥0.01 g/m²/day WVTR (water vapor transmission rate). This primary layer is vacuum-shrunk to eliminate trapped air pockets, followed by secondary encapsulation in UV-stabilized polyethylene stretch film (≥80μm thickness) with 300% elongation capacity. The film package achieves hydrostatic pressure resistance of 1,000 mm H₂O, validated per ASTM D741 test protocols. Critical sealing zones employ heat-welded seams exceeding 15 N/15mm peel strength to prevent capillary ingress during salt-spray exposure.

All packaged reels undergo mandatory humidity chamber validation at 85% RH/40°C for 60 days prior to shipment release, simulating extended ocean voyages. Palletized loads are secured using 16mm polyester strapping at 2,500 N tension, with corner protectors distributing pressure to avoid reel flange damage. Container loading follows lashing calculations per CSS Code, ensuring restraint against 1.0g longitudinal and 0.7g transverse acceleration forces. Documentation includes desiccant quantity tags (minimum 300g/m³) and humidity indicator cards calibrated to 55% RH threshold.

This integrated approach mitigates three principal sea freight risks:
1. Moisture-induced enamel hydrolysis degrading insulation resistance
2. Salt aerosol corrosion compromising conductor surface integrity
3. Vibration-induced reel collapse causing wire buckling

Packaging Component	Technical Specification	Compliance Standard
Wooden Pallet	Hardwood, 1200×1000×150mm, ≤22% MC	ISPM-15
Primary Moisture Barrier	Metallized CPP film, 125μm, WVTR ≤0.01 g/m²/day	ASTM F1249
Secondary Encapsulation	LLDPE stretch film, 80μm, 300% elongation	ASTM D882
Strapping	Polyester, 16mm width, 2,500 N tension	ISO 1602

Our packaging system is engineered to maintain enamel insulation resistance above 100 MΩ·km throughout transit, directly supporting downstream manufacturing yield. This precision-focused methodology reflects our metallurgical understanding of aluminum’s sensitivity to environmental exposure and our commitment to zero-transit-damage delivery across all global trade lanes.

---

Sourcing from Luoyang Xinzhaohe

Partner with Luoyang Xinzhaohe Aluminum Co., Ltd for Premium Enamel-Coated Aluminum Winding Wire

Luoyang Xinzhaohe Aluminum Co., Ltd has established itself as a leading manufacturer and supplier of high-performance enameled aluminum winding wire, serving global markets for over two decades. With specialized expertise in the production of magnet wire for transformers, motors, and electrical equipment, we offer engineered solutions that meet the stringent demands of modern power and electronics industries. Our facility integrates advanced process control, precision drawing technology, and automated enamel coating systems to deliver consistent product quality across all enameled wire sizes.

Our production line is optimized for aluminum-based winding wire, with capabilities spanning AWG 8 to AWG 40 (approximately 4.0 mm to 0.08 mm in diameter). We utilize high-purity 1350-O and 8011-O aluminum conductors, drawn under controlled conditions to ensure uniform tensile strength, elongation, and ovality. Each wire size is coated with thermally conductive, dielectrically robust insulating enamel—available in single, double, or triple builds—using solvent-based polyurethane, polyesterimide, and polyamide-imide systems. These coatings are engineered to withstand thermal class ratings up to 220°C, ensuring long-term reliability in high-temperature operating environments.

Quality assurance is central to our manufacturing philosophy. Our in-house testing laboratory is equipped to perform full IEC 60317 and GB/T 23312 compliance verification, including dielectric strength, thermal shock, scrape resistance, and solderability testing. Every batch undergoes rigorous inspection for dimensional accuracy, coating continuity, and mechanical performance, ensuring conformance to international standards and customer-specific specifications. Our quality management system is ISO 9001:2015 certified, reflecting our commitment to continuous improvement and traceability across the production chain.

As a vertically integrated manufacturer, Luoyang Xinzhaohe controls key stages from rod casting to final spooling, enabling tight tolerance control and cost efficiency. Our annual production capacity exceeds 20,000 metric tons, supported by automated warehousing and a responsive logistics network that facilitates both bulk shipments and just-in-time delivery models. We specialize in OEM packaging, custom reel configurations, and labeling to meet regional regulatory and assembly line requirements.

Global partners choose Luoyang Xinzhaohe for our technical depth, on-time delivery performance, and responsive engineering support. Whether sourcing standard enameled wire sizes or developing custom formulations for niche applications, our team provides technical consultation from material selection to process optimization.
