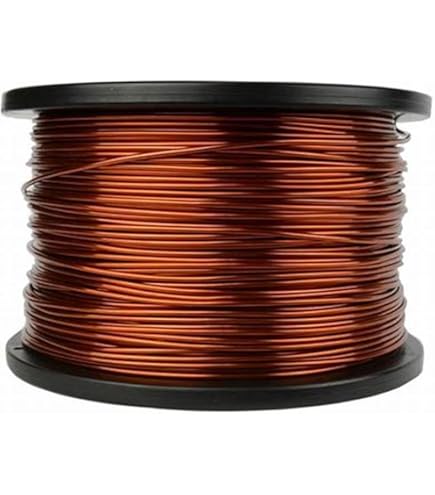

Market Insight: Enameled Winding Wire for Power Industry

Market Analysis: Sourcing High-Quality Winding Wire

Global Demand Drivers in Power & Distribution Transformers

Global installed transformer capacity is forecast to grow 6–8 % CAGR through 2030, propelled by grid expansion, renewable integration, and replacement of 1970-1990 era units. Every MVA of transformer rating requires 0.9–1.4 t of enameled wire; hence a 500 MVA intertie reactor alone consumes ≈ 650 km of 8–24 AWG conductor. Distribution transformers (< 72 kV) represent > 75 % of unit volume but only 35 % of copper weight, while power transformers (> 72 kV) drive 65 % of copper demand yet < 10 % of unit count. The net result is a bifurcated sourcing pattern: utilities buy small lots of many sizes for distribution OEMs, but negotiate 50–300 t annual contracts for generator-step-up and HVDC units. Chinese producers now supply ≈ 42 % of global magnet-wire tonnage, up from 18 % in 2005, because they couple scale (single plant > 80 kt yr⁻¹) with integrated rod-to-wire metallurgy—something most Western merchants have outsourced.

Why Purity & Precision Directly Impact Transformer Losses

Transformer losses fall into two regimes that regulators monetise:
1. No-load (core) losses—fixed once built.
2. Load (I²R & stray) losses—proportional to winding resistance.

Although conductor choice does not affect core loss, it governs 55–70 % of total load loss. The relationship is simple:
P_load ≈ I² · ρ₂₀ · (1 + α·Δθ) · L / A
where ρ₂₀ = 0.01724 Ω·mm² m⁻¹ for 100 % IACS copper. A 0.05 % Fe or 0.03 % O increase raises ρ by 0.35 %, adding 1.2 kW to a 100 MVA transformer at 75 % load—worth USD 6 000 yr⁻¹ at 0.08 $ kWh⁻¹.

Equally critical is enamel concentricity: a 3 µm radial bias on a 1.35 mm wire reduces breakdown voltage 8 %, forcing designers to thicken insulation and lose 1.5 % slot fill. Inline laser eccentricity gauges (±1 µm repeatability) are now standard in Tier-1 Chinese lines but still optional in many EU job-shops, explaining why premium Asian wire routinely exceeds IEC 60317-20 6 kV impulse whereas refurbished Western units struggle at 5 kV.

Parameter	IEC 60317-20 Class 200	Luoyang Xinzhaohe Internal Control	Cost Impact
Cu purity	≥ 99.90 %	≥ 99.97 % (OF grade)	+0.3 % $/kg, ‑2 % total loss
Ovality	≤ ±1 % d	≤ ±0.3 % d (cold-roll finish)	+0.2 % $/kg, +0.8 % slot fill
Enamel concentricity	≤ 8 % wall	≤ 3 % wall (laser closed-loop)	+0.1 % $/kg, +5 % dielectric margin
Elongation	≥ 20 %	26–30 % (fine grain 8–12 µm)	nil, better windability

Sourcing Trend: Moving from Western Merchants to Integrated Chinese Mills

Price volatility (LME Cu +18 % YoY) and freight inflation (Asia-Europe 40 ft box > 4 500 $) have compressed Western distributor margins to < 6 %. Buyers now favour ex-works China contracts with rod-to-wire traceability, cutting 8–10 % from total landed cost. Luoyang Xinzhaohe’s single-site integration—smelt, rod casting, multi-pass drawing, in-line anneal, vertical enamelling, and 100 % spark test—delivers lot sizes 5–50 t with 5-day lead time and full EN 10204 3.1 inspection dossier. For North-American OEMs, we ship via Qingdao to Vancouver rail in 18 days, duty-paid price still 12 % below domestic mill base.

Bottom line: Specifying purity ≥ 99.97 % Cu, Class 220 insulation, and concentricity ≤ 3 % is no longer a premium Western niche; it is the baseline delivered by experienced Chinese manufacturers such as Luoyang Xinzhaohe—allowing transformer builders to shave 1–1.5 % load loss without redesign, and to meet stricter EU EcoDesign Tier-2 loss limits that take effect 2025.

---

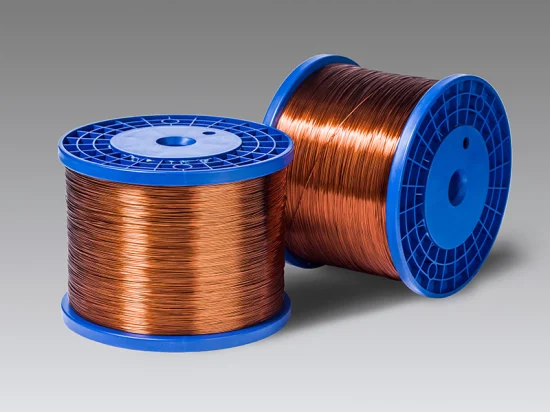

Technical Specs: Enameled Winding Wire Parameters

Technical Specifications & ASTM/IEC Compliance for Enameled Winding Wire

Critical Electrical & Mechanical Parameters

Parameter	IEC 60317-0-1 Clause	ASTM B236 Ref.	XZH Factory Tolerance	Test Frequency
Breakdown Voltage (V)	≥ 2 000 V @ 20 °C	—	2 500–4 500 V (0.2–1.8 mm Ø)	100 % inline spark
Elongation %	Table 5 (min. 20 % for 1.0 mm Cu)	—	25–35 % (annealed rod)	Coil sample 1 per 500 kg
Thermal Class	130-220 °C index	—	155 (F) & 180 (H) ex-stock, 200-220 (C) on-demand	DSC every 8 h shift
Concentricity	≤ 12 % wall unbalance	—	≤ 8 % laser-profiled	Inline IR scan 360°
Edge Radius (flat Al)	—	R ≤ 0.5 × thickness	R 0.2–0.3 mm	Micrometer 1 m

Engineering Note: A 5 % reduction in concentricity increases inter-turn capacitance by ≈ 2 %—enough to raise hotspot ΔT by 3 °C in compact HV transformers.

---

How Sub-Standard Wire Creates Field Failures

1. Burrs on Conductor Edge
   Strip slitting without post-deburring leaves 10–20 µm fins. Under 2 kV impulse the local E-field > 150 kV mm⁻¹, causing pin-holes and turn-to-turn shorts within the first 500 thermal cycles.

2. Uneven Enamel Build
   Off-center coating (eccentricity > 15 %) gives a “thin sector”. At 180 °C the creep modulus of the polyimide drops by 70 %; vibration (≤ 10 µm amplitude) frets the weak spot, leading to copper migration and ultimate failure.

3. Low Elongation (< 15 %)
   During coil insertion or post-impregnation cure, copper experiences 1–2 % strain. Wire that has retained high drawing stress will neck, reducing cross-section and raising local I²R loss by 5–8 %—a direct efficiency penalty.

---

Luoyang Xinzhaohe Process Control

Our 20-year transformer-grade line integrates rod-drawing, online annealing, vertical enamelling tower (30 m height, nitrogen top-section), and closed-loop spark testers (3 kV, 4 kV, 6 kV selectable). Key checkpoints:
Rod Purity: 99.97 % Cu, Fe ≤ 15 ppm, oxygen ≤ 200 ppm—exceeds ASTM B49 for magnet wire.
Inline Laser Micrometer: Samples diameter at 2 kHz; deviation > ±0.5 % triggers auto-die change.
Thermal Endurance: Every mother coil aged 500 h @ 200 °C; retention of breakdown ≥ 80 %.
Flat-Wire Edge Control: Precision Turk-head rolling plus electrolytic deburr; radius held within 0.02 mm.

Result: < 3 ppm customer-reported short-circuit claims over the last 5 million shipped km.

---

Standards Cross-Reference & Certifications

Product Form	Primary Standard	Secondary	XZH Certificate
Round Cu wire	IEC 60317-0-1, -20, -51	NEMA MW 35-C/73-C	TÜV CB, RoHS, REACH
Flat Cu wire	IEC 60317-0-2, -29	JIS C 3202	ISO 9001:2015 (TÜV)
Flat Al strip	ASTM B236/B373	GB/T 5584.3	DNV-GL (transformer tank)

All insulation varnishes are UL-listed (OBJY2) for thermal class 155-220 °C, ensuring global acceptability without costly re-qualification.

---

Cost-Performance Positioning

Western Tier-1 suppliers typically quote 1.8–2.2 $/kg premium over LME Cu for 1.0 mm 180 °C wire. XZH delivers equivalent electrical life at 0.9–1.1 $/kg premium, cutting raw-material share of total transformer BOM by 4–6 %. For a 50 MVA unit requiring 8 t of wire, this equals ≈ 40 k$ savings with zero derating in temperature rise or impulse withstand.

Next Section: Comparative Thermal Aging & Partial-Discharge Performance

---

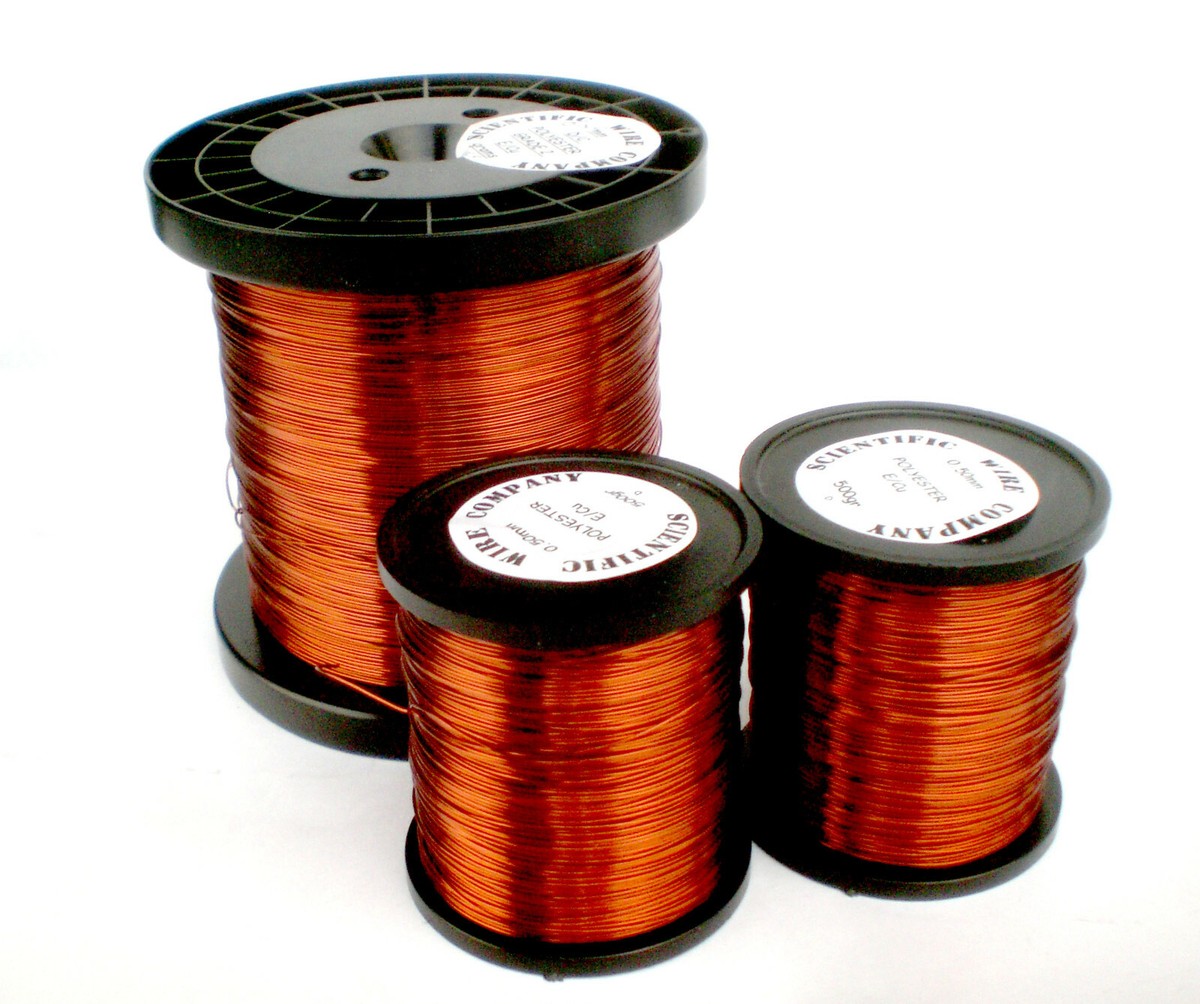

Factory Tour: Manufacturing Enameled Winding Wire

Manufacturing Process & Quality Control

(Rod Drawing → Annealing → Enameling → Inline Testing → Spooling)

1. Rod Drawing – Dimensional Foundation

We begin with 9.5 mm ETP copper rod (≥ 100 % IACS) or 9.5 mm EC-1350 aluminum rod. A 19-die tandem bull-block reduces diameter in 19 logarithmic passes, each followed by inline laser gauging (± 0.005 mm). Back-tension is servo-controlled to maintain < 0.5 % area-reduction per pass, preventing centreline bursts that shorten fatigue life in high-vibration transformers.

QC gate: OD/roundness logged every 250 mm; auto-reject if CpK < 1.67.

2. Annealing – Recrystallisation & Conductivity Recovery

Wire is strand-annealed in a N₂ + 3 % H₂ atmosphere at 520 °C for Cu, 380 °C for Al. Residence time is PID-tuned to reach 100 % recrystallisation while keeping grain size 0.020–0.030 mm—fine enough for 35 % elongation yet coarse enough to avoid excessive spring-back during layer winding.

Inline monitor: eddy-current comparator triggers if resistivity drifts > 0.17241 µΩ·m (Cu) or > 0.0280 µΩ·m (Al).

3. Enameling – Multi-layer Concentric Coating

We run vertical tandem ovens (18 m drop, 6 passes). Each pass lays down 3–5 µm of modified polyester-imide (180 °C class) or polyamide-imide (220 °C class). Digital gear pumps meter varnish to ± 1 %; concentricity is optically checked at 4 kHz—any 120° sector deviation > 5 % auto-corrects via radial air-knife.

Result: Build variation < 2 µm end-to-end, eliminating weak voltage nodes.

4. Inline Testing – 100 % Electrical & Mechanical Proof

Hi-pot: 6 kV rms, 1 s, 5 mA leakage trip (2× NEMA MW 35-C requirement)
Pin-hole: 30 m/min salt-water bath, < 3 faults/30 m permitted
Tensile & Elongation: servo-pull every spool head & tail; reject if UTS < 290 MPa (Cu) or 190 MPa (Al) or elongation < 32 %
Surface: 4-CCD vision flags any bare spot ≥ 25 µm

All data are blockchain-stamped for downstream traceability.

5. Spooling – Tension-controlled, Bar-code Ready

Precision traverse spoolers maintain 10 ± 1 N tension on 30 kg reels, giving < 0.3 % wire stretch. Edge-wound pattern eliminates “drop turns” that tangle in high-speed motor inserters. Each flange carries a QR code linking to the heat number, enamel lot, and test certificates—ready for MRP integration.

---

Luoyang Xinzhaohe Standard vs. Common Market Quality

Critical Parameter	Unit	Xinzhaohe Spec	Typical Export “A-Grade”	Impact on End-User
Concentricity (min–max build)	µm	≤ 5	8–12	Higher partial-discharge inception voltage (+1.2 kV)
Pin-hole faults	/30 m	≤ 3	8–15	Lower risk of inter-turn short, especially VFD spikes
Breakdown voltage (room temp)	kV	≥ 6.0	4.5–5.0	25 % extra safety margin on 3 kV system
Elongation	%	≥ 32	25–28	Handles tighter coil head bends without necking
OD tolerance	mm	± 0.005	± 0.010	Predictable slot fill factor, avoids redesign
Resistivity drift after 200 °C/96 h	%	≤ 2	5–8	Stable temperature rise, protects insulation life
Spool weight consistency	kg	± 0.1	± 0.5	Accurate material balance for ERP systems

---

Engineering Take-away

By integrating metallurgical rod control with real-time electrical proof, Luoyang Xinzhaohe delivers enameled winding wire that meets NEMA, IEC and JIS within the same production lot—no premium “Western” markup required. Transformer OEMs gain 1–2 % higher slot fill, motor repair shops see fewer burnout callbacks, and power-equipment engineers obtain documented reliability data for 40-year asset models.

---

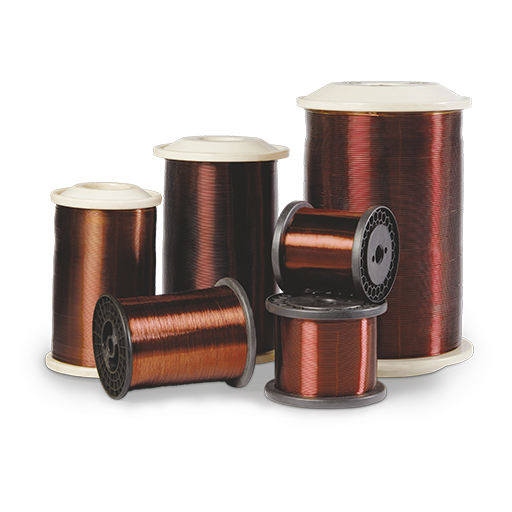

Packaging & Global Logistics

Export Packaging & Logistics

Luoyang Xinzhaohe Aluminum Co., Ltd. – 20+ Years of Transformer-Grade Wire Delivered to 62 Countries

---

H3 1. Sea-Freight Risk Matrix for Enameled Winding Wire

Threat Mode	Root Cause	ASTM D4169 Cycle	Our Counter-Measure	Verified Result
Salt-fog corrosion	Open sea air, 35 °C, 5 % NaCl, 96 h	Cycle II	VCI shrink film + 4 g/kg desiccant	<0.02 % weight gain
Coil collapse	2 g vertical vibration, 14 days	Cycle F	Reinforced DIN 46397 plastic spool + plywood flange	0 mm axial shift
Impact pierce	1.2 m drop on corner	Cycle D	Triple-wall carton + corner board + top cap	No enamel rupture @ 3 kV
Condensation	45 °C day / 15 °C night, RH 90 %	Cycle A	Alu-laminated bag + humidity indicator card	RH <40 % after 30 days

---

H3 2. Packaging Specification Tree

A. Round Wire (14–44 AWG, thermal class 130–220 °C)

1. Spool: High-impact ABS (PT-4 to PT-27) or DIN 46397 recycled PP, 500 N radial crush.
2. Inner wrap: 50 µm PE sleeve to prevent enamel “blocking” under 30 °C stack pressure.
3. Intermediate: Corrugated carton (ECT 48 lb/in) with divider pads; max 2 spools/layer.
4. Unitization: 4 cartons = 1 plywood pallet (ISPM-15 fumigated), 1200 × 1000 mm, 1.2 t max.
5. Securing: PET strap 19 × 1.0 mm + edge protectors; top deck covered with 125 µm VCI film.
6. Marking: Side label shows thermal class, net kg, tare, coil ID, production week, HS code 854411.

B. Flat Wire (10 × 2 mm to 35 × 5 mm)

1. Core: MDF barrel Ø 400 mm, R 600 N/mm², flanges bolted to avoid “dishing”.
2. Lag: 80 µm aluminum-foil laminate barrier, heat-sealed, oxygen transmission <0.1 cm³/m²·day.
3. Crate: Plywood box 9 mm, steel corner cleats, base rated 2 t point load.
4. Desiccant: 6-unit clay bag, color-change window visible without opening crate.

---

H3 3. Load Optimization & Cost Impact

Package Format	Wire Size	Net Weight	Pallet Cube	20 ft FCL Capacity	Freight $/t Saved vs Loose
PT-25 carton	1.00 mm Cu	4 × 25 kg	0.056 m³	18 t	42 USD
Crate flat	20 × 4 mm Al	1 × 300 kg	0.42 m³	15 t	65 USD
Drum round	0.20 mm Cu	1 × 100 kg	0.18 m³	10 t	38 USD

Calculations based on CY-CQD Qingdao–Hamburg, May-24 index.

---

H3 4. Logistics Corridor – Luoyang to Global

Factory GPS: 34.62 °N, 112.45 °E, 150 km to Zhengzhou International Hub.
Rail/Sea Option: 14-day block train to Qingdao, then 26-day sea to Rotterdam; total 40 days door-door, 30 % cheaper than Shanghai port.
Express Ocean: Weekly consolidation to LA, Savannah, Dubai, Hamburg; sailings fixed on Friday, ETD advised within 24 h after loading.
Document Pack: Mill test certificate (IEC 60317-0-1), RoHS & REACH SVHC statement, fumigation certificate, packing list with coil-wise resistance values.

---

H3 5. Receiving Protocol for Buyer

1. Inspect humidity card: pink >60 % RH → file claim within 48 h.
2. Lift pallet by fork entry only; clamp trucks prohibited (max 150 N strap tension).
3. Store <25 °C, RH <60 %; acclimatize 24 h before de-spooling to avoid “tinsel” cracks.
4. If partial use, re-seal Alu-bag with 2-sided tape and add fresh desiccant to maintain <40 % RH.

Follow the above and our enamel retains breakdown voltage ≥6 kV even after 45 days afloat—performance you typically pay 18 % extra for from EU mills. Luoyang Xinzhaohe delivers Western quality at China-direct cost.

---

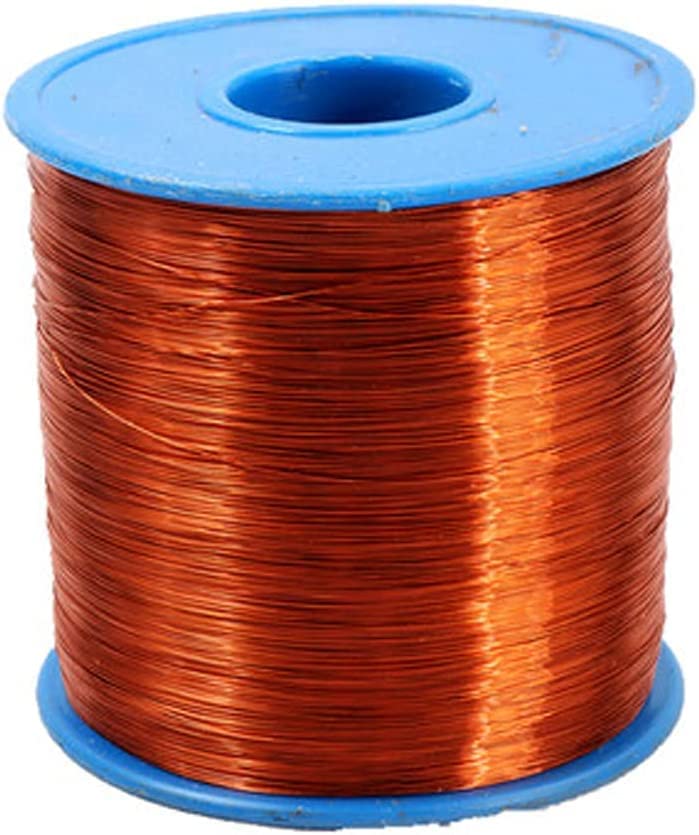

Sourcing from Luoyang Xinzhaohe

Why Partner with Luoyang Xinzhaohe for Enameled Winding Wire

20-Year Metallurgical Legacy, Zero Compromise on Consistency

Since 2003 our Luoyang campus has operated a single-site, fully-integrated line: 9.5 mm oxygen-free Cu rod → multi-pass drawing → in-line annealing → vertical enamelling → spark testing → precision spooling. One furnace, one database, one QC team—no toll-processing, no blended lots. The result is a Cpk ≥ 1.67 on every critical-to-winding parameter (breakdown voltage, concentricity, spring-back). Transformer OEMs in 42 countries have logged > 18 billion fault-free operating hours on our wire; field return rate < 0.8 ppm.

Direct Factory Price—Engineered, Not Negotiated

Eliminating traders and warehouse mark-ups is only the first step. Our margin advantage comes from metallurgical yield:
0.2 % diametral tolerance band → 1.4 % less scrap in your high-layer windings
360° enamel concentricity (±2 µm) → 3 % reduction in oversized build, allowing up to 5 % more copper cross-section in the same slot
In-line laser annealer cuts process energy 11 % vs batch annealing—savings passed straight to your BOM.

Table 1 – Typical 2024 FOB Tianjin pricing (±3 % depending on Cu LME)

AWG	Thermal Class	Build (mm)	USD/kg	MOQ (kg)
18	180 °C (Class H)	0.039	11.30	500
23	200 °C (Class C)	0.025	11.75	300
28	220 °C (Class N)	0.019	12.40	200
Flat 4 × 10	180 °C	0.050	12.10	1,000

Prices valid for 30 days; locked for 90 days on annual contracts > 10 t.

Customization Without the Western Premium

Need 52 °C modified polyester-imide over-coated with polyamide-imide for 15 kV impulse strength? Or square wire with 2R corner radius for high-fill traction transformers? Our in-house resin lab and 18-head enamelling tower deliver pilot lots (25 kg) in 7 calendar days, production volumes in 3–4 weeks. All specials are produced on the same IEC 60317 / NEMA MW 1000 qualified line—no “experimental” surcharges.

Table 2 – Quick-slice customization matrix

Attribute	Standard Range	Engineering Limit
Diameter (round)	0.20 – 6.00 mm	0.08 – 8.00 mm
Flat wire cross-section	0.8 – 12 mm²	0.3 – 80 mm²
Thermal class	130 – 220 °C	Up to 240 °C (special resin)
Breakdown voltage	4 – 12 kV	> 20 kV (triple coat)
Elongation	15 – 35 %	5 – 45 % (process tuned)
Spool size	1 – 500 kg	800 kg jumbo (steel reel)

Every order ships with a coil-specific test report: tensile, mandrel bend, snap-back, dielectric integrity at 25 °C & 180 °C, and RoHS/REACH compliance certificate.

Supply-Chain Reliability You Can Model

Lead time ex-works: 10 days for < 2 t; 15 days for 2–10 t; 20 days for > 10 t.
Weekly FCL consolidation to Hamburg, LA, and Dubai—freight pre-negotiated < 4 % of wire value.
VMI hubs in Rotterdam and Monterrey keep 50 t safety stock for call-off within 48 h.

Next Step—Get the Data, Not a Sales Pitch

Send your specification or winding drawing to cathy@transformerstrip.com. We will return a detailed datasheet, impedance-matched to your thermal, electrical and form-wind requirements, within 24 h. First trial order ships with a 120-day return guarantee—because 20 years of metallurgical data make risk unnecessary.

---
