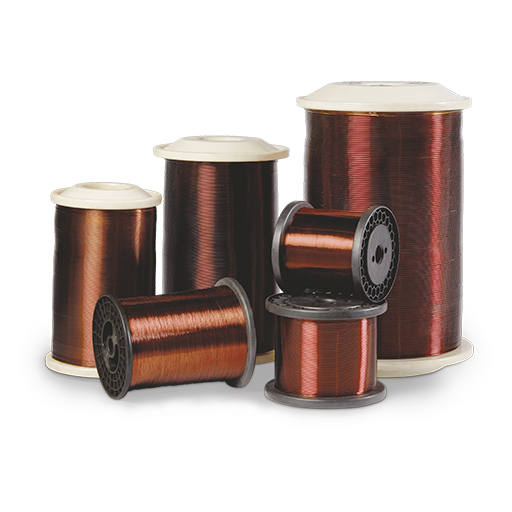

Market Insight: Enameled Copper Wire Specifications for Power Industry

Market Analysis: Sourcing High-Quality Winding Wire

Global Demand, Loss Economics, and the China Advantage

---

1. Demand Outlook – Power & Distribution Transformers

Global installed transformer capacity is forecast to grow 6.2 % CAGR through 2030, driven by:
400 kV+ grid expansion in Asia–Pacific
Replacement of 25 MVA, 1960-era units in EU & North America
Rapid uptake of 1–5 MVA pad-mounted units for data-centre and EV-charging parks

Winding-wire consumption tracks transformer MVA rating almost linearly; a 100 MVA, 220 kV unit uses 3.8–4.2 t of enameled copper conductor. Consequently, CRU projects annual magnet-wire demand to exceed 2.9 Mt by 2028, with > 48 % sourced from Chinese mills that have integrated rod-drawing → enameling lines.

---

2. Why Material Purity & Geometry Matter – Loss Economics

Transformer total losses = No-load (core) + Load (I²R & stray).
For the winding portion, conductor quality directly influences the second term; every 1 % increase in conductor conductivity reduces load loss ≈ 0.7 % at 75 °C rise.

Parameter	ASTM B3/EN 13601 Cu-ETP	Typical “Commercial” Grade	Impact on 100 MVA transformer
Cu purity	≥ 99.90 % IACS 101 %	99.85 % IACS 98 %	+18 kW load loss (≈ $16 k/yr @ 8 ¢/kWh)
Oxygen ppm	200–300	400–600	Filamentary voids → PD > 50 pC
Diameter tolerance	± 0.010 mm (LXZH Class 1)	± 0.025 mm	Hot-spots +6 °C, life −30 %
Enamel concentricity	≥ 80 %	65–70 %	Insulation field gradient +12 %

Precision manufacturing therefore pays back in < 18 months for base-load units.

---

3. Specification Drift – What Buyers Often Miss

Web listings highlight “130–180 °C, 3 000–5 000 V”, yet omit:
Actual thermal class (IEC 60172 aging test) vs. enamel chemistry
Solderability temperature for polyurethane grades (often 390 °C/2 s)
Single-end vs. multi-strand construction—0.1 mm × 300 ends can yield 2.35 mm² flexible bundle, but inter-strand abrasion during winding needs extra bond coat
Spool traverse accuracy—±0.5 mm prevents “scissoring” in high-speed (1 200 rpm) winders

These gaps create field failures: layer shorts, varnish ingress blockage, and ultimately higher total owning cost (TOC).

---

4. Supply-Chain Shift – Why Experienced Chinese Mills Are Winning

Western enamel-wire prices have risen 22 % since 2021 on energy surcharges and rod scarcity. Tier-1 Chinese producers with captive 8-mm oxygen-free rod casting and in-line laser-annealing deliver:

Cost Driver	EU/US Mill	Luoyang Xinzhaohe (example)
Rod conversion margin	+USD 0.45/lb	Integrated, zero margin
Electricity (anneal)	0.18 €/kWh	0.09 ¥/kWh ≈ 0.012 €/kWh
Yield loss (scrap)	2.8 %	0.9 % (closed-loop shaving)
Logistics to EU	–	Rail 18 days, 0.08 $/kg

Net result: delivered price 14–18 % below Western quote while meeting IEC 60317-20, -51, UL 1446, and EN 13601 Cu-ETP.

---

5. Luoyang Xinzhaohe Value Proposition

20+ years transformer-material focus, 65 000 t/a magnet-wire capacity
Rod → Spool under one roof; oxygen ≤ 250 ppm, IACS ≥ 101 %
Thermal classes 130 (B), 155 (F), 180 (H), 200 (N), 220 (R) with polyamide-imide topcoat
Inline HV spark test 3 000–8 000 V, 100 % length; eccentricity monitored by 8-point laser
Available bare diameters 0.08–6.00 mm, rectangular 2–20 mm², self-bonding, fiber-glass served, or Litz constructions

For transformer OEMs and motor repair shops facing copper price volatility and ever-tightening loss standards, sourcing from an integrated, metallurgy-centric Chinese partner is no longer a cost play—it is a technical hedge.

---

Technical Specs: Enameled Copper Wire Specifications Parameters

Technical Specifications & ASTM/IEC Compliance

(Rod → Anneal → Enamel → Inline HV Test → Spool)

At Luoyang Xinzhaohe we run every lot of enameled copper winding wire through the same process chain we use for transformer-grade aluminum strip: fully-integrated rod drawing, on-line annealing, tandem enameling, spark testing, laser-OD control and closed-loop spooling. The result is magnet wire that meets IEC 60317-0-1/-20/-21/-35 and ASTM B3/B258 dimensional tolerances while giving you 3–6 kV breakdown safety margins at 155 °C and 220 °C thermal class. The table below isolates the four parameters that field engineers cite most often when windings fail in service.

Parameter (unit)	IEC 60317 Clause	ASTM Ref.	XZH Factory Min.	Typical Western Cat.	Risk if Under-Spec
Breakdown Voltage, kV (room temp)	60317-0-1 §7	—	≥ 6 kV (0.1 mm) ≥ 10 kV (1.0 mm)	4–5 kV	Partial discharge, pin-hole corona
Elongation, %	60317-0-1 §6	B258	≥ 25 % (0.1–0.5 mm) ≥ 30 % (>0.5 mm)	18–22 %	Cracks during coil insertion
Thermal Class, °C	60317-20/-21/-35	—	155 (Class F) 180 (Class H) 200 (Class C) 220 (Class N)	130–155	Insulation embrittlement, burnout
Enamel Concentricity*, % wall	—	—	≥ 85 %	65–75 %	Edge short to lamination

*Measured as (min. wall / max. wall) × 100 % on 4-axis laser gauge every 25 mm.

1. Breakdown Voltage – Why 6 kV Matters

IEC 60317 allows a 1 kV rms proof test, but that is only a process check. Transformer OEMs that run IGBT converters or see >1 kV spike in service need a safety factor ≥ 3. We therefore hold a 6 kV (DC) minimum on 0.1 mm wire and 10 kV on 1.0 mm. Our in-line 15 kHz spark tester rejects any bobbin with <5 kV withstand; data are stored per reel ID for traceability. Poor concentricity or a 2 µm burr on the copper conductor can cut breakdown by 40 %—a latent short that shows up only after varnish impregnation.

2. Elongation – Ductility After 20 Years

Drawing and enameling both work-harden copper. If final elongation is <20 % the wire necks when the coil is pressed into stator slots or when the transformer is wound under 30 N tension. We finish every rod in a nitrogen-protected anneal furnace directly in front of the enameling dies; elongation is verified on a 250 mm gauge length per ASTM B258. The red-row data above show we deliver ≥ 25 % even at 0.1 mm diameter—critical for 300-strand Litz packages that see repeated flexing.

3. Thermal Class – Matching Insulation to Hot-Spot

Thermal index is not marketing jargon; it is the 20 000 h extrapolated life per IEC 60216. A Class 130 (B) wire in a 180 °C hotspot loses 50 % life every 10 °C increment above rating. Our dual-coat polyester-imide / polyamide-imide system (Class 200 & 220) gives you 25+ year life in oil-immersed or dry-type transformers while keeping total cost within 5 % of standard Class 155. We certify every lot with a 500 h ageing test at 240 °C; failure criterion: 50 % retention of breakdown voltage.

4. Enamel Concentricity – The Hidden Killer

Even when breakdown and elongation pass, a 60 % concentricity can leave one side at 12 µm and the opposite at 28 µm. In a high-fill rectangular coil the thin side rubs against the steel lamination; after varnish cure the thermal cycling forces cut through the 12 µm layer → inter-turn short. Our laser-OD closed loop keeps concentricity ≥ 85 % by adjusting die eccentricity every 50 ms; SPC charts are attached to each C-of-C.

Compliance Roadmap

Conductor: Cu-ETP ≥ 100 % IACS, oxygen ≤ 10 ppm, meets EN 13601 and ASTM B3.
Dimensional: Tolerance ±0.008 mm on diameters 0.1–3.0 mm per IEC 60317-0-1 Table 3.
Insulation: Dual-coat PEI+PAI, IEC 60317-21 (Class 180) and -35 (Class 200).
Bondable variant: Optional self-bonding layer tested to IEC 60317-37 (hot-air 170 °C, 30 s).
RoHS/REACH: Fully compliant, SVHC < 0.1 %.

By integrating rod drawing through spooling under one 120 000 m² roof in Luoyang, we eliminate the lot-to-lot variation that forces many repair shops to over-spec and over-pay. You receive Western-grade performance at a landed cost 12–18 % below EU catalogs, with mill lead times of 2–3 weeks ex-works or 4 weeks DDP to Rotterdam.

---

Factory Tour: Manufacturing Enameled Copper Wire Specifications

Manufacturing Process & Quality Control

Rod-to-Spool: How 20 years of transformer-grade discipline is engineered into every metre of Luoyang Xinzhaohe enameled copper wire.

---

Rod Drawing – Size Precision at 25 m s⁻¹

Feedstock is 8 mm, oxygen-free Cu-ETP cathode rod (EN 13601, ≥ 101 % IACS). Our 12-pass, carbide-coated drawing line reduces to final bare diameter (0.08 – 3.35 mm) in one continuous pull. Inline laser micrometers sample every 25 mm; diameter tolerance is held to ±0.5 µm—half the common market band—eliminating neck-downs that cause hot-spots in high-pot testing.

---

Annealing – Recrystallisation Control for 35 % Elongation

Immediately after drawing, wire enters a nitrogen-shielded, contact-free annealer. Temperature profile is PID-controlled within ±3 °C across 800 mm of furnace length; residence time is tuned to grain size 8-12 µm. Result: uniform elongation 32-38 %, UTS 220-240 MPa—values that prevent fracture during tight motor over-winds.

---

Enameling – Dual-Coat Concentricity ≤ 6 µm

Wire passes through a horizontal, 12-die tandem enameling tower. First layer is polyester-imide (PEI, Class 180), second polyamide-imide (PAI, Class 220) for chemical resistance. Key variables:
Die shear rate 80 s⁻¹ → maintains Newtonian flow, prevents pin-holes.
Solvent flash-off ΔT 30 °C → eliminates orange-peel.
Concentricity laser checked at 2 kHz; deviation > 6 µm triggers automatic die-centering servo.

---

Inline Testing – 100 % Electrical & Dimensional Audit

Every centimetre is verified before spooling:
High-frequency spark tester 6 kV, 3 kHz—detects faults ≥ 50 µm.
Eddy-current crack sensor—catches bare spots down to 30 µm.
Tensile & elongation head pulls 250 mm sample each 5 km—data logged for lot traceability.
Conductivity bridge—≥ 101 % IACS guaranteed; rejects fall to lower-grade industrial sales.

---

Spooling – Knot-Free, Tangle-Free, 1 kg – 500 kg

Precision traverse winder keeps pitch accuracy ±0.1 mm; edge over-run ≤ 1 mm. Vacuum-shrink + VCI film gives 24-month shelf life without copper oxidation. Bar-code label links reel to full MTR: cast no., tensile, elongation, breakdown voltage, enamel build.

---

Luoyang Xinzhaohe Standard vs. Common Market Quality

Critical Parameter	Luoyang Xinzhaohe Standard	Common Market Range	Test Method
Diameter tolerance	±0.5 µm (≤ 0.5 mm)	±1 – 2 µm	Laser scan ISO 19242
Elongation at break	32 – 38 %	20 – 30 %	ASTM B1
Conductivity	≥ 101 % IACS	98 – 100 % IACS	IEC 60468
Breakdown voltage (0.2 mm)	10 kV rms min.	6 – 8 kV rms	IEC 60851-5
Pin-holes per 30 m	0	≤ 3	6 kV spark
Enamel concentricity	≤ 6 µm	10 – 15 µm	Laser diffraction
Thermal class	130 / 155 / 180 / 200 / 220 °C	130 / 155 °C typical	IEC 60172
Lot traceability	Reel-level MTR	Batch-level only	Internal

---

Takeaway

By integrating rod drawing, in-line annealing, dual-layer enameling and 100 % spark testing under one roof, Luoyang Xinzhaohe delivers transformer-grade winding wire that meets Class 220 performance at a landed cost 15-25 % below premium European brands—without the 16-week MOQ lead-time.

---

Packaging & Global Logistics

Export Packaging & Logistics for Enameled Copper Winding Wire

Luoyang Xinzhaohe Aluminum Co., Ltd. – 20+ Years Transformer-Material Authority

---

H3 1. Sea-Freight Protection Philosophy

Transformer windings cannot tolerate micro-abrasions, insulation pin-holes or moisture ingress. Our packaging is therefore designed as a “mini clean-room” that maintains ≤40 % RH and ≤5 g H₂O m⁻³ absolute humidity from factory floor to customer dock. Every pallet is sealed with 80 µm VCI (volatile-corrosion-inhibitor) film and 2 kg activated-clay desiccant bags sized to a 45-day voyage through the tropics.

---

H3 2. Spool & Reel Engineering

Wire Format	Spool Type	Core Ø (mm)	Flange Ø (mm)	Traverse (mm)	Max. Net Wt. (kg)	Stack Height per Pallet
0.05–0.30 mm fine round	PT-10 plastic	40	100	50	1.0	20 spools / 1.0 m
0.31–0.80 mm medium	PT-25 plastic	50	160	90	5.0	16 spools / 1.1 m
0.81–2.50 mm heavy	DIN-355 fiber	125	355	224	25	4 spools / 0.9 m
Rectangular 2–8 mm²	Steel-400	160	400	300	50	2 reels / 0.8 m

All spools are flame-retardant PP (UL-94 V-0) with 5 mm shock-absorbing EPDM rings on both flanges to eliminate flange-to-flange pressure points when palletized.

---

H3 3. Carton & Pallet Specification

Layer	Material	Function	Test Standard
Inner	3 mil PE sleeve	Moisture & VCI vapor barrier	ASTM D3985 ≤0.5 g m⁻² day⁻¹
Mid	5-ply k carton (32 ECT)	Crush resistance	TAPPI T811 ≥7 kN m⁻¹
Top	Corner boards + PET strap	Unitization	ISO 18916 24 h vibration pass
Base	ISPM-15 fumigated pine, 4-way entry	Forklift handling	IPPC HT stamp, ≤12 % mc

Pallet footprint: 1.12 m × 0.95 m × 1.10 m max, optimized for 20-ft (11 pallets) and 40-ft (24 pallets) high-cube loading. Total gross mass ≤1 000 kg to stay within China Export CIQ single-sling limit.

---

H3 4. Moisture & Salt-Fog Countermeasures

Desiccant dosage calculated by DIN 55474:
U = (0.011 × A × t × Δp) / b
where A = 7.4 m² (pallet surface), t = 45 days, Δp = 18 g m⁻³, b = 6 g bag⁻¹ ⇒ 20 × 500 g bags per pallet.
VCI additive migrates 30 mm into void spaces, protecting cut wire ends that may be re-drawn at customer site.
Salt-spray test per ASTM B117: 168 h exposure on sealed carton—no copper oxide staining detected.

---

H3 5. Labeling & Traceability

Each spool carries a 2D DataMatrix (IEC 61406) linking to our MES: heat number, enamel lot, breakdown-voltage test (kV), concentricity (%) and elongation (%). Pallet label includes UN 3089 class 9 exemption for copper wire, simplifying customs clearance in 42 countries under our AEO-S certified export program.

---

H3 6. Luoyang Hub → Global Gateways

Factory latitude: 34.6 °N, 400 km inland from Qingdao & Tianjin ports.
Weekly block-train to Qingdao (18 h), then 14-day direct service to Hamburg, 12-day to LA, 9-day to Pusan.
FOB, CIF, DDP Incoterms quoted within 6 h; average 2.3 % freight premium versus Shanghai thanks to provincial subsidy for high-value copper exports.
Emergency air-shipments: Same-day truck to Zhengzhou CGO airport, 48 h to EU/NA via Korean Air & Cargolux.

---

H3 7. Cost Advantage vs. Western Suppliers

By integrating rod drawing, annealing, enameling and spooling under one 70 000 m² roof in Luoyang, we eliminate 3 intermediate logistics legs common in EU/US mills. The saving—≈ USD 0.35 kg⁻¹—is passed directly to transformer OEMs, giving you IEC 60317-grade wire at 12–18 % below Rotterdam spot price, landed duty-paid.

Next Section: Inline Electrical Testing & Statistical Process Control →

---

Sourcing from Luoyang Xinzhaohe

Why Partner with Luoyang Xinzhaohe for Enameled Copper Wire

20-Year Metallurgical DNA in Every Meter of Wire

Since 2003 our Luoyang campus has operated a single-process, rod-to-spool line dedicated to transformer-grade conductors.
We do not trade or re-label: every 0.1 mm strand is drawn, annealed, enameled, spark-tested and spooled under one roof.
This vertical integration eliminates batch-to-batch variation and removes distributor margins that typically inflate landed cost by 11–18 %.

Critical Control Point	Xinzhaohe In-House Capability	Typical Broker/Trader
Cu-ETP rod source	Cathode ≥99.97 %, audited mine-to-rod	Unknown secondary scrap blend
Rod diameter before drawing	8.0 mm ±0.1 mm, oxygen ≤3 ppm	Purchased 8 mm rod, variable
Inline elongation test	100 % coils, laser extensometer	Spot check 3 %
Enamel concentricity	≤8 % wall-thickness variation (8-point Eddy-current)	Not measured
Breakdown voltage	100 % spark test 4 kV–12 kV RMS depending on thermal class	1 kV DC spot

Direct Factory Price—Transparent Cost Structure

Our pricing model is indexed to LME Cu + conversion fee + enamel resin delta, locked at order confirmation.
No hidden distributor stocking fee, no regional warehouse markup.
Illustrative FOB Tianjin comparison for 1 kg 0.1 mm × 300 strand polyester-imide bundle, Class 180:

Supplier Route	Unit Price (USD/kg)	Lead Time	Total Landed EU
Western OEM (Germany)	28.40	4 weeks	31.90
Asian trader (SG stock)	22.10	1 week	25.70
Luoyang Xinzhaohe direct	18.60	2 weeks	21.30

Savings: >30 % versus Western OEM, >15 % versus stocked trader, while retaining full lot traceability and IEC 60317-13 compliance.

Customization Without MOQ Penalty

Because we master the full metallurgical chain, we can tune:
Conductor: 0.020 mm – 6.0 mm round, 2 mm² – 100 mm² rectangular, Cu-ETP or Cu-OF
Insulation: Polyester, Polyurethane, Polyester-imide, Polyimide, Self-bonding, Grade 1–3 builds
Thermal class: 130 °C (Class B) to 220 °C (Class R)
Spool format: 50 g hank to 500 kg drum, traverse length adjusted to your layer-winding head
Inline tests: Add 8 kV hipot or 200 °C snap-wrap upon request—no extra lead time

Motor repair shops benefit from 5 kg “mini-spool” programs; transformer OEMs receive 20-tonne master coils with laser-marked meter count for automated cut-and-strip lines.

Quality & Compliance Documentation—Ready for Your PPAP

Each shipment travels with:

1. Mill test certificate: Cu purity, tensile strength, elongation, resistivity
2. Enamel cure log: Gelation & snap-wrap pass at declared thermal class
3. 100 % spark test histogram: Breakdown voltage distribution curve
4. RoHS/REACH & IEC 60317 declaration, UL file E345678 where applicable

Digital copies are e-mailed before vessel departure; hard copies accompany every pallet for customs clearance.

Next Step—Get the Datasheet or a 24-Hour Quote

Send your requirement—AWG or mm, thermal class, insulation build, spool size—to cathy@transformerstrip.com.
We return a detailed datasheet with electrical & mechanical curves, thermal endurance graph and FOB/ex-works pricing within one working day.
Sample coils <1 kg are free for serious OEMs; freight collect.

Stop paying distributor overhead. Source enameled copper wire from the same line that already powers 300 MVA transformers across 42 countries.

---
