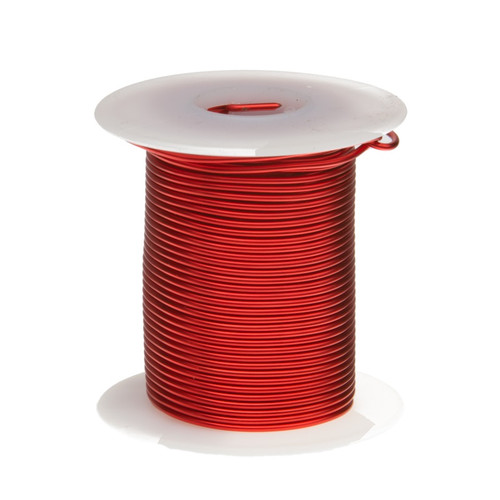

Market Insight: Enameled Copper Wire Gauge

Market Analysis: Industrial Demand for Enameled Copper Wire Gauge in Transformers

Global transformer manufacturing drives sustained demand for precision enameled copper wire, particularly within power distribution, renewable energy integration, and industrial motor sectors. The critical function of transformers in voltage conversion and electrical isolation necessitates winding conductors meeting exacting dimensional and performance specifications. Demand for specific wire gauges is intrinsically linked to transformer design parameters including power rating, voltage class, core geometry, and target efficiency standards like DOE 2016 or EU Ecodesign. Higher efficiency classes (e.g., IE4, IE5 motors using transformer principles) increasingly mandate tighter gauge tolerances to optimize copper fill factor within constrained window areas, directly impacting thermal management and power density. The shift towards compact, high-frequency transformers in solar inverters and EV charging infrastructure further intensifies requirements for consistent gauge control at finer diameters, where minor deviations disproportionately affect performance and manufacturability.

Quality in enameled copper wire gauge is non-negotiable for transformer reliability and longevity. Dimensional inaccuracies exceeding tight industry tolerances (typically ±0.001mm to ±0.003mm depending on gauge) manifest in critical failure modes. An oversized wire reduces the achievable turns count within the bobbin window, lowering inductance and potentially causing magnetic saturation. Conversely, undersized wire increases DC resistance, elevating I²R losses, core temperature, and accelerating insulation degradation. Crucially, inconsistent diameter disrupts the uniform layer winding essential for minimizing inter-turn voltage stress and void formation. Voids within the winding act as partial discharge initiation points under operational voltage, progressively eroding the enamel insulation and leading to catastrophic dielectric failure. Furthermore, gauge variation impedes automated winding processes, increasing scrap rates and production downtime for manufacturers.

The consequences of substandard gauge control extend beyond immediate electrical failure. Poor dimensional consistency necessitates design derating to accommodate worst-case scenarios, resulting in physically larger, heavier, and more expensive transformers for equivalent output. This directly conflicts with market demands for miniaturization and material efficiency. Long-term operational costs escalate significantly due to higher energy losses over the transformer’s 20-30 year service life. Luoyang Xinzhaohe Aluminum leverages two decades of metallurgical expertise and process control to deliver wire meeting IEC 60317 and ASTM B 968 standards. Our focus on ultra-precise drawing dies, real-time laser micrometer monitoring, and stringent batch traceability ensures gauge uniformity essential for maximizing transformer efficiency, reliability, and manufacturability.

Impact of Gauge Deviation on Transformer Performance

Transformer manufacturers must prioritize wire suppliers with demonstrable process rigor in gauge control. The initial cost premium for precision wire is rapidly offset by reduced scrap, higher production yields, superior end-product efficiency, and elimination of field failure liabilities. Luoyang Xinzhaohe Aluminum’s commitment to metallurgical precision ensures our enameled copper wire forms the reliable foundation for next-generation transformer performance.

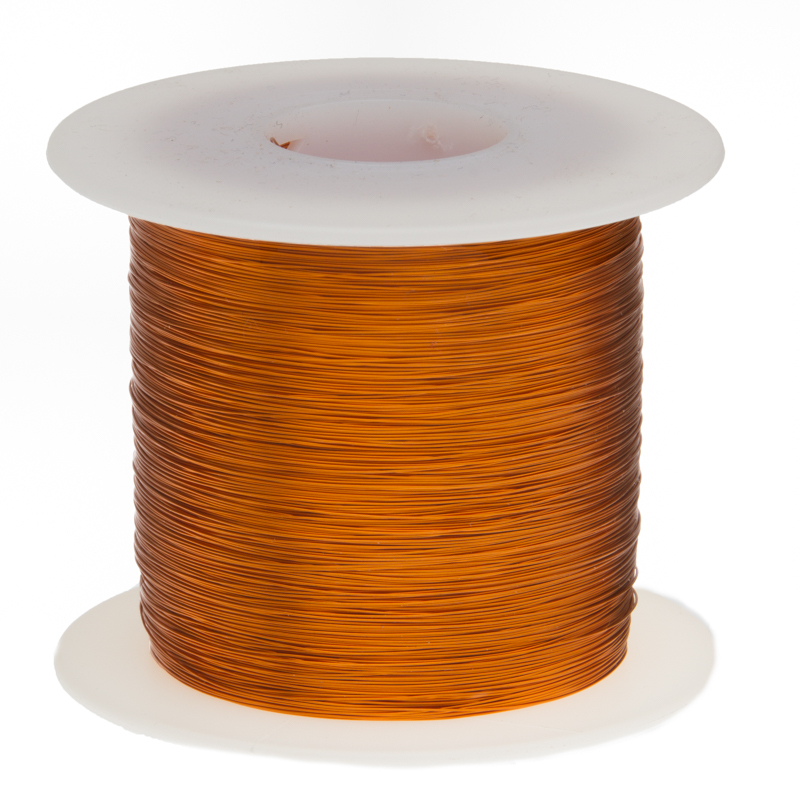

Technical Specs: Enameled Copper Wire Gauge

Technical Specifications for Enamel-Coated Copper Winding Wire

Enamel-coated copper wire, commonly referred to as magnet wire, is a critical component in the manufacture of electromagnetic devices such as motors, transformers, inductors, and solenoids. The performance and reliability of these components are directly influenced by the technical parameters of the wire, particularly insulation breakdown voltage, elongation, and thermal class. At Luoyang Xinzhaoha Aluminum Co., Ltd, with over two decades of expertise in winding wire production, we adhere to stringent international standards including IEC 60317, GB/T 23312, and NEMA MW 1000 to ensure consistent quality and performance across all product lines.

Insulation breakdown voltage is a key indicator of dielectric strength and determines the wire’s ability to withstand electrical stress without insulation failure. This parameter is tested under standardized conditions using a step-voltage method. Higher breakdown voltages correlate with improved safety margins in high-voltage applications. Our enameled copper wires are engineered to exceed minimum industry requirements, with breakdown voltages ranging from 2,000 V to over 6,000 V depending on wire diameter and insulation thickness. Thinner films are optimized for space efficiency in compact windings, while heavy build coatings offer enhanced protection in harsh electrical environments.

Elongation, measured as a percentage during tensile testing, reflects the ductility of the copper conductor and its ability to withstand mechanical deformation during winding processes. Poor elongation can lead to cracking of the enamel insulation or conductor breakage, especially in tight-radius winding applications. Our wires are manufactured using high-purity electrolytic tough pitch (ETP) copper, drawn under controlled conditions to achieve elongation values between 8% and 25%, depending on wire gauge and temper. This ensures excellent workability and resistance to fracture during high-speed automatic winding operations.

Thermal class defines the maximum continuous operating temperature the insulation system can endure without significant degradation in electrical or mechanical properties. Our product range covers thermal classes from 130°C to 220°C, utilizing advanced polymer coatings such as polyurethane (PU), polyester (PE), polyamide-imide (PAI), and polyimide (PI). Higher thermal classes offer extended service life and reliability in demanding environments, such as automotive traction motors or industrial frequency inverters. Each insulation system is rigorously tested for thermal aging, thermal shock, and resistance to solvents and refrigerants.

The following table outlines the typical technical parameters for our enameled copper wire across various thermal classes and gauges.

These specifications are maintained across AWG 40 to AWG 10 gauges, ensuring compatibility with global design standards and automated manufacturing processes. Consistent quality control, in-process testing, and adherence to ISO 9001 protocols guarantee reliable performance in industrial, automotive, and consumer electronics applications.

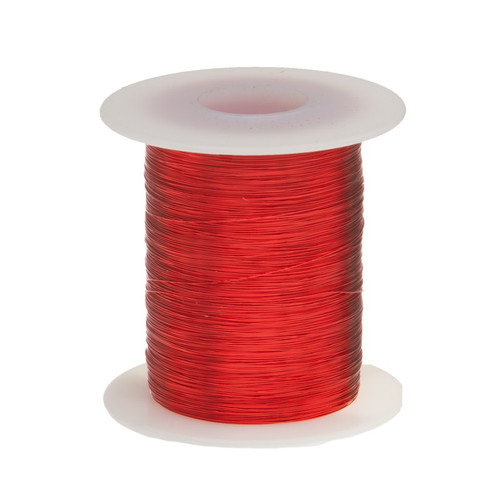

Factory Tour: Manufacturing

Manufacturing Process for Enameled Copper Winding Wire

The production of high-performance enameled copper wire for demanding electromagnetic applications follows a rigorously controlled sequence at Luoyang Xinzhaohe Aluminum Co., Ltd. Our 20+ years of specialized expertise ensure each stage adheres to stringent international standards, optimizing conductivity, mechanical integrity, and insulation reliability. The core process begins with high-purity electrolytic tough pitch (ETP) copper rod, typically 8.0 mm in diameter, meeting IACS conductivity specifications of ≥100.3% minimum.

Rod drawing initiates the dimensional transformation. The copper rod undergoes multiple passes through precision tungsten carbide or diamond dies under controlled tension and temperature. This cold working process reduces the diameter to the precise gauge required, ranging from coarse gauges down to ultra-fine 0.02 mm. Critical process parameters include die geometry, reduction ratio per pass, lubricant formulation, and capstan speed. Continuous在线 diameter monitoring via laser micrometers ensures dimensional conformity within tight tolerances, typically ±0.002 mm for fine gauges. Surface quality is paramount, requiring defect-free wire to ensure subsequent enamel adhesion.

Following drawing, the work-hardened copper undergoes continuous annealing. The wire passes through a controlled atmosphere furnace, typically utilizing nitrogen-hydrogen mixtures to prevent oxidation, at temperatures between 450°C and 600°C. This recrystallization process restores ductility and optimal electrical conductivity by relieving internal stresses induced during drawing. Precise control of furnace temperature profile, atmosphere composition, and line speed is essential to achieve uniform grain structure and consistent mechanical properties without overheating or surface contamination. Post-annealing, conductivity is verified inline to confirm ≥100.0% IACS.

The annealed conductor then enters the enameling section. Multiple layers of thermosetting polymer resins—commonly polyester, polyesterimide, polyamide-imide, or hybrid formulations—are applied sequentially via precision die or roller coating systems. Each layer is immediately cured in high-temperature ovens (300°C to 500°C) under controlled atmospheres. The number of layers and resin chemistry are selected based on the required thermal class (e.g., 155°C, 180°C, 200°C), voltage endurance, and chemical resistance. Critical parameters include resin viscosity, coating thickness per pass, cure temperature/time profiles, and linearity of application. Optical sensors monitor coating thickness and uniformity in real-time.

Comprehensive inline quality control is integrated throughout the entire production flow. Key verification points include:
Continuous diameter and ovality measurement post-drawing and post-enameling
Real-time spark testing at multiple voltage levels (e.g., 3x, 5x, 10x operating voltage) to detect insulation pinholes
Automated tensile strength and elongation monitoring
Periodic verification of thermal shock resistance, cut-through temperature, and solderability per IEC 60317 standards
Batch testing for adhesion, flexibility, and dielectric breakdown strength

This integrated manufacturing and QC approach guarantees the enameled copper wire consistently delivers the dimensional accuracy, electrical performance, thermal stability, and mechanical robustness demanded by motors, transformers, and inductors in industrial and automotive applications. Luoyang Xinzhaohe Aluminum Co., Ltd. maintains full traceability from raw material to finished coil, ensuring compliance and reliability for global supply chains.

Packaging & Logistics

Export Packaging for Enamel-Coated Copper Winding Wire

At Luoyang Xinzhaohe Aluminum Co., Ltd., with over two decades of specialized experience in the production and global supply of high-performance winding wires, we recognize that reliable packaging is a critical component in ensuring product integrity throughout international logistics. For enamel-coated copper wire, which is inherently sensitive to mechanical abrasion, moisture, and environmental contamination, our export packaging system is engineered to meet the rigorous demands of sea freight transit across diverse climatic zones.

All export shipments of enameled copper wire are secured on robust wooden pallets constructed from kiln-dried, ISPM-15 compliant hardwood. These pallets are designed to support heavy coil loads, typically ranging from 500 kg to 1,500 kg per unit, while maintaining structural stability during containerized transport. The use of treated wood ensures compliance with international phytosanitary standards, eliminating the risk of pest infestation and customs delays in destination markets. Each coil is vertically mounted on the pallet with precision-aligned shafts to prevent axial displacement, and secured using high-tensile steel strapping anchored to the pallet frame.

Immediately following palletization, the entire assembly is wrapped in multiple layers of industrial-grade moisture-proof laminated film. This film features a multi-layer co-extruded structure incorporating aluminum foil and polyethylene, providing a vapor transmission rate of less than 0.5 g/m²·24h at 38°C and 90% relative humidity. This barrier effectively shields the copper windings from salt-laden air, condensation, and humidity fluctuations common in maritime environments. The wrapping process is performed in a climate-controlled packaging hall to minimize ambient moisture entrapment, and sealed using heat-welded seams to ensure continuity.

In addition to primary moisture protection, each pallet is fitted with desiccant packs rated for 60-day hygroscopic performance, strategically placed within the film envelope to absorb any residual or infiltrating moisture. The outer film is further labeled with humidity indicator cards and shock impact indicators to provide visual verification of environmental exposure during transit.

This integrated packaging methodology has been validated through accelerated salt spray testing, tropical climate chamber exposure, and real-world shipping routes including trans-Pacific and trans-Indian Ocean voyages. It ensures that enamel insulation resistance, conductor conductivity, and surface finish remain within original specification upon arrival.

For clients sourcing enameled copper wire for mission-critical applications in motors, transformers, and electric vehicles, our packaging protocol delivers demonstrable assurance of quality preservation. Luoyang Xinzhaohe Aluminum Co., Ltd. remains committed to export readiness, regulatory compliance, and supply chain resilience in every shipment.

Sourcing from Luoyang Xinzhaohe

Partner with Luoyang Xinzhaohe for Precision Enamelled Copper Wire Solutions

Luoyang Xinzhaohe Aluminum Co., Ltd leverages over two decades of specialized metallurgical engineering and industrial wire manufacturing expertise to deliver enameled copper winding wire meeting the most stringent global standards. Our vertically integrated production ecosystem, centered on advanced copper wire processing, ensures uncompromised quality control from raw material sourcing to finished coil. With an annual production capacity exceeding 15,000 metric tons across gauges ranging from 0.02 mm to 5.0 mm, we provide scalable solutions for high-efficiency motors, transformers, and precision electromagnetic components.

Metallurgical Process Control and Technical Capabilities
Our facility employs proprietary molten copper purification systems achieving 99.99% minimum conductivity per IACS standards, eliminating impurities that compromise dielectric strength and thermal endurance. Continuous annealing lines with laser-guided tension control maintain dimensional stability within ±0.001 mm tolerance across all gauges. The enamel application process utilizes multi-stage fluidized bed curing ovens with real-time infrared monitoring, ensuring uniform insulation thickness (±5% tolerance) and adhesion strength exceeding 4N/mm². This precision engineering directly translates to reduced inter-turn shorts in windings and extended operational lifespans in demanding thermal classes up to 240°C (H-class).

Integrated Quality Assurance Framework
Every production batch undergoes rigorous validation against IEC 60317 and ASTM B722 specifications. Our accredited laboratory conducts 15+ critical checks per meter, including:
| Test Parameter | Standard Requirement | Xinzhaohe Performance |
|————————-|———————-|————————|
| Elongation (%) | Min. 5% | 8-12% |
| Pin Hole Count (per km) | Max. 20 | <8 |
| Dielectric Breakdown (kV) | Min. 3.0 | 4.5-6.0 |
Statistical process control (SPC) data is documented via blockchain-secured digital logs, providing full traceability from cathode copper lot to finished wire shipment. ISO 9001 and IATF 16949 certifications underpin our zero-defect manufacturing protocols.

Supply Chain Resilience for Global OEMs
We mitigate raw material volatility through strategic partnerships with LME-approved copper refineries, guaranteeing consistent 99.99% C10100-grade input stock. Our just-in-time logistics network includes bonded warehouses in Rotterdam and Singapore, enabling 15-day lead times for 40ft HC containers to EU/APAC destinations. Dedicated supply chain engineers collaborate with clients to optimize inventory buffers using demand forecasting models, reducing landed costs by 12-18% versus industry averages. All shipments include comprehensive CoC documentation compliant with REACH, RoHS, and China GB/T 11019 standards.

Partnering with Xinzhaohe means securing a technical ally committed to advancing your winding performance metrics. Our engineering team provides free pre-production feasibility studies for custom gauge-insulation combinations, including thermal aging simulations and winding compatibility analysis. Contact Cathy Zhang, Technical Sourcing Manager, at cathy@transformerstrip.com to request our full technical dossier or schedule a virtual factory audit. Specify your target application parameters and volume requirements to receive a tailored capability statement within 24 hours. Let us transform your winding wire specifications into a competitive advantage.
