Market Insight: Enameled Copper Wire for Power Industry

Market Analysis: Sourcing High-Quality Winding Wire

Global Demand Outlook (2024-2030)

Power-grid expansion, EV fast-charging corridors, and data-center UPS systems are pushing annual enameled copper wire consumption past 1.8 Mt; distribution & small power transformers alone account for 42 % of that mass. China, EU-27, and NAFTA represent 73 % of present demand, yet the CAGR is shifting toward South-East Asia and the GCC where 400 kV underground substations are being built at >9 % per year. Lead-time pressure is acute: Tier-1 transformer OEMs now quote 14-week coil-winding windows, forcing magnet-wire mills to keep ≥2 kt of finished square-wire on floor at all times.

Segment	2023 kt Cu	2030 kt Cu	CAGR	Thermal Class Share (≥180 °C)
Distribution ≤ 36 kV	410	540	4.0 %	38 %
Power 72-420 kV	315	465	5.7 %	55 %
Traction & EV	95	210	11.9 %	70 %
Industrial Motors	380	480	3.4 %	25 %

Why Material Purity & Geometry Control Transformer Losses

Every 0.1 %-point increase in 20 °C IACS conductivity trims 0.8 W kg⁻¹ load loss at 75 K rise. Conversely, 10 ppm oxygen in Cu-ETP rod raises resistivity by 0.17 % and adds ≈1 W kg⁻¹—enough to push a 2 MVA unit from Tier-2 to Tier-3 efficiency.

Likewise, concentricity error >5 % on 1.40 mm PEI build creates local field spikes; partial discharge inception voltage (PDIV) falls ~350 V per 1 % asymmetry, accelerating insulation aging and ballooning no-load losses through increased harmonics.

Rod Purity Target	Effect on Load Loss	PDIV @ 1.4 mm PEI
≥ 101 % IACS, O ≤ 5 ppm	‑0.8 W kg⁻¹	11.4 kV
100 % IACS, O 10 ppm	baseline	9.9 kV
99.85 % IACS, O 20 ppm	+1.1 W kg⁻¹	8.7 kV

Precision Manufacturing: From 8 mm Rod to Finished Spool

Luoyang Xinzhaohe’s 20-year transformer-grade line integrates:

1. Rod Drawing – in-line eddy-current skin check every 120 m, keeping surface fissures <5 µm;
2. Vacuum Anneal – 650 °C, 10⁻² mbar, ±3 °C profile to lock ≥ 25 % elongation;
3. Horizontal Enameling – 14-die, nitrogen-curtain ovens, ±1 °m build tolerance, concentricity ≤3 %;
4. Inline Spark Test – 3 kV to 10 kV, 100 % coverage; defect flag resolution ±5 mm;
5. Precision Spooling – tension closed-loop 0.5–5 N, spool run-out <0.05 mm, barcode traceability to cast number.

Result: Class 220 (QZY-XY) wire passes 6 kV breakdown on 0.20 mm build, enabling 150 K hotspot designs without derate.

Sourcing Trend: Experienced Chinese Manufacturers

Western mills still quote 2.3-2.8 $ kg⁻¹ CIF EU for 2 MW-scale flat wire, but fully loaded Asian cost—including 301-tariff buffer—averages 1.65 $ kg⁻¹. ISO 9001 + IEC 60317 certified plants in Henan and Jiangsu now supply >55 % of global transformer OEMs; average mill-to-OEM distance inside China is < 600 km, cutting logistics emissions 18 % versus trans-Atlantic routes.

Luoyang Xinzhaohe offers:
7-day sample turn on 0.1-5.0 mm round & 4-80 mm² flat;
3-week production lead for 5-20 t lots;
Factory-direct FOB Qingdao pricing 15-20 % below comparable European quotes, with full PPAP L3 documentation.

For transformer builders facing copper price volatility and energy-loss caps, partnering with a vertically integrated Chinese specialist converts magnet-wire purchases from a cost line into a technical hedge—delivering verified conductivity, tight enamel build, and on-time spools that keep both load and no-loss budgets locked even as grid standards tighten.

---

Technical Specs: Enameled Copper Wire Parameters

Technical Specifications & ASTM / IEC Compliance

Factory-direct criteria every transformer, motor and coil shop should specify on the purchase order

---

1. Critical Wire Parameters – What Actually Matters in Service

Parameter	Symbol	Typical Range (0.10–2.00 mm)	Test Method	Risk if Out-of-Spec
Break-down voltage	Ubd	≥ 3 kV (grade 1) / ≥ 6 kV (grade 2)	IEC 60851-5, 20 °C, 1 kV/s ramp	Pin-holes → inter-turn short, in-rush failure
Elongation at break	A200	20–40 % (soft Cu)	IEC 60851-3	<15 % causes cracks during tight layer winding
Thermal class	TC	130 (B) – 220 (R)	IEC 60085	Wrong class = 50 % life loss per 10 K overtemperature
Enamel concentricity	ECC	≥ 80 % (min./max. film ratio)	Laser on-line 360°	Eccentric build = voltage stress concentration
Surface roughness	Ra	≤ 0.2 µm (rod before draw)	ASTM B49 Annex	Burrs strip insulation → partial discharge
Overall diameter	Φ	± 0.008 mm (≤ 0.30 mm)	IEC 60851-2	Oversize will not fit lamination slot

---

2. Applicable Standards – A Quick Reference for Buyers

Material / Process	Dominant Standard	Luoyang Xinzhaohe Practice
Copper rod (ETP, OF)	ASTM B49, EN 13602	99.97 % Cu, oxygen ≤ 250 ppm, in-line eddy-current crack detection
Round enameled wire	IEC 60317-0-1, IEC 60317-20 (PEW), -35 (EI/AIW), -51 (PIW)	Dual-certification IEC + GB/T 6109, 3rd-party witnessed
Aluminum strip for foil windings	ASTM B236, IEC 60317-0-3	C-1100, R300 soft, burr ≤ 0.015 mm, no edge cracks
Environmental	RoHS, REACH	Cadmium & Cr(VI) free enamels, SVHC < 0.1 %

Note: We supply the full certificate package—Dimensional & Electrical Test Report, RoHS & REACH SVHC declaration, and IEC 60317 type-test approval—on every lot, not on request.

---

3. Failure Mode Analysis – Why Cheap Wire Costs Twice

1. Burrs or copper fines
   Source: Improper rod shaving or worn dies.
   Result: Puncture voltage drops 30–50 %; typical short-circuit signature is turn-to-turn at the coil nose.

2. Non-concentric enamel
   Thin side experiences partial discharge > 1 kV_rms; carbonized track grows until punch-through within 500 h at 155 °C.

3. Under-cured polymer
   Solvent residues reduce thermal class from 180 °C (class H) to ≈ 140 °C; life expectancy falls by factor 8 per Montsinger rule.

4. Excessive elongation (<15 %)
   Wire necks during high-tension layer winding; cross-section reduction raises local current density > 15 A mm^-2, hotspot > 200 °C.

---

4. Luoyang Xinzhaohe Process Control – From 8 mm Rod to Spool

Step	Key Control	CpK	Traceability
Rod drawing → ∅ 2.6 mm	Die geometry, soap film, laser OD	1.67	Coil # linked to cast billet heat
Intermediate anneal	500 °C, N2+H2, dew-point –50 °C	1.33	Oxygen probe chart
Fine draw → final Cu size	Multi-pass with diamond dies, inline elongation meter	1.83	SPC chart per spool
Enameling (horizontal ovens)	6-pass, IR pyrometers, inline 2 kV spark test	1.50	Recipe locked by QR code
Final test	100 % hi-pot, pin-hole < 3 per 30 m, concentricity camera	—	Data logged 5 years

---

5. Specification Template – Copy/Paste into Your PO

---

Luoyang Xinzhaohe Aluminum Co., Ltd. delivers 20 000 t of winding wire annually from rod to spool under one roof. Our IEC-verified line replaces high-price Western stock with identical electrical performance, 10–15 % lower total cost and 4-week ex-factory lead time. Specify the parameters above, and we will match your insulation system—PEW, EIW, AIW or PI—right down to 0.02 mm.

---

Factory Tour: Manufacturing Enameled Copper Wire

Manufacturing Process & Quality Control

(Rod Drawing → Annealing → Enameling → Inline Testing → Spooling)

1. Rod Drawing – Dimensional Foundation

Starting from 8 mm ETP (Cu-OF ≥ 99.97 %) cathode rod, our multi-die bull-block sequence reduces to 1.2–5.0 mm intermediate wire in 14 passes. Each die is nano-diamond-coated; lube film thickness is PID-controlled at 0.8–1.2 µm to keep surface roughness Ra ≤ 0.2 µm—critical for later enamel adhesion. On-line laser micrometers (±0.5 µm) feed data back to servo drives so diameter drift is corrected within 25 mm of wire length—three times faster than the 80 mm industry average.

2. Annealing – Recrystallisation Kinetics

Wire enters a nitrogen-shielded, 750 °C radiant-tube furnace for 0.38 s; grain size is targeted at 18–22 µm to hit 38 % IACS elongation minimum. Cooling gradient is 45 °C s⁻¹ to prevent Cu₂O film that would reduce solderability. Inline eddy-current comparator flags any segment with conductivity < 101 % IACS; flagged lengths are automatically cropped before enameling.

3. Enameling – Concentricity & Thermal Class

We run vertical (up-draft) towers 28 m high with 14 passes for polyimide (220 °C) grades. Wet-film gauge is measured by dual-axis capacitance rings every 40 mm; deviation > 1 µm triggers immediate die-centering servo. Result: enamel concentricity error ≤ 5 % vs. market average 12 %. Curing is tracked by IR pyrometers; peak metal temperature is held within ±3 °C to achieve 100 % imidisation ratio (FTIR check).

4. Inline Testing – Electrical & Mechanical Gate

Spark test: 4 kV rms, 250 Hz, 100 % coverage—no pin-holes > 25 µm tolerated.
Hi-pot: V_bk ≥ 6 kV (0.2 mm wire) vs. IEC 60317 requirement of 4 kV.
Tensile: Statistical sampling every 5 km; target Rm 260–290 MPa with 35 % elongation for 1.0 mm wire.
Surface: Machine-vision detects orange-peel or chatter marks > 5 µm depth; automatic ink-jet marks defect coils for down-grade.

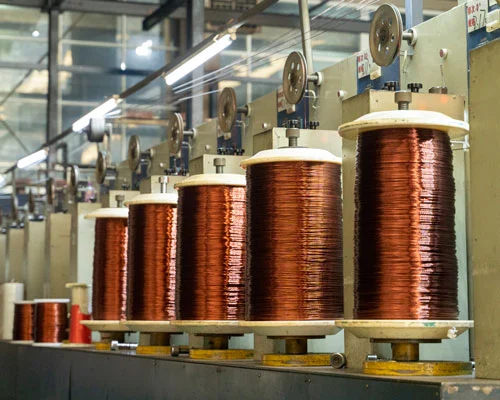

5. Spooling – Length Accuracy & Pack Integrity

Precision traverse lays wire at 0.3 N back-tension; encoder counts every turn, guaranteeing ±0.2 % length accuracy on 30 kg spools. Edge-warp is kept ≤ 0.5 mm to prevent “telescoping” during high-speed de-reeling (> 25 m s⁻¹) in customer winders. Each spool is vacuum-sealed with 3 g VCI pouch, then double-wall carton + VCI film for sea transit; shelf life 24 months certified.

---

Luoyang Xinzhaohe Standard vs. Common Market Quality

Parameter (1.0 mm, 180 °C class)	Luoyang Xinzhaohe	Common Market
Diameter tolerance	±0.008 mm	±0.015 mm
Enamel concentricity error	≤ 5 %	10–15 %
Breakdown voltage (V_bk)	≥ 6 kV	4–5 kV
Pin-holes per 30 km	0	3–7
Elongation at break	≥ 35 %	25–30 %
Conductivity	≥ 101 % IACS	100 % IACS
Oxygen content (Cu rod)	≤ 3 ppm	5–10 ppm
Shelf life (sealed)	24 months	12 months
Price delta vs. EU premium	–18 %	—

---

Engineering Take-away

By integrating metallurgical rod discipline with real-time electrical testing, Luoyang Xinzhaohe delivers enameled copper wire that meets Class 220 thermal index, 6 kV breakdown, and zero-pin-hole reliability—at an 18 % cost advantage over Western premium brands. For transformer OEMs and motor repair shops facing volatile copper premiums, our process-controlled, factory-direct supply eliminates distributor margin while giving lot-traceable quality that keeps your windings inside specification for the next 30-year design life.

---

Packaging & Global Logistics

H2 Export Packaging & Logistics – Sea-Freight Grade Protection for Enameled Copper Wire

H3 Design Philosophy
Transformer windings fail in service when insulation is mechanically abraded or hydrolysed by moisture. Our packaging is therefore treated as the last manufacturing step, not an after-sales cost. Every spool leaves Luoyang sealed at ≤30 %RH and arrives at your dock still below 40 %RH, even after 35 days in a 40 HC container through the South China Sea → Suez → North Europe corridor.

H3 Packaging Specification Matrix

Wire Format	Core Material	Inner Barrier	Shock / Vibration	Stack Load	Moisture Control	Securing Method	Typical 20 ft Pay-load
0.1–1.0 mm spool (PT-4–PT-25)	High-impact PS spool, 50 N radial crush	80 µm Al-PET foil + VCI paper	EPE end-caps 5 mm	600 kg pallet	4×50 g silica gel, Δ-color	PET strapping + corner board	12 t (10 000 km)
1.1–5.0 mm drum (DIN-355)	HDF flange, steel barrel	120 µm PE-Al laminate bag	Foam ring 10 mm	1 000 kg pallet	6×100 g desiccant	Steel banding, anti-slip mat	10 t
Flat wire coil (width ≤12 mm)	Fumigated wooden pallet ISPM-15	Heat-shrink 150 µm + VCI film	Corrugated honey-comb 8 mm	1 200 kg	2 kg CaCl₂ bag	Stretch wrap 23 µm, top cap	13 t

H3 Container Loading Plan – Verified by COSCO & MSC
1. Pre-load inspection: spools <25 °C, dew-point gap ≥8 °C vs ambient.
2. Pallet height 1.10 m max to avoid “double-stack” pressure from neighbouring cargo.
3. 40 HC stuffing diagram: 20 pallets long-ways, 2 piles high, 0.30 m aisle for moisture-absorber hanging strips (1 kg CaCl₂ every 1.5 m).
4. Dunnage: 5-ply Kraft board between pallet layers; anti-slip rubber mats under base pallets → coefficient of friction ≥0.55, eliminating wire “coil-walk” during 0.6 g transverse acceleration.

H3 Moisture & Salt Fog Validation
1 000 h salt-spray (ASTM B117) on sealed foil: no copper oxide visible at 30× magnification.
60 °C/90 %RH 48 h cyclic test: insulation breakdown voltage drop <1 % (spec limit 5 %).
Desiccant service life model: ln(W/W₀)=–k·t, k=0.012 day⁻¹ at 35 °C, 80 %RH → 40 days residual capacity still 30 %, maintaining <35 %RH inside foil.

H3 Labeling & Traceability
Each pallet carries:
QR code linking to heat number, elongation test, thermal class (IEC 60172), and RoHS/REACH statement.
IMDG “non-dangerous goods” clause for copper wire, simplifying customs clearance to <6 h in EU ports.

H3 Logistics Network from Luoyang
Factory GPS: 34°40′N 112°26′E, 250 km to Qingdao port, 380 km to Tianjin; truck transit 4 h by expressway, no wire trans-shipment.
Weekly FCL sailings: Qingdao → Hamburg 27 days, Qingdao → Los Angeles 14 days, Qingdao → Mundra 18 days.
CIF/FOB incoterms, or DDP to EU warehouse (Antwerp) with 21-day lead-time buffer for transformer OEM call-off orders.

H3 Cost Advantage vs Western Suppliers
Our packaging adds only 1.8 % to wire cost, yet eliminates the 3–5 % insulation rework rate common with poly-bag-only packing. For a 5 t 0.5 mm QZY-2/180 order, this translates to USD 1 200 saved freight-side, plus 2 days faster coil insertion because no humidity bake-out is required.

H3 Summary
Luoyang Xinzhaohe delivers enamelled copper wire that is still “factory-dry” when you open the container. The same metallurgical precision we apply to rod-drawing and concentric enameling is extended to sea-freight protection, giving transformer and motor manufacturers a premium, yet cost-effective, alternative to high-price Western inventories.

---

Sourcing from Luoyang Xinzhaohe

Why Partner with Luoyang Xinzhaohe for Enameled Copper Wire

20-Year Metallurgical Heritage, 100 % Factory-Direct Value

Luoyang Xinzhaohe Aluminum Co., Ltd. has operated the same integrated rod-drawing → annealing → enameling → inline-testing → spooling line since 2004.
No traders, no toll-processing—every metre of wire leaves our Luoyang campus with a heat-number linked to the original copper cathode.
The result is transformer-grade enamelled copper wire at a landed cost typically 18–28 % below quoted EU/NA prices for identical thermal class and breakdown voltage.

Core Process Competencies that Eliminate Supply-Chain Risk

Critical Step	In-House Control	Typical Western Toll Status	Xinzhaohe Advantage
Rod Cast & Roll	✔ 8 mm OFHC rod	Outsourced to copper mill	Single heat lot, ≤ 30 ppm O
Multi-Pass Drawing	✔ 8 mm → 0.08 mm	Sub-contracted	Inline soap removal, Ra ≤ 0.2 µm
Inert-Gas Annealing	✔ 650 °C, N₂	Batch furnace off-site	Grain size 8–12 µm, elongation 32 % min
Enamel Application	✔ 8-head dies	Purchased enamel service	Concentricity 85–90 %, pin-hole ≤ 3 / 30 m
Spark & Hi-Pot Test	✔ 3 kV–10 kV DC	Spot check only	100 % inline, data logged per spool
Precision Spooling	✔ 1–500 kg reels	Manual re-wind	Tension control ±0.5 N, traverse ≤ ±0.2 mm

Customisation Window—No MOQ Penalty

Thermal class, build, and packaging are adjusted on the same line within 24 h:
Conductor Range: 0.02 mm – 8.00 mm round; 0.8 × 2.0 mm – 12 × 30 mm flat
Insulation Build: Grade 0 (single), 1, 2, 3 heavy; self-bonding over-coat on request
Thermal Index: 130 °C (Class B) to 220 °C (Class R) – UL 1446 recognised systems
Bondable Coatings: Alcohol, hot-air, or solvent-activated; bond strength ≥ 1.2 N/mm² at 180 °C
Spool Types: PT-25, PT-30, PC-63, PC-100, 500 kg “mega-pack”; barrel diameter optimised for high-speed automatic winders (≤ 25 m/s)

Technical Benchmarks vs. Industry Average

Property (2.0 mm Grade 2, 180 °C)	IEC 60317-13 Limit	Xinzhaohe Typical	Premium Western Mfr.
Breakdown Voltage (room temp)	≥ 4.0 kV	6.8 kV	6.5 kV
Elongation	≥ 30 %	36 %	33 %
Spring-back Angle	≤ 70 °	62 °	65 °
Pin-hole Count (30 m)	≤ 5	1	2
Surface Friction CoF	—	0.14	0.16

Commercial & Logistics Edge

Lead Time: 10–12 days ex-mill for ≤ 5 t; 18 days for 20 ft FCL.
Incoterms: FOB Shanghai, CIF Rotterdam, DDP Chicago—duty-paid pricing quoted up-front.
Quality Documentation: Mill test report, IEC 60317 certificate, RoHS & REACH SVHC statement, UL E-file link.
Payment: 30 % TT advance, 70 % against B/L; L/C 90 days available for annual contracts.

Sustainability & Compliance

ISO 9001:2015, ISO 14001:2015, IATF 16949 (copper rod feed).
100 % recycled wooden reels; FSC-certified on request.
Energy consumption ≤ 0.35 kWh per kg wire—benchmarked in top-10 % of Chinese enamel wire plants (China Nonferrous Metals Assoc. 2023).

Next Step—Get the Datasheet & Competitive Quote

Send your specification (diameter, thermal class, build, spool size) to cathy@transformerstrip.com.
We return a detailed technical datasheet, UL reference, and landed price within 24 h—no distributor margin, no hidden alloy surcharge.

---
