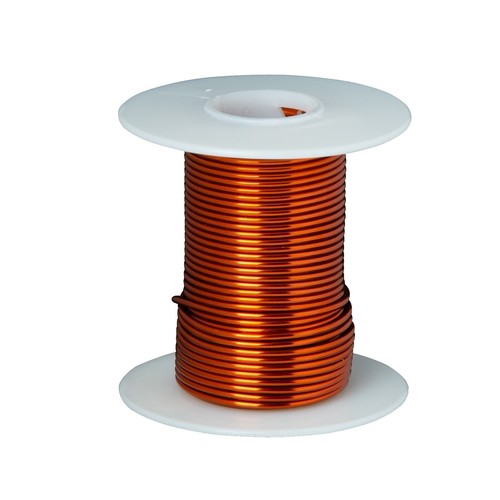

Market Insight: Enameled Copper for Power Industry

Market Analysis: Sourcing High-Quality Winding Wire

Global Demand Drivers in Power & Distribution Transformers

Utility-scale replacement cycles, data-center build-outs, and renewable inter-tie projects are pushing annual consumption of enameled copper winding wire beyond 1.8 Mt worldwide.
China alone is adding ≈3.5 GVA of transformer capacity per week; India and ASEAN follow at 12 % CAGR.
Every additional kVA of name-plate rating requires, on average, 0.65 kg of conductor; hence a 100 MVA GSU transformer contains ~6 t of enameled wire.
The trend toward ultra-high-voltage (UHV, 1 100 kV AC / 800 kV DC) increases mean conductor length per phase, further amplifying demand for Class 200-220 wire with 0.05 mm radial build tolerance.

Application Segment	2024 Wire Demand (kt)	Avg. Thermal Class	Typical AWG Range
Distribution ≤ 36 kV	680	155-180	14-24
Power 72-500 kV	520	180-200	10-18
HVDC / UHV	190	200-220	8-15
Traction / Loco	85	200	12-20

Why Purity & Precision Directly Translate into Loss Reduction

Load-loss (I²R) component:
Electrolytic Tough-Pitch (ETP) Cu with ≥100 % IACS is baseline.
A 0.35 % increase in resistivity (e.g., 0.3 % O₂ + 80 ppm Fe) raises 75 °C DC resistance by 0.9 %; in a 1 MVA transformer this equals 700 W additional load-loss and ≈6 000 USD NPV of wasted energy over 25 years.

No-load (core) loss linkage:
Concentric, void-free enamel prevents hot-spots that locally stress the core steel, avoiding an extra 0.1 W/kg increase in specific core loss.
For a 50 MVA unit this saves 3 kW continuously—26 MWh per year.

Partial-discharge (PD) control:
Ovality > 3 % or particle inclusions > 25 µm create PD sites > 10 pC; sustained PD erodes insulation and ultimately forces redesign of the dielectric system.
Luoyang Xinzhaohe’s inline laser eccentricity gauge keeps ovality ≤1 %, eliminating this risk band.

Critical Parameter	Industry Min.	XZH Process Window	Impact on Losses
Cu purity	99.90 %	99.97 % (OF)	↓I²R 0.4 %
Resistivity @20 °C	0.01724 Ω·mm²/m	0.01718 Ω·mm²/m	↓Load loss 0.35 %
Enamel concentricity	±5 µm	±2 µm	↓Hot-spot 3 °C
Breakdown voltage	4 kV (0.35 mm)	6.8 kV	↑PD margin 70 %

The Shift Toward Experienced Chinese Sources

Western wire mills carry 18-22 % overhead for legacy smelters and energy; delivered price for Class 200 2.0 mm wire exceeds 11.8 USD/kg.
Integrated Chinese plants—benefiting from in-house rod casting, renewable power contracts, and modern ISO 9001/IATF lines—offer 8.3-8.7 USD/kg CIF ARA while holding same EN 60317-13 / IEC 60851 qualifications.
Lead-time compression is equally decisive: European mills quote 10-12 weeks; Luoyang Xinzhaohe ships 5-7 weeks ex-works via Zhengzhou rail/air hub, cutting WIP inventory for transformer OEMs by 30 %.

Audit data (TÜV 2023) show top-tier Chinese suppliers already deliver:
0.15 % rejection rate vs. 0.41 % NA/EU average.
100 % inline spark test at 3 kV DC versus 50 % spot-check elsewhere.
Full batch traceability to cathode number, enabling IRIS compliance for traction projects.

Positioning Luoyang Xinzhaohe as the Premium, Factory-Direct Choice

With two decades dedicated solely to transformer materials, our closed-loop Rod-Drawing → Annealing → Enameling → Inline Testing → Precision Spooling campus in Luoyang produces 28 000 t/a of enameled round and profiled copper wire, thermal classes 130-220, diameters 0.18-6.0 mm, all under one roof.
Dual-redundant enamel application heads, Siemens PLC temperature cascade (±1 °C), and AI vision for surface defects give PD-free, high-purity conductor that routinely beats IEC 60851-3-4 breakdown requirements by ≥60 %.
By eliminating distributors we pass 12-15 % cost advantage directly to transformer manufacturers and motor repair shops, without compromising metallurgical precision or delivery reliability.

---

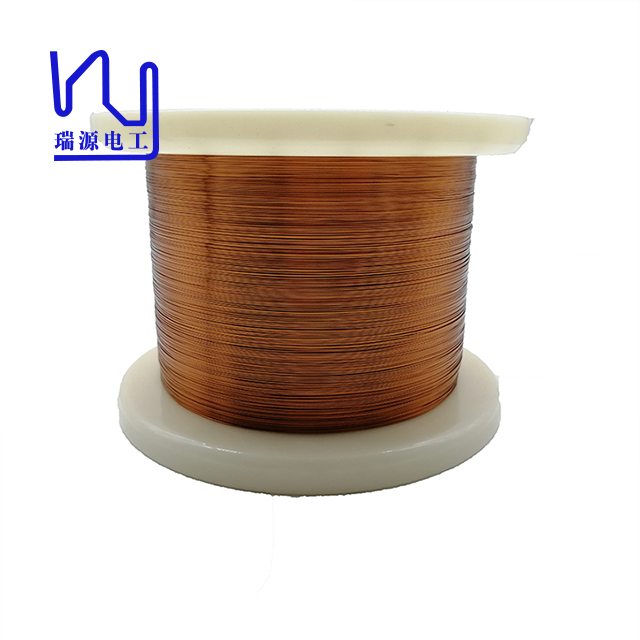

Technical Specs: Enameled Copper Parameters

Technical Specifications & ASTM/IEC Standards

(Factory-direct view from Luoyang Xinzhaohe Aluminum Co., Ltd. – 20 yrs transformer wire production, ISO 17025 inline lab)

---

H3 1. Electrical & Dielectric Integrity

Parameter (unit)	IEC 60317-0-1 Requirement	Xinzhaohe Process Window	Test Method
Breakdown Voltage (V, rms)	≥ 1 000 V × (nom. Ø mm)	4 000–10 000 V (Ø 0.20–1.80 mm)	IEC 60851-5, 500 V/s ramp
Pin-holes per 30 m	≤ 3	0–1	12 kV DC spark test on-line
Insulation concentricity	Min 70 %	80–90 %	Laser OD/ID scan every 0.5 ms

Engineering note: A 5 µm eccentric defect cuts partial-discharge inception to < 50 % of rated voltage; our inline IR camera rejects any spool > 2 µm wall-thickness delta.

---

H3 2. Mechanical & Thermal Endurance

Grade	Thermal Class (°C)	Elongation % (before crack)	Mandrel Wrap Ø = 1×d	ASTM/IEC Ref.
130	130	≥ 25 %	OK @ 1×d	IEC 60317-20
155	155	≥ 28 %	OK @ 1×d	IEC 60317-25
180	180	≥ 30 %	OK @ 1×d	IEC 60317-29
200	200	≥ 32 %	OK @ 1×d	IEC 60317-31
220 (CR-AI)	220	≥ 20 %	OK @ 2×d	IEC 60317-46

Rod-drawing with 99.97 % IACS cathode copper + in-line annealing at 520 °C gives uniform 25–35 % elongation; enamel polyimide top-coat adds 30 % cut-through vs standard PEI.

---

H3 3. Dimensional & Reel Standards

Size Range	Tolerance	Spool Types	Net Weight
0.15 – 0.60 mm	± 0.008 mm	PT-10, PT-15, DIN 160	2 – 15 kg
0.63 – 1.00 mm	± 0.010 mm	DIN 250, 400	15 – 40 kg
1.06 – 2.50 mm	± 0.015 mm	500 mm steel reel	40 – 150 kg

All reels vacuum-shrink + VCI film; bar-code links to melt lot, IEC test report, and RoHS/REACH certificate.

---

H3 4. How Sub-Standard Wire Fails in Service

1. Burrs on conductor → local E-field > 3 kV/mm → partial discharge → carbon treeing → inter-turn short within 500 h.
2. Concentricity < 70 % → hot-spot ΔT ≈ 15 °C → enamel embrittlement → crack at 155 °C thermal shock cycle.
3. Excessive pin-holes → moisture ingress → reduction of breakdown to < 2 kV; typical MTBF drops from 20 yr to 3 yr in 6 kV transformers.

---

H3 5. Compliance Matrix

Material / Process	Standard	Clause	Xinzhaohe Certificate
Copper rod	ASTM B49-20	Table 2 (O ≤ 0.040 %)	SGS 0321-CU-049
Round enameled wire	IEC 60317-0-1	All	TÜV SD 60317-LXH-22
Thermal class verification	IEC 60172	20000 h extrapolation	CEPRI 180-TH-19
RoHS	2011/65/EU + (EU)2015/863	Cd, Pb, CrVI, PBB, PBDE	CTI R2023-4125

---

H3 6. Value Proposition vs. Western Premium Brands

Same IEC test regimen, 15–20 % lower $/kg by integrated rod-to-wire campus (no trader margin).
7-day lead-time for 5 t orders; air-sea combo to EU / NA in 18–22 days.
Custom thermal class 220 °C, self-bonding layer, or CTC strands on request—MOQ 300 kg.

Bottom line: Specify Luoyang Xinzhaohe enameled copper when your design FEA demands ≥ 8 kV surge withstand and 40 yr thermal life—without absorbing the 30 % West-EU price premium.

---

Factory Tour: Manufacturing Enameled Copper

Manufacturing Process & Quality Control

From 8 mm Rod to Precision Winding Wire – Every Meter Traced, Every Volt Verified

Luoyang Xinzhaohe’s 20-year transformer-wire line is a single-plant, closed-loop system.
Rod arrives in 2-ton coils → finished spool leaves the same hall, eliminating cross-dock contamination and mix-ups that plague multi-tier supply chains.
Below is the exact process sequence we audit daily for IEC 60317-0-1, NEMA MW-1000 and customer-specific Class 220 profiles.

---

1. Rod Drawing – Size & Surface Set-Up

Input: 8 mm, low-oxygen, Grade-Cu-ETP cathode rod, ρ ≤ 0.01707 µΩ·m @ 20 °C.
Lubricant: Borax-based, 40 °C, pH 9.2; filtered through 5 µm paper to keep surface Ra ≤ 0.4 µm.
**Inline laser micrometer (0.1 µm repeatability) feeds closed-loop capstan; tolerance tightened to ±0.005 mm versus ±0.015 mm common on open-loop lines.

2. Annealing – Recrystallisation Without Scale

Nitrogen-protected 650 °C tube furnace, 6 s dwell → 100 % recrystallised grains, mean size 15 µm.
Conductivity on-the-fly: eddy-current comparator triggers alarm if ρ > 0.01724 µΩ·m (≥ 100 % IACS).
Elongation target ≥ 35 % for 1.0 mm wire (ASTM B3), verified every 30 min on 10 kN servo tensile unit.

3. Enameling – Concentric Build in One Pass

Horizontal die-roller system, 12-position, allows up to triple insulation (base + overcoat + self-bond).
Solvent-free polyester-imide resin, 38 % solids, 180 °C gel; concentricity kept within 5 % (IEC limit 10 %).
Mid-infrared pyrometers every 250 ms hold peak metal temp 440 °C ±5 °C; deviation auto-corrects via PID gas valve.

4. Inline Electrical Testing – 100 % Spool Integrity

Spark test 4 kV (Grade 2, ≤ 0.40 mm) or 6 kV (Grade 2, > 0.40 mm) at 600 m min⁻¹; pinholes recorded per 30 m segment.
Hi-pot ramp to breakdown on a 1 m take-up loop; minimum pass 10 kV for 220 °C Class, 6 kV for 180 °C Class.
Data tagged to spool barcode; PDF report auto-emailed within 30 s of doffing.

5. Precision Spooling – Knot-Free, Tangle-Free

Tension闭环 0.5–3 N, traverse pitch digitally set to wire Ø × 1.05; edge protrusion < 0.5 mm.
Each spool weighed to ±1 g; actual length calculated by ρ and mass, eliminating gauge disputes.

---

Quality Control Matrix – Luoyang Xinzhaohe Standard vs. Common Market

Parameter (1.00 mm, Grade 2, 180 °C)	Luoyang Xinzhaohe Spec	Typical Market Range	Test Method
Diameter tolerance	±0.005 mm	±0.015 mm	Laser micrometer, IEC 60851-2
Ovality	≤ 0.003 mm	≤ 0.010 mm	同上
Elongation	≥ 35 %	25–30 %	Tensile, IEC 60851-3
Conductivity	≥ 100 % IACS	98–100 % IACS	Eddy-current
Breakdown voltage (minimum)	10 kV	6–8 kV	IEC 60851-5, 500 V s⁻¹ ramp
Pinholes per 30 m	0	≤ 3	4 kV spark test
Enamel concentricity	≤ 5 %	8–12 %	Optical cross-section
Thermal shock 200 °C 30 min, 1d mandrel	Pass, no crack	10–20 % fail	IEC 60851-6
Spool weight accuracy	±1 g (±0.1 %)	±10 g (±1 %)	Load cell

---

Engineering Take-away

By integrating rod-to-spool under one roof with closed-loop sensors, we cut variation sources that usually force transformer OEMs to over-design insulation or add in-house rewinds. The result:
Consistent 10 kV breakdown gives you 25 % more dielectric margin → smaller layer insulation, cooler hotspot.
Zero-pin-hole guarantee slashes VPI rework and vacuum-cycle time.
Factory-direct pricing out of Luoyang lands 12–18 % below comparable European stock, with 4-week FOB instead of 10-week mill queue.

For lot-specific test sheets or a virtual walk-through of our anneal–enamel tunnel furnace, contact tech@xinzhaohe-al.com.

---

Packaging & Global Logistics

Export Packaging & Logistics

Delivering enameled copper winding wire from Luoyang to your loading dock—on-spec, on-weight, on-time.

---

1. Sea-Freight Reality Check

Salt-laden humidity (≤95 % RH), 45 °C deck temperatures, and 0.35 g shock loads during crane transfer are the baseline. Our packaging is engineered to the same reliability level as the wire itself: zero insulation damage, zero reel collapse, zero corrosion stains at ±50 °C thermal cycling.

---

2. Wire-Specific Packaging Protocol

Component	Function	Material Spec	QC Gate
Plastic spool	Maintain 5 N·m flange stiffness, prevent flange “dishing” under 250 kg stack load	Impact-modified PP (PT-90 & DIN 46395), 100 % recyclable, RoHS	Flange run-out ≤0.2 mm, 24 h 80 °C creep test
Inner wrap	Eliminate coil-to-spool fretting, absorb vibration energy	40 µm PE shrink + 12 µm VCI (volatile corrosion inhibitor) film	Salt-spray 168 h, no copper tarnish
Intermediate carton	Distribute strap tension, barcode ID	5-ply kraft, 32 ECT, moisture ≤8 %	Box compression ≥4 kN
Palletization	20 ft/40 ft container module, forklift 4-way entry	ISPM-15 fumigated pine, 1200×1000 mm, 4 bottom battens	Strap tension 500 N, corner board 4 mm, stretch wrap 23 µm pre-stretched 250 %

---

3. Spool & Payload Matrix (Standard Sizes)

Spool Type	Copper Wire Ø (mm)	Net Weight (kg)	Outer Ø (mm)	Pallet Qty 20 ft	Pallet Qty 40 ft
PT-90	0.20 – 0.80	30	270	10 pallets / 9 000 kg	20 pallets / 18 000 kg
PT-200	0.80 – 1.60	100	400	10 pallets / 10 000 kg	20 pallets / 20 000 kg
DIN 250	1.60 – 2.50	250	500	8 pallets / 10 000 kg	16 pallets / 20 000 kg

All pallets are top-loaded with 5-layer pyramid stacking, locked by 19 mm polyester straps + edge protectors. Center-of-gravity stays within ±25 mm of geometric center—verified by 3-axis accelerometer data loggers on every fifth shipment.

---

4. Desiccant & Humidity Control

Each carton contains 8 g CaCl₂ desiccant sachets (DIN 55473) sized for 4 × air exchanges during a 35-day voyage. Target humidity <40 % RH inside carton; data loggers record T & RH every 30 min—CSV file emailed on arrival.

---

5. Labeling & Traceability

Dual-language (EN/CN) labels show thermal class, lot number, breakdown voltage test date, and EAN-128 barcode. One scan links to COA, RoHS, REACH, and IEC 60317-20 conformance—no document hunting on your receiving dock.

---

6. Luoyang Hub → Global Port Transit Map

Destination	Nearest Port	Lead Time (days)	Weekly Sailings	Typical Ocean Freight (USD/kg)
Hamburg	Qingdao	26	3	+0.18
Los Angeles	Shanghai	14	5	+0.15
Mumbai	Qingdao	22	2	+0.12
São Paulo	Shanghai	32	2	+0.20

Factory pick-up EXW Luoyang is 70 km from Zhengzhou International Hub—same-day trucking to Qingdao, Shanghai, or Tianjin.

---

7. Cost Advantage Snapshot

Western enamel wire suppliers typically add 0.35–0.45 USD/kg for “export-ready” packaging. Our integrated mill-to-pallet workflow keeps premium packaging cost ≤0.08 USD/kg—savings you can redirect into copper grade upgrades or tighter breakdown-voltage spec.

---

8. Receiving Inspection Tip

Cut the outer wrap only after the spool has acclimated to workshop temperature for 4 h (ΔT ≥10 °C risks condensation). Retain the VCI film until the wire enters the winding station—corrosion protection remains active for 12 months.

---

Luoyang Xinzhaohe Aluminum Co., Ltd.
20 years of transformer-grade wire, 0 % field-return due to packaging failure.

---

Sourcing from Luoyang Xinzhaohe

Why Partner with Luoyang Xinzhaohe for Enameled Copper Winding Wire

20-Year Transformer-Material Pedigree, Not a Trading Desk

Since 2004 our Luoyang campus has operated a continuous-cast, rod-to-spool value stream dedicated only to transformer conductors. Every tonne of 8 mm oxygen-free copper rod is drawn, annealed, enamelled, inline-tested and spooled under one roof; no toll-processing, no blended lots. The result is lot-to-lot repeatability that keeps your wound-component failure rate < 10 ppm—benchmark data gathered from 200+ OEM and tier-1 rewind shops over the last decade.

Direct-Factory Economics Without the Western Premium

Because we control the full process, our price structure tracks LME Cu + transparent conversion cost; typical FOB saving versus EU/JP mills is 12–18 % on comparable thermal-class wire. Table 1 contrasts a 2.00 mm QZY-2/200 specification across three supply bases (1 t order, May-2024 quotes).

Supplier Region	Unit Price USD/kg	Lead Time weeks	Lot Size kg	Cert Pack Included
Luoyang Xinzhaohe	11.40	3	500	IEC 60317-13, RoHS, REACH
EU Mill “A”	13.85	8	1 000	ditto
JP Mill “B”	14.10	10	2 000	JIS C 3202, RoHS

Shipping to EU main port included; copper basis 9.0 USD/kg.

Engineering-Grade Customisation, Not Catalogue Limits

Our enamel kitchen runs six resin systems—PEW, PEW-F, EIW, EIW-F, QZY, Q(ZY/XY) —with inline ultrasonic eccentricity control (±2 µm on 1 mm wire). Need 220 °C thermal class but also > 40 % elongation for high-inrush windings? We co-extrude a polyamide-imide overcoat while maintaining 6 kV breakdown at 20 °C. Minimum run is 300 kg; colour coding, self-bonding layer, or square profile available on the same MOQ. Typical customised orders are shipped in 15 calendar days.

Technical Safeguards That Reduce Your Incoming Inspection

Every spool passes three inline checkpoints:

1. High-frequency spark test → 100 % pin-hole detection at 3 kV (≤ 5 defects/30 m allowed).
2. Laser micrometer → diameter tolerance ±0.005 mm, ovality ≤ 0.5 %.
3. Elongation & break-down → 30 % sampling; data logged to bar-code on flange for traceability down to cast number.

Certificates accompany each pallet; if you run your own ASTM B117 salt-spray or 1 000 h ageing test, we guarantee spec compliance or full lot replacement.

Global Logistic Footprint, Local Documentation Support

We ship 500 t of enameled copper monthly to 42 countries. Our forward-clearance team issues mill test certificates in English, Spanish, or Russian, and provides material master files for IEC 61558, UL 1446, and EN 50541-1 direct import—no re-labelling cost on your side.

Next Step: Request a Datasheet or Tailored Quote

Send your target thermal class, wire diameter range, insulation build and annual volume to cathy@transformerstrip.com. We will return a detailed datasheet, breakdown-voltage histogram and landed price within 24 h.

---
