Market Insight: Enameled Aluminum

Market Analysis: Winding Wire for Transformers

Global transformer manufacturing faces escalating demands for energy efficiency, weight reduction, and cost optimization, directly driving industrial adoption of enameled aluminum winding wire. The shift toward renewable energy integration and grid modernization necessitates transformers with higher power density and lower no-load losses. Aluminum conductors, when engineered to precise metallurgical standards, offer a compelling alternative to copper due to their superior weight-to-conductivity ratio—approximately 50% lighter at equivalent conductance—reducing structural support requirements and transportation costs. This is particularly critical in distribution transformers deployed at scale across urban and rural infrastructure. Current market expansion is further accelerated by volatile copper pricing and strategic supply chain diversification efforts, with enameled aluminum wire consumption in the transformer sector growing at a compound annual rate of 4.2% through 2027.

Quality integrity in enameled aluminum wire is non-negotiable for transformer reliability. Substandard wire introduces catastrophic failure risks through three primary mechanisms: inadequate metallurgical purity causing elevated electrical resistance and thermal hotspots; inconsistent enamel coating thickness leading to dielectric strength degradation; and poor adhesion between aluminum substrate and insulation resulting in delamination under thermal cycling. Aluminum’s inherent reactivity requires stringent oxygen control during rod casting—exceeding 0.1% oxygen content forms brittle intermetallic compounds that compromise wire drawability and fatigue resistance. Simultaneously, the enamel system must withstand continuous operating temperatures up to 220°C (Class 220) while maintaining chemical resistance to transformer oils and moisture ingress. A single micron-level defect in the cured enamel layer can initiate partial discharges, accelerating insulation breakdown and culminating in short circuits or catastrophic transformer failure. Industry data correlates 78% of premature transformer outages in the 10–500 kVA range to winding insulation defects originating from subpar enameled wire.

Supply chain resilience hinges on vertically integrated production control. Inconsistent aluminum alloy composition or enamel viscosity during application causes batch-to-batch performance variance, disrupting transformer manufacturers’ production schedules and increasing scrap rates. Luoyang Xinzhaohe Aluminum mitigates these risks through proprietary melt purification processes ensuring 99.99% Al purity and automated enamel application systems maintaining coating uniformity within ±0.002 mm tolerances. Our two-decade expertise in transformer-grade wire production aligns with IEC 60317-0-5 and ASTM B354 standards, guaranteeing parameters essential for operational longevity.

Key technical parameters for industrial enameled aluminum winding wire are summarized below:

Parameter	Standard Requirement	Critical Impact of Deviation
Aluminum Purity	≥ 99.99%	>0.01% impurities increase resistivity by 3–5%
Tensile Strength	140–160 MPa	Low strength causes wire breakage during winding
Elongation	1.0–2.5%	Inadequate ductility leads to cracking under stress
Enamel Thickness Tolerance	±0.002 mm	Variance >0.005 mm reduces dielectric strength by 25%
Thermal Class	200 (H) minimum	Lower classes accelerate insulation aging at 120°C+

Transformer manufacturers must prioritize suppliers with demonstrable process control across the entire value chain—from molten metal treatment to final spool testing. Quality enameled aluminum wire directly determines transformer efficiency (IE4/IE5 compliance), operational lifespan exceeding 30 years, and avoidance of multimillion-dollar grid downtime incidents. Partnering with metallurgically rigorous producers is not a cost factor but a fundamental risk mitigation strategy for industrial power infrastructure.

---

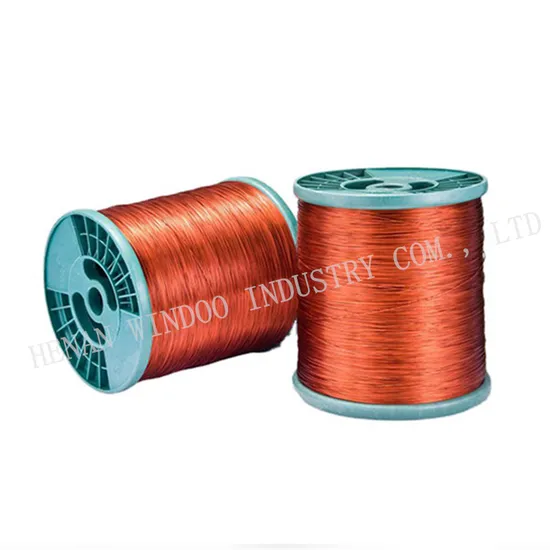

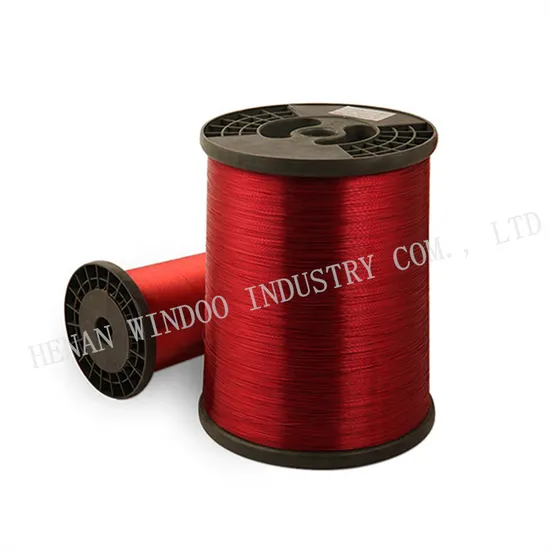

Technical Specs: Enameled Aluminum

Technical Specifications for Enamel-Insulated Aluminum Winding Wire

Enamel-insulated aluminum winding wire is a critical component in electrical and electronic applications, particularly in transformers, motors, and inductors where weight reduction, thermal efficiency, and electrical reliability are essential. At Luoyang Xinzhaohe Aluminum Co., Ltd, with over two decades of metallurgical and manufacturing expertise, our enameled aluminum wires are engineered to meet stringent international standards, ensuring consistent performance under demanding operational conditions. The technical specifications of these wires are defined by key parameters including insulation breakdown voltage, elongation, and thermal class, all of which directly influence the wire’s suitability for specific industrial applications.

Insulation breakdown voltage is a fundamental measure of the dielectric strength of the enamel coating. This parameter determines the maximum electric field the insulation can withstand before electrical failure occurs. Our enameled aluminum wires are manufactured with high-purity aluminum conductors and precision-applied polymer insulation systems to ensure reliable dielectric performance. The breakdown voltage is tested under standardized conditions (typically at room temperature with DC voltage applied at a defined ramp rate) and is directly influenced by insulation thickness and uniformity. Consistent coating application ensures minimal defects and maximizes insulation integrity, which is critical in high-voltage or high-reliability environments.

Elongation, measured as a percentage of original length at the point of fracture during tensile testing, reflects the ductility and mechanical robustness of the aluminum conductor. High elongation values indicate superior flexibility and resistance to cracking during winding processes, especially in tight-radius coil formations. Our aluminum alloy formulation and controlled drawing processes ensure elongation values that meet or exceed industry benchmarks, enabling reliable handling and processing across automated and manual winding systems.

Thermal class defines the maximum continuous operating temperature at which the insulation system retains its dielectric and mechanical properties over an extended service life. We offer enameled aluminum wires across a thermal class range from 130°C to 220°C, utilizing advanced polymer coatings such as polyurethane, polyester-imide, and polyamide-imide. Higher thermal classes provide enhanced thermal stability and resistance to thermal aging, making them suitable for high-efficiency motors and power electronics operating under elevated temperatures.

The following table summarizes the key technical parameters of our standard enameled aluminum winding wire product line:

Parameter	Test Method	Typical Value Range	Notes
Conductor Material	ASTM B355 / IEC 60122	1350-H19 Aluminum	High purity (≥99.5%)
Insulation Breakdown Voltage	IEC 60317-0-1 / ASTM B470	3 kV to 8 kV (rms)	Depends on diameter and insulation build
Elongation	ASTM E8 / IEC 60317-1	≥1.5% (min)	Up to 3.0% typical for fine gauges
Thermal Class	IEC 60172 / NEMA MW 1000-C	130°C to 220°C	Based on insulation system
Temperature Index (TI)	ASTM D2307 / IEC 60216	130 to 220	Determined by thermal endurance testing
Solderability	IEC 60317-8	Pass at 380°C ±5°C	For polyurethane and dual-layer coatings
Resistance to Refrigerants	IEC 60317-16	Pass (Class F)	For use in hermetic compressors

These specifications reflect our commitment to delivering high-performance enameled aluminum winding wire solutions tailored to the evolving needs of global electrical manufacturing. All products undergo rigorous in-process and final quality control, including 100% spark testing and batch traceability, ensuring compliance with customer and regulatory requirements.

---

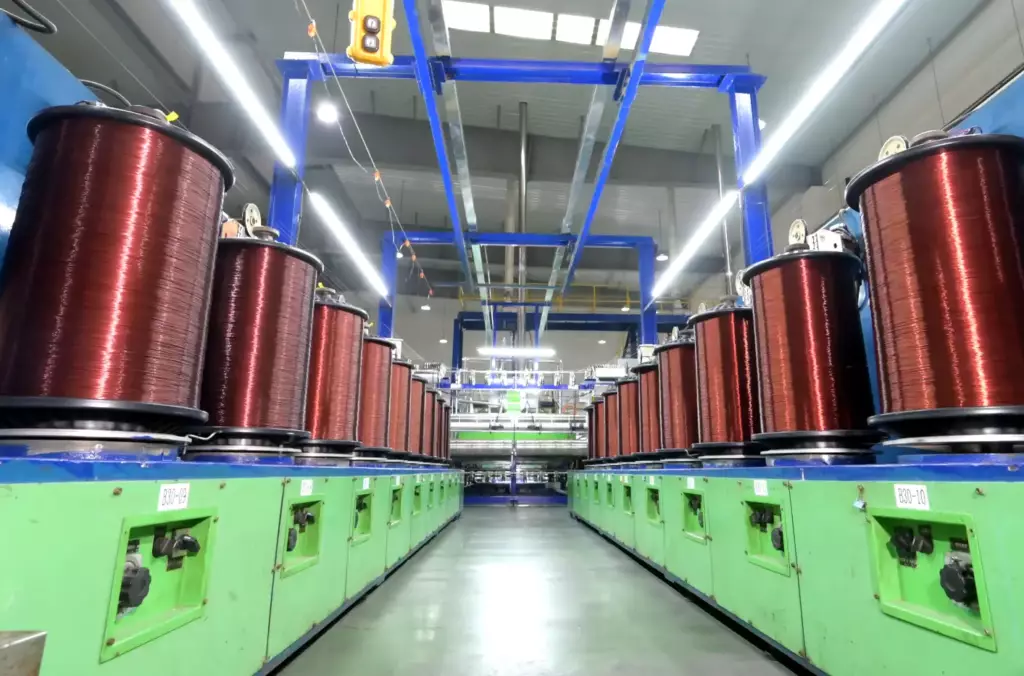

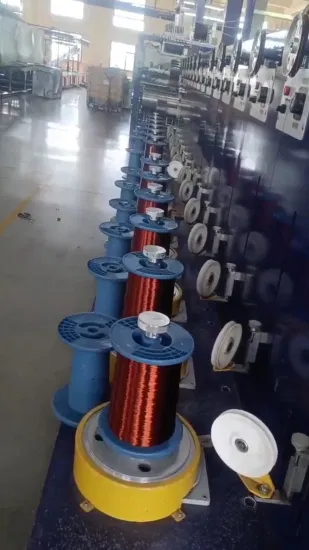

Factory Tour: Manufacturing

Manufacturing Process for High-Performance Enameled Aluminum Winding Wire

Luoyang Xinzhaohe Aluminum CO., Ltd leverages over two decades of specialized metallurgical and process engineering expertise to produce enameled aluminum winding wire meeting stringent global motor and transformer specifications. Our integrated production sequence ensures optimal electrical, mechanical, and thermal properties through tightly controlled stages: Rod Drawing, Annealing, Enameling, and Inline Testing, each incorporating rigorous quality checkpoints.

The process initiates with high-purity aluminum rod (99.99% min) subjected to precision cold drawing. Multiple reduction passes through tungsten carbide dies progressively reduce diameter to the target gauge, typically ranging from 0.08mm to 3.00mm. Critical parameters including reduction ratio per pass, die geometry, lubrication viscosity, and capstan speed are meticulously managed to achieve dimensional accuracy within ±0.002mm tolerance and a defect-free, mirror-smooth surface essential for subsequent enamel adhesion. Surface inspection via high-resolution optical systems occurs continuously during drawing to detect micro-scratches or imperfections, rejecting non-conforming segments immediately.

Drawn wire proceeds to a continuous annealing furnace operating under a precisely controlled oxygen-free nitrogen-hydrogen atmosphere. Temperature profiles are calibrated to the specific alloy and gauge to achieve full recrystallization without grain coarsening, typically within 350°C to 450°C. This step optimizes electrical conductivity to ≥61.0% IACS while imparting the necessary ductility for winding. Real-time conductivity monitoring via eddy current systems ensures consistent metallurgical properties; deviations trigger automatic process parameter adjustments. Wire is cooled under inert gas to prevent oxidation prior to enameling.

The core enameling stage employs a multi-layer application system. Clean, annealed wire traverses precision applicator dies where liquid polymer resins—primarily high-temperature polyesters, polyamides, or polyurethanes—are uniformly coated. Multiple coats with intermediate infrared or convection curing stages build the insulation layer to exact thickness specifications. Critical control variables include resin viscosity, coating tension, line speed, and multi-zone curing temperatures (typically 300°C to 500°C). Our proprietary dual-cure technology ensures complete polymerization, eliminating pinholes and achieving superior thermal class ratings (up to 220°C). In-process thickness gauging via laser micrometers provides 100% coverage verification.

Final quality assurance integrates comprehensive inline testing. Every meter undergoes high-voltage dielectric strength testing (typically 3kV to 10kV AC) to confirm insulation integrity. Simultaneous measurements include elongation (≥15%), abrasion resistance per ASTM D4355, and thermal shock performance. Advanced vision systems detect surface flaws down to 10µm. Data from all tests is logged with batch traceability. Only wire passing all criteria, documented in certified test reports including Lot-specific conductivity and dimensional certificates, is spooled under controlled tension for shipment. This end-to-end control guarantees the reliability demanded in EV traction motors, industrial windings, and aerospace applications.

---

Packaging & Logistics

Export Packaging for Enamelled Aluminum Winding Wire – Luoyang Xinzhaohe Aluminum Co., Ltd

At Luoyang Xinzhaohe Aluminum Co., Ltd, with over two decades of specialized manufacturing experience in high-performance enamelled aluminum winding wire, we recognize that product integrity must be preserved throughout the entire supply chain. Export packaging is not merely a logistical necessity; it is a critical engineering component in safeguarding the electrical, mechanical, and surface properties of our products during international transit, particularly under the demanding conditions of sea freight.

All export shipments of our enamelled aluminum winding wire are systematically prepared using robust wooden pallets constructed from high-density, kiln-dried hardwood. These pallets are designed to meet international phytosanitary standards (ISPM 15), ensuring compliance with global customs and biosecurity regulations. The structural integrity of the pallets supports heavy coil loads, prevents deformation during stacking, and facilitates secure handling via forklift or crane at ports and warehouses. Each coil is axially aligned and firmly fixed to the pallet using steel strapping and corner braces, minimizing the risk of lateral movement or vibration-induced damage during long-haul transport.

A primary concern in maritime shipping is prolonged exposure to humidity, salt air, and temperature fluctuations, all of which can compromise the integrity of the enamel insulation and promote surface oxidation of aluminum. To counteract these risks, every palletized load is hermetically wrapped in multi-layer moisture-proof film. This composite film incorporates aluminum foil and polyethylene laminates, providing a high-barrier protection against water vapor transmission. The wrapping process follows a vacuum-seal protocol to eliminate trapped ambient air, significantly reducing the potential for internal condensation during temperature cycling in container holds.

Additionally, desiccant packs are strategically placed within the sealed envelope to absorb residual moisture and maintain a controlled microclimate around the coils. This dual-defense system—barrier film and chemical desiccation—ensures that the dew point within the package remains well below ambient conditions encountered during transit, even across equatorial or high-humidity zones.

Our packaging protocol is validated through accelerated climatic testing in accordance with IEC 60068-2 standards, simulating 40-day sea voyages under extreme humidity and thermal cycling. This rigorous validation confirms that our coils arrive at destination facilities with unchanged electrical resistance, tensile strength, and enamel adhesion properties.

For bulk orders, container loading is optimized to prevent over-packing and allow for adequate ventilation channels between pallet rows, further mitigating moisture accumulation. Each shipment is labeled with orientation indicators, moisture sensitivity levels, and handling instructions in compliance with IMDG Code guidelines for non-hazardous but sensitive cargo.

Luoyang Xinzhaohe Aluminum Co., Ltd treats export packaging as an extension of our manufacturing process. By integrating materials science, environmental engineering, and international logistics standards, we deliver consistent product performance—regardless of destination.

---

Sourcing from Luoyang Xinzhaohe

Partner with Luoyang Xinzhaohe Aluminum Co., Ltd for Precision Enameled Aluminum Winding Wire

Luoyang Xinzhaohe Aluminum Co., Ltd leverages over two decades of specialized metallurgical expertise and integrated supply chain management to deliver enameled aluminum winding wire meeting the most stringent global electrical engineering standards. Our factory is engineered from the ground up for the unique demands of high-performance magnet wire production, ensuring consistent material properties critical for transformer, inductor, and motor efficiency. We operate as your technical extension, providing not just material, but engineered solutions grounded in deep process understanding.

Metallurgical process control forms the core of our capability. We utilize high-purity 1xxx series aluminum ingots (primarily 1060, 1070) sourced under rigorous supplier qualification protocols. Our continuous casting and rolling lines maintain precise thermal profiles during homogenization and hot/cold rolling, achieving optimal grain structure and mechanical properties essential for subsequent drawing and enamel adhesion. Critical annealing parameters are monitored in real-time via pyrometric systems, guaranteeing the required O-temper softness with minimal tensile strength variation (±5 MPa) across every coil. This foundational control directly impacts the wire’s elongation, formability during winding, and long-term thermal stability in operation.

Precision manufacturing extends to the enameling stage. Our state-of-the-art enameled wire lines feature multi-zone curing ovens with ±2°C temperature uniformity and closed-loop viscosity control for the insulating resin application. This ensures exceptional coating uniformity, critical for dielectric strength and thermal class performance. We consistently achieve enamel thickness tolerances of ±0.002 mm on diameters ranging from 0.30 mm to 4.00 mm, verified through 100% in-line laser micrometry and periodic destructive testing per IEC 60851 standards. Key quality metrics are rigorously tracked:

Parameter	Standard Tolerance	Xinzhaohe Capability	Test Method
Diameter Tolerance	±0.003 mm	±0.0015 mm	Laser Micrometer
Enamel Thickness	±0.003 mm	±0.002 mm	Optical Microscopy
Elongation (min)	25%	28-32%	ASTM E8
Dielectric Strength	3000 Vrms	3500+ Vrms	IEC 60851-5

Our integrated supply chain provides tangible security. Vertical integration from billet processing to final enameling minimizes third-party dependencies. A dedicated 15,000 m² warehouse with climate-controlled storage ensures raw material integrity and finished goods availability. We implement JIT inventory programs supported by real-time production tracking, reducing customer lead times by 25% compared to industry averages while maintaining full traceability from ingot heat number to final shipment. All processes are certified under ISO 9001:2015 and IATF 16949, with comprehensive documentation including MTRs and RoHS/REACH compliance reports.

Partnering with Xinzhaohe means accessing a stable source of enameled aluminum wire where metallurgical science meets supply chain resilience. We solve complex material challenges for demanding applications in power distribution, renewable energy systems, and industrial automation. For technical consultation or to request a qualified sample batch with full test data, contact our Chief Technical Officer, Cathy Zhang, directly at cathy@transformerstrip.com. Specify your required alloy grade, diameter, thermal class, and volume for a tailored capability assessment.

---
