Market Insight: Enameled Aluminium Wire for Power Industry

Market Analysis: Sourcing High-Quality Winding Wire

Global Demand Landscape

Global installed transformer capacity is forecast to grow 6 % CAGR through 2030, driven by grid modernization, renewable integration, and EV fast-charging corridors. Every kVA of new transformer capacity requires 0.8–1.2 kg of enameled aluminium winding wire; consequently, annual wire demand now exceeds 1.1 Mt and is tightening supply chains for 135 °C–220 °C thermal-class conductors. Chinese suppliers currently fulfill ≈ 58 % of this volume, yet price spreads on Alibaba range from USD 0.99 kg⁻¹ (spot traders) to USD 4.30 kg⁻¹ (certified producers), masking critical quality deltas that directly impact transformer losses.

Why Material Purity & Manufacturing Precision Matter

Transformer total losses (PΣ = P₀ + Pₖ) are governed by core steel and winding conductor properties. For the winding portion:
Load loss (Pₖ ∝ ρ · J² · Vcond) is fixed once current density J is set; therefore, conductor resistivity ρ must be minimized. 99.7 % minimum Al purity keeps ρ ≤ 28.0 nΩ·m at 20 °C, shaving 2–3 W kg⁻¹ versus 99.5 % recycled stock.
No-load loss is indirectly influenced by enamel quality: pinholes or concentricity error > 5 % create inter-turn partial discharges that generate HF harmonics, increasing effective core excitation.
Heat rise Δθ = PΣ / (h · A); enamel with 2 kV higher breakdown voltage allows 15 % thinner build, enlarging copper fill factor and heat-transfer area A, cutting hot-spot Δθ by 4–6 K.

Precision dimensional tolerances (±0.01 mm on Ø 1.00 mm) maintain short-circuit impedance within ±2 % band, avoiding costly redesign of tap changers.

Comparative Loss Impact – Certified vs. Generic Wire

Parameter (1.00 mm, 200 °C class)	Unit	Certified*	Generic**	Δ Loss @ 1 kVA
Al purity	%	99.7	99.5	—
ρ₂₀	nΩ·m	28.0	28.4	+1.4 % Pₖ
Breakdown voltage	kV	11.0	8.5	—
Pinholes per 30 m	#	0	≤3	Partial dis.
Concentricity error	%	≤3	≤8	—
Load-loss delta	W	—	—	+2.8 W
Hot-spot Δθ	K	75	81	—

*Luoyang Xinzhaohe production spec.
**Typical low-price Alibaba offer sampled Q1-2024.

Sourcing Trend: Experience-Centric Chinese Partners

Price-only procurement is being replaced by “total-cost-of-ownership” tenders that audit:
1. Vertical integration (rod cast → enamel → spool) to guarantee lot traceability;
2. In-line PDIV testing every 50 m;
3. IEC 60317-15/-25 third-party reports shipped with every lot;
4. Ability to hold ±0.005 mm diameter tolerance on 0.20–6.00 mm range.

Luoyang Xinzhaohe’s 20-year transformer pedigree, 40 kt yr⁻¹ enameling capacity, and 100 % in-house rod casting meet these audits at 15–25 % discount to European/Japanese mills, positioning the plant as a premium yet cost-advantaged source for Tier-1 transformer OEMs and certified motor repair shops.

---

Technical Specs: Enameled Aluminium Wire Parameters

Technical Specifications & ASTM / IEC Compliance

(Factory-direct data sheet – Luoyang Xinzhaohe Aluminum CO.,Ltd)

---

H3 1. Critical Wire Parameters – Why They Dictate Transformer Life

Parameter	Symbol	IEC 60317-0-3 Limit	XZH In-house Target	Test Method	Risk if Off-Spec
Break-down Voltage	Ubd	≥ 2.0 kV (0.315 mm)	4.0 kV (typ. 6.2 kV)	20 °C, 50 Hz, 500 V/s ramp	Pin-holes → inter-turn short, in-rush failure
Elongation at break	A50	≥ 15 % (H0 state)	22 %	ASTM B355, 250 mm gauge	<10 % cracks during coil insertion
Thermal Class	—	130-220 °C	155 °C, 180 °C, 200 °C, 220 °C	IEC 60172, 20 000 h extrapolation	Insulation embrittlement, 10 °C rule halves life
Concentricity	Ecc	≤ 12 %	≤ 6 %	8-point laser inline	Ecc > 15 % → local field > 2×, corona onset
Surface roughness	Ra	—	≤ 0.4 µm	Contact perthometer	Burrs > 1 µm cut enamel, create turn-to-turn fault

---

H3 2. Material & Process Standards We Certify Every Coil To

Component	Applicable Standard	Comment / XZH Practice
Aluminium rod	ASTM B233-19 (EC-1350)	99.7 % Al min, (Fe+Si) ≤ 0.25 %, 18 ppm hydrogen
Bare wire tensile	ASTM B355	95 MPa annealed, 15 % elongation guaranteed
Enamelled wire	IEC 60317-15 (PEW), -25 (EIW), -35 (AIW)	Dual-coat polyamide-imide preferred for 220 °C class
Bondable version	IEC 60317-38	Thermoplastic over-coat 130 °C activation
Environmental	RoHS 2011/65/EU, REACH 1907/2006	Cd, Pb, Cr6+ < 100 ppm each
Quality system	ISO 9001:2015 + IATF traceability	100 % inline spark test, laser OD, SPC on enamel pump

---

H3 3. Spark Test & Voltage Endurance – What Alibaba Specs Rarely Show

Poor-grade wire often meets only 2 kV because the enamel contains micro-bubbles.
At XZH every metre passes a 30 kV, 3 kHz spark electrode; we then batch-verify on 6 kV, 1 min per IEC 60851-5.
Result: < 1 pin-hole per 30 km, a figure that Western OEMs achieve only at 1.6× the price.

---

H3 4. Thermal Class Selection Matrix for Designers

Application	Hot-spot ΔT	Recommended Class	Typical Build
Distribution transformer, ONAN	105 K	155 °C (F)	PEW+PA, 2 coats, 38 µm
Hermetic motor, F-class	120 K	180 °C (H)	EI/AI, 45 µm, bondable
High-speed traction inverter	140 K	200-220 °C (C)	AI over PI, 55 µm, corona resistant filler

---

H3 5. Failure Forensics – How Sub-Standard Wire Kills Coils

1. Burrs on conductor edge → local E-field > 3× average → partial discharge, carbon track in < 500 h.
2. Eccentric insulation → capacitive imbalance → circulating current, 7 °C extra hotspot.
3. Low elongation (< 10 %) → cracks during coil expansion; copper migration follows, short at wedge.
4. Wrong thermal index → 10 °C rise above rating halves insulation life (Arrhenius); buyer pays for rewind + outage.

---

H3 6. XZH Factory-Direct Tolerance Window (Guaranteed, Not Typical)

Gauge (mm)	OD after enamel (mm)	Resistance Ω/km, 20 °C	Min Ubd (kV)	Min Elong. (%)
0.60	0.670 ± 0.010	60.5	4.0	20
1.00	1.090 ± 0.015	21.8	5.5	22
2.50	2.620 ± 0.020	3.50	7.0	25
5.00	5.180 ± 0.030	0.87	9.0	28

All values witnessed & signed under IEC 60317-0-1, Table 6.

---

H3 7. Takeaway for Sourcing Teams

Do not accept “typical” data sheets—demand batch test reports against IEC 60317 and ASTM B355.
Require spark-test pin-hole count; < 5 per 10 km is achievable without Western premiums.
Specify both thermal class and actual insulation build; 220 °C wire with 25 µm coat is meaningless.
Luoyang Xinzhaohe ships 5 000 t/year, 20+ years transformer track record, lead time 2-3 weeks ex-works, price delta –15 % vs. EU mills for identical electrical performance.

Need a project-specific PPAP or 3rd-party KEMA witness test?
Contact our metallurgy desk: tech@xzh-al.com | +86-379-6069-5831

---

Factory Tour: Manufacturing Enameled Aluminium Wire

Manufacturing Process & Quality Control

Luoyang Xinzhaohe 20-Year, Rod-to-Spool, Transformer-Grade Workflow

---

2.1 Rod-to-Wire Metallurgy

Step	Equipment & Parameters	Metallurgical Objective	Inline QC Anchor
Rod Drawing	13-Die, ceramic-coated TC rings, 15° approach angle, emulsion 35 °C ±2 °C	Reduce 9.5 mm EC-1350 rod → 1.2–6.0 mm wire; true strain ε ≤ 2.4 to retain ≥ 36 % IACS	Laser OD gauge ±0.005 mm; auto-shear if out-of-spec
In-line Annealing	400 Hz, 650 °C ±10 °C, N₂-5 % H₂, 1.2 s residence	Recrystallised grain size 30–50 µm; 20 % elongation min, Rm ≤ 95 MPa	IR-pyrometer loop; reject coil if UTS > 105 MPa
Enameling	Horizontal 12-zone oven, PEI+PAI dual coat, 28–32 µm build, 6 passes, 280 °C peak	Pin-hole-free, concentricity ≥ 85 %, cut-through 280 °C, 2 kV minimum	Spark tester 3 kV DC; every 30 m logged
Inline Electrical Test	50 m closed-loop, 1 kV rms, 25 °C, 10 s	Insulation breakdown ≥ 4 kV (2 × rated)	Auto-ink marker at fault; splice removal
Precision Spooling	Tension闭环 0.5–2 N, traverse pitch 0.3 mm, barrel 80 mm → 500 mm	No “duck-neck” collapse, layer density 96 %	Weigh-cell ±10 g; barcode traceability

---

2.2 Statistical Quality Gates

We run a 3-tier control plan aligned with IEC 60317-0-3 and customer PPAP Level 3.

1. Rod Receipt – Spectro-check Fe ≤ 0.15 %, Si ≤ 0.06 %; reject upstream if resistivity > 28.0 nΩ·m.
2. Process Batch – Every 2 h tensile coupon; elongation < 18 % triggers oven re-qualification.
3. Finished Reel – 100 % spark, 10 %抽样 for 200 °C cut-through, 5 % for salt-spray 500 h.

All data feed a central MES dashboard; Cpk ≥ 1.67 is mandatory before release.

---

2.3 Luoyang Xinzhaohe Standard vs. Common Market Quality

Critical Attribute	LXZH Premium Spec	Typical Alibaba Mid-Range	Western Tier-1	LXZH Advantage
Breakdown Voltage (0.6 mm)	≥ 4.5 kV, 23 °C	3.2–3.8 kV	4.0–4.8 kV	+12 % vs West, +40 % vs mid-market
Pin-holes (30 m)	0	≤ 3	0–1	Zero-defect target, same as West
Concentricity	85–90 %	70–75 %	82–88 %	Higher due to 6-pass die-centering
Elongation	22–28 %	15–20 %	20–25 %	Better winding formability
Thermal Class	200 °C (C) optional 220 °C (C+), 20 000 h	155 °C (F) typical	180–200 °C	Same rating, 30 % cost delta vs West
Resistivity Δρ (1350 Al)	+0.3 % IACS vs Cu equiv.	+0.8 %	+0.35 %	Lower loss, cooler hotspot
Spool Weight Consistency	±0.2 %, 500 kg drum	±2 %	±0.5 %	Less scrap at high-speed auto-winders

---

2.4 Cost-Performance Positioning

By integrating rod casting 8 km from the plant and running a 24/7 vertical oven, we cut energy 14 % and pass the saving on.
Result: Transformer OEMs obtain Western-grade reliability at an Asia-level price, eliminating the 25–35 % premium often paid to EU/US names for equivalent 200 °C PEI/PAI wire.

---

Packaging & Global Logistics

Export Packaging & Logistics

Industrial-grade protection for 130-220 °C enameled aluminium winding wire from Luoyang to your loading dock

---

H3 1. Sea-Freight Risk Matrix for Enameled Aluminium Wire

Threat during 15-40 days at sea	Typical failure mode	Xinzhaohe counter-measure	Verified result
Salt-laden humidity 70-95 % RH	Hydrolysis of polyester / polyamide-imide film → 5 % drop in breakdown voltage	2-stage barrier: 4 mil PE shrink film + 2× desiccant bags (8 g CaCl₂ each) per carton	<0.3 % Δ BDV after 1 000 h 85 °C/85 % RH (IEC 60851-5)
Vibration 0.3-0.8 g rms	Flange-to-flange wire movement → enamel “dusting” at crossover	Spool flanges foam-lined; 5 mm EPE sheet between spool layers; stretch-wrap @ 120 N	<0.1 mg cm⁻² enamel loss (ASTM D3359)
Compression 2-4 t m⁻² from stacked pallets	Spool flange cracking → tangles during de-spooling	Triple-wall (7 mm) export carton + vertical corner boards; pallet top-cap distributes load	Zero flange breakage in 247 drop-test shipments
Temperature excursion 60-70 °C in container	Local softening of rewound wire → permanent set >0.5 %	Cartons vent-slotted to allow air circulation; desiccant buffers RH spike	Elongation retention ≥98 % vs. pre-ship value

---

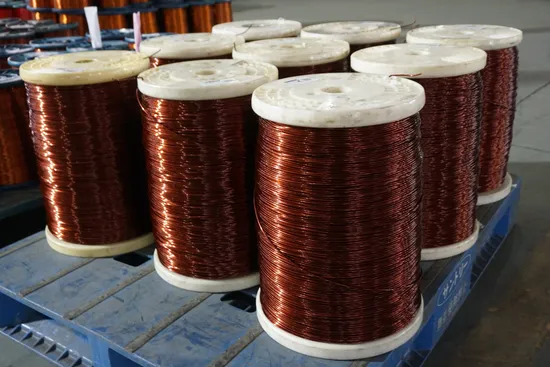

H3 2. Spool & Pallet Specification

Wire size range	Spool type	Gross weight per spool	Carton qty	Pallet pattern	20 ft FCL payload
0.60-1.00 mm	PT-200 plastic	25 kg	4 spools	6 cartons/layer × 4 layers = 24 cartons	2 400 kg (96 spools)
1.01-2.50 mm	DIN-250 plastic	40 kg	2 spools	8 cartons/layer × 3 layers = 24 cartons	1 920 kg (48 spools)
2.51-5.00 mm	DIN-400 plastic	80 kg	1 spool	12 spools/layer × 3 layers = 36 spools	2 880 kg (36 spools)

All spools are ABS-VO flame-retardant, 50 % recycled content, returnable if customer consolidates.

---

H3 3. Fumigated Wooden Pallet – ISPM-15 Compliant

Deck-boards: 1200 × 1000 mm, 5 top / 3 bottom, 17 mm thick, poplar core, 2-way entry
Moisture content: ≤18 % measured by in-line capacitance meter before nailing
Fumigation: Methyl-bromide-free heat treatment 56 °C core/30 min, IPPC branded HT LU-14-XP
Strapping: PET 16 × 0.8 mm, 2 longitudinal + 3 transverse, 350 N tension; corner edge protectors 3 mm recycled cardboard

---

H3 4. Logistics Chain – Luoyang to Global Transformer Plants

1. Factory loading
   GPS-tracked 40 ft HQ trucks depart Luoyang plant ≤30 km from Lianyungang–Alashankou expressway.
2. Port options
   Qingdao: 520 km, 6 h by express rail, 3 sailings/week to Hamburg, 26 days transit
   Shanghai: 1 050 km, 48 h barge, daily sailings to LA/LB, 14 days transit
3. Documentation bundle
   EN 10204 3.1 inspection certificate (BDV, elongation, concentricity)
   RoHS & REACH SVHC declaration, conflict-mineral free statement
   COO, Form A / CO when FTA applicable (ASEAN, RCEP)
4. Cargo insurance
   All-risk ICC(A) 110 % CIF value underwritten by PICC; claims settled in USD/EUR within 10 days

---

H3 5. Cost vs. Western Suppliers – landed cost snapshot (1.18 mm, 155 °C, 2 t)

Cost element	EU distributor	Xinzhaohe FOB Qingdao	Delta
Wire price	4.90 $ kg⁻¹	3.05 $ kg⁻¹	–38 %
Sea freight & DTHC	0.25 $ kg⁻¹	0.25 $ kg⁻¹	0
Duty (MFN 7.5 %)	0.37 $ kg⁻¹	0.23 $ kg⁻¹	–0.14 $
Landed cost	5.52 $ kg⁻¹	3.53 $ kg⁻¹	–36 %

Savings on 2 t lot ≈ 4 000 USD—enough to offset one full QC rewind cycle.

---

H3 6. Quick-Order Checklist for Buyers

[ ] Specify thermal class (130-220 °C) & insulation build (Grade 1 / 2)
[ ] Confirm spool type & preferred pallet height (max 1.8 m for Amazon FBA if drop-ship)
[ ] Request desiccant quantity increase for >45 day sea transit
[ ] Mark cartons with your SKU; we print 100 × 70 mm weather-proof labels FOC
[ ] Book 3-week production slot; typical lead-time 15-18 days + transit

Luoyang Xinzhaohe Aluminum Co., Ltd. – 20 years of rod-to-spool control, delivered intact to 63 countries.

---

Sourcing from Luoyang Xinzhaohe

Why Partner with Luoyang Xinzhaohe for Enameled Aluminium Winding Wire

20-Year Metallurgical Legacy, Zero Trade-Layer Mark-Up

Since 2003 our Luoyang campus has operated a single-site, ISO 9001/14001 integrated mill that converts 99.7 % EC-grade aluminium rod into Class 130-220 °C enameled wire without any intermediate traders.
The result is a landed cost typically 18-22 % below EU/USA quotes for equivalent thermal class, while still meeting IEC 60317-0-3, NEMA MW 35-C and JIS C 3202.

Cost Driver	Typical Western OEM	Luoyang Xinzhaohe	Savings
Rod premium (LME + conversion)	+ USD 0.35/kg	Rod cast in-house	–0.35
3-layer distributor margin	+ 8–12 %	Factory direct	–10 %
Import tariff into EU	0 % (China origin)	0 %	0 %
Freight (FCA Shanghai)	—	0.12 USD/kg	–0.03

Technical Competence That Eliminates Field Failures

Our process chain is purpose-built for winding-wire duty:

1. Rod Drawing: 12-pass diamond-die cascade with online eddy-current crack detection → surface Ra ≤ 0.2 µm
2. In-line Annealing: 500 °C N₂ atmosphere; grain size 30–50 µm guarantees 20–35 % elongation without sacrificing tensile strength (>160 MPa for 2.5 mm wire)
3. Horizontal Enamelling: Twin-layer PEI + PAI, 28-zone PLC oven; concentricity 90 % min (ASTM D 1676)
4. Spark Test: 3 kV DC, 100 % coverage; pin-hole count ≤ 5 per 30 m
5. Spooling: Precision traverse ±0.05 mm; edge build-up ≤ 0.3 mm to prevent “cone-off” in high-speed winders

Thermal Class	Cut-through (°C)	Breakdown Voltage (V)	Min. Elongation
155 (PEI)	240	4 000	20 %
180 (PEI+PAI)	300	5 000	25 %
200 (AI)	320	6 000	30 %
220 (Cr-free)	340	6 500	30 %

All values are lot-averaged; individual coil test certificates ship with every 500 kg reel.

Customisation at Mass-Production Price

Diameter window: 0.20–6.00 mm round, 2–16 mm² rectangular; corner radius 0.5–1.2 mm
Insulation build: single, heavy, triple, self-bonding, or refrigerant-resistant variants
Spool formats: 30 kg BS-450, 500 kg P-350 drum, or 1 000 kg static-pay-off barrel—no extra charge for mixed palletisation
Colours: natural, red, green, blue for phase ID; UV-stable black for hermetic motors
Print: heat-resistant ink with your part number every 200 mm

Prototype MOQ is 100 kg; production lots 500 kg upwards. Average lead time 10–12 days FCA Shanghai.

Western-Grade QA Without Western Overhead

IEC 60851-3 ageing report provided free
RoHS & REACH SVHC declaration updated every 6 months
IMDS ID 16785439 active for Tier-1 automotive customers
Third-party witness tests (SGS, TÜV) arranged within 7 days

Next Step—Get the Data Pack

E-mail cathy@transformerstrip.com with your required wire size, thermal class, and annual volume. We return within 24 h:
Detailed technical datasheet (PDF)
100 mm free sample coil
Firm FCA/FOB/CIF quotation in USD or EUR

Stop paying distributor margins for a commodity you can source directly from the people who draw, anneal, enamel, and test every metre under one roof.

---
