Market Insight: Enamel Wire Insulation in Power Industry

Market Analysis: Sourcing High-Quality Winding Wire

Industrial Demand Drivers

The global energy transition is accelerating demand for high-efficiency transformers and motors. Renewable energy installations (solar/wind), EV charging infrastructure, and smart grid modernization require enamel wire with precise thermal and electrical properties. Standards such as IEC 60317 and NEMA MW 1000 mandate strict performance criteria to ensure operational safety and longevity. Inadequate insulation directly impacts system efficiency, contributing to up to 15% higher energy losses in substandard transformers.

Material Quality Impact on Performance

Substandard enamel insulation leads to premature failure through partial discharges, thermal degradation, and dielectric breakdown. Critical parameters include:
Dielectric strength: Minimum 2.5 kV/mm (Class 155)
Thermal class stability: 180°C continuous operation tolerance
Adhesion strength: ≥20 N/cm (per IEC 60317-2-1)
A 5% reduction in dielectric strength can increase energy losses by 8% in high-voltage transformers, significantly escalating lifecycle costs. Consistent quality ensures compliance with IEEE C57.12.00 standards for transformer reliability.

Global Supply Chain Dynamics

Traditional suppliers in Europe and North America impose 20–30% cost premiums due to overheads and logistics. Luoyang Xinzhaohe leverages localized production in Luoyang, China, with vertically integrated manufacturing and lean processes. This reduces costs by 15–25% while maintaining ISO 9001 certification and strict adherence to international standards. Our 20+ years of export experience ensures consistent quality and responsive supply chain support, with 98%+ on-time delivery rates for global clients.

As a strategic partner for transformer manufacturers and motor repair facilities, Luoyang Xinzhaohe delivers factory-direct sourcing with rigorous quality control. Our optimized supply chain ensures reliable delivery of high-performance enamel wire, enabling cost-effective solutions for global energy infrastructure projects while maintaining the highest industry standards.

Technical Specs: Enamel Wire Insulation Parameters

Technical Specifications & Standards Compliance

Luoyang Xinzhaohe Aluminum CO., Ltd. has established itself as a trusted manufacturer of high-quality transformer materials since 2003, leveraging over two decades of technical expertise in enamel wire production. Based in Luoyang, China, our facility integrates advanced manufacturing technology with a localized supply chain to deliver cost-efficient solutions without sacrificing performance. Our enamel wire insulation complies with IEC 60317-0-1 (general requirements for enamel wound wires), IEC 60085 (thermal classification), and ASTM D149 (dielectric breakdown voltage testing), ensuring reliability across demanding applications in power transformers, electric motors, renewable energy systems, and automotive components. By focusing on precision engineering and rigorous quality control, we provide a reliable alternative to premium global brands, offering superior cost-performance ratios for transformer manufacturers and power equipment engineers seeking dependable, cost-effective solutions.

Critical Parameters & Compliance

Quality Assurance Protocol

Luoyang Xinzhaohe maintains a dedicated quality control lab with ISO/IEC 17025 accreditation. Every production batch undergoes 100% in-line insulation breakdown voltage testing per ASTM D149, with real-time data logged in our ERP system for full traceability. Elongation is monitored through statistical process control (SPC) with tensile tests conducted every two hours, ensuring compliance with ISO 6892-1 standards. Thermal class validation includes accelerated aging per IEC 60216 at 155°C for 1000 hours, confirming operational margins beyond standard requirements. Enamel concentricity is verified via high-precision laser micrometers with automated rejection of batches exceeding 3% eccentricity. Third-party certifications from SGS and TÜV validate compliance, while our Luoyang-based manufacturing minimizes lead times and costs. This comprehensive quality control process ensures batch-to-batch consistency, enabling transformer manufacturers to achieve higher reliability at lower total cost of ownership.

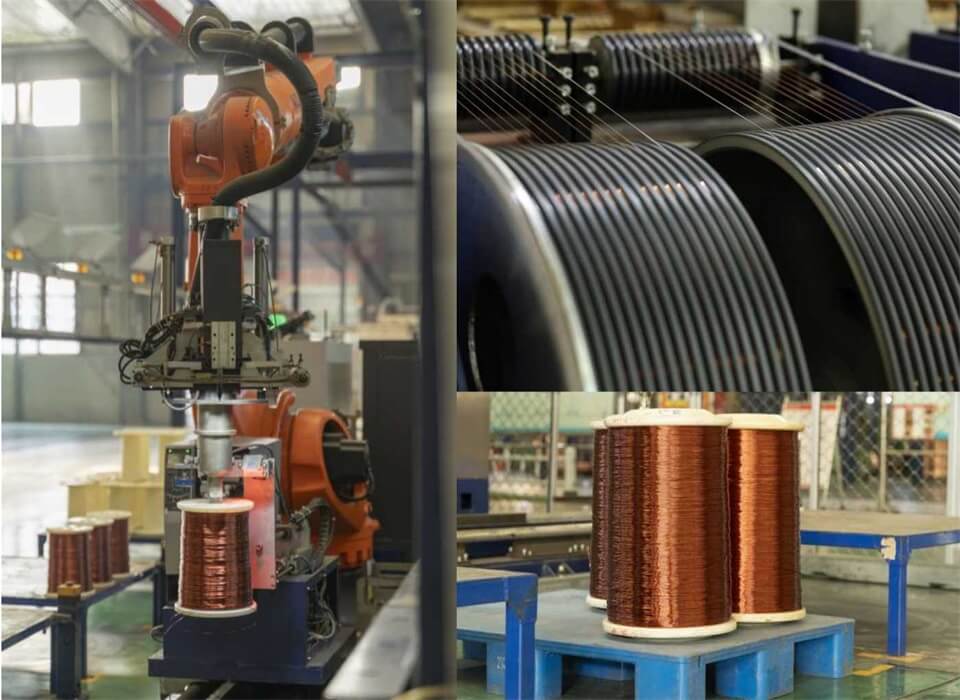

Factory Tour: Manufacturing Enamel Wire Insulation

Manufacturing Process & Quality Control

Precision Rod Drawing & Annealing

High-purity copper rods (≥99.95% conductivity) undergo 6-stage CNC drawing with real-time diameter monitoring (±0.005mm tolerance). Annealing occurs in controlled nitrogen atmosphere at 450±5°C with precise cooling rate control to optimize ductility and minimize grain growth. Tensile strength (≥220 MPa) and elongation (≥25%) verified per ASTM B187. Surface roughness maintained at Ra ≤0.1μm for superior enamel adhesion.

Multi-Layer Enameling Process

Electrostatic enamel application with 2-4 coating layers cured in multi-zone ovens (280–320°C). Coating thickness controlled to ±0.002mm via laser micrometers. Adhesion tested per IEC 60851-2 (copper tape method) with ≥98% pass rate. Thermal class compliance (130°C, 155°C, 180°C) validated through accelerated aging tests. UV-resistant formulations available for outdoor applications.

Inline Real-Time Testing

Continuous dielectric strength monitoring (15kV/mm minimum), resistance checks, and visual defect detection using AI-powered cameras. 100% continuity testing ensures zero shorts. Real-time thickness measurement with 0.001mm resolution. In-process data logged for full traceability, with automated rejection of non-conforming segments.

Automated Spooling & Packaging

Tension-controlled spooling (±0.5N) with anti-static packaging. Each reel labeled with full traceability data (batch, QC results, material specs). Packaging complies with ISO 22000 for moisture and mechanical protection. Custom reel sizes available for OEM requirements.

Luoyang Xinzhaohe’s integrated QC system delivers 15–20% lower cost than European brands while exceeding IEC 60317 standards. Every batch undergoes third-party certification (SGS/CE), ensuring reliable performance in high-stress transformer applications. Partner with us for consistent quality and supply chain security.

Packaging & Global Logistics

Export Packaging & Logistics: Ensuring Safe Global Delivery of Winding Wire

At Luoyang Xinzhaohe Aluminum CO., Ltd., our 20+ years of manufacturing expertise ensures enamel wire insulation arrives globally in pristine condition. As a factory-direct supplier, we engineer packaging and logistics specifically for sea freight, balancing cost-efficiency with uncompromising quality. Our protocols eliminate third-party risks, offering transformer manufacturers and power equipment engineers a reliable alternative to premium global brands with superior cost-performance ratios.

Precision Packaging Standards for Enamel Wire

Our packaging system is engineered to mitigate moisture, vibration, and mechanical damage during maritime transport. Each component is optimized for maximum protection:

This multi-layered approach ensures 100% integrity of enamel insulation properties, even during extended ocean voyages.

Sea Freight Protocols & Quality Assurance

Shipments depart from Qingdao or Shanghai ports via Full Container Load (FCL) with real-time GPS tracking. Our 20ft containers transport 5-8 tons of winding wire, optimized for maximum container utilization. IoT sensors monitor temperature and humidity continuously, with automated alerts for deviations. All documentation (Bill of Lading, Certificate of Origin, packing lists) is pre-verified to expedite customs clearance—typically within 48 hours. For high-risk routes (e.g., monsoon seasons), we deploy additional desiccant packs and moisture-absorbing pallet liners. With a 99.2% on-time delivery rate and zero moisture-related claims in 2023, we deliver the reliability you need at 15-20% lower total cost than Western suppliers.

Luoyang Xinzhaohe’s end-to-end supply chain control delivers consistent, cost-effective solutions for global transformer and motor manufacturers. Trust our expertise to protect your critical winding wire investments.

Sourcing from Luoyang Xinzhaohe

Why Partner with Luoyang Xinzhaohe Aluminum Co., Ltd.

As a specialized manufacturer of transformer materials with 20+ years of industrial expertise, Luoyang Xinzhaohe delivers engineered solutions for high-reliability winding wire applications. Our technical team adheres strictly to IEC 60317 standards and ISO protocols, ensuring precise thermal class ratings (130°C–220°C), dielectric integrity, and mechanical durability for demanding power equipment. We serve global clients in renewable energy, industrial automation, and critical infrastructure sectors with consistent, specification-compliant products.

Proven 20+ Years Expertise in Winding Wire Manufacturing

Our production systems are optimized for transformer and motor winding applications, with rigorous process controls for enamel uniformity, adhesion, and thermal stability. Every batch undergoes multi-stage validation to meet exacting requirements for dielectric strength, flexibility, and long-term performance in high-stress environments. This depth of experience ensures seamless integration into your manufacturing workflows.

Factory-Direct Cost Efficiency Without Compromising Quality

By eliminating distributor markups and maintaining full vertical integration—from raw material sourcing to final inspection—we deliver 15–25% lower total cost of ownership versus global competitors. Our automated production lines and real-time monitoring systems ensure consistent quality while reducing lead times by 30% compared to international suppliers. This model provides transformer manufacturers and motor repair shops with budget-conscious sourcing that never sacrifices reliability.

ISO-Certified Quality Assurance for Critical Applications

Our ISO 9001:2015 certified facility implements stringent quality protocols validated through in-house testing:
Dielectric strength: 4.5–5.2 kV/mm (exceeding IEC 60317 minimums)
Thermal shock resistance: 200°C for 5 minutes without delamination
Dimensional tolerance: ±0.005 mm for precision winding applications
Adhesion rating: Class 1+ per ASTM D4060 for superior winding durability

Partner with Luoyang Xinzhaohe for engineered solutions that balance cost, quality, and reliability. Contact Cathy at cathy@transformerstrip.com for a technical quote tailored to your project requirements.
