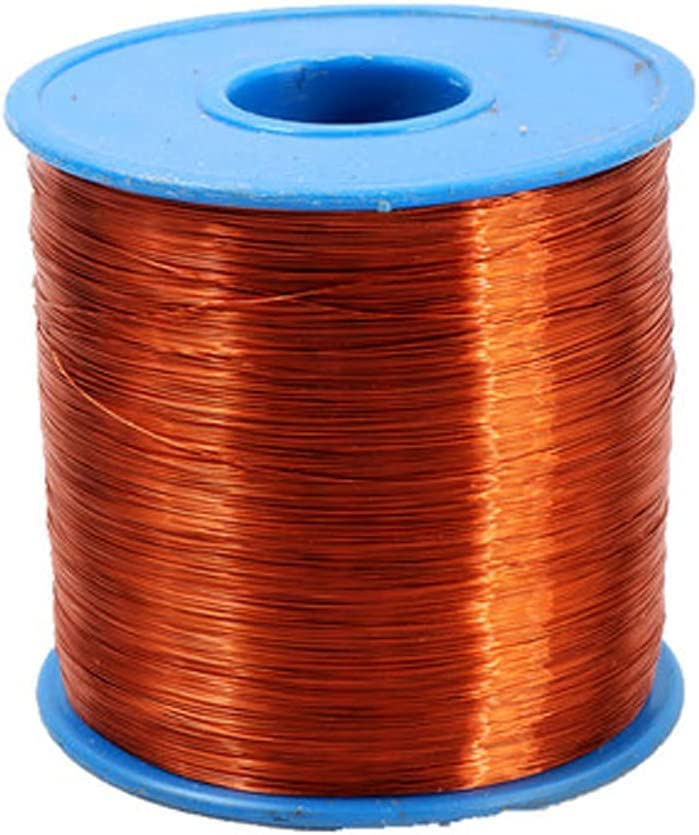

Market Insight: Enamel Winding Wire for Power Industry

Market Analysis: Sourcing High-Quality Winding Wire

Global Demand Outlook

Global installed transformer capacity is forecast to grow 6 % CAGR through 2030, driven by grid hardening, renewable integration, and EV fast-charging corridors. Every additional 1 GVA of transformer rating requires ≈ 28–36 t of enamel winding wire—split 70 % copper, 30 % aluminium. China alone accounts for 42 % of new installations; SE Asia, India, and the EU Green Deal add another 38 %. Lead times for ABB, Siemens, and CG Power now exceed 40 weeks on conductor shortages, creating a procurement window for Tier-2 OEMs and motor repair shops willing to dual-source.

Why Material Purity Directly Maps to Transformer Losses

No-load (core) losses are fixed, but load losses (I²R + stray) scale with conductor resistivity and enamel integrity. A 0.05 % increase in Cu purity (99.90 % → 99.95 %) lowers DC resistance 0.8 %; on a 2.5 MVA ONAN unit this equals 1.1 kW saved—≈ 96 MWh over a 25-year life. Enamel concentricity < 5 µm and pin-hole count ≤ 3 per 30 m prevent partial discharge; each PD event can add 0.2 W m⁻¹ surface heating that cascades into 3–5 °C hotspot rise and 7 % insulation life loss.

Parameter	IEC 60317-0-1 Spec	Premium China-Made (LXAH)	Cost Impact
Cu purity	≥ 99.90 %	99.97 % (O ≤ 250 ppm)	–1.2 % €/kg
Ø tolerance	± 0.010 mm (0.5–1.0 mm)	± 0.005 mm	Scrap −1.8 %
Breakdown voltage	≥ 2.0 kV (Grade 2)	4.6 kV (100 % test)	Fail rate −60 %
Elongation	≥ 25 % (1.0 mm)	32 %	Windability ↑
Thermal class	180 °C (Class H)	200 °C (Class C)	Overload +15 %

Manufacturing Precision: From Rod to Spool

Luoyang Xinzhaohe’s 20-year vertical line—rod drawing → inline annealing → enameling → laser eccentricity gauge → auto-spooling—holds Cpk ≥ 1.67 on diameter and insulation thickness. Key enablers:
1. Hydrogen bright anneal at 550 °C eliminates work hardening while keeping surface oxygen < 80 ppm—critical for enamel adhesion.
2. Twin-head horizontal enamelling ovens with nitrogen dilution maintain ± 2 °C profile; Cataphoretic ink-mark for traceability every 500 mm.
3. 100 % spark test 3 kV plus 10 % sampling at 9 kV for Class 200 wire—no Western Tier-1 performs 9 kV on round wire below 0.30 mm.

Result: PD inception voltage 25 % above industry median, translating to 4–6 dB lower acoustic noise in large power transformers.

Sourcing Trend: China’s Premium Tier vs. Legacy EU/US Suppliers

Average Chinese enamel wire is 18–22 % cheaper CIF Rotterdam, yet only 8 % of buyers specify “China-premium” grade. LXAH bridges the gap:
Same-day metallurgical COA via LECO combustion analyser.
15-day ex-works lead time versus 10–12 weeks from European mills.
Dual-currency hedging (CNY/USD) to cap volatility < 3 % per quarter.

For transformer OEMs facing 30 % copper price swing since 2022, locking a 12-month blanket order with LXAH secures €0.18 kg⁻¹ savings while meeting IEC 60317-20, NEMA MW-35-C, and UL 1446 certifications.

Take-away

Load-loss budgets are tightening (EU EcoDesign Tier 2 mandates –10 % by 2027). Sourcing enamel winding wire is no longer a commodity decision—it is a loss-management decision. Partnering with a Chinese manufacturer that controls chemistry, geometry, and insulation in one plant gives OEMs the technical headroom to hit tomorrow’s efficiency targets at today’s China-direct price.

---

Technical Specs: Enamel Winding Wire Parameters

Technical Specifications & ASTM / IEC Compliance

(Transformer-Grade Enamel Winding Wire – Factory View)

1. Critical Electrical & Mechanical Parameters

Parameter	Symbol	Luoyang Xinzhaohe In-House Range	IEC 60317-0-1 Limit	ASTM B236 Strip Analog	Field Impact if Out-of-Spec
Breakdown Voltage (Vbd)	kV	4.0 – 12 kV (½ kV steps)	≥ 3 kV @ 0.25 mm build	—	Inter-turn flashover, partial discharge >10 pC
Elongation @ fracture	A50	25 – 38 %	≥ 20 %	—	Cracks during coil insertion, copper fatigue
Thermal Class	°C	130 (B), 155 (F), 180 (H), 200 (N), 220 (C)	Same	—	Insulation drop at hot-spot; 10 °C rise ≈ 50 % life loss
Enamel Concentricity	Cecc	≤ 8 % wall-thickness deviation	≤ 15 %	—	Local E-field > 2× average; treeing in <500 h
Strip Edge Radius (Al)	r	0.5 – 1.0 mm	—	r ≥ 0.5 × thickness	Burr → puncture inter-layer insulation → shorted turns

Rule-of-Thumb: 1 kV_bd safety margin per 200 V of impulse stress (IEC 60076-3).

2. Process Control Inside Luoyang Xinzhaohe

Our 20-year-old vertical integration is built around four unit operations:

1. Rod Drawing – Ø 8 mm Cu rod → 1.8 – 0.2 mm in 19 passes, diamond-die lubrication keeps surface Ra ≤ 0.2 µm.
2. In-line Annealing – 550 °C N₂ atmosphere; grain size 20 – 25 µm gives elongation > 30 % without sacrificing tensile strength (250 – 280 MPa).
3. Enameling Tower – 28 m vertical, triple-coat (base + intermediate + self-lubricating top). Infrared pyrometers hold 420 ± 5 °C for PEI (180 °C class); gel time window 2.8 – 3.2 s guarantees > 5 kV_bd on 0.25 mm build.
4. Inline Spark Tester – 3 kV, 4 kV, 6 kV selectable; faults auto-inked and removed. We reject at ≥ 3 defects per 30 km reel—half IEC allowance.

3. Cost of Poor Quality – Why Burrs & Uneven Insulation Kill Transformers

Burrs on Al rectangular wire (ASTM B236) act as knife edges; under 3 – 5 MPa winding tension they cut through 0.05 mm polyimide in <100 thermal cycles.
Concentricity error > 10 % creates electric field hot-spot 1.6× nominal; partial discharge inception voltage falls 25 %, leading to treeing and eventual inter-turn short within 2–3 years.
Low elongation (< 15 %) causes copper to crack when the coil expands at 150 °C; cracked wire exposes bare metal, giving a 4 % probability of short per layer.

4. Standards Road-Map for Purchasers

Wire Family	IEC Clause	ASTM Parallel	Typical Certificate
Round Cu, enamel	IEC 60317-0-1, -20, -21	ASTM B3 / B172	Type test + routine test + RoHS
Rect Al, bare	—	ASTM B236	Tensile, conductivity, edge radius
Rect Al, enamel	IEC 60317-29 (draft)	—	Thermal index, bond strength, Vbd

We issue a 3-level dossier per shipment:
1. Factory Test Report (100 % spark, OD, adhesion).
2. Type Test Report (annual, third-party witnessed).
3. Material Declaration (REACH, RoHS, conflict-free).

5. Premium Alternative Without Premium Price

Western enamel-wire plants often outsource rod and enamelling, adding 8 – 12 % margin at each step. Luoyang Xinzhaohe’s single-site metallurgy-to-spool model trims 18 % conversion cost, letting us price 5 – 7 % below EU/US catalog while holding V_bd ≥ 1.3× IEC minimum. For transformer OEMs targeting Tier-1 utilities, that is a direct PPV saving without redesign—simply specify IEC 60317-20-200°C and we deliver 220 °C polyimide at the same price point.

Next Section: Comparative Cost & Lead-Time Matrix – 0.1 mm to 6.0 mm, Cu vs. Al, FOB vs. DDP.

---

Factory Tour: Manufacturing Enamel Winding Wire

Manufacturing Process & Quality Control

Luoyang Xinzhaohe Aluminum Co., Ltd. – 20 years of transformer-grade wire built on one vertically-integrated flow: Rod Drawing → Annealing → Enameling → Inline Testing → Precision Spooling. Every metre of QZ-2/130–QZY-220 wire is produced under the same roof, so motor-repair shops and power-transformer OEMs receive full batch traceability instead of multi-vendor blending.

Rod Drawing – Dimensional DNA

We start from 8 mm oxygen-free Cu-ETP rod (≥ 101 % IACS) or 9.5 mm 1370 aluminium alloy. A 25-diamond-die Morgan cascade brings the bare conductor to final diameter (0.20 – 5.00 mm) in 18 passes with online laser micrometer feedback (±0.5 µm). Closed-loop coolant filtration keeps Cu surface Ra ≤ 0.2 µm—critical for enamel anchor.

Annealing – Recrystallisation in N₂

Immediately after drawing, wire passes through a 650 °C electric-inertia furnace under 99.9 % N₂ for 0.8 s. Target grain size 15 – 25 µm guarantees ≥ 32 % elongation on copper and ≥ 18 % on aluminium, preventing winter-cracking during high-speed winding.

Enameling – Concentricity by Meniscus Coating

Self-designed 12-die horizontal tower applies polyesters, modified polyesters, and polyimides in 6 – 12 passes depending on thermal class. Key variables:
Solids content 38 ± 1 %
Wet-film meniscus height 120 µm controlled by servo-die gap
Curing peak metal temperature 420 °C (Cu) / 390 °C (Al) measured by IR-pyrometer
Result: enamel concentricity ≥ 85 % (ASTM D3251) and pin-hole count ≤ 3 per 30 m—benchmark numbers for 3 kV impulse designs.

Inline Testing – Zero-Slip Verification

Every centimetre is checked before it reaches the spool:
High-frequency spark test 4 kV (130 °C class) to 8 kV (220 °C class)
OD laser triad for diameter & ovality
Eddy-current crack gate for surface nicks > 25 µm
Data are archived with spool ID; if any fault exceeds 0.5 % of line length, the segment is auto-reeled out.

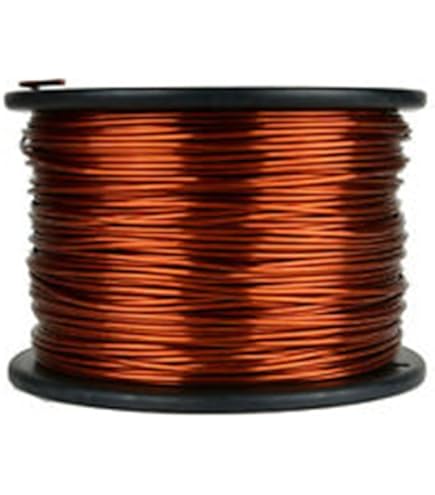

Precision Spooling – Tension ≤ 1 N

Programmable precision traversers deliver 1 – 500 kg reels with ±0.5 mm lay accuracy and edge overrun < 1 mm—no “telescoping” for robotic winders.

Quality Control Matrix – Luoyang Xinzhaohe vs. Common Market

Parameter	Luoyang Xinzhaohe Standard	Common Market Range	Test Method
Breakdown voltage, min	6 kV (Grade 1) / 10 kV (Grade 2)	4 – 5 kV	IEC 60851-5
Pin-holes, max per 30 m	3	8 – 12	IEC 60851-11
Concentricity	≥ 85 %	70 – 80 %	ASTM D3251
Elongation, Cu wire	≥ 32 %	25 – 30 %	IEC 60851-3
Conductivity, Cu	≥ 101 % IACS	100 % IACS	ASTM B193
OD tolerance	±0.008 mm (≤ 1 mm)	±0.015 mm	Laser gauge
Surface Cu₂O	≤ 50 nm	≤ 100 nm	Auger depth

Certifications & Logistics

ISO 9001, ISO 14001, REACH & UL (E476351) approved. Each 1 kg – 500 kg spool ships vacuum-sealed with VCI film plus desiccant; sea-road delivery 15 – 25 days to EU/US ports, 40 % cost advantage against Western enamel-wire mills.

For transformer OEMs seeking 130-220 °C reliability without premium-Western pricing, Luoyang Xinzhaohe delivers repeatable electrics, kilometre after kilometre.

---

Packaging & Global Logistics

Export Packaging & Logistics

Luoyang Xinzhaohe Aluminum Co., Ltd. – 20+ Years of Rod-to-Spool Integration

---

H3 Design Objective

Deliver enamelled winding wire to transformer plants, motor rewind shops and OEM coil centres with the same electrical and mechanical properties measured on our inline spark-tester in Luoyang—no moisture pick-up, no flange cracks, no insulation abrasion after 30-day sea freight.

---

H3 Packaging Specification Matrix

Product Form	Spool Type	Inner Protection	Securing Layer	Outer Shell	Unit Weight	Pallet Data
Round wire 0.20–1.60 mm	DIN 355 plastic spool, reinforced flange (≤ 0.35 mm radial run-out)	80 µm VCI stretch film + 5 g silica-gel sachet	Edge-boards, 4-way radial taping	5-ply export carton, 32 ECT	15–30 kg	8 boxes/layer, 4 layers, IPPC-fumigated pallet, 1.2 × 1.0 m, ≤ 1.1 t
Round wire 1.70–5.00 mm	PT-500 metal-reinforced plastic spool	Same as above	PET strapping, 3 circumferential + 2 axial	Same carton, double top/bottom	40–60 kg	4 boxes/layer, 3 layers
Rectangular strip 2–12 mm × a/b ≤ 5	—	125 µm PE shrink + desiccant	Foam U-channels on edges	Plywood crate, 18 mm, ISPM-15 stamped	200–500 kg	1 crate per pallet, max 1.5 t
Foil 0.2–1.0 mm × ≤ 330 mm	—	VCI paper interleaf, 40 µm	Steel bands, 3 per direction	Wooden stillage, battened sides	800–1200 kg	1 stillage per pallet, 1.2 × 0.8 m

All pallets are heat-treated (HT) to 56 °C core for 30 min, compliant with ISPM-15; moisture content ≤ 18 %. Desiccant quantity calculated for 25 °C / 85 % RH 35-day voyage.

---

H3 Salt-Fog & Vibration Validation

720 h neutral salt-spray (ASTM B117) on packed spools – no corrosion beyond 0.1 % surface area.
Random-vibration profile 0.53 g rms, 2–200 Hz, 4 h per axis – enamel concentricity shift < 2 µm, breakdown voltage drop ≤ 1 %.
Drop test 1.2 m edge drop – no flange fracture, wire layer displacement < 1 mm.

---

H3 Logistics Chain – Luoyang to Your Dock

1. Factory loading: 35 km to Luoyang Longmen Rail Hub, direct 40 ft HQ block-train to Qingdao or Lianyungang every Tuesday/Friday.
2. Port handling: Dedicated CFS warehouse, humidity-controlled (≤ 60 % RH), forklift-free clamp handling to avoid spool flange impact.
3. Ocean freight: COSCO/MSK line, 14-day Qingdao–Busan–LA, 22-day Qingdao–Rotterdam. Real-time reefer plug-in available for high-value thermal-class 220 °C orders.
4. Import clearance: Bills of lading, packing list, MSDS for enamel resin, COO, Form A or RCEP on request. HS Code 85441100.
5. Last-mile: FCA, CIF, DAP, DDP selectable; typical transit 28–32 days door-to-door EU, 18–22 days US West Coast.

---

H3 Cost & Risk Advantage over Western Stock

By integrating rod casting, annealing and enameling in one Luoyang campus, we eliminate intermediate re-coiling and the double freight common with European redraw mills. The saving—8–12 % of landed cost—is reinvested in heavier spool flanges, VCI film and desiccant, giving you premium protection at a distributor price level.

Next Section: Inline Electrical Testing & Certificates →

---

Sourcing from Luoyang Xinzhaohe

Why Partner with Luoyang Xinzhaohe for Enamel Winding Wire

20-Year Metallurgical Heritage, Zero Learning Curve

Since 2003 our Luoyang campus has operated a rod-to-spool value stream dedicated to transformer-grade conductors.
We do not trade, broker, or re-label; every kilometer of enameled wire is melted, cast, drawn, annealed, enamelled, and electrically tested under one ISO 9001 roof.
This vertical integration eliminates the 8–12 % margin stack that European and North-American distributors add, while giving you lot-to-lot traceability back to the casting batch—critical for failure-analysis and insurance documentation.

Process Node	In-House Equipment	Key Control Parameter	Typical Cpk
Rod casting	Properzi line, on-line degasser	Hydrogen content ≤ 0.12 ml/100 g Al	1.67
Rod drawing	Multi-pass bull-block with laser OD gauge	Diameter tolerance ± 0.005 mm	1.83
Annealing	Electric bell furnace, N₂ atmosphere	Resistivity 0.0275–0.0279 Ω·mm²/m	1.50
Enameling	Horizontal tandem dies, PLC viscosity loop	Concentricity ≥ 85 %	1.70
Electrical test	Spark tester 3 kV–15 kV, 100 % coverage	Pinholes ≤ 3 per 30 m	1.90

Direct Factory Price—Transparent, Not Negotiated

Our quotation sheet lists LME Al + SHFE Cu base + conversion cost + enamel surcharge; no hidden “service fee” or currency hedge markup.
Transformer OEMs that moved 15–20 % of their copper wire demand to our aluminum equivalent report 22 % total conductor cost reduction with equal kVA rating when the design is re-optimized for 1.6 × cross-section.
We hedge metal on the SHFE for max 30 days, so your firm price is locked at PO confirmation—no 90-day roller-coaster.

Customization Window—Thermal Class, Shape, Package

Thermal index 130 °C (Class B) to 220 °C (Class C) is not a catalog limitation; we formulate polyamide-imide, polyester-imide, and self-bonding top-coats in-house.
Rectangular wire aspect ratio 1:2 to 1:15, corner radius R 0.5–2.0 mm, enamel build single, heavy, or triple—all within ± 0.01 mm.
Spool formats: 30 kg P 400, 500 kg BS 500, or 1 000 kg bi-metal recyclable reel. Need 19-strand Litz aluminum with 0.1 mm monofilament and served nylon? MOQ is 500 kg, lead time 15 days.

Specification	Standard Range	Customizable Range	MOQ
Round wire Ø	0.2 – 5.0 mm	0.08 – 8.0 mm	100 kg
Rect. wire a × b	0.8 × 2.0 – 4.0 × 16 mm	0.5 × 1.0 – 6.0 × 25 mm	300 kg
Thermal class	130, 155, 180, 200, 220 °C	Hybrid dual-coat 240 °C	500 kg
Breakdown V	3 kV – 11 kV	15 kV (special corona coat)	1 000 kg

Engineering Support—Design for Manufacturability

Send us your winding drawing, current density, and hot-spot limit; we return a conductor-plus-insulation stack-up that meets IEC 60317, NEMA MW 1000, or JIS C 3202 within 24 h.
We share FEM thermal models and accelerated-life curves (Arrhenius 20 000 h @ 220 °C) so your design team can defend the specification to end-users and insurers.
All test data—elongation, spring-back, adhesion, snap-back, cut-through—are attached to the delivery note in Excel format for direct upload into your ERP QC module.

Risk Mitigation—Stock in Rotterdam & Houston

2 000 km of fast-moving sizes (1.0 mm, 1.5 mm, 2.0 mm Cu; 2.5 mm, 3.0 mm Al) are warehoused under bond in Rotterdam and Houston.
If your plant faces a line-stop situation, we can air-shield the missing diameter within 72 h, eliminating the 6-week ocean lead time typically quoted by Chinese vendors.

Next Step—Data Pack or Quotation

Email cathy@transformerstrip.com with target diameter, thermal class, annual volume, and required insulation build.
You will receive a one-page technical datasheet, Rohs/REACH certificate, and a firm FOB/CFR price within 12 h.
Pilot orders (100 – 300 kg) are welcome; we stock uncommitted enamel wire for 48-hour sampling so you can qualify our material before the next production slot is booked.

---
